NioEventLoop的运行
wakeup
protected void wakeup(boolean inEventLoop) {
// 因为wakeup操作代价较高，避免频繁地调用wakeup，使用cas来减少调用次数
// inEventLoop代表当前是否在eventloop中，如果为true，代表eventloop正在运行，所以不需要wakeup
// wakeUp有延迟生效的特点，如果在调用wakeup的时候，selector并没有因为执行select方法而阻塞，那么这次wakeup会直接使下一次select方法的调用直接返回
if (!inEventLoop && wakenUp.compareAndSet(false, true)) {
selector.wakeup();
}
}
run
一直执行直到eventLoop关闭，每次循环都会执行下面三件事
- Selector.select 等待io事件
- 处理io时间
- 处理普通任务和延时任务
protected void run() {
for (;;) {
try {
// selectStrategy用来控制select行为
//
switch (selectStrategy.calculateStrategy(selectNowSupplier, hasTasks())) {
case SelectStrategy.CONTINUE:
continue;
case SelectStrategy.SELECT:
// 将wakenup标记设置为false,进行阻塞select
select(wakenUp.getAndSet(false));
// 'wakenUp.compareAndSet(false, true)' is always evaluated
// before calling 'selector.wakeup()' to reduce the wake-up
// overhead. (Selector.wakeup() is an expensive operation.)
//
// However, there is a race condition in this approach.
// The race condition is triggered when 'wakenUp' is set to
// true too early.
//
// 'wakenUp' is set to true too early if:
// 1) Selector is waken up between 'wakenUp.set(false)' and
// 'selector.select(...)'. (BAD)
// 2) Selector is waken up between 'selector.select(...)' and
// 'if (wakenUp.get()) { ... }'. (OK)
//
// In the first case, 'wakenUp' is set to true and the
// following 'selector.select(...)' will wake up immediately.
// Until 'wakenUp' is set to false again in the next round,
// 'wakenUp.compareAndSet(false, true)' will fail, and therefore
// any attempt to wake up the Selector will fail, too, causing
// the following 'selector.select(...)' call to block
// unnecessarily.
//
// To fix this problem, we wake up the selector again if wakenUp
// is true immediately after selector.select(...).
// It is inefficient in that it wakes up the selector for both
// the first case (BAD - wake-up required) and the second case
// (OK - no wake-up required).

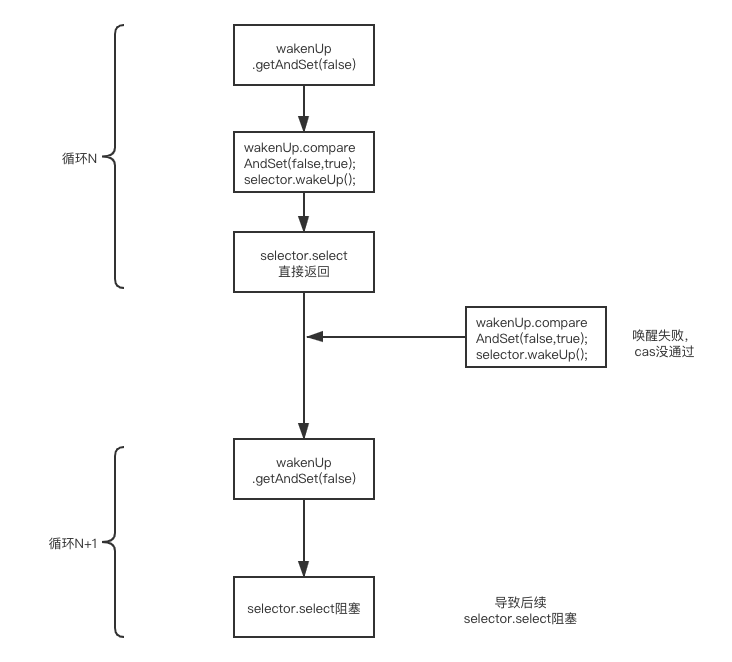

// 看下面的图了解为什么会有这段代码
// 判断是否调用了wakeUp方法
if (wakenUp.get()) {
selector.wakeup();
}
// fall through
default:
}
cancelledKeys = 0;
needsToSelectAgain = false;
final int ioRatio = this.ioRatio;
if (ioRatio == 100) {
try {
// 处理io事件
processSelectedKeys();
} finally {
// 运行普通任务和定时任务，不会限制时间
// Ensure we always run tasks.
runAllTasks();
}
} else {
final long ioStartTime = System.nanoTime();
try {
// 处理io事件
processSelectedKeys();
} finally {
// Ensure we always run tasks.
// 处理io事件的时间
final long ioTime = System.nanoTime() - ioStartTime;
// 运行普通任务和定时任务，会限制时间
// 使用处理io事件的时间来计算执行普通任务和定时任务的时间
runAllTasks(ioTime * (100 - ioRatio) / ioRatio);
}
}
} catch (Throwable t) {
handleLoopException(t);
}
// Always handle shutdown even if the loop processing threw an exception.
try {
if (isShuttingDown()) {
closeAll();
if (confirmShutdown()) {
return;
}
}
} catch (Throwable t) {
handleLoopException(t);
}
}
}
SelectStrategy
SelectStategy用来控制select的行为
public interface SelectStrategy {
/**
* Indicates a blocking select should follow.
*/
int SELECT = -1;
/**
* Indicates the IO loop should be retried, no blocking select to follow directly.
*/
int CONTINUE = -2;
/**
* The {@link SelectStrategy} can be used to steer the outcome of a potential select
* call.
*
* @param selectSupplier The supplier with the result of a select result.
* @param hasTasks true if tasks are waiting to be processed.
* @return {@link #SELECT} if the next step should be blocking select {@link #CONTINUE} if
* the next step should be to not select but rather jump back to the IO loop and try
* again. Any value >= 0 is treated as an indicator that work needs to be done.
*/
int calculateStrategy(IntSupplier selectSupplier, boolean hasTasks) throws Exception;
}
主要方法是calculateStrategy，返回值是SELECT或者CONTINUE
- SELECT表示进行阻塞select
- CONTINUE代表重试
- 其他值，跳过select阶段，处理io事件
Netty默认提供的是DefaultSelectStrategy
final class DefaultSelectStrategy implements SelectStrategy {
static final SelectStrategy INSTANCE = new DefaultSelectStrategy();
private DefaultSelectStrategy() { }
@Override
public int calculateStrategy(IntSupplier selectSupplier, boolean hasTasks) throws Exception {
// 如果当前有任务，返回selectSupplier.get的值
// 没有任务，返回SELECT，执行selector.select
return hasTasks ? selectSupplier.get() : SelectStrategy.SELECT;
}
}
NioEventLoop默认使用的IntSupplier代码如下
private final IntSupplier selectNowSupplier = new IntSupplier() {
@Override
public int get() throws Exception {
// 调用NioEventLoop的selectNow方法，返回当前已经就绪的事件个数
return selectNow();
}
};
selectNow
int selectNow() throws IOException {
try {
return selector.selectNow();
} finally {
// restore wakeup state if needed
if (wakenUp.get()) {
selector.wakeup();
}
}
}
select
private void select(boolean oldWakenUp) throws IOException {
Selector selector = this.selector;
try {
// 用来记录连续空循环的次数，当连续空循环的次数达到阈值时，为了避免cpu100%，创建新的selector
int selectCnt = 0;
long currentTimeNanos = System.nanoTime();
// 定时任务的截止时间
long selectDeadLineNanos = currentTimeNanos + delayNanos(currentTimeNanos);
for (;;) {
// <1> 计算select剩余时间，判断定时任务的截止时间是否快到了
long timeoutMillis = (selectDeadLineNanos - currentTimeNanos + 500000L) / 1000000L;
// 已经到达结束时间，跳出循环
if (timeoutMillis <= 0) {
// 第一次循环，无阻塞selectNow
if (selectCnt == 0) {
selector.selectNow();
selectCnt = 1;
}
break;
}
// If a task was submitted when wakenUp value was true, the task didn't get a chance to call
// Selector#wakeup. So we need to check task queue again before executing select operation.
// If we don't, the task might be pended until select operation was timed out.
// It might be pended until idle timeout if IdleStateHandler existed in pipeline.
// <2> 轮询过程中有新的任务，中断循环
if (hasTasks() && wakenUp.compareAndSet(false, true)) {
selector.selectNow();
selectCnt = 1;
break;
}
// <3> 执行阻塞select，
int selectedKeys = selector.select(timeoutMillis);
selectCnt ++;
if (selectedKeys != 0 || oldWakenUp || wakenUp.get() || hasTasks() || hasScheduledTasks()) {
// - Selected something,
// - waken up by user, or
// - the task queue has a pending task.
// - a scheduled task is ready for processing
break;
}
if (Thread.interrupted()) {
// Thread was interrupted so reset selected keys and break so we not run into a busy loop.
// As this is most likely a bug in the handler of the user or it's client library we will
// also log it.
//
// See https://github.com/netty/netty/issues/2426
if (logger.isDebugEnabled()) {
logger.debug("Selector.select() returned prematurely because " +
"Thread.currentThread().interrupt() was called. Use " +
"NioEventLoop.shutdownGracefully() to shutdown the NioEventLoop.");
}
selectCnt = 1;
break;
}
long time = System.nanoTime();
// <4> select超时，认为是一次正常的select过程
if (time - TimeUnit.MILLISECONDS.toNanos(timeoutMillis) >= currentTimeNanos) {
// timeoutMillis elapsed without anything selected.
selectCnt = 1;
} else if (SELECTOR_AUTO_REBUILD_THRESHOLD > 0 &&
selectCnt >= SELECTOR_AUTO_REBUILD_THRESHOLD) {
// <5> 连续空循环，为了避免cpu 100%,重建selector
// The selector returned prematurely many times in a row.
// Rebuild the selector to work around the problem.
logger.warn(
"Selector.select() returned prematurely {} times in a row; rebuilding Selector {}.",
selectCnt, selector);
rebuildSelector();
selector = this.selector;
// Select again to populate selectedKeys.
selector.selectNow();
selectCnt = 1;
break;
}
currentTimeNanos = time;
}
if (selectCnt > MIN_PREMATURE_SELECTOR_RETURNS) {
if (logger.isDebugEnabled()) {
logger.debug("Selector.select() returned prematurely {} times in a row for Selector {}.",
selectCnt - 1, selector);
}
}
} catch (CancelledKeyException e) {
if (logger.isDebugEnabled()) {
logger.debug(CancelledKeyException.class.getSimpleName() + " raised by a Selector {} - JDK bug?",
selector, e);
}
// Harmless exception - log anyway
}
}
SelectorTuple
SelectorTuple，用来保存来个Selector，一个是原始的，一个是经过优化的
private static final class SelectorTuple {
final Selector unwrappedSelector;
final Selector selector;
SelectorTuple(Selector unwrappedSelector) {
this.unwrappedSelector = unwrappedSelector;
this.selector = unwrappedSelector;
}
SelectorTuple(Selector unwrappedSelector, Selector selector) {
this.unwrappedSelector = unwrappedSelector;
this.selector = selector;
}
}
openSelector
private SelectorTuple openSelector() {
final Selector unwrappedSelector;
try {
// <1> 从SelectorProvider中获取一个原始的未经包装的selector
unwrappedSelector = provider.openSelector();
} catch (IOException e) {
throw new ChannelException("failed to open a new selector", e);
}
// <2> 如果禁用keyset优化，那么返回的tuple中只有未经过优化的原始selector
if (DISABLE_KEYSET_OPTIMIZATION) {
return new SelectorTuple(unwrappedSelector);
}
// <3> 获取SelectorImpl
Object maybeSelectorImplClass = AccessController.doPrivileged(new PrivilegedAction<Object>() {
@Override
public Object run() {
try {
return Class.forName(
"sun.nio.ch.SelectorImpl",
false,
PlatformDependent.getSystemClassLoader());
} catch (Throwable cause) {
return cause;
}
}
});
// <4> SelectorImpl类无效，直接返回tuple，tuple中只包含未经过优化的selector
// SelectorImpl必须assignableFrom创建的原始的selector,确保SelectorImpl是unwrapperSelector的相同类或者是父类或者实现的接口
if (!(maybeSelectorImplClass instanceof Class) ||
// ensure the current selector implementation is what we can instrument.
!((Class<?>) maybeSelectorImplClass).isAssignableFrom(unwrappedSelector.getClass())) {
if (maybeSelectorImplClass instanceof Throwable) {
Throwable t = (Throwable) maybeSelectorImplClass;
logger.trace("failed to instrument a special java.util.Set into: {}", unwrappedSelector, t);
}
return new SelectorTuple(unwrappedSelector);
}
final Class<?> selectorImplClass = (Class<?>) maybeSelectorImplClass;
final SelectedSelectionKeySet selectedKeySet = new SelectedSelectionKeySet();
// <5> 将新创建的selectedKeySet设置到原始的selector中
Object maybeException = AccessController.doPrivileged(new PrivilegedAction<Object>() {
@Override
public Object run() {
try {
Field selectedKeysField = selectorImplClass.getDeclaredField("selectedKeys");
Field publicSelectedKeysField = selectorImplClass.getDeclaredField("publicSelectedKeys");
Throwable cause = ReflectionUtil.trySetAccessible(selectedKeysField, true);
if (cause != null) {
return cause;
}
cause = ReflectionUtil.trySetAccessible(publicSelectedKeysField, true);
if (cause != null) {
return cause;
}
selectedKeysField.set(unwrappedSelector, selectedKeySet);
publicSelectedKeysField.set(unwrappedSelector, selectedKeySet);
return null;
} catch (NoSuchFieldException e) {
return e;
} catch (IllegalAccessException e) {
return e;
}
}
});
if (maybeException instanceof Exception) {
selectedKeys = null;
Exception e = (Exception) maybeException;
logger.trace("failed to instrument a special java.util.Set into: {}", unwrappedSelector, e);
return new SelectorTuple(unwrappedSelector);
}
selectedKeys = selectedKeySet;
logger.trace("instrumented a special java.util.Set into: {}", unwrappedSelector);
// <6> 创建一个包含原始以及优化之后的Selector的SelectorTuple
return new SelectorTuple(unwrappedSelector,
new SelectedSelectionKeySetSelector(unwrappedSelector, selectedKeySet));
}
SelectedSelectionKeySetSelector
final class SelectedSelectionKeySetSelector extends Selector {
private final SelectedSelectionKeySet selectionKeys;
private final Selector delegate;
SelectedSelectionKeySetSelector(Selector delegate, SelectedSelectionKeySet selectionKeys) {
this.delegate = delegate;
this.selectionKeys = selectionKeys;
}
@Override
public boolean isOpen() {
return delegate.isOpen();
}
@Override
public SelectorProvider provider() {
return delegate.provider();
}
@Override
public Set<SelectionKey> keys() {
return delegate.keys();
}
@Override
public Set<SelectionKey> selectedKeys() {
return delegate.selectedKeys();
}
// 重点关注下面三个select方法
// 在调用底层代理的select方法之前，首先会将selectionKeys清空，从而确保selectionKeys中存放的都是最近一次select就绪的事件
@Override
public int selectNow() throws IOException {
selectionKeys.reset();
return delegate.selectNow();
}
@Override
public int select(long timeout) throws IOException {
selectionKeys.reset();
return delegate.select(timeout);
}
@Override
public int select() throws IOException {
selectionKeys.reset();
return delegate.select();
}
@Override
public Selector wakeup() {
return delegate.wakeup();
}
@Override
public void close() throws IOException {
delegate.close();
}
}
SelectedSelectionKeySet
final class SelectedSelectionKeySet extends AbstractSet<SelectionKey> {
// 用来存放当前已经就绪的io事件
SelectionKey[] keys;
int size;
SelectedSelectionKeySet() {
keys = new SelectionKey[1024];
}
@Override
public boolean add(SelectionKey o) {
// 将指定的SelectionKey添加到数组中，如果超过了长度，就通过内存拷贝的方式重新创建一个数组，并且增加容量
if (o == null) {
return false;
}
keys[size++] = o;
if (size == keys.length) {
increaseCapacity();
}
return true;
}
@Override
public int size() {
return size;
}
@Override
public boolean remove(Object o) {
return false;
}
@Override
public boolean contains(Object o) {
return false;
}
@Override
public Iterator<SelectionKey> iterator() {
throw new UnsupportedOperationException();
}
void reset() {
reset(0);
}
void reset(int start) {
// 将从start位置开始后面的所有内容设置为null
Arrays.fill(keys, start, size, null);
size = 0;
}
private void increaseCapacity() {
// 每次扩容，将容量扩大两倍
SelectionKey[] newKeys = new SelectionKey[keys.length << 1];
System.arraycopy(keys, 0, newKeys, 0, size);
keys = newKeys;
}
}
rebuildSelector
当连续空循环次数过多时，会重新创建一个新的selector
public void rebuildSelector() {
// 判断是否在eventLoop中，如果不在eventLoop中，会向其提交一个重建selector的任务
if (!inEventLoop()) {
execute(new Runnable() {
@Override
public void run() {
rebuildSelector0();
}
});
return;
}
// 重建的主要逻辑
rebuildSelector0();
}
private void rebuildSelector0() {
final Selector oldSelector = selector;
final SelectorTuple newSelectorTuple;
if (oldSelector == null) {
return;
}
try {
// <1> 重新创建一个新的selectorTuple
newSelectorTuple = openSelector();
} catch (Exception e) {
logger.warn("Failed to create a new Selector.", e);
return;
}
// Register all channels to the new Selector.
int nChannels = 0;
// <2> 将老的selector注册的事件重新注册到新的selector上
for (SelectionKey key: oldSelector.keys()) {
Object a = key.attachment();
try {
if (!key.isValid() || key.channel().keyFor(newSelectorTuple.unwrappedSelector) != null) {
continue;
}
int interestOps = key.interestOps();
key.cancel();
SelectionKey newKey = key.channel().register(newSelectorTuple.unwrappedSelector, interestOps, a);
if (a instanceof AbstractNioChannel) {
// Update SelectionKey
((AbstractNioChannel) a).selectionKey = newKey;
}
nChannels ++;
} catch (Exception e) {
logger.warn("Failed to re-register a Channel to the new Selector.", e);
if (a instanceof AbstractNioChannel) {
AbstractNioChannel ch = (AbstractNioChannel) a;
ch.unsafe().close(ch.unsafe().voidPromise());
} else {
@SuppressWarnings("unchecked")
NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
invokeChannelUnregistered(task, key, e);
}
}
}
// <3> 使用新创建的selector来更新属性值
selector = newSelectorTuple.selector;
unwrappedSelector = newSelectorTuple.unwrappedSelector;
try {
// time to close the old selector as everything else is registered to the new one
// 关闭老的selector
oldSelector.close();
} catch (Throwable t) {
if (logger.isWarnEnabled()) {
logger.warn("Failed to close the old Selector.", t);
}
}
if (logger.isInfoEnabled()) {
logger.info("Migrated " + nChannels + " channel(s) to the new Selector.");
}
}
processSelectedKeys
在run方法中，当执行完select操作之后，就会调用processSelectedKeys来处理就绪的io事件
分为以下两种情况：
- 如果使用了selectionKey优化，那么会调用processSelectedKeysOptimized
- 否则会调用processSelectedKeysPlain
两个方法的主要不同就在于从哪里来获取selectionKey，前者是通过SelectedSelectionKeySet中获取，后者是调用selector.selectedKeys来返回值中来获取
private void processSelectedKeys() {
// 如果selectedKeys不为空，代表使用了优化
if (selectedKeys != null) {
processSelectedKeysOptimized();
} else {
processSelectedKeysPlain(selector.selectedKeys());
}
}
processSelectedKeysOptimized
private void processSelectedKeysOptimized() {
// 遍历当前已经就绪的io事件
for (int i = 0; i < selectedKeys.size; ++i) {
final SelectionKey k = selectedKeys.keys[i];
// null out entry in the array to allow to have it GC'ed once the Channel close
// See https://github.com/netty/netty/issues/2363
selectedKeys.keys[i] = null;
final Object a = k.attachment();
// 根据attachment的类型，执行不同的处理逻辑
if (a instanceof AbstractNioChannel) {
processSelectedKey(k, (AbstractNioChannel) a);
} else {
@SuppressWarnings("unchecked")
NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
processSelectedKey(k, task);
}
if (needsToSelectAgain) {
// null out entries in the array to allow to have it GC'ed once the Channel close
// See https://github.com/netty/netty/issues/2363
selectedKeys.reset(i + 1);
selectAgain();
i = -1;
}
}
}
processSelectedKeysPlain
private void processSelectedKeysPlain(Set<SelectionKey> selectedKeys) {
// check if the set is empty and if so just return to not create garbage by
// creating a new Iterator every time even if there is nothing to process.
// See https://github.com/netty/netty/issues/597
if (selectedKeys.isEmpty()) {
return;
}
// 遍历就系的io事件
Iterator<SelectionKey> i = selectedKeys.iterator();
for (;;) {
final SelectionKey k = i.next();
final Object a = k.attachment();
i.remove();
// 根据attachment的类型，分别调用不同的方法来处理io事件
if (a instanceof AbstractNioChannel) {
processSelectedKey(k, (AbstractNioChannel) a);
} else {
@SuppressWarnings("unchecked")
NioTask<SelectableChannel> task = (NioTask<SelectableChannel>) a;
processSelectedKey(k, task);
}
if (!i.hasNext()) {
break;
}
if (needsToSelectAgain) {
selectAgain();
selectedKeys = selector.selectedKeys();
// Create the iterator again to avoid ConcurrentModificationException
if (selectedKeys.isEmpty()) {
break;
} else {
i = selectedKeys.iterator();
}
}
}
}
对AbstractNioChannel的处理
private void processSelectedKey(SelectionKey k, AbstractNioChannel ch) {
final AbstractNioChannel.NioUnsafe unsafe = ch.unsafe();
// 判断Selectionkey是否合法
if (!k.isValid()) {
final EventLoop eventLoop;
try {
eventLoop = ch.eventLoop();
} catch (Throwable ignored) {
// If the channel implementation throws an exception because there is no event loop, we ignore this
// because we are only trying to determine if ch is registered to this event loop and thus has authority
// to close ch.
return;
}
// Only close ch if ch is still registered to this EventLoop. ch could have deregistered from the event loop
// and thus the SelectionKey could be cancelled as part of the deregistration process, but the channel is
// still healthy and should not be closed.
// See https://github.com/netty/netty/issues/5125
if (eventLoop != this || eventLoop == null) {
return;
}
// close the channel if the key is not valid anymore
// 如果SelectionKey不合法，那么关闭channel
unsafe.close(unsafe.voidPromise());
return;
}
try {
// 获取当前已经准备好的io事件
int readyOps = k.readyOps();
// We first need to call finishConnect() before try to trigger a read(...) or write(...) as otherwise
// the NIO JDK channel implementation may throw a NotYetConnectedException.
// 连接事件
if ((readyOps & SelectionKey.OP_CONNECT) != 0) {
// remove OP_CONNECT as otherwise Selector.select(..) will always return without blocking
// See https://github.com/netty/netty/issues/924
int ops = k.interestOps();
// 将连接事件从感兴趣的事件集合中移除
ops &= ~SelectionKey.OP_CONNECT;
k.interestOps(ops);
unsafe.finishConnect();
}
// Process OP_WRITE first as we may be able to write some queued buffers and so free memory.
// 可写事件
if ((readyOps & SelectionKey.OP_WRITE) != 0) {
// Call forceFlush which will also take care of clear the OP_WRITE once there is nothing left to write
ch.unsafe().forceFlush();
}
// Also check for readOps of 0 to workaround possible JDK bug which may otherwise lead
// to a spin loop
// 可读或者连接就绪事件
if ((readyOps & (SelectionKey.OP_READ | SelectionKey.OP_ACCEPT)) != 0 || readyOps == 0) {
unsafe.read();
}
} catch (CancelledKeyException ignored) {
unsafe.close(unsafe.voidPromise());
}
}
对NioTask的处理
NioTask用于自定义io事件的处理接口，当SelectableChannel就绪时，NioEventLoop会执行NioTask
public interface NioTask<C extends SelectableChannel> {
/**
* Invoked when the {@link SelectableChannel} has been selected by the {@link Selector}.
*/
// 当事件就绪时，会调用此方法
void channelReady(C ch, SelectionKey key) throws Exception;
/**
* Invoked when the {@link SelectionKey} of the specified {@link SelectableChannel} has been cancelled and thus
* this {@link NioTask} will not be notified anymore.
*
* @param cause the cause of the unregistration. {@code null} if a user called {@link SelectionKey#cancel()} or
* the event loop has been shut down.
*/
// 当SelectionKey被取消，然后当前NioTask不会再被执行时会调用
void channelUnregistered(C ch, Throwable cause) throws Exception;
}
private static void processSelectedKey(SelectionKey k, NioTask<SelectableChannel> task) {
int state = 0;
try {
// 事件准备就绪，调用NioTask的channelReady来处理准备事件
task.channelReady(k.channel(), k);
// 将状态设置为执行成功
state = 1;
} catch (Exception e) {
// 抛出异常，将状态设置为执行失败
k.cancel();
// 回调NioTask的invokeChannelUnregistered
invokeChannelUnregistered(task, k, e);
// 将状态设置为执行失败
state = 2;
} finally {
switch (state) {
case 0:
// 取消
k.cancel();
invokeChannelUnregistered(task, k, null);
break;
case 1:
// 执行成功，但是SelectionKey不再有效，那么回调task的invokeChannelUnregistered
if (!k.isValid()) { // Cancelled by channelReady()
invokeChannelUnregistered(task, k, null);
}
break;
}
}
}
扫一扫
826
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
