mybatis源码分析(五):SqlSource&SqlSourceBuilder

SqlSource

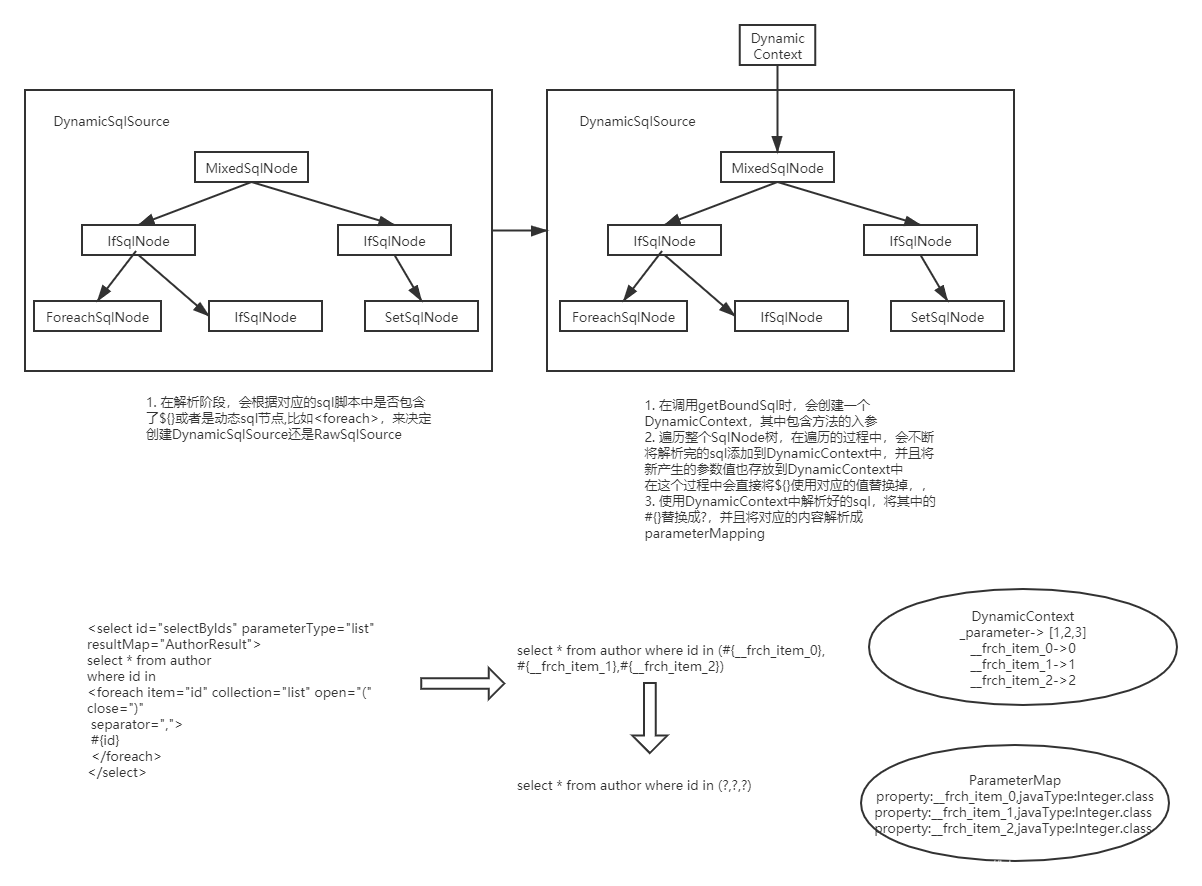

首先看下SqlSource整体的解析过程,最后产生的可以直接传给sql执行的sql以及ParameterMapping就包含在BoundSql中
在这里插入图片描述

首先看下接口定义

/**
 * Represents the content of a mapped statement read from an XML file or an annotation.
 * It creates the SQL that will be passed to the database out of the input parameter received from the user.
 *
 * @author Clinton Begin
 */
public interface SqlSource {



  BoundSql getBoundSql(Object parameterObject);

}

从注释可以看出,SqlSource代表MappedStatement的内容,可以通过SqlSource来产生数据库可以执行的sql

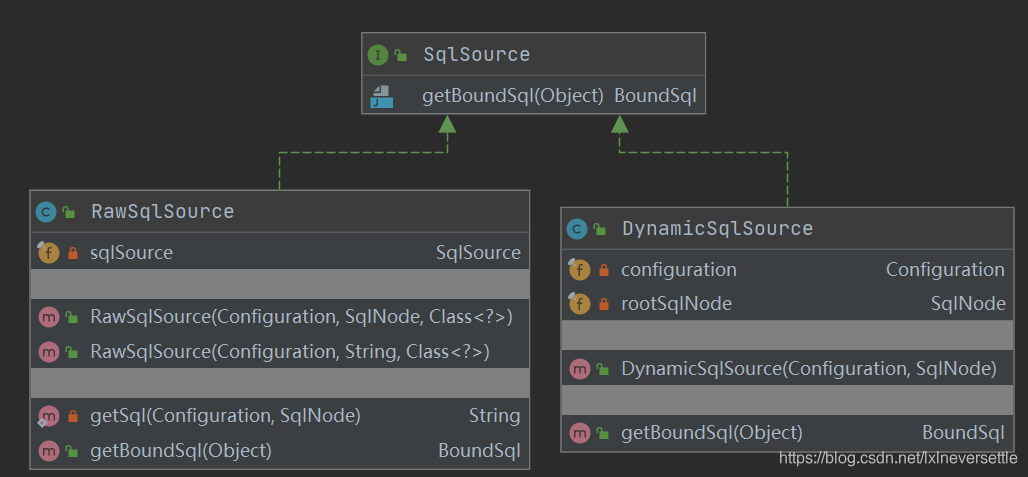

SqlSource主要有两个实现类
在这里插入图片描述
如果sql语句中包含${},那么会被被识别为动态sql,即DynamicSqlSource
下面看下是如何创建的

创建

在初始化的源码分析中,我们知道是通过LanguageDriver来创建SqlSource的,默认使用的是LanguageDriver的实现类XMLLanguageDriver

@Override
public SqlSource createSqlSource(Configuration configuration, XNode script, Class<?> parameterType) {


  XMLScriptBuilder builder = new XMLScriptBuilder(configuration, script, parameterType);
  return builder.parseScriptNode();
}

主要是交给XMLScriptBuilder来进行解析,接着看

public SqlSource parseScriptNode() {


  // 根据解析的标签内容解析成sqlNode,并且判断是否是动态sql
  MixedSqlNode rootSqlNode = parseDynamicTags(context);
  SqlSource sqlSource;
  // 根据是否是动态sql,来决定创建哪种类型的SqlSource
  if (isDynamic) {


    sqlSource = new DynamicSqlSource(configuration, rootSqlNode);
  } else {


    sqlSource = new RawSqlSource(configuration, rootSqlNode, parameterType);
  }
  return sqlSource;
}
protected MixedSqlNode parseDynamicTags(XNode node) {


  List<SqlNode> contents = new ArrayList<>();
  NodeList children = node.getNode().getChildNodes();
  for (int i = 0; i < children.getLength(); i++) {


    XNode child = node.newXNode(children.item(i));
    // 如果是sql文本,会判断文本中是否出现了${},如果出现了,代表是动态sql,会创建一个TextSqlNode节点
    // 否则是普通的静态sql文本,此时会创建一个StaticTextSqlNode
    if (child.getNode().getNodeType() == Node.CDATA_SECTION_NODE || child.getNode().getNodeType() == Node.<
