MyBatis源码阅读【加载】（二）加载映射文件流程

一、相关类与对象说明

• XMLMapperBuilder

  专门用来解析mapper映射文件

public XMLMapperBuilder(Reader reader, Configuration configuration, String resource, Map<String, XNode> sqlFragments, String namespace);
public XMLMapperBuilder(Reader reader, Configuration configuration, String resource, Map<String, XNode> sqlFragments) ;
public XMLMapperBuilder(InputStream inputStream, Configuration configuration, String resource, Map<String, XNode> sqlFragments, String namespace);
public XMLMapperBuilder(InputStream inputStream, Configuration configuration, String resource, Map<String, XNode> sqlFragments);

• XPathParser

  用来使用XPath语法解析XML的解析器

• MapperRegistry

  mapper的注册中心，用于注册mapper

• MapperBuilderAssistant

  用于构建MappedStatement对象的

• XMLStatementBuilder

  专门用来解析MappedStatement

• MappedStatement对象

  MyBatis的mapper文件最终会被解析器,解析成MappedStatement,其中insert|update|delete|select每一个标签分别对应一个MappedStatement

private String resource;
  private Configuration configuration;
  //节点中的id属性加要命名空间
  private String id;
  //尝试影响驱动程序每次批量返回的结果行数和这个设置值相等
  private Integer fetchSize;
  //SQL超时时间
  private Integer timeout;
  //Statement的类型，STATEMENT/PREPARE/CALLABLE
  private StatementType statementType;
  //结果集类型，FORWARD_ONLY/SCROLL_SENSITIVE/SCROLL_INSENSITIVE
  private ResultSetType resultSetType;
  //表示解析出来的SQL
  private SqlSource sqlSource;
  //缓存
  private Cache cache;
  //已废弃
  private ParameterMap parameterMap;
  //对应的ResultMap
  private List<ResultMap> resultMaps;
  private boolean flushCacheRequired;
  private boolean useCache;
  private boolean resultOrdered;
  //SQL类型，INSERT/SELECT/DELETE
  private SqlCommandType sqlCommandType;
  //和SELECTKEY标签有关
  private KeyGenerator keyGenerator;
  private String[] keyProperties;
  private String[] keyColumns;
  private boolean hasNestedResultMaps;
  //数据库ID，用来区分不同环境
  private String databaseId;
  private Log statementLog;
  private LanguageDriver lang;
  //多结果集时
  private String[] resultSets;

  MappedStatement() {
    // constructor disabled
  }

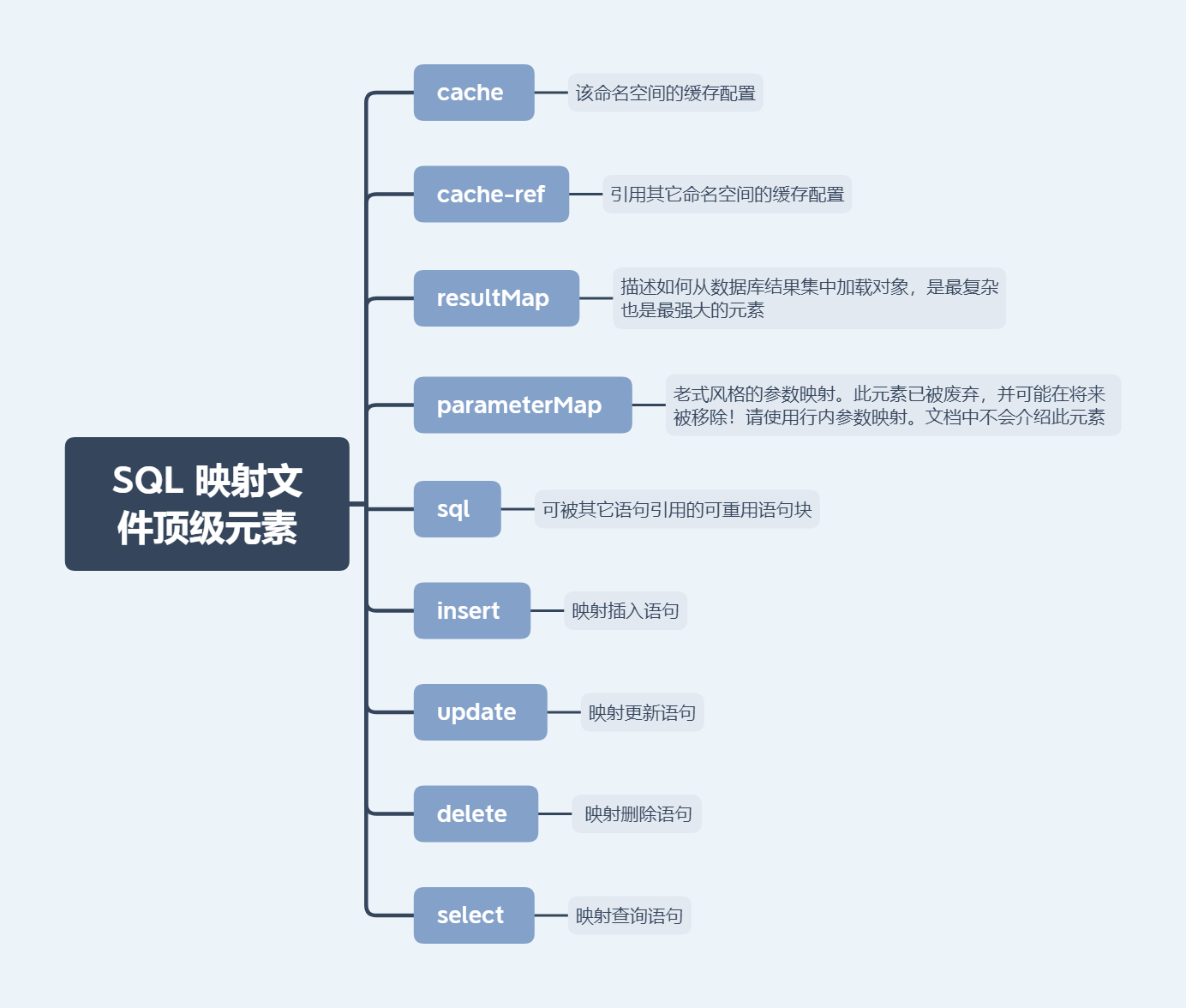

二、XML映射文件

MyBatis 的真正强大在于它的语句映射,减少使用成本，让用户能更专注于 SQL 代码。

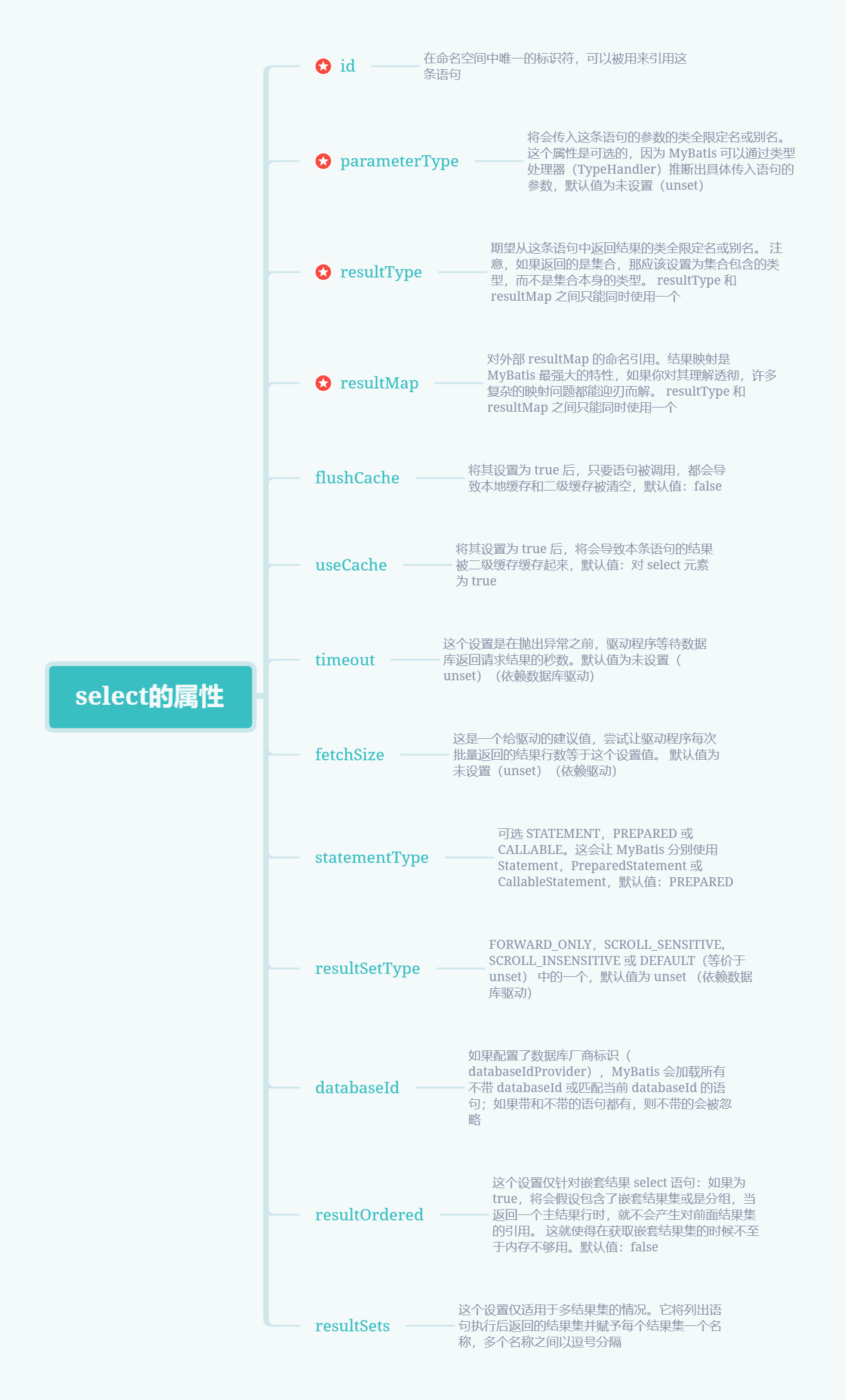

• select

select 元素允许你配置很多属性来配置每条语句的行为细节。

<select
  id="selectPerson"
  parameterType="int"
  parameterMap="deprecated"
  resultType="hashmap"
  resultMap="personResultMap"
  flushCache="false"
  useCache="true"
  timeout="10"
  fetchSize="256"
  statementType="PREPARED"
  resultSetType="FORWARD_ONLY">

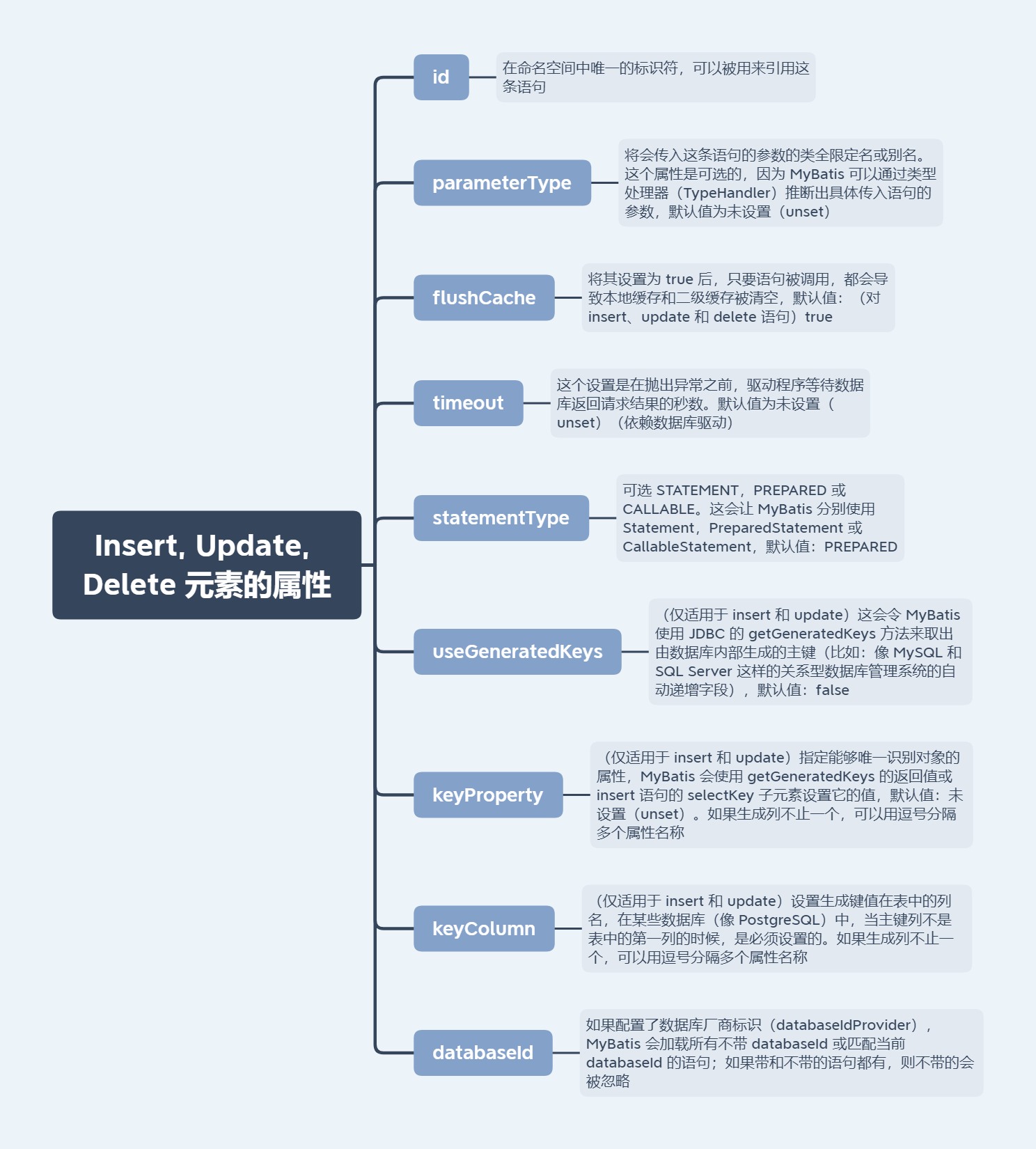

• insert, update 和 delete

  数据变更语句 insert，update 和 delete 的实现非常接近

<insert
  id="insertAuthor"
  parameterType="domain.blog.Author"
  flushCache="true"
  statementType="PREPARED"
  keyProperty=""
  keyColumn=""
  useGeneratedKeys=""
  timeout="20">

<update
  id="updateAuthor"
  parameterType="domain.blog.Author"
  flushCache="true"
  statementType="PREPARED"
  timeout="20">

<delete
  id="deleteAuthor"
  parameterType="domain.blog.Author"
  flushCache="true"
  statementType="PREPARED"
  timeout="20">


• 动态sql

借助功能强大的基于 OGNL 的表达式，MyBatis 3 替换了之前的大部分元素，大大精简了元素种类

• if
• choose (when, otherwise)
  MyBatis 提供了 choose 元素，它有点像 Java 中的 switch 语句

<select id="findActiveBlogLike"
     resultType="Blog">
  SELECT * FROM BLOG WHERE state = ‘ACTIVE’
  <choose>
    <when test="title != null">
      AND title like #{title}
    </when>
    <when test="author != null and author.name != null">
      AND author_name like #{author.name}
    </when>
    <otherwise>
      AND featured = 1
    </otherwise>
  </choose>
</select>

• trim (where, set)

<trim prefix="WHERE" prefixOverrides="AND |OR ">
  ...
</trim>

<trim prefix="SET" suffixOverrides=",">
  ...
</trim>

• foreach
  动态 SQL 的另一个常见使用场景是对集合进行遍历(尤其是在构建 IN 条件语句的时候)。比如：

<select id="selectPostIn" resultType="domain.blog.Post">
  SELECT *
  FROM POST P
  WHERE ID in
  <foreach item="item" index="index" collection="list"
      open="(" separator="," close=")">
        #{item}
  </foreach>
</select>

• script
  要在带注解的映射器接口类中使用动态 SQL，可以使用 script 元素。比如:

@Update({"<script>",
      "update Author",
      "  <set>",
      "    <if test='username != null'>username=#{username},</if>",
      "    <if test='password != null'>password=#{password},</if>",
      "    <if test='email != null'>email=#{email},</if>",
      "    <if test='bio != null'>bio=#{bio}</if>",
      "  </set>",
      "where id=#{id}",
      "</script>"})
    void updateAuthorValues(Author author);

• bind
  bind 元素允许你在 OGNL 表达式以外创建一个变量，并将其绑定到当前的上下文。比如：

<select id="selectBlogsLike" resultType="Blog
