Laravel 队列执行流程

执行队列

php artisan queue:work

执行队列过程，从queues:detault:delayed有序集合拿出到期的JOB数据放到queues:detault队列中，然后从首先从queues:detault 队列拿出要执行的JOB数据放入到queues:detault:reserved有序集合中，然后



laravel 这边的延迟队列使用了三个队列。

• queue:default:delayed // 存储延迟任务
• queue:default // 存储 “生” 任务，就是未处理任务
• queue:default:reserved // 存储待处理任务

任务在三个队列中进行轮转，最后一定进入到 queue:default:reserved，并且成功后把任务从这个队列中删除。

其间还使用了 lua 脚本，所以至少 laravel5.3（本文的 laravel 环境）在无 lua 脚本支持的 redis 版本是跑不了的。

它用三个队列把所有的步骤给原子了，所以并没有使用 multi 等操作。也是防止了锁的使用把。每一步操作失败了，都会有后续的步骤继续帮忙完成，记录等行为的。



• queue:work 默认只执行一次队列请求，当请求执行完成后就终止；
• queue:listen 监听队列请求，只要运行着，就能一直接受请求，除非手动终止；
• queue:work --daemon 同 listen 一样，只要运行着，就能一直接受请求，不一样的地方是在这个运行模式下，当新的请求到来的时候，不重新加载整个框架 , 而是直接 fire 动作.

能看出来，queue:work --daemon 是最高级的，一般推荐使用这个来处理队列监听.

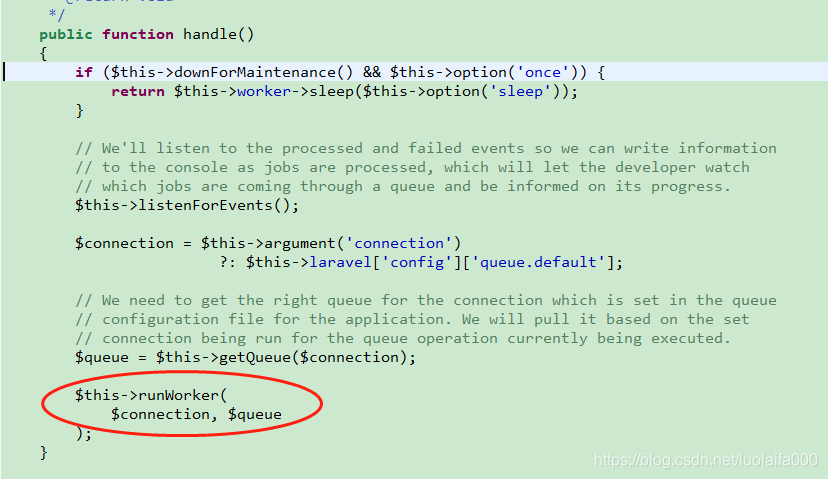

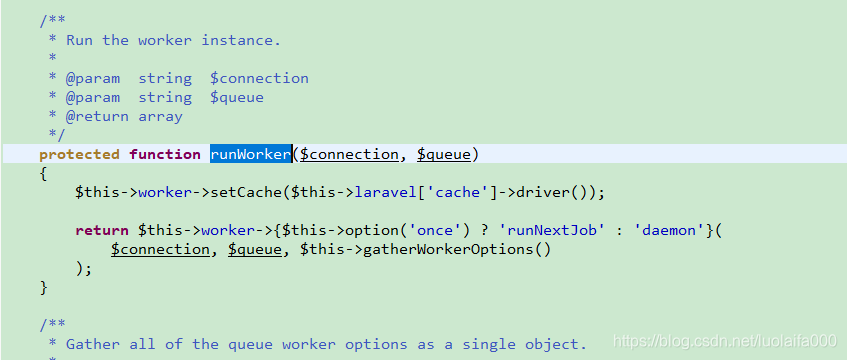

WorkCommand.php

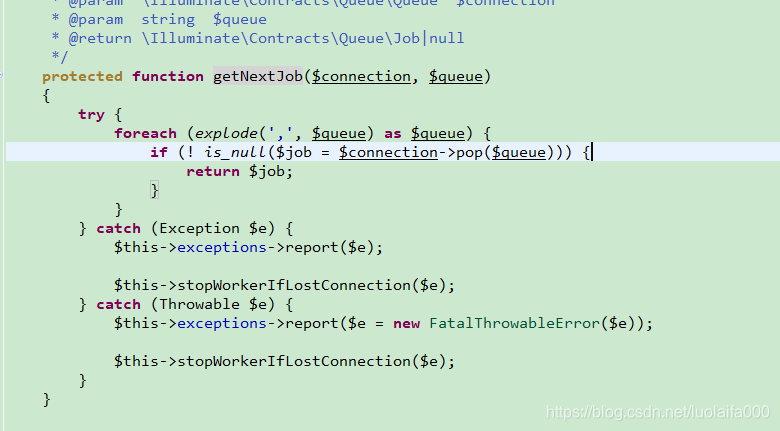

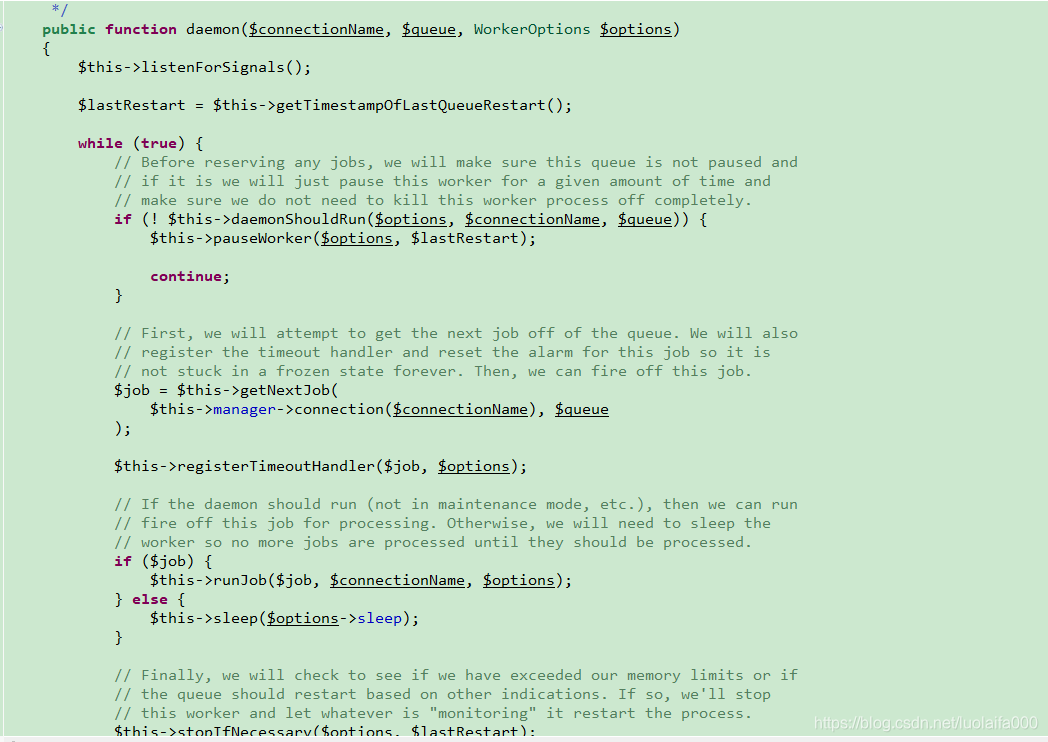

Worker.php

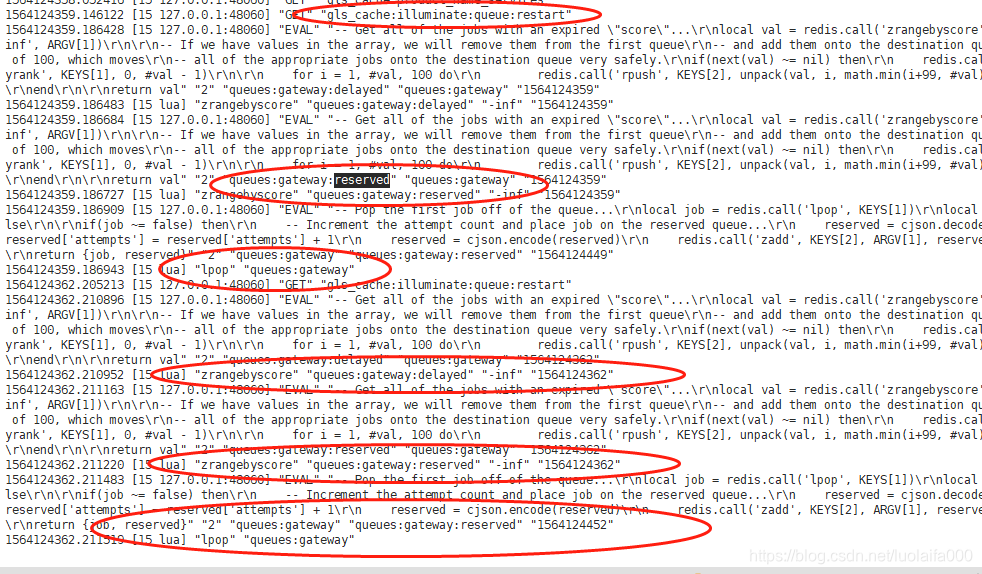

Redis作为队列驱动

<?php

namespace Illuminate\Queue;

use Illuminate\Support\Str;
use Illuminate\Queue\Jobs\RedisJob;
use Illuminate\Contracts\Redis\Factory as Redis;
use Illuminate\Contracts\Queue\Queue as QueueContract;

class RedisQueue extends Queue implements QueueContract
{
    /**
     * The Redis factory implementation.
     *
     * @var \Illuminate\Contracts\Redis\Factory
     */
    protected $redis;

    /**
     * The connection name.
     *
     * @var string
     */
    protected $connection;

    /**
     * The name of the default queue.
     *
     * @var string
     */
    protected $default;

    /**
     * The expiration time of a job.
     *
     * @var int|null
     */
    protected $retryAfter = 60;

    /**
     * Create a new Redis queue instance.
     *
     * @param  \Illuminate\Contracts\Redis\Factory  $redis
     * @param  string  $default
     * @param  string  $connection
     * @param  int  $retryAfter
     * @return void
     */
    public function __construct(Redis $redis, $default = 'default', $connection = null, $retryAfter = 60)
    {
        $this->redis = $redis;
        $this->default = $default;
        $this->connection = $connection;
        $this->retryAfter = $retryAfter;
    }

    /**
     * Get the size of the queue.
     *
     * @param  string  $queue
     * @return int
     */
    public function size($queue = null)
    {
        $queue = $this->getQueue($queue);

        return $this->getConnection()->eval(
            LuaScripts::size(), 3, $queue, $queue.':delayed', $queue.':reserved'
        );
    }

    /**
     * Push a new job onto the queue.
     *
     * @param  object|string  $job
     * @param  mixed   $data
     * @param  string  $queue
     * @return mixed
     */
    public function push($job, $data = '', $queue = null)
    {
        return $this->pushRaw($this->createPayload($job, $data), $queue);
    }

    /**
     * Push a raw payload onto the queue.
     *
     * @param  string  $payload
     * @param  string  $queue
     * @param  array   $options
     * @return mixed
     */
    public function pushRaw($payload, $queue = null, array $options = [])
    {
        $this->getConnection()->rpush($this->getQueue($queue), $payload);

        return json_decode($payload, true)['id'] ?? null;
    }

    /**
     * Push a new job onto the queue after a delay.
     *
     * @param  \DateTimeInterface|\DateInterval|int  $delay
     * @param  object|string  $job
     * @param  mixed   $data
     * @param  string  $queue
     * @return mixed
     */
    public function later($delay, $job, $data = '', $queue = null)
    {

        return $this->laterRaw($delay, $this->createPayload($job, $data), $queue);
    }

    /**
     * Push a raw job onto the queue after a delay.
     *
     * @param  \DateTimeInterface|\DateInterval|int  $delay
     * @param  string  $payload
     * @param  string  $queue
     * @return mixed
     */
    protected function laterRaw($delay, $payload, $queue = null)
    {

        $this->getConnection()->zadd(
            $this->getQueue($queue).':delayed', $this->availableAt($delay), $payload
        );
        return json_decode($payload, true)['id'] ?? null;
    }

    /**
     * Create a payload string from the given job and data.
     *
     * @param  string  $job
     * @param  mixed   $data
     * @return string
     */
    protected function createPayloadArray($job, $data = '')
    {
        return array_merge(parent::createPayloadArray($job, $data), [
            'id' => $this->getRandomId(),
            'attempts' => 0,
        ]);
    }

    /**
     * Pop the next job off of the queue.
     *
     * @param  string  $queue
     * @return \Illuminate\Contracts\Queue\Job|null
     */
    public function pop($queue = null)
    {
        $this->migrate($prefixed = $this->getQueue($queue));

        list($job, $reserved) = $this->retrieveNextJob($prefixed);

        if ($reserved) {
            return new RedisJob(
                $this->container, $this, $job,
                $reserved, $this->connectionName, $queue ?: $this->default
            );
        }
    }

    /**
     * Migrate any delayed or expired jobs onto the primary queue.
     *
     * @param  string  $queue
     * @return void
     */
    protected function migrate($queue)
    {
        $this->migrateExpiredJobs($queue.':delayed', $queue);

        if (! is_null($this->retryAfter)) {
            $this->migrateExpiredJobs($queue.':reserved', $queue);
        }
    }

    /**
     * Migrate the delayed jobs that are ready to the regular queue.
     *
     * @param  string  $from
     * @param  string  $to
     * @return array
     */
    public function migrateExpiredJobs($from, $to)
    {
        return $this->getConnection()->eval(
            LuaScripts::migrateExpiredJobs(), 2, $from, $to, $this->currentTime()
        );
    }

    /**
     * Retrieve the next job from the queue.
     *
     * @param  string  $queue
     * @return array
     */
    protected function retrieveNextJob($queue)
    {
        return $this->getConnection()->eval(
            LuaScripts::pop(), 2, $queue, $queue.':reserved',
            $this->availableAt($this->retryAfter)
        );
    }

    /**
     * Delete a reserved job from the queue.
     *
     * @param  string  $queue
     * @param  \Illuminate\Queue\Jobs\RedisJob  $job
     * @return void
     */
    public function deleteReserved($queue, $job)
    {
        $this->getConnection()->zrem($this->getQueue($queue).':reserved', $job->getReservedJob());
    }

    /**
     * Delete a reserved job from the reserved queue and release it.
     *
     * @param  string  $queue
     * @param  \Illuminate\Queue\Jobs\RedisJob  $job
     * @param  int  $delay
     * @return void
     */
    public function deleteAndRelease($queue, $job, $delay)
    {
        $queue = $this->getQueue($queue);

        $this->getConnection()->eval(
            LuaScripts::release(), 2, $queue.':delayed', $queue.':reserved',
            $job->getReservedJob(), $this->availableAt($delay)
        );
    }

    /**
     * Get a random ID string.
     *
     * @return string
     */
    protected function getRandomId()
    {
        return Str::random(32);
    }

    /**
     * Get the queue or return the default.
     *
     * @param  string|null  $queue
     * @return string
     */
    public function getQueue($queue)
    {
        return 'queues:'.($queue ?: $this->default);
    }

    /**
     * Get the connection for the queue.
     *
     * @return \Illuminate\Redis\Connections\Connection
     */
    protected function getConnection()
    {
        return $this->redis->connection($this->connection);
    }

    /**
     * Get the underlying Redis instance.
     *
     * @return \Illuminate\Contracts\Redis\Factory
     */
    public function getRedis()
    {
        return $this->redis;
    }
}

队列相关的LUA脚本

<?php

namespace Illuminate\Queue;

class LuaScripts
{
    /**
     * Get the Lua script for computing the size of queue.
     *
     * KEYS[1] - The name of the primary queue
     * KEYS[2] - The name of the "delayed" queue
     * KEYS[3] - The name of the "reserved" queue
     *
     * @return string
     */
    public static function size()
    {
        return <<<'LUA'
return redis.call('llen', KEYS[1]) + redis.call('zcard', KEYS[2]) + redis.call('zcard', KEYS[3])
LUA;
    }

    /**
     * Get the Lua script for popping the next job off of the queue.
     *
     * KEYS[1] - The queue to pop jobs from, for example: queues:foo
     * KEYS[2] - The queue to place reserved jobs on, for example: queues:foo:reserved
     * ARGV[1] - The time at which the reserved job will expire
     *
     * @return string
     */
    public static function pop()
    {
        return <<<'LUA'
-- Pop the first job off of the queue...
local job = redis.call('lpop', KEYS[1])
local reserved = false

if(job ~= false) then
    -- Increment the attempt count and place job on the reserved queue...
    reserved = cjson.decode(job)
    reserved['attempts'] = reserved['attempts'] + 1
    reserved = cjson.encode(reserved)
    redis.call('zadd', KEYS[2], ARGV[1], reserved)
end

return {job, reserved}
LUA;
    }

    /**
     * Get the Lua script for releasing reserved jobs.
     *
     * KEYS[1] - The "delayed" queue we release jobs onto, for example: queues:foo:delayed
     * KEYS[2] - The queue the jobs are currently on, for example: queues:foo:reserved
     * ARGV[1] - The raw payload of the job to add to the "delayed" queue
     * ARGV[2] - The UNIX timestamp at which the job should become available
     *
     * @return string
     */
    public static function release()
    {
        return <<<'LUA'
-- Remove the job from the current queue...
redis.call('zrem', KEYS[2], ARGV[1])

-- Add the job onto the "delayed" queue...
redis.call('zadd', KEYS[1], ARGV[2], ARGV[1])

return true
LUA;
    }

    /**
     * Get the Lua script to migrate expired jobs back onto the queue.
     *
     * KEYS[1] - The queue we are removing jobs from, for example: queues:foo:reserved
     * KEYS[2] - The queue we are moving jobs to, for example: queues:foo
     * ARGV[1] - The current UNIX timestamp
     *
     * @return string
     */
    public static function migrateExpiredJobs()
    {
        return <<<'LUA'
-- Get all of the jobs with an expired "score"...
local val = redis.call('zrangebyscore', KEYS[1], '-inf', ARGV[1])

-- If we have values in the array, we will remove them from the first queue
-- and add them onto the destination queue in chunks of 100, which moves
-- all of the appropriate jobs onto the destination queue very safely.
if(next(val) ~= nil) then
    redis.call('zremrangebyrank', KEYS[1], 0, #val - 1)

    for i = 1, #val, 100 do
        redis.call('rpush', KEYS[2], unpack(val, i, math.min(i+99, #val)))
    end
end

return val
LUA;
    }
}
