springboot集成dubbo实例

关注

原创最新推荐文章于 2026-06-05 22:53:07 发布 1k 阅读 AI 写同款· GEO 优化 ›

springBoot集成dubbo UserAddress address1 = new UserAddress(1, “北京市昌平区”, “1”, “李老师”, “010-56253825”, “Y”);UserAddress address2 = new UserAddress(2, “深圳市宝安区”, “1”, “王老师”, “010-56253825”, “N”);4：服务消费者基于软负载均衡算法调用服务提供者的服务，这个服务提供者有可能是一个服务提供者列表，调用那个服务提供者就是根据负载均衡来调用了。阅读详情

参考

dubbo官网：https://cn.dubbo.apache.org/zh-cn/overview/quickstart/java/spring-boot/
他人博客：https://blog.youkuaiyun.com/weixin_59334478/article/details/126725073

dubbo官网的改了改，不好使。别人的博客参考了下，可用。

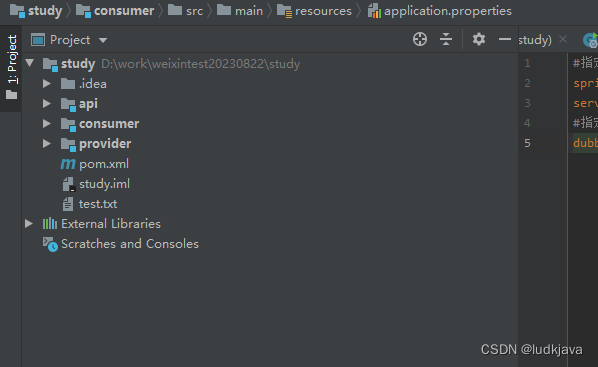

项目结构

study：父模块，集中管理jar包版本等。api、provider、consumer是study的子模块
api：只提供接口，供服务提供者、服务消费者使用。
provider：服务提供者，依赖api模块。实现了api暴露的接口。
consumer：服务消费者，依赖api模块。调用api暴露的接口。

工作实践中，若想使用A部门的接口，只需要依赖A部门的api jar包aaa.jar，然后通过rpc远程调用A部门的服务。而aaa.jar中只有接口，没有更多内容，避免过多暴露内容。暴露的内容越少，以后事儿越少，避免改东西还得考虑下游系统。

编码

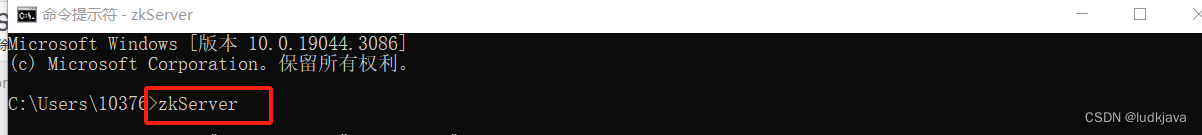

在这个springboot集成dubbo的实例中，注册中心使用zookeeper，因此首先安装、启动zookeeper。
项目中需要一个父模块，集中管理公共内容，因此新建个项目study，里面依赖了springboot对应的jar，并通过dependencyManagement集中管理公共jar的版本。
api模块只需要提供接口，没有其他内容，因此非常简洁干净。
provider需要依赖api模块，并实现api对应的接口。需要集成dubbo，需要集成zookeeper作为注册中心。
consumer需要依赖api模块，调用api对应的接口。需要集成dubbo，需要集成zookeeper作为注册中心，需要集成web写controller做测试。

zookeeper

zookeeper安装、启动参考：https://blog.youkuaiyun.com/ludkjava/article/details/134628293

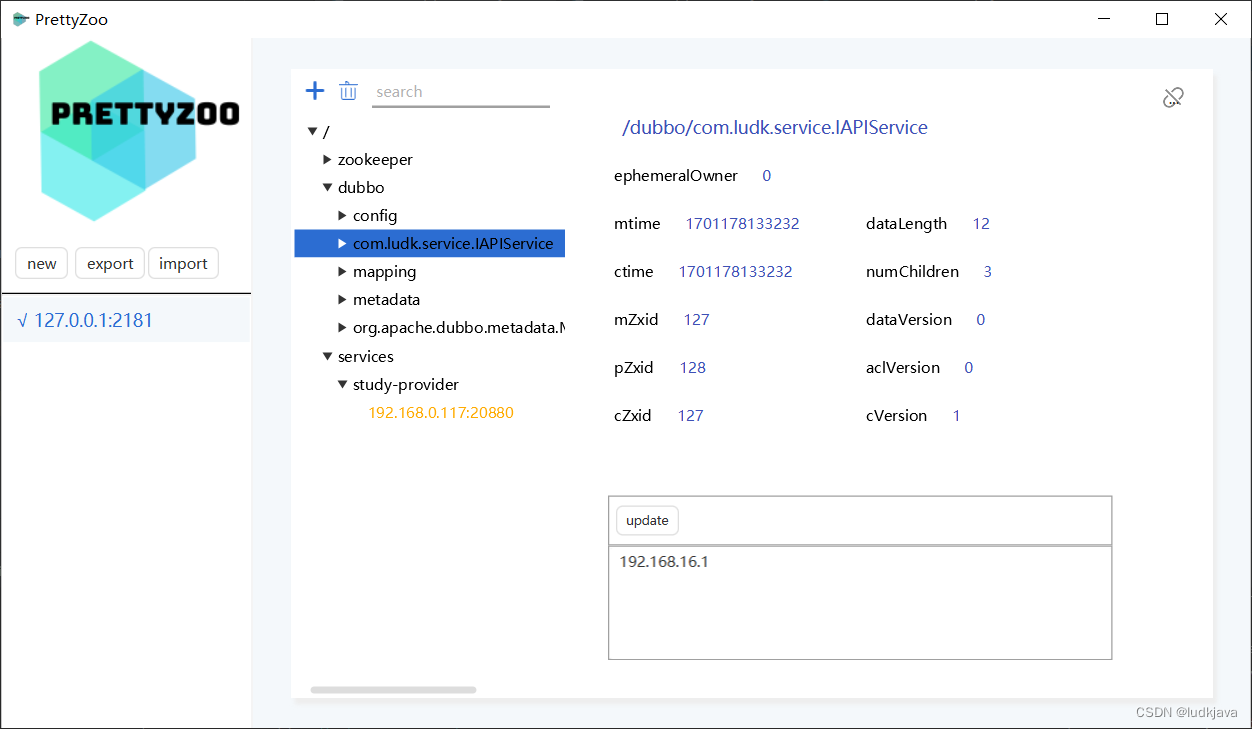

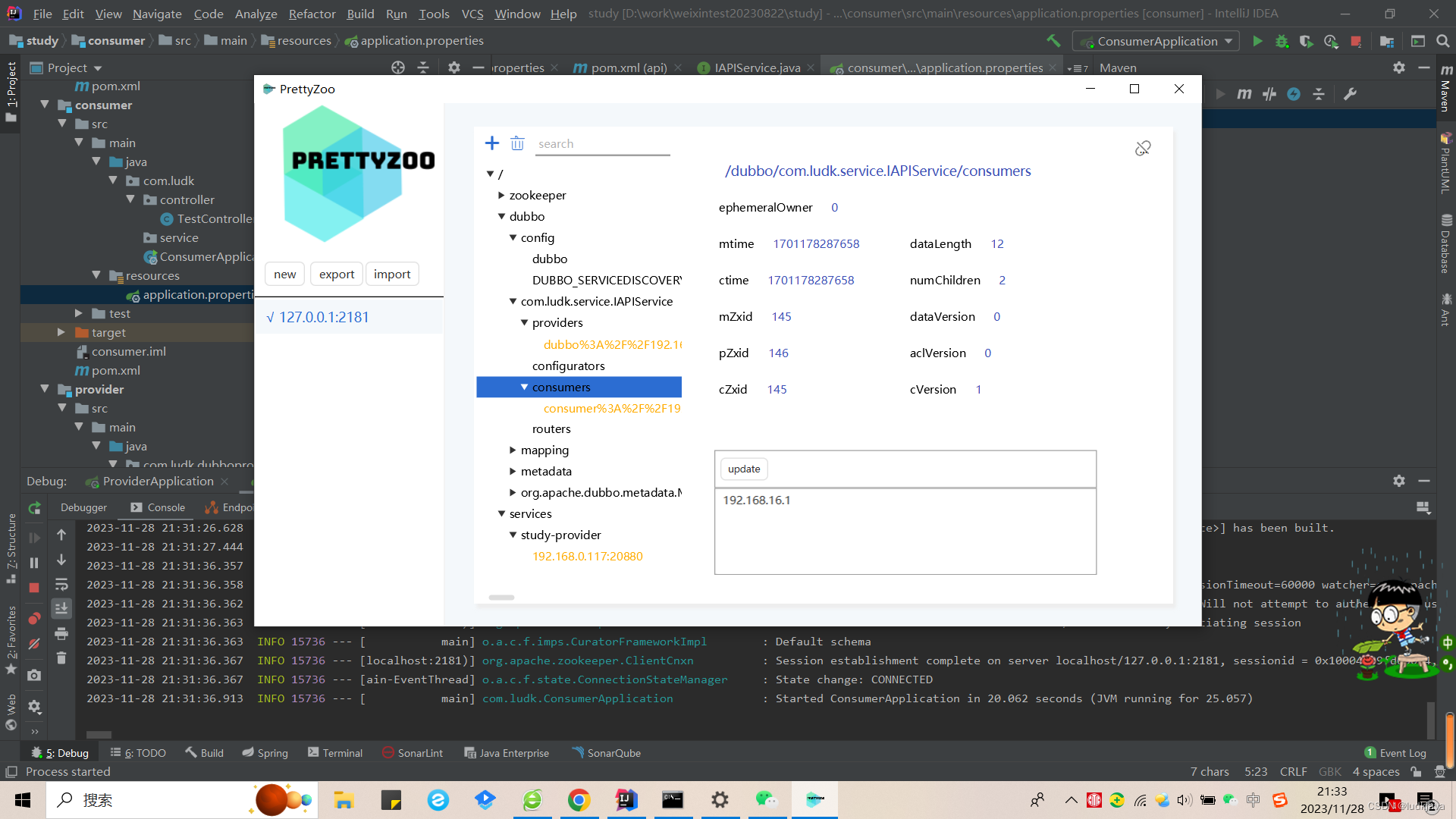

zookeeper内容看起来麻烦，可以再弄个图形化界面工具prettyzoo，看起来更直观。
prettyzoo安装参考：

父模块

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.ludk</groupId>
    <artifactId>study</artifactId>
    <packaging>pom</packaging>
    <version>1.0-SNAPSHOT</version>
<!--    子模块-->
    <modules>
        <module>provider</module>
        <module>api</module>
        <module>consumer</module>
    </modules>
    <properties>
        <java.version>1.8</java.version>
        <current.version>1.0-SNAPSHOT</current.version>
    </properties>
<!--    springbootjar-->
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.3</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>com.ludk</groupId>
                <artifactId>api</artifactId>
                <version>${current.version}</version>
            </dependency>
        </dependencies>
    </dependencyManagement>
</project>

api模块

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>study</artifactId>
        <groupId>com.ludk</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.ludk</groupId>
    <artifactId>api</artifactId>
    <packaging>jar</packaging>
</project>

接口定义IAPIService

package com.ludk.service;

/**
 * @author ludengke
 * @title: IAPIService
 * @projectName study
 * @description: TODO
 * @date 2023/11/2123:41
 */
public interface IAPIService {
    String test(String from);
}

provider模块

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>study</artifactId>
        <groupId>com.ludk</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.ludk</groupId>
    <artifactId>provider</artifactId>
    <packaging>jar</packaging>
    <properties>
        <dubbo.version>3.1.1</dubbo.version>
        <zookeeper.version>3.1.1</zookeeper.version>
    </properties>
    <dependencies>
        <!--加入公共项目的gav-->
        <dependency>
            <groupId>com.ludk</groupId>
            <artifactId>api</artifactId>
<!--            <version>1.0-SNAPSHOT</version>-->
        </dependency>

        <!--dubbo依赖-->
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>${dubbo.version}</version>
        </dependency>

        <!--zookeeper依赖:同时排除导入SLF4j依赖，以避免重复导入SLF4j依赖导致报错-->
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-dependencies-zookeeper</artifactId>
            <version>${zookeeper.version}</version>
            <type>pom</type>
            <exclusions>
                <exclusion>
                    <artifactId>slf4j-log4j12</artifactId>
                    <groupId>org.slf4j</groupId>
                </exclusion>
            </exclusions>
        </dependency>

        <!--springboot的jar -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

配置文件application.properties

#配置服务名称：等同于dubbo:application name="名称"
spring.application.name=study-provider

#配置扫描的包，扫描的@DubboService
#dubbo.scan.base-packages=com.ludk.dubboprovider.service

#配置dubbo协议
#dubbo.protocol.name=name
#dubbo.protocol.port=20881

#注册中心
dubbo.registry.address=zookeeper://localhost:2181

接口实现类ProviderServiceImpl

package com.ludk.dubboprovider.service;

import com.ludk.service.IAPIService;
import org.apache.dubbo.config.annotation.DubboService;
import org.springframework.stereotype.Component;

/**
 * @author ludengke
 * @title: ProviderServiceImpl
 * @projectName study
 * @description: TODO
 * @date 2023/11/2123:44
 */
@Component

@DubboService(interfaceClass = IAPIService.class,version = "2.6.0" ,timeout = 15000)
public class ProviderServiceImpl implements IAPIService {
    @Override
    public String test(String from) {
        return "from"+from;
    }
}

启动类ProviderApplication

package com.ludk.dubboprovider;

import org.apache.dubbo.config.spring.context.annotation.EnableDubbo;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @author ludengke
 * @title: ProviderApplication
 * @projectName study
 * @description: TODO
 * @date 2023/11/2122:13
 */
@SpringBootApplication
@EnableDubbo //开启dubbo配置
public class ProviderApplication {
    public static void main(String[] args) {
        SpringApplication.run(ProviderApplication.class,args);
    }

}

consumer模块

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>study</artifactId>
        <groupId>com.ludk</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>consumer</artifactId>
    <properties>
        <dubbo.version>3.1.1</dubbo.version>
        <zookeeper.version>3.1.1</zookeeper.version>
    </properties>
    <dependencies>
        <!--加入公共项目的gav-->
        <dependency>
            <groupId>com.ludk</groupId>
            <artifactId>api</artifactId>
        </dependency>

        <!--dubbo依赖-->
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-spring-boot-starter</artifactId>
            <version>${dubbo.version}</version>
        </dependency>

        <!--zookeeper依赖:同时排除导入SLF4j依赖，以避免重复导入SLF4j依赖导致报错-->
        <dependency>
            <groupId>org.apache.dubbo</groupId>
            <artifactId>dubbo-dependencies-zookeeper</artifactId>
            <version>${zookeeper.version}</version>
            <type>pom</type>
            <exclusions>
                <exclusion>
                    <artifactId>slf4j-log4j12</artifactId>
                    <groupId>org.slf4j</groupId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
    </dependencies>

</project>

application.properties

#指定服务名称
spring.application.name=consumer-application
server.port=8081
#指定注册中心
dubbo.registry.address=zookeeper://localhost:2181

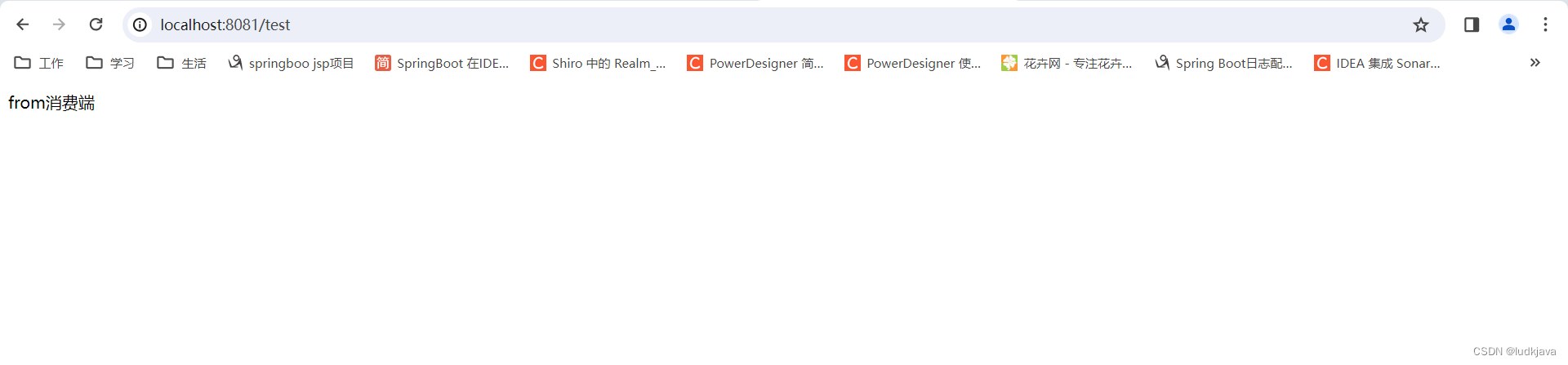

测试的Controller

package com.ludk.controller;

import com.ludk.service.IAPIService;
import org.apache.dubbo.config.annotation.DubboReference;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

/**
 * @author ludengke
 * @title: TestController
 * @projectName study
 * @description: TODO
 * @date 2023/11/221:20
 */
@Controller
public class TestController {

    @DubboReference(interfaceClass = IAPIService.class,version = "2.6.0",check = false)
    private IAPIService service;

    @RequestMapping("/test")
    @ResponseBody
    public String testInterface(){
        return service.test("消费端");
    }
}

消费端启动类

package com.ludk;

import org.apache.dubbo.config.spring.context.annotation.EnableDubbo;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

/**
 * @author ludengke
 * @title: ConsumerApplication
 * @projectName study
 * @description: TODO
 * @date 2023/11/221:23
 */
@SpringBootApplication
@EnableDubbo
public class ConsumerApplication {
    public static void main(String[] args) {
        SpringApplication.run(ConsumerApplication.class,args);
    }

}
