vxWorks6.9.4启用SD卡

最新推荐文章于 2024-10-21 20:01:41 发布
原创 最新推荐文章于 2024-10-21 20:01:41 发布 · 1.4k 阅读 · 9 ·
CC 4.0 BY-SA版权
版权声明：本文为博主原创文章，遵循 CC 4.0 BY-SA 版权协议，转载请附上原文出处链接和本声明。

本文详细介绍了如何在特定系统中配置SDHC存储驱动的方法。通过修改config.h文件并添加#define DRV_STORAGE_SDHC，以及在内核配置中增加三项设置，可以成功启用SDHC存储驱动。



1,

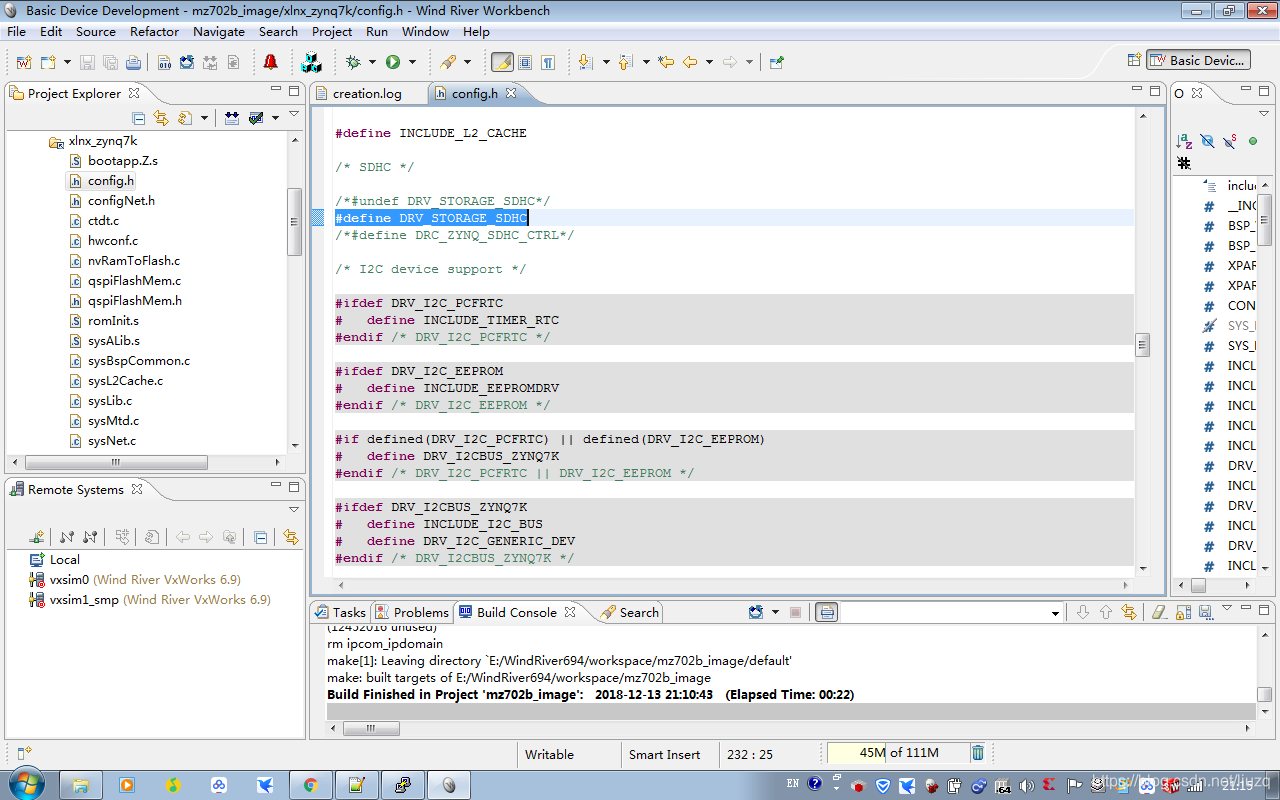

bsp中的config.h的#define DRV_STORAGE_SDHC加上。

2，

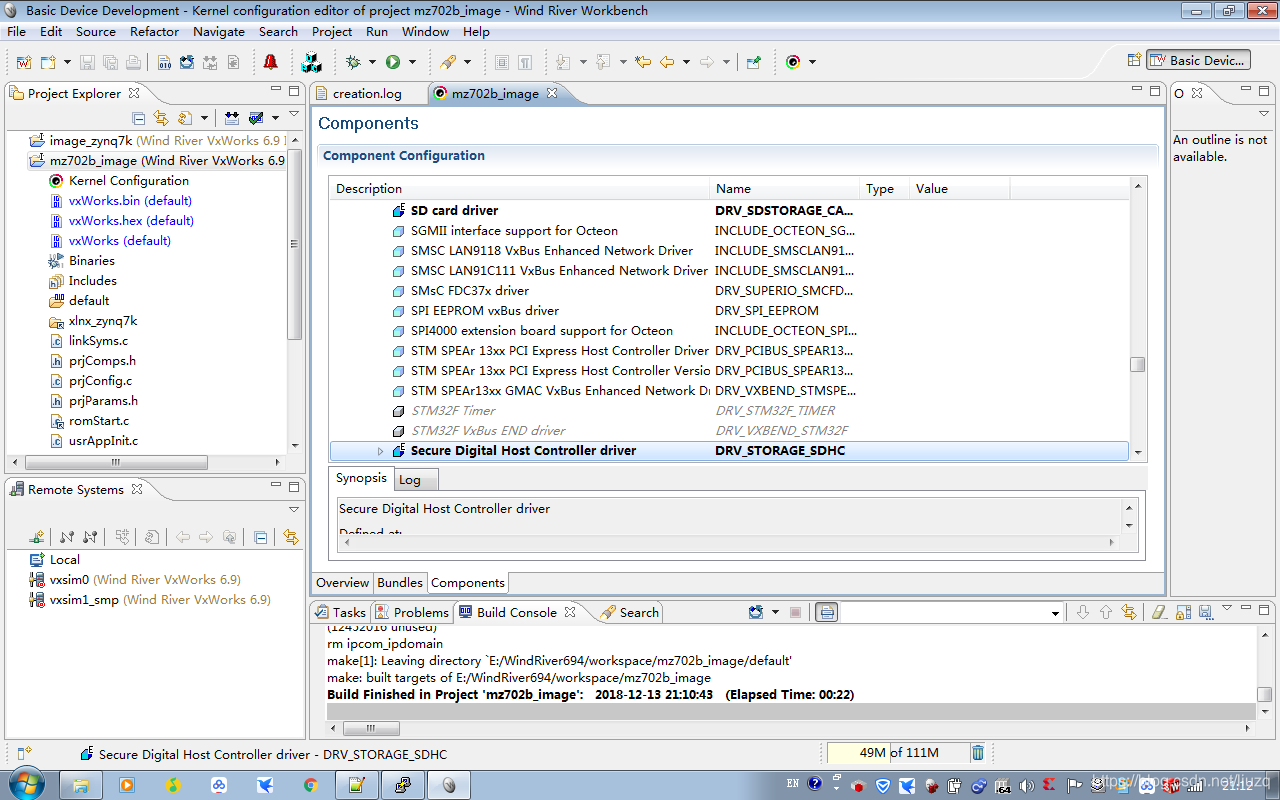

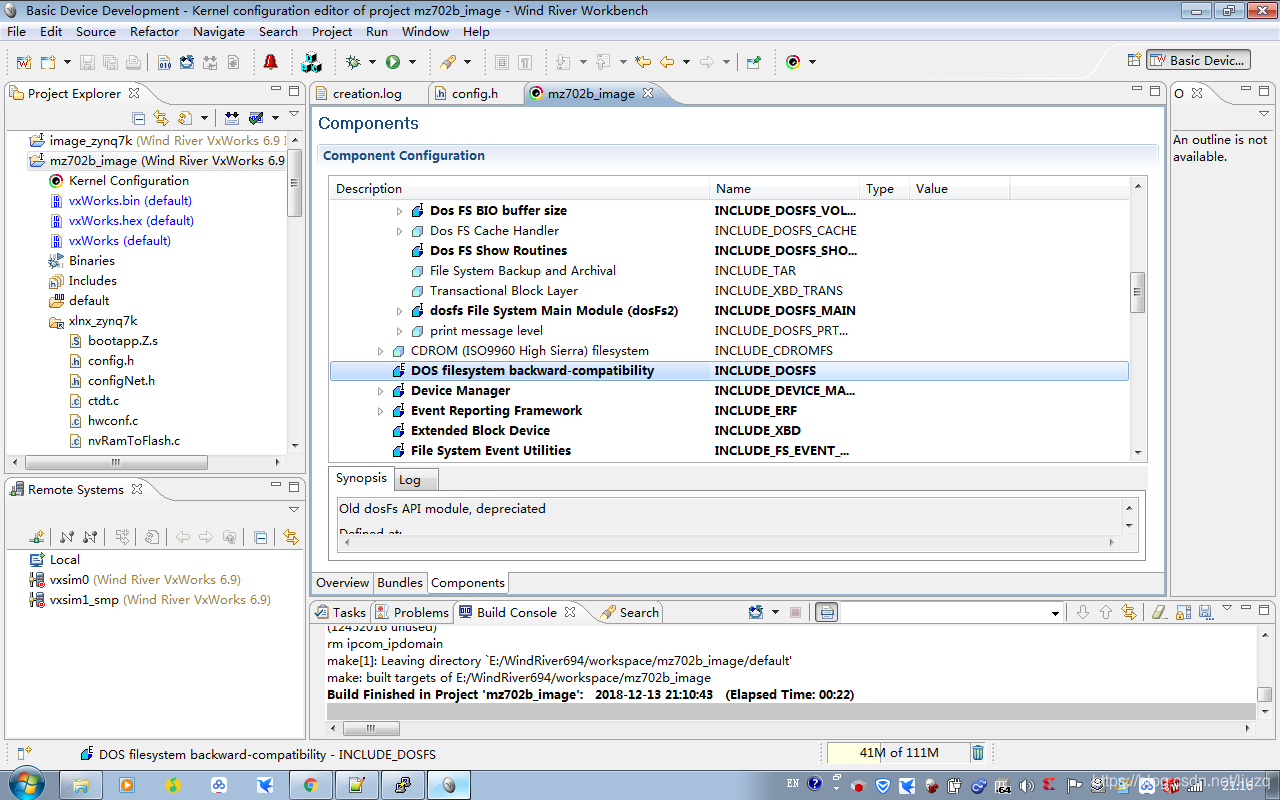

内核配置中的这3项加上，就可以了。

3，

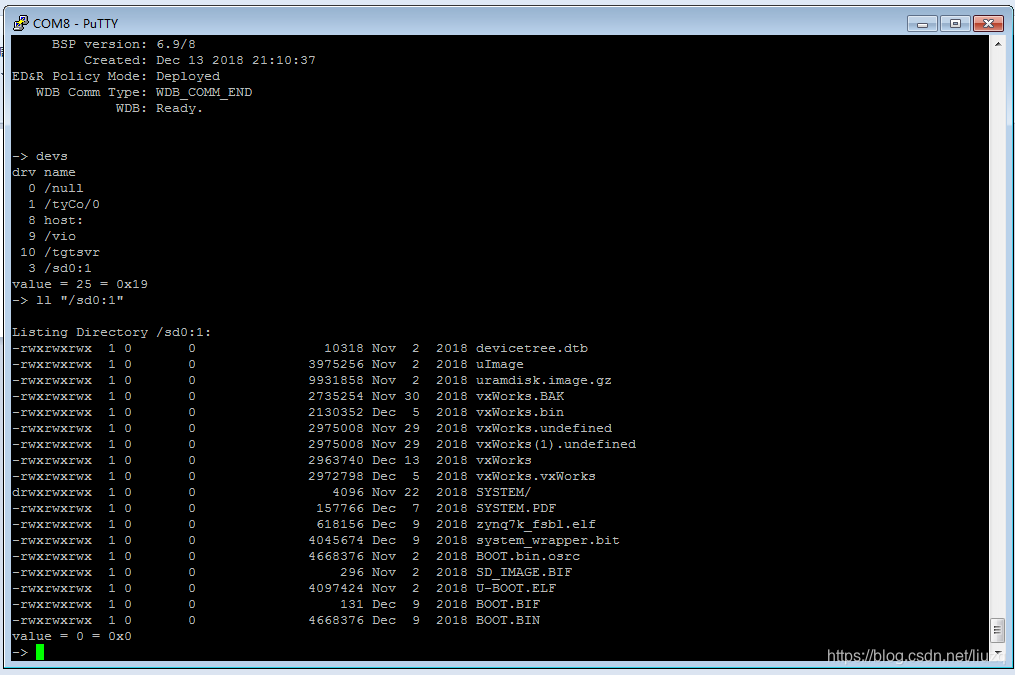

结果：
