一，配置

1.在buile.gradle(Module.app)

android里面加入

packagingOptions {
    exclude 'META-INF/LGPL2.1'
    exclude 'META-INF/LICENSE'
    exclude 'META-INF/NOTICE'
}

在dependencies里加入

//添加Runtime依赖
implementation 'com.esri.arcgisruntime:arcgis-android:100.3.0'
implementation fileTree(dir: 'libs', include: ['*.jar'])

2.在buile.gradle（Project）

加入

allprojects {
    repositories {
        google()
        jcenter()

        // Add the Esri public Bintray Maven repository
        maven {
            url 'https://esri.bintray.com/arcgis'
        }
    }
}

3.在AndroidManifest.xml 添加相关权限

    <uses-permission android:name="android.permission.INTERNET" />
    <uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
    <uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
 <uses-feature
        android:glEsVersion="0x00020000"
        android:required="true" />

完成以上步骤arcgis配置就OK了；

然后创建一个Activity

package com.example.text;
import android.graphics.Color;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import com.esri.arcgisruntime.geometry.Point;
import com.esri.arcgisruntime.geometry.SpatialReferences;
import com.esri.arcgisruntime.layers.ArcGISTiledLayer;
import com.esri.arcgisruntime.mapping.ArcGISMap;
import com.esri.arcgisruntime.mapping.Basemap;
import com.esri.arcgisruntime.mapping.Viewpoint;
import com.esri.arcgisruntime.mapping.view.Graphic;
import com.esri.arcgisruntime.mapping.view.GraphicsOverlay;
import com.esri.arcgisruntime.mapping.view.MapView;
import com.esri.arcgisruntime.symbology.SimpleMarkerSceneSymbol;
import com.esri.arcgisruntime.symbology.SimpleMarkerSymbol;
import com.example.text.Util.GPSUtil;


public class MapViewActivity extends AppCompatActivity {
    private MapView mMapView;
    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_map_view);
       mMapView = (MapView)findViewById(R.id.mapView);

//创建并添加地图服务*********************************
        //使用中文地图
       String strMapUrl="http://map.geoq.cn/ArcGIS/rest/services/ChinaOnlineCommunity/MapServer";
        ArcGISMap map = new ArcGISMap();
        ArcGISTiledLayer arcGISTiledMapServiceLayer = new ArcGISTiledLayer(strMapUrl);
     /* 英文地图   ArcGISMap map = new ArcGISMap(Basemap.Type.TOPOGRAPHIC, 32.344914, 114.740954, 16);
        mMapView.setMap(map);*/
     //***********************************************
//创建底图、并设置底图图层
        Basemap basemap = new Basemap();
        basemap.getBaseLayers().add(arcGISTiledMapServiceLayer);
//设置地图底图
        map.setBasemap(basemap);
//设置map地图对象在MapView控件中显示
        mMapView.setMap(map);
   //gps采用的gps84坐标系，arcgis采用的是Gcj02所以要进行坐标转换
        double[] point0 = GPSUtil.gps84_To_Gcj02(32.344914,114.740954);
        Viewpoint vp = new Viewpoint(point0[0], point0[1], 2000);
        map.setInitialViewpoint(vp);
        /*double   longitude =114.740954;
        double  latitude = 32.344914;
        Point wgspoint = new Point(longitude, latitude);
        mMapView.addLayer(new ArcGISTiledMapServiceLayer(strMapUrl));
        Point mapPoint = (Point) GeometryEngine.project(wgspoint, SpatialReference.create(4326), mMapView.getSpatialReference());
        Unit mapUnit = mMapView.getSpatialReference().getUnit();
        double zoomWidth = Unit.convertUnits(3, Unit.create(LinearUnit.Code.MILE_US), mapUnit);
        Envelope zoomExtent = new Envelope(mapPoint, zoomWidth, zoomWidth);
        mMapView.setExtent(zoomExtent);*/

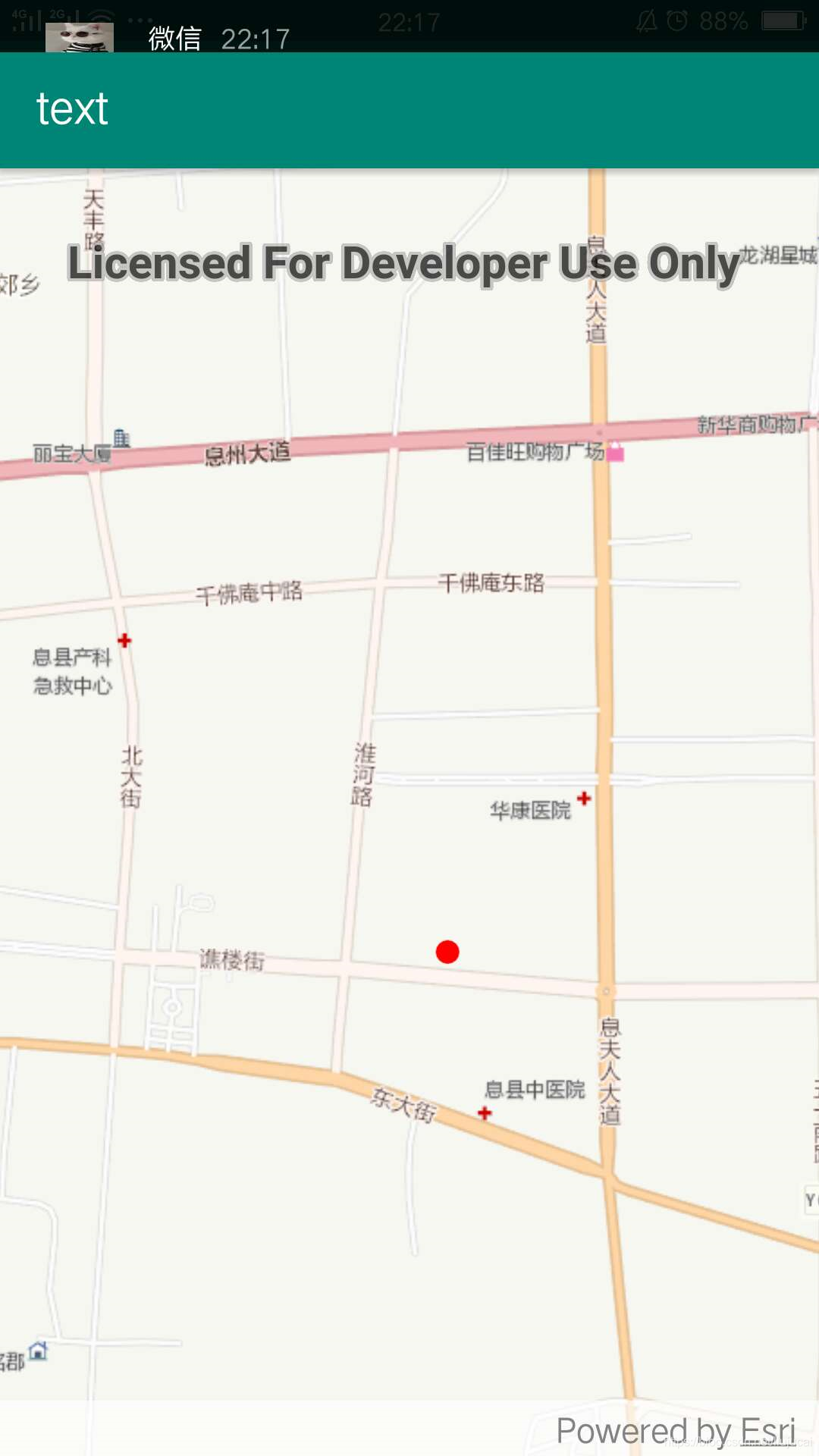

        Point point = new Point(point0[1], point0[0], SpatialReferences.getWgs84());
        SimpleMarkerSymbol simpleMarkerSymbol = new SimpleMarkerSymbol(SimpleMarkerSymbol.Style.CIRCLE, Color.RED, 10);
        Graphic pointGraphic = new Graphic(point, simpleMarkerSymbol);
        GraphicsOverlay graphicsOverlay = new GraphicsOverlay();
        graphicsOverlay.getGraphics().add(pointGraphic);
        mMapView.getGraphicsOverlays().add(graphicsOverlay);
    }


}

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:app="http://schemas.android.com/apk/res-auto"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    tools:context=".MapViewActivity">
    <com.esri.arcgisruntime.mapping.view.MapView
        android:id="@+id/mapView"
        android:layout_width="match_parent"
        android:layout_height="match_parent" >
    </com.esri.arcgisruntime.mapping.view.MapView>
</android.support.constraint.ConstraintLayout>

坐标转换类

package com.example.text.Util;
public class GPSUtil {
    public static double pi = 3.1415926535897932384626;
    public static double x_pi = 3.14159265358979324 * 3000.0 / 180.0;
    public static double a = 6378245.0;
    public static double ee = 0.00669342162296594323;

    public static double transformLat(double x, double y) {
        double ret = -100.0 + 2.0 * x + 3.0 * y + 0.2 * y * y + 0.1 * x * y
                + 0.2 * Math.sqrt(Math.abs(x));
        ret += (20.0 * Math.sin(6.0 * x * pi) + 20.0 * Math.sin(2.0 * x * pi)) * 2.0 / 3.0;
        ret += (20.0 * Math.sin(y * pi) + 40.0 * Math.sin(y / 3.0 * pi)) * 2.0 / 3.0;
        ret += (160.0 * Math.sin(y / 12.0 * pi) + 320 * Math.sin(y * pi / 30.0)) * 2.0 / 3.0;
        return ret;
    }

    public static double transformLon(double x, double y) {
        double ret = 300.0 + x + 2.0 * y + 0.1 * x * x + 0.1 * x * y + 0.1
                * Math.sqrt(Math.abs(x));
        ret += (20.0 * Math.sin(6.0 * x * pi) + 20.0 * Math.sin(2.0 * x * pi)) * 2.0 / 3.0;
        ret += (20.0 * Math.sin(x * pi) + 40.0 * Math.sin(x / 3.0 * pi)) * 2.0 / 3.0;
        ret += (150.0 * Math.sin(x / 12.0 * pi) + 300.0 * Math.sin(x / 30.0
                * pi)) * 2.0 / 3.0;
        return ret;
    }
    public static double[] transform(double lat, double lon) {
        if (outOfChina(lat, lon)) {
            return new double[]{lat,lon};
        }
        double dLat = transformLat(lon - 105.0, lat - 35.0);
        double dLon = transformLon(lon - 105.0, lat - 35.0);
        double radLat = lat / 180.0 * pi;
        double magic = Math.sin(radLat);
        magic = 1 - ee * magic * magic;
        double sqrtMagic = Math.sqrt(magic);
        dLat = (dLat * 180.0) / ((a * (1 - ee)) / (magic * sqrtMagic) * pi);
        dLon = (dLon * 180.0) / (a / sqrtMagic * Math.cos(radLat) * pi);
        double mgLat = lat + dLat;
        double mgLon = lon + dLon;
        return new double[]{mgLat,mgLon};
    }
    public static boolean outOfChina(double lat, double lon) {
        if (lon < 72.004 || lon > 137.8347)
            return true;
        if (lat < 0.8293 || lat > 55.8271)
            return true;
        return false;
    }
    /**
     * 84 to 火星坐标系 (GCJ-02) World Geodetic System ==> Mars Geodetic System
     *
     * @param lat
     * @param lon
     * @return
     */
    public static double[] gps84_To_Gcj02(double lat, double lon) {
        if (outOfChina(lat, lon)) {
            return new double[]{lat,lon};
        }
        double dLat = transformLat(lon - 105.0, lat - 35.0);
        double dLon = transformLon(lon - 105.0, lat - 35.0);
        double radLat = lat / 180.0 * pi;
        double magic = Math.sin(radLat);
        magic = 1 - ee * magic * magic;
        double sqrtMagic = Math.sqrt(magic);
        dLat = (dLat * 180.0) / ((a * (1 - ee)) / (magic * sqrtMagic) * pi);
        dLon = (dLon * 180.0) / (a / sqrtMagic * Math.cos(radLat) * pi);
        double mgLat = lat + dLat;
        double mgLon = lon + dLon;
        return new double[]{mgLat, mgLon};
    }

    /**
     * * 火星坐标系 (GCJ-02) to 84 * * @param lon * @param lat * @return
     * */
    public static double[] gcj02_To_Gps84(double lat, double lon) {
        double[] gps = transform(lat, lon);
        double lontitude = lon * 2 - gps[1];
        double latitude = lat * 2 - gps[0];
        return new double[]{latitude, lontitude};
    }
    /**
     * 火星坐标系 (GCJ-02) 与百度坐标系 (BD-09) 的转换算法 将 GCJ-02 坐标转换成 BD-09 坐标
     *
     * @param lat
     * @param lon
     */
    public static double[] gcj02_To_Bd09(double lat, double lon) {
        double x = lon, y = lat;
        double z = Math.sqrt(x * x + y * y) + 0.00002 * Math.sin(y * x_pi);
        double theta = Math.atan2(y, x) + 0.000003 * Math.cos(x * x_pi);
        double tempLon = z * Math.cos(theta) + 0.0065;
        double tempLat = z * Math.sin(theta) + 0.006;
        double[] gps = {tempLat,tempLon};
        return gps;
    }

    /**
     * * 火星坐标系 (GCJ-02) 与百度坐标系 (BD-09) 的转换算法 * * 将 BD-09 坐标转换成GCJ-02 坐标 * * @param
     * bd_lat * @param bd_lon * @return
     */
    public static double[] bd09_To_Gcj02(double lat, double lon) {
        double x = lon - 0.0065, y = lat - 0.006;
        double z = Math.sqrt(x * x + y * y) - 0.00002 * Math.sin(y * x_pi);
        double theta = Math.atan2(y, x) - 0.000003 * Math.cos(x * x_pi);
        double tempLon = z * Math.cos(theta);
        double tempLat = z * Math.sin(theta);
        double[] gps = {tempLat,tempLon};
        return gps;
    }

    /**将gps84转为bd09
     * @param lat
     * @param lon
     * @return
     */
    public static double[] gps84_To_bd09(double lat,double lon){
        double[] gcj02 = gps84_To_Gcj02(lat,lon);
        double[] bd09 = gcj02_To_Bd09(gcj02[0],gcj02[1]);
        return bd09;
    }
    public static double[] bd09_To_gps84(double lat,double lon){
        double[] gcj02 = bd09_To_Gcj02(lat, lon);
        double[] gps84 = gcj02_To_Gps84(gcj02[0], gcj02[1]);
        //保留小数点后六位
        gps84[0] = retain6(gps84[0]);
        gps84[1] = retain6(gps84[1]);
        return gps84;
    }

    /**保留小数点后六位
     * @param num
     * @return
     */
    private static double retain6(double num){
        String result = String .format("%.6f", num);
        return Double.valueOf(result);
    }
}
