Docker-compose拉取镜像部署

【Docker-compose 拉取镜像部署基础环境-哔哩哔哩-点下关注呗 】

1、Ubuntu 安装Docker

Ubuntu 安装Docker-优快云博客

2、安装 redis、zookeeper、kafka、postgres、cassandra

1、新建文件docker-compose.yml

2、运行docker-compose up -d

3、如果启动提示权限不足的话
sudo chmod -R 777 /opt/project/docker

services:
  nginx-web:
    image: nginx:1.26.2
    container_name: nginx-web
    environment:
      # 时区上海
      TZ: Asia/Shanghai
    ports:
      - "80:80"
      - "443:443"
    volumes:
      # 证书映射
      - ./nginx/cert:/etc/nginx/cert
      # 配置文件映射
      - ./nginx/conf/nginx.conf:/etc/nginx/nginx.conf
      # 配置目录
      - ./nginx/conf/webConf:/usr/share/nginx/conf/webConf
      # 页面目录
      - ./nginx/html:/usr/share/nginx/html
      # 日志目录
      - ./nginx/log:/var/log/nginx
    # 容器重启策略，容器崩溃时自动重启
    # restart: unless-stopped
    network_mode: "host"
    # logging:
    #   driver: "json-file"
    #   options:
    #     max-size: "10m"  # 限制每个日志文件的最大大小
    #     max-file: "30"    # 保留最近的 30 个日志文件

  redis:
    image: bitnami/redis:7.4
    container_name: redis
    ports:
      - "6379:6379"
    environment:
      # 时区上海
      TZ: Asia/Shanghai
    volumes:
      # 配置文件
      - ./redis/conf:/redis/config
      # 数据文件
      - ./redis/data/:/redis/data/
    command: "redis-server /redis/config/redis.conf"
    network_mode: "host"

  zookeeper:
    image: 'bitnami/zookeeper:3.9.0'
    container_name: zookeeper
    ports:
      - "2181:2181"
    volumes:
      - ./zookeeper:/bitnami/zookeeper
    environment:
      TZ: Asia/Shanghai
      ALLOW_ANONYMOUS_LOGIN: "yes"
      ZOO_SERVER_ID: 1
      ZOO_PORT_NUMBER: 2181
      # 自带的控制台 一般用不上可自行开启
      ZOO_ENABLE_ADMIN_SERVER: "no"
      # 自带控制台的端口
      ZOO_ADMIN_SERVER_PORT_NUMBER: 8080
    network_mode: "host"

  #需要给挂载目录符权限 sudo chmod -R 777 /opt/project/docker/kafka
  kafka:
    image: 'bitnami/kafka:3.9.0'
    container_name: kafka
    ports:
      - "9092:9092"
    environment:
      TZ: Asia/Shanghai
      # 更多变量 查看文档 https://github.com/bitnami/containers/tree/main/bitnami/kafka
      # 设置Kafka Broker ID为1
      KAFKA_BROKER_ID: 1
      # 监听端口
      KAFKA_CFG_LISTENERS: PLAINTEXT://:9092
      # 实际访问ip 本地用 127 内网用 192 外网用 外网ip
      KAFKA_CFG_ADVERTISED_LISTENERS: PLAINTEXT://106.119.162.66:9092
      # 指定Kafka连接的Zookeeper实例
      KAFKA_CFG_ZOOKEEPER_CONNECT: 127.0.0.1:2181
      # 指定 Kafka 日志存储目录
      #   KAFKA_CFG_LOG_DIRS: /bitnami/kafka/logs
      # 允许Kafka监听器使用明文传输
      ALLOW_PLAINTEXT_LISTENER: "yes"
    volumes:
      - ./kafka:/bitnami/kafka
    depends_on:
      - zookeeper
    network_mode: "host"

  postgres:
    image: postgres:17.2
    container_name: postgres
    environment:
      POSTGRES_USER: postgres
      POSTGRES_PASSWORD: postgres
      POSTGRES_DB: postgres
    ports:
      - "5432:5432"
    volumes:
      - ./postgres/data:/var/lib/postgresql/data
    network_mode: "host"

  # git地址 https://github.com/bitnami/containers/tree/main/bitnami/cassandra
  cassandra:
    image: "bitnami/cassandra:5.0"
    container_name: cassandra
    # restart: "always"
    ports:
      - "7000:7000"
      - "9042:9042"
    volumes:
      - ./cassandra:/bitnami/cassandra
    network_mode: "host"
    environment:
      # 开启密码认证
      CASSANDRA_PASSWORD_SEEDER: yes
      # 设置管理员密码
      CASSANDRA_PASSWORD: cassandra
      # 默认情况下，Cassandra会自动检测可用的主机内存，并尽可能多地占用。
      # 因此，如果在同一节点中启动多个Cassandras，则内存选项是必需的。
      HEAP_NEWSIZE: "1024M"
      MAX_HEAP_SIZE: "2048M"

3、redis.conf配置文件

# redis 密码
requirepass password

# key 监听器配置
# notify-keyspace-events Ex

# 配置持久化文件存储路径
dir /redis/data
# 配置rdb
# 15分钟内有至少1个key被更改则进行快照
save 900 1
# 5分钟内有至少10个key被更改则进行快照
save 300 10
# 1分钟内有至少10000个key被更改则进行快照
save 60 10000
# 开启压缩
rdbcompression yes
# rdb文件名 用默认的即可
dbfilename dump.rdb

# 开启aof
appendonly yes
# 文件名
appendfilename "appendonly.aof"
# 持久化策略,no:不同步,everysec:每秒一次,always:总是同步,速度比较慢
# appendfsync always
appendfsync everysec
# appendfsync no

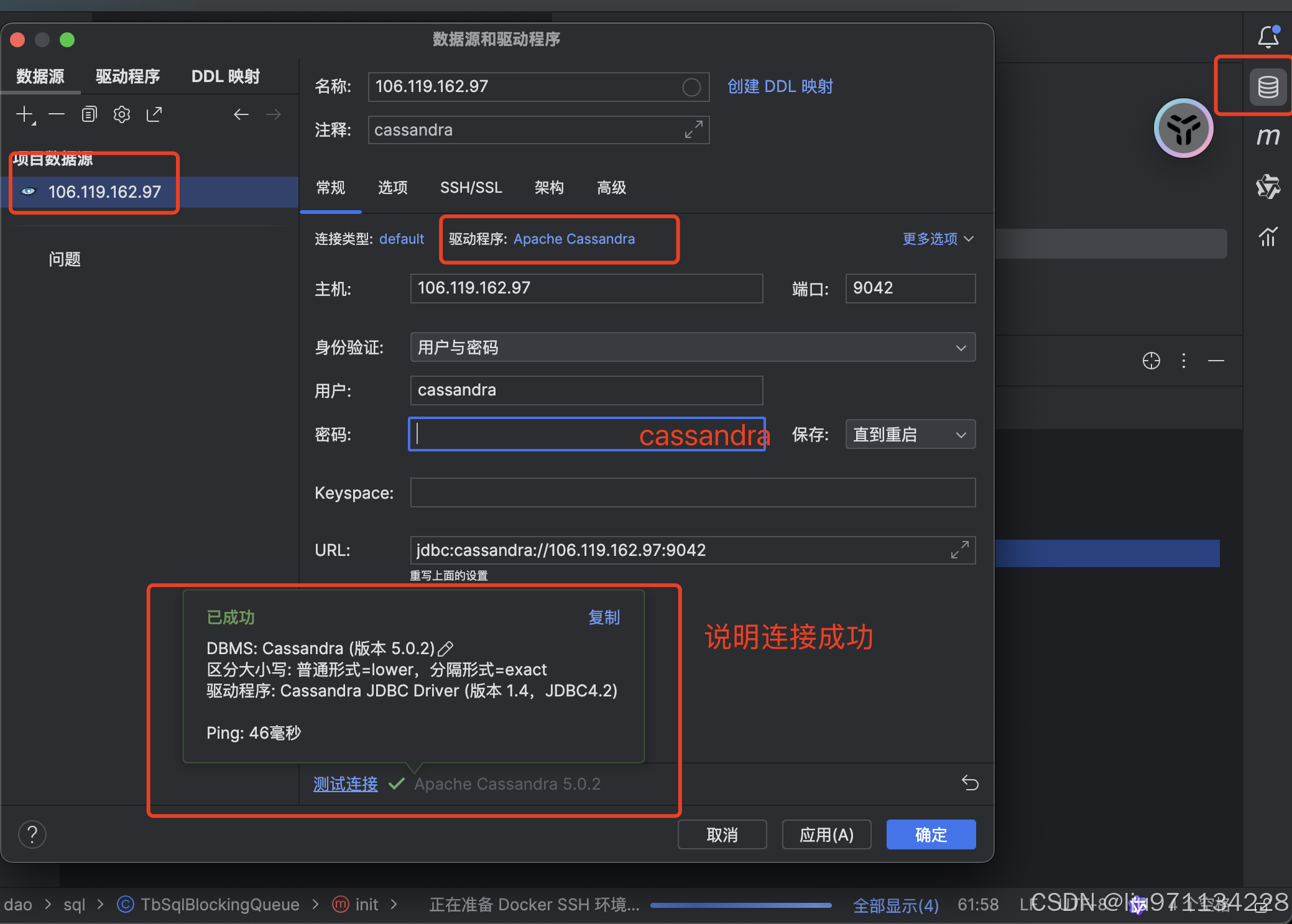

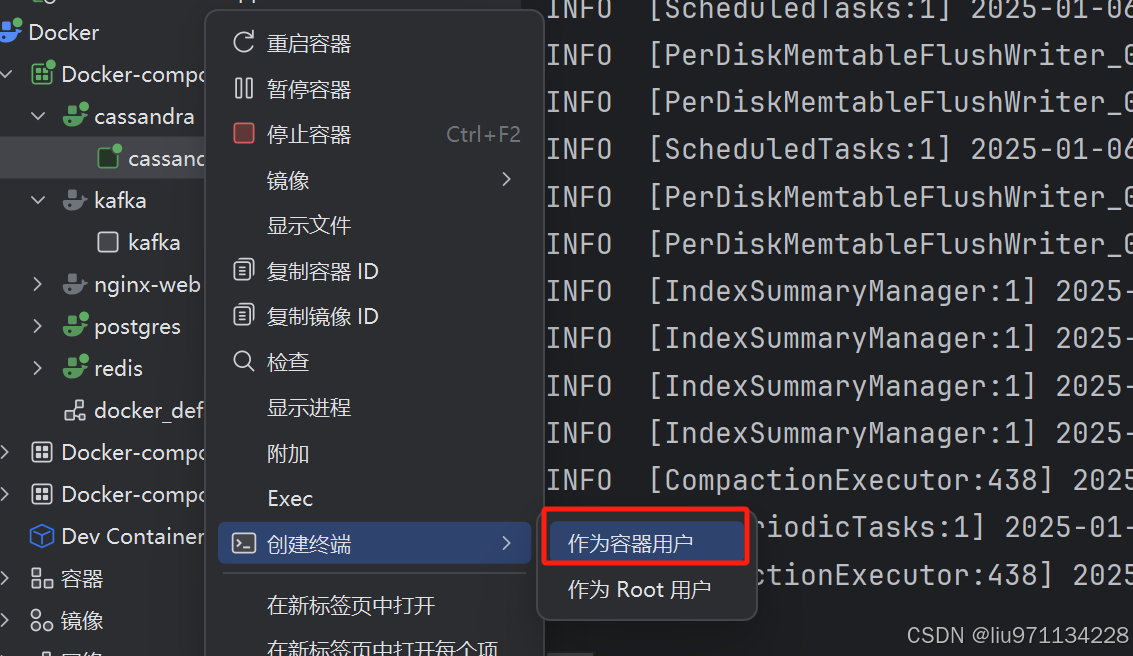

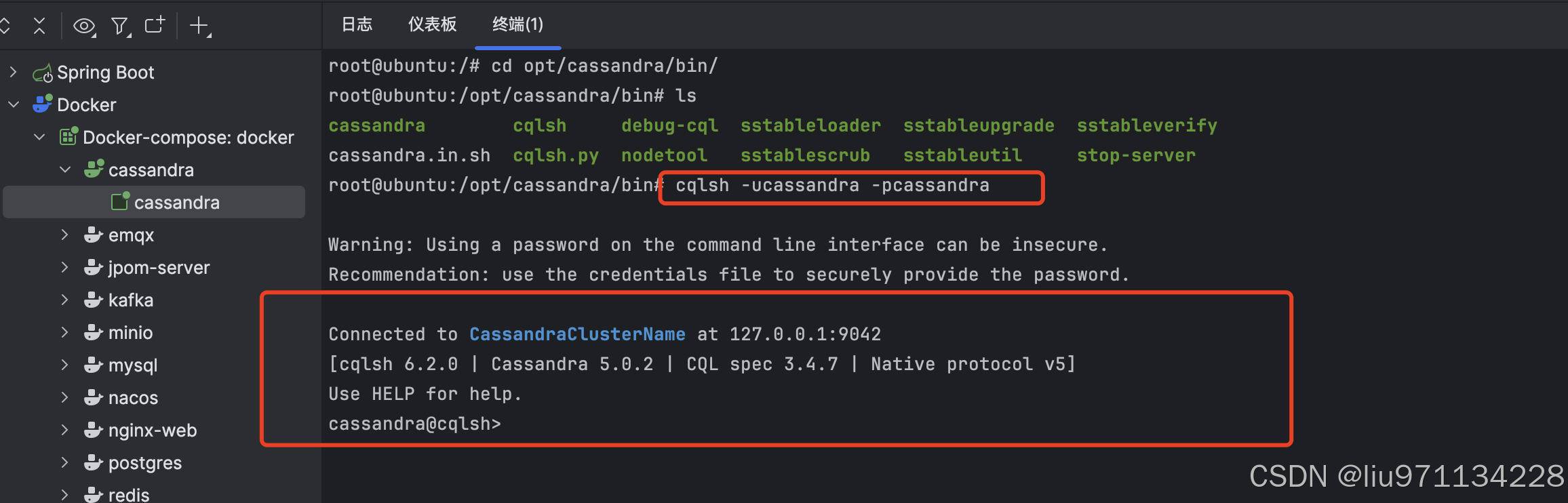

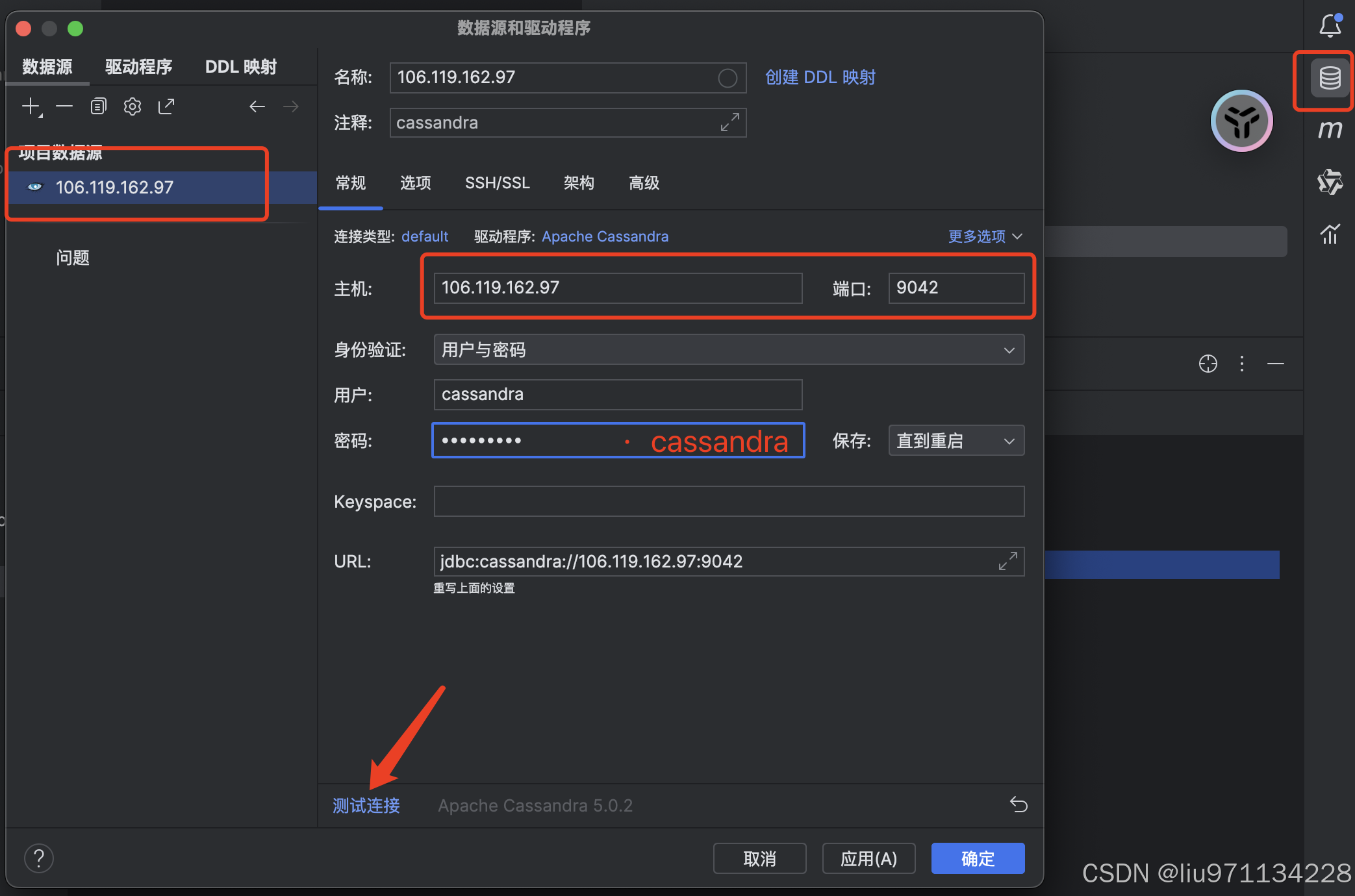

4、cassandra 安装

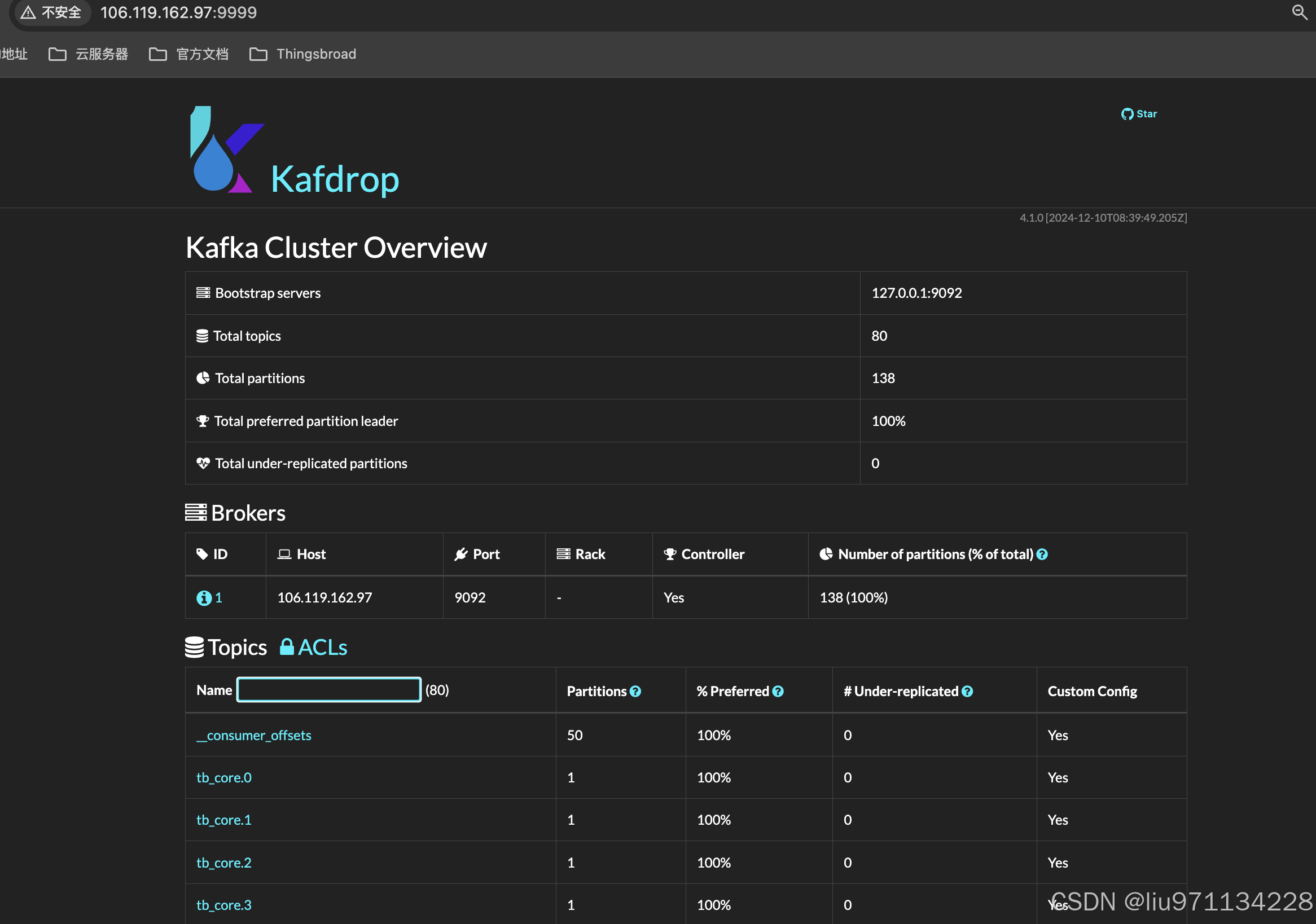

5、kafka 可视化页面

官网地址：https://github.com/obsidiandynamics/kafdrop

下载最新的 jar 包上传到云服务器

java --add-opens=java.base/sun.nio.ch=ALL-UNNAMED -jar kafdrop-4.1.0.jar --kafka.brokerConnect=127.0.0.1:9092 --server.port=9999
