Kibana 安装教程

安装Kibana

安装Kibana

下载

查看 Elasticsearch 的版本号：

root@Search02# curl 'http://192.168.1.123:9200/?pretty'
{
  "name" : "es-123",
  "cluster_name" : "es-cluster",
  "cluster_uuid" : "P2cC5ZKKT-eonU3ePcms3g",
  "version" : {
    "number" : "5.6.0",
    "build_hash" : "781a835",
    "build_date" : "2017-09-07T03:09:58.087Z",
    "build_snapshot" : false,
    "lucene_version" : "6.6.0"
  },
  "tagline" : "You Know, for Search"
}

下载对应版本的 Kibana 安装包。博主下载的版本是 5.6.0 , windows 版本：Kibana-5.6.0.zip。
- 下载地址
解压安装包到指定目录。博主解压到 D:\software\devTools\kibana-5.6.0

配置

更多配置信息，参考官方文档
修改 ${Kibana_HOME}/config目录下的 kibana.yml。由于博主的 Elasticsearch 部署在其他机器，所以需要修改相应的 URL。
- elasticsearch.url: "http://192.168.1.123:9200"

启动

进入 ${Kibana_HOME}/bin，运行：./kibana.bat

如果发生报错，而且报错信息类似Error: Cannot find module 'babel-preset-react'，执行以下命令：
- npm install babel-preset-react
- 如果有多次重复报错类似的信息，直接执行：
  - npm install

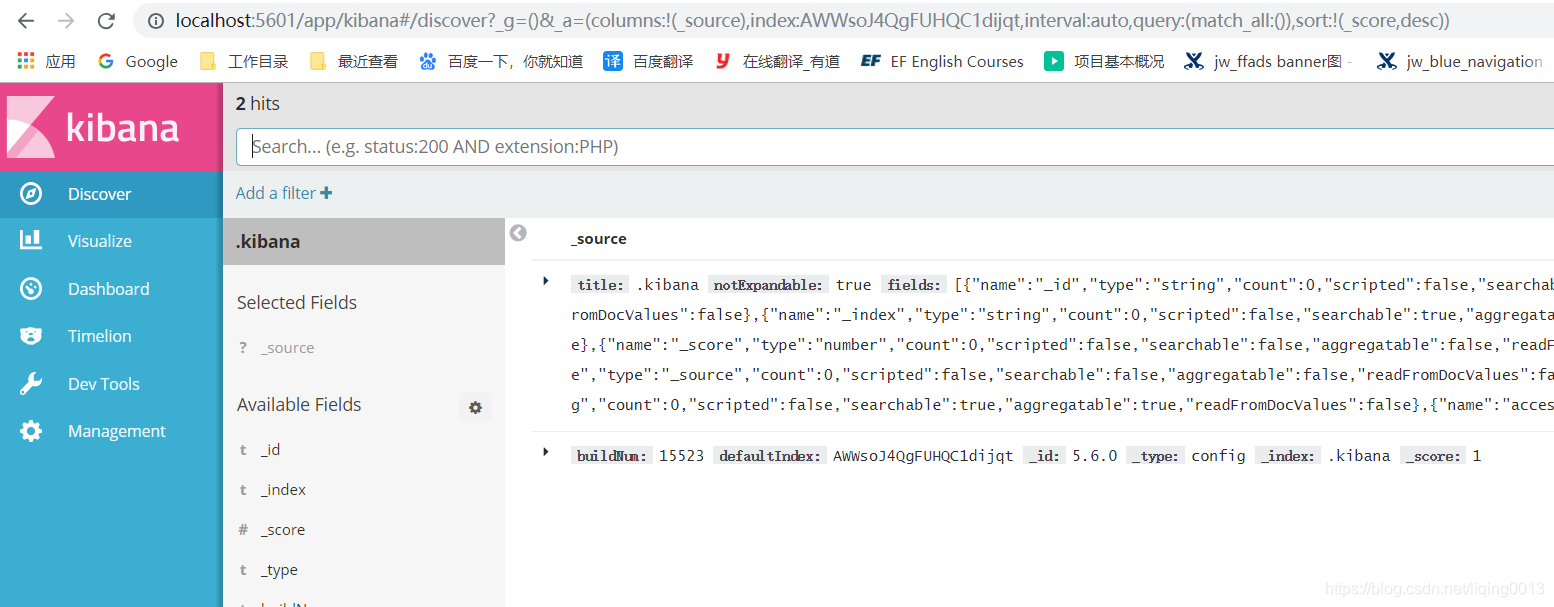

顺利启动时，输出以下信息：

$ ./kibana.bat
{"type":"response","@timestamp":"2019-04-08T03:54:38Z","tags":[],"pid":19204,"method":"get","statusCode":304,"req":{"url":"/ui/favicons/favicon-16x16.png","method":"get","headers":{"host":"localhost:5601","connection":"keep-alive","user-agent":"Mozilla/5.0 (Windows NT 10.0; WOW64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/71.0.3578.98 Safari/537.36","accept":"image/webp,image/apng,image/*,*/*;q=0.8","referer":"http://localhost:5601/app/kibana","accept-encoding":"gzip, deflate, br","accept-language":"zh-CN,zh;q=0.9","if-none-match":"\"f33f077bfe13045136046c93b6180be0379386ff\"","if-modified-since":"Wed, 06 Sep 2017 17:02:20 GMT"},"remoteAddress":"127.0.0.1","userAgent":"127.0.0.1","referer":"http://localhost:5601/app/kibana"},"res":{"statusCode":304,"responseTime":4,"contentLength":9},"message":"GET /ui/favicons/favicon-16x16.png 304 4ms - 9.0B"}
{"type":"response","@timestamp":"2019-04-08T03:54:38Z","tags":[],"pid":19204,"method":"post","statusCode":200,"req":{"url":"/elasticsearch/_msearch","method":"post","headers":{"host":"localhost:5601","connection":"keep-alive","content-length":"457","accept":"application/json, text/plain, */*","origin":"http://localhost:5601","kbn-version":"5.6.0","user-agent":"Mozilla/5.0 (Windows NT 10.0; WOW64)AppleWebKit/537.36 (KHTML, like Gecko) Chrome/71.0.3578.98 Safari/537.36","content-type":"application/x-ndjson","referer":"http://localhost:5601/app/kibana","accept-encoding":"gzip, deflate, br","accept-language":"zh-CN,zh;q=0.9"},"remoteAddress":"127.0.0.1","userAgent":"127.0.0.1","referer":"http://localhost:5601/app/kibana"},"res":{"statusCode":200,"responseTime":21,"contentLength":9},"message":"POST /elasticsearch/_msearch 200 21ms - 9.0B"}
