ArcGIS JSAPI 高级教程 - ArcGIS Maps SDK for JavaScript - dat.gui 使用示例

为了方便调试渲染效果，可以借助一些工具，这里介绍一下 dat.gui。

官网：

npm 地址 dat.gui

githup 地址 dat.gui

API 地址 dat.gui

本文包括核心代码、完整代码以及在线示例。

核心代码

简单介绍一下使用的方式：

引入 js css


<script type="text/javascript" src="https://openlayers.vip/examples/resources/dat_gui/dat.gui.js"></script>
<link rel="stylesheet" type="text/css" href="https://openlayers.vip/examples/resources/dat_gui/dat.gui.css"/>

使用方法


// 创建对象
var gui = new dat.GUI();
// 添加动态属性
// 监听属性值变化，更新帧
gui.add(luminanceRenderNode, 'test_float', 0, 3.0).name("夜视仪亮度").onChange(function (value) {
    luminanceRenderNode.requestRender();
});

完整代码


<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8"/>
    <meta name="viewport" content="initial-scale=1, maximum-scale=1,user-scalable=no"/>
    <title>Custom RenderNode - dat_gui 使用示例 | Sample | ArcGIS Maps SDK for JavaScript 4.29</title>

    <!--    <link rel="stylesheet" href="https://js.arcgis.com/4.29/esri/themes/light/main.css"/>-->
    <link rel="stylesheet" href="./4.29/esri/themes/light/main.css"/>

    <script type="text/javascript" src="./dat_gui/dat.gui.js"></script>
    <link rel="stylesheet" type="text/css" href="./dat_gui/dat.gui.css"/>

    <!--    <script src="https://js.arcgis.com/4.29/"></script>-->
    <script src="./4.29/init.js"></script>
    <script src="./renderCommon.js"></script>

    <script type="module" src="https://js.arcgis.com/calcite-components/2.5.1/calcite.esm.js"></script>
    <link rel="stylesheet" type="text/css" href="https://js.arcgis.com/calcite-components/2.5.1/calcite.css"/>


    <style>
        html,
        body,
        #viewDiv {
            padding: 0;
            margin: 0;
            height: 100%;
            width: 100%;
        }
    </style>
</head>
<body>
<script>
    require(["esri/Map", "esri/views/SceneView", "esri/views/3d/webgl/RenderNode",
        "esri/Graphic", "esri/views/3d/webgl",
        "esri/geometry/SpatialReference",
        "esri/widgets/Home",

    ], function (
        Map,
        SceneView,
        RenderNode,
        Graphic,
        webgl,
        SpatialReference,
        Home,
    ) {

        const {map, view} = initMap({Map, SceneView, Home});


        view.when(() => {

            // Derive a new subclass from RenderNode called LuminanceRenderNode
            const LuminanceRenderNode = RenderNode.createSubclass({
                constructor: function () {
                    // consumes and produces define the location of the the render node in the render pipeline
                    this.consumes = {required: ["composite-color"]};
                    this.produces = "composite-color";
                    // 定义属性
                    this.test_float = 1.0;
                },
                // Ensure resources are cleaned up when render node is removed
                destroy() {
                    this.shaderProgram && this.gl?.deleteProgram(this.shaderProgram);
                    this.positionBuffer && this.gl?.deleteBuffer(this.positionBuffer);
                    this.vao && this.gl?.deleteVertexArray(this.vao);
                },
                properties: {
                    // Define getter and setter for class member enabled
                    enabled: {
                        get: function () {
                            return this.produces != null;
                        },
                        set: function (value) {
                            // Setting produces to null disables the render node
                            this.produces = value ? "composite-color" : null;
                            this.requestRender();
                        }
                    }
                },

                render(inputs) {
                    // The field input contains all available framebuffer objects
                    // We need color texture from the composite render target
                    const input = inputs.find(({name}) => name === "composite-color");
                    const color = input.getTexture();
                    // this.resetWebGLState();
                    // const output = this.bindRenderTarget();
                    // Acquire the composite framebuffer object, and bind framebuffer as current target
                    const output = this.acquireOutputFramebuffer();

                    const gl = this.gl;

                    // Clear newly acquired framebuffer
                    gl.clearColor(0, 0, 0, 0);
                    gl.colorMask(true, true, true, true);
                    gl.clear(gl.COLOR_BUFFER_BIT);
                    // gl.disable(gl.CULL_FACE); // 禁用面剔除

                    // Prepare custom shaders and geometry for screenspace rendering
                    this.ensureShader(gl);
                    this.ensureScreenSpacePass(gl);

                    // Bind custom program
                    gl.useProgram(this.shaderProgram);

                    // Use composite-color render target to be modified in the shader
                    gl.activeTexture(gl.TEXTURE0);
                    gl.bindTexture(gl.TEXTURE_2D, color.glName);
                    gl.uniform1i(this.textureUniformLocation, 0);

                    // 传递测试数据
                    gl.uniform1f(this.textureUniformTestFloat, this.test_float);

                    // Issue the render call for a screen space render pass
                    gl.bindVertexArray(this.vao);

                    gl.drawArrays(gl.TRIANGLES, 0, 3);

                    return output;
                },

                shaderProgram: null,
                textureUniformLocation: null,
                positionLocation: null,
                vao: null,
                positionBuffer: null,
                // used to avoid allocating objects in each frame.

                // Setup screen space filling triangle
                ensureScreenSpacePass(gl) {
                    if (this.vao) {
                        return;
                    }

                    this.vao = gl.createVertexArray();
                    gl.bindVertexArray(this.vao);
                    this.positionBuffer = gl.createBuffer();
                    gl.bindBuffer(gl.ARRAY_BUFFER, this.positionBuffer);
                    const vertices = new Float32Array([-1.0, -1.0, 3.0, -1.0, -1.0, 3.0]);
                    gl.bufferData(gl.ARRAY_BUFFER, vertices, gl.STATIC_DRAW);

                    gl.vertexAttribPointer(this.positionLocation, 2, gl.FLOAT, false, 0, 0);
                    gl.enableVertexAttribArray(this.positionLocation);


                    gl.bindVertexArray(null);
                },

                // Setup custom shader programs
                ensureShader(gl) {
                    if (this.shaderProgram != null) {
                        return;
                    }
                    // The vertex shader program
                    // Sets position from 0..1 for fragment shader
                    // Forwards texture coordinates to fragment shader
                    const vshader = `#version 300 es

                    in vec2 position;

                    out vec2 uv;

                    void main() {

                        gl_Position = vec4(position, 0.0, 1.0);

                        uv = position * 0.5 + vec2(0.5);
                    }`;

                    // The fragment shader program applying a greyscsale conversion
                    const fshader = `#version 300 es

                    precision mediump float;
                    out mediump vec4 fragColor;

                    // 测试属性
                    uniform float test_float;

                    in vec2 uv;
                    uniform sampler2D colorTex;

                    void main() {

                     vec4 color = texture(colorTex, uv);

                     // 使用测试数据
                     fragColor = vec4(color.r, color.g * test_float, color.b, 0.9);

                     fragColor.rgb = fragColor.rgb/2.0;
                }

                   `;

                    this.shaderProgram = initWebgl2Shaders(gl, vshader, fshader);
                    this.textureUniformLocation = gl.getUniformLocation(this.shaderProgram, "colorTex");

                    // 测试数据位置
                    this.textureUniformTestFloat = gl.getUniformLocation(this.shaderProgram, "test_float");

                    this.positionLocation = gl.getAttribLocation(this.shaderProgram, "position");
                }
            });

            // Initializes the new custom render node and connects to SceneView
            const luminanceRenderNode = new LuminanceRenderNode({view});

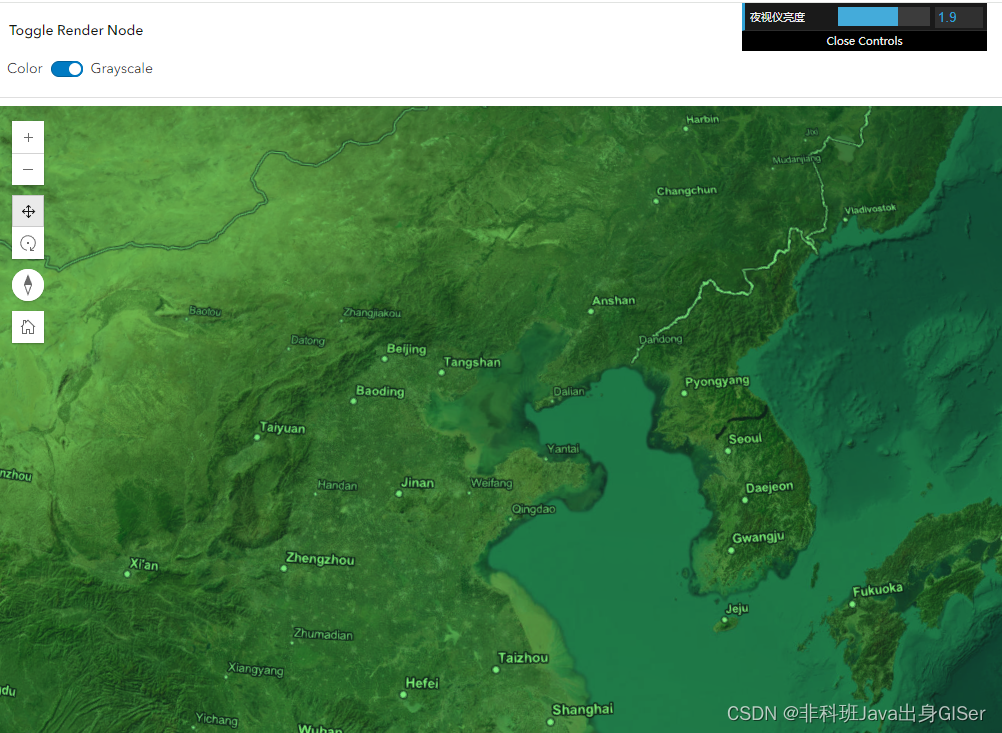

            var gui = new dat.GUI();
            // 激活 ui
            gui.add(luminanceRenderNode, 'test_float', 0, 3.0).name("夜视仪亮度").onChange(function (value) {
                luminanceRenderNode.requestRender();
            });

            // Toggle button to enable/disable the custom render node
            const renderNodeToggle = document.getElementById("renderNodeToggle");
            renderNodeToggle.addEventListener("calciteSwitchChange", () => {
                luminanceRenderNode.enabled = !luminanceRenderNode.enabled;
            });
        });
    });
</script>
<calcite-block open heading="Toggle Render Node" id="renderNodeUI">
    <calcite-label layout="inline">
        Color
        <calcite-switch id="renderNodeToggle" checked></calcite-switch>
        Grayscale
    </calcite-label>
</calcite-block>
<div id="viewDiv"></div>
</body>
</html>
