读Linux内核kfifo

内核kfifo简约高效，匠心独运，有一下特点：

• 保证缓冲区大小为2的次幂，不是的向上取整为2的次幂。
• 使用无符号整数保存输入(in)和输出(out)的位置，在输入输出时不对in和out的值进行模运算，而让其自然溢出，并能够保证in-out的结果为缓冲区中已存放的数据长度。
• 将需要取模的运算用 & 操作代替（ a % size = (a & (size − 1)) ), 这需要size保证为2的次幂。
• 使用内存屏障(Memory Barrier)技术，实现单消费者和单生产者对kfifo的无锁并发访问，多个消费者、生产者的并发访问还是需要加锁的（本文不涉及）。

以下为删改后可运行的代码：

// kfifo.h
#ifndef _LINUX_KFIFO_H
#define _LINUX_KFIFO_H

#include <stddef.h>


typedef int gfp_t;

struct __kfifo {
    unsigned int    in;
    unsigned int    out;
    unsigned int    mask;
    unsigned int    esize;
    void        *data;
};

extern int __kfifo_alloc(struct __kfifo *fifo, unsigned int size,
    size_t esize);

extern void __kfifo_free(struct __kfifo *fifo);

extern int __kfifo_init(struct __kfifo *fifo, void *buffer,
    unsigned int size, size_t esize);

extern unsigned int __kfifo_in(struct __kfifo *fifo,
    const void *buf, unsigned int len);

extern unsigned int __kfifo_out(struct __kfifo *fifo,
    void *buf, unsigned int len);

extern unsigned int __kfifo_out_peek(struct __kfifo *fifo,
    void *buf, unsigned int len);

#endif

// kfifo.c
#include "ringbuffer.h"
#include <string.h>
#include <stdlib.h>
#include <stdbool.h>
#include <assert.h>

#define min(a, b)            (((a) < (b)) ? (a) : (b))

static bool is_power_of_2(unsigned long n)
{
    return (n != 0 && ((n & (n - 1)) == 0));
}

/*
 * internal helper to calculate the unused elements in a fifo
 */
static inline unsigned int kfifo_unused(struct __kfifo *fifo)
{
    return (fifo->mask + 1) - (fifo->in - fifo->out);
}

int __kfifo_alloc(struct __kfifo* fifo, unsigned int size,
        size_t esize)
{
    /*
     * round down to the next power of 2, since our 'let the indices
     * wrap' technique works only in this case.
     */
    // size = roundup_pow_of_two(size);

    assert(is_power_of_2(size));

    fifo->in = 0;
    fifo->out = 0;
    fifo->esize = esize;

    if (size < 2) {
        fifo->data = NULL;
        fifo->mask = 0;
        // return -EINVAL;
    }

    fifo->data = malloc(size * esize);

    if (!fifo->data) {
        fifo->mask = 0;
        // return -ENOMEM;
    }
    fifo->mask = size - 1;

    return 0;
}


void __kfifo_free(struct __kfifo *fifo)
{
    free(fifo->data);
    fifo->in = 0;
    fifo->out = 0;
    fifo->esize = 0;
    fifo->data = NULL;
    fifo->mask = 0;
}


int __kfifo_init(struct __kfifo *fifo, void *buffer,
        unsigned int size, size_t esize)
{
    size /= esize;

    // size = roundup_pow_of_two(size);

    assert(is_power_of_2(size));

    fifo->in = 0;
    fifo->out = 0;
    fifo->esize = esize;
    fifo->data = buffer;

    if (size < 2) {
        fifo->mask = 0;
        // return -EINVAL;
    }
    fifo->mask = size - 1;

    return 0;
}


static void kfifo_copy_in(struct __kfifo *fifo, const void *src,
        unsigned int len, unsigned int off)
{
    unsigned int size = fifo->mask + 1;
    unsigned int esize = fifo->esize;
    unsigned int l;

    off &= fifo->mask;
    if (esize != 1) {
        off *= esize;
        size *= esize;
        len *= esize;
    }
    l = min(len, size - off);

    memcpy(fifo->data + off, src, l);
    memcpy(fifo->data, src + l, len - l);

}

unsigned int __kfifo_in(struct __kfifo *fifo,
        const void *buf, unsigned int len)
{
    unsigned int l;

    l = kfifo_unused(fifo);
    if (len > l)
        len = l;

    kfifo_copy_in(fifo, buf, len, fifo->in);
    fifo->in += len;
    return len;
}


static void kfifo_copy_out(struct __kfifo *fifo, void *dst,
        unsigned int len, unsigned int off)
{
    unsigned int size = fifo->mask + 1;
    unsigned int esize = fifo->esize;
    unsigned int l;

    off &= fifo->mask;
    if (esize != 1) {
        off *= esize;
        size *= esize;
        len *= esize;
    }
    l = min(len, size - off);

    memcpy(dst, fifo->data + off, l);
    memcpy(dst + l, fifo->data, len - l);
}


unsigned int __kfifo_out_peek(struct __kfifo *fifo,
        void *buf, unsigned int len)
{
    unsigned int l;

    l = fifo->in - fifo->out;
    if (len > l)
        len = l;

    kfifo_copy_out(fifo, buf, len, fifo->out);
    return len;
}


unsigned int __kfifo_out(struct __kfifo *fifo,
        void *buf, unsigned int len)
{
    len = __kfifo_out_peek(fifo, buf, len);
    fifo->out += len;
    return len;
}

计算缓冲区中甚于空闲长度

static inline unsigned int kfifo_unused(struct __kfifo *fifo)
{
    return (fifo->mask + 1) - (fifo->in - fifo->out);
}

• 此处fifo->mask + 1 即为缓冲区长度，这个好理解。

• fifo->in - fifo->out 为已经写入长度

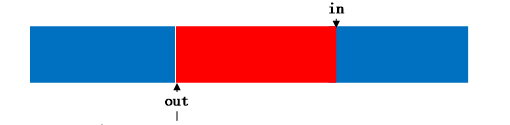

  • 当in > out 时很好理解。

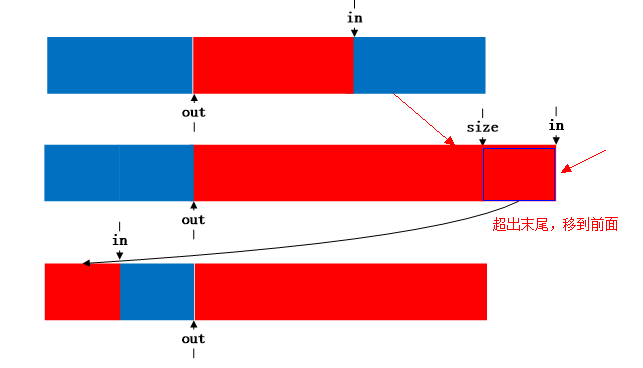

    • 还有一种情况，就是in写满缓冲区尾部，折回到开头并且unsigned int 溢出，out不溢出。此时 in < out , in - out 还为已经写入长度？


  答案是 in – out 为负数（又将溢出），in – out 的值还是为buffer中数据的长度。
  证明代码：

unsigned char a = 1;
unsigned char b = 254;
unsigned char c = a-b;
printf(" %u \n",c);

（以上图片来自https://www.linuxidc.com/Linux/2016-12/137938.htm）

c++ 简单实现

#include <stdio.h>

class RingBuffer
{
  public:
    RingBuffer(unsigned int size);
    ~RingBuffer();

    unsigned int get(void *pbuf, unsigned int len);
    unsigned int put(const void *pbuf, unsigned int len);
//for debug
    void print()
    {
        for(int i=0; i<mask_+1; i++)
        {
            printf("%c \n",data_[i]);
        }
    }
  private:
    unsigned int in_;
    unsigned int out_;
    unsigned int mask_;
    unsigned char *data_;

    unsigned int used()
    { return in_ - out_;}

    unsigned int unused()
    { return mask_ + 1 - used();}
};

#include "ringBuffer.h"
#include <string.h>
#include <stdlib.h>

#include <assert.h>

#include <algorithm>
#include <iostream>
/*
*   a % b = (a & (b − 1))
*/

namespace
{
inline bool is_power_of_2(unsigned long n)
{
    return (n != 0 && ((n & (n - 1)) == 0));
}

}

RingBuffer::RingBuffer(unsigned int size)
    : in_(0),
      out_(0),
      mask_(size - 1),
      data_(new unsigned char[size])

{
    assert(is_power_of_2(size) && size >= 2);
}

RingBuffer::~RingBuffer()
{
    delete[] data_;
}

unsigned int RingBuffer::get(void *pbuf, unsigned int len)
{
    unsigned char *buf = static_cast<unsigned char *>(pbuf);
    // 读取数据长度不能超过 已有数据长度
    len = std::min(len, used());

    __sync_synchronize();
    //对 out_ 取模
    unsigned int off = out_ & mask_;
    //mask_ + 1 - off == out_到缓冲区尾部的距离
    unsigned int l = std::min(len, mask_ + 1 - off);
    //先取后面out_到缓冲区尾部的数据，长度为l
    memcpy(buf, data_ + off, l);
    //再取剩余在缓冲区头部的数据，长度为len-l,如果len-l为0,则不会拷贝
    memcpy(buf + l, data_, len - l);

    __sync_synchronize();
    //直接加len，当unsinged int 溢出时自动归0
    out_ += len;

    return len;
}

unsigned int RingBuffer::put(const void *pbuf, unsigned int len)
{
    unsigned char *buf = static_cast<unsigned char *>(const_cast<void *>(pbuf));
    //写入数据长度不能超过 甚于空间
    len = std::min(len, unused());

    //TODO 缓冲区自动扩容

    __sync_synchronize();
    unsigned int off = in_ & mask_;
    // mask_ + 1 - off = in_ 到缓冲区尾部的距离
    unsigned int l = std::min(len, mask_ + 1 - off);

    memcpy(data_ + off, buf, l);
    memcpy(data_, buf + l, len - l);

    __sync_synchronize();
    in_ += len;

    return len;
}
