SpringMVC纯注解配置通过注解配置完全代替web.xml、Spring的xml文件配置，jquery递归遍历后台返回的json对象并进行拼接立即下载

快速搭建web项目

创建maven项目
添加依赖：
注意spring和jackson的版本兼容问题

<!--spring-->
   <dependency>
     <groupId>org.springframework</groupId>
     <artifactId>spring-context</artifactId>
     <version>${spring-version}</version>
   </dependency>
   <dependency>
     <groupId>org.springframework</groupId>
     <artifactId>spring-core</artifactId>
     <version>${spring-version}</version>
   </dependency>
   <dependency>
     <groupId>org.springframework</groupId>
     <artifactId>spring-beans</artifactId>
     <version>${spring-version}</version>
   </dependency>
   <dependency>
     <groupId>org.springframework</groupId>
     <artifactId>spring-expression</artifactId>
     <version>${spring-version}</version>
   </dependency>
   <dependency>
     <groupId>org.springframework</groupId>
     <artifactId>spring-aop</artifactId>
     <version>${spring-version}</version>
   </dependency>
<!--spring-web-->
   <dependency>
     <groupId>org.springframework</groupId>
     <artifactId>spring-web</artifactId>
     <version>${spring-version}</version>
   </dependency>
   <dependency>
     <groupId>org.springframework</groupId>
     <artifactId>spring-webmvc</artifactId>
     <version>${spring-version}</version>
   </dependency>
   <!--tomcat-->
   <dependency>
     <groupId>org.apache.tomcat</groupId>
     <artifactId>tomcat-servlet-api</artifactId>
     <version>8.5.38</version>
   </dependency>
   <!--jackson-->
   <dependency>
     <groupId>com.fasterxml.jackson.core</groupId>
     <artifactId>jackson-databind</artifactId>
     <version>2.9.5</version>
   </dependency>
   <dependency>
     <groupId>com.fasterxml.jackson.core</groupId>
     <artifactId>jackson-core</artifactId>
     <version>2.9.5</version>
   </dependency>
   <dependency>
     <groupId>com.fasterxml.jackson.core</groupId>
     <artifactId>jackson-annotations</artifactId>
     <version>2.9.5</version>
   </dependency>

新建配置类extend AbstractAnnotationConfigDispatcherServletInitializer的注解快速配置类,
将DispatcherServlet和Spring应用上下文配置到Servlet容器中,

package com.config;

import org.springframework.web.servlet.support.AbstractAnnotationConfigDispatcherServletInitializer;

public class WebInitilaizer extends AbstractAnnotationConfigDispatcherServletInitializer{
	/**根上下文中添加配置，定义分层ApplicationContext共享bean，如数据源配置，
	*某个DispatcherServlet上下文找不到的配置会从根上下文中去寻找
	*/
   @Override
   protected Class<?>[] getRootConfigClasses() {
       return new Class[]{};//空
   }
   /**
   *DispatcherServlet上下文配置类，未分层就一个上下文
   */
   @Override
   protected Class<?>[] getServletConfigClasses() {
       return new Class[]{WebConfig.class};//配置类
   }
   //相当于DispatcherServlet，servlet-mapping的url-pattern
   @Override
   protected String[] getServletMappings() {
       return new String[]{"/"};
   }

}

原理方面：如果Servlet容器遵循的是Servlet3.0接口，那么Servlet容器加载遵循javax.servlet.ServletContainerInitializer接口的规范，然而spring已经提供了该接口的实现类SpringServletContainerInitializer，方法会寻找WebApplicationInitializer接口实现类添加进初始化集合中

@HandlesTypes(WebApplicationInitializer.class)
public class SpringServletContainerInitializer implements ServletContainerInitializer {

   @Override
   public void onStartup(@Nullable Set<Class<?>> webAppInitializerClasses, ServletContext servletContext) throws ServletException {

       List<WebApplicationInitializer> initializers = new LinkedList<>();

                           ......//寻找WebApplicationInitializer的实现类，然后放入initializers中

       AnnotationAwareOrderComparator.sort(initializers);
   for (WebApplicationInitializer initializer : initializers) {
       initializer.onStartup(servletContext);
   }
   }
}

然而我们配置的抽象类继承关系如下：
WebApplicationInitializer —> AbstractContextLoaderInitializer —> AbstractDispatcherServletInitializer —> AbstractAnnotationConfigDispatcherServletInitializer
好了，继续我们的全注解配置，再写一个配置类，刚刚getServletConfigClasses()的WebConfig，
1、@Configuration表明配置类
2、@EnableWebMvc启用MVC Java config相当于<mvc:annotation-driven/>（加载RequestMappingHandlerMapping和RequestMappingHandlerAdapter）
3、@ComponentScan扫描识别我们的controller
4、配置一个视图解析器和handler适配器

package com.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.ComponentScan;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.FilterType;
import org.springframework.http.MediaType;
import org.springframework.http.converter.json.MappingJackson2HttpMessageConverter;
import org.springframework.stereotype.Controller;
import org.springframework.util.PropertyPlaceholderHelper;
import org.springframework.web.servlet.HandlerAdapter;
import org.springframework.web.servlet.ViewResolver;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurerAdapter;
import org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter;
import org.springframework.web.servlet.view.InternalResourceViewResolver;

import java.util.ArrayList;
import java.util.List;

@Configuration
@EnableWebMvc
@ComponentScan(value = "com.*",includeFilters = {@ComponentScan.Filter(type = FilterType.ANNOTATION,
       value = Controller.class)})
public class WebConfig {
   @Bean(name = "internalResourceViewResolver")
   public ViewResolver viewResolver(){
       InternalResourceViewResolver viewResolver = new InternalResourceViewResolver();
       viewResolver.setPrefix("/WEB-INF/jsp/");
       viewResolver.setSuffix(".jsp");
       return  viewResolver;
   }
   @Bean(name = "requestMappingHandlerAdapter")
   public HandlerAdapter mappingHandlerAdapter(){
       RequestMappingHandlerAdapter handlerAdapter = new RequestMappingHandlerAdapter();
       MappingJackson2HttpMessageConverter jackson2HttpMessageConverter = new MappingJackson2HttpMessageConverter();
       List<MediaType> mediaTypelist = new ArrayList<>();
       mediaTypelist.add(MediaType.APPLICATION_JSON_UTF8);
       jackson2HttpMessageConverter.setSupportedMediaTypes(mediaTypelist);
       handlerAdapter.getMessageConverters().add(jackson2HttpMessageConverter);
       return handlerAdapter;
   }
}

有了这两个配置类，接下来就可以写controller（忽略@Api、@ApiOperation注解）

@Controller
@Api(value = "Test User 测试",tags={"用户操作接口"})
public class TestController {

   @Autowired
   private TestService testService;

   @ApiOperation(value="/map",notes="map返回json测试")
   @RequestMapping("/map")
   @ResponseBody
   public Map<String,String> map(){
       Map<String,String> map = new HashMap<>();
       map.put("key","value");
       return map;
   }
   @RequestMapping("/hello")
   public ModelAndView hello(){
       ModelAndView mav = new ModelAndView();
       mav.setViewName("hello");
       return mav;
   }
}

配置tomcat服务启动
在这里插入图片描述
至此基本的控制器层访问已经可以了，无需xml配置，根据需要可适当增添以下配置类（引入相关的jar包）

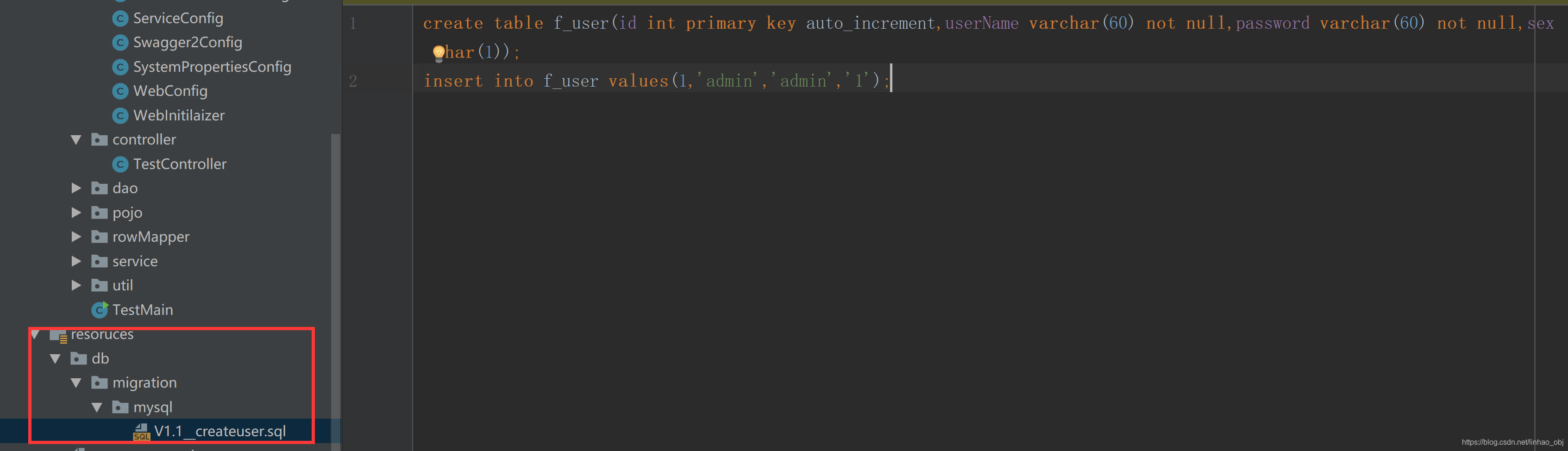

配置项：数据源、jdbc、flyway(数据库本版管理，自动刷入sql脚本，默认脚本路径如图，sql命名V+版本+双下划线)

 <dependency>
  <groupId>org.flywaydb</groupId>
  <artifactId>flyway-core</artifactId>
  <version>4.2.0</version>
</dependency>![在这里插入图片描述](https://img-blog.csdnimg.cn/20190321235101105.png?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L2xpbmhhb19vYmo=,size_16,color_FFFFFF,t_70)

package com.config;

import com.alibaba.druid.pool.DruidDataSource;
import org.flywaydb.core.Flyway;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.jdbc.core.JdbcTemplate;

import javax.sql.DataSource;

@Configuration
public class ServiceConfig {
   @Autowired
   private SystemPropertiesConfig systemPropertiesConfig;
   @Bean
   public DataSource dataSource(){
       DruidDataSource dataSource = new DruidDataSource();
       dataSource.setUrl(systemPropertiesConfig.getJdbcUrl());
       dataSource.setUsername(systemPropertiesConfig.getJdbcUserName());
       dataSource.setPassword(systemPropertiesConfig.getJdbcPassword());
       dataSource.setDriverClassName(systemPropertiesConfig.getJdbcDriver());
       return dataSource;
   }

   @Bean
   public JdbcTemplate jdbcTemplate(DataSource dataSource){
       JdbcTemplate jdbcTemplate = new JdbcTemplate();
       jdbcTemplate.setDataSource(dataSource);
       return jdbcTemplate;
   }

   @Bean
   public Flyway flyway(DataSource dataSource){
       Flyway flyway = new Flyway();
       flyway.setDataSource(dataSource);
       flyway.setBaselineOnMigrate(true);
       flyway.setLocations(systemPropertiesConfig.getFlywayDir());
       flyway.migrate();
       return flyway;
   }
}

配置项：swagger（好用的网页端在线接口api文档）

<dependency>
  <groupId>io.springfox</groupId>
  <artifactId>springfox-swagger2</artifactId>
  <version>2.7.0</version>
</dependency>
<dependency>
  <groupId>io.springfox</groupId>
  <artifactId>springfox-swagger-ui</artifactId>
  <version>2.7.0</version>
</dependency>

package com.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.EnableWebMvc;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;


@Configuration
@EnableSwagger2
@EnableWebMvc
public class Swagger2Config {

   @Autowired
   private SystemPropertiesConfig systemPropertiesConfig;
   private boolean swaggerEnabled ;

   @Bean
   public Docket createRestApi() {
       swaggerEnabled = Boolean.parseBoolean(systemPropertiesConfig.getSwaggerEnabled());
       return new Docket(DocumentationType.SWAGGER_2).apiInfo(apiInfo())
               // 是否开启
               .enable(swaggerEnabled).select()
               // 扫描的路径包
               .apis(RequestHandlerSelectors.basePackage("com.*"))
               // 指定路径处理PathSelectors.any()代表所有的路径
               .paths(PathSelectors.any()).build().pathMapping("/");
   }

   private ApiInfo apiInfo() {
       return new ApiInfoBuilder()
               .title("SpringMvc-Swagger2集成和使用-test示例")
               .description("SpringMvc | swagger")
               .contact(new Contact("varCode", "http://localhost:8080/test/", "1375354959@qq.com"))
               .version("1.0.0")
               .build();
   }
}

swagger应用顺带引出mvc对静态资源的配置
1、 configureDefaultServletHandling的configurer.enable();相当于<mvc:default-servet-handler>将静态资源交给tomcat处理(只能读取webapp下的资源，WEB-INF下的资源还得2)；
2、addResourceHandlers看结构就和<mvc:resources mapping="xxx" location="xxx">一致

package com.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.DefaultServletHandlerConfigurer;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
@Configuration
public class ResourceHandlerConfig implements WebMvcConfigurer {

   @Override
   public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer){
       configurer.enable();
   }

   @Override
   public void addResourceHandlers(ResourceHandlerRegistry registry) {
       registry.addResourceHandler("/swagger-ui.html").addResourceLocations("classpath:/META-INF/resources/");
       registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");
   }
}

还有注解整合整合mybatis、说起mg，开源代码生成器持久层基本都是生成mapper文件,需要一套前台页面、js+后端jdbc持久层，下次来个freemarker督促学习共同分享！
