Mybatis 解释 mapper 文件

我们知道 Mybatis 在解释配置文件的时候使用的是 XMLConfigBuilder、在解释 mapper 标签的时候、为每个 Mapper.xml 文件创建一个 XMLMapperBuilder 实例解释 mapper 文件。

public void parse() {
  if (!configuration.isResourceLoaded(resource)) {
    configurationElement(parser.evalNode("/mapper"));
    configuration.addLoadedResource(resource);
    bindMapperForNamespace();
  }

  parsePendingResultMaps();
  parsePendingCacheRefs();
  parsePendingStatements();
}

主要解释的逻辑在 configurationElement

private void configurationElement(XNode context) {
  try {
    String namespace = context.getStringAttribute("namespace");
    if (namespace == null || namespace.isEmpty()) {
      throw new BuilderException("Mapper's namespace cannot be empty");
    }
    builderAssistant.setCurrentNamespace(namespace);
    cacheRefElement(context.evalNode("cache-ref"));
    cacheElement(context.evalNode("cache"));
    parameterMapElement(context.evalNodes("/mapper/parameterMap"));
    resultMapElements(context.evalNodes("/mapper/resultMap"));
    sqlElement(context.evalNodes("/mapper/sql"));
    buildStatementFromContext(context.evalNodes("select|insert|update|delete"));
  } catch (Exception e) {
    throw new BuilderException("Error parsing Mapper XML. The XML location is '" + resource + "'. Cause: " + e, e);
  }
}

处理 cache 标签

我们知道 Mybatis 有一级缓存和二级缓存、其中一级缓存默认是开启的、二级缓存默认情况下没有开启、需要使用 <cache> 标签开启。

private void cacheElement(XNode context) {
  if (context != null) {
    String type = context.getStringAttribute("type", "PERPETUAL");
    Class<? extends Cache> typeClass = typeAliasRegistry.resolveAlias(type);
    String eviction = context.getStringAttribute("eviction", "LRU");
    Class<? extends Cache> evictionClass = typeAliasRegistry.resolveAlias(eviction);
    Long flushInterval = context.getLongAttribute("flushInterval");
    Integer size = context.getIntAttribute("size");
    boolean readWrite = !context.getBooleanAttribute("readOnly", false);
    boolean blocking = context.getBooleanAttribute("blocking", false);
    Properties props = context.getChildrenAsProperties();
    builderAssistant.useNewCache(typeClass, evictionClass, flushInterval, size, readWrite, blocking, props);
  }
}

上面主要是读取 cache 标签中的属性

public Cache useNewCache(Class<? extends Cache> typeClass,
    Class<? extends Cache> evictionClass,
    Long flushInterval,
    Integer size,
    boolean readWrite,
    boolean blocking,
    Properties props) {
  Cache cache = new CacheBuilder(currentNamespace)
      .implementation(valueOrDefault(typeClass, PerpetualCache.class))
      .addDecorator(valueOrDefault(evictionClass, LruCache.class))
      .clearInterval(flushInterval)
      .size(size)
      .readWrite(readWrite)
      .blocking(blocking)
      .properties(props)
      .build();
  configuration.addCache(cache);
  currentCache = cache;
  return cache;
}

如果没有配置二级缓存的实现类、默认使用 PerpetualCache、装饰类使用 LruCache

后续在 build 方法中、根据readWrite、blocking、clearInterval等配置，添加SerializedCache、ScheduledCache等装饰器

private Cache setStandardDecorators(Cache cache) {
  try {
    MetaObject metaCache = SystemMetaObject.forObject(cache);
    if (size != null && metaCache.hasSetter("size")) {
      metaCache.setValue("size", size);
    }
    if (clearInterval != null) {
      cache = new ScheduledCache(cache);
      ((ScheduledCache) cache).setClearInterval(clearInterval);
    }
    if (readWrite) {
      cache = new SerializedCache(cache);
    }
    cache = new LoggingCache(cache);
    cache = new SynchronizedCache(cache);
    if (blocking) {
      cache = new BlockingCache(cache);
    }
    return cache;
  } catch (Exception e) {
    throw new CacheException("Error building standard cache decorators.  Cause: " + e, e);
  }
}

最终创建好的 Cache 对象会被添加到 Configuration 对象中保存

  configuration.addCache(cache);

处理 cache-ref 标签

我们可以通过 cache 标签为每一个 namespace 开启二级缓存、同时还会将 namespace 与关联的二级缓存存放到 Configuration 中。

二级缓存是属于 namespace 级别的、但是、在某些场景下、我们希望多个 namespace 共享同一个二级缓存。

private void cacheRefElement(XNode context) {
  if (context != null) {
    configuration.addCacheRef(builderAssistant.getCurrentNamespace(), context.getStringAttribute("namespace"));
    CacheRefResolver cacheRefResolver = new CacheRefResolver(builderAssistant, context.getStringAttribute("namespace"));
    try {
      cacheRefResolver.resolveCacheRef();
    } catch (IncompleteElementException e) {
      configuration.addIncompleteCacheRef(cacheRefResolver);
    }
  }
}

configuration.addCacheRef 方法就是将两个 namespace 保存到 Configuration 中。

resolveCacheRef 则是尝试从 Configuration 中缓存对应的 Cache、如果获取不到则会抛出异常。

处理 resultMap 标签

标签 resultMap 最终会被解释为 ResultMap 对象

public class ResultMap {
  private Configuration configuration;

  private String id;
  private Class<?> type;
  private List<ResultMapping> resultMappings;
  private List<ResultMapping> idResultMappings;
  private List<ResultMapping> constructorResultMappings;
  private List<ResultMapping> propertyResultMappings;
  private Set<String> mappedColumns;
  private Set<String> mappedProperties;
  private Discriminator discriminator;
  private boolean hasNestedResultMaps;
  private boolean hasNestedQueries;
  private Boolean autoMapping;
  ........

resultMap 标签下的每个子标签、例如 column、id 都会被解释为 ResultMapping 对象

public class ResultMapping {

  private Configuration configuration;
  private String property;
  private String column;
  private Class<?> javaType;
  private JdbcType jdbcType;
  private TypeHandler<?> typeHandler;
  private String nestedResultMapId;
  private String nestedQueryId;
  private Set<String> notNullColumns;
  private String columnPrefix;
  private List<ResultFlag> flags;
  private List<ResultMapping> composites;
  private String resultSet;
  private String foreignColumn;
  private boolean lazy;
  .........

SQL 语句解释

private void buildStatementFromContext(List<XNode> list) {
  if (configuration.getDatabaseId() != null) {
    buildStatementFromContext(list, configuration.getDatabaseId());
  }
  buildStatementFromContext(list, null);
}
private void buildStatementFromContext(List<XNode> list, String requiredDatabaseId) {
  for (XNode context : list) {
    final XMLStatementBuilder statementParser = new XMLStatementBuilder(configuration, builderAssistant, context, requiredDatabaseId);
    try {
      statementParser.parseStatementNode();
    } catch (IncompleteElementException e) {
      configuration.addIncompleteStatement(statementParser);
    }
  }
}

public void parseStatementNode() {
  String id = context.getStringAttribute("id");
  String databaseId = context.getStringAttribute("databaseId");

  if (!databaseIdMatchesCurrent(id, databaseId, this.requiredDatabaseId)) {
    return;
  }

  String nodeName = context.getNode().getNodeName();
  SqlCommandType sqlCommandType = SqlCommandType.valueOf(nodeName.toUpperCase(Locale.ENGLISH));
  boolean isSelect = sqlCommandType == SqlCommandType.SELECT;
  boolean flushCache = context.getBooleanAttribute("flushCache", !isSelect);
  boolean useCache = context.getBooleanAttribute("useCache", isSelect);
  boolean resultOrdered = context.getBooleanAttribute("resultOrdered", false);

  // Include Fragments before parsing
  XMLIncludeTransformer includeParser = new XMLIncludeTransformer(configuration, builderAssistant);
  includeParser.applyIncludes(context.getNode());

  String parameterType = context.getStringAttribute("parameterType");
  Class<?> parameterTypeClass = resolveClass(parameterType);

  String lang = context.getStringAttribute("lang");
  LanguageDriver langDriver = getLanguageDriver(lang);

  // Parse selectKey after includes and remove them.
  processSelectKeyNodes(id, parameterTypeClass, langDriver);

  // Parse the SQL (pre: <selectKey> and <include> were parsed and removed)
  KeyGenerator keyGenerator;
  String keyStatementId = id + SelectKeyGenerator.SELECT_KEY_SUFFIX;
  keyStatementId = builderAssistant.applyCurrentNamespace(keyStatementId, true);
  if (configuration.hasKeyGenerator(keyStatementId)) {
    keyGenerator = configuration.getKeyGenerator(keyStatementId);
  } else {
    keyGenerator = context.getBooleanAttribute("useGeneratedKeys",
        configuration.isUseGeneratedKeys() && SqlCommandType.INSERT.equals(sqlCommandType))
        ? Jdbc3KeyGenerator.INSTANCE : NoKeyGenerator.INSTANCE;
  }

  SqlSource sqlSource = langDriver.createSqlSource(configuration, context, parameterTypeClass);
  StatementType statementType = StatementType.valueOf(context.getStringAttribute("statementType", StatementType.PREPARED.toString()));
  Integer fetchSize = context.getIntAttribute("fetchSize");
  Integer timeout = context.getIntAttribute("timeout");
  String parameterMap = context.getStringAttribute("parameterMap");
  String resultType = context.getStringAttribute("resultType");
  Class<?> resultTypeClass = resolveClass(resultType);
  String resultMap = context.getStringAttribute("resultMap");
  String resultSetType = context.getStringAttribute("resultSetType");
  ResultSetType resultSetTypeEnum = resolveResultSetType(resultSetType);
  if (resultSetTypeEnum == null) {
    resultSetTypeEnum = configuration.getDefaultResultSetType();
  }
  String keyProperty = context.getStringAttribute("keyProperty");
  String keyColumn = context.getStringAttribute("keyColumn");
  String resultSets = context.getStringAttribute("resultSets");

  builderAssistant.addMappedStatement(id, sqlSource, statementType, sqlCommandType,
      fetchSize, timeout, parameterMap, parameterTypeClass, resultMap, resultTypeClass,
      resultSetTypeEnum, flushCache, useCache, resultOrdered,
      keyGenerator, keyProperty, keyColumn, databaseId, langDriver, resultSets);
}

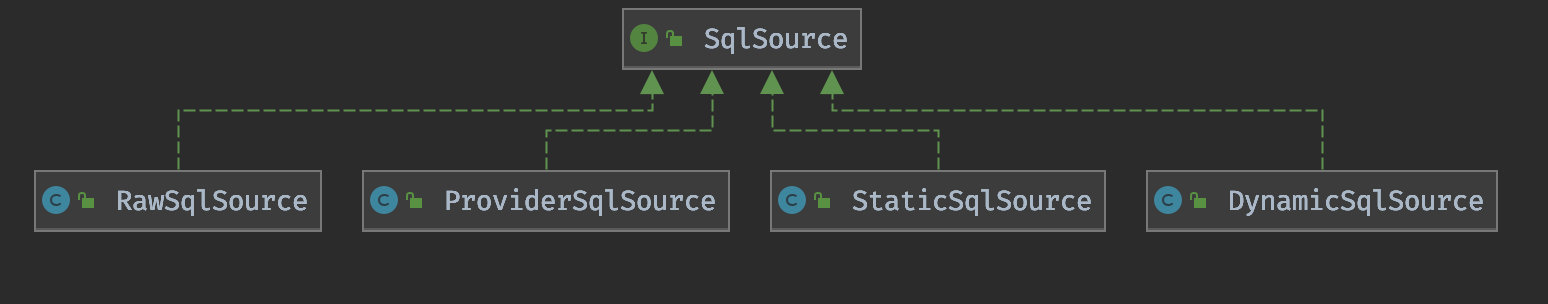

关于 SqlSource

因为 Mybatis 是支持动态 Sql 的、所以、在参数没确定之前、我们是无法确定一个完整的 Sql 语句的。SqlSource 作为其中间态

public interface SqlSource {

  BoundSql getBoundSql(Object parameterObject);

}

而 BoundSql 可以认为是最终执行的 Sql

public class BoundSql {

  private final String sql;
  private final List<ParameterMapping> parameterMappings;
  private final Object parameterObject;
  private final Map<String, Object> additionalParameters;
  private final MetaObject metaParameters;
  ......

我们可以看下它是如何创建出 SqlSource 的

langDriver.createSqlSource(configuration, context, parameterTypeClass);

@Override
public SqlSource createSqlSource(Configuration configuration, XNode script, Class<?> parameterType) {
  XMLScriptBuilder builder = new XMLScriptBuilder(configuration, script, parameterType);
  return builder.parseScriptNode();
}

public SqlSource parseScriptNode() {
  MixedSqlNode rootSqlNode = parseDynamicTags(context);
  SqlSource sqlSource;
  if (isDynamic) {
    sqlSource = new DynamicSqlSource(configuration, rootSqlNode);
  } else {
    sqlSource = new RawSqlSource(configuration, rootSqlNode, parameterType);
  }
  return sqlSource;
}

parseDynamicTags 方法判断是否为动态 Sql、为 isDynamic 赋值

• 如果包含 ${} 占位符、则为动态 Sql
• 如果包含子标签、则为动态 Sql

protected MixedSqlNode parseDynamicTags(XNode node) {
  List<SqlNode> contents = new ArrayList<>();
  NodeList children = node.getNode().getChildNodes();
  for (int i = 0; i < children.getLength(); i++) {
    XNode child = node.newXNode(children.item(i));
    if (child.getNode().getNodeType() == Node.CDATA_SECTION_NODE || child.getNode().getNodeType() == Node.TEXT_NODE) {
      String data = child.getStringBody("");
      TextSqlNode textSqlNode = new TextSqlNode(data);
      if (textSqlNode.isDynamic()) {
        contents.add(textSqlNode);
        isDynamic = true;
      } else {
        contents.add(new StaticTextSqlNode(data));
      }
    } else if (child.getNode().getNodeType() == Node.ELEMENT_NODE) { // issue #628
      String nodeName = child.getNode().getNodeName();
      NodeHandler handler = nodeHandlerMap.get(nodeName);
      if (handler == null) {
        throw new BuilderException("Unknown element <" + nodeName + "> in SQL statement.");
      }
      handler.handleNode(child, contents);
      isDynamic = true;
    }
  }
  return new MixedSqlNode(contents);
}

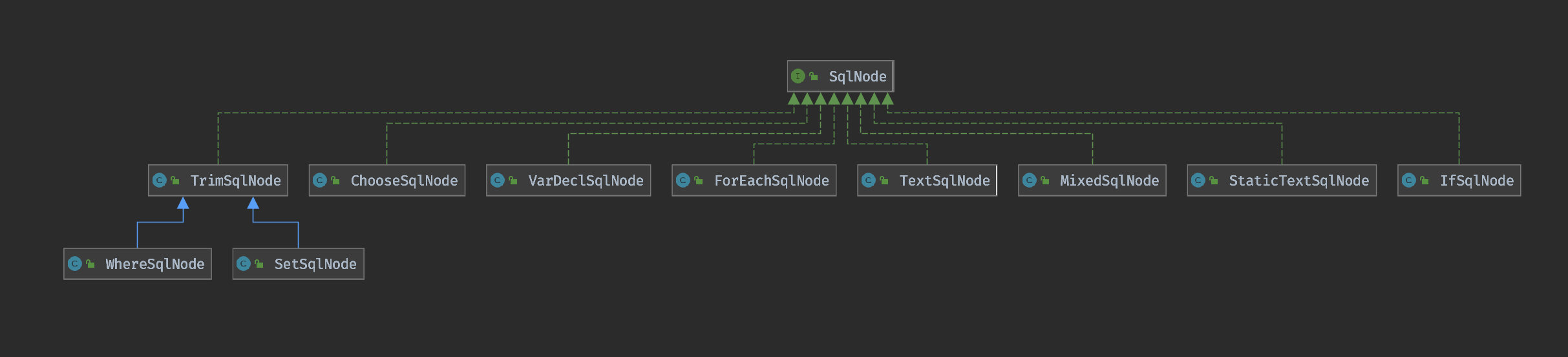

Mybatis 使用 SqlNode 来表示一条 Sql 语句的不同部分、

• TextSqlNode 表示的是SQL 语句的文本（可能包含“${}”占位符）

• StaticTextSqlNode 表示的是不包含占位符的SQL 语句文本

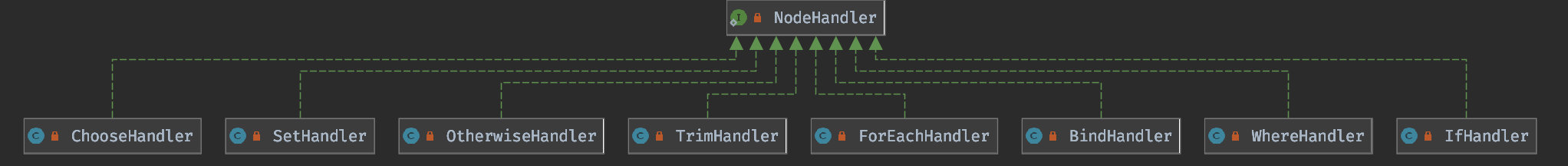

而 NodeHandler 则是用于处理不同的 SqlNode 的

private final Map<String, NodeHandler> nodeHandlerMap = new HashMap<>();
private void initNodeHandlerMap() {
    nodeHandlerMap.put("trim", new TrimHandler());
    nodeHandlerMap.put("where", new WhereHandler());
    nodeHandlerMap.put("set", new SetHandler());
    nodeHandlerMap.put("foreach", new ForEachHandler());
    nodeHandlerMap.put("if", new IfHandler());
    nodeHandlerMap.put("choose", new ChooseHandler());
    nodeHandlerMap.put("when", new IfHandler());
    nodeHandlerMap.put("otherwise", new OtherwiseHandler());
    nodeHandlerMap.put("bind", new BindHandler());
  }

典型的策略模式

随便看一个

private class IfHandler implements NodeHandler {
  public IfHandler() {
    // Prevent Synthetic Access
  }

  @Override
  public void handleNode(XNode nodeToHandle, List<SqlNode> targetContents) {
    MixedSqlNode mixedSqlNode = parseDynamicTags(nodeToHandle);
    String test = nodeToHandle.getStringAttribute("test");
    IfSqlNode ifSqlNode = new IfSqlNode(mixedSqlNode, test);
    targetContents.add(ifSqlNode);
  }
}

public class IfSqlNode implements SqlNode {
  private final ExpressionEvaluator evaluator;
  private final String test;
  private final SqlNode contents;

  public IfSqlNode(SqlNode contents, String test) {
    this.test = test;
    this.contents = contents;
    this.evaluator = new ExpressionEvaluator();
  }

  @Override
  public boolean apply(DynamicContext context) {
    if (evaluator.evaluateBoolean(test, context.getBindings())) {
      contents.apply(context);
      return true;
    }
    return false;
  }

}
