Idea SpringMVC+Spring+mybatis+maven+tomcat+restful项目创建详细

[参考：Idea SpringMVC+Spring+MyBatis+Maven+Tomcat调整

http://blog.youkuaiyun.com/qq_35116967/article/details/51504558]

1. 创建项目

File-New Project

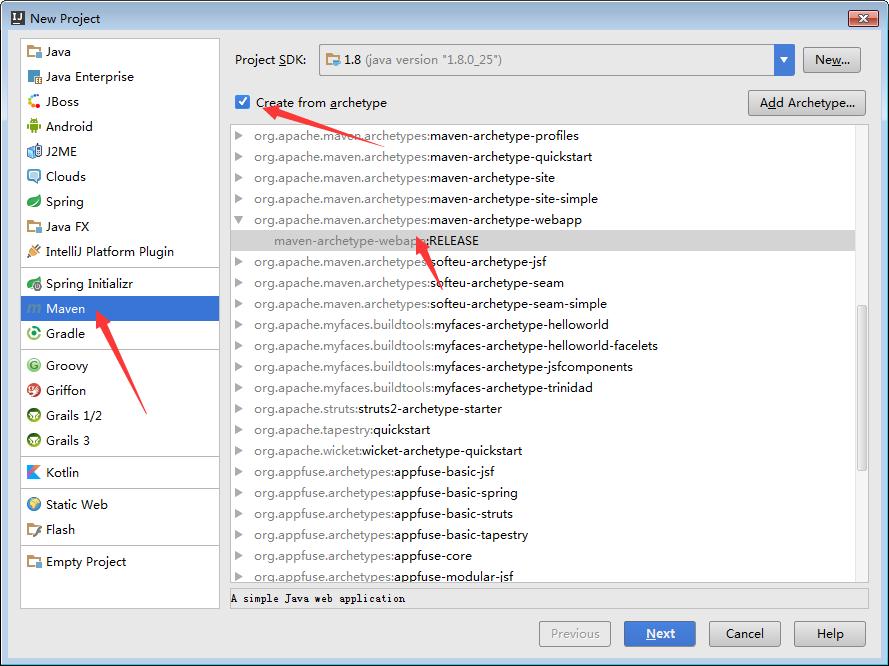

选中左侧的Maven，选中右侧上方的Create from archetype，然后选中下方列表中的webapp，然后点击Next

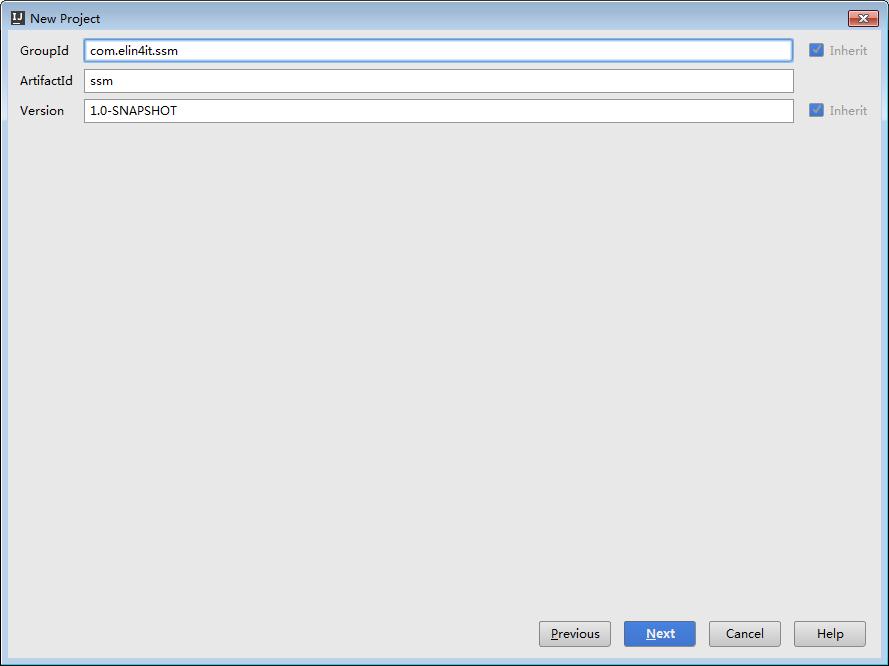

在GroupId和ArtifactId中填入指定内容，点击Next

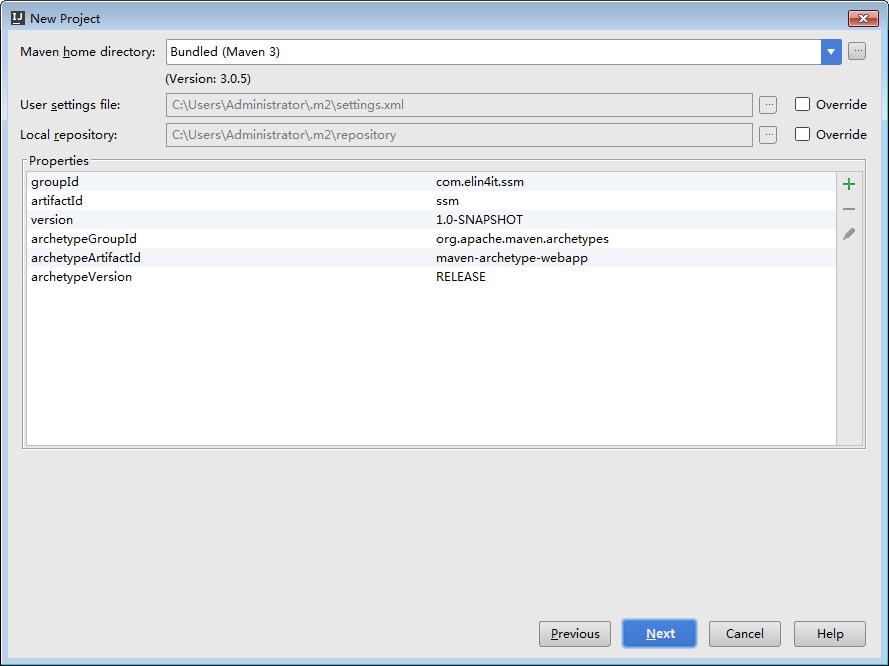

直接点Next

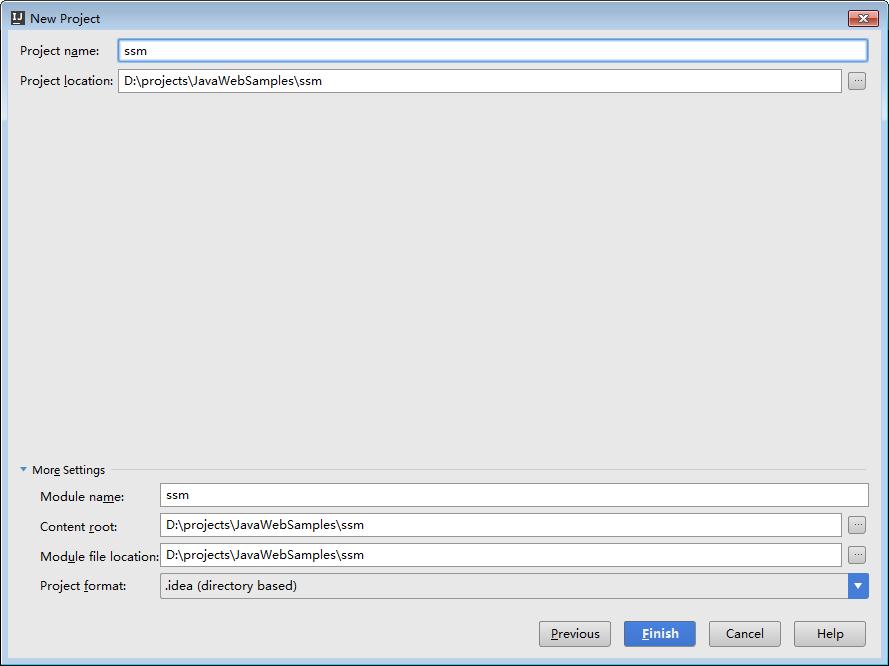

输入项目名称，Finish

Idea会自动开始下载所依赖的包，等待其完成。（如果下载慢，请给maven添加mirror，见帖子https://www.cnblogs.com/xiongxx/p/6057558.html）

2. 项目结构

项目刚建好的时候是没有这些文件的，所以自己手动创建缺少的文件夹（包）

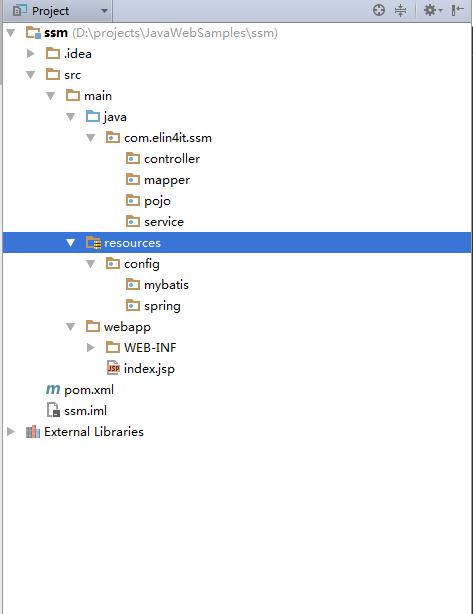

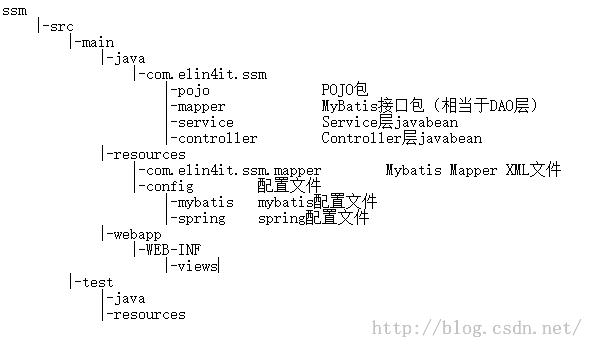

创建完后的项目框架：

3.修改pom.xml导入依赖包插件

依赖包需要如下：

spring framework
aspectj事务
c3p0数据源
servlet/jsp api
junit4
mybatis
mybatis spring整合
postgresql driver

jstl

完整的pom.xml代码清单：

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>com.elin4it.ssm</groupId>
  <artifactId>ssm</artifactId>
  <packaging>war</packaging>
  <version>1.0-SNAPSHOT</version>

  <name>ssm Maven Webapp</name>
  <url>http://maven.apache.org</url>
  <build>
    <finalName>ssm</finalName>
    <plugins>
      <!--mybatis 逆向工程插件-->
      <plugin>
        <groupId>org.mybatis.generator</groupId>
        <artifactId>mybatis-generator-maven-plugin</artifactId>
        <version>1.3.2</version>
        <configuration>
          <verbose>true</verbose>
          <overwrite>true</overwrite>
        </configuration>
      </plugin>
    </plugins>
  </build>
  <properties>
    <spring.version>4.1.1.RELEASE</spring.version>
  </properties>
  <dependencies>
    <!-- springframe start -->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-core</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-oxm</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-jdbc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-webmvc</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aop</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context-support</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <!-- springframe end -->
    <!--aspectj start-->
    <dependency>
      <groupId>org.aspectj</groupId>
      <artifactId>aspectjweaver</artifactId>
      <version>1.8.6</version>
    </dependency>
    <dependency>
      <groupId>org.aspectj</groupId>
      <artifactId>aspectjrt</artifactId>
      <version>1.8.6</version>
    </dependency>
    <!--aspectj end-->
    <!--c3p0-->
    <dependency>
      <groupId>com.mchange</groupId>
      <artifactId>c3p0</artifactId>
      <version>0.9.5.1</version>
    </dependency>
    <!--servlet/jsp api start-->
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>servlet-api</artifactId>
      <version>2.5</version>
    </dependency>
    <dependency>
      <groupId>javax.servlet.jsp</groupId>
      <artifactId>jsp-api</artifactId>
      <version>2.1</version>
      <scope>provided</scope>
    </dependency>
    <!--servlet/jsp api end-->
    <!--junit4-->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>4.11</version>
      <scope>test</scope>
    </dependency>
    <!--mybatis-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>3.3.0</version>
    </dependency>
    <!--mybatis spring整合-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>1.2.3</version>
    </dependency>
    <!-- https://mvnrepository.com/artifact/org.postgresql/postgresql -->
    <dependency>
      <groupId>org.postgresql</groupId>
      <artifactId>postgresql</artifactId>
      <version>42.2.1</version>
    </dependency>
    <!--jstl-->
    <dependency>
      <groupId>jstl</groupId>
      <artifactId>jstl</artifactId>
      <version>1.2</version>
    </dependency>
  </dependencies>
</project>

4. 使用mybatis逆向工程创建mapper接口和xml文件

students表结构(首先在postgresql库中创建名字叫ssm的database库，可以生成.sql文件将下面的代码复制进去，通过在这个库下导入sql文件建students表，或者直接在ssm库下的窗口里粘贴创建students表)

CREATE TABLE "public"."students" (
"sid" int4 NOT NULL,
"sname" varchar(255) COLLATE "default",
"gender" varchar(255) COLLATE "default",
"birthday" date,
"address" varchar(255) COLLATE "default",
CONSTRAINT "students_pkey" PRIMARY KEY ("sid")
)
WITH (OIDS=FALSE)
;
ALTER TABLE "public"."students" OWNER TO "postgres";

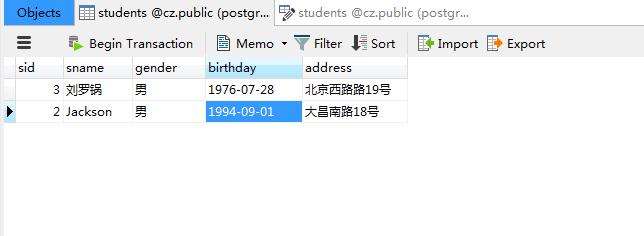

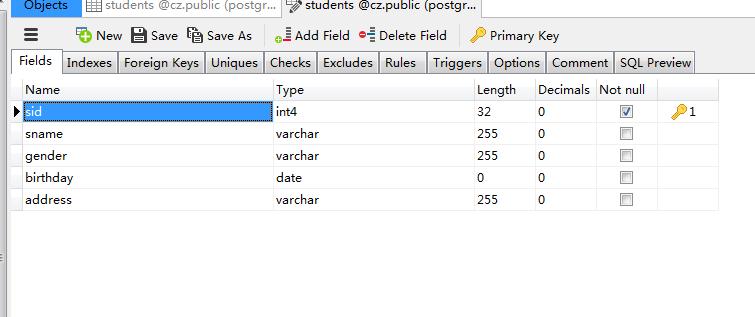

建成的表如下所示：

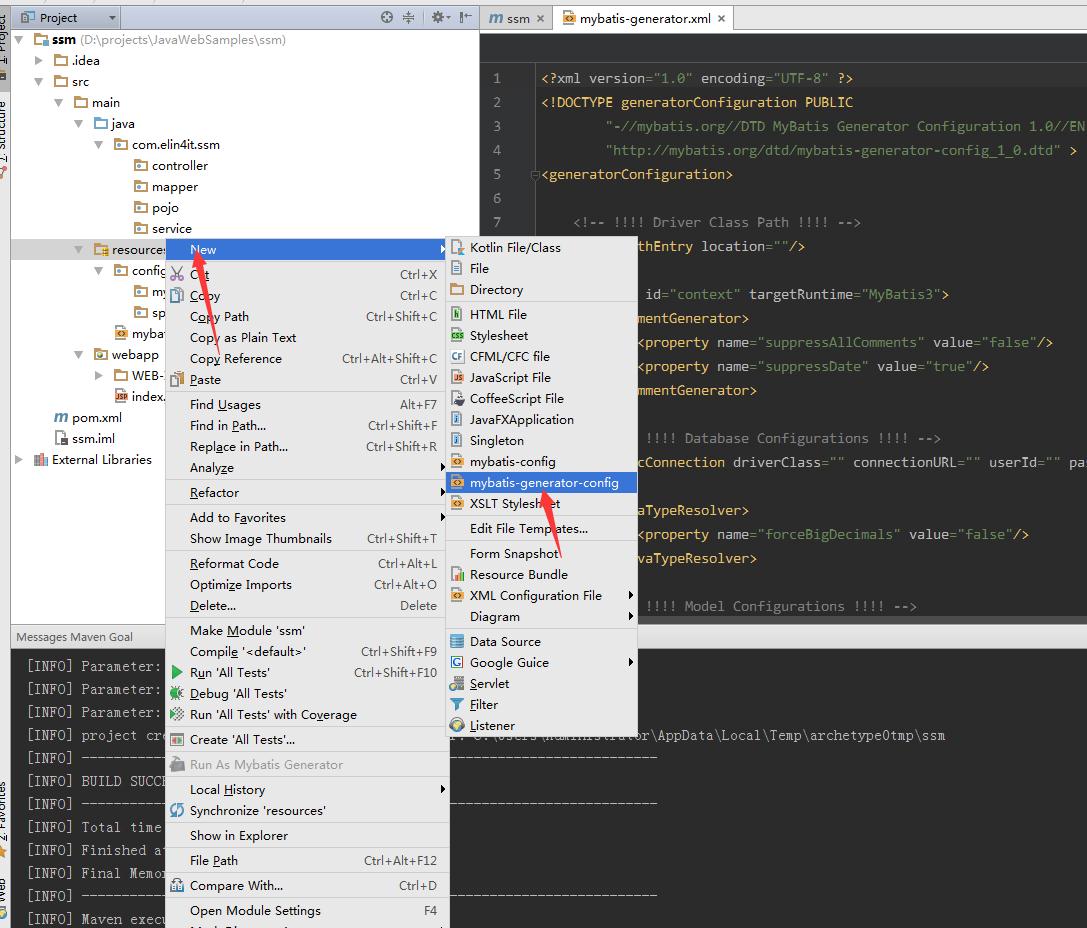

5. 在main/resources中创建generatorConfig.xml文件

generatorConfig.xml代码清单

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE generatorConfiguration PUBLIC
        "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >
<generatorConfiguration>
    <!--此处需要在本地有mysql连接所需jar包，写自己的jar包路径-->
    <classPathEntry location="D:\softwares\数据库工具\postgresql\jar\postgresql-9.1-901-1.jdbc4.jar"/>
    <context id="testTables" targetRuntime="MyBatis3" >
    <commentGenerator>
        <!-- 是否去除自动生成的注释 true：是 ： false:否 -->
        <property name="suppressAllComments" value="true" />
    </commentGenerator>
    <!--</jdbcConnection> 修改成自己的用户密码-->
        <jdbcConnection driverClass="org.postgresql.Driver"
                        connectionURL="jdbc:postgresql://127.0.0.1:5432/cz?characterEncoding=UTF-8"
                        userId="postgres"
                        password="******">
        </jdbcConnection>
        <!-- 默认false，把JDBC DECIMAL 和 NUMERIC 类型解析为 Integer，为 true时把JDBC DECIMAL 和
            NUMERIC 类型解析为java.math.BigDecimal -->
        <javaTypeResolver>
            <property name="forceBigDecimals" value="false" />
        </javaTypeResolver>
        <!-- targetProject:生成PO类的位置 -->
        <javaModelGenerator targetPackage="com.elin4it.ssm.pojo"
                            targetProject="src\main\java">
            <!-- enableSubPackages:是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="false" />
            <!-- 从数据库返回的值被清理前后的空格 -->
            <property name="trimStrings" value="true" />
        </javaModelGenerator>
        <!-- targetProject:mapper映射文件生成的位置 -->
        <sqlMapGenerator targetPackage="com.elin4it.ssm.mapper"
                         targetProject="src\main\resources">
            <!-- enableSubPackages:是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="false" />
        </sqlMapGenerator>
        <!-- targetPackage：mapper接口生成的位置 -->
        <javaClientGenerator type="XMLMAPPER"
                             targetPackage="com.elin4it.ssm.mapper"
                             targetProject="src\main\java">
            <!-- enableSubPackages:是否让schema作为包的后缀 -->
            <property name="enableSubPackages" value="false" />
        </javaClientGenerator>
        <!-- 指定数据库表 -->
        <table tableName="students"></table>
        <!-- 有些表的字段需要指定java类型
         <table schema="" tableName="">
            <columnOverride column="" javaType="" />
        </table> -->
    </context>
</generatorConfiguration>

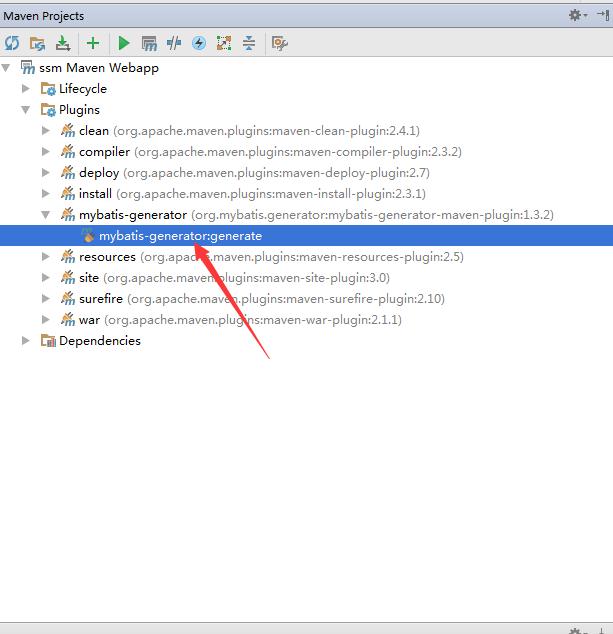

点击idea右侧的maven选项卡，选择其中的mybatis-generator，点击顶部的绿色按钮运行

如果没有出错的话，应该会自动生成mapper接口文件、xml文件、pojo文件。

在resources/config中创建jdbc.properties，该文件用来描述mysql连接信息

jdbc.driver = org.postgresql.Driver
jdbc.url = jdbc:postgresql://127.0.0.1:5432/cz?characterEncoding=UTF-8
jdbc.username = postgres
jdbc.password = ******

6. Mybatis-config文件

在resources/config/mybatis中创建mybatis-config.xml文件，该文件为Mybatis的配置文件，由于跟spring整合，所以一些基础配置文件都在spring中，在这里该文件中值需要写文件的框架，此处是系统自动生成的代码(mybatis文件夹右键->new->mybatis-config)：

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <settings>
        <!-- Globally enables or disables any caches configured in any mapper under this configuration -->
        <setting name="cacheEnabled" value="true"/>
        <!-- Sets the number of seconds the driver will wait for a response from the database -->
        <setting name="defaultStatementTimeout" value="3000"/>
        <!-- Enables automatic mapping from classic database column names A_COLUMN to camel case classic Java property names aColumn -->
        <setting name="mapUnderscoreToCamelCase" value="true"/>
        <!-- Allows JDBC support for generated keys. A compatible driver is required.
        This setting forces generated keys to be used if set to true,
         as some drivers deny compatibility but still work -->
        <setting name="useGeneratedKeys" value="true"/>
    </settings>
    <!-- Continue going here -->
</configuration>

7. SpringMVC配置文件

在resources/config/spring中创建springmvc.xml文件

<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns:mvc="http://www.springframework.org/schema/mvc"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc.xsd">

    <!--自动扫描控制器-->
    <context:component-scan base-package="com.elin4it.ssm"/>
    <!--视图渲染-->
    <bean id="internalResourceViewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
        <property name="prefix" value="/WEB-INF/views/"/>
        <property name="suffix" value=".jsp"/>
    </bean>
    <!--控制器映射器和控制器适配器-->
    <mvc:annotation-driven></mvc:annotation-driven>
</beans>

8. Spring IOC注入和事件控制

在resources/config/spring中创建applicationContext-dao.xml、application-service.xml、applicationContext-transaction.xml文件

applicationContext-dao.xml代码：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">

    <!--获取数据库配置文件-->
    <context:property-placeholder location="classpath:config/jdbc.properties"/>
    <!--设置数据源c3p0-->
    <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource" destroy-method="close">
        <property name="driverClass" value="${jdbc.driver}"/>
        <property name="jdbcUrl" value="${jdbc.url}"/>
        <property name="user" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <property name="maxPoolSize" value="50"/>
        <property name="minPoolSize" value="2"/>
        <property name="maxIdleTime" value="60"/>
    </bean>
    <!--sqlsessionFactory bean-->
    <bean id="sqlSession" class="org.mybatis.spring.SqlSessionFactoryBean">
        <property name="configLocation" value="classpath:config/mybatis/mybatis-config.xml"/>
        <property name="dataSource" ref="dataSource"/>
    </bean>
    <!--自动扫描mapper接口，并注入sqlsession-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="com.elin4it.ssm.mapper"/>
        <property name="sqlSessionFactoryBeanName" value="sqlSession"/>
    </bean>

</beans>

application-service.xml代码：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">

    <!--扫描service-->
    <context:component-scan base-package="com.elin4it.ssm.service"/>
</beans>

applicationContext-transaction.xml代码：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">


    <bean id="dataSourceTransactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource"/>
    </bean>

    <tx:advice id="txAdvice" transaction-manager="dataSourceTransactionManager">
        <tx:attributes>
            <tx:method name="find*" propagation="REQUIRED"/>
            <tx:method name="update*" propagation="REQUIRED"/>
            <tx:method name="delete*" propagation="REQUIRED"/>
            <tx:method name="add*" propagation="REQUIRED"/>
        </tx:attributes>
    </tx:advice>

    <aop:config>
        <aop:advisor advice-ref="txAdvice" pointcut="execution(* cn.elinzhou.ixxs.service.*.*(..))"/>
    </aop:config>
</beans>

9. web.xml文件

修改web.xml文件内容

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
  <!--设置spring 配置文件的位置-->
  <context-param>
    <param-name>contextConfigLocation</param-name>
    <param-value>classpath*:config/spring/applicationContext-*.xml</param-value>
  </context-param>
  <!--解决POST乱码问题-->
  <filter>
    <filter-name>CharacterEncodingFilter</filter-name>
    <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
    <init-param>
      <param-name>encoding</param-name>
      <param-value>utf-8</param-value>
    </init-param>
  </filter>
  <filter-mapping>
    <filter-name>CharacterEncodingFilter</filter-name>
    <url-pattern>/*</url-pattern>
  </filter-mapping>
  <!--配置spring listener-->
  <listener>
    <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
  </listener>
  <!--springmvc前端控制器配置-->
  <servlet>
    <servlet-name>dispatcherServlet</servlet-name>
    <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
    <init-param>
      <param-name>contextConfigLocation</param-name>
      <param-value>classpath*:config/spring/springmvc.xml</param-value>
    </init-param>
    <load-on-startup>1</load-on-startup>
  </servlet>
  <servlet-mapping>
    <servlet-name>dispatcherServlet</servlet-name>
    <url-pattern>/</url-pattern>
  </servlet-mapping>
</web-app>

10. Service接口与实现

创建一个简单的service，只有一个查看所有用户列表的功能

UserService.java

package com.elin4it.ssm.service;

import com.elin4it.ssm.pojo.Students;
/**
 * Created by lgs on 2015/7/11.
 */
public interface UserService {
    /**
     * 查找所有用户
     * @return
     * @throws Exception
     */
    Students findUser()throws Exception;
}

实现类UserServiceImpl.java

package com.elin4it.ssm.service;

import com.elin4it.ssm.mapper.StudentsMapper;
import com.elin4it.ssm.pojo.Students;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;
/**
 * Created by lgs on 2015/7/11.
 */
@Service
public class UserServiceImpl implements UserService {
    //User接口 此处注入UserMapper时需要在UserMapper接口上添加<span style="font-family: Arial, Helvetica, sans-serif;">@Component进行依赖注入</span>
    @Autowired
    private StudentsMapper userMapper;
    public Students findUser() throws Exception {
        //调用mapper类中的selectByExample方法，如果传入类型为null，则表示无条件查找
        Students users = userMapper.selectByPrimaryKey(2);
        return users;
    }
}

11. Controller

UserController.java代码：

package com.elin4it.ssm.controller;

import com.elin4it.ssm.pojo.Students;
import com.elin4it.ssm.service.UserService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;

/**
 * Created by Administrator on 2018/3/13.
 */
@Controller
@RequestMapping("/user")
public class UserController {

    //service类
    @Autowired
    private UserService userService;

    /**
     * 查找所用用户控制器方法
     * @return
     * @throws Exception
     */
    @ResponseBody
    @RequestMapping("/findUser")
    public Students getStudents()throws Exception{
        Students students = userService.findUser();
        return students;
    }
}

12. 配置tomcat

打开面板 Run -- 》Edit Configurations，点+号，选择 Tomcat server --> Local -->输入tomcat名称和配置信息后，点击“Deployment”标签页，点击下面的+号，在弹出的列表中选择“Artifact”, 弹出提示框, 选择要deployment的project

编辑 Application context的名称，点击OK就可完成Tomcat配置。

点击下面的绿色箭头或右上角的tomcat启动箭头，即可启动tomcat部署的project。

启动后会自动跳转到浏览器可以通过http://localhost:8080//user/findUser访问跑起来！

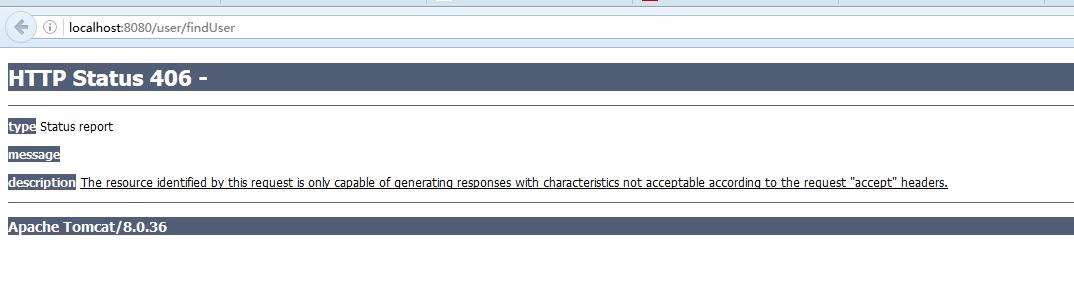

启动后出现错误：

13. 解决方法：配置json转换器

pom.xml添加依赖:

<!--json-->
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-core</artifactId>
      <version>2.8.5</version>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-databind</artifactId>
      <version>2.8.5</version>
    </dependency>
    <dependency>
      <groupId>com.fasterxml.jackson.core</groupId>
      <artifactId>jackson-annotations</artifactId>
      <version>2.8.5</version>
</dependency>

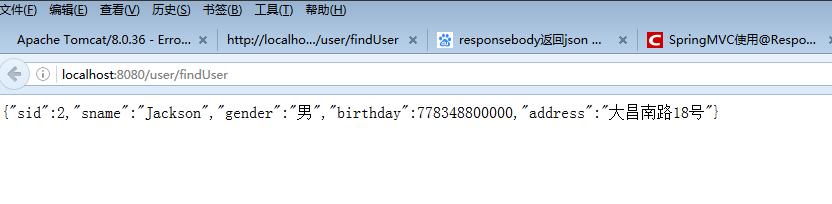

输出结果如下：

14. 日期格式需要修正

解决：在springmvc.xml中添加

<mvc:annotation-driven>
    <!-- 处理responseBody 里面日期类型 -->
        <mvc:message-converters>
            <bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
                <property name="objectMapper">
                    <bean class="com.fasterxml.jackson.databind.ObjectMapper">
                        <property name="dateFormat">
                            <bean class="java.text.SimpleDateFormat">
                                <constructor-arg type="java.lang.String" value="yyyy-MM-dd HH:mm:ss" />
                            </bean>
                        </property>
                    </bean>
                </property>
            </bean>
        </mvc:message-converters>
    </mvc:annotation-driven>

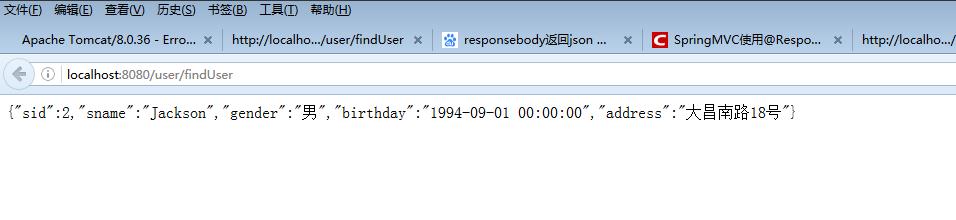

输出结果如下：

15. mybatis 打印sql

在mybatis.cfg.xml中增加如下配置

<settings>中增加

<setting name="logImpl" value="STDOUT_LOGGING" />

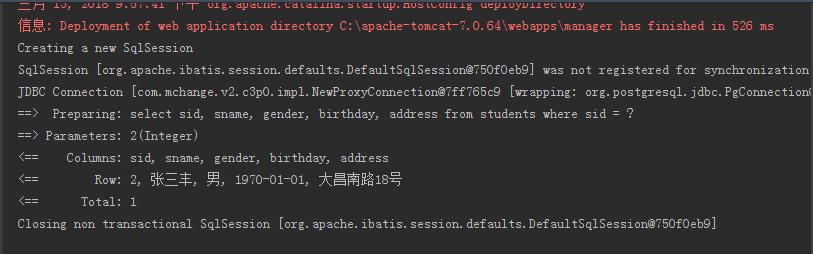

可在控制台查看效果：

【完】
