ClusterStorage-236-7-配置Nagios监控

0.配置安装包

[root@manager ~]# yum install -y nagios-server-addons


1.配置监控指向文件

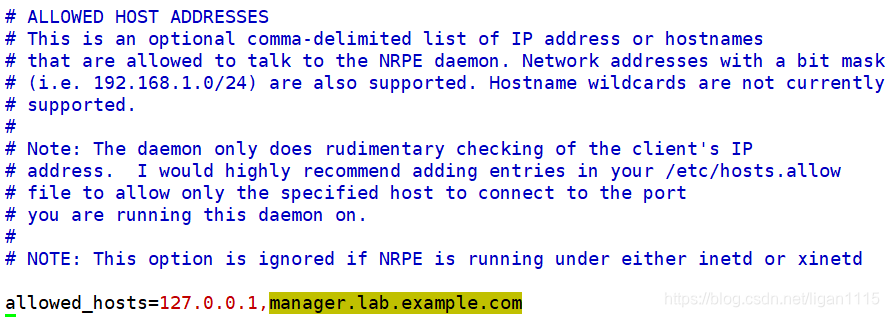

这里要让每个被监控节点都指向监控站点，同时重启服务。

[root@servera ~]# vim /etc/nagios/nrpe.cfg

[root@servera ~]# systemctl restart nrpe

[root@serverb ~]# vim /etc/nagios/nrpe.cfg

[root@serverb ~]# systemctl restart nrpe

[root@serverc ~]# vim /etc/nagios/nrpe.cfg

[root@serverc ~]# systemctl restart nrpe

[root@serverd ~]# vim /etc/nagios/nrpe.cfg

[root@serverd ~]# systemctl restart nrpe



2.配置集群监控

选中集群中的一个节点，让系统自动识别。

[root@manager ~]# configure-gluster-nagios -c gluster-test -H servera.lab.example.com
Cluster configurations changed

Changes :
Hostgroup gluster-test - ADD
Host gluster-test - ADD
     Service - Volume Utilization - secvol -ADD
     Service - Volume Split-brain status - secvol -ADD
     Service - Volume Status - secvol -ADD
     Service - Volume Utilization - prodvol -ADD
     Service - Volume Quota - prodvol -ADD
     Service - Volume Split-brain status - prodvol -ADD
     Service - Volume Status - prodvol -ADD
     Service - Volume Utilization - testvol -ADD
     Service - Volume Geo-Replication - testvol -ADD
     Service - Volume Status - testvol -ADD
     Service - Volume Utilization - tiervol -ADD
     Service - Volume Status - tiervol -ADD
     Service - Cluster Utilization -ADD
     Service - Cluster - Quorum Status -ADD
     Service - Cluster Auto Config -ADD
Host servera.lab.example.com - ADD
     Service - Brick Utilization - /bricks/prod/prodvol_n1 -ADD
     Service - Brick - /bricks/prod/prodvol_n1 -ADD
     Service - Brick Utilization - /bricks/test/testvol_n1 -ADD
     Service - Brick - /bricks/test/testvol_n1 -ADD
Host serverb.lab.example.com - ADD
     Service - Brick Utilization - /bricks/prod/prodvol_n2 -ADD
     Service - Brick - /bricks/prod/prodvol_n2 -ADD
     Service - Brick Utilization - /bricks/test/testvol_n2 -ADD
     Service - Brick - /bricks/test/testvol_n2 -ADD
Host serverc.lab.example.com - ADD
     Service - Brick Utilization - /bricks/sec/secvol_n3 -ADD
     Service - Brick - /bricks/sec/secvol_n3 -ADD
     Service - Brick Utilization - /bricks/prod/prodvol_n3 -ADD
     Service - Brick - /bricks/prod/prodvol_n3 -ADD
Host serverd.lab.example.com - ADD
     Service - Brick Utilization - /bricks/sec/secvol_n4 -ADD
     Service - Brick - /bricks/sec/secvol_n4 -ADD
     Service - Brick Utilization - /bricks/prod/prodvol_n4 -ADD
     Service - Brick - /bricks/prod/prodvol_n4 -ADD
Are you sure, you want to commit the changes? (Yes, No) [Yes]:
Enter Nagios server address [manager.lab.example.com]:
Cluster configurations synced successfully from host servera.lab.example.com
Do you want to restart Nagios to start monitoring newly discovered entities? (Yes, No) [Yes]:
Nagios re-started successfully


3.修改配置文件

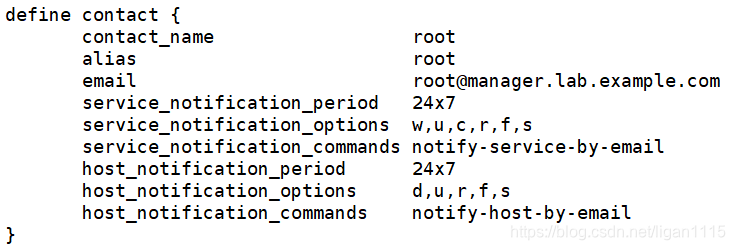

修改集群联络配置文件，增加root进行email监控。

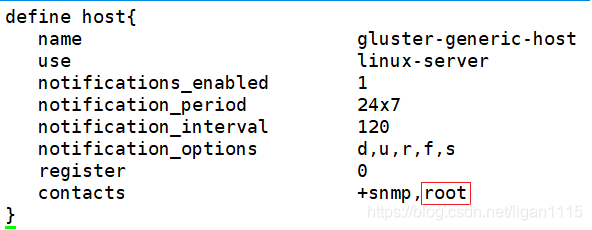

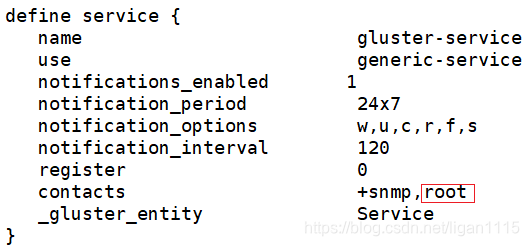

修改集群模板配置文件，增加root为联络人。

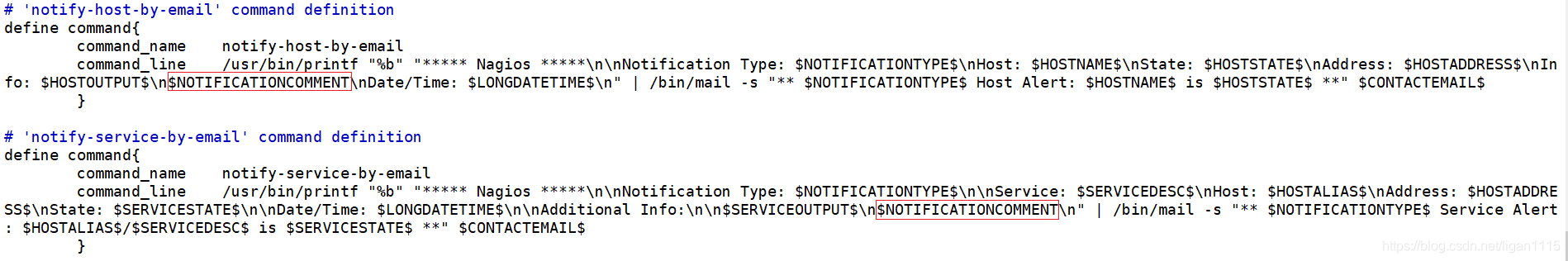

修改集群对象请求配置文件，增加提示变量。

[root@manager ~]# vim /etc/nagios/gluster/gluster-contacts.cfg

[root@manager ~]# vim /etc/nagios/gluster/gluster-templates.cfg

[root@manager ~]# vim /etc/nagios/objects/commands.cfg

4.重启服务

重启Nagios监控服务。重启邮件服务。发送测试邮件。

[root@manager ~]# service nagios restart
Running configuration check...done.
Stopping nagios: .done.
Starting nagios: done.
[root@manager ~]# service sendmail restart
Shutting down sm-client:                                   [  OK  ]
Shutting down sendmail:                                    [  OK  ]
Starting sendmail:                                         [  OK  ]
Starting sm-client:                                        [  OK  ]
[root@manager ~]# echo test | mail -s test root@manager.lab.example.com
[root@manager ~]# mail
Heirloom Mail version 12.4 7/29/08.  Type ? for help.
"/var/spool/mail/root": 1 message 1 new
>N  1 root                  Sat Mar 23 15:22  20/810   "test"
& q
Held 1 message in /var/spool/mail/root
