mybatis整合Spring

整合步骤
创建spring配置文件applicationContext
Spring Test+Junit完美组合
spring整合pagehelper
代码实践
- 项目结构
- 1、导入pom依赖

整合步骤

hibernate整合
在这里插入图片描述

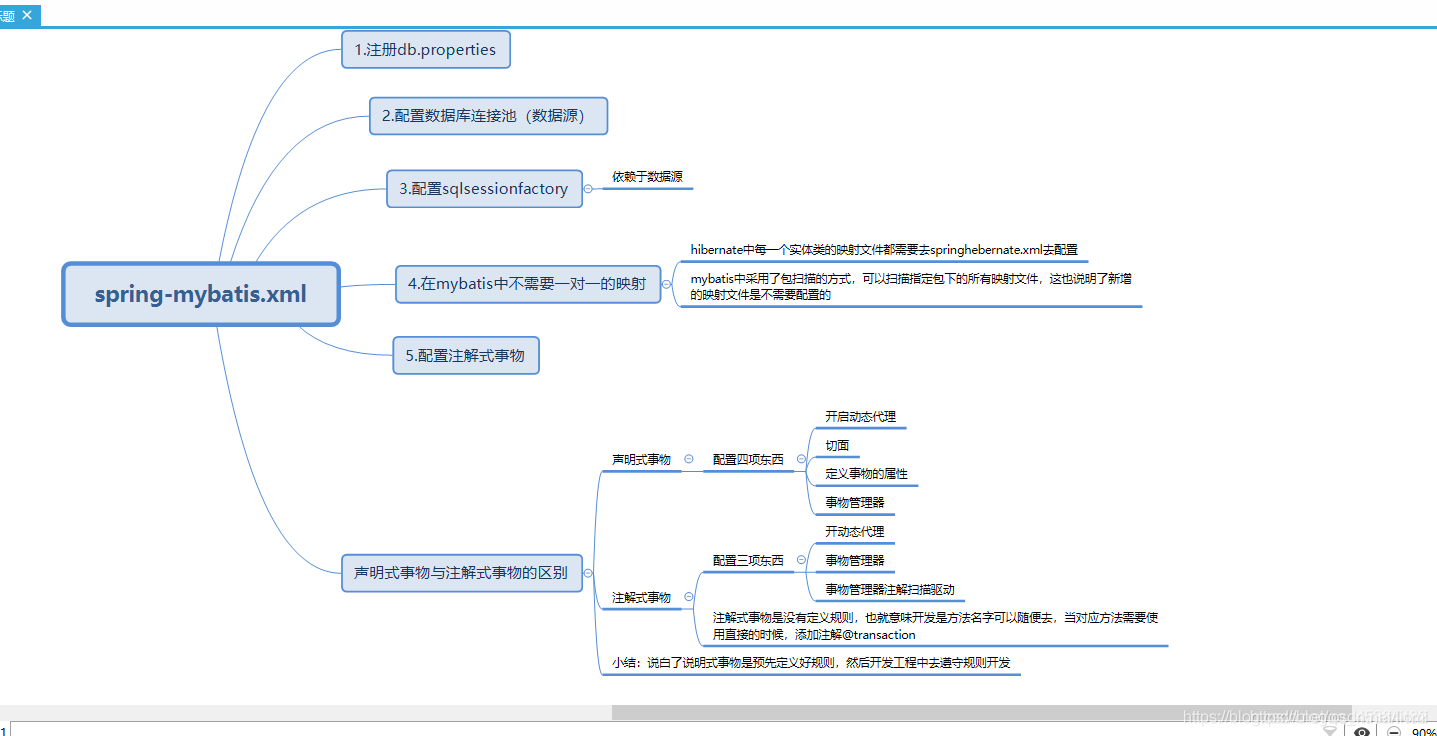

mybatis整合

创建spring配置文件applicationContext

2.1 注解式开发
注解驱动

  <context:annotation-config/>

用注解方式注入bean，并指定查找范围：com.liuchunming及子子孙孙包-

 <context:component-scan base-package="com.liuchunming"/>

引入外部jdbc配置文件

   <context:property-placeholder location="classpath:jdbc.properties"/>

spring和mybatis整合

2.5 注解式事物配置
配置事务管理（环绕通知）有关数据库操作的开启、提交操作都是在环绕在数据库操作的前后
切面

2.6 开启动态代理

   <aop:aspectj-autoproxy/>

@Repository：将DAO类声明为Bean
@Service：通常作用在业务层
@Constroller：通常作用在控制层，将在Spring MVC中使用
@Component：是一个泛化的概念，仅仅表示spring中的一个组件（Bean），可以作用在任何层次
@Scope：模式声明（singleton|prototype）
@Autowired：将自动在代码上下文与其匹配（默认是类型匹配）的Bean，并自动注入到相应的地方
@Resource：
1）@Resource后面没有任何内容，默认通过name属性去匹配bean，找不到再按type去匹配
2）指定了name或者type则根据指定的类型去匹配bean
3）指定了name和type则根据指定的name和type去匹配bean，任何一个不匹配都将报错

问题：@Autowired和@Resource两个注解的区别：
相当于之前spring、hibernate时代中的set注入，省去set、get方法
1）@Autowired默认按照byType方式进行bean匹配，@Resource默认按照byName方式进行bean匹配
2）@Autowired是Spring的注解，@Resource是J2EE的注解，这个看一下导入注解的时候这两个注解的包名就一清二楚了
Spring属于第三方的，J2EE是Java自己的东西，因此，建议使用@Resource注解，以减少代码和Spring之间的耦合。

@Transactional
注：个人感觉注解式事务比以前的声明式事务更加麻烦，要写的东西更多

Spring Test+Junit完美组合

在工程的pom文件中增加spring-test的依赖

<dependency>
       <groupId>org.springframework</groupId>
       <artifactId>spring-test</artifactId>
       <version>${spring.version}</version>
     </dependency>

创建BaseTestCase，并在该类上加上两个注解

 @RunWith(SpringJUnit4ClassRunner.class)
   @ContextConfiguration(locations={"classpath:applicationContext.xml"})

使用idean的junit插件(JUnitGenerator V2.0)生成测试用例

 注1：还需要修改相关配置，详情参考资料：“IDEA Junit4配置.mht”
   注2：快捷键，Ctrl + Shift + T

在执行单元测试时,为了避免产生脏数据,可将测试单元设置成事务回滚

   @Rollback(value = true|false)//true回滚事务，false提交事务
   @Transactional(transactionManager = "transactionManager")

spring整合pagehelper

使用AOP编程解决分页代码重复的问题

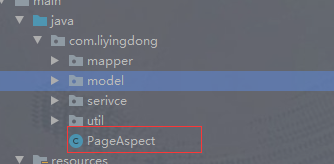

创建一个分页的环绕通知类
在这里插入图片描述
必要的两个东西

语法结构：execution(方法修饰符方法返回值方法所属类匹配方法名 ( 方法中的形参表 ) 方法申明抛出的异常 )

“*” ：代表一个任意类型的参数；
“…”：代表零个或多个任意类型的参数。

注：

方法必须保持一致

 public Object invoke(ProceedingJoinPoint args) throws  Throwable{return null}

代码实践

项目结构

在这里插入图片描述
上篇博客贴过的代码就不重复贴了

1、导入pom依赖

<?xml version="1.0" encoding="UTF-8"?>

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>

  <groupId>com.liuchunming</groupId>
  <artifactId>ssm</artifactId>
  <version>1.0-SNAPSHOT</version>
  <packaging>war</packaging>

  <name>ssm Maven Webapp</name>
  <!-- FIXME change it to the project's website -->
  <url>http://www.example.com</url>

  <properties>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    <maven.compiler.source>1.8</maven.compiler.source>
    <maven.compiler.target>1.8</maven.compiler.target>
    <maven.compiler.plugin.version>3.7.0</maven.compiler.plugin.version>

    <!--添加jar包依赖-->
    <!--1.spring 5.0.2.RELEASE相关-->
    <spring.version>5.0.2.RELEASE</spring.version>
    <!--2.mybatis相关-->
    <mybatis.version>3.4.5</mybatis.version>
    <!--mysql-->
    <mysql.version>5.1.44</mysql.version>
    <!--pagehelper分页jar依赖-->
    <pagehelper.version>5.1.2</pagehelper.version>
    <!--mybatis与spring集成jar依赖-->
    <mybatis.spring.version>1.3.1</mybatis.spring.version>
    <!--3.dbcp2连接池相关 druid-->
    <commons.dbcp2.version>2.1.1</commons.dbcp2.version>
    <commons.pool2.version>2.4.3</commons.pool2.version>
    <!--4.log日志相关-->
    <log4j2.version>2.9.1</log4j2.version>
    <!--5.其他-->
    <junit.version>4.12</junit.version>
    <servlet.version>4.0.0</servlet.version>
    <lombok.version>1.18.2</lombok.version>
  </properties>

  <dependencies>
    <!--1.spring相关-->
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-context</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-orm</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-tx</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-aspects</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-web</artifactId>
      <version>${spring.version}</version>
    </dependency>
    <dependency>
      <groupId>org.springframework</groupId>
      <artifactId>spring-test</artifactId>
      <version>${spring.version}</version>
    </dependency>

    <!--2.mybatis相关-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis</artifactId>
      <version>${mybatis.version}</version>
    </dependency>
    <!--mysql-->
    <dependency>
      <groupId>mysql</groupId>
      <artifactId>mysql-connector-java</artifactId>
      <version>${mysql.version}</version>
    </dependency>
    <!--pagehelper分页插件jar包依赖-->
    <dependency>
      <groupId>com.github.pagehelper</groupId>
      <artifactId>pagehelper</artifactId>
      <version>${pagehelper.version}</version>
    </dependency>
    <!--mybatis与spring集成jar包依赖-->
    <dependency>
      <groupId>org.mybatis</groupId>
      <artifactId>mybatis-spring</artifactId>
      <version>${mybatis.spring.version}</version>
    </dependency>

    <!--3.dbcp2连接池相关-->
    <dependency>
      <groupId>org.apache.commons</groupId>
      <artifactId>commons-dbcp2</artifactId>
      <version>${commons.dbcp2.version}</version>
    </dependency>
    <dependency>
      <groupId>org.apache.commons</groupId>
      <artifactId>commons-pool2</artifactId>
      <version>${commons.pool2.version}</version>
    </dependency>

    <!--4.log日志相关依赖-->
    <!--核心log4j2jar包-->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-core</artifactId>
      <version>${log4j2.version}</version>
    </dependency>
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-api</artifactId>
      <version>${log4j2.version}</version>
    </dependency>
    <!--web工程需要包含log4j-web，非web工程不需要-->
    <dependency>
      <groupId>org.apache.logging.log4j</groupId>
      <artifactId>log4j-web</artifactId>
      <version>${log4j2.version}</version>
    </dependency>

    <!--5.其他-->
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <version>${junit.version}</version>
      <scope>test</scope>
    </dependency>
    <dependency>
      <groupId>javax.servlet</groupId>
      <artifactId>javax.servlet-api</artifactId>
      <version>${servlet.version}</version>
      <scope>provided</scope>
    </dependency>
    <dependency>
      <groupId>org.projectlombok</groupId>
      <artifactId>lombok</artifactId>
      <version>${lombok.version}</version>
      <scope>provided</scope>
    </dependency>
  </dependencies>

  <build>
    <finalName>ssm</finalName>
    <resources>
      <!--解决mybatis-generator-maven-plugin运行时没有将XxxMapper.xml文件放入target文件夹的问题-->
      <resource>
        <directory>src/main/java</directory>
        <includes>
          <include>**/*.xml</include>
        </includes>
      </resource>
      <!--解决mybatis-generator-maven-plugin运行时没有将jdbc.properites文件放入target文件夹的问题-->
      <resource>
        <directory>src/main/resources</directory>
        <includes>
          <include>jdbc.properties</include>
          <include>*.xml</include>
        </includes>
      </resource>
    </resources>
    <pluginManagement><!-- lock down plugins versions to avoid using Maven defaults (may be moved to parent pom) -->
      <plugins>
        <plugin>
          <groupId>org.apache.maven.plugins</groupId>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>${maven.compiler.plugin.version}</version>
          <configuration>
            <source>${maven.compiler.source}</source>
            <target>${maven.compiler.target}</target>
            <encoding>${project.build.sourceEncoding}</encoding>
          </configuration>
        </plugin>
        <plugin>
          <groupId>org.mybatis.generator</groupId>
          <artifactId>mybatis-generator-maven-plugin</artifactId>
          <version>1.3.2</version>
          <dependencies>
            <!--使用Mybatis-generator插件不能使用太高版本的mysql驱动 -->
            <dependency>
              <groupId>mysql</groupId>
              <artifactId>mysql-connector-java</artifactId>
              <version>${mysql.version}</version>
            </dependency>
          </dependencies>
          <configuration>
            <overwrite>true</overwrite>
          </configuration>
        </plugin>
        <plugin>
          <artifactId>maven-clean-plugin</artifactId>
          <version>3.1.0</version>
        </plugin>
        <!-- see http://maven.apache.org/ref/current/maven-core/default-bindings.html#Plugin_bindings_for_war_packaging -->
        <plugin>
          <artifactId>maven-resources-plugin</artifactId>
          <version>3.0.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-compiler-plugin</artifactId>
          <version>3.8.0</version>
        </plugin>
        <plugin>
          <artifactId>maven-surefire-plugin</artifactId>
          <version>2.22.1</version>
        </plugin>
        <plugin>
          <artifactId>maven-war-plugin</artifactId>
          <version>3.2.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-install-plugin</artifactId>
          <version>2.5.2</version>
        </plugin>
        <plugin>
          <artifactId>maven-deploy-plugin</artifactId>
          <version>2.8.2</version>
        </plugin>
      </plugins>
    </pluginManagement>
  </build>
</project>

BookMapper

package com.liuchunming.mapper;

import com.liuchunming.model.Book;
import org.springframework.stereotype.Repository;

import java.util.List;
import java.util.Map;

/**
 * @ Component
 *   代表当前的类被Spring所管理
 * @ Repository
 * 专门用来标记Mapper接口的
 * @ Service
 * 专门标记Service类的
 *
 * 相当于注解的具象化
 */
@Repository
public interface BookMapper {
    int deleteByPrimaryKey(Integer bid);

    int insert(Book record);

    int insertSelective(Book record);

    Book selectByPrimaryKey(Integer bid);

    int updateByPrimaryKeySelective(Book record);

    int updateByPrimaryKey(Book record);

    List<Map> aaaa(Map map);

}

BookMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.liuchunming.mapper.BookMapper" >
  <resultMap id="BaseResultMap" type="com.liuchunming.model.Book" >
    <constructor >
      <idArg column="bid" jdbcType="INTEGER" javaType="java.lang.Integer" />
      <arg column="bname" jdbcType="VARCHAR" javaType="java.lang.String" />
      <arg column="price" jdbcType="REAL" javaType="java.lang.Float" />
    </constructor>
  </resultMap>
  <sql id="Base_Column_List" >
    bid, bname, price
  </sql>
  <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Integer" >
    select
    <include refid="Base_Column_List" />
    from t_mvc_book
    where bid = #{bid,jdbcType=INTEGER}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer" >
    delete from t_mvc_book
    where bid = #{bid,jdbcType=INTEGER}
  </delete>
  <insert id="insert" parameterType="com.liuchunming.model.Book" >
    insert into t_mvc_book (bid, bname, price
      )
    values (#{bid,jdbcType=INTEGER}, #{bname,jdbcType=VARCHAR}, #{price,jdbcType=REAL}
      )
  </insert>
  <insert id="insertSelective" parameterType="com.liuchunming.model.Book" >
    insert into t_mvc_book
    <trim prefix="(" suffix=")" suffixOverrides="," >
      <if test="bid != null" >
        bid,
      </if>
      <if test="bname != null" >
        bname,
      </if>
      <if test="price != null" >
        price,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides="," >
      <if test="bid != null" >
        #{bid,jdbcType=INTEGER},
      </if>
      <if test="bname != null" >
        #{bname,jdbcType=VARCHAR},
      </if>
      <if test="price != null" >
        #{price,jdbcType=REAL},
      </if>
    </trim>
  </insert>
  <update id="updateByPrimaryKeySelective" parameterType="com.liuchunming.model.Book" >
    update t_mvc_book
    <set >
      <if test="bname != null" >
        bname = #{bname,jdbcType=VARCHAR},
      </if>
      <if test="price != null" >
        price = #{price,jdbcType=REAL},
      </if>
    </set>
    where bid = #{bid,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKey" parameterType="com.liuchunming.model.Book" >
    update t_mvc_book
    set bname = #{bname,jdbcType=VARCHAR},
      price = #{price,jdbcType=REAL}
    where bid = #{bid,jdbcType=INTEGER}
  </update>

  <select id="aaaa"  resultType="java.util.Map" parameterType="java.util.Map">
    select * from t_mvc_book
    <where>
      <if test="null != bname and bname != ''">
        and bname like #{bname}
      </if>
    </where>
  </select>


</mapper>

BookService

package com.liuchunming.service;

import com.liuchunming.model.Book;
import com.liuchunming.util.PageBean;

import java.util.List;
import java.util.Map;

/**
 * @author liuchunming
 * @site www.liuchunming.com
 * @company xxx公司
 * @create  2020-10-15 20:19
 */

public interface BookService {
    int deleteByPrimaryKey(Integer bid);

    int insert(Book record);

    int insertSelective(Book record);

    Book selectByPrimaryKey(Integer bid);

    int updateByPrimaryKeySelective(Book record);

    int updateByPrimaryKey(Book record);

    List<Map> aaaa(Map map, PageBean pageBean);

    List<Map> listPager(Map map, PageBean pageBean);
}

BookServiceImpl

package com.liuchunming.service.impl;

import com.liuchunming.mapper.BookMapper;
import com.liuchunming.model.Book;
import com.liuchunming.service.BookService;
import com.liuchunming.util.PageBean;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.util.List;
import java.util.Map;

/**
 * @author liuchunming
 * @site www.liuchunming.com
 * @company xxx公司
 * @create  2020-10-15 20:21
 */
@Service
public   class BookServiceImpl implements BookService {
    @Autowired
    private BookMapper bookMapper;

    @Override
    public int deleteByPrimaryKey(Integer bid) {
        return bookMapper.deleteByPrimaryKey(bid);
    }

    @Override
    public int insert(Book record) {
        return bookMapper.insert(record);
    }

    @Override
    public int insertSelective(Book record) {
        return bookMapper.insertSelective(record);
    }

    @Override
    public Book selectByPrimaryKey(Integer bid) {
        return bookMapper.selectByPrimaryKey(bid);
    }

    @Override
    public int updateByPrimaryKeySelective(Book record) {
        return bookMapper.updateByPrimaryKeySelective(record);
    }

    @Override
    public int updateByPrimaryKey(Book record) {
        return bookMapper.updateByPrimaryKey(record);
    }

    @Override
    public List<Map> aaaa(Map map, PageBean pageBean) {
        return bookMapper.aaaa(map);
    }

    @Override
    public List<Map> listPager(Map map, PageBean pageBean) {
        return bookMapper.aaaa(map);
    }

}

applicationContext.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd">

    <!--整合mybatis-->
    <import resource="applicationContext-mybatis.xml"></import>
</beans>

applicationContext-mybatis.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">
    <!--1. 注解式开发 -->
    <!-- 注解驱动 -->
    <context:annotation-config/>
    <!-- 用注解方式注入bean，并指定查找范围：com.javaxl.ssm及子子孙孙包-->
    <context:component-scan base-package="com.liuchunming"/>

    <context:property-placeholder location="classpath:jdbc.properties"/>

    <bean id="dataSource" class="org.apache.commons.dbcp2.BasicDataSource"
          destroy-method="close">
        <property name="driverClassName" value="${jdbc.driver}"/>
        <property name="url" value="${jdbc.url}"/>
        <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}"/>
        <!--初始连接数-->
        <property name="initialSize" value="10"/>
        <!--最大活动连接数-->
        <property name="maxTotal" value="100"/>
        <!--最大空闲连接数-->
        <property name="maxIdle" value="50"/>
        <!--最小空闲连接数-->
        <property name="minIdle" value="10"/>
        <!--设置为-1时，如果没有可用连接，连接池会一直无限期等待，直到获取到连接为止。-->
        <!--如果设置为N（毫秒），则连接池会等待N毫秒，等待不到，则抛出异常-->
        <property name="maxWaitMillis" value="-1"/>
    </bean>

    <!--4. spring和MyBatis整合 -->
    <!--1) 创建sqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!-- 指定数据源 -->
        <property name="dataSource" ref="dataSource"/>
        <!-- 自动扫描XxxMapping.xml文件，**任意路径 -->
        <property name="mapperLocations" value="classpath*:com/liuchunming/**/mapper/*.xml"/>
        <!-- 指定别名 -->
        <property name="typeAliasesPackage" value="com/liuchunming/**/model"/>
        <!--配置pagehelper插件-->
        <property name="plugins">
            <array>
                <bean class="com.github.pagehelper.PageInterceptor">
                    <property name="properties">
                        <value>
                            helperDialect=mysql
                        </value>
                    </property>
                </bean>
            </array>
        </property>
    </bean>

    <!--2) 自动扫描com/javaxl/ssm/**/mapper下的所有XxxMapper接口(其实就是DAO接口)，并实现这些接口，-->
    <!--   即可直接在程序中使用dao接口，不用再获取sqlsession对象-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <!--basePackage 属性是映射器接口文件的包路径。-->
        <!--你可以使用分号或逗号 作为分隔符设置多于一个的包路径-->
        <property name="basePackage" value="com/liuchunming/**/mapper"/>
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
    </bean>
    <!--注解式事务-->
    <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
        <property name="dataSource" ref="dataSource" />
    </bean>
    <!--事务管理器注解扫描驱动-->
    <tx:annotation-driven transaction-manager="transactionManager" />
    <aop:aspectj-autoproxy/>
</beans>

generatorConfig.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE generatorConfiguration PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
        "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd" >
<generatorConfiguration>
    <!-- 引入配置文件 -->
    <properties resource="jdbc.properties"/>

    <!--指定数据库jdbc驱动jar包的位置-->
    <classPathEntry location="E:\maven\repository\mvn-repository\mysql\mysql-connector-java\5.1.44\mysql-connector-java-5.1.44.jar"/>

    <!-- 一个数据库一个context -->
    <context id="infoGuardian">
        <!-- 注释 -->
        <commentGenerator>
            <property name="suppressAllComments" value="true"/><!-- 是否取消注释 -->
            <property name="suppressDate" value="true"/> <!-- 是否生成注释代时间戳 -->
        </commentGenerator>

        <!-- jdbc连接 -->
        <jdbcConnection driverClass="${jdbc.driver}"
                        connectionURL="${jdbc.url}" userId="${jdbc.username}" password="${jdbc.password}"/>

        <!-- 类型转换 -->
        <javaTypeResolver>
            <!-- 是否使用bigDecimal， false可自动转化以下类型（Long, Integer, Short, etc.） -->
            <property name="forceBigDecimals" value="false"/>
        </javaTypeResolver>

        <!-- 01 指定javaBean生成的位置 -->
        <!-- targetPackage：指定生成的model生成所在的包名 -->
        <!-- targetProject：指定在该项目下所在的路径  -->
        <javaModelGenerator targetPackage="com.liuchunming.model"
                            targetProject="src/main/java">
            <!-- 是否允许子包，即targetPackage.schemaName.tableName -->
            <property name="enableSubPackages" value="false"/>
            <!-- 是否对model添加构造函数 -->
            <property name="constructorBased" value="true"/>
            <!-- 是否针对string类型的字段在set的时候进行trim调用 -->
            <property name="trimStrings" value="false"/>
            <!-- 建立的Model对象是否 不可改变  即生成的Model对象不会有 setter方法，只有构造方法 -->
            <property name="immutable" value="false"/>
        </javaModelGenerator>

        <!-- 02 指定sql映射文件生成的位置 -->
        <sqlMapGenerator targetPackage="com.liuchunming.mapper"
                         targetProject="src/main/java">
            <!-- 是否允许子包，即targetPackage.schemaName.tableName -->
            <property name="enableSubPackages" value="false"/>
        </sqlMapGenerator>

        <!-- 03 生成XxxMapper接口 -->
        <!-- type="ANNOTATEDMAPPER",生成Java Model 和基于注解的Mapper对象 -->
        <!-- type="MIXEDMAPPER",生成基于注解的Java Model 和相应的Mapper对象 -->
        <!-- type="XMLMAPPER",生成SQLMap XML文件和独立的Mapper接口 -->
        <javaClientGenerator targetPackage="com.liuchunming.mapper"
                             targetProject="src/main/java" type="XMLMAPPER">
            <!-- 是否在当前路径下新加一层schema,false路径com.oop.eksp.user.model， true:com.oop.eksp.user.model.[schemaName] -->
            <property name="enableSubPackages" value="false"/>
        </javaClientGenerator>

        <!-- 配置表信息 -->
        <!-- schema即为数据库名 -->
        <!-- tableName为对应的数据库表 -->
        <!-- domainObjectName是要生成的实体类 -->
        <!-- enable*ByExample是否生成 example类 -->
        <!--<table schema="" tableName="t_book" domainObjectName="Book"-->
        <!--enableCountByExample="false" enableDeleteByExample="false"-->
        <!--enableSelectByExample="false" enableUpdateByExample="false">-->
        <!--&lt;!&ndash; 忽略列，不生成bean 字段 &ndash;&gt;-->
        <!--&lt;!&ndash; <ignoreColumn column="FRED" /> &ndash;&gt;-->
        <!--&lt;!&ndash; 指定列的java数据类型 &ndash;&gt;-->
        <!--&lt;!&ndash; <columnOverride column="LONG_VARCHAR_FIELD" jdbcType="VARCHAR" /> &ndash;&gt;-->
        <!--</table>-->

        <table schema="" tableName="t_mvc_Book" domainObjectName="Book"
               enableCountByExample="false" enableDeleteByExample="false"
               enableSelectByExample="false" enableUpdateByExample="false">
            <!-- 忽略列，不生成bean 字段 -->
            <!-- <ignoreColumn column="FRED" /> -->
            <!-- 指定列的java数据类型 -->
            <!-- <columnOverride column="LONG_VARCHAR_FIELD" jdbcType="VARCHAR" /> -->
        </table>

    </context>
</generatorConfiguration>

PagerAspect

package com.liuchunming.component;

import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import com.liuchunming.util.PageBean;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.springframework.stereotype.Component;

import java.util.List;

/**
 * @author liuchunming
 * @site www.liuchunming.com
 * @company xxx公司
 * @create  2020-10-19 19:56
 */
@Component
@Aspect
public class PagerAspect {
    /**
     *  切面：
     *   * 返回类型不限
     *   *.. 任意包下
     *   *.Service  任意以.Service结尾的接口或类
     *   *.Pager(..)  什么方法要被切
     *
     *   目的：
     *   处理* *..*Service.*Pager这个方法，只要调用这个方法就能够达到分页的效果
     *   PageHelper.start();
     *   调用目标方法之前
     *   处理结果集
     *
     *   解决防止调用该方法传的类型不是pagebean
     *
     */
    @Around("execution(* *..*Service.*Pager(..))")
    public  Object invoke(ProceedingJoinPoint args) throws  Throwable{
        //判断符合条件的方法中是否包含pagebean
        Object[] params = args.getArgs();//获取到所有的参数
        PageBean pageBean =null;
        for (Object param : params) {
            if(param instanceof PageBean){ //如果匹配上pagebean
                pageBean =(PageBean) param;
                break;
            }
        }

        if(pageBean !=null && pageBean.isPagination()){
            PageHelper.startPage(pageBean.getPage(),pageBean.getRows());
        }
        Object list = args.proceed(params);//调用目标方法

        if(pageBean !=null && pageBean.isPagination()){//处理总页数
            PageInfo pageInfo =new PageInfo((List) list);
             pageBean.setTotal(pageInfo.getTotal()+"");
        }
        return list;
    }
}

创建juit测试类
SpringBaseTest

package com.liuchunming;

import com.liuchunming.model.Book;
import com.liuchunming.util.PageBean;
import org.junit.Before;
import org.junit.runner.RunWith;
import org.springframework.test.context.ContextConfiguration;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

/**
 * @author liuchunming
 * @site www.liuchunming.com
 * @company xxx公司
 * @create  2020-10-15 20:12
 */
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations={"classpath:applicationContext.xml"})
public class SpringBaseTest {
    protected Book book;
    protected PageBean pageBean;

    @Before
    public  void init(){
        book=new Book();
        pageBean =new PageBean();
    }
}

BookServiceImplTest

package com.liuchunming.service.impl;

import com.liuchunming.SpringBaseTest;
import com.liuchunming.model.Book;
import com.liuchunming.service.BookService;
import com.liuchunming.util.StringUtils;
import org.junit.Test;
import org.springframework.beans.factory.annotation.Autowired;

import java.util.HashMap;
import java.util.List;
import java.util.Map;

/**
 * @author liuchunming
 * @site www.liuchunming.com
 * @company xxx公司
 * @create  2020-10-16 10:44
 */
public class BookServiceImplTest extends SpringBaseTest {

    @Autowired
    private BookService bookService;

    @Test
    public void insert() {
        book.setBid(3);
        book.setBname("t243 ssm");
        book.setPrice(996f);
        bookService.insert(book);
    }

    @Test
    public void selectByPrimaryKey() {
        Book b = this.bookService.selectByPrimaryKey(3);
        System.out.println(b);

    }
    @Test
    public void aaaa() {
        Map map=new HashMap();
        map.put("bname", StringUtils.toLikeStr("圣墟"));
        List<Map> aaaa = this.bookService.aaaa(map, pageBean);
        for (Map m : aaaa) {
            System.out.println(m);

        }
    }
    @Test
    public void listPager() {
        Map map=new HashMap();
        map.put("bname", StringUtils.toLikeStr("圣墟"));
        pageBean.setPage(3);
        List<Map> aaaa = this.bookService.listPager(map, pageBean);
        for (Map m : aaaa) {
            System.out.println(m);
        }

    }
}
