SpringBoot学习02--整合MyBatis（基于xml）

接上一篇 SpringBoot学习01–创建项目，下面开始整合MyBatis

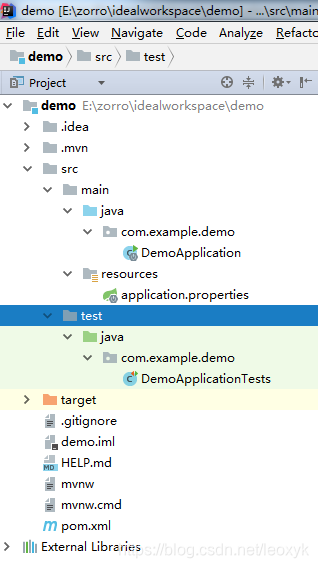

我们先看下项目的目录结构

一、步骤

1. 添加MyBatis相关依赖

pom.xml文件内容如下

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.1.6.RELEASE</version>
		<relativePath/> <!-- lookup parent from repository -->
	</parent>
	<groupId>com.example</groupId>
	<artifactId>demo</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<name>demo</name>
	<description>Demo project for Spring Boot</description>

	<properties>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter</artifactId>
		</dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.0.1</version>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
			<groupId>com.alibaba</groupId>
			<artifactId>druid-spring-boot-starter</artifactId>
			<version>1.1.10</version>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>
</project>

2. 将application.properties换成 application.yml

这里没有强制要求更换，只不过个人感觉 .yml格式比 .properties格式更方便查看

以下是application.yml文件内容

# 配置数据源
spring:
  datasource:
    url: jdbc:mysql://localhost:3306/demo?serverTimezone=UTC&useUnicode=true&characterEncoding=UTF-8
    username: root
    password: admin123
    driver-class-name: com.mysql.cj.jdbc.Driver
    type: com.alibaba.druid.pool.DruidDataSource
# mybatis配置
mybatis:
  mapper-locations: classpath:mappers/*.xml
  type-aliases-package: com.example.demo.model

3. 新建数据库和账户表

CREATE DATABASE `demo` /*!40100 DEFAULT CHARACTER SET utf8mb4 */;

use  `demo`;

DROP TABLE IF EXISTS `tb_account`;
CREATE TABLE `tb_account` (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `name` varchar(45) DEFAULT NULL,
  `password` varchar(45) DEFAULT NULL,
  `create_time` datetime DEFAULT NULL,
  `last_edit_time` datetime DEFAULT NULL,
  PRIMARY KEY (`id`),
  UNIQUE KEY `name_UNIQUE` (`name`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;

4. Dao（Mapper文件）

AccountMapper.java

package com.example.demo.dao;

import com.example.demo.model.Account;
import org.springframework.stereotype.Repository;

@Repository
public interface AccountMapper {
    int insert(Account record);
}

5. AccountMapper.xml文件

AccountMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.example.demo.dao.AccountMapper">
  <insert id="insert" parameterType="com.example.demo.model.Account">
    insert into tb_account (id, name, password,
      create_time, last_edit_time)
    values (#{id,jdbcType=BIGINT}, #{name,jdbcType=VARCHAR}, #{password,jdbcType=VARCHAR},
      #{createTime,jdbcType=TIMESTAMP}, #{lastEditTime,jdbcType=TIMESTAMP})
  </insert>
</mapper>

6. Service文件

Service接口 AccountService.java

package com.example.demo.service;

import com.example.demo.model.Account;

public interface AccountService {

    int insert(Account record);

}

Service实现 AccountServiceImpl.java

package com.example.demo.service.Impl;

import com.example.demo.dao.AccountMapper;
import com.example.demo.model.Account;
import com.example.demo.service.AccountService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

@Service
public class AccountServiceImpl implements AccountService{

    @Autowired
    private AccountMapper accountMapper;

    @Override
    public int insert(Account record) {
        return accountMapper.insert(record);
    }
}

7. 测试类

DemoApplicationTests.java

package com.example.demo;

import com.example.demo.dao.AccountMapper;
import com.example.demo.model.Account;
import com.example.demo.service.AccountService;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.stereotype.Repository;
import org.springframework.test.context.junit4.SpringRunner;

import java.util.Date;

@RunWith(SpringRunner.class)
@SpringBootTest
@MapperScan(annotationClass = Repository.class,basePackages = "com.example.demo.dao")
public class DemoApplicationTests {

	@Autowired
	private AccountService accountService;

	@Test
	public void insert() {
		Account account = new Account();
		account.setName("zorro");
		account.setCreateTime(new Date());
		account.setLastEditTime(new Date());
		int result = accountService.insert(account);
		System.out.println(result);
	}

}

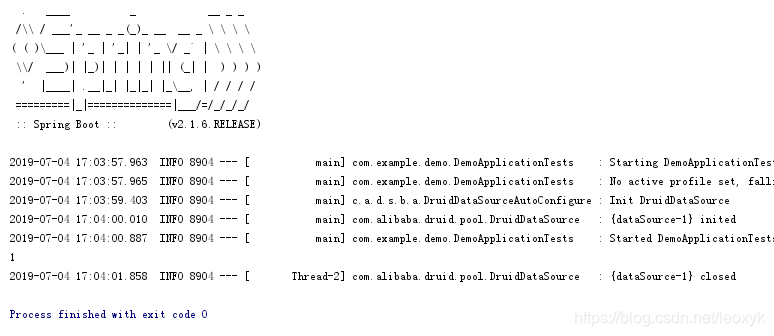

执行测试类的insert方法，可以看到如下运行结果

再看下数据库，数据成功插入

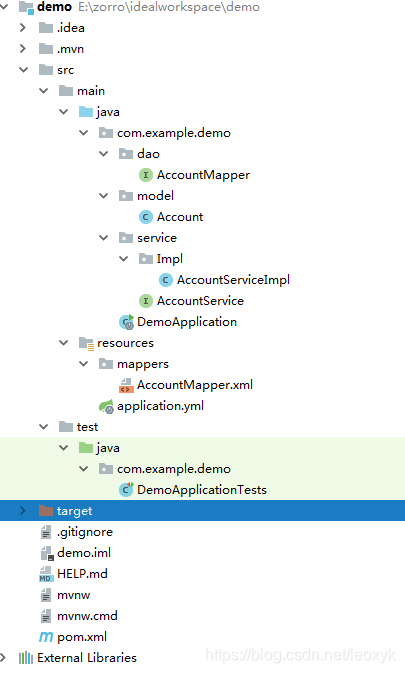

最后我们再看下目录结构

至此，简单的整合MyBatis完成。
