一、发送短信

1 短信服务介绍

2 阿里云短信服务（个人现在不太好申请了）

3.2 Mapper接口UserMapper

3.3 业务层接口 UserService

3.4 业务层实现类 UserServiceImpl

3.5 控制层 UserController

3.6 工具类ValidateCodeUtils

3.7 修改LoginCheckFilter

3.8 控制层 UserController 代码实现

3.9 login.html

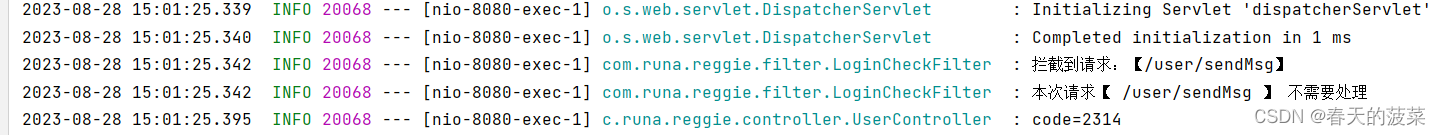

4 功能测试

前言：发送短信和手机验证码登录

一、发送短信

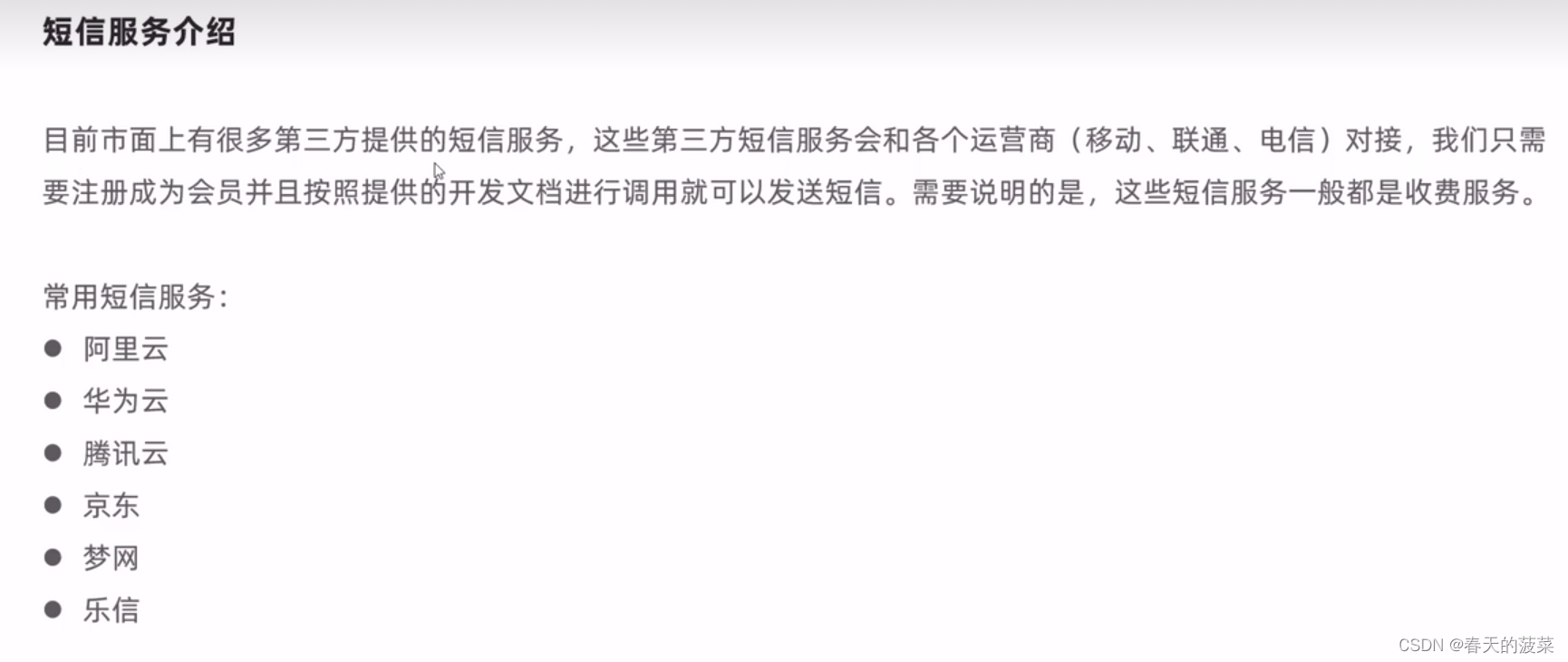

1 短信服务介绍

2 阿里云短信服务（个人现在不太好申请了）

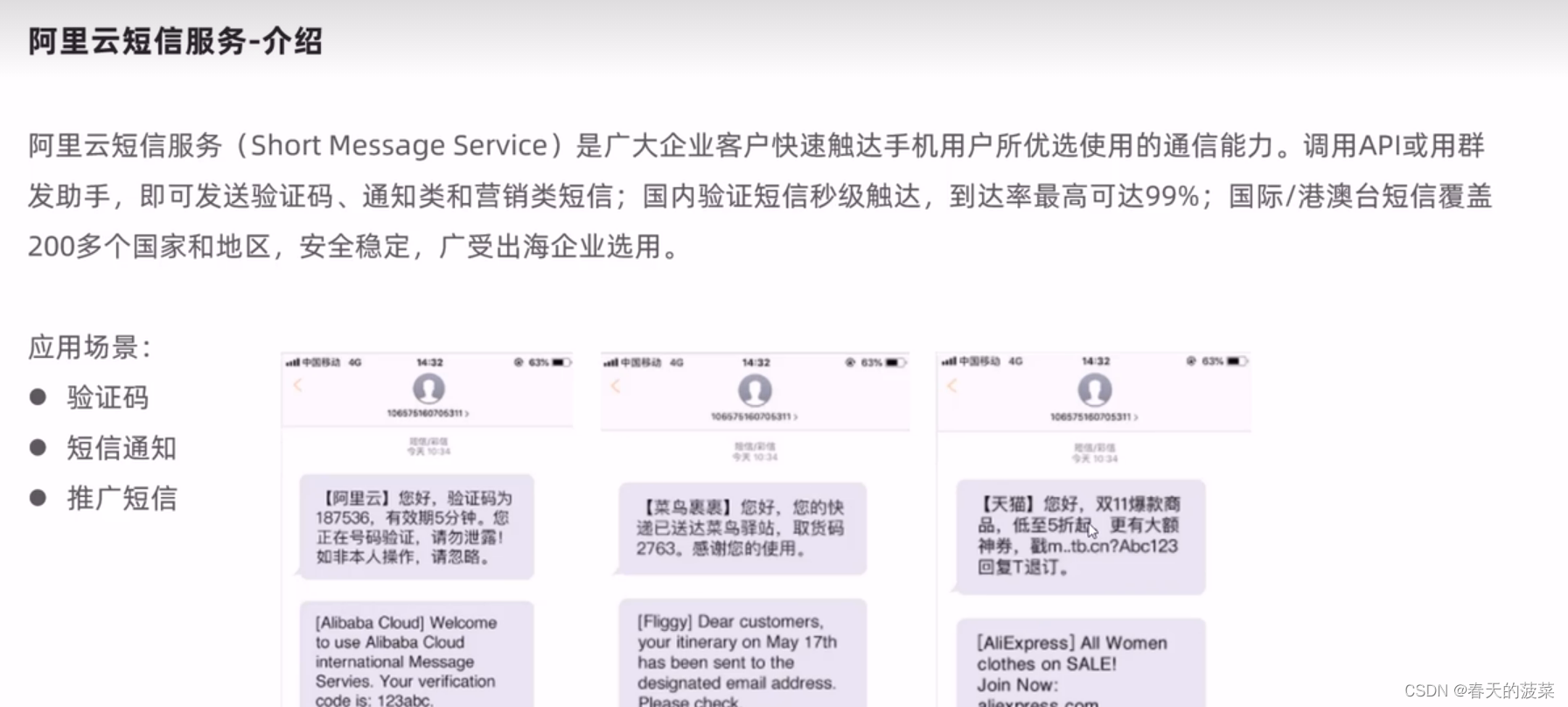

2.1 介绍

2.2 注册账号

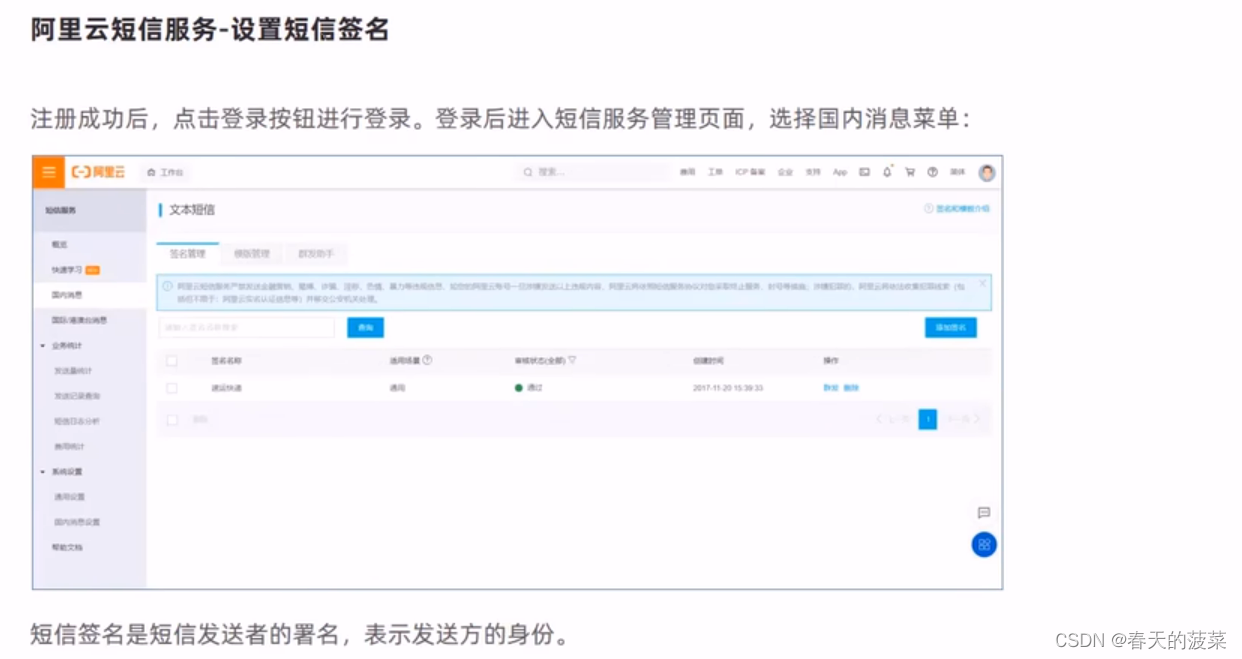

2.3 设置短信签名

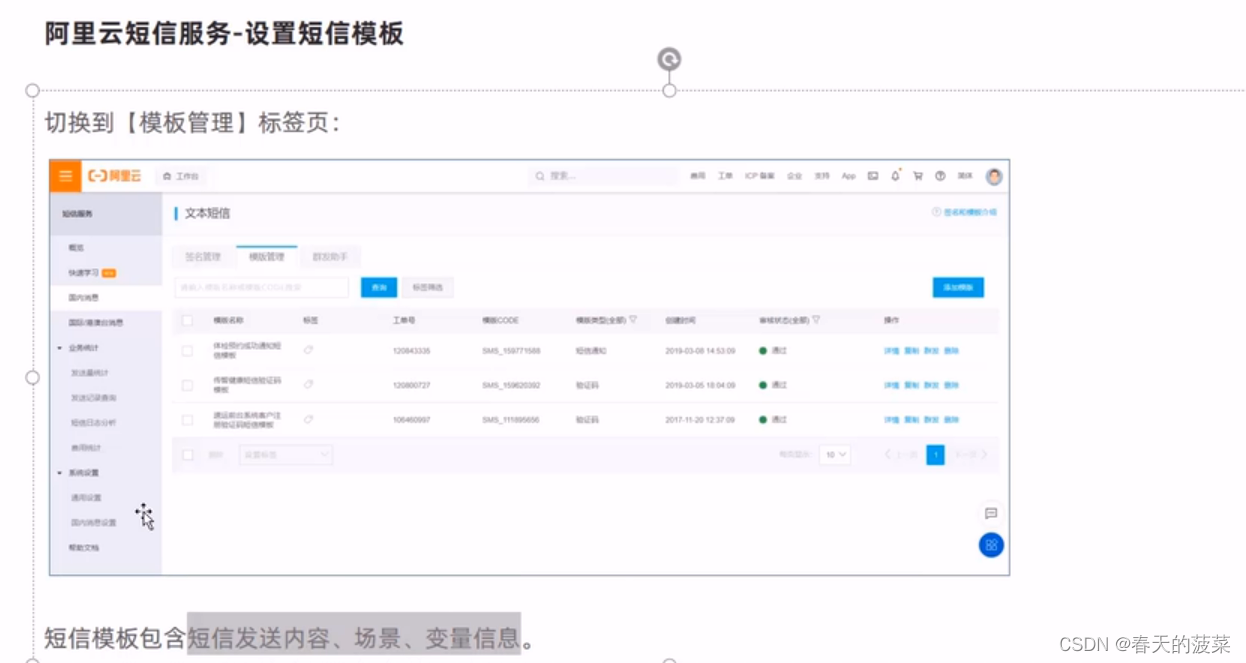

2.4 设置短信模版

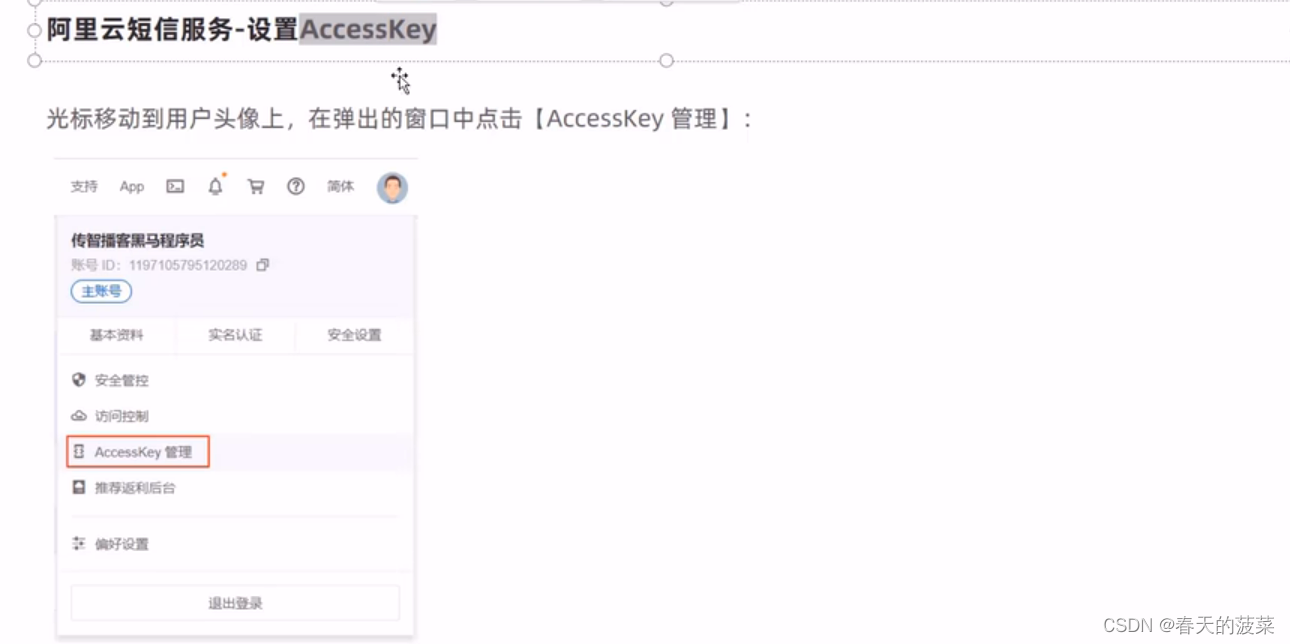

2.5 设置AccessKey

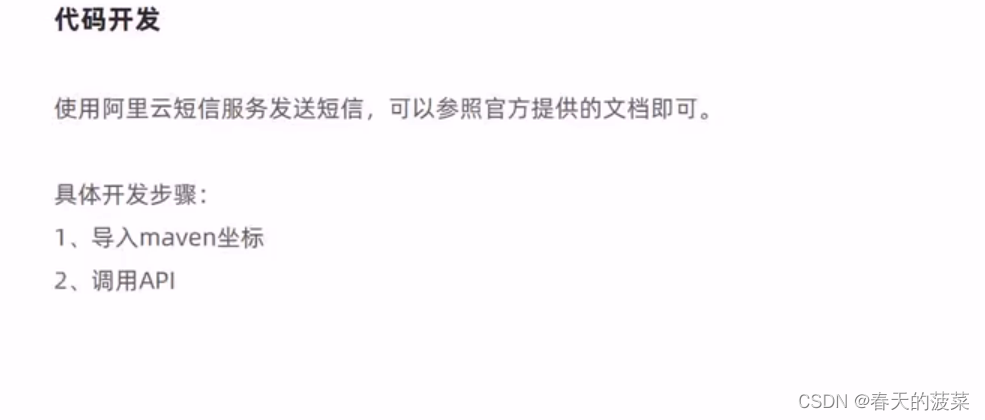

3 代码开发

3.1 导包

    <!--阿里云短信服务-->
        <dependency>
            <groupId>com.aliyun</groupId>
            <artifactId>aliyun-java-sdk-core</artifactId>
            <version>4.5.16</version>
        </dependency>
        <dependency>
            <groupId>com.aliyun</groupId>
            <artifactId>aliyun-java-sdk-dysmsapi</artifactId>
            <version>2.1.0</version>
        </dependency>

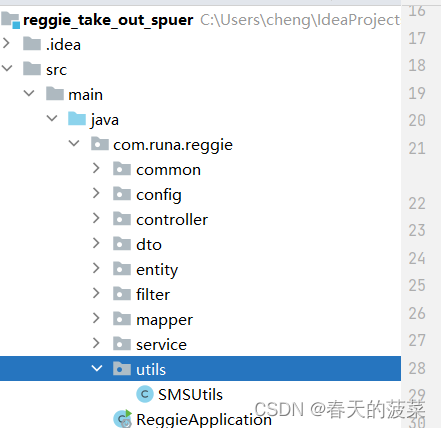

3.2 短信发送工具类SMSUtils

package com.runa.reggie.utils;

import com.aliyuncs.DefaultAcsClient;
import com.aliyuncs.IAcsClient;
import com.aliyuncs.dysmsapi.model.v20170525.SendSmsRequest;
import com.aliyuncs.dysmsapi.model.v20170525.SendSmsResponse;
import com.aliyuncs.exceptions.ClientException;
import com.aliyuncs.profile.DefaultProfile;

/**
 * 短信发送工具类
 */
public class SMSUtils {

	/**
	 * 发送短信
	 * @param signName 签名
	 * @param templateCode 模板
	 * @param phoneNumbers 手机号
	 * @param param 参数
	 */
	public static void sendMessage(String signName, String templateCode,String phoneNumbers,String param){
		DefaultProfile profile = DefaultProfile.getProfile("cn-hangzhou", "", "");
		IAcsClient client = new DefaultAcsClient(profile);

		SendSmsRequest request = new SendSmsRequest();
		request.setSysRegionId("cn-hangzhou");
		request.setPhoneNumbers(phoneNumbers);
		request.setSignName(signName);
		request.setTemplateCode(templateCode);
		request.setTemplateParam("{\"code\":\""+param+"\"}");
		try {
			SendSmsResponse response = client.getAcsResponse(request);
			System.out.println("短信发送成功");
		}catch (ClientException e) {
			e.printStackTrace();
		}
	}

}

二、手机验证码登录

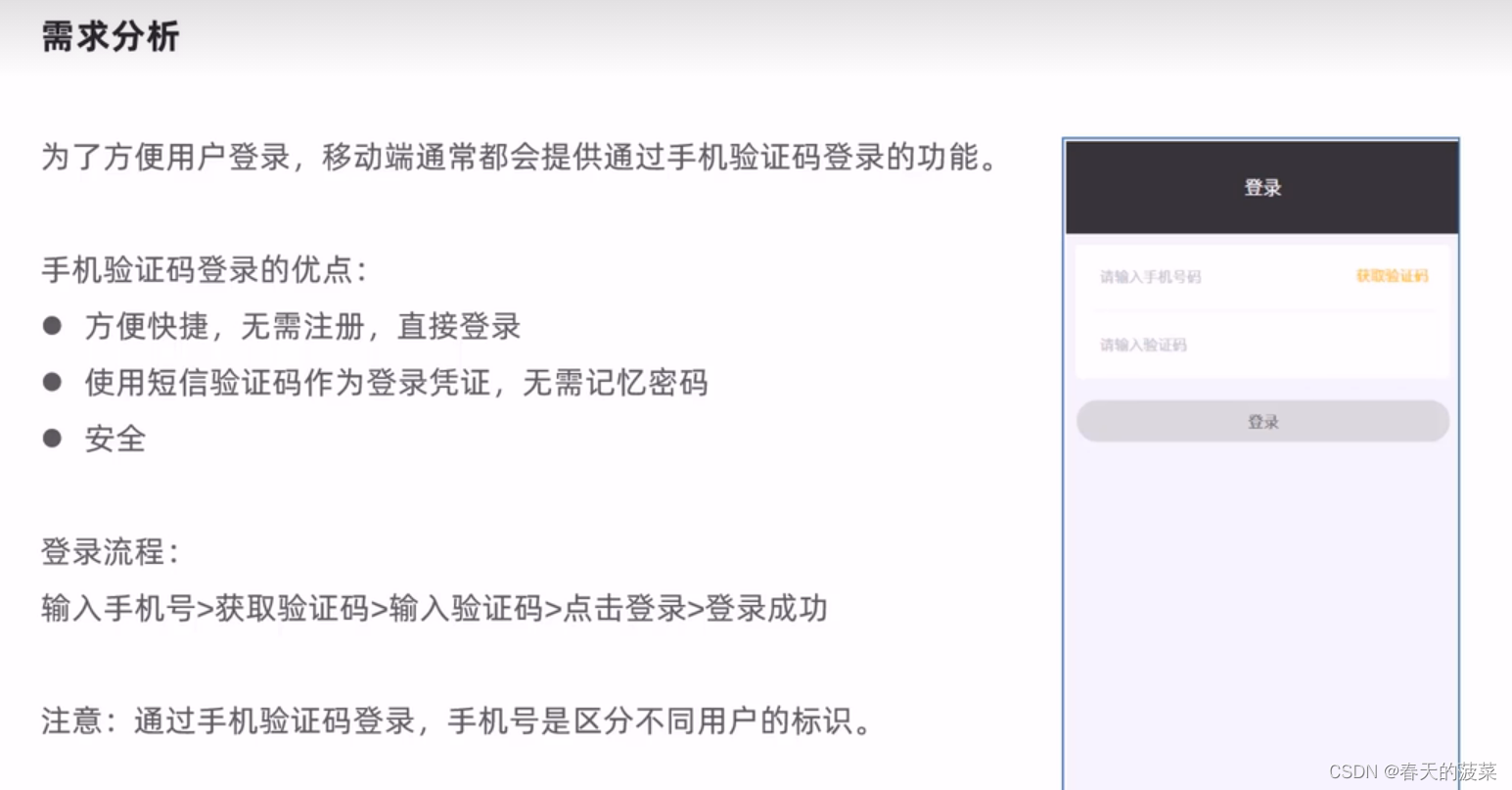

1 需求分析

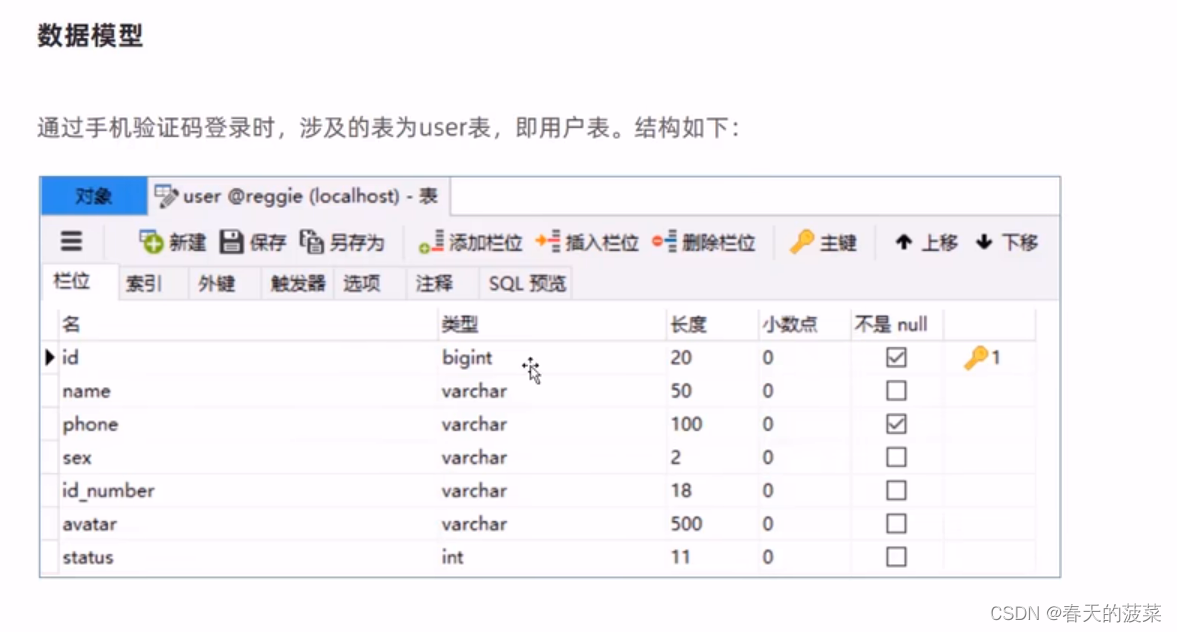

2 数据模型

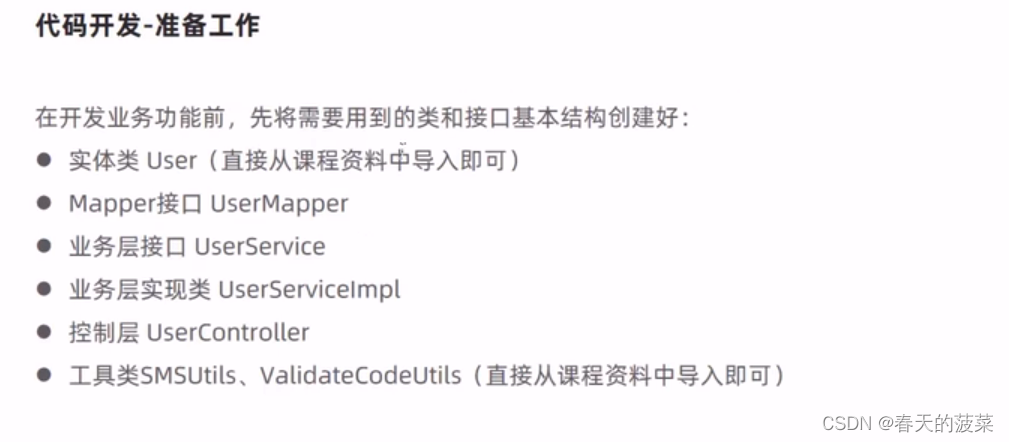

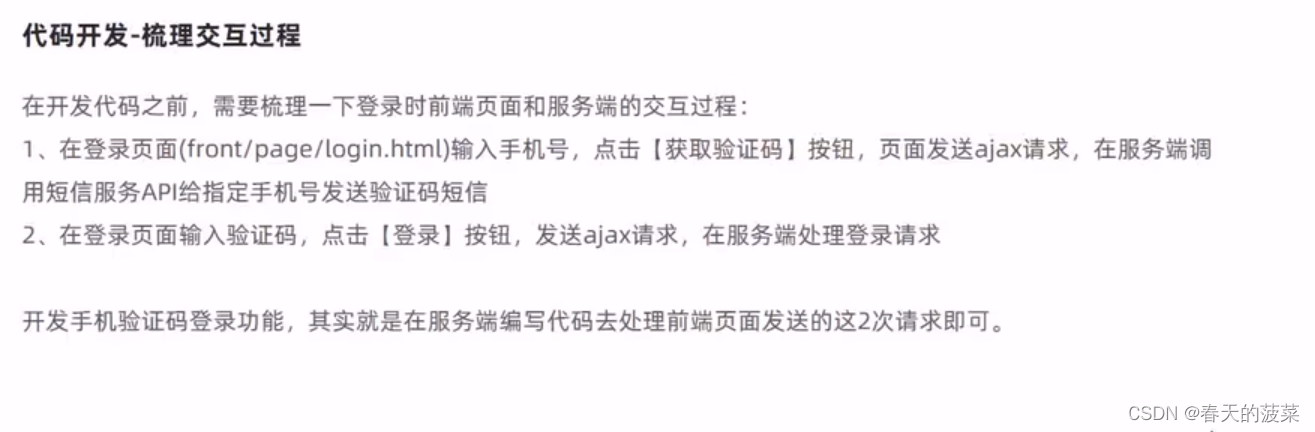

3 代码开发

3.1 实体类User

package com.runa.reggie.entity;

import lombok.Data;
import java.time.LocalDateTime;
import java.util.Date;
import java.util.List;
import java.io.Serializable;
import com.baomidou.mybatisplus.annotation.IdType;
import com.baomidou.mybatisplus.annotation.TableId;
/**
 * 用户信息
 */
@Data
public class User implements Serializable {

    private static final long serialVersionUID = 1L;

    private Long id;


    //姓名
    private String name;


    //手机号
    private String phone;


    //性别 0 女 1 男
    private String sex;


    //身份证号
    private String idNumber;


    //头像
    private String avatar;


    //状态 0:禁用，1:正常
    private Integer status;
}

3.2 Mapper接口UserMapper

package com.runa.reggie.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.runa.reggie.entity.User;
import org.apache.ibatis.annotations.Mapper;

@Mapper
public interface UserMapper extends BaseMapper<User>{
}

3.3 业务层接口 UserService

package com.runa.reggie.service;

import com.baomidou.mybatisplus.extension.service.IService;
import com.runa.reggie.entity.Employee;
import com.runa.reggie.entity.User;

public interface UserService extends IService<User> {
}

3.4 业务层实现类 UserServiceImpl

package com.runa.reggie.service.impl;

import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.runa.reggie.entity.User;
import com.runa.reggie.mapper.UserMapper;
import com.runa.reggie.service.UserService;
import org.springframework.stereotype.Service;

@Service
public class UserServiceImpl extends ServiceImpl<UserMapper,User> implements UserService{
}

3.5 控制层 UserController

package com.runa.reggie.controller;

import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.runa.reggie.common.R;
import com.runa.reggie.entity.User;
import com.runa.reggie.service.UserService;
import com.runa.reggie.utils.SMSUtils;
import com.runa.reggie.utils.ValidateCodeUtils;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpSession;
import java.util.Map;

@RestController
@RequestMapping("/user")
@Slf4j
public class UserController {

    @Autowired
    private UserService userService;



}

3.6 工具类ValidateCodeUtils

package com.runa.reggie.utils;

import java.util.Random;

/**
 * 随机生成验证码工具类
 */
public class ValidateCodeUtils {
    /**
     * 随机生成验证码
     * @param length 长度为4位或者6位
     * @return
     */
    public static Integer generateValidateCode(int length){
        Integer code =null;
        if(length == 4){
            code = new Random().nextInt(9999);//生成随机数，最大为9999
            if(code < 1000){
                code = code + 1000;//保证随机数为4位数字
            }
        }else if(length == 6){
            code = new Random().nextInt(999999);//生成随机数，最大为999999
            if(code < 100000){
                code = code + 100000;//保证随机数为6位数字
            }
        }else{
            throw new RuntimeException("只能生成4位或6位数字验证码");
        }
        return code;
    }

    /**
     * 随机生成指定长度字符串验证码
     * @param length 长度
     * @return
     */
    public static String generateValidateCode4String(int length){
        Random rdm = new Random();
        String hash1 = Integer.toHexString(rdm.nextInt());
        String capstr = hash1.substring(0, length);
        return capstr;
    }
}

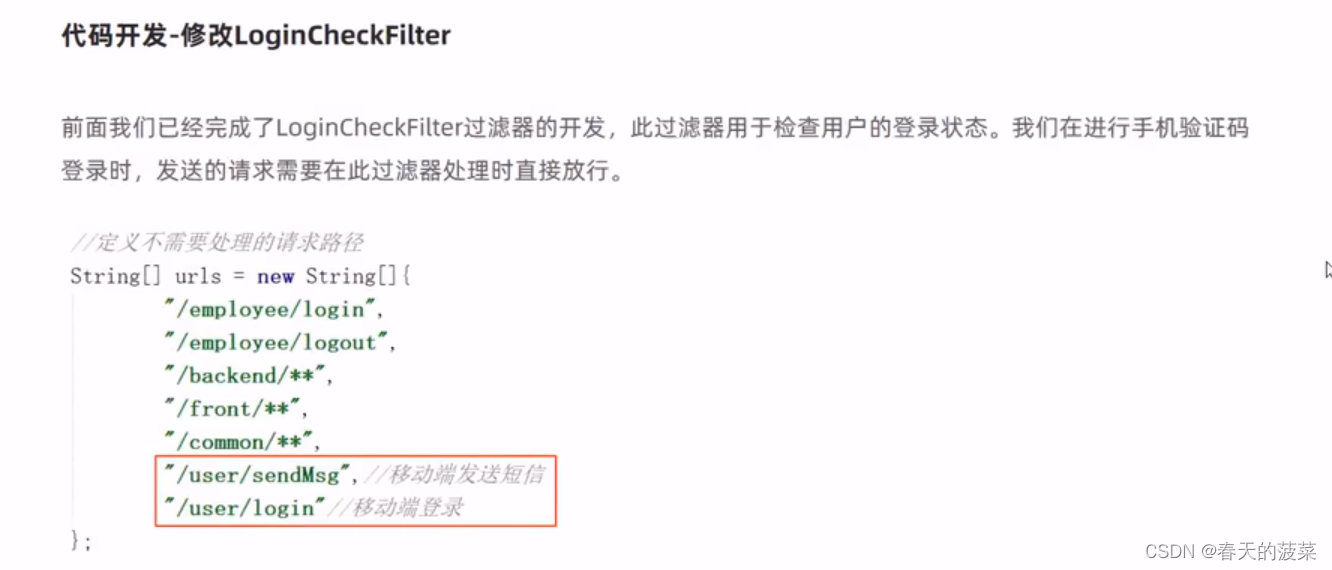

3.7 修改LoginCheckFilter

package com.runa.reggie.filter;

import com.alibaba.fastjson.JSON;
import com.runa.reggie.common.BaseContext;
import com.runa.reggie.common.R;
import lombok.extern.slf4j.Slf4j;
import org.springframework.util.AntPathMatcher;

import javax.servlet.*;
import javax.servlet.annotation.WebFilter;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

@Slf4j
@WebFilter(filterName = "loginCheckFilter", urlPatterns = "/*")
public class LoginCheckFilter implements Filter {
    // 路径匹配器
    public static final AntPathMatcher PATH_MATCHER = new AntPathMatcher();

    @Override
    public void doFilter(ServletRequest servletRequest, ServletResponse servletResponse, FilterChain filterChain) throws IOException, ServletException {
        HttpServletRequest request = (HttpServletRequest) servletRequest;
        HttpServletResponse response = (HttpServletResponse) servletResponse;

        // 1  获取本次请求的URI
        //        request.getRequestURL()返回的是全路径。
        //        request.getRequestURI()返回的是除去协议，域名（IP+端口号）之后的路由部分。
        String requestURI = request.getRequestURI();
        log.info("拦截到请求：【{}】",requestURI);

        // 定义一些不需要处理的路径
        String[] urls = new String[]{
                "/employee/login",    // 登录不需要
                "/employee/logout",
                "/backend/**",
                "/front/**",
                "/common/**",
                "/user/sendMsg",  //移动端发送短信
                "/user/login"  //移动端登录
        };

        // 2  判断本次请求是否需要处理
        boolean check = check(urls, requestURI);

        // 3 如果不需要处理,则直接放行
        if(check){
            log.info("本次请求【 {} 】 不需要处理",requestURI);
            filterChain.doFilter(request,response);
            return;
        }

        // 4 -1（员工端） 判断登录状态，如果已登录，则直接放行
        if(request.getSession().getAttribute("employee") != null){
            log.info("用户已登录，请求url为：【{}】, 用户id为:【 {} 】 ",requestURI,request.getSession().getAttribute("employee"));
            // 获取ID 塞进线程
            Long empId = (Long) request.getSession().getAttribute("employee");
            BaseContext.setCurrentId(empId);

            filterChain.doFilter(request,response);
            return;
        }

        // 4 -2（移动端） 判断登录状态，如果已登录，则直接放行
        if(request.getSession().getAttribute("user") != null){
            log.info("用户已登录，请求url为：【{}】, 用户id为:【 {} 】 ",requestURI,request.getSession().getAttribute("user"));
            // 获取ID 塞进线程
            Long userId = (Long) request.getSession().getAttribute("user");
            BaseContext.setCurrentId(userId);

            filterChain.doFilter(request,response);
            return;
        }

        log.info("用户未登录");
        // 5 如果未登录则返回未登录结果，通过输出流方式向客户端页面响应数据
        response.getWriter().write(JSON.toJSONString(R.error("NOTLOGIN")));
        return;

    }

    /**
     * 路径匹配，检查本次请求是否需要放行
     * @param urls
     * @param requestURI
     * @return
     */
    public boolean check(String[] urls, String requestURI){
        for (String url : urls) {
            boolean match = PATH_MATCHER.match(url, requestURI);
            if(match){
                return true;
            }
        }
        // 循环都匹配不上就返回false
        return false;
    }
}

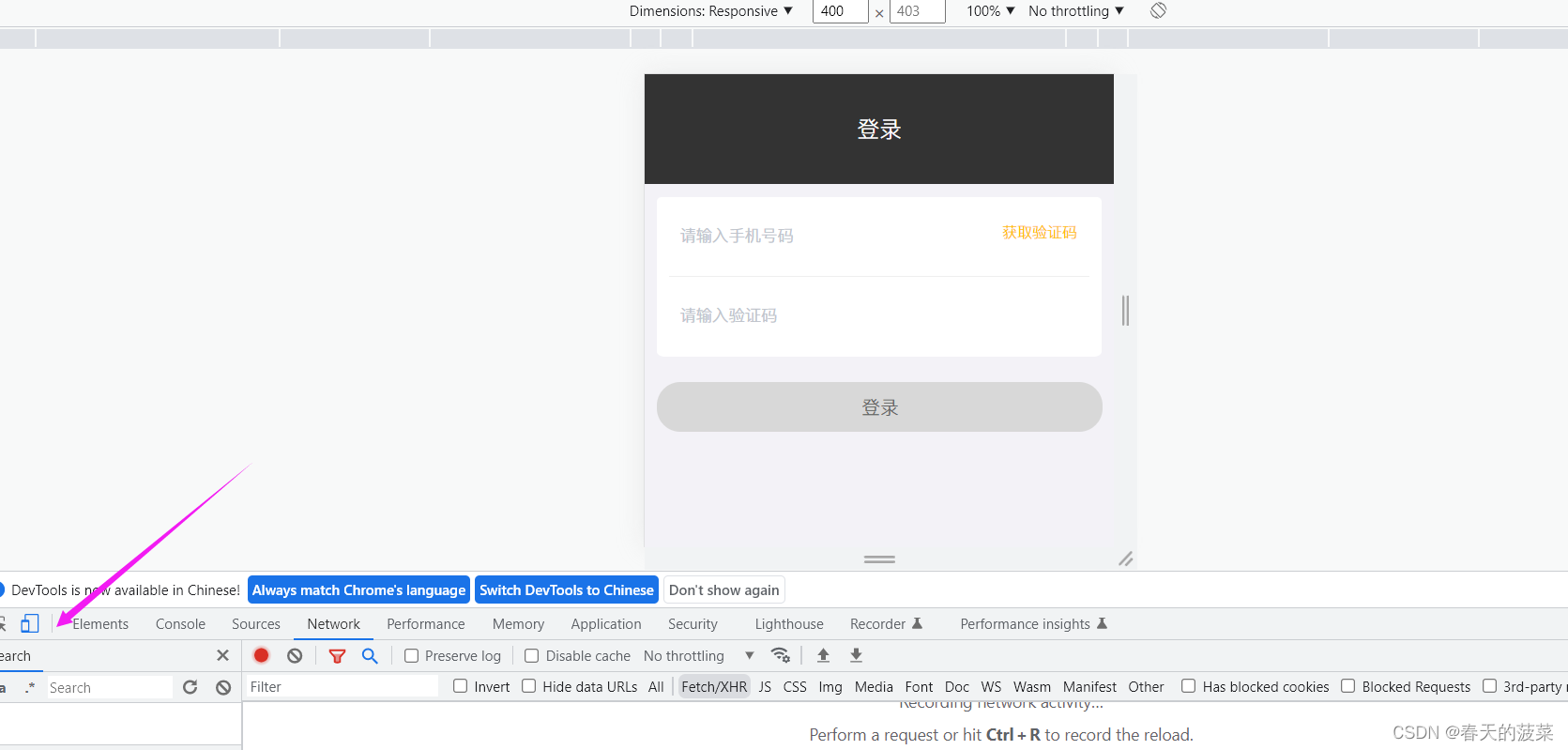

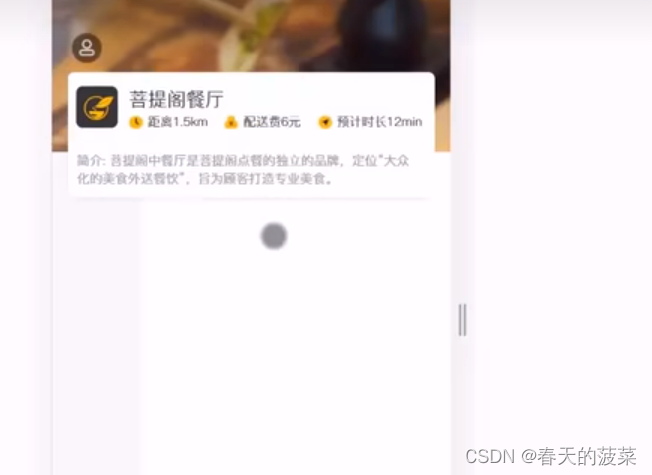

登录手机页面

http://localhost:8080/front/page/login.html

3.8 控制层 UserController 代码实现

package com.runa.reggie.controller;

import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.runa.reggie.common.R;
import com.runa.reggie.entity.User;
import com.runa.reggie.service.UserService;
import com.runa.reggie.utils.SMSUtils;
import com.runa.reggie.utils.ValidateCodeUtils;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestBody;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpSession;
import java.util.Map;

@RestController
@RequestMapping("/user")
@Slf4j
public class UserController {

    @Autowired
    private UserService userService;

    /**
     * 发送手机短信验证码
     * @param user
     * @return
     */
    @PostMapping("/sendMsg")
    public R<String> sendMsg(@RequestBody User user, HttpSession session){
        //获取手机号
        String phone = user.getPhone();

        if(StringUtils.isNotEmpty(phone)){
            //生成随机的4位验证码
            String code = ValidateCodeUtils.generateValidateCode(4).toString();
            log.info("code={}",code);

            //调用阿里云提供的短信服务API完成发送短信
            //SMSUtils.sendMessage("菠菜","",phone,code);


            //需要将生成的验证码保存到Session
            session.setAttribute(phone,code);

            return R.success("手机验证码短信发送成功");
        }

        return R.error("短信发送失败");
    }

    /**
     * 移动端用户登录
     * @param map
     * @param session
     * @return
     */
    @PostMapping("/login")
    public R<User> login(@RequestBody Map map, HttpSession session){
        log.info(map.toString());

        //获取手机号
        String phone = map.get("phone").toString();

        //获取验证码
        String code = map.get("code").toString();

        //从Session中获取保存的验证码
        Object codeInSession = session.getAttribute(phone);

        //进行验证码的比对（页面提交的验证码和Session中保存的验证码比对）
        if(codeInSession != null && codeInSession.equals(code)){
            //如果能够比对成功，说明登录成功

            LambdaQueryWrapper<User> queryWrapper = new LambdaQueryWrapper<>();
            queryWrapper.eq(User::getPhone,phone);

            User user = userService.getOne(queryWrapper);
            if(user == null){
                //判断当前手机号对应的用户是否为新用户，如果是新用户就自动完成注册
                user = new User();
                user.setPhone(phone);
                user.setStatus(1);
                userService.save(user);
            }
            session.setAttribute("user",user.getId());
            return R.success(user);
        }
        return R.error("登录失败");
    }

}

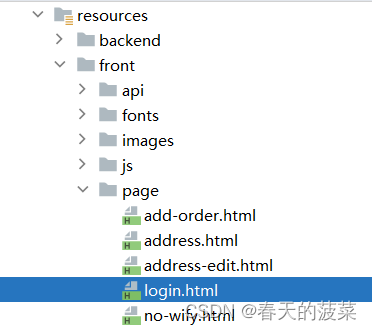

3.9 login.html

修改记得清理浏览器缓存

<!DOCTYPE html>
<html lang="en">
    <head>
        <meta charset="utf-8">
        <meta http-equiv="X-UA-Compatible" content="IE=edge">
        <!-- 上述3个meta标签*必须*放在最前面，任何其他内容都*必须*跟随其后！ -->
        <meta name="viewport" content="width=device-width, initial-scale=1.0, maximum-scale=1.0,user-scalable=no,minimal-ui">
        <title>菩提阁</title>
        <link rel="icon" href="./../images/favico.ico">
        <!--不同屏幕尺寸根字体设置-->
        <script src="./../js/base.js"></script>
        <!--element-ui的样式-->
        <link rel="stylesheet" href="../../backend/plugins/element-ui/index.css" />
        <!--引入vant样式-->
        <link rel="stylesheet" href="../styles/vant.min.css"/>
        <!-- 引入样式  -->
        <link rel="stylesheet" href="../styles/index.css" />
        <!--本页面内容的样式-->
        <link rel="stylesheet" href="./../styles/login.css" />
      </head>
    <body>
        <div id="login" v-loading="loading">
            <div class="divHead">登录</div>
            <div class="divContainer">
                <el-input placeholder=" 请输入手机号码" v-model="form.phone"  maxlength='20'/></el-input>
                <div class="divSplit"></div>
                <el-input placeholder=" 请输入验证码" v-model="form.code"  maxlength='20'/></el-input>
                <span @click='getCode'>获取验证码</span>
            </div>
            <div class="divMsg" v-if="msgFlag">手机号输入不正确，请重新输入</div>
            <el-button type="primary" :class="{btnSubmit:1===1,btnNoPhone:!form.phone,btnPhone:form.phone}" @click="btnLogin">登录</el-button>
        </div>
        <!-- 开发环境版本，包含了有帮助的命令行警告 -->
        <script src="../../backend/plugins/vue/vue.js"></script>
        <!-- 引入组件库 -->
        <script src="../../backend/plugins/element-ui/index.js"></script>
        <!-- 引入vant样式 -->
        <script src="./../js/vant.min.js"></script>
        <!-- 引入axios -->
        <script src="../../backend/plugins/axios/axios.min.js"></script>
        <script src="./../js/request.js"></script>
        <script src="./../api/login.js"></script>
    </body>
    <script>
        new Vue({
            el:"#login",
            data(){
                return {
                    form:{
                        phone:'',
                        code:''
                    },
                    msgFlag:false,
                    loading:false
                }
            },
            computed:{},
            created(){},
            mounted(){},
            methods:{
                getCode(){
                    this.form.code = ''
                    const regex = /^(13[0-9]{9})|(15[0-9]{9})|(17[0-9]{9})|(18[0-9]{9})|(19[0-9]{9})$/;
                    if (regex.test(this.form.phone)) {
                        this.msgFlag = false
                        // this.form.code = (Math.random()*1000000).toFixed(0)
                        sendMsgApi({phone:this.form.phone})

                    }else{
                        this.msgFlag = true
                    }
                },
                async btnLogin(){
                    if(this.form.phone && this.form.code){
                        this.loading = true
                        const res = await loginApi(this.form)
                        this.loading = false
                        if(res.code === 1){
                            sessionStorage.setItem("userPhone",this.form.phone)
                            window.requestAnimationFrame(()=>{
                                window.location.href= '/front/index.html'
                            })
                        }else{
                            this.$notify({ type:'warning', message:res.msg});
                        }
                    }else{
                        this.$notify({ type:'warning', message:'请输入手机号码'});
                    }
                }
            }
        })
    </script>
</html>
