使用OpenCV实现透视变换

1 透视变换

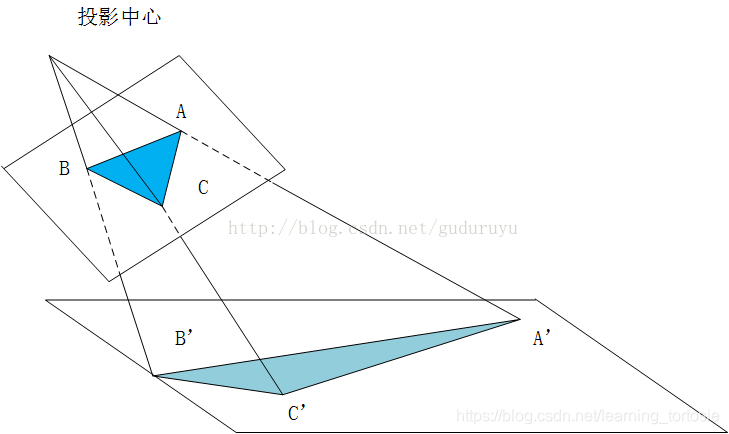

透视变换(Perspective Transformation)是将成像投影到一个新的视平面(Viewing Plane)，也称作投影映射(Projective Mapping)。如下图所示，通过透视变换ABC变换到A’B’C’。

2 使用OpenCV实现透视变换

2.1 getPerspectiveTransform

由四对点计算透射变换，返回由源图像中矩形到目标图像矩形变换的矩阵。

2.2 warpPerspective

使用getPerspectiveTransform得到的透视变换矩阵，对图像进行透视变换，返回的是相同size的图片。

3 代码实现

3.1 C++

#include "opencv2/opencv.hpp"
#include <iostream>

using namespace cv;
using namespace std;

/// 全局变量
const char* source_window = "Source image";;
const char* warpPerspective_window = "warpPerspective";

/**
 * @主函数
 */
int main( )
{
	Point2f srcTri[4];
	Point2f dstTri[4];

	Mat warpPerspective_mat(3, 3, CV_32FC1);
	Mat src, warpPerspective_dst;

	/// Load the image
	src = imread("lena.bmp", IMREAD_COLOR);

	/// Set the dst image the same type and size as src
	warpPerspective_dst = Mat::zeros( src.rows, src.cols, src.type() );

	/// 设置4组点，求出变换矩阵
	srcTri[0] = Point2f( 0, 0);
	srcTri[1] = Point2f( src.cols-1, 0 );
	srcTri[2] = Point2f( 0, src.rows-1);
	srcTri[3] = Point2f(src.cols-1, src.rows - 1);

	dstTri[0] = Point2f( 0,src.rows*0.13 );
	dstTri[1] = Point2f( src.cols*0.9,0 );
	dstTri[2] = Point2f( src.cols*0.2,src.rows*0.7 );
	dstTri[3] = Point2f( src.cols*0.8,src.rows );

	//计算4个二维点对之间的仿射变换矩阵（2行x3列）
	warpPerspective_mat = getPerspectiveTransform(srcTri, dstTri);

	//应用仿射变换，可以恢复出原图
	warpPerspective( src, warpPerspective_dst, warpPerspective_mat, src.size() );

	//显示结果
	namedWindow( source_window, WINDOW_AUTOSIZE );
	imshow( source_window, src );

	namedWindow( warpPerspective_window, WINDOW_AUTOSIZE );
	imshow( warpPerspective_window, warpPerspective_dst );
    /// 等待，直到用户退出
    waitKey(0);

    return 0;
}

3.2 Python

import cv2 as cv
import numpy as np
img = cv.imread("test/scene2.png",0)
w,h = img.shape
point1 = np.array([[308,230],[500,230],[308,640],[500,640]],dtype = "float32")
point2 = np.array([[308,230],[500,230],[155,30],[835,30]],dtype = "float32")
M = cv.getPerspectiveTransform(point1,point2)
out_img = cv.warpPerspective(img,M,(w,h))
cv.imshow("img",out_img)
cv.waitKey(0)
