Condition使用及原理

synchronized notify

lock/Condition  实现类似 synchronized与notify/notifyall   wait

Condition 示例新建3个类WaitCondition、NotifyCondition、Test

package condition;

import java.util.concurrent.locks.Condition;
import java.util.concurrent.locks.Lock;

/**
等待条件执行
 * @author sun
 * @date 2019/8/19
 */
public class WaitCondition implements  Runnable{
    private Lock lock;
    private Condition condition;

    public WaitCondition(Lock lock, Condition condition) {
        this.lock = lock;
        this.condition = condition;
    }

    @Override
    public void run() {
        try{

        lock.lock();
            System.out.println("begin wait");
            condition.await();
            System.out.println("end wait");
        } catch (Exception e) {
            e.printStackTrace();
        }finally {
            lock.unlock();
        }


    }
}

package condition;

import java.util.concurrent.locks.Condition;
import java.util.concurrent.locks.Lock;

/**
唤醒等待的线程
 * @author sun
 * @date 2019/8/19
 */
public class NotifyCondition implements Runnable {
    private Lock lock;
    private Condition condition;

    public NotifyCondition(Lock lock, Condition condition) {
        this.lock = lock;
        this.condition = condition;
    }

    @Override
    public void run() {

        try{

            lock.lock();
            System.out.println("begin notify");
            condition.signal();
            System.out.println("end notify");
        } catch (Exception e) {
            e.printStackTrace();
        }finally {
            lock.unlock();
        }
    }
}



package condition;

import java.util.concurrent.locks.Condition;
import java.util.concurrent.locks.Lock;
import java.util.concurrent.locks.ReentrantLock;

/**
测试
 * @author sun
 * @date 2019/8/19
 */
public class Test {

    public static void main(String[] args) {
        Lock lock = new ReentrantLock();
        Condition condition = lock.newCondition();
        new Thread(new WaitCondition(lock,condition)).start();
        new Thread(new NotifyCondition(lock,condition)).start();
    }
}

可以看到condition最重要的两个方法是await()阻塞挂起,和signal()唤醒阻塞线程

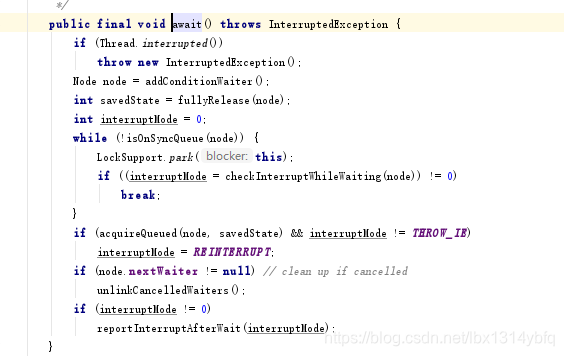

我们来看一下condition调用的await()方法，该方法调用的是AQS的await()方法

首先是要创建节点，这里我们要先了解一下节点的状态waitStatus的以下几种状态，waitStatus初始值为0

 * Status field, taking on only the values:
 *   SIGNAL:     The successor of this node is (or will soon be)//只要前置节点释放锁，就会通知标识为signal状态的后续节点线程
 *               blocked (via park), so the current node must
 *               unpark its successor when it releases or
 *               cancels. To avoid races, acquire methods must
 *               first indicate they need a signal,
 *               then retry the atomic acquire, and then,
 *               on failure, block.
 *   CANCELLED:  This node is cancelled due to timeout or interrupt.//获取锁超时或者被中断，不会再有机会获取锁
 *               Nodes never leave this state. In particular,
 *               a thread with cancelled node never again blocks.
 *   CONDITION:  This node is currently on a condition queue.//处于等待队列
 *               It will not be used as a sync queue node
 *               until transferred, at which time the status
 *               will be set to 0. (Use of this value here has
 *               nothing to do with the other uses of the
 *               field, but simplifies mechanics.)
 *   PROPAGATE:  A releaseShared should be propagated to other//共享锁模式下的节点状态,处于这个状态下的节点，会对线程的唤醒进行传播
 *               nodes. This is set (for head node only) in
 *               doReleaseShared to ensure propagation
 *               continues, even if other operations have
 *               since intervened.
 *   0:          None of the above
 *
 * The values are arranged numerically to simplify use.
 * Non-negative values mean that a node doesn't need to
 * signal. So, most code doesn't need to check for particular
 * values, just for sign.
 *
 * The field is initialized to 0 for normal sync nodes, and
 * CONDITION for condition nodes.  It is modified using CAS
 * (or when possible, unconditional volatile writes).
 */
volatile int waitStatus;

Node node = addConditionWaiter();//添加一个节点到等待队列

private Node addConditionWaiter() {
    Node t = lastWaiter;
    // If lastWaiter is cancelled, clean out.
    if (t != null && t.waitStatus != Node.CONDITION) {//如果等待队列里面的最后一个节点不是CONDITION状态，则新节点为最后一个节点也是第一个节点
        unlinkCancelledWaiters();
        t = lastWaiter;
    }
    Node node = new Node(Thread.currentThread(), Node.CONDITION);
    if (t == null)
        firstWaiter = node;
    else
        t.nextWaiter = node;
    lastWaiter = node;
    return node;
}

接下来我们看下fullyRelease方法

final int fullyRelease(Node node) {
    boolean failed = true;
    try {
        int savedState = getState();//获得重入锁的次数
        if (release(savedState)) {//释放锁并唤醒下一下同步队列，这里一次重入锁全部释放
            failed = false;
            return savedState;
        } else {
            throw new IllegalMonitorStateException();
        }
    } finally {
        if (failed)
            node.waitStatus = Node.CANCELLED;
    }
}

while (!isOnSyncQueue(node)) {//判断节点是否存在同步队列
    LockSupport.park(this);//阻塞当前线程
    if ((interruptMode = checkInterruptWhileWaiting(node)) != 0)
        break;
}

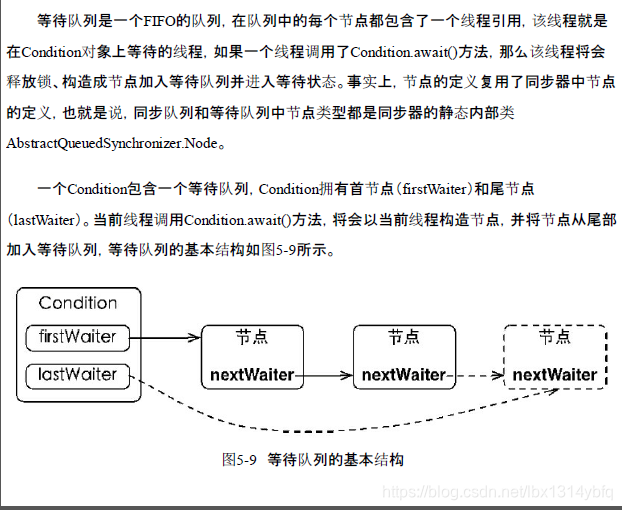

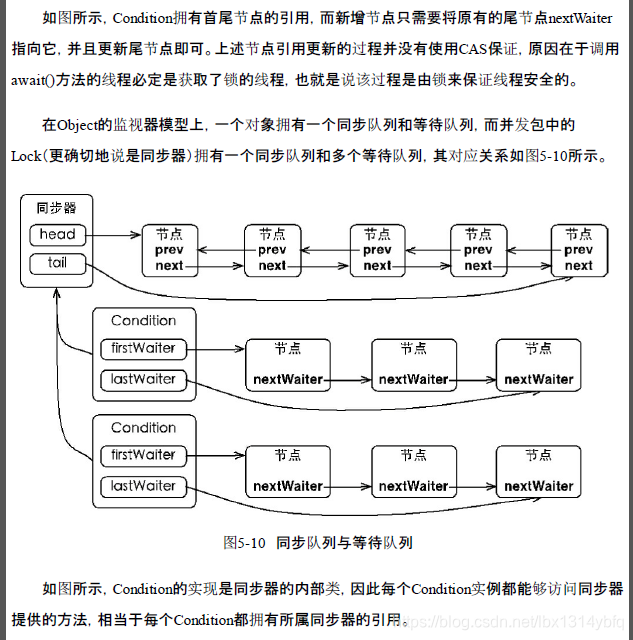

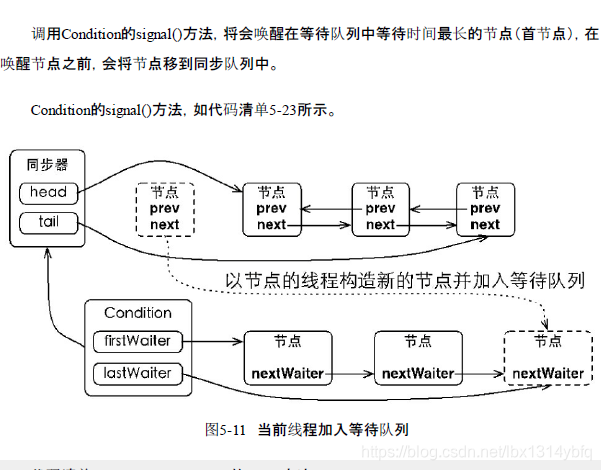

下图来源于《Java并发编程的艺术》一书







下面来看下signal()方法

可以看到Condition的signal()方法也是调用的AQS的signal方法

public final void signal() {
    if (!isHeldExclusively())//判断是否是当前线程调用的signal，如果不是就是其他线程通过中断调用
        throw new IllegalMonitorStateException();
    Node first = firstWaiter;//获取等待队列的第一个节点
    if (first != null)
        doSignal(first);
}

/**
 * Removes and transfers nodes until hit non-cancelled one or
 * null. Split out from signal in part to encourage compilers
 * to inline the case of no waiters.
 * @param first (non-null) the first node on condition queue
 */
private void doSignal(Node first) {
    do {
        if ( (firstWaiter = first.nextWaiter) == null)
            lastWaiter = null;
        first.nextWaiter = null;
    } while (!transferForSignal(first) &&
             (first = firstWaiter) != null);//将节点从等待队列移到同步队列

}

final boolean transferForSignal(Node node) {
    /*
     * If cannot change waitStatus, the node has been cancelled.
     */
    if (!compareAndSetWaitStatus(node, Node.CONDITION, 0))//如果失败，表示节点被CANCELLED
        return false;

    /*
     * Splice onto queue and try to set waitStatus of predecessor to
     * indicate that thread is (probably) waiting. If cancelled or
     * attempt to set waitStatus fails, wake up to resync (in which
     * case the waitStatus can be transiently and harmlessly wrong).
     */
    Node p = enq(node);//返回node的prev节点
    int ws = p.waitStatus;
    if (ws > 0 || !compareAndSetWaitStatus(p, ws, Node.SIGNAL))//如果上一个节点的状态被取消了, 或者尝试设置上一个节点的状态为 SIGNAL 失败了(SIGNAL 表示: 他的 next 节点需要停止阻塞),
        LockSupport.unpark(node.thread);
    return true;//如果node的prev节点已经是signal状态，那么被阻塞的ThreadA的唤醒工作由AQS队列来完成
}

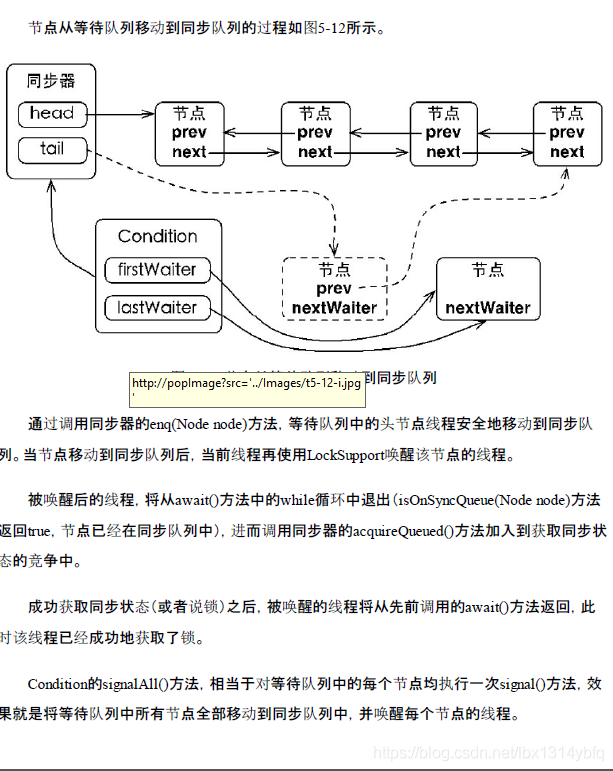

下图来源于《Java并发编程的艺术》一书



总结：线程调用condition.await()方法让线程进入等待队列，调用signal将线程从等队列移动到同步队列，在其他线程调用释放锁后有机会获得锁。
