electron+electron-builder打包生产环境时托盘图标空白,开发环境下正常

文章讲述了作者在Electron应用中遇到托盘图标在打包后消失的问题,通过探索发现是由于asar文件结构导致的图标路径问题。通过electron-builder的`extraResources`配置将图标打包到根目录并正确设置环境变量,解决了图标显示问题。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

在打包安装之后,我发现在开发环境正常显示的托盘图标消失不见了,托盘还在,右击菜单也会正常出现,只是图标消失不见了。
网上找了很多答案,都说是文件路径错误,用绝对路径的,都失败了。
解压asar文件之后,看到里面确实是有图标的,但是图标没有正常显示。
为了查看是否无法使用asar里面的图标,尝试使用getPath(‘exe’)拼接文件名作为托盘图标路径。

trayIcon = path.join(path.dirname(app.getPath('exe')), 'why_logo.ico');
const tray = new Tray(trayIcon);

然后安装好之后手动移动图片到根目录下面,成功显示托盘图标,那很显然是在主进程中获取的打包后图片路径出现错误。
然后查找electron-builder的打包配置,看能否把图标打包安装到根目录下面。
extraResources 是 electron-builder 的一个配置选项,它允许你指定在 Electron 打包过程中需要被复制到特定目录的额外资源。这些资源可以是文件、文件夹或者是单个文件的 glob 模式。如果你有一个特定的文件想要包含在资源中,可以在package.json或你的electron-builder配置文件里这样配置:
我的图标放在和package.json同一层级

  "build": {
    "extraResources": [
      {
        "from": "path/to/your/file.ico",//填写你自己的图标路径 ./why_logo.ico
        "to": "path/to/destination",//填写安装后的图标路径 ./why_logo.ico
      }
    ]
  }

打包安装完之后在根目录的\resources文件夹下有一个托盘图标

if (process.env.NODE_ENV == 'development') {
    trayIcon = path.join(__dirname, '../why_logo.ico');
  } else {
    trayIcon = path.join(path.dirname(app.getPath('exe')), 'resources/why_logo.ico');
    // trayIcon = path.join(path.dirname(app.getPath('exe')), 'why_logo.ico');
  }
const tray = new Tray(trayIcon);

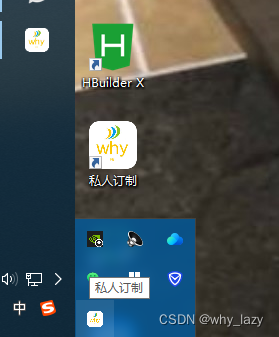

这时候托盘图标成功显示。
显示正常

完整main.js

const { app, BrowserWindow, ipcMain,globalShortcut,Tray,nativeImage,Menu } = require('electron');
const { autoUpdater } = require("electron-updater");
const path = require("path");
function createWindow() {
  let win = new BrowserWindow({
    width: 1200,
    height: 900,
    minWidth: 800,
    minHeight: 600,
    transparent: true,
    webPreferences: {
      nodeIntegration: true, // 允许在页面中使用节点js
      contextIsolation: true, // 启用上下文隔离
      enableRemoteModule: true, // 允许使用 remote 模块
      preload: path.join(__dirname, "preload.js")
    },
    frame: false,
  });
  // let tray = new Tray('../dist/images/why_logo.ico');
  // globalShortcut.register('Ctrl+Shift+I', () => {});
  let trayIcon = "";
  if (process.env.NODE_ENV == 'development') {
    win.loadURL(`http://localhost:5173`)
    trayIcon = path.join(__dirname, '../public/images/why_logo.ico');
  } else {
    win.loadFile("dist/index.html");
    trayIcon = path.join(path.dirname(app.getPath('exe')), 'resources/why_logo.ico');
    // trayIcon = path.join(path.dirname(app.getPath('exe')), 'why_logo.ico');
  }
  win.on('closed', () => {
    win = null;
  });
  // 全屏切换的事件监听器
  let isFullScreen = false;
  win.on('enter-full-screen', () => {
    isFullScreen = true;
  });
  win.on('leave-full-screen', () => {
    isFullScreen = false;
  });
  const toggleFullScreen = () => {
    win.setFullScreen(!isFullScreen);
  }
  /**
   * 创建托盘
   * */
  const contextMenu = [
    { label: '播放/暂停', click:()=>{win.webContents.send('pauseOrPlay')} },
    { label: '上一首', click:()=>{win.webContents.send('next', -1);} },
    { label: '下一首', click:()=>{win.webContents.send('next', 1);} },
    {type: "separator"},
    { label: '播放方式', submenu:[
      { label: `顺序播放`, click:()=>{win.webContents.send('setplayState',0);updateTrayMenu(0)}},
      { label: '随机播放', click:()=>{win.webContents.send('setplayState',1);updateTrayMenu(1)} },
      { label: '单曲循环', click:()=>{win.webContents.send('setplayState',2);updateTrayMenu(2)} },
    ] },
    {type: "separator"},
    { label: '退出', role: 'quit' }
  ];
  function createTray() {
    const tray = new Tray(trayIcon);
    tray.setToolTip('私人订制');
    tray.on('click', () => {
      win.show();
      // 在这里添加你想要的点击事件逻辑
    });
    tray.setContextMenu(Menu.buildFromTemplate(contextMenu));
    app.on('before-quit', () => {
        tray.destroy();
    });
    return tray;
  }
  const tray = createTray()
  /**
   * 设置托盘菜单
   */
  ipcMain.on('setplayState', (event,args) => {
    updateTrayMenu(args);
  });
  function updateTrayMenu(index){
    const newContextMenu = [].concat(contextMenu);
    for (let i = 0; i < newContextMenu[4].submenu.length; i++) {
      if(i == index){
        newContextMenu[4].submenu[i].label = `${String.fromCharCode(8226)} `+ newContextMenu[4].submenu[i].label
      }else{
        let pattern = `${String.fromCharCode(8226)}`;
        const regexVariable = new RegExp(pattern);
        newContextMenu[4].submenu[i].label =  newContextMenu[4].submenu[i].label.replace(regexVariable,'');
      }
    }
    tray.setContextMenu(Menu.buildFromTemplate(newContextMenu));
  }
  // 切换全屏事件
  ipcMain.on('toggle-full-screen', () => {
    toggleFullScreen();
  });
  // 最小化窗口事件
  ipcMain.on('minimum', () => {
    // win.minimize();
    win.hide();
  });
  // 关闭程序
  ipcMain.on('closeProgram', () => {
    app.quit();
  });
  // 切换歌曲
  ipcMain.on('miusic-name', (event,name) => {
    tray.setToolTip(`私人订制-${name}`);
  });
}
app.on('ready', () => {
  // 注册快捷键,这里使用的是正确的快捷键名称
  // globalShortcut.register('Ctrl+Shift+I', () => {});
  // 也可以在合适的时候注销快捷键
  // globalShortcut.unregister('Ctrl+Shift+I');
});
app.whenReady().then(createWindow);
