一直都在想写一个这样平台，前端比较low，所以就使用了Django 自带的后端写了一个定时任务管理平台
具体结构如下
djangotask/
├── app01
│?? ├── admin.py
│?? ├── apps.py
│?? ├── __init__.py
│?? ├── migrations
│?? │?? ├── __init__.py
│?? │?? └── __pycache__
│?? │?? └── __init__.cpython-38.pyc
│?? ├── models.py
│?? ├── __pycache__
│?? │?? ├── admin.cpython-38.pyc
│?? │?? ├── apps.cpython-38.pyc
│?? │?? ├── __init__.cpython-38.pyc
│?? │?? ├── models.cpython-38.pyc
│?? │?? ├── tasks.cpython-38.pyc
│?? │?? ├── urls.cpython-38.pyc
│?? │?? └── views.cpython-38.pyc
│?? ├── tasks.py
│?? ├── tests.py
│?? ├── urls.py
│?? └── views.py
├── django-db
├── djangotask
│?? ├── asgi.py
│?? ├── celery.py
│?? ├── __init__.py
│?? ├── __pycache__
│?? │?? ├── celery.cpython-38.pyc
│?? │?? ├── config.cpython-38.pyc
│?? │?? ├── __init__.cpython-38.pyc
│?? │?? ├── settings.cpython-38.pyc
│?? │?? ├── urls.cpython-38.pyc
│?? │?? └── wsgi.cpython-38.pyc
│?? ├── settings.py
│?? ├── urls.py
│?? └── wsgi.py
├── manage.py
├── requirements.txt
└── scripts
├── __init__.py
└── purgelog.sh
需要安装的模块通过pip命令行安装，没什么好介绍的
‘django_celery_beat’,
‘django_celery_results’,
celery通过心跳对我们添加的定时任务做了一个定时扫描这点很好，results保存了我们的task执行结果，如果想更炫点的话可以采用restframework框架查看我们的定时任务，这里不做介绍，前面有文章写了这些方面，需要的同学可以前去看看
我这个是一个简单的功能测试，所以自己创建了一个app01,创建命令django-admin startapp app01,settings文件完整如下：
"""
Django settings for djangotask project.
Generated by 'django-admin startproject' using Django 3.2.13.
For more information on this file, see
https://docs.djangoproject.com/en/3.2/topics/settings/
For the full list of settings and their values, see
https://docs.djangoproject.com/en/3.2/ref/settings/
"""
from pathlib import Path
# Build paths inside the project like this: BASE_DIR / 'subdir'.
BASE_DIR = Path(__file__).resolve().parent.parent
# Quick-start development settings - unsuitable for production
# See https://docs.djangoproject.com/en/3.2/howto/deployment/checklist/
# SECURITY WARNING: keep the secret key used in production secret!
SECRET_KEY = 'django-insecure-ro4r=2^w8d2z_w)cc9n4wthi+xuplnp2k=*ksb91^r!je0@te8'
# SECURITY WARNING: don't run with debug turned on in production!
DEBUG = True
ALLOWED_HOSTS = ['*']
# Application definition
INSTALLED_APPS = [
'django.contrib.admin',
'django.contrib.auth',
'django.contrib.contenttypes',
'django.contrib.sessions',
'django.contrib.messages',
'django.contrib.staticfiles',
'app01',
'django_celery_beat',
'django_celery_results',
'rest_framework',
]
MIDDLEWARE = [
'django.middleware.security.SecurityMiddleware',
'django.contrib.sessions.middleware.SessionMiddleware',
'django.middleware.common.CommonMiddleware',
'django.middleware.csrf.CsrfViewMiddleware',
'django.contrib.auth.middleware.AuthenticationMiddleware',
'django.contrib.messages.middleware.MessageMiddleware',
'django.middleware.clickjacking.XFrameOptionsMiddleware',
]
ROOT_URLCONF = 'djangotask.urls'
TEMPLATES = [
{
'BACKEND': 'django.template.backends.django.DjangoTemplates',
'DIRS': [],
'APP_DIRS': True,
'OPTIONS': {
'context_processors': [
'django.template.context_processors.debug',
'django.template.context_processors.request',
'django.contrib.auth.context_processors.auth',
'django.contrib.messages.context_processors.messages',
],
},
},
]
WSGI_APPLICATION = 'djangotask.wsgi.application'
# Database
# https://docs.djangoproject.com/en/3.2/ref/settings/#databases
DATABASES = {
'default': {
'ENGINE': 'django.db.backends.mysql',
'NAME': 'celeryapp',
'USER': 'dbadmin',
'PASSWORD': 'dbadmin',
'HOST': '192.168.56.104',
'PORT': '3306',
'OPTIONS': {
'init_command': "SET sql_mode='STRICT_TRANS_TABLES'",
'charset': 'utf8mb4'
}
}
}
# Password validation
# https://docs.djangoproject.com/en/3.2/ref/settings/#auth-password-validators
AUTH_PASSWORD_VALIDATORS = [
{
'NAME': 'django.contrib.auth.password_validation.UserAttributeSimilarityValidator',
},
{
'NAME': 'django.contrib.auth.password_validation.MinimumLengthValidator',
},
{
'NAME': 'django.contrib.auth.password_validation.CommonPasswordValidator',
},
{
'NAME': 'django.contrib.auth.password_validation.NumericPasswordValidator',
},
]
# Internationalization
# https://docs.djangoproject.com/en/3.2/topics/i18n/
LANGUAGE_CODE = 'zh-Hans'
TIME_ZONE = 'Asia/Shanghai'
USE_I18N = True
USE_L10N = True
USE_TZ = False
# Static files (CSS, JavaScript, Images)
# https://docs.djangoproject.com/en/3.2/howto/static-files/
STATIC_URL = '/static/'
# Default primary key field type
# https://docs.djangoproject.com/en/3.2/ref/settings/#default-auto-field
DEFAULT_AUTO_FIELD = 'django.db.models.BigAutoField'
# celery相关参数
#celery相关配置
#设置消息broker
CELERY_BROKER_URL = "redis://192.168.56.104:6380/10"
CELERY_TIMEZONE = TIME_ZONE
CELERY_ENABLE_UTC = False
DJANGO_CELERY_BEAT_TZ_AWARE = False
#存储任务状态及结果
# CELERY_RESULT_BACKEND = "redis://10.6.3.10:6379/2"
RESULT_BACKEND = "redis://192.168.56.104:6380/11"
# celery内容等消息的格式设置，默认json
CELERY_ACCEPT_CONTENT = ['application/json', ]
CELERY_TASK_SERIALIZER = 'json'
CELERY_RESULT_SERIALIZER = 'json'
# 为任务设置超时时间，单位秒。超时即中止，执行下个任务。
# CELERY_TASK_TIME_LIMIT = 5
# 为存储结果设置过期日期，默认1天过期。如果beat开启，Celery每天会自动清除。
# 设为0，存储结果永不过期
# CELERY_RESULT_EXPIRES = xx
# 任务限流
CELERY_TASK_ANNOTATIONS = {'tasks.add': {'rate_limit': '10/s'}}
# Worker并发数量，一般默认CPU核数，可以不设置
CELERY_WORKER_CONCURRENCY = 20
# 每个worker执行了多少任务就会死掉，默认是无限的
CELERY_WORKER_MAX_TASKS_PER_CHILD = 200
#将任务调度器设为DatabaseScheduler
CELERY_BEAT_SCHEDULER = 'django_celery_beat.schedulers:DatabaseScheduler'
这里面包括了很多celery的重要配置信息，celery相关参数以下都是celery的相关配置信息
在djangotask包里面添加celery.py文件
from __future__ import absolute_import,unicode_literals
import os
from .settings import INSTALLED_APPS
from celery import Celery
os.environ.setdefault('DJANGO_SETTINGS_MODULE','djangotask.settings')
app=Celery('djangotask')
# app.config_from_object('djangotask.config')
app.config_from_object('django.conf:settings',namespace='CELERY')
app.conf.update(CELERY_RESULT_BACKEND ='django-db')
print(app.conf.get('result_backend'))
app.autodiscover_tasks(lambda :INSTALLED_APPS)
最后的lambda是一个匿名函数，直接扫描安装的app里面有没有tasks包的，这个匿名函数会被调用直接返回一个列表，为什么这个说呢，因为看源码可以了解的函数是否可以调用，如果可以调用就直接调用这个函数返回结果，的确非常秒的源码
def _autodiscover_tasks_from_names(self, packages, related_name):
# packages argument can be lazy
return self.loader.autodiscover_tasks(
packages() if callable(packages) else packages, related_name,
)
在app01下面创建tasks.py文件内容如下
from __future__ import absolute_import,unicode_literals
from celery import shared_task
from subprocess import getstatusoutput
@shared_task()
def add(x,y):
print("invoke x+y")
return x+y
@shared_task
def mul(x, y):
print("invoke mul")
print("invoke mul")
return x * y
@shared_task()
def customize_task(*args,**kwargs):
# 获取自定义的脚本命令
cmd=kwargs.get('cmd')
# 开始执行无论python，shell一律采用subprocess方法
(status,result)=getstatusoutput(cmd)
return status,result
开启celery和celery beat命令，注意celery的broker是保存在redis中的，backend是保存在django-db(也就是ORM中）
很多人都反馈启动redis之后broker有数据但是django-db也就是我们
from django_celery_results.models import TaskResult这个models中的数据没有出现
我一开始也是这样，最后这样启动解决问题

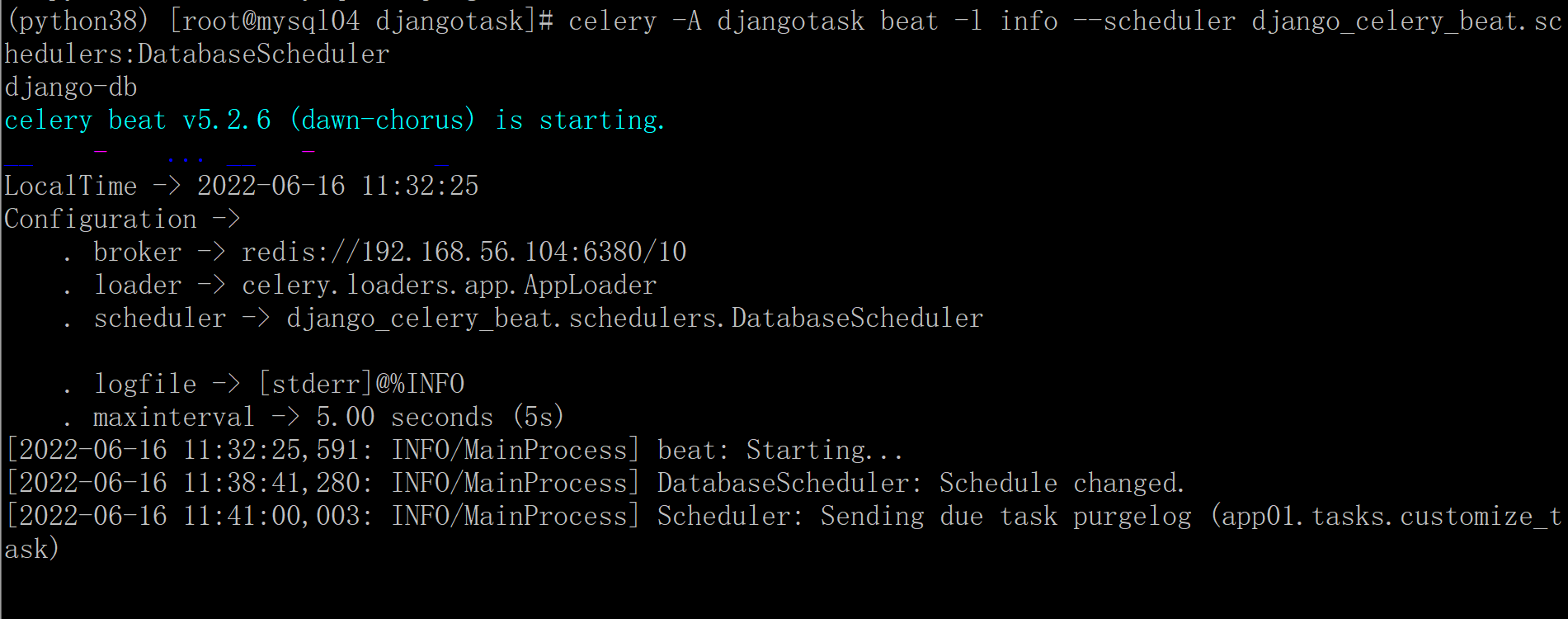

celery beat启动命令
celery -A djangotask beat -l info --scheduler django_celery_beat.schedulers:DatabaseScheduler
(python38) [root@mysql04 djangotask]# celery -A djangotask beat -l info --scheduler django_celery_beat.schedulers:DatabaseScheduler
django-db
celery beat v5.2.6 (dawn-chorus) is starting.
__ - ... __ - _
LocalTime -> 2022-06-16 11:32:25
Configuration ->
. broker -> redis://192.168.56.104:6380/10
. loader -> celery.loaders.app.AppLoader
. scheduler -> django_celery_beat.schedulers.DatabaseScheduler
. logfile -> [stderr]@%INFO
. maxinterval -> 5.00 seconds (5s)
[2022-06-16 11:32:25,591: INFO/MainProcess] beat: Starting...
celery 启动命令
celery -A djangotask worker -s django -c 10 -E --loglevel=info
注意里面加了-s django这个命令
(python38) [root@mysql04 djangotask]# celery -A djangotask worker -s django -c 10 -E --loglevel=info
django-db
/virtual/python38/lib/python3.8/site-packages/celery/platforms.py:840: SecurityWarning: You're running the worker with superuser privileges: this is
absolutely not recommended!
Please specify a different user using the --uid option.
User information: uid=0 euid=0 gid=0 egid=0
warnings.warn(SecurityWarning(ROOT_DISCOURAGED.format(
-------------- celery@mysql04 v5.2.6 (dawn-chorus)
--- ***** -----
-- ******* ---- Linux-3.10.0-1160.24.1.el7.x86_64-x86_64-with-glibc2.17 2022-06-16 11:33:18
- *** --- * ---
- ** ---------- [config]
- ** ---------- .> app: djangotask:0x7f5f21c1a340
- ** ---------- .> transport: redis://192.168.56.104:6380/10
- ** ---------- .> results:
- *** --- * --- .> concurrency: 10 (prefork)
-- ******* ---- .> task events: ON
--- ***** -----
-------------- [queues]
.> celery exchange=celery(direct) key=celery
[tasks]
. app01.tasks.add
. app01.tasks.customize_task
. app01.tasks.mul
[2022-06-16 11:33:18,768: INFO/MainProcess] Connected to redis://192.168.56.104:6380/10
[2022-06-16 11:33:18,770: INFO/MainProcess] mingle: searching for neighbors
[2022-06-16 11:33:19,786: INFO/MainProcess] mingle: all alone
[2022-06-16 11:33:19,793: WARNING/MainProcess] /virtual/python38/lib/python3.8/site-packages/celery/fixups/django.py:203: UserWarning: Using settings.DEBUG leads to a memory
leak, never use this setting in production environments!
warnings.warn('''Using settings.DEBUG leads to a memory
[2022-06-16 11:33:19,793: INFO/MainProcess] celery@mysql04 ready.
上面的app01/tasks.py文件中有个代码
@shared_task()
def customize_task(*args,**kwargs):
# 获取自定义的脚本命令
cmd=kwargs.get('cmd')
# 开始执行无论python，shell一律采用subprocess方法
(status,result)=getstatusoutput(cmd)
return status,result
这个主要是为了定制我们要执行的脚本,服务器可以直接调用我们脚本来个性化定制任务，下面我将在django admin中演示

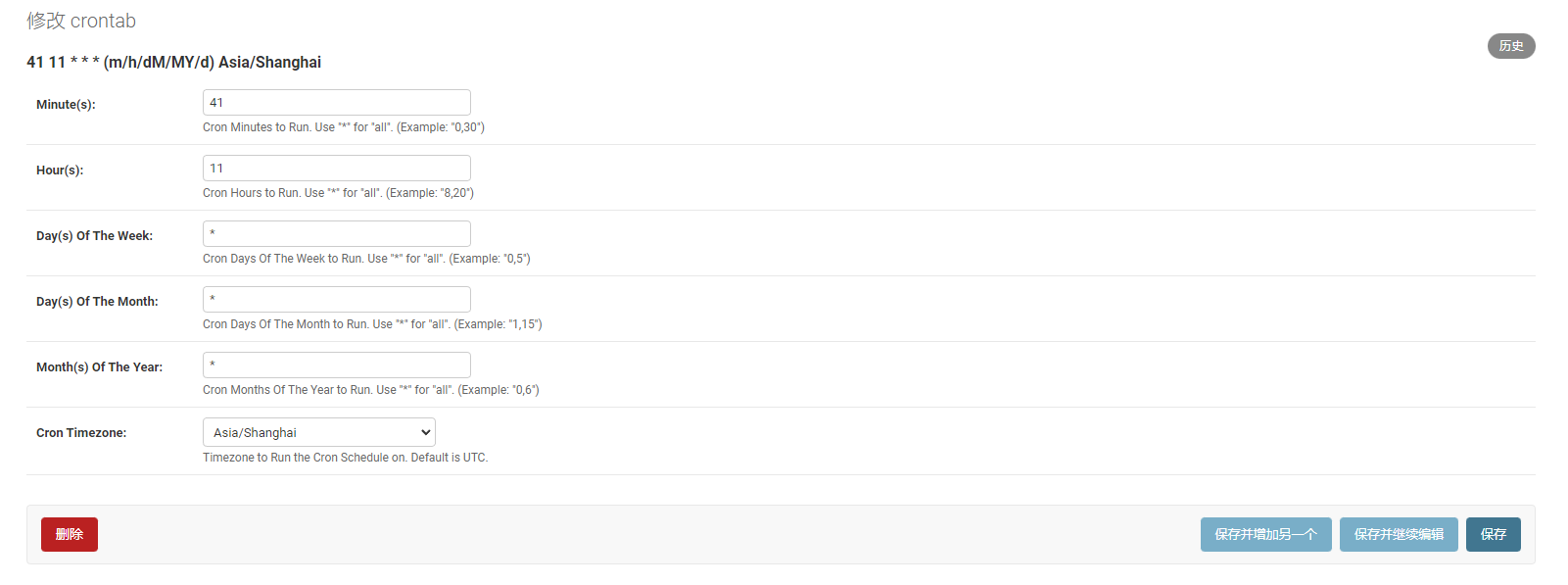

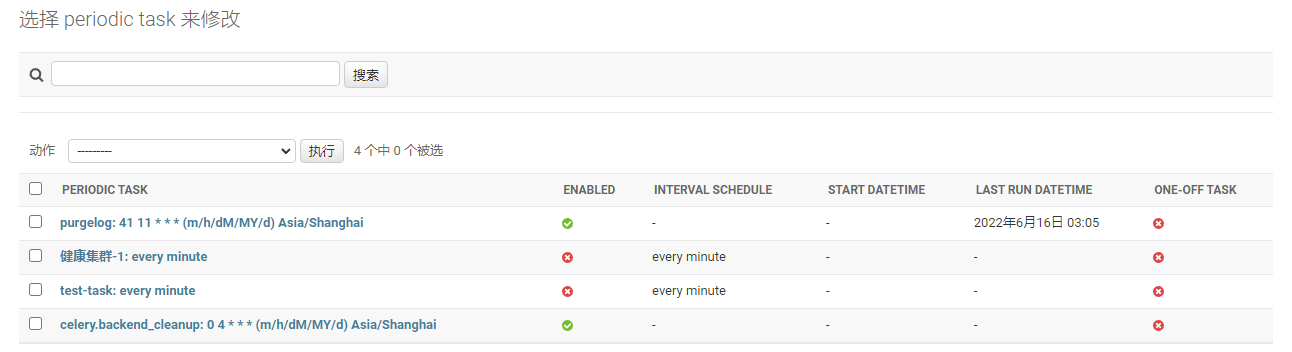

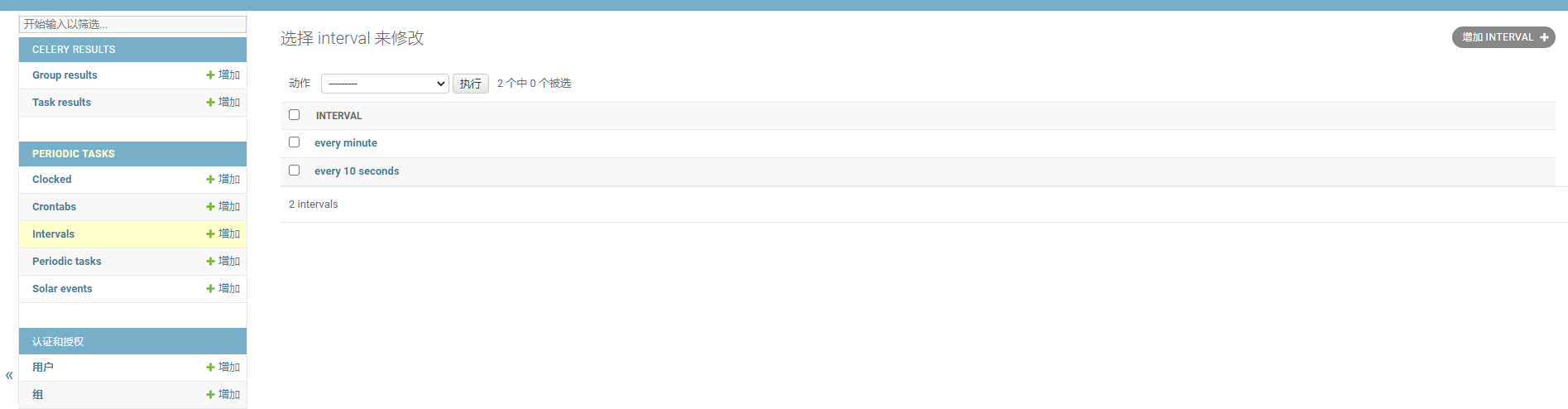

这个界面大家都很熟悉，django自带后台管理页面，可以设置interval,Crontabs,clocked三个时间参数选项，我们设置一个任务基于crontab
然后设置任务内容在这个时间触发

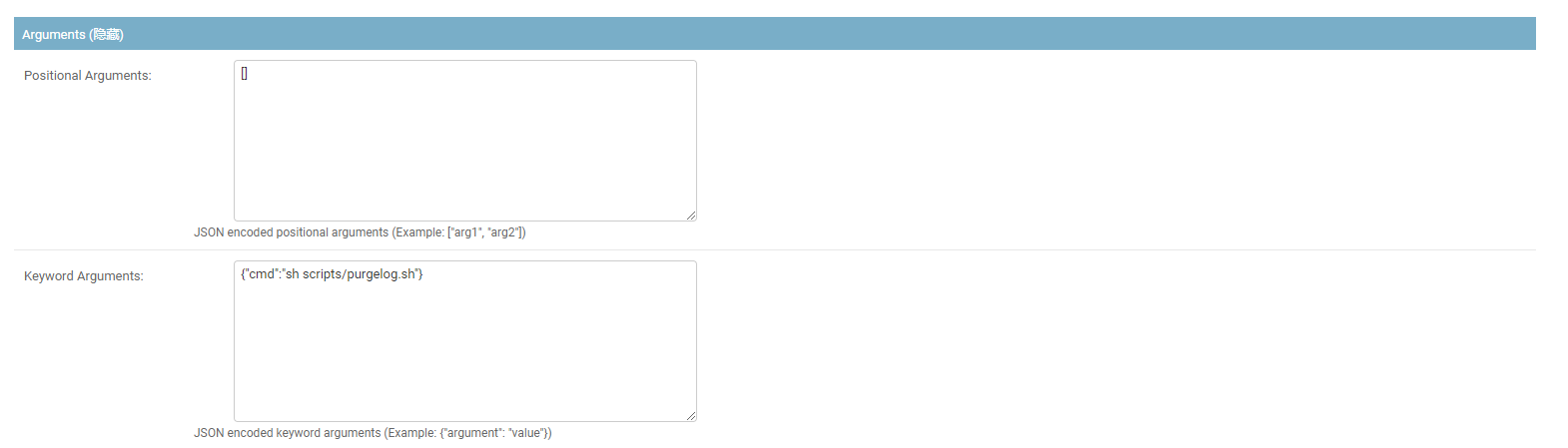

点开这个定时任务，可以传递参数
是不非常秒，可以自己想怎么定义就怎么定义
purgelog.sh脚本内容如下：
#!/bin/bash
ssh 192.168.56.104 ifconfig;
sleep 11;
echo "我爱北京天安门"

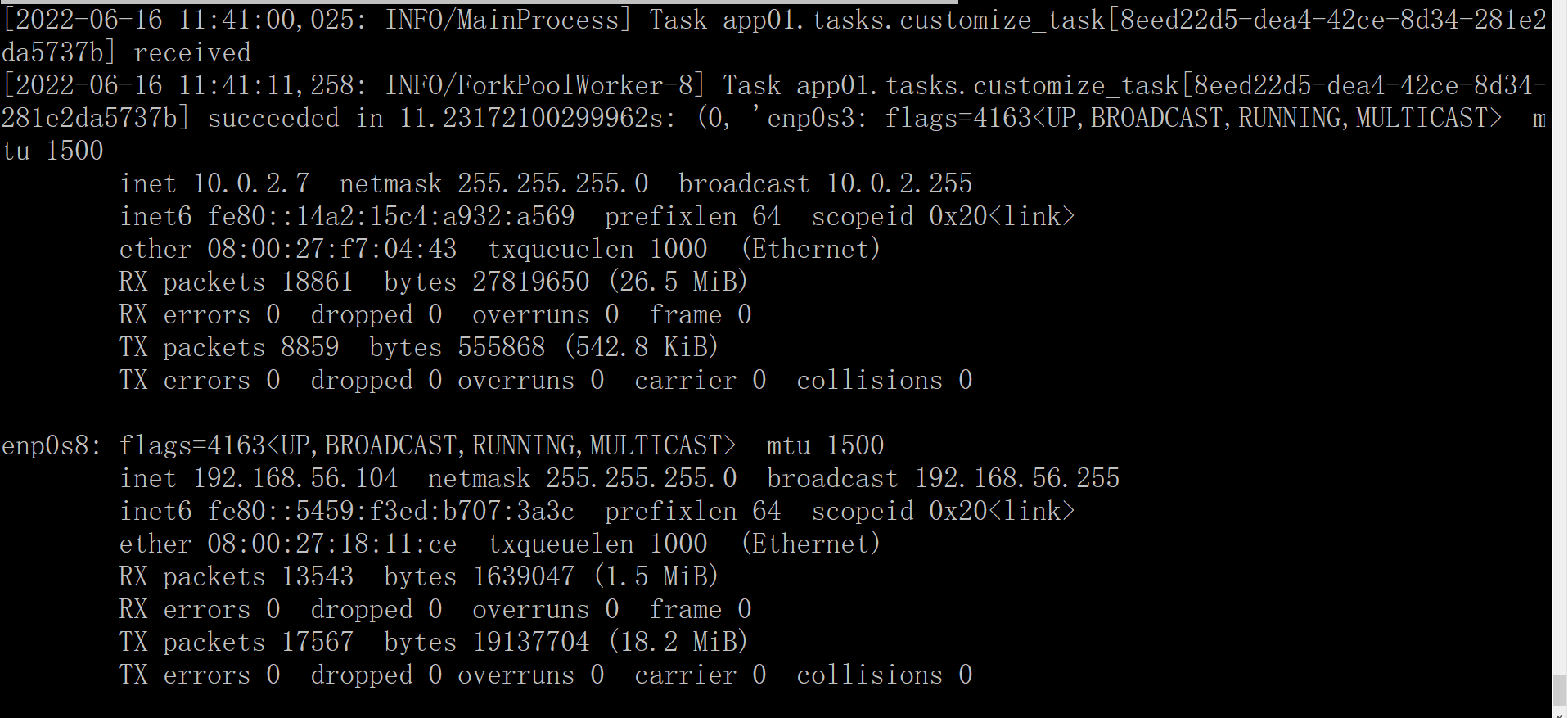

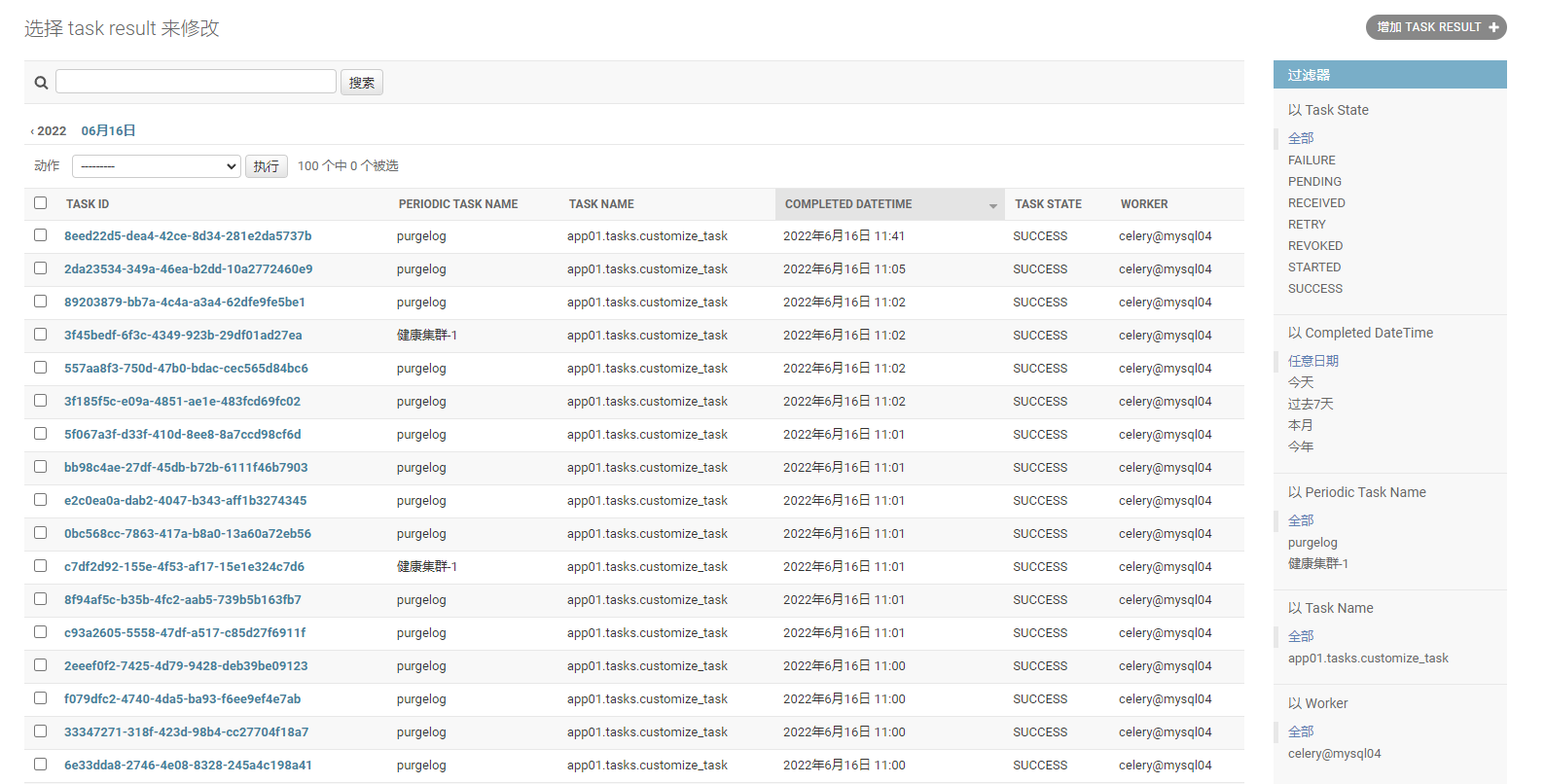

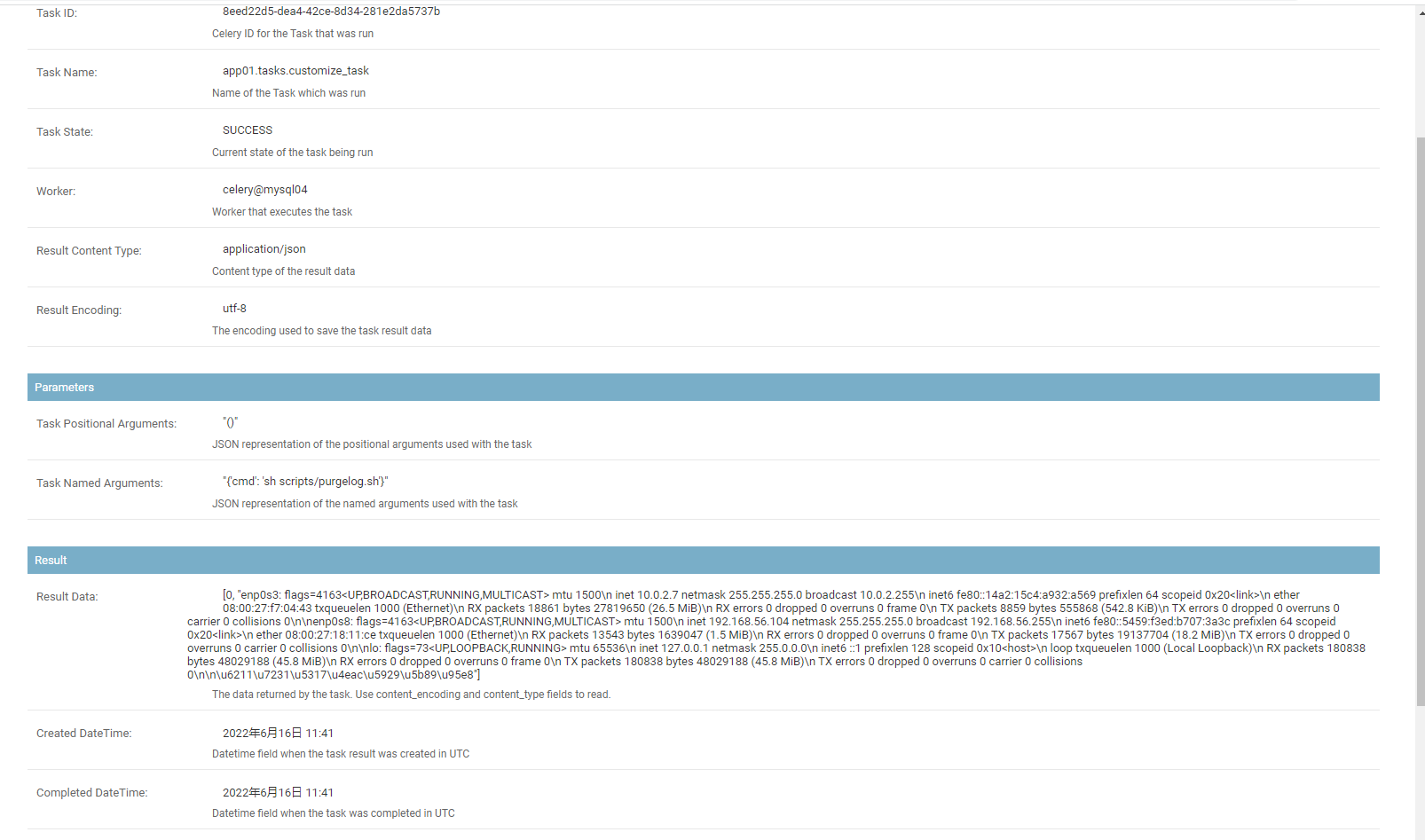

已经达到了我们的预期在指定的时间执行了,实现了我们想要的结果，当然也可以在网页前端请求中添加任务，这样前端可以很快返回结果，比较繁重的内容交给后端处理，例如发送email，或者数据库备份的事情后台搞
写的views文件体现这个内容
from app01 import tasks
from django.http import JsonResponse
from django_celery_results.models import TaskResult
def index(request,*args,**kwargs):
res=tasks.add.delay(*(1,3))
return JsonResponse({'status': 'successful', 'task_id': res.task_id})
前端返回jsonResponse函数，后端处理tasks.add命令，到这这个项目结束
资源下载地址源代码完整django定时任务系统
