前言

在某些应用场景下，如水泵房，一般有两台抽水泵电机，正常情况下主电机运行，当主电机故障停机时，备用电机应自动投入运行，即主备互投。本文给出一种基于西门子SCL语言实现的电机主备互投方法。

---

一、功能概述

1. 电机分为一主一备，可自由选择哪台电机优先启动；
2. 当满足主电机启动条件时，主电机启动;
3. 当满足备用电机启动条件时，备用电机启动；
4. 当满足备用电机停止条件时，备用电机停止；
5. 当满足主电机停止条件时，主备用电机均停止；
6. 当主电机故障停机时，备用电机自动启动；
7. 当主设备故障，备用设备优先启动；
8. 当一定时间后，主备自动换序，时间可自由设置；
9. 默认1号泵为主泵。

二、程序编写

1.新建数据类型“Primary/ReserveType”

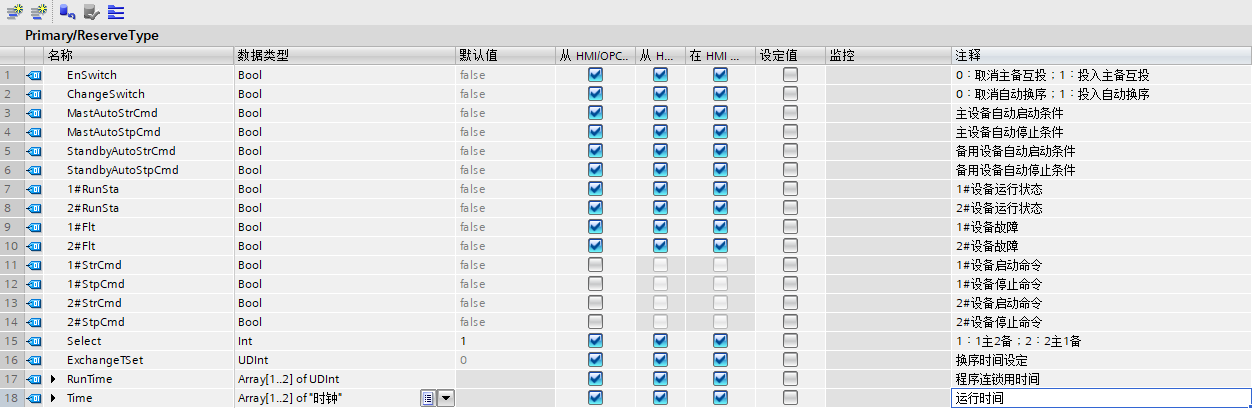

图1

2.新建FB块“Primary/Reserve”

建立如下内部变量：

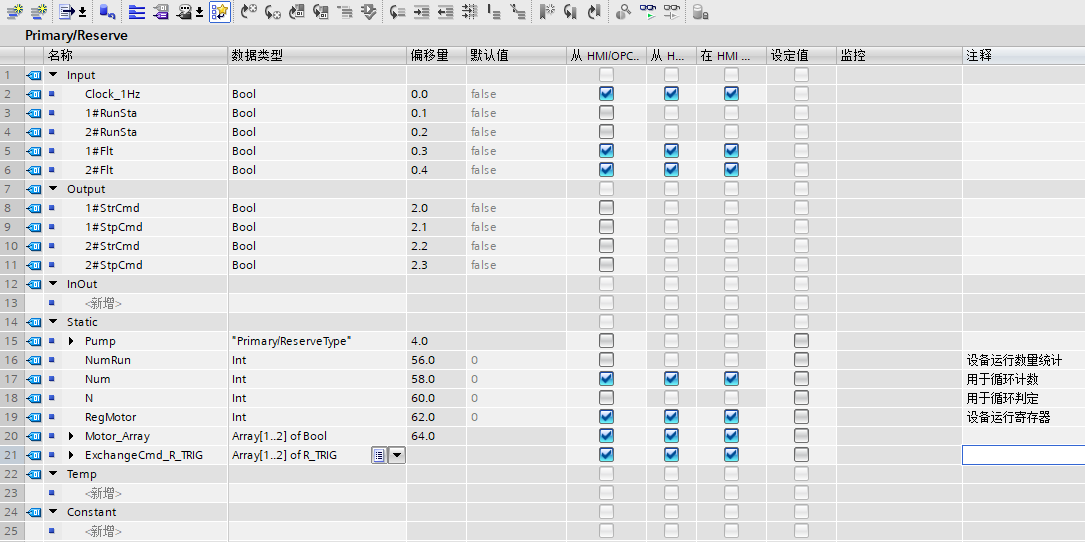

图2

3.编写程序

代码如下

REGION 初始化
    #Pump."1#RunSta" := #"1#RunSta";
    #Pump."2#RunSta" := #"2#RunSta";
    #Pump."1#Flt" := #"1#Flt";
    #Pump."2#Flt" := #"2#Flt";
    #"1#StrCmd" := #Pump."1#StrCmd";
    #"1#StpCmd" := #Pump."1#StpCmd";
    #"2#StrCmd" := #Pump."2#StrCmd";
    #"2#StpCmd" := #Pump."2#StpCmd";

    IF #NumRun = 0 THEN
        #RegMotor := 0;
    END_IF;

    IF #Pump.#"1#RunSta" AND NOT #Pump.#"2#RunSta" THEN
        #RegMotor := 1;
    END_IF;

    IF #Pump.#"2#RunSta" AND NOT #Pump.#"1#RunSta" THEN
        #RegMotor := 2;
    END_IF;

    IF #Pump.#"1#RunSta" AND #Pump.#"2#RunSta" THEN
        #RegMotor := 3;
    END_IF;

    #Motor_Array[1] := #Pump.#"1#RunSta";
    #Motor_Array[2] := #Pump.#"2#RunSta";

END_REGION

REGION 设备运行数量统计

    #Num := 0;
    FOR #N := 1 TO 2 DO
        IF #Motor_Array[#N] THEN
            #Num := #Num + 1;
        END_IF;
    END_FOR;
    #NumRun := #Num;

END_REGION

REGION 无设备运行时，复位启动命令

    IF (NOT #Pump.MastAutoStrCmd OR NOT #Pump.StandbyAutoStrCmd) THEN
        #Pump.#"1#StrCmd" := 0;
        #Pump.#"1#StpCmd" := 0;
        #Pump.#"2#StrCmd" := 0;
        #Pump.#"2#StpCmd" := 0;
    END_IF;

END_REGION


REGION 无设备运行时启动1#或2#水泵

    IF (#NumRun = 0) AND #Pump.#Select = 1 AND #Pump.#MastAutoStrCmd  THEN
        #Pump.#"1#StrCmd" := 1;
        #Pump.#"1#StpCmd" := 0;
    END_IF;

    IF (#NumRun = 0) AND #Pump.#Select = 2 AND #Pump.#MastAutoStrCmd THEN
        #Pump.#"2#StrCmd" := 1;
        #Pump.#"2#StpCmd" := 0;
    END_IF;

    IF (#NumRun = 0) AND #Pump.#Select = 1 AND #Pump.#MastAutoStrCmd AND #Pump.#EnSwitch AND #Pump."1#Flt" THEN
        #Pump.#"2#StrCmd" := 1;
        #Pump.#"2#StpCmd" := 0;
    END_IF;

    IF (#NumRun = 0) AND #Pump.#Select = 2 AND #Pump.#MastAutoStrCmd AND #Pump.#EnSwitch AND #Pump."2#Flt" THEN
        #Pump.#"1#StrCmd" := 1;
        #Pump.#"1#StpCmd" := 0;
    END_IF;

END_REGION

REGION 主设备故障停机，启用备用设备

    IF (#RegMotor = 1) AND #Pump.#EnSwitch AND NOT #Pump."1#RunSta" AND NOT #Pump.#MastAutoStpCmd THEN
        #Pump.#"2#StrCmd" := 1;
        #Pump.#"2#StpCmd" := 0;
        #Pump.#"1#StrCmd" := 0;
        #Pump.#"1#StpCmd" := 1;
    END_IF;

    IF (#RegMotor = 2) AND #Pump.#EnSwitch AND NOT #Pump."2#RunSta" AND NOT #Pump.#MastAutoStpCmd THEN
        #Pump.#"1#StrCmd" := 1;
        #Pump.#"1#StpCmd" := 0;
        #Pump.#"2#StrCmd" := 0;
        #Pump.#"2#StpCmd" := 1;
    END_IF;

END_REGION

REGION 主设备运行中，启用备用设备

    IF #Pump.#"1#RunSta" AND (#NumRun = 1) AND #Pump.#StandbyAutoStrCmd THEN
        #Pump.#"2#StrCmd" := 1;
        #Pump.#"2#StpCmd" := 0;
    END_IF;

    IF #Pump.#"2#RunSta" AND (#NumRun = 1) AND #Pump.#StandbyAutoStrCmd THEN
        #Pump.#"1#StrCmd" := 1;
        #Pump.#"1#StpCmd" := 0;
    END_IF;

END_REGION

REGION 主设备运行中，停止备用设备

    IF (#RegMotor = 3) AND #Pump.#Select = 1 AND #Pump.#StandbyAutoStpCmd THEN
        #Pump.#"2#StrCmd" := 0;
        #Pump.#"2#StpCmd" := 1;
    END_IF;

    IF (#RegMotor = 3) AND #Pump.#Select = 2 AND #Pump.#StandbyAutoStpCmd THEN
        #Pump.#"1#StrCmd" := 0;
        #Pump.#"1#StpCmd" := 1;
    END_IF;

END_REGION

REGION 主设备、备用设备停止

    IF #NumRun > 0 AND #Pump.#MastAutoStpCmd THEN
        #Pump.#"1#StrCmd" := 0;
        #Pump.#"1#StpCmd" := 1;
        #Pump.#"2#StrCmd" := 0;
        #Pump.#"2#StpCmd" := 1;
    END_IF;

END_REGION

REGION 设备运行时间统计

    "运行时间累计"(Start := #Pump."1#RunSta",
             Clock_1Hz := #Clock_1Hz,
             "Time" := #Pump."Time"[1]);

    #Pump.RunTime[1] := #Pump."Time"[1].Day * 24 * 60 * 60 + #Pump."Time"[1].Hour * 60 * 60 + #Pump."Time"[1].Min * 60 + #Pump."Time"[1].Second;

    "运行时间累计"(Start := #Pump."2#RunSta",
             Clock_1Hz := #Clock_1Hz,
             "Time" := #Pump."Time"[2]);

    #Pump.RunTime[2] := #Pump."Time"[2].Day * 24 * 60 * 60 + #Pump."Time"[2].Hour * 60 * 60 + #Pump."Time"[2].Min * 60 + #Pump."Time"[2].Second;

END_REGION

REGION 换序

    #ExchangeCmd_R_TRIG[1](CLK := #Pump.RunTime[1] >= #Pump.ExchangeTSet);
    #ExchangeCmd_R_TRIG[2](CLK := #Pump.RunTime[2] >= #Pump.ExchangeTSet);

    IF #Pump.ChangeSwitch AND #ExchangeCmd_R_TRIG[1].Q AND #Pump.#Select = 1 THEN
        #Pump.#Select := 2;
    END_IF;

    IF #Pump.ChangeSwitch AND #ExchangeCmd_R_TRIG[2].Q AND #Pump.#Select = 2 THEN
        #Pump.#Select := 1;
    END_IF;

    #Pump."Time"[1].Clear := NOT #Pump."1#RunSta";

    #Pump."Time"[2].Clear := NOT #Pump."2#RunSta";

END_REGION

1. “设备运行数量统计”的程序逻辑，参考了文章十二、SCL核心应用课项目实战_运行设备累计功能实现；
2. "运行时间累计"FC块，请参考文章西门子PLC常用底层逻辑块分享_设备运行时间统计。

其中，输入引脚“Clock_1Hz”表示1Hz的脉冲信号，可在外部程序块中编写如下程序实现，如图3中程序段1所示。

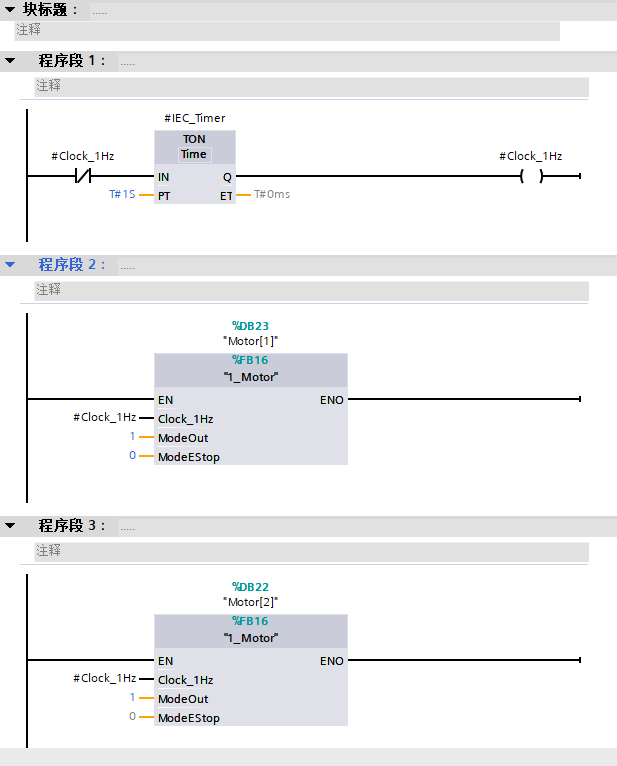

4.调用程序

图3

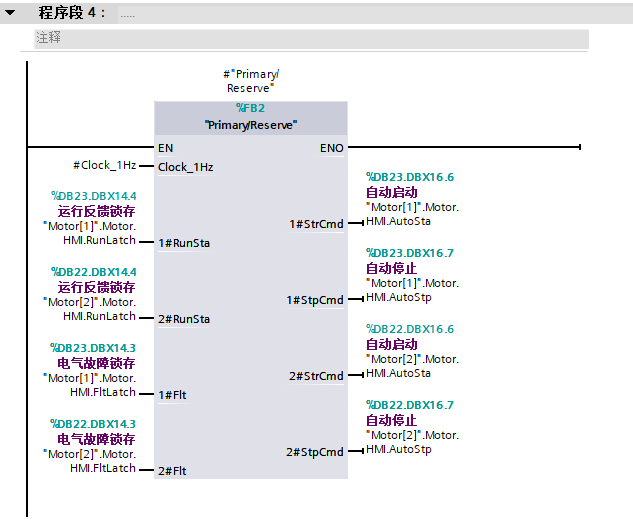

图4

图5

1. 程序段2和程序段3调用了水泵的标准块程序，这里不再赘述；

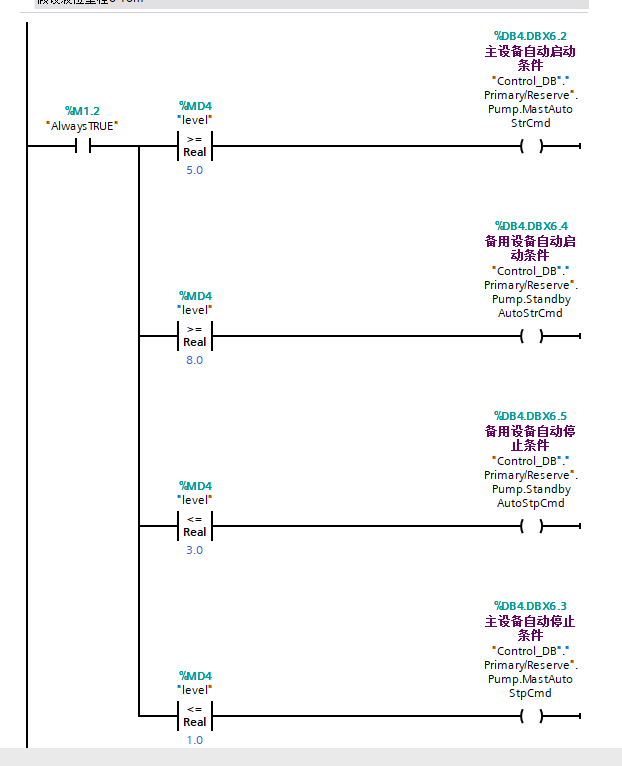

2. 程序段5表示主泵和备泵的启停条件，可根据实际工艺要求修改。

---

总结
