docker镜像仓库Harbor搭建

环境准备：

1、自己在百度云买的服务器（也可以自己搭建虚拟机）

2、Docker

3、Docker-compose

4、Harbor

安装docker 和 Docker-compose就不多说了，自己自己去网上搜索教程

下载Harbor ： cd /opt/harbor （这是我自己创建的目录，可以自行创建）

wget https://github.com/vmware/harbor/releases/download/v1.1.2/harbor-offline-installer-v1.1.2.tgz
解压
tar -zxvf harbor-offline-installer-v1.1.2.tgz

解压缩之后，进入目录下会看到 harbor.cfg 文件，该文件就是 Harbor 的配置文件

================================================================================================

## Configuration file of Harbor
# hostname设置访问地址，可以使用ip、域名，不可以设置为127.0.0.1或localhost
hostname = xxx.xxx.xxx.xxx   #这里的xxx.xxx.xxx.xxx代表你自己的服务器IP地址
# 访问协议，默认是http，也可以设置https，如果设置https，则nginx ssl需要设置on
ui_url_protocol = http
# mysql数据库root用户默认密码root123，实际使用时修改下
db_password = root123
#Maximum number of job workers in job service
max_job_workers = 3
#Determine whether or not to generate certificate for the registry's token.
#If the value is on, the prepare script creates new root cert and private key
#for generating token to access the registry. If the value is off the default key/cert will be used.
#This flag also controls the creation of the notary signer's cert.
customize_crt = on
#The path of cert and key files for nginx, they are applied only the protocol is set to https
ssl_cert = /data/cert/server.crt
ssl_cert_key = /data/cert/server.key
#The path of secretkey storage
secretkey_path = /data
#Admiral's url, comment this attribute, or set its value to NA when Harbor is standalone
admiral_url = NA
#NOTES: The properties between BEGIN INITIAL PROPERTIES and END INITIAL PROPERTIES
#only take effect in the first boot, the subsequent changes of these properties
#should be performed on web ui
#************************BEGIN INITIAL PROPERTIES************************
#Email account settings for sending out password resetting emails.
#Email server uses the given username and password to authenticate on TLS connections to host and act as identity.
#Identity left blank to act as username.
email_identity =
email_server = smtp.mydomain.com
email_server_port = 25
email_username = sample_admin@mydomain.com
email_password = abc
email_from = admin <sample_admin@mydomain.com>
email_ssl = false
##The initial password of Harbor admin, only works for the first time when Harbor starts.
#It has no effect after the first launch of Harbor.
# 启动Harbor后，管理员UI登录的密码，默认是Harbor12345
harbor_admin_password = Harbor12345
# 认证方式，这里支持多种认证方式，如LADP、本次存储、数据库认证。默认是db_auth，mysql数据库认证
auth_mode = db_auth
#The url for an ldap endpoint.
ldap_url = ldaps://ldap.mydomain.com
#A user's DN who has the permission to search the LDAP/AD server.
#If your LDAP/AD server does not support anonymous search, you should configure this DN and ldap_search_pwd.
#ldap_searchdn = uid=searchuser,ou=people,dc=mydomain,dc=com
#the password of the ldap_searchdn
#ldap_search_pwd = password
#The base DN from which to look up a user in LDAP/AD
ldap_basedn = ou=people,dc=mydomain,dc=com
#Search filter for LDAP/AD, make sure the syntax of the filter is correct.
#ldap_filter = (objectClass=person)
# The attribute used in a search to match a user, it could be uid, cn, email, sAMAccountName or other attributes de
pending on your LDAP/AD  ldap_uid = uid
#the scope to search for users, 1-LDAP_SCOPE_BASE, 2-LDAP_SCOPE_ONELEVEL, 3-LDAP_SCOPE_SUBTREE
ldap_scope = 3
#Timeout (in seconds)  when connecting to an LDAP Server. The default value (and most reasonable) is 5 seconds.
ldap_timeout = 5
# 是否开启自注册
self_registration = on
# Token有效时间，默认30分钟
token_expiration = 30
# 用户创建项目权限控制，默认是everyone（所有人），也可以设置为adminonly（只能管理员）
project_creation_restriction = everyone
#Determine whether the job service should verify the ssl cert when it connects to a remote registry.
#Set this flag to off when the remote registry uses a self-signed or untrusted certificate.
verify_remote_cert = on

================================================================================================

启动 harbor，修改完配置文件后，在的当前目录执行./install.sh，Harbor服务就会根据当期目录下的docker-compose.yml开始下载依赖的镜像，检测并按照顺序依次启动各个服务。

启动完成后，我们访问刚设置的 hostname 即可，http://xxx.xxx.xxx.xxx/，默认是80端口，如果端口占用，我们可以去修改docker-compose.yml文件中，对应服务的端口映射。

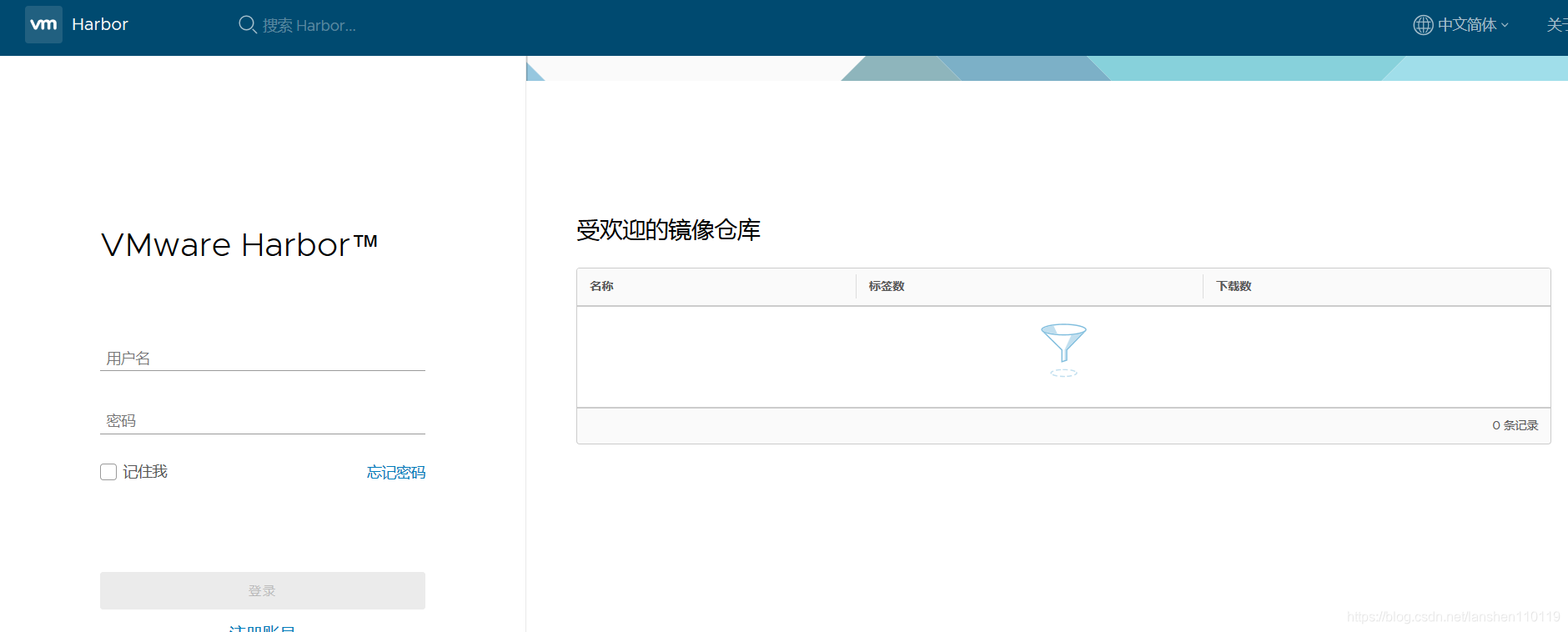

登陆界面

默认的用户名：admin
密码：Harbor12345
