服务器安全访问控制

服务器安全访问控制

限制ssh登陆一般会用以下方式：

1、使用ssh服务限制

配置/etc/hosts.allow和hosts.deny

[root@ansible-server ~]# cat /etc/hosts.allow
#
# hosts.allow   This file contains access rules which are used to
#               allow or deny connections to network services that
#               either use the tcp_wrappers library or that have been
#               started through a tcp_wrappers-enabled xinetd.
#
#               See 'man 5 hosts_options' and 'man 5 hosts_access'
#               for information on rule syntax.
#               See 'man tcpd' for information on tcp_wrappers
#
all:192.168.20.1:allow ##设置允许登陆的IP地址
[root@ansible-server ~]# cat /etc/hosts.deny
#
# hosts.deny    This file contains access rules which are used to
#               deny connections to network services that either use
#               the tcp_wrappers library or that have been
#               started through a tcp_wrappers-enabled xinetd.
#
#               The rules in this file can also be set up in
#               /etc/hosts.allow with a 'deny' option instead.
#
#               See 'man 5 hosts_options' and 'man 5 hosts_access'
#               for information on rule syntax.
#               See 'man tcpd' for information on tcp_wrappers
#
all:all:deny  ##设置禁止所有非允许的IP
[root@ansible-server ~]#systemctl restart sshd

注意如果allow只允许一个堡垒机IP，万一堡垒机是机器出现问题时，会导致所有的服务器无法登陆，现有环境还有个堡垒机的备用环境，可以同时允许2个堡垒机地址（计划是允许当前所有服务器可以相互访问）

2、修改iptables

该方法配置较为复杂，且不适用于k8s环境

3、通过修改sshd_config配置文件AllowUsers实现

AllowUsers
这个指令后面跟着一串用空格分隔的用户名列表(其中可以使用"*"和"?"通配符)。默认允许所有用户登录。
如果使用了这个指令，那么将仅允许这些用户登录，而拒绝其它所有用户。
如果指定了 USER@HOST 模式的用户，那么 USER 和 HOST 将同时被检查。
这里只允许使用用户的名字而不允许使用UID。相关的 allow/deny 指令按照下列顺序处理：
DenyUsers, AllowUsers, DenyGroups, AllowGroups

修改/etc/ssh/sshd_config配置文件
#末尾追加如下地址，每个地址用空格隔开
AllowUsers *@192.168.20.1 *@192.168.11.*

配置完成后，重启sshd服务

4、设置登陆黑名单

[root@ansible-server ~]# vi /etc/pam.d/sshd
#追加
auth required /lib/security/pam_listfile.so item=user sense=deny file=/etc/sshd_user_deny_list onerr=succeed
所有/etc/sshd_user_deny_list里面的用户被拒绝ssh登录

本次加固使用第一种方法，配置/etc/hosts.allow和hosts.deny列表实现

服务器配置以下规则后

[root@ansible-server ~]# cat /etc/hosts.allow
#
# hosts.allow   This file contains access rules which are used to
#               allow or deny connections to network services that
#               either use the tcp_wrappers library or that have been
#               started through a tcp_wrappers-enabled xinetd.
#
#               See 'man 5 hosts_options' and 'man 5 hosts_access'
#               for information on rule syntax.
#               See 'man tcpd' for information on tcp_wrappers
#
all:192.168.20.1:allow ##设置允许登陆的IP地址
[root@ansible-server ~]# cat /etc/hosts.deny
#
# hosts.deny    This file contains access rules which are used to
#               deny connections to network services that either use
#               the tcp_wrappers library or that have been
#               started through a tcp_wrappers-enabled xinetd.
#
#               The rules in this file can also be set up in
#               /etc/hosts.allow with a 'deny' option instead.
#
#               See 'man 5 hosts_options' and 'man 5 hosts_access'
#               for information on rule syntax.
#               See 'man tcpd' for information on tcp_wrappers
#
all:all:deny  ##设置禁止所有非允许的IP

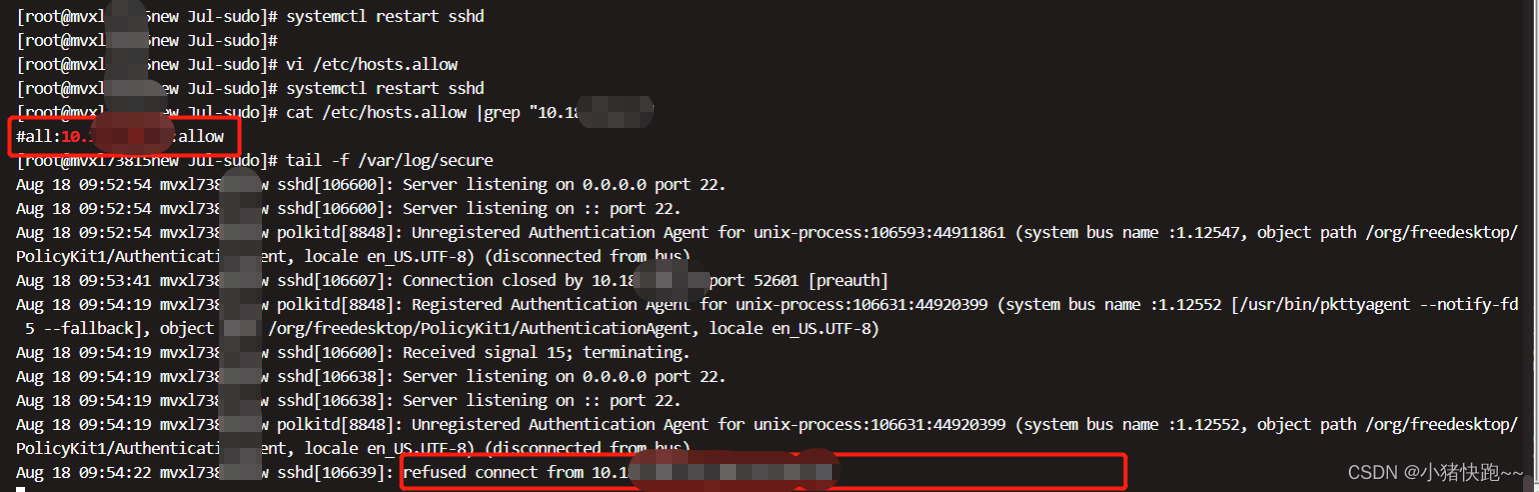

使用192.168.20.1登陆不受影响，使用192.168.20.152登陆时，无法连接，对应操作系统产生拒绝的日志/var/log/secert

Aug 17 10:21:52 ansible-server sshd[11953]: refused connect from 192.168.20.152 (192.168.20.152)

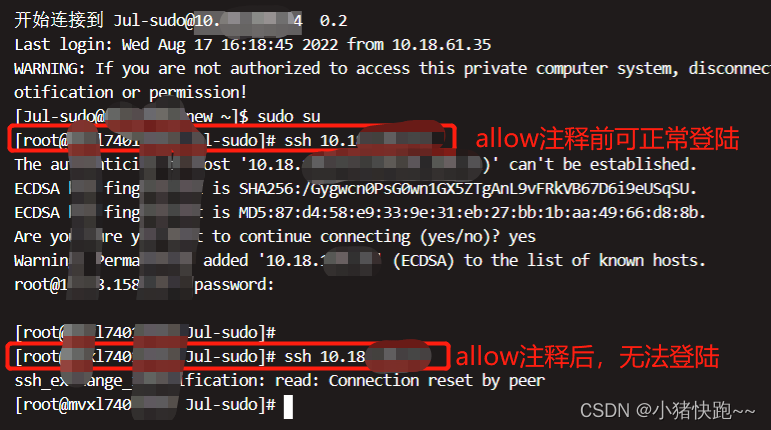

实际环境测试结果
