本文介绍如何在IntelliJ IDEA中从零开始搭建一个Maven Web项目，包括配置pom.xml、web.xml等关键文件，以及整合Spring、MyBatis等框架。
初学Maven，并且放弃了之前使用得Eclipse，利用IDEA开发。感受了一遍生无可恋得感觉，费劲两天时间总算把第一个项目成功发布了。写一点心得，希望能帮助到和我一样情况的朋友。
首先是如何创建Maven项目

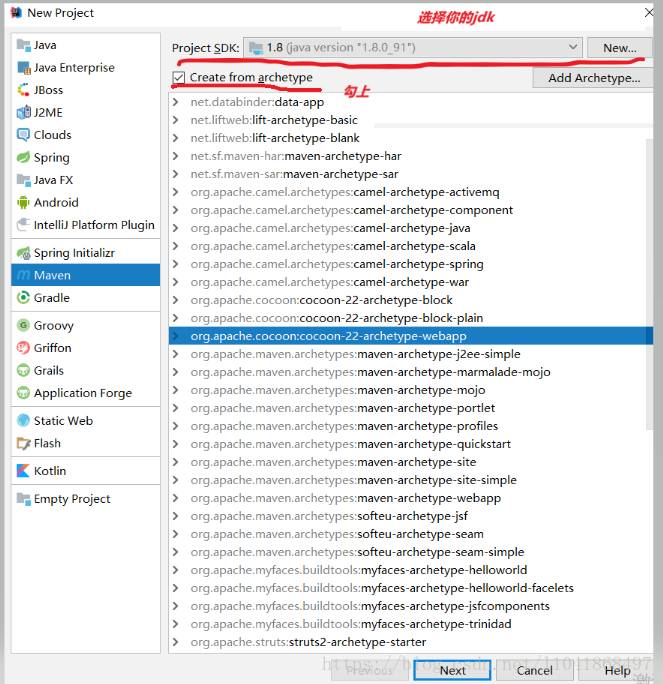

1.FIle-New-Project-Maven
选择你的JDK,选择webapp模板，下一步

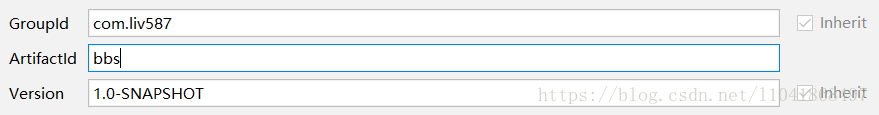

填写你的GroupId 和 ArtifactId Version不用改

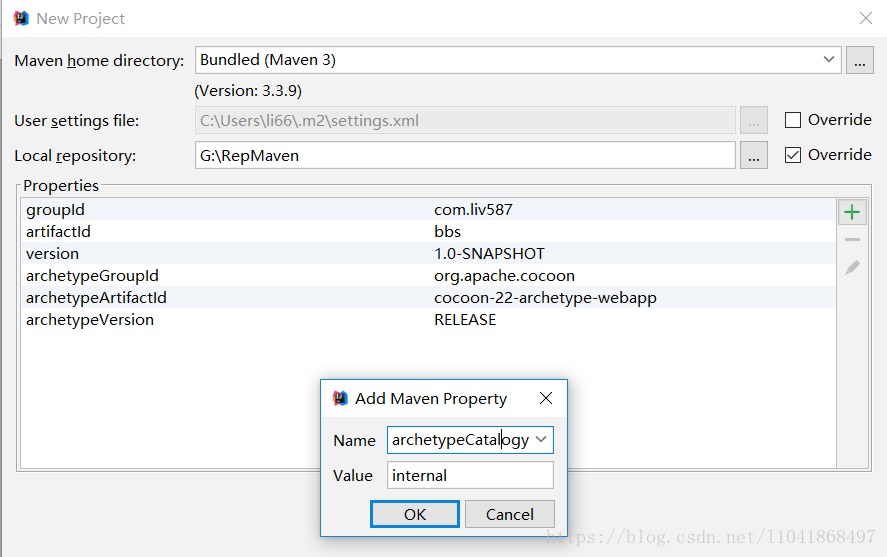

点击+号 添加一项archetypeCatalogy = internal
如果不加 在创建模板时会很慢 具体原因
https://www.cnblogs.com/hihtml5/p/6305804.html 可以参考一下这个博客
然后是下一步 完成 等待项目模板构建完成

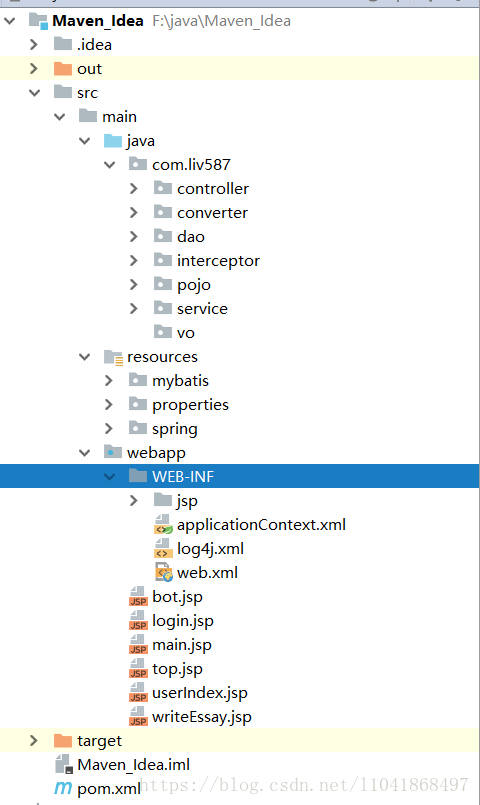

2.修改你的目录结构
自己生成的结构还缺少一些东西 需要自己补齐 resource（自动创建）里面写配置文件 Java（自己创建）里面写你的代码 WEB-INF下可以创建几个 css js jsp html(自己创建) 文件夹 放你相应的页面 terget不需要管 运行一遍项目后会自己创建
3.配置
接下来就是配置了 首先是 pom.xml
<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>com.liv587</groupId> <artifactId>bbs</artifactId> <version>1.0-SNAPSHOT</version> <properties> <junit.version>4.12</junit.version> <spring.version>4.2.6.RELEASE</spring.version> <mybatis.version>3.2.8</mybatis.version> <mybatis.spring.version>1.2.2</mybatis.spring.version> <mybatis.paginator.version>1.2.15</mybatis.paginator.version> <mysql.version>5.1.32</mysql.version> <slf4j.version>1.7.7</slf4j.version> <logback.version>1.1.7</logback.version> <jackson.version>2.4.2</jackson.version> <druid.version>1.0.9</druid.version> <jstl.version>1.2</jstl.version> <servlet-api.version>2.5</servlet-api.version> <jsp-api.version>2.0</jsp-api.version> <commons-lang3.version>3.3.2</commons-lang3.version> <commons-io.version>1.3.2</commons-io.version> <commons-net.version>3.3</commons-net.version> <commons-logging.version>1.2</commons-logging.version> <pagehelper.version>3.4.2</pagehelper.version> <jsqlparser.version>0.9.1</jsqlparser.version> <commons-fileupload.version>1.3.1</commons-fileupload.version> </properties> <dependencies> <!-- Apache工具组件 --> <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-lang3</artifactId> <version>${commons-lang3.version}</version> </dependency> <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-io</artifactId> <version>${commons-io.version}</version> </dependency> <dependency> <groupId>commons-net</groupId> <artifactId>commons-net</artifactId> <version>${commons-net.version}</version> </dependency> <!-- Jackson Json处理工具包 --> <dependency> <groupId>com.fasterxml.jackson.core</groupId> <artifactId>jackson-databind</artifactId> <version>${jackson.version}</version> </dependency> <!-- 单元测试 --> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>${junit.version}</version> <scope>test</scope> </dependency> <!-- 日志 --> <dependency> <groupId>org.slf4j</groupId> <artifactId>slf4j-api</artifactId> <version>${slf4j.version}</version> </dependency> <dependency> <groupId>org.slf4j</groupId> <artifactId>jul-to-slf4j</artifactId> <version>${slf4j.version}</version> </dependency> <dependency> <groupId>ch.qos.logback</groupId> <artifactId>logback-core</artifactId> <version>${logback.version}</version> </dependency> <dependency> <groupId>ch.qos.logback</groupId> <artifactId>logback-classic</artifactId> <version>${logback.version}</version> <exclusions> <exclusion> <groupId>org.slf4j</groupId> <artifactId>slf4j-api</artifactId> </exclusion> </exclusions> </dependency> <dependency> <groupId>commons-logging</groupId> <artifactId>commons-logging</artifactId> <version>${commons-logging.version}</version> </dependency> <!-- Mybatis --> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>${mybatis.version}</version> </dependency> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis-spring</artifactId> <version>${mybatis.spring.version}</version> </dependency> <dependency> <groupId>com.github.miemiedev</groupId> <artifactId>mybatis-paginator</artifactId> <version>${mybatis.paginator.version}</version> </dependency> <!-- 分页 --> <dependency> <groupId>com.github.pagehelper</groupId> <artifactId>pagehelper</artifactId> <version>${pagehelper.version}</version> </dependency> <!-- MySql --> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>${mysql.version}</version> </dependency> <!-- 连接池 --> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid</artifactId> <version>${druid.version}</version> </dependency> <!-- Spring --> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-context</artifactId> <version>${spring.version}</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-beans</artifactId> <version>${spring.version}</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webmvc</artifactId> <version>${spring.version}</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-jdbc</artifactId> <version>${spring.version}</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-aspects</artifactId> <version>${spring.version}</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-context-support</artifactId> <version>${spring.version}</version> </dependency> <!-- JSP相关 --> <dependency> <groupId>jstl</groupId> <artifactId>jstl</artifactId> <version>${jstl.version}</version> </dependency> <dependency> <groupId>javax.servlet</groupId> <artifactId>servlet-api</artifactId> <version>${servlet-api.version}</version> <scope>provided</scope> </dependency> <dependency> <groupId>javax.servlet</groupId> <artifactId>jsp-api</artifactId> <version>${jsp-api.version}</version> <scope>provided</scope> </dependency> <!-- 文件上传组件 --> <dependency> <groupId>commons-fileupload</groupId> <artifactId>commons-fileupload</artifactId> <version>${commons-fileupload.version}</version> </dependency> <dependency> <groupId>org.apache.tomcat.embed</groupId> <artifactId>tomcat-embed-core</artifactId> <version>7.0.47</version> </dependency> </dependencies> <build> <finalName>${project.artifactId}</finalName> <defaultGoal>compile</defaultGoal> <plugins> <!-- 资源文件拷贝插件 --> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-resources-plugin</artifactId> <version>2.7</version> <configuration> <encoding>UTF-8</encoding> </configuration> </plugin> <!-- java编译插件 --> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-compiler-plugin</artifactId> <version>3.2</version> <configuration> <source>1.7</source> <target>1.7</target> <encoding>UTF-8</encoding> </configuration> </plugin> <!-- 配置Tomcat插件 --> <plugin> <groupId>org.apache.tomcat.maven</groupId> <artifactId>tomcat7-maven-plugin</artifactId> <version>2.2</version> <configuration> <port>8080</port> <path>/</path> </configuration> </plugin> <plugin> <groupId>org.mybatis.generator</groupId> <artifactId>mybatis-generator-maven-plugin</artifactId> <version>1.3.2</version> <configuration> <!--配置文件的位置--> <configurationFile>src/main/resources/generatorConfig.xml</configurationFile> <verbose>true</verbose> <overwrite>true</overwrite> </configuration> <executions> <execution> <id>Generate MyBatis Artifacts</id> <goals> <goal>generate</goal> </goals> </execution> </executions> <dependencies> <dependency> <groupId>org.mybatis.generator</groupId> <artifactId>mybatis-generator-core</artifactId> <version>1.3.2</version> </dependency> </dependencies> </plugin> </plugins> <resources> <resource> <directory>src/main/resources</directory> <includes> <include>**/*.xml</include> <include>**/*.properties</include> <include>**/*.ini</include> </includes> <filtering>false</filtering> </resource> <resource> <directory>src/main/java</directory> <includes> <include>**/*.xml</include> </includes> <filtering>false</filtering> </resource> </resources> </build> </project>
然后是web.xml spring mybatis jdbc 的一些相关配置文件。大家可以用自己之前的项目直接复制文件就行
也可以粘贴我的 我把我的配置文件留下供参考
web.xml
<?xml version="1.0" encoding="UTF-8"?> <web-app xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://java.sun.com/xml/ns/javaee" xsi:schemaLocation="http://java.sun.com/xml/ns/javaee http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd" id="WebApp_ID" version="2.5"> <display-name>ssm_bbs</display-name> <welcome-file-list> <welcome-file>login.jsp</welcome-file> </welcome-file-list> <!-- 加载spring容器 --> <context-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:spring/ApplicationContext-*.xml</param-value> </context-param> <listener> <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class> </listener> <!-- spirngMvc前端控制器 --> <servlet> <servlet-name>SpringMvc</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <!-- 指定spring核心配置文件位置 --> <init-param> <param-name>contextConfigLocation</param-name> <param-value>classpath:spring/SpringMvc.xml</param-value> </init-param> <!-- tomcat运行时加载这个servlet 12345 代表加载顺序 --> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>SpringMvc</servlet-name> <url-pattern>*.action</url-pattern> </servlet-mapping> <!-- 配置Post请求乱码 --> <filter> <filter-name>CharacterEncodingFilter</filter-name> <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class> <init-param> <param-name>encoding</param-name> <param-value>utf-8</param-value> </init-param> </filter> <filter-mapping> <filter-name>CharacterEncodingFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> </web-app>
mybatis-config.xml
<?xml version="1.0" encoding="UTF-8" ?> <!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd"> <configuration> <typeAliases> <typeAlias type="com.liv587.pojo.Massage" alias="Massage"/> <typeAlias type="com.liv587.pojo.User" alias="User"/> <typeAlias type="com.liv587.pojo.Comment" alias="Comment"/> <typeAlias type="com.liv587.pojo.Essay" alias="Essay"/> </typeAliases> <mappers> <mapper resource="com/liv587/dao/UserMapper.xml"/> <mapper resource="com/liv587/dao/MassageMapper.xml"/> </mappers> </configuration>
Spring.xml
<?xml version="1.0" encoding="UTF-8"?> <beans xmlns="http://www.springframework.org/schema/beans" xmlns:mvc="http://www.springframework.org/schema/mvc" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:context="http://www.springframework.org/schema/context" xmlns:aop="http://www.springframework.org/schema/aop" xsi:schemaLocation=" http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.1.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.1.xsd http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.1.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.1.xsd "> <!-- 配置@Controller注解扫描 写包名 --> <context:component-scan base-package="com.liv587.controller"></context:component-scan> <!-- 如果不配置处理器适配器和处理器映射器 每次请求都会扫描一下他的配置文件 找到合适的适配器和映射器 效率极低 影响访问速度 --> <!--注解驱动 自动 配置最新版的处理器适配器和处理器映射器 --> <mvc:annotation-driven conversion-service="conversionService"></mvc:annotation-driven> <bean id="conversionService" class="org.springframework.format.support.FormattingConversionServiceFactoryBean"> <property name="converters"> <set> <bean class="com.liv587.converter.CustomGlobalStrToDateConverter"/> </set> </property> </bean> <!-- 配置视图解析器 --> <!-- 目的： 在controller中指定页面路径的时候就不用写页面的完整路径名称了,可以直接写页面去掉扩展名的名称 --> <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver"> <property name="prefix" value="/WEB-INF/jsp/"></property> <property name="suffix" value=".jsp"></property> </bean> <mvc:interceptors> <mvc:interceptor> <mvc:mapping path="/**"/> <bean class="com.liv587.interceptor.LoginInterceptor"></bean> </mvc:interceptor> </mvc:interceptors> </beans>
然后完善你的项目 （有需要源码的可以找我要）
4.配置WEB 项目

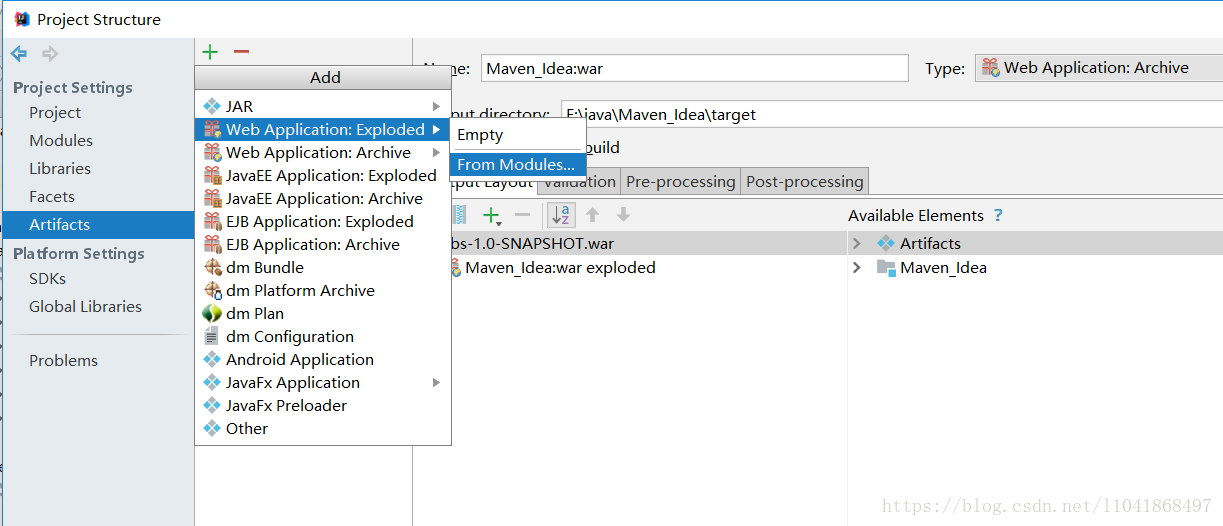

快捷键 crtl+alt+shift+s 打开Project Struture---Artifact-----上方的+号 然后点图中的选项

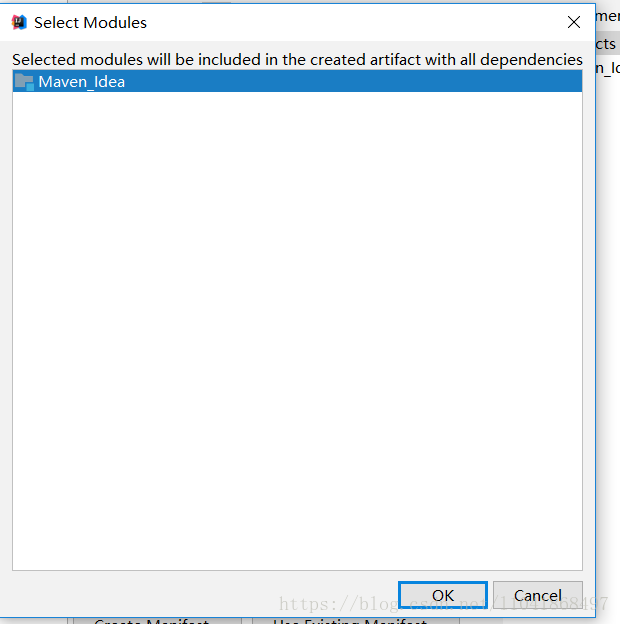

选择你的项目 点OK
5.配置tomcat

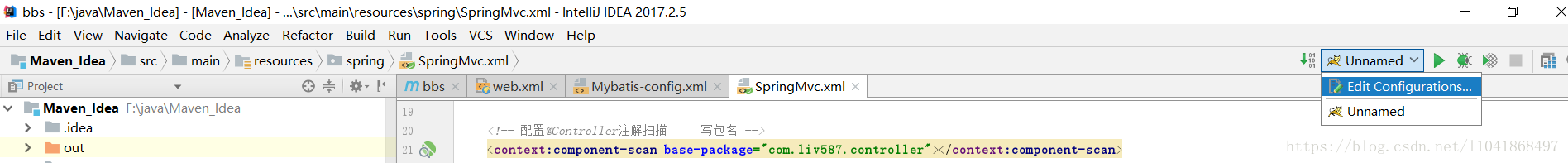

点右上方的选项

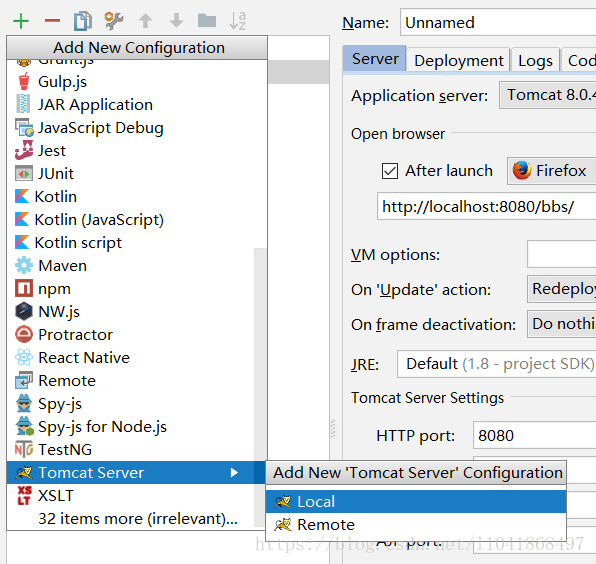

点+号 ----Tomcat Server --- Local

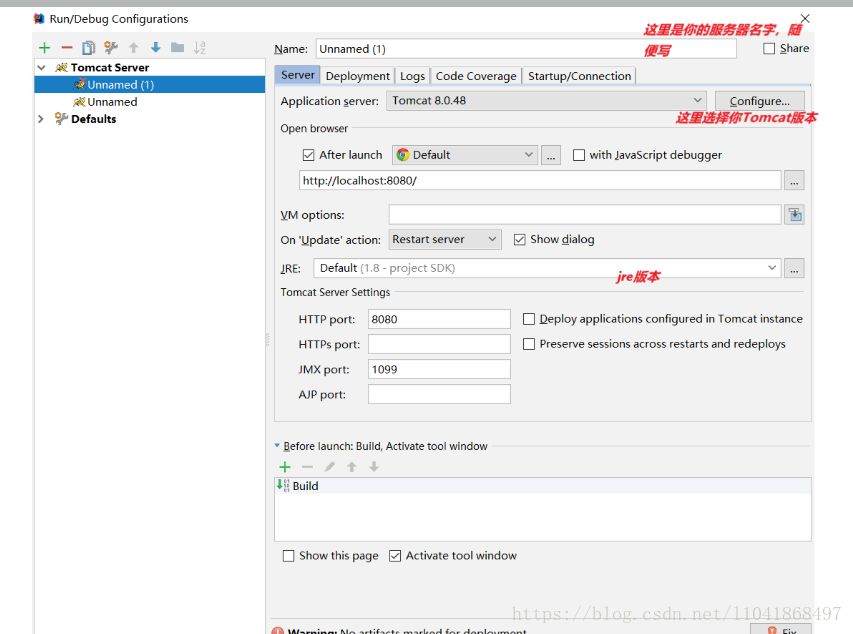

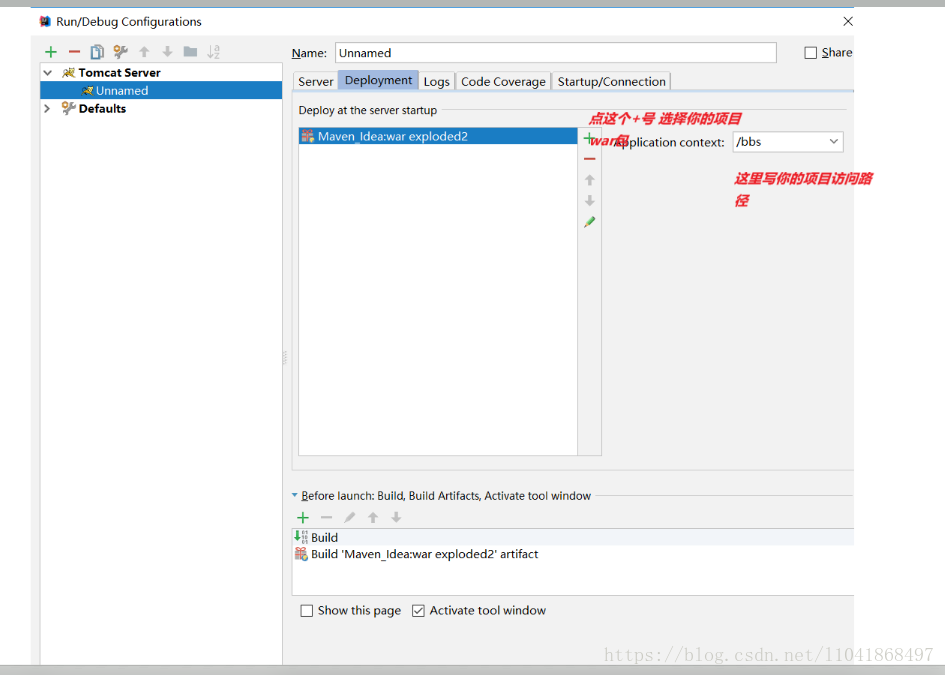

配置下面信息
然后OK

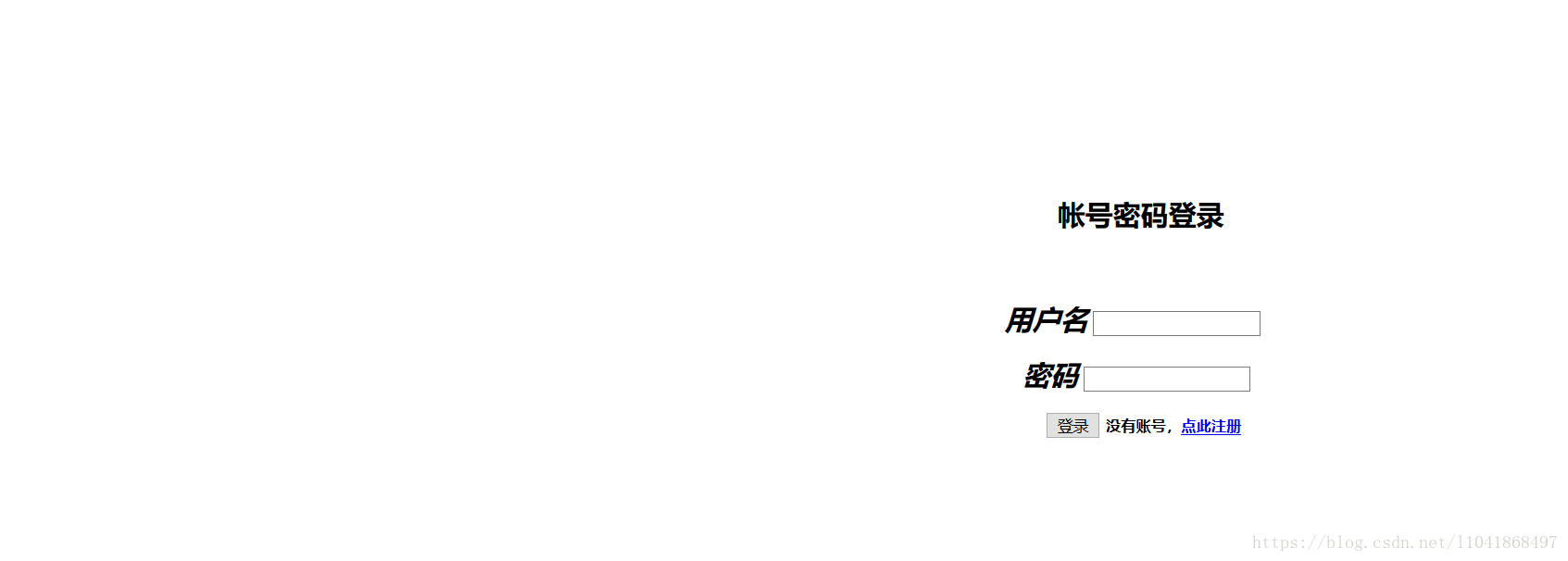

启动你的Tomcat 测试
圆满结束 希望能对大家有帮助吧， 如有错误 各位及时指正
