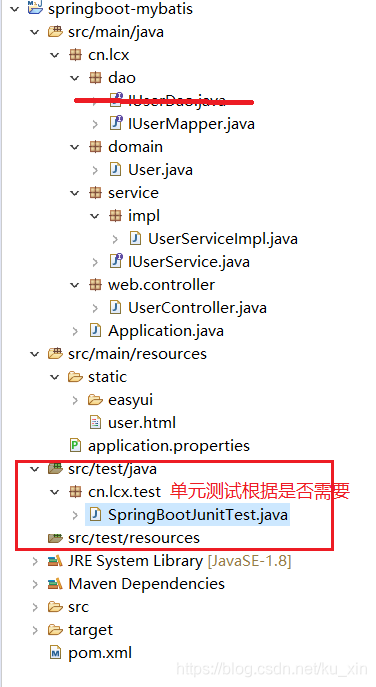

一、目录

1.数据库表user.sql文件

/*
 Navicat Premium Data Transfer
 Source Server         : vmroot
 Source Server Type    : MySQL
 Source Server Version : 80013
 Source Host           : 127.0.0.1:3306
 Source Schema         : springboot
 Target Server Type    : MySQL
 Target Server Version : 80013
 File Encoding         : 65001
 Date: 21/04/2019 18:35:24
*/

SET NAMES utf8mb4;
SET FOREIGN_KEY_CHECKS = 0;

-- ----------------------------
-- Table structure for user
-- ----------------------------
DROP TABLE IF EXISTS `user`;
CREATE TABLE `user`  (
  `id` bigint(20) NOT NULL AUTO_INCREMENT,
  `user_name` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '用户名',
  `password` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '密码',
  `name` varchar(100) CHARACTER SET utf8 COLLATE utf8_general_ci NULL DEFAULT NULL COMMENT '姓名',
  PRIMARY KEY (`id`) USING BTREE
) ENGINE = InnoDB AUTO_INCREMENT = 7 CHARACTER SET = utf8 COLLATE = utf8_general_ci ROW_FORMAT = Dynamic;

-- ----------------------------
-- Records of user
-- ----------------------------
INSERT INTO `user` VALUES (1, 'zhangsan', '123456', '张三');
INSERT INTO `user` VALUES (2, 'lisi', '123456', '李四');
INSERT INTO `user` VALUES (3, 'wangwu', '123456', '王五');
INSERT INTO `user` VALUES (4, 'zhangwei', '123456', '张伟');
INSERT INTO `user` VALUES (5, 'lina', '123456', '李娜');
INSERT INTO `user` VALUES (6, 'lilei', '123456', '李磊');

SET FOREIGN_KEY_CHECKS = 1;

2.pom.xml的依赖

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
  <modelVersion>4.0.0</modelVersion>
  <groupId>cn.lcx</groupId>
  <artifactId>springboot-mybatis</artifactId>
  <version>0.0.1-SNAPSHOT</version>

    <!-- Inherit defaults from Spring Boot -->
	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>2.0.0.RELEASE</version>
	</parent>

  	<!-- Add typical dependencies for a web application -->
	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>

		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
		</dependency>

		<!-- spring和mybatis整合依赖 -->
		<!-- https://mvnrepository.com/artifact/org.mybatis.spring.boot/mybatis-spring-boot-starter -->
		<dependency>
		    <groupId>org.mybatis.spring.boot</groupId>
		    <artifactId>mybatis-spring-boot-starter</artifactId>
		    <version>1.3.2</version>
		</dependency>

		<!-- 导入redis -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-redis</artifactId>
			<version>1.3.8.RELEASE</version>
		</dependency>

		<!-- 导入测试 -->
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope></scope>
		</dependency>


	</dependencies>

</project>

3.application.properties配置文件，jpa的配置要配置hibernate的东西

#DB
spring.datasource.driverClassName=com.mysql.jdbc.Driver
spring.datasource.url=jdbc:mysql://127.0.0.1:3306/springboot
spring.datasource.username=root
spring.datasource.password=root

#jpa
spring.jpa.database=mysql
spring.jpa.show-sql=true
spring.jpa.generate-ddl=true
spring.jpa.hibernate.ddl-auto=update
spring.jpa.hibernate.naming_strategy=org.hibernate.cfg.ImprovedNamingStrategy

4.实体类user.java，用mybatis整合user_name要注意

package cn.lcx.domain;

import java.io.Serializable;

import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.Table;
/**
 * 用户实体类
 * @author kuxin
 *
 */
@Entity
@Table(name="user")
public class User implements Serializable {

	/**
	 *
	 */
	private static final long serialVersionUID = 8703643314757223600L;

	@Id
	@Column(name="id")
	@GeneratedValue(strategy=GenerationType.IDENTITY)
	private Long id;

	@Column(name="user_name")
	private String user_name;

	@Column(name="password")
	private String password;

	@Column(name="name")
	private String name;

	public Long getId() {
		return id;
	}

	public void setId(Long id) {
		this.id = id;
	}

	public String getUser_name() {
		return user_name;
	}

	public void setUser_name(String user_name) {
		this.user_name = user_name;
	}

	public String getPassword() {
		return password;
	}

	public void setPassword(String password) {
		this.password = password;
	}

	public String getName() {
		return name;
	}

	public void setName(String name) {
		this.name = name;
	}

	@Override
	public String toString() {
		return "User [id=" + id + ", user_name=" + user_name + ", password=" + password + ", name=" + name + "]";
	}





}

5.使用mybatis实现对数据库的操作接口IUserMapper

package cn.lcx.dao;

import java.util.List;

import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Select;

import cn.lcx.domain.User;

/**
 * 使用mybatis实现对数据库的操作接口
 * @author kuxin
 *
 */
@Mapper//要求mybatis	的版本是3.3及以上
public interface IUserMapper {

	@Select("select * from user where name like '%${value}%'")
	public List<User> findUserByName(String name);

	@Select("select * from user")
	public List<User> findAll();

}

6.用户的业务层实现类UserServiceImpl，

redis的整合 1.引导类@EnableCaching//开启springboot对缓存的支持，

2.业务层方法上@Cacheable(value="findAll")//表示当前的方法使用缓存，并存入redis数据库中

package cn.lcx.service.impl;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.stereotype.Service;

import cn.lcx.dao.IUserMapper;
import cn.lcx.domain.User;
import cn.lcx.service.IUserService;
/**
 * 用户的业务层实现类
 * @author kuxin
 *
 */
@Service("userService")
public class UserServiceImpl implements IUserService {

//	@Autowired
//	private IUserDao userDao;//spring data jpa的实现

	@Autowired
	private IUserMapper userMapper;

	@Override
	public List<User> findAllUserByName(String name) {
		return userMapper.findUserByName(name);
	}

	@Override
//	@Cacheable(value="findAllUserCache",key="user.findAllUser")//表示当前的方法使用缓存，并存入redis数据库中
			//value属性：表示存入redis数据库的key
			//key属性：用于指定方法执行返回值的key，该属性是spring用的。不用也有默认值
	@Cacheable(value="findAll")
	public List<User> findAllUser() {
		System.out.println("执行去数据库查询");
		return userMapper.findAll();
	}

}

7. 用户的业务层接口IUserService

package cn.lcx.service;

import java.util.List;

import cn.lcx.domain.User;

/**
 * 用户的业务层接口
 * @author kuxin
 *
 */
public interface IUserService {

	/**
	 * 根据名称查询所有用户
	 * @return
	 */
	List<User> findAllUserByName(String name);

	/**
	 * 查询所有用户
	 * @return
	 */
	List<User> findAllUser();
}

8.用户的控制层UserController

package cn.lcx.web.controller;

import java.util.List;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import cn.lcx.domain.User;
import cn.lcx.service.IUserService;

/**
 * 用户的控制层
 * @author kuxin
 *
 */
@RestController
@RequestMapping("/user")
public class UserController {

	@Autowired
	private IUserService userService;

	@RequestMapping("/findAll/{name}")
	public List<User> findAllUserByName(@PathVariable("name")String name){
		List<User> users = userService.findAllUserByName(name);
		return users;
	}

	@RequestMapping("/findAll")
	public List<User> findAllUser(){
		List<User> users = userService.findAllUser();
		return users;
	}

}

9.引导类Application

package cn.lcx;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cache.annotation.EnableCaching;

/**
 * spring boot 的引导类
 * @author kuxin
 *
 */
@SpringBootApplication
@EnableCaching//开启springboot对缓存的支持
public class Application {

	public static void main(String[] args) {
		SpringApplication.run(Application.class, args);
	}

}

10.user.html页面

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>人员信息</title>
    <link rel="stylesheet" type="text/css" href="easyui/themes/default/easyui.css">
    <link rel="stylesheet" type="text/css" href="easyui/themes/icon.css">
    <script type="text/javascript" src="easyui/jquery.min.js"></script>
    <script type="text/javascript" src="easyui/jquery.easyui.min.js"></script>
    <script type="text/javascript" src="easyui/locale/easyui-lang-zh_CN.js"></script>
</head>
<body>



    <h2>人员信息</h2>
    <div style="margin:20px 0;"></div>
    <table class="easyui-datagrid" title="人员信息" style="width:500px;height:250px"
            data-options="singleSelect:true,collapsible:true,url:'/user/findAll',method:'get'">
        <thead>
            <tr>
                <th data-options="field:'id',width:80">ID</th>
                <th data-options="field:'user_name',width:100">username</th>
                <th data-options="field:'password',width:80,align:'right'">password</th>
                <th data-options="field:'name',width:60,align:'center'">name</th>
            </tr>
        </thead>
    </table>




</body>
</html>

二、启动效果

三、Springboot整合junit

package cn.lcx.test;

import java.util.List;

import javax.annotation.Resource;

import org.junit.Test;
import org.junit.runner.RunWith;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.core.env.Environment;
import org.springframework.test.context.junit4.SpringJUnit4ClassRunner;

import cn.lcx.Application;
import cn.lcx.domain.User;
import cn.lcx.service.IUserService;

/**
 * Springboot整合junit
 * @author kuxin
 *
 */
@RunWith(SpringJUnit4ClassRunner.class)
@SpringBootTest(classes = Application.class)//属性：用于指定引导类
public class SpringBootJunitTest {

	@Autowired
	private IUserService userService;

	@Test
	public void testFindAll() {
		List<User> findAllUser = userService.findAllUser();
		System.out.println(findAllUser);
	}

	@Resource
	private Environment env;

	@Test
	public void testReadSpringBootConfig() {
		System.out.println(env.getProperty("spring.datasource.url"));
	}


}

测试结果在控制台显示
