再刷泰坦尼克号（1）----通过可视化探索特征

再刷泰坦尼克号

数据探索和可视化：形成假设的第一步

导入需要的包

#忽略警告提示
import warnings
warnings.filterwarnings('ignore')
#数据处理
import pandas as pd
import numpy as np
import random
#可视化
import matplotlib.pyplot as plt
import seaborn as sns
%matplotlib inline

数据读入

path='C:/Users/Titanic/'
p1=open(path+'train.csv')
p2=open(path+'test.csv')
train=pd.read_csv(p1)
test=pd.read_csv(p2)

数据概览

train.head(3)

	PassengerId	Survived	Pclass	Name	Sex	Age	SibSp	Parch	Ticket	Fare	Cabin	Embarked
0	1	0	3	Braund, Mr. Owen Harris	male	22.0	1	0	A/5 21171	7.2500	NaN	S
1	2	1	1	Cumings, Mrs. John Bradley (Florence Briggs Th…	female	38.0	1	0	PC 17599	71.2833	C85	C
2	3	1	3	Heikkinen, Miss. Laina	female	26.0	0	0	STON/O2. 3101282	7.9250	NaN	S

train.info()

train.describe()

	PassengerId	Survived	Pclass	Age	SibSp	Parch	Fare
count	891.000000	891.000000	891.000000	714.000000	891.000000	891.000000	891.000000
mean	446.000000	0.383838	2.308642	29.699118	0.523008	0.381594	32.204208
std	257.353842	0.486592	0.836071	14.526497	1.102743	0.806057	49.693429
min	1.000000	0.000000	1.000000	0.420000	0.000000	0.000000	0.000000
25%	223.500000	0.000000	2.000000	20.125000	0.000000	0.000000	7.910400
50%	446.000000	0.000000	3.000000	28.000000	0.000000	0.000000	14.454200
75%	668.500000	1.000000	3.000000	38.000000	1.000000	0.000000	31.000000
max	891.000000	1.000000	3.000000	80.000000	8.000000	6.000000	512.329200

train.drop('PassengerId',axis=1).corr()

	Survived	Pclass	Age	SibSp	Parch	Fare
Survived	1.000000	-0.338481	-0.077221	-0.035322	0.081629	0.257307
Pclass	-0.338481	1.000000	-0.369226	0.083081	0.018443	-0.549500
Age	-0.077221	-0.369226	1.000000	-0.308247	-0.189119	0.096067
SibSp	-0.035322	0.083081	-0.308247	1.000000	0.414838	0.159651
Parch	0.081629	0.018443	-0.189119	0.414838	1.000000	0.216225
Fare	0.257307	-0.549500	0.096067	0.159651	0.216225	1.000000

#图来观察更直观
sns.set(context='paper',font='monospace')
sns.set(style='white')
f,ax=plt.subplots(figsize=(10,6))
train_corr=train.drop('PassengerId',axis=1).corr()
sns.heatmap(train_corr,ax=ax,vmax=.9,square=True,cmap=plt.cm.get_cmap('RdYlBu'))
ax.set_xticklabels(train_corr.index,size=15)
ax.set_yticklabels(train_corr.columns,size=15)
ax.set_title('train feature corr',fontsize=20)

• Pclass与获救情况负相关
• Fare和获救情况正相关
• Pclass和Fare负相关

Age

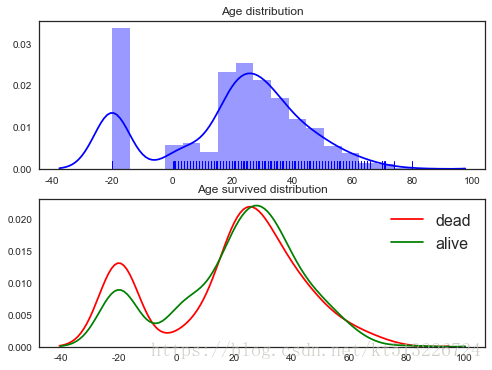

#深入观察一下年龄
fig,axes=plt.subplots(2,1,figsize=(8,6))
sns.set_style('white')
sns.distplot(train.Age.fillna(-20),rug=True,color='b',ax=axes[0])
ax0=axes[0]
ax0.set_title('Age distribution')
ax0.set_xlabel('')
ax1=axes[1]
ax1.set_title('Age survived distribution')
k1=sns.distplot(train[train.Survived==0].Age.fillna(-20),hist=False,color='r',ax=ax1,label='dead')
k2=sns.distplot(train[train.Survived==1].Age.fillna(-20),hist=False,color='g',ax=ax1,label='alive')
ax1.set_xlabel('')
ax1.legend(fontsize=16)

上图暂时将年龄的缺省值用-20进行了填充，再对年龄的分布和获救情况进行了展示，可以观察到
* 年龄分布范围很宽，以及小孩和中等偏大的人获救概率更高
* age和survived之间并不是线性模型
* 年龄缺省的部分获救的人更少

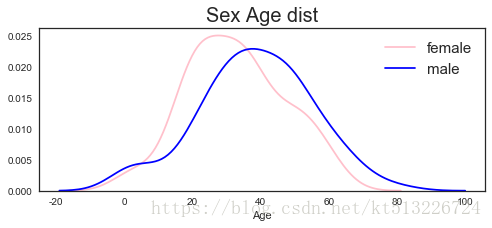

fig,ax=plt.subplots(figsize=(8,3))
ax.set_title('Sex Age dist',size=20)
sns.distplot(train[train.Sex=='female'].dropna().Age,hist=False,color='pink',label='female')
sns.distplot(train[train.Sex=='male'].dropna().Age,hist=False,color='b',label='male')
ax.legend(fontsize=15)

女性更年轻，男性中老年居多，小孩则是男孩更多一点

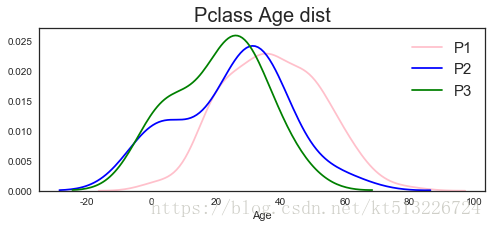

fig,ax=plt.subplots(figsize=(8,3))
ax.set_title('Pclass Age dist',size=20)
sns.distplot(train[train.Pclass==1].dropna().Age,hist=False,color='pink',label='P1')
sns.distplot(train[train.Pclass==2].dropna().Age,hist=False,color='b',label='P2')
sns.distplot(train[train.Pclass==3].dropna().Age,hist=False,color='g',label='P3')
ax.legend(fontsize=15)

仓位等级越高，年龄越偏大

Pclass

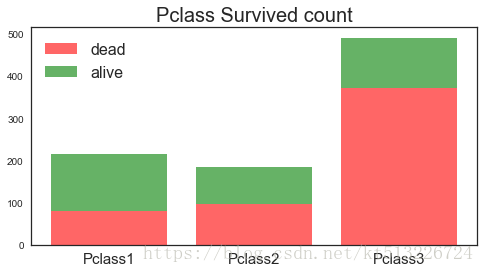

y_dead=train[train.Survived==0].groupby('Pclass')['Survived'].count()
y_alive=train[train.Survived==1].groupby('Pclass')['Survived'].count()
pos=[1,2,3]
ax=plt.figure(figsize=(8,4)).add_subplot(111)
ax.bar(pos,y_dead,color='r',alpha=.6,label='dead')
ax.bar(pos,y_alive,color='g',bottom=y_dead,alpha=.6,label='alive')
ax.legend(fontsize=16,loc='best')
ax.set_xticks(pos)
ax.set_xticklabels(['Pclass%d'%(i) for i in range(1,4)],size=15)
ax.set_title('Pclass Survived count',size=20)

三个舱人数对比：
* 三等舱总体人数遥遥领先
* 从获救比例来看，头等舱存活率最高，三等舱死亡率最高

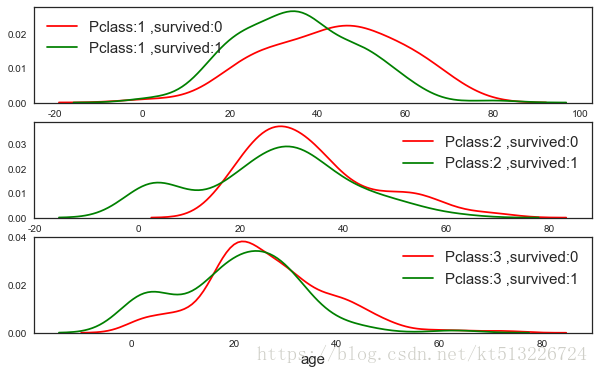

pos=range(0,6)
age_list=[]
for Pclass_ in range(1,4):
    for Survived_ in range(0,2):
        age_list.append(train[(train.Pclass==Pclass_)&(train.Survived==Survived_)].Age.values)

fig,axes=plt.subplots(3,1,figsize=(10,6))

i_Pclass=1
for ax in axes:
    sns.distplot(age_list[i_Pclass*2-2],hist=False,ax=ax,label='Pclass:%d ,survived:0'%(i_Pclass),color='r')
    sns.distplot(age_list[i_Pclass*2-1],hist=False,ax=ax,label='Pclass:%d ,survived:1'%(i_Pclass),color='g')
    i_Pclass +=1
    ax.set_xlabel('age',size=15)
    ax.legend(fontsize=15)

观察可知，总体来讲三个舱都是小孩获救多，其中一等二等舱小孩保护的很好，三等舱小孩也存在一定死亡率

Sex

print(train.Sex.value_counts())
print(train.groupby('Sex')['Survived'].mean())

male      577
female    314
Name: Sex, dtype: int64
Sex
female    0.742038
male      0.188908
Name: Survived, dtype: float64

男女数量比例577：314
女性生存率74%，男性仅为18%

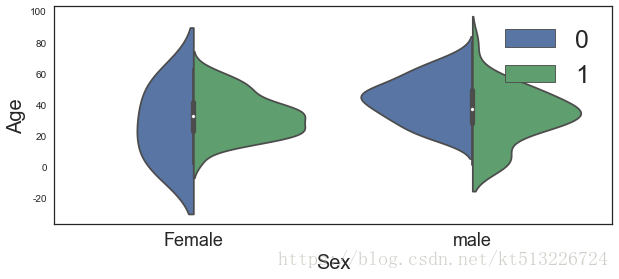

ax=plt.figure(figsize=(10,4)).add_subplot(111)
sns.violinplot(x='Sex',y='Age',hue='Survived',data=train.dropna(),split=True)
ax.set_xlabel('Sex',size=20)
ax.set_xticklabels(['Female','male'],size=18)
ax.set_ylabel('Age',size=20)
ax.legend(fontsize=25,loc='best')

女性获救的年龄集中在中段年龄，男性小孩和年轻人容易获救

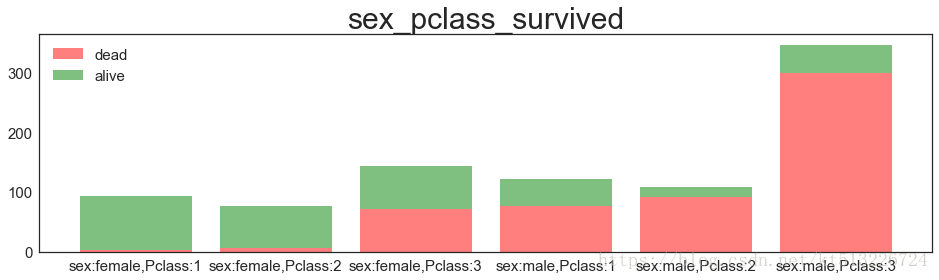

label=[]
for sex_i in ['female','male']:
    for pclass_i in range(1,4):
        label.append('sex:%s,Pclass:%d'%(sex_i,pclass_i))

pos=range(6)
fig=plt.figure(figsize=(16,4))
ax=fig.add_subplot(111)
ax.bar(pos,train[train['Survived']==0].groupby(['Sex','Pclass'])['Survived'].count().values,
      color='r',alpha=.5,align='center',tick_label=label,label='dead')
ax.bar(pos,train[train['Survived']==1].groupby(['Sex','Pclass'])['Survived'].count().values,
      bottom=train[train['Survived']==0].groupby(['Sex','Pclass'])['Survived'].count().values,
      color='g',alpha=.5,align='center',tick_label=label,label='alive')
ax.tick_params(labelsize=15)
ax.set_title('sex_pclass_survived',size=30)
ax.legend(fontsize=15,loc='best')

可见女性的绿色显著的多，更容易获救，在相同性别下，舱等级越高，获救率越高

Fare

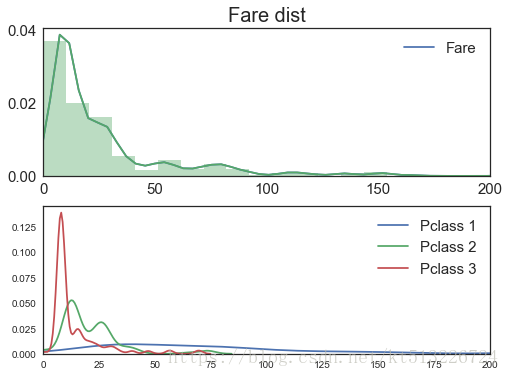

fig=plt.figure(figsize=(8,6))
ax=plt.subplot2grid((2,2),(0,0),colspan=2)#subplot2grid绘制排列更紧密的多重子图

ax.tick_params(labelsize=15)
ax.set_title('Fare dist',size=20)
sns.kdeplot(train.Fare,ax=ax)
sns.distplot(train.Fare,ax=ax)
ax.legend(fontsize=15)
pos=range(0,400,50)
ax.set_xticks(pos)
ax.set_xlim([0,200])
ax.set_xlabel('')

ax1=plt.subplot2grid((2,2),(1,0),colspan=2)
for i in range(1,4):
    sns.kdeplot(train[train.Pclass==i].Fare,ax=ax1,label='Pclass %d'%(i))

ax1.set_xlim([0,200])
ax1.legend(fontsize=15)

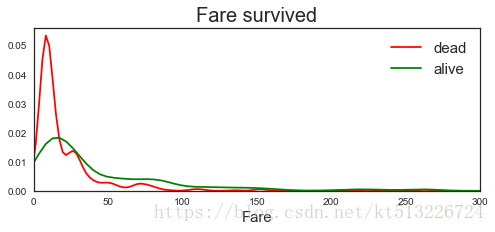

fig=plt.figure(figsize=(8,3))
ax1=fig.add_subplot(111)
sns.kdeplot(train[train.Survived==0].Fare,ax=ax1,label='dead',color='r')
sns.kdeplot(train[train.Survived==1].Fare,ax=ax1,label='alive',color='g')
ax1.set_xlim([0,300])
ax1.legend(fontsize=15)
ax1.set_title('Fare survived',size=20)
ax1.set_xlabel('Fare',size=15)

钱出的多的人，更容易获救

sibsp&parch

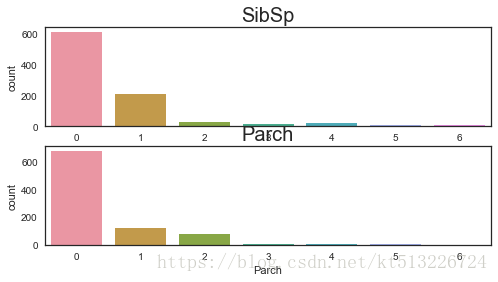

fig=plt.figure(figsize=(8,4))
ax1=fig.add_subplot(211)
sns.countplot(train.SibSp)
ax1.set_title('SibSp',size=20)
ax2=fig.add_subplot(212,sharex=ax1)
sns.countplot(train.Parch)
ax2.set_title('Parch',size=20)

大多数人没有直系亲属，不同代直系亲属1个居多，同代直系亲属1，2个居多

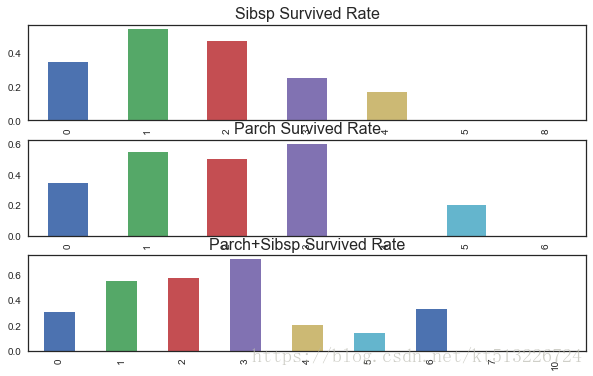

fig=plt.figure(figsize=(10,6))
ax1=fig.add_subplot(311)
train.groupby('SibSp')['Survived'].mean().plot(kind='bar',ax=ax1)
ax1.set_title('Sibsp Survived Rate',size=16)
ax1.set_xlabel('')

ax2=fig.add_subplot(312)
train.groupby('Parch')['Survived'].mean().plot(kind='bar',ax=ax2)
ax2.set_title('Parch Survived Rate',size=16)
ax2.set_xlabel('')

ax3=fig.add_subplot(313)
train.groupby(train.SibSp+train.Parch)['Survived'].mean().plot(kind='bar',ax=ax3)
ax3.set_title('Parch+Sibsp Survived Rate',size=16)

似乎有亲属的人的获救率会比独自一人获救率高一些，但也并不是简单的线性关系

Embarked

y1=train[train.Survived==0].groupby('Embarked')['Survived'].count()
y1

Embarked
C     75
Q     47
S    427
Name: Survived, dtype: int64

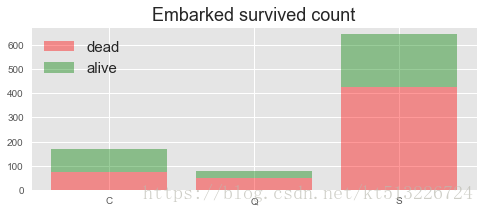

plt.style.use('ggplot')#使用自带样式美化
ax=plt.figure(figsize=(8,3)).add_subplot(111)
pos=[1,2,3]
y1=train[train.Survived==0].groupby('Embarked')['Survived'].count().sort_index().values
y2=train[train.Survived==1].groupby('Embarked')['Survived'].count().sort_index().values
ax.bar(pos,y1,color='r',alpha=.4,align='center',label='dead')
ax.bar(pos,y2,color='g',alpha=.4,align='center',label='alive',bottom=y1)
ax.set_xticks(pos)
ax.set_xticklabels(['C','Q','S'])
ax.legend(fontsize=15,loc='best')
ax.set_title('Embarked survived count',size=18)

似乎从C登船的人有很高的获救率

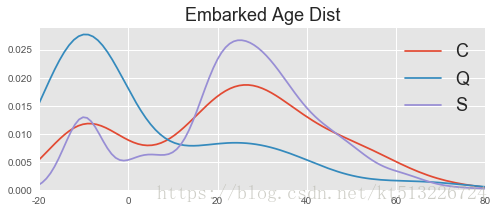

ax=plt.figure(figsize=(8,3)).add_subplot(111)
ax.set_xlim([-20,80])
sns.kdeplot(train[train.Embarked=='C'].Age.fillna(-10),ax=ax,label='C')
sns.kdeplot(train[train.Embarked=='Q'].Age.fillna(-10),ax=ax,label='Q')
sns.kdeplot(train[train.Embarked=='S'].Age.fillna(-10),ax=ax,label='S')
ax.legend(fontsize=18)
ax.set_title('Embarked Age Dist',size=18)

年龄缺省值用-10填充了，可以发现在Q登船的人很多没有年龄

#reset_index()还原索引

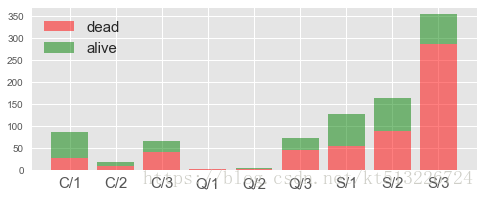

y1=train[train.Survived==0].groupby(['Embarked','Pclass'])['Survived'].count().reset_index()['Survived'].values
y2=train[train.Survived==1].groupby(['Embarked','Pclass'])['Survived'].count().reset_index()['Survived'].values
ax=plt.figure(figsize=(8,3)).add_subplot(111)
pos=range(9)
ax.bar(pos,y1,align='center',alpha=.5,color='r',label='dead')
ax.bar(pos,y2,align='center',alpha=.5,color='g',label='alive',bottom=y1)
ax.set_xticks(pos)
xticklabels=[]
for embarked_val in ['C','Q','S']:
    for pclass_val in range(1,4):
        xticklabels.append('%s/%d'%(embarked_val,pclass_val))

ax.set_xticklabels(xticklabels,size=15)
ax.legend(fontsize=15,loc='best')

对比不同港口以及舱位来看，C容易获救是因为在头等舱的多，Q上船的人大多在三等舱，C上船的大多是一等舱和三等舱，S地上船的人最多，各个舱位都有，按等级分布的数量也符合常理

Cabin

train.Cabin.isnull().value_counts()

True     687
False    204
Name: Cabin, dtype: int64

train.groupby(by=train.Cabin.isnull())['Survived'].mean()

Cabin
False    0.666667
True     0.299854
Name: Survived, dtype: float64

客舱编号大部分为空，而且为空的获救率较低，不为空的获救率高

train['Cabin_Zone']=train.Cabin.fillna('0').str.split(' ').apply(lambda x: x[0][0])
train.groupby(by='Cabin_Zone')['Survived'].agg(['mean','count'])

	mean	count
Cabin_Zone
0	0.299854	687
A	0.466667	15
B	0.744681	47
C	0.593220	59
D	0.757576	33
E	0.750000	32
F	0.615385	13
G	0.500000	4
T	0.000000	1

不同客舱编号获救差别比较大

Ticket

train.Ticket.head()

0           A/5 21171
1            PC 17599
2    STON/O2. 3101282
3              113803
4              373450
Name: Ticket, dtype: object

train.Ticket.nunique()

681

没什么明显特点，但是有重复，但是有的船票有英文，看一下区别

def find_e_word(x):
    import re #正则模块
    pattern=re.compile('[a-z]|[A-Z]')
    try:
        re.search(pattern,x).group()
        return 1
    except:
        return 0

train['Ticket_e']=train.Ticket.apply(lambda x: find_e_word(x))

train.groupby('Ticket_e')['Survived'].mean()

Ticket_e
0    0.384266
1    0.382609
Name: Survived, dtype: float64

没有什么区别

Name

train.Name.head()

0                              Braund, Mr. Owen Harris
1    Cumings, Mrs. John Bradley (Florence Briggs Th...
2                               Heikkinen, Miss. Laina
3         Futrelle, Mrs. Jacques Heath (Lily May Peel)
4                             Allen, Mr. William Henry
Name: Name, dtype: object

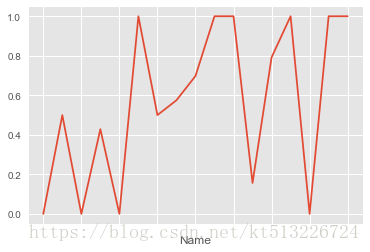

train.groupby(train['Name'].apply(lambda x: x.split(', ')[1]).apply(lambda x: x.split('.')[0]))['Survived'].mean().plot()

按照上次所讲的名字头衔可以提取作为特征，接下来我们看看名字长度

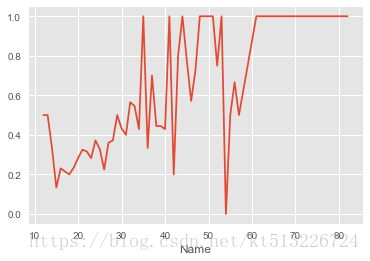

train.groupby(train.Name.apply(lambda x: len(x)))['Survived'].mean().plot()

名字越长，获救的可能性越大

---

练习一下可视化
seaborn参考文档
