MapReduce 基本的执行流程

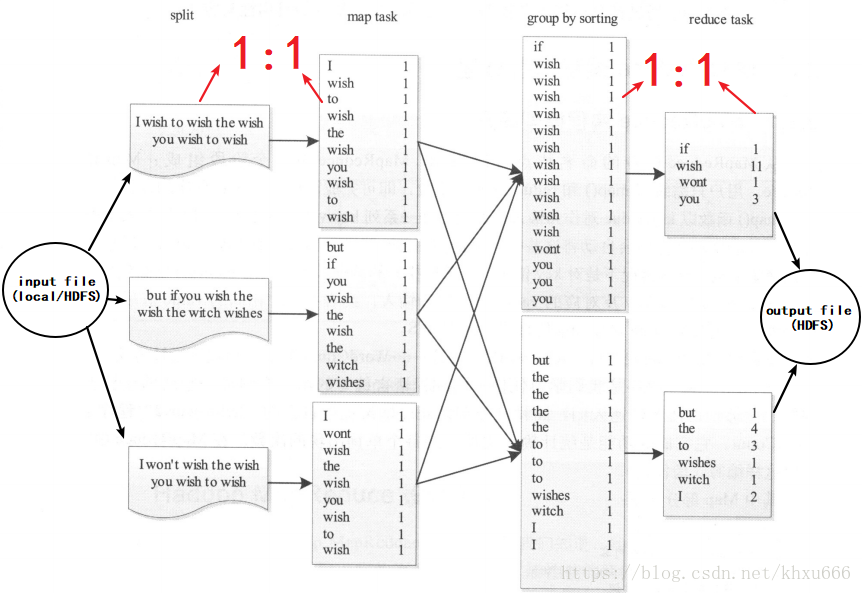

与学习编程语言时采用“hello world”程序作为入门示例程序不同,在大数据处理领域常常使用“wordcount”程序作为入门程序。WordCount 程序是用来统计一段输入的数据中相同单词出现的频率。其基本的执行流程如下图所示:
一个基于MapReduce的WordCount程序主要由一下几个部分组成:
1、Split
将程序的输入数据进行切分,每一个 split 交给一个 Map Task 执行。split的数量可以自己定义。
2、Map
输入为一个split中的数据,对split中的数据进行拆分,并以 < key, value> 对的格式保存数据,其中 key 的值为一个单词,value的值固定为 1。如 < I , 1>、< wish, 1> …
3、Shuffle/Combine/sort
这几个过程在一些简单的MapReduce程序中并不需要我们关注,因为源代码中已经给出了一些默认的Shuffle/Combine/sort处理器,这几个过程的作用分别是:
Combine:对Map Task产生的结果在本地节点上进行合并、统计等,以减少后续整个集群间的Shuffle过程所需要传输的数据量。
Shuffle / Sort:将集群中各个Map Task的处理结果在集群间进行传输,排序,数据经过这个阶段之后就作为 Reduce 端的输入。
4、Reduce
Reduce Task的输入数据其实已经不仅仅是简单的< key, value>对,而是经过排序之后的一系列key值相同的< key, value>对。Reduce Task对其进行统计等处理,产生最终的输出。
WordCount 源码解析
本文基于Hadoop 2.7.6 源码,对其中的 WordCount 程序源码进行解读。
Hadoop 2.7.6版本的 WordCount 源码如下:
/**
* Licensed to the Apache Software Foundation (ASF) under one
* or more contributor license agreements. See the NOTICE file
* distributed with this work for additional information
* regarding copyright ownership. The ASF licenses this file
* to you under the Apache License, Version 2.0 (the
* "License"); you may not use this file except in compliance
* with the License. You may obtain a copy of the License at
*
* http://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.IntWritable;
import org.apache.hadoop.io.Text;
import org.apache
