0x1 起始

最近学校购置了一批采用昇腾910B2作为NPU的鲲鹏服务器，由于目前没有很好的微调想法或者工作，于是打算先把这些机器拿来跑推理任务，这样还可以省一批消费API的经费。基于这个目的我于是开始了探索，发现网上并没有关于此的完整记录，故撰写本文

由于本校直接采用的是基于天翼云的息壤一体化智算服务平台，一些例如CANN和NPU-Driver之类的底层物理机环境无需我考虑。于是我直接从怎么获取MindIE镜像开始

我的机器应该是对应Atlas 800I A2这个型号，采用的是昇腾910B2的NPU，这点我们可以输入

npu-smi info

可以获取到如下的信息，我此次申请的是8卡的机器

+------------------------------------------------------------------------------------------------+
| npu-smi 23.0.3                   Version: 23.0.3                                               |
+---------------------------+---------------+----------------------------------------------------+
| NPU   Name                | Health        | Power(W)    Temp(C)           Hugepages-Usage(page)|
| Chip                      | Bus-Id        | AICore(%)   Memory-Usage(MB)  HBM-Usage(MB)        |
+===========================+===============+====================================================+
| 0     910B2               | OK            | 97.0        53                0    / 0             |
| 0                         | 0000:C1:00.0  | 0           0    / 0          53701/ 65536         |
+===========================+===============+====================================================+
| 1     910B2               | OK            | 101.8       57                0    / 0             |
| 0                         | 0000:01:00.0  | 0           0    / 0          53698/ 65536         |
+===========================+===============+====================================================+
| 2     910B2               | OK            | 99.5        54                0    / 0             |
| 0                         | 0000:C2:00.0  | 0           0    / 0          53699/ 65536         |
+===========================+===============+====================================================+
| 3     910B2               | OK            | 102.7       57                0    / 0             |
| 0                         | 0000:02:00.0  | 0           0    / 0          53698/ 65536         |
+===========================+===============+====================================================+
| 4     910B2               | OK            | 106.9       54                0    / 0             |
| 0                         | 0000:81:00.0  | 0           0    / 0          3331 / 65536         |
+===========================+===============+====================================================+
| 5     910B2               | OK            | 99.1        55                0    / 0             |
| 0                         | 0000:41:00.0  | 0           0    / 0          3331 / 65536         |
+===========================+===============+====================================================+
| 6     910B2               | OK            | 97.1        56                0    / 0             |
| 0                         | 0000:82:00.0  | 0           0    / 0          3331 / 65536         |
+===========================+===============+====================================================+
| 7     910B2               | OK            | 101.3       59                0    / 0             |
| 0                         | 0000:42:00.0  | 0           0    / 0          3331 / 65536         |
+===========================+===============+====================================================+

按照套路我们还是简单介绍一下什么是MindIE。根据官方的文档如下：

MindIE（Mind Inference Engine，昇腾推理引擎）是华为昇腾针对AI全场景业务的推理加速套件。

简单来说只是部署推理服务就用MindIE，如果要预训练或者微调可以使用MindSpeed-LLM
MindIE 目前支持的 LLM 列表可以从如下的网址进行查看

https://www.hiascend.com/document/detail/zh/mindie/100/whatismindie/mindie_what_0003.html

0x2 镜像准备

MindIE的Docker镜像可以从如下的网址进行获取，由于众所周知的原因需要申请，不过不怎么卡，大致1~2天即可获取审批

https://www.hiascend.com/developer/ascendhub/detail/af85b724a7e5469ebd7ea13c3439d48f

我选择的是 1.0.T71-800I-A2-py311-ubuntu22.04-arm64 这个版本，在获取到镜像后我建议封装一个Code-Server进去，对于后面部署比较方便，这里我参考了某位同学的文档。我们推荐自己从Github先下载好Linux的Code-Sever的Release包

https://github.com/coder/code-server/releases

接下来我们需要重新打包镜像，为此我们需要编写一个dockerfile

# 这个地方名字改成你的镜像，大概率跟我这个名字一样
FROM swr.cn-south-1.myhuaweicloud.com/ascendhub/mindie:1.0.T71-800I-A2-py311-ubuntu22.04-arm64

# VERSION改成你下载的版本，这个地方不设置会发生什么我不知道
ENV DEBIAN_FRONTEND=noninteractive
ENV VERSION=4.96.2

RUN apt-get update && apt-get install -y \
    tar \
    sudo \
    && rm -rf /var/lib/apt/lists/*

# 将把你下载的 code-server 文件添加到镜像中
COPY code-server-4.96.2-linux-arm64.tar.gz /tmp/code-server.tar.gz

RUN mkdir -p /home/root/.local/lib /home/root/.local/bin && \
    tar -xzf /tmp/code-server.tar.gz -C /home/root/.local/lib && \
    mv /home/root/.local/lib/code-server-$VERSION-linux-arm64 /home/root/.local/lib/code-server-$VERSION && \
    ln -s /home/root/.local/lib/code-server-$VERSION/bin/code-server /home/root/.local/bin/code-server && \
    rm /tmp/code-server.tar.gz

ENV PATH="/home/root/.local/bin:$PATH"

RUN mkdir -p /home/root/.config/code-server && \
    echo "bind-addr: 0.0.0.0:8080" > /home/root/.config/code-server/config.yaml && \
    echo "auth: none" >> /home/root/.config/code-server/config.yaml

EXPOSE 8080

CMD ["code-server", "--config", "/home/root/.config/code-server/config.yaml"]

接下来我们就使用这个镜像启动，请注意启动之后不要升级任何组件以避免不必要的兼容性问题

0x3 测试部署MindIE

我们首先需要获取到LLM模型的权重文件，在国内的话我们一般使用modelscope社区获取。我们可以从modelscope社区查询所需要的LLM模型的名字，然后使用如下的脚本进行下载

from modelscope.hub.snapshot_download import snapshot_download

model_name = "Qwen/Qwen2.5-14B-Instruct"

# 指定保存模型的本地路径
local_dir = 'Qwen2.5-14B-Instruct'

# 下载模型
snapshot_path = snapshot_download(model_name, local_dir=local_dir)

print(f'Model downloaded to: {snapshot_path}')

当获取到模型后，我们进入模型路径并修改权限

cd Qwen2.5-14B-Instruct
chmod -R 750 ./*

然后我们对 ATB Models 进行测试，这里参考的是如下的文档：

https://www.hiascend.com/document/detail/zh/mindie/100/mindiellm/llmdev/mindie_llm0009.html

配置环境变量

# 配置CANN环境，默认安装在/usr/local目录下
source /usr/local/Ascend/ascend-toolkit/set_env.sh
# 配置加速库环境
source /usr/local/Ascend/nnal/atb/set_env.sh
# 配置模型仓环境变量
source /usr/local/Ascend/llm_model/set_env.sh

测试对话推理

cd ${ATB_SPEED_HOME_PATH}
bash examples/models/qwen/run_pa.sh -m /root/Qwen2.5-14B-Instruct

默认推理内容为"What’s deep learning?"，batch size为1，如果正确的话应该会返回如下的内容：

[2025-01-18 06:08:49,033] [51235] [281460059148384] [llm] [INFO][logging.py-227] : ---------------begin warm_up---------------
[2025-01-18 06:08:49,033] [51235] [281460059148384] [llm] [INFO][cache.py-102] : kv cache will allocate 0.0263671875GB memory
[2025-01-18 06:08:49,035] [51235] [281460059148384] [llm] [INFO][logging.py-227] : ------total req num: 1, infer start--------
[2025-01-18 06:08:49,042] [51241] [281463369568352] [llm] [INFO][cache.py-102] : kv cache will allocate 0.0263671875GB memory
[2025-01-18 06:08:49,369] [51237] [281467581304928] [llm] [INFO][cache.py-102] : kv cache will allocate 0.0263671875GB memory
[2025-01-18 06:08:49,482] [51236] [281468636631136] [llm] [INFO][cache.py-102] : kv cache will allocate 0.0263671875GB memory
[2025-01-18 06:08:49,523] [51238] [281466744803424] [llm] [INFO][cache.py-102] : kv cache will allocate 0.0263671875GB memory
[2025-01-18 06:08:49,821] [51235] [281460059148384] [llm] [INFO][logging.py-227] : <<<<<<< ori k_caches[0].shape=torch.Size([9, 128, 1, 128])
[2025-01-18 06:08:49,822] [51235] [281460059148384] [llm] [INFO][logging.py-227] : >>>>>>id of kcache is 281457212115664 id of vcache is 281457212117200
[2025-01-18 06:08:50,228] [51239] [281459403984992] [llm] [INFO][cache.py-102] : kv cache will allocate 0.0263671875GB memory
[2025-01-18 06:08:51,617] [51242] [281469175402592] [llm] [INFO][cache.py-102] : kv cache will allocate 0.0263671875GB memory
[2025-01-18 06:08:52,029] [51240] [281463613362272] [llm] [INFO][cache.py-102] : kv cache will allocate 0.0263671875GB memory
[2025-01-18 06:08:54,582] [51235] [281460059148384] [llm] [INFO][logging.py-227] : warmup_memory(GB):  8.32
[2025-01-18 06:08:54,582] [51235] [281460059148384] [llm] [INFO][logging.py-227] : ---------------end warm_up---------------
[2025-01-18 06:08:54,582] [51235] [281460059148384] [llm] [INFO][logging.py-227] : ---------------begin inference---------------
[2025-01-18 06:08:54,614] [51235] [281460059148384] [llm] [INFO][logging.py-227] : ------total req num: 1, infer start--------
[2025-01-18 06:08:55,016] [51235] [281460059148384] [llm] [INFO][logging.py-227] : ---------------end inference---------------
[2025-01-18 06:08:55,016] [51235] [281460059148384] [llm] [INFO][logging.py-227] : Answer[0]:  Deep learning is a subset of machine learning that involves the use of artificial neural networks to model and solve
[2025-01-18 06:08:55,016] [51235] [281460059148384] [llm] [INFO][logging.py-227] : Generate[0] token num: (0, 20)

确认无误后，我们开始正式部署MindIE的服务

cd $MIES_INSTALL_PATH
vim conf/config.json

首先把https的选项给关闭

"httpsEnabled" : false,

然后修改模型的配置选项

"ModelDeployConfig" :
{
    "maxSeqLen" : 2560,
    "maxInputTokenLen" : 2048,
    "truncation" : false,
    "ModelConfig" : [
        {
            "modelInstanceType" : "Standard",
            "modelName" : "Qwen25-14B",
            "modelWeightPath" : "/root/Qwen2.5-14B-Instruct",
            "worldSize" : 4,
            "cpuMemSize" : 5,
            "npuMemSize" : -1,
            "backendType" : "atb",
            "trustRemoteCode" : true
        }
    ]
},

保存退出，运行一下服务进行测试

./bin/mindieservice_daemon

我们另开一个shell发一个请求进行测试

curl -H "Accept: application/json" -H "Content-type: application/json"  -X POST -d '{
    "model": "Qwen25-14B",
    "messages": [{
    "role": "user",
    "content": "Hello"
    }],
    "stream": false
}'http://127.0.0.1:1025/v1/chat/completions

如果一切工作正常应该可以得到回复

{"id":"endpoint_common_1","object":"chat.completion","created":1737181163,"model":"Qwen25-14B","choices":[{"index":0,"message":{"role":"assistant","content":"Hello! How can I assist you today?","tool_calls":null},"finish_reason":"stop"}],"usage":{"prompt_tokens":30,"completion_tokens":10,"total_tokens":40},"prefill_time":236,"decode_time_arr":[109,18,17,16,16,17,17,16,17]}

0x4 正式部署

如果要正式部署的话，应该初始一下环境变量

# 配置CANN环境，默认安装在/usr/local目录下
source /usr/local/Ascend/ascend-toolkit/set_env.sh
# 配置加速库环境
source /usr/local/Ascend/nnal/atb/set_env.sh
# 配置模型仓环境变量
source /usr/local/Ascend/llm_model/set_env.sh
# MindIE
source /usr/local/Ascend/mindie/latest/mindie-llm/set_env.sh
source /usr/local/Ascend/mindie/latest/mindie-service/set_env.sh

然后应该采用这样的后台命令

nohup ./bin/mindieservice_daemon > output.log 2>&1 &

如果要看日志，此时只需：

tail -f output.log

如果看到 Daemon start success! 则说明部署成功，可以推出 tail 了

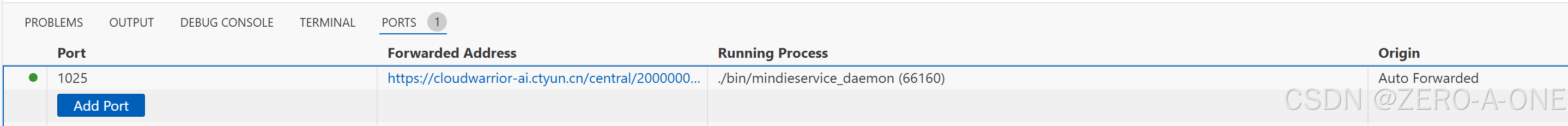

如果你使用了 Visual Code 可以发现自动为你提供了端口转发的功能，十分方便，而不用去部署FRP之类的服务
在这里插入图片描述

这个时候在外网我们可以修改一下之前的测试请求

curl -H "Accept: application/json" -H "Content-type: application/json"  -X POST -d '{
"model": "Qwen25-14B",
"messages": [{
"role": "user",
"content": "Hello"
}],
"stream": false
}' https://cloudwarrior-ai.ctyun.cn/central/200000001852/vscode/562e1d4f-b372-4809-b99d-f130640a770f/e3feec1f-94b2-492f-9faf-d22b1b3fa9e5/proxy/1025/v1/chat/completions

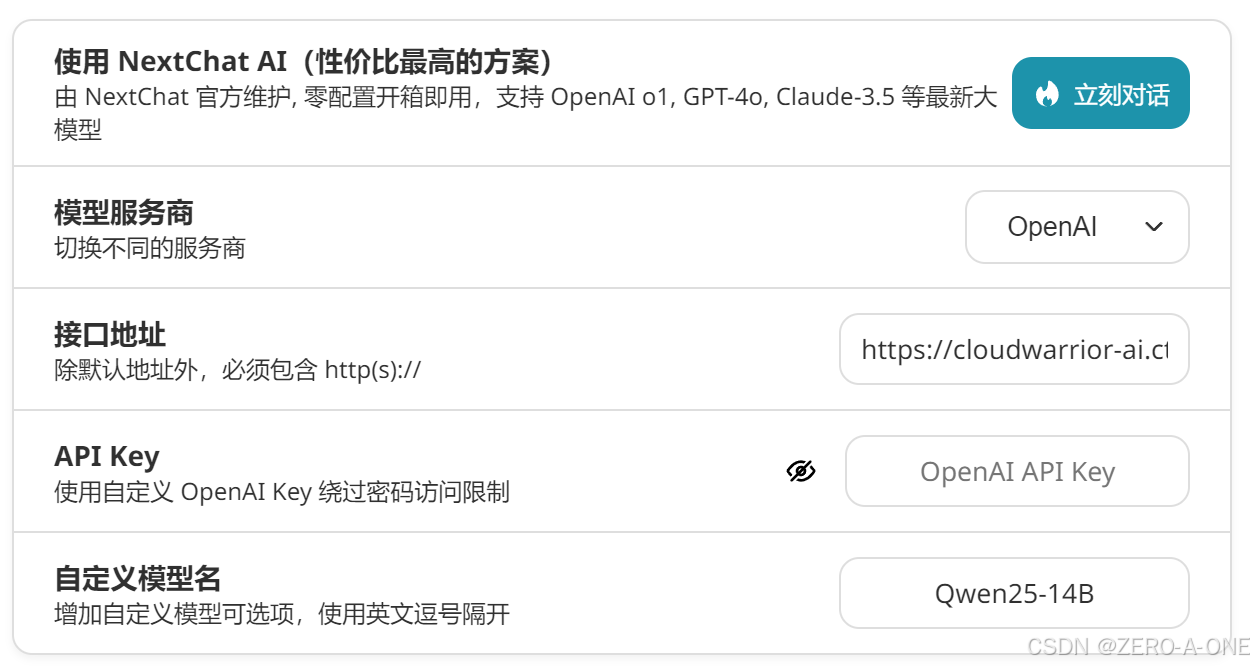

我还是用了 NextChat 进行测试，配置如下填写：

接口地址：直接从Visual Code里复制转发地址
模型名：即填入你部署服务时使用的模型名称

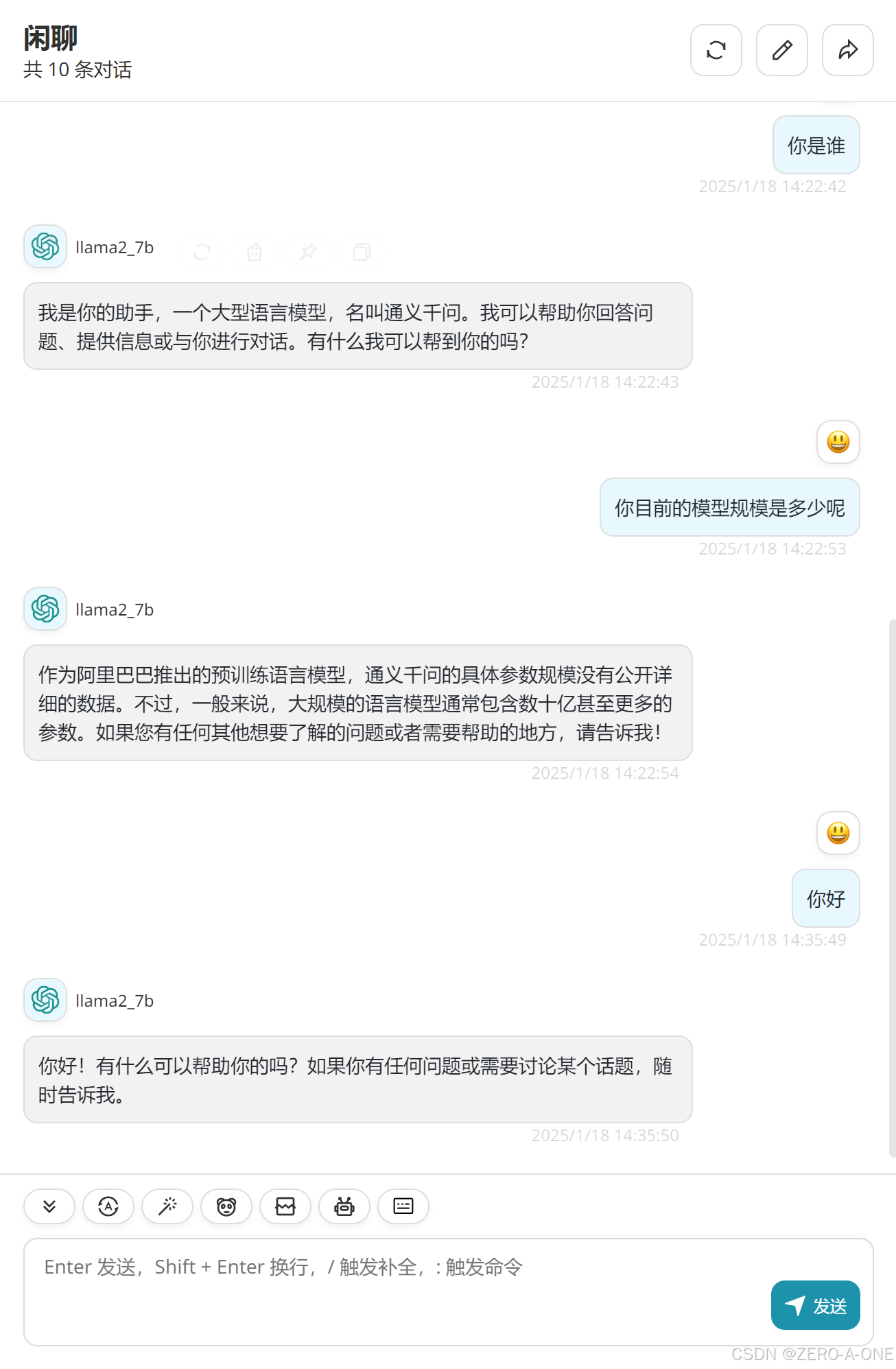

可以正确的进行问答
在这里插入图片描述

补充配置文件

我在这里稍微补充了一下我使用的QWEN2.5-72B部署信息，主要修改了32K的上下文长度和8K的生成窗口并且支持8卡推理

{
    "Version" : "1.0.0",
    "LogConfig" :
    {
        "logLevel" : "Info",
        "logFileSize" : 20,
        "logFileNum" : 20,
        "logPath" : "logs/mindie-server.log"
    },

    "ServerConfig" :
    {
        "ipAddress" : "127.0.0.1",
        "managementIpAddress" : "127.0.0.2",
        "port" : 1025,
        "managementPort" : 1026,
        "metricsPort" : 1027,
        "allowAllZeroIpListening" : false,
        "maxLinkNum" : 1000,
        "httpsEnabled" : false,
        "fullTextEnabled" : false,
        "tlsCaPath" : "security/ca/",
        "tlsCaFile" : ["ca.pem"],
        "tlsCert" : "security/certs/server.pem",
        "tlsPk" : "security/keys/server.key.pem",
        "tlsPkPwd" : "security/pass/key_pwd.txt",
        "tlsCrlPath" : "security/certs/",
        "tlsCrlFiles" : ["server_crl.pem"],
        "managementTlsCaFile" : ["management_ca.pem"],
        "managementTlsCert" : "security/certs/management/server.pem",
        "managementTlsPk" : "security/keys/management/server.key.pem",
        "managementTlsPkPwd" : "security/pass/management/key_pwd.txt",
        "managementTlsCrlPath" : "security/management/certs/",
        "managementTlsCrlFiles" : ["server_crl.pem"],
        "kmcKsfMaster" : "tools/pmt/master/ksfa",
        "kmcKsfStandby" : "tools/pmt/standby/ksfb",
        "inferMode" : "standard",
        "interCommTLSEnabled" : true,
        "interCommPort" : 1121,
        "interCommTlsCaPath" : "security/grpc/ca/",
        "interCommTlsCaFiles" : ["ca.pem"],
        "interCommTlsCert" : "security/grpc/certs/server.pem",
        "interCommPk" : "security/grpc/keys/server.key.pem",
        "interCommPkPwd" : "security/grpc/pass/key_pwd.txt",
        "interCommTlsCrlPath" : "security/grpc/certs/",
        "interCommTlsCrlFiles" : ["server_crl.pem"],
        "openAiSupport" : "vllm"
    },

    "BackendConfig" : {
        "backendName" : "mindieservice_llm_engine",
        "modelInstanceNumber" : 1,
        "npuDeviceIds" : [[0,1,2,3,4,5,6,7]],
        "tokenizerProcessNumber" : 8,
        "multiNodesInferEnabled" : false,
        "multiNodesInferPort" : 1120,
        "interNodeTLSEnabled" : true,
        "interNodeTlsCaPath" : "security/grpc/ca/",
        "interNodeTlsCaFiles" : ["ca.pem"],
        "interNodeTlsCert" : "security/grpc/certs/server.pem",
        "interNodeTlsPk" : "security/grpc/keys/server.key.pem",
        "interNodeTlsPkPwd" : "security/grpc/pass/mindie_server_key_pwd.txt",
        "interNodeTlsCrlPath" : "security/grpc/certs/",
        "interNodeTlsCrlFiles" : ["server_crl.pem"],
        "interNodeKmcKsfMaster" : "tools/pmt/master/ksfa",
        "interNodeKmcKsfStandby" : "tools/pmt/standby/ksfb",
        "ModelDeployConfig" :
        {
            "maxSeqLen" : 32768,
            "maxInputTokenLen" : 32767,
            "truncation" : false,
            "ModelConfig" : [
                {
                    "modelInstanceType" : "Standard",
                    "modelName" : "qwen25_72b",
                    "modelWeightPath" : "/root/Qwen2.5-72B-Instruct",
                    "worldSize" : 8,
                    "cpuMemSize" : 10,
                    "npuMemSize" : -1,
                    "backendType" : "atb",
                    "trustRemoteCode" : false
                }
            ]
        },

        "ScheduleConfig" :
        {
            "templateType" : "Standard",
            "templateName" : "Standard_LLM",
            "cacheBlockSize" : 128,

            "maxPrefillBatchSize" : 50,
            "maxPrefillTokens" : 32768,
            "prefillTimeMsPerReq" : 150,
            "prefillPolicyType" : 0,

            "decodeTimeMsPerReq" : 50,
            "decodePolicyType" : 0,

            "maxBatchSize" : 200,
            "maxIterTimes" : 8192,
            "maxPreemptCount" : 0,
            "supportSelectBatch" : false,
            "maxQueueDelayMicroseconds" : 5000
        }
    }
}
