echart 折线图 双y轴 的option

记录一个echart 折线图 双y轴 的option

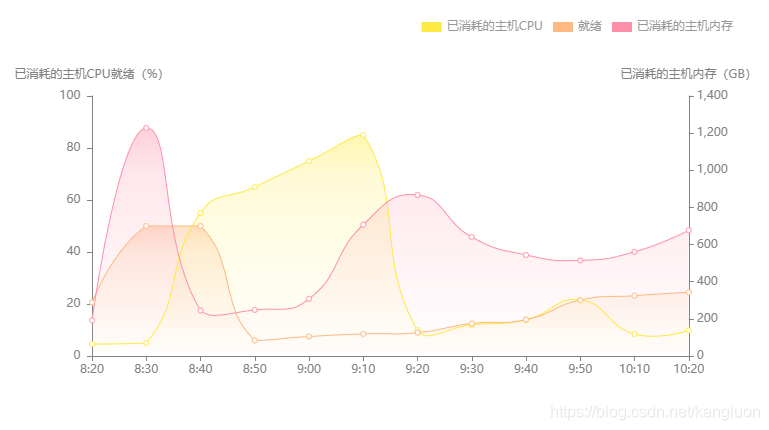

效果如图:

在这里插入图片描述

代码见下方:


        var category = ['8:20', '8:30', '8:40', '8:50', '9:00', '9:10', '9:20', '9:30', '9:40', '9:50', '10:10', '10:20']
        // var dottedBase = []
        var lineData = [192, 1228, 245, 248, 308, 707, 867, 641,
          544, 515, 561, 677]
        var barData = ['4.60', '5.00', '55.00', '65.00', '75.00', '85.00', '9.90', '12.00', '14.00', '21.50', '8.50', '9.90']
        var barData1 = ['20.60', '50.00', '50.00', '6.00', '7.50', '8.50', '9.00', '12.50', '14.00', '21.50', '23.20', '24.50']

        // option
        let option = {
          // title: {
          //   text: '过去一小时性能摘要',
          //   left: '20px',
          //   textStyle: {
          //     color: '#4b4b4b',
          //     fontSize: 16,
          //     fontWeight: '700'
          //   }
          // },
          tooltip: {
            trigger: 'axis',
            axisPointer: {
              label: {
                show: true,
                backgroundColor: '#7B7DDC'
              }
            },
            formatter: (parms) => {
              let str = `${parms[0].axisValue}</br>`
              parms.forEach(e => {
                if (e.seriesName === '已消耗的主机内存') {
                  str += `${e.marker}${e.seriesName}: ${e.value}GB</br>`
                } else {
                  str += `${e.marker}${e.seriesName}: ${e.value}%</br>`
                }
              })
              return str
            }
          },
          legend: {
            data: [ '已消耗的主机CPU', '就绪', '已消耗的主机内存' ],
            top: '0px',
            right: '20px',
            // type: '',
            itemWidth: 20,
            itemHeight: 10,
            icon: 'rect'
          },
          grid: {
            top: '80px',
            width: '80%',
            left: '80px'
          },
          xAxis: {
            data: category,
            axisLine: {
              lineStyle: {
                color: '#828282'
              }
            },
            axisTick: {
              show: true,
              lineStyle: {
                color: '#828282'
              }
            },
            splitLine: { show: false },
            axisLabel: {
              color: '#828282'
            },
            boundaryGap: false
          },
          yAxis: [{
            name: '已消耗的主机CPU就绪(%)',
            nameTextStyle: {
              color: '#828282'
            },
            splitLine: { show: false },
            axisLine: {
              lineStyle: {
                color: '#828282'
              }
            },
            axisTick: {
              show: true,
              lineStyle: {
                color: '#828282'
              }
            },
            axisLabel: {
              formatter: '{value} ',
              color: '#828282'
            }
          },
          {
            name: '已消耗的主机内存(GB)',
            nameTextStyle: {
              color: '#828282'
            },
            splitLine: { show: false },
            axisLine: {
              lineStyle: {
                color: '#828282'
              }
            },
            axisTick: {
              show: true,
              lineStyle: {
                color: '#828282'
              }
            },
            axisLabel: {
              formatter: '{value} ',
              color: '#828282'
            }
          }],
          series: [
            {
              name: '已消耗的主机CPU',
              type: 'line',
              smooth: true, // 平滑曲线
              showAllSymbol: true,
              // symbol: 'emptyCircle',
              // symbol: 'circle',
              symbolSize: 5,
              showSymbol: true,
              yAxisIndex: 0,
              itemStyle: {
                normal: {
                  color: '#fded33',
                  lineStyle: {
                    color: '#fded33',
                    width: 1
                  },
                  areaStyle: {
                    color: new echarts.graphic.LinearGradient(0, 1, 0, 0, [{
                      offset: 0,
                      color: 'rgba(253,237,51,0)'
                    }, {
                      offset: 0.8,
                      color: 'rgba(253,237,51,0.3)'
                    }, {
                      offset: 1,
                      color: 'rgba(253,237,51,0.6)'
                    }])
                  }
                }
              },
              data: barData
            },
            {
              name: '就绪',
              type: 'line',
              smooth: true, // 平滑曲线
              showAllSymbol: true,
              // symbol: 'emptyCircle',
              // symbol: 'circle',
              symbolSize: 5,
              showSymbol: true,
              yAxisIndex: 0,
              itemStyle: {
                normal: {
                  color: '#ffba7e',
                  lineStyle: {
                    color: '#ffba7e',
                    width: 1
                  },
                  areaStyle: {
                    // color: '#94C9EC'
                    color: new echarts.graphic.LinearGradient(0, 1, 0, 0, [{
                      offset: 0,
                      color: 'rgba(255,186,126,0)'
                    }, {
                      offset: 0.8,
                      color: 'rgba(255,186,126,0.3)'
                    }, {
                      offset: 1,
                      color: 'rgba(255,186,126,0.6)'
                    }])
                  }
                }
              },
              data: barData1
            },
            {
              name: '已消耗的主机内存',
              type: 'line',
              smooth: true, // 平滑曲线
              showAllSymbol: true,
              // symbol: 'emptyCircle',
              // symbol: 'circle',
              symbolSize: 5,
              showSymbol: true,
              yAxisIndex: 1,
              itemStyle: {
                normal: {
                  color: '#ff90a8',
                  lineStyle: {
                    color: '#ff90a8',
                    width: 1
                  },
                  areaStyle: {
                    // color: '#94C9EC'
                    color: new echarts.graphic.LinearGradient(0, 1, 0, 0, [{
                      offset: 0,
                      color: 'rgba(255,144,168,0)'
                    }, {
                      offset: 0.8,
                      color: 'rgba(255,144,168,0.3)'
                    }, {
                      offset: 1,
                      color: 'rgba(255,144,168,0.6)'
                    }])
                  }
                }
              },
              data: lineData
            }
          ]
        }
        this.dom1 = echarts.init(this.$refs.dom1, 'tdTheme')
        this.dom1.setOption(option)
