1. Kafka原理

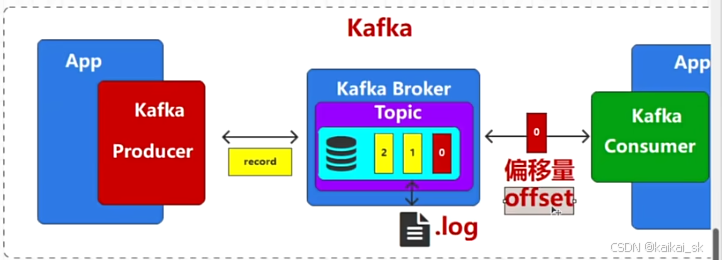

1.1 Kafka组件

在这里插入图片描述

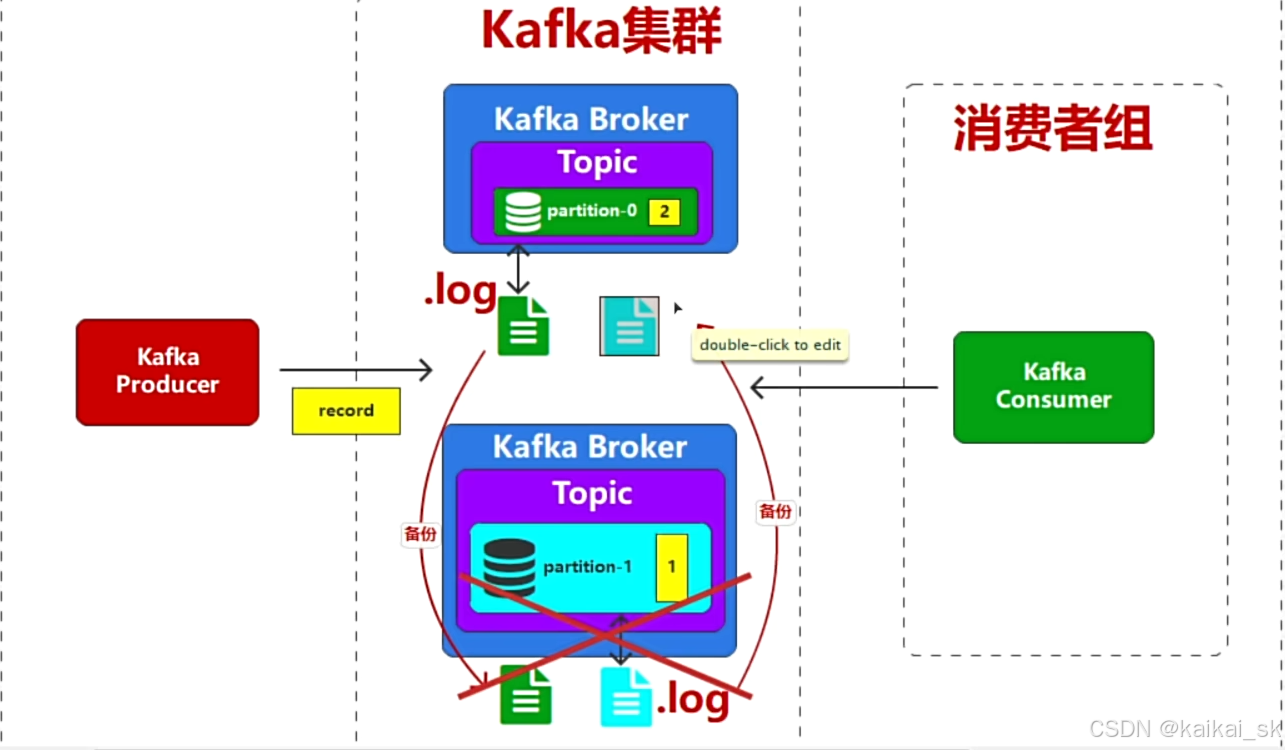

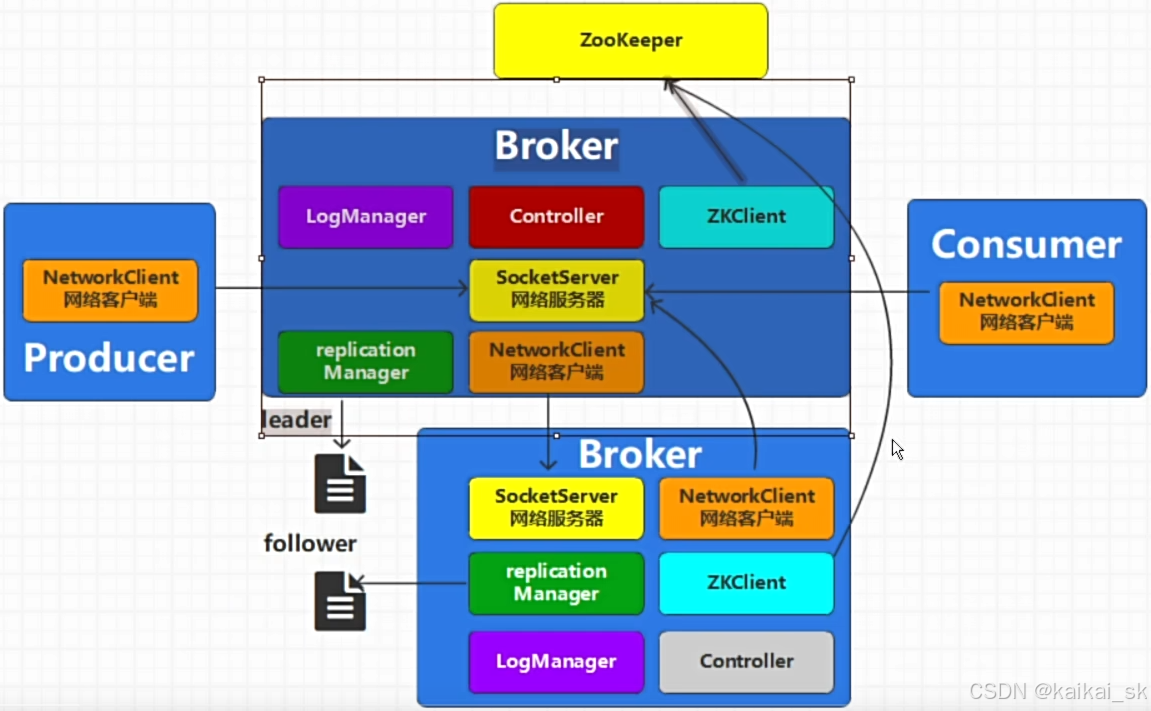

1.2 Kafka集群

在这里插入图片描述

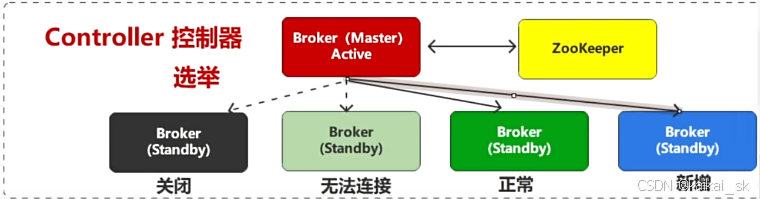

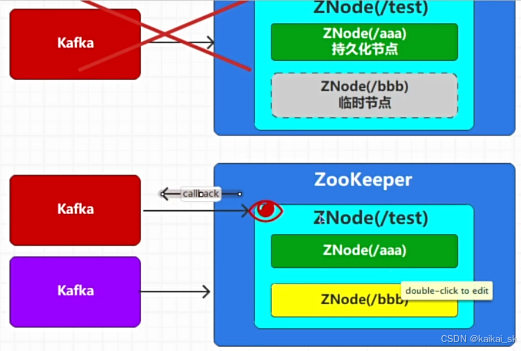

1.3 选举

在这里插入图片描述

1.4 Broker实现的功能

在这里插入图片描述

1.5 有了集群后的一些原理

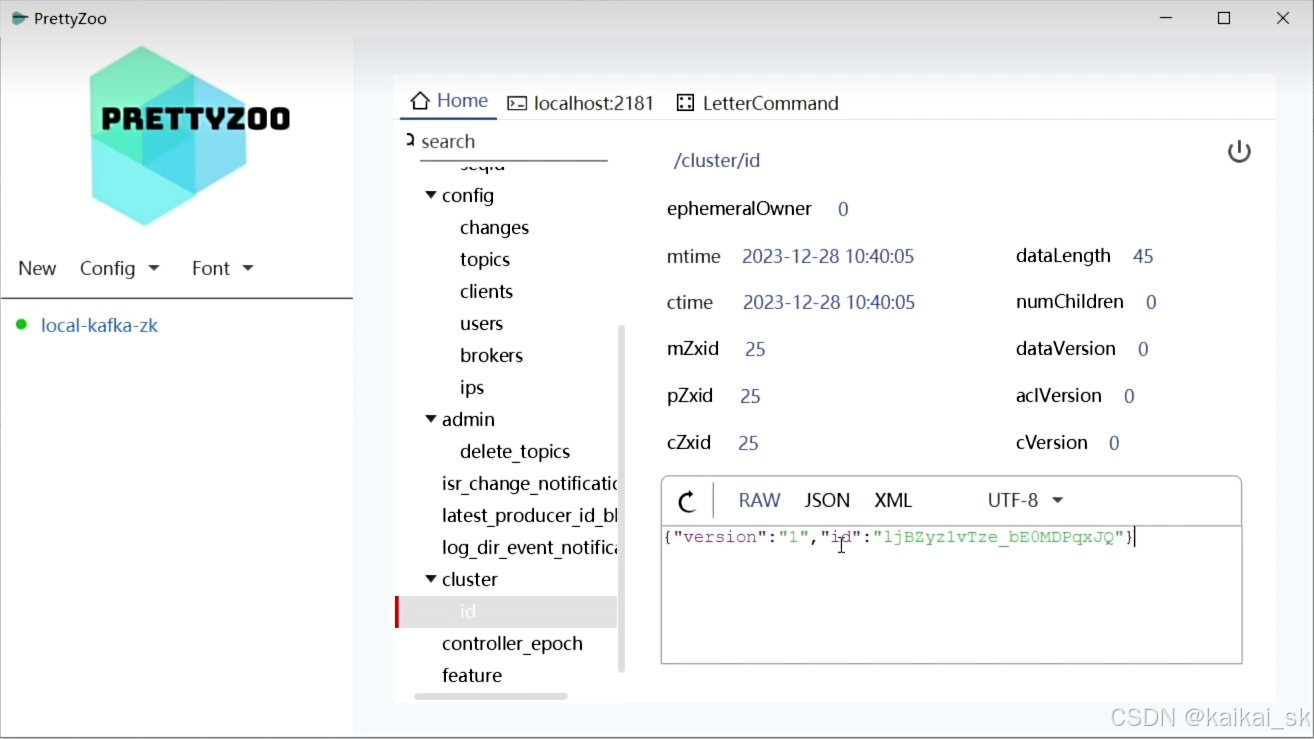

1.5.1 启动服务

在这里插入图片描述
在这里插入图片描述

1.5.2 创建主题

1.5.3 生产数据

1.5.4 消费数据

2. Kafka基础操作

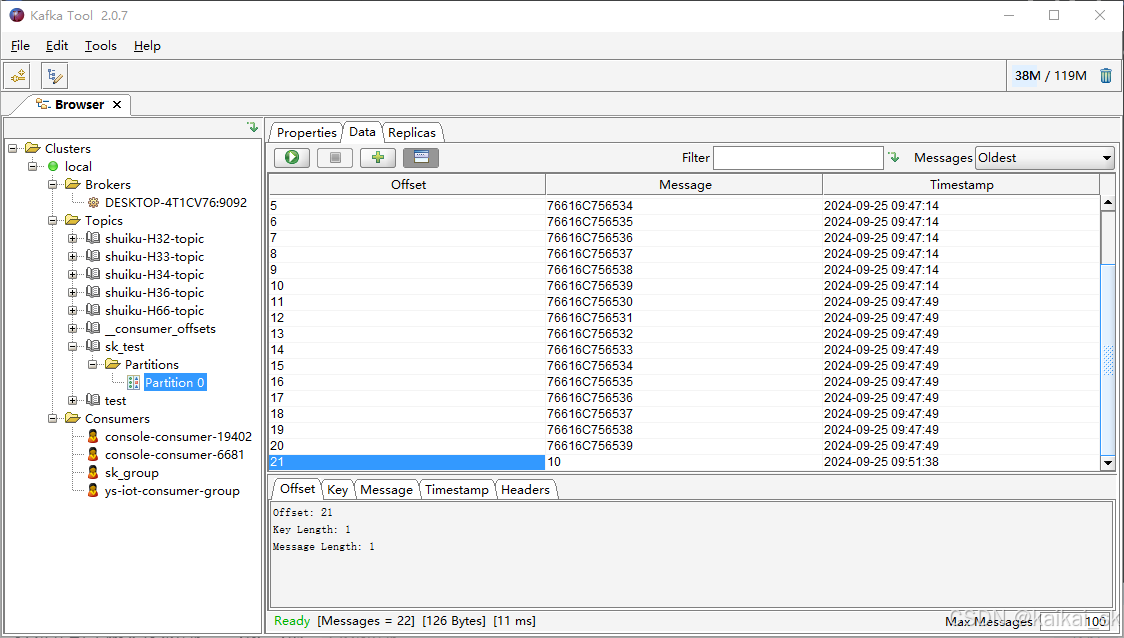

2.0 Kafka界面操作工具

在这里插入图片描述

2.1 topic相关操作

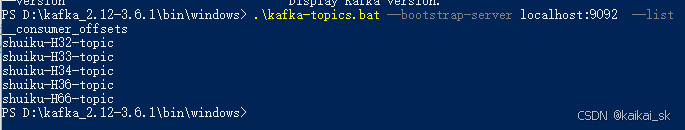

2.1.1 查看当前已有的topic

.\kafka-topics.bat --bootstrap-server localhost:9092  --list

在这里插入图片描述

2.1.2 创建topic

.\kafka-topics.bat --bootstrap-server localhost:9092 --topic sk_test --create

在这里插入图片描述

2.1.3 查看一个具体的topic

.\kafka-topics.bat --bootstrap-server localhost:9092 --topic sk_test --describe

在这里插入图片描述

2.1.4 修改topic

在这里插入图片描述

2.1.5 删除topic

在这里插入图片描述

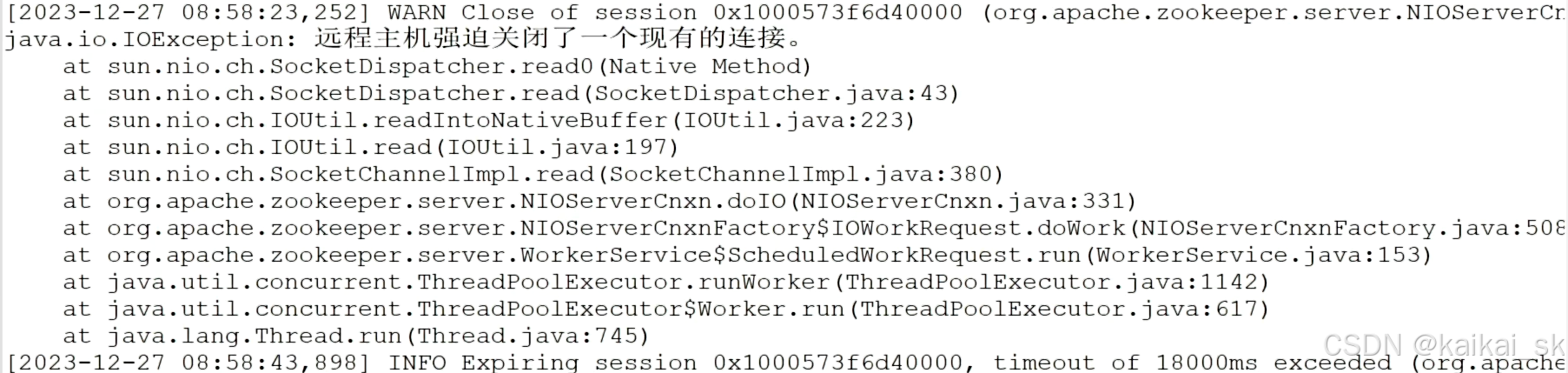

在windows系统上, 删除topic会存在一些问题,会强制关闭Kafka进行。 因此删除操作应该尽可能在Linux系统上面去操作完成。
在这里插入图片描述

2.1.6 查看每一个topic积压的数据

PS D:\kafka_2.12-3.6.1\bin\windows> .\kafka-consumer-groups.bat --bootstrap-server iotmq-node01:2909 --describe --group iot

GROUP           TOPIC                 PARTITION  CURRENT-OFFSET  LOG-END-OFFSET  LAG             CONSUMER-ID                                         HOST            CLIENT-ID
iot             shuiku-H34-topic      0          -               655103          -               consumer-iot-1-786bc4e3-8da8-4d77-9125-94822855f25c /64.97.209.75   consumer-iot-1
iot             shuiku-prod-H66-topic 0          4539328         4539328         0               consumer-iot-1-ffe66b70-c353-4d8b-b4da-ef3460d30ad4 /64.97.209.85   consumer-iot-1
iot             shuiku-prod-zc-topic  0          370             370             0               consumer-iot-2-415cc450-710b-4f60-a460-03e79f5fecce /64.97.209.85   consumer-iot-2
iot             shuiku-H32-topic      0          -               2311150         -               consumer-iot-4-67cd2688-4d25-4395-a119-babeee9ad247 /64.97.209.75   consumer-iot-4
iot             shuiku-H66-topic      0          -               1               -               consumer-iot-3-bc5c9c15-84ee-471f-a080-d3c428b7a4fb /64.97.209.75   consumer-iot-3
iot             shuiku-prod-H34-topic 0          49846792        49846793        1               consumer-iot-1-6738f854-055f-41fe-9d1e-cf980cbffdb3 /64.97.209.75   consumer-iot-1
iot             shuiku-H33-topic      0          -               4049756         -               consumer-iot-5-1513db72-7e1d-463b-a481-345513b46f33 /64.97.209.75   consumer-iot-5
iot             shuiku-prod-H36-topic 0          29259634        29259634        0               consumer-iot-1-45c18d08-1ad5-4954-acbb-52f9057e2128 /64.97.209.75   consumer-iot-1
iot             shuiku-prod-H33-topic 0          76083088        76083094        6               consumer-iot-4-440acb7a-c0db-4572-8a82-9d8df450be62 /64.97.209.85   consumer-iot-4
iot             shuiku-prod-H32-topic 0          174950529       175155866       205337          consumer-iot-3-bd8dee10-4388-4c82-bd2a-9e5abe87ec71 /64.97.209.85   consumer-iot-3
iot             shuiku-H36-topic      0          -               132537          -               consumer-iot-2-87363eb1-0179-4918-839c-11882e1c5570 /64.97.209.75   consumer-iot-2

2.1.7 查看某一个topic的实时数据

[root@slt-lt-paas11 bin]# ./kafka-console-consumer.sh --topic dujiatai-rainfall-prod-topic --bootstrap-server 10.10.2.112:10321
{"accumulatedPrecipitation":0.0,"alarm":0,"createdAt":1749717237,"createdUser":0,"createdUserName":"","currentPrecipitation":0.0,"dayPrecipitation":0.0,"deviceId":10152,"deviceName":"港洲外垸","fiveData":0.0,"hour_precipitation":null,"id":242999054,"mnNo":"4200220011","obDate":1749716700000,"obTime":"2506121625","receiveType":0,"sendType":51,"signal_quality":null,"stationId":7074,"stationName":"港洲外垸","status":1,"supplyVoltage":14.2,"updatedAt":0,"updatedUser":0,"updatedUserName":"","waterLevel":-30.0,"waterLevelReal":0.0}
{"accumulatedPrecipitation":0.0,"alarm":0,"createdAt":1749717209,"createdUser":0,"createdUserName":"","currentPrecipitation":0.0,"dayPrecipitation":0.0,"deviceId":6173,"deviceName":"702号闸(闸后)","fiveData":0.0,"hour_precipitation":null,"id":242998988,"mnNo":"4200016102","obDate":1749716700000,"obTime":"2506121625","receiveType":0,"sendType":51,"signal_quality":null,"stationId":7018,"stationName":"702号闸","status":1,"supplyVoltage":13.5,"updatedAt":0,"updatedUser":0,"updatedUserName":"","waterLevel":-30.0,"waterLevelReal":0.0}
{"accumulatedPrecipitation":0.0,"alarm":0,"createdAt":1749717164,"createdUser":0,"createdUserName":"","currentPrecipitation":0.0,"dayPrecipitation":0.0,"deviceId":10156,"deviceName":"香城垸","fiveData":0.0,"hour_precipitation":null,"id":242998862,"mnNo":"4200220015","obDate":1749716700000,"obTime":"2506121625","receiveType":0,"sendType":51,"signal_quality":null,"stationId":7078,"stationName":"香城垸","status":1,"supplyVoltage":13.7,"updatedAt":0,"updatedUser":0,"updatedUserName":"","waterLevel":-30.0,"waterLevelReal":0.0}
{"accumulatedPrecipitation":0.0,"alarm":0,"createdAt":1749717129,"createdUser":0,"createdUserName":"","currentPrecipitation":0.0,"dayPrecipitation":0.0,"deviceId":6175,"deviceName":"南屏闸(闸后)","fiveData":0.0,"hour_precipitation":null,"id":242998795,"mnNo":"4200016105","obDate":1749717000000,"obTime":"2506121630","receiveType":0,"sendType":51,"signal_quality":null,"stationId":7021,"stationName":"南屏闸","status":1,"supplyVoltage":14.0,"updatedAt":0,"updatedUser":0,"updatedUserName":"","waterLevel":-30.0,"waterLevelReal":0.0}
{"accumulatedPrecipitation":0.0,"alarm":0,"createdAt":1749717097,"createdUser":0,"createdUserName":"","currentPrecipitation":0.0,"dayPrecipitation":0.0,"deviceId":10152,"deviceName":"港洲外垸","fiveData":0.0,"hour_precipitation":null,"id":242998732,"mnNo":"4200220011","obDate":1749717000000,"obTime":"2506121630","receiveType":0,"sendType":51,"signal_quality":null,"stationId":7074,"stationName":"港洲外垸","status":1,"supplyVoltage":14.2,"updatedAt":0,"updatedUser":0,"updatedUserName":"","waterLevel":-30.0,"waterLevelReal":0.0}
{"accumulatedPrecipitation":0.0,"alarm":0,"createdAt":1749717092,"createdUser":0,"createdUserName":"","currentPrecipitation":0.0,"dayPrecipitation":0.0,"deviceId":10158,"deviceName":"荒五里垸","fiveData":0.0,"hour_precipitation":null,"id":242998723,"mnNo":"4200220017","obDate":1749717000000,"obTime":"2506121630","receiveType":0,"sendType":51,"signal_quality":null,"stationId":7080,"stationName":"荒五里垸","status":1,"supplyVoltage":13.6,"updatedAt":0,"updatedUser":0,"updatedUserName":"","waterLevel":-30.0,"waterLevelReal":0.0}
{"accumulatedPrecipitation":0.0,"alarm":0,"createdAt":1749717068,"createdUser":0,"createdUserName":"","currentPrecipitation":0.0,"dayPrecipitation":0.0,"deviceId":10142,"deviceName":"新农垸","fiveData":0.0,"hour_precipitation":null,"id":242998658,"mnNo":"4200220001","obDate":1749717000000,"obTime":"2506121630","receiveType":0,"sendType":51,"signal_quality":null,"stationId":7064,"stationName":"新农垸","status":1,"supplyVoltage":14.1,"updatedAt":0,"updatedUser":0,"updatedUserName":"","waterLevel":-30.0,"waterLevelReal":0.0}
{"accumulatedPrecipitation":0.0,"alarm":0,"createdAt":1749717059,"createdUser":0,"createdUserName":"","currentPrecipitation":0.0,"dayPrecipitation":0.0,"deviceId":6173,"deviceName":"702号闸(闸后)","fiveData":0.0,"hour_precipitation":null,"id":242998612,"mnNo":"4200016102","obDate":1749717000000,"obTime":"2506121630","receiveType":0,"sendType":51,"signal_quality":null,"stationId":7018,"stationName":"702号闸","status":1,"supplyVoltage":13.5,"updatedAt":0,"updatedUser":0,"updatedUserName":"","waterLevel":-30.0,"waterLevelReal":0.0}
{"accumulatedPrecipitation":0.0,"alarm":0,"createdAt":1749717023,"createdUser":0,"createdUserName":"","currentPrecipitation":0.0,"dayPrecipitation":0.0,"deviceId":10156,"deviceName":"香城垸","fiveData":0.0,"hour_precipitation":null,"id":242997958,"mnNo":"4200220015","obDate":1749717000000,"obTime":"2506121630","receiveType":0,"sendType":51,"signal_quality":null,"stationId":7078,"stationName":"香城垸","status":1,"supplyVoltage":13.7,"updatedAt":0,"updatedUser":0,"updatedUserName":"","waterLevel":-30.0,"waterLevelReal":0.0}

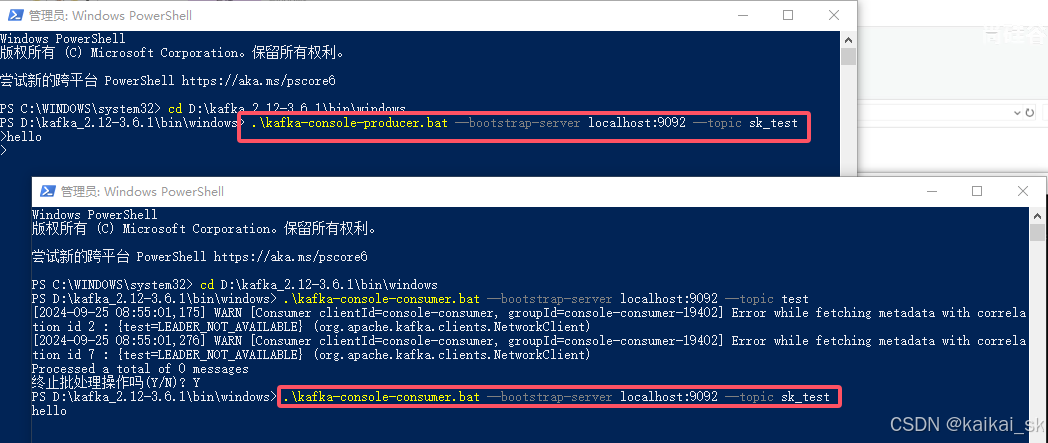

2.2 生产者-消费者

生产者

 .\kafka-console-producer.bat --bootstrap-server localhost:9092 --topic sk_test

消费者

 .\kafka-console-consumer.bat --bootstrap-server localhost:9092 --topic sk_test

在这里插入图片描述

2.2.1 Java代码实现生产者和消费者

2.2.1.1 生产者
package org.example.producer;

import org.apache.kafka.clients.producer.KafkaProducer;
import org.apache.kafka.clients.producer.ProducerConfig;
import org.apache.kafka.clients.producer.ProducerRecord;
import org.apache.kafka.common.serialization.StringSerializer;

import java.util.HashMap;
import java.util.Map;
import java.util.Objects;

public class KafkaProducerClient {
    public static void main(String[] args) {
        // 1. 创建生产者对象
        Map<String, Object> configMap = new HashMap<>();
        configMap.put(ProducerConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
        configMap.put(ProducerConfig.KEY_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());
        configMap.put(ProducerConfig.VALUE_SERIALIZER_CLASS_CONFIG, StringSerializer.class.getName());
        KafkaProducer<String, String> producer = new KafkaProducer<>(configMap);
//        // 2. 创建数据
//        ProducerRecord<String, String> record = new ProducerRecord<>("sk_test", "key", "value");
//        // 3. 通过生产者对象将数据发送到Kafka
//        producer.send(record);
        for (int i = 0; i < 10; i++) {
            ProducerRecord<String, String> record = new ProducerRecord<>("sk_test", "key" + i, "value" + i);
            producer.send(record);
        }

        // 4. 关闭生产者对象
        producer.close();
    }
}

2.2.1.2 消费者
package org.example.consumer;

import org.apache.kafka.clients.consumer.ConsumerConfig;
import org.apache.kafka.clients.consumer.ConsumerRecord;
import org.apache.kafka.clients.consumer.ConsumerRecords;
import org.apache.kafka.clients.consumer.KafkaConsumer;
import org.apache.kafka.common.serialization.StringDeserializer;

import java.util.Collections;
import java.util.HashMap;
import java.util.Map;

public class KafkaConsumerClient {
    public static void main(String[] args) {
        // 1. 创建消费者对象
        Map<String, Object> consumerConfig = new HashMap<>();
        consumerConfig.put(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, "localhost:9092");
        consumerConfig.put(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class.getName());
        consumerConfig.put(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class.getName());
        consumerConfig.put(ConsumerConfig.GROUP_ID_CONFIG, "sk_group");

        KafkaConsumer<String, String> kafkaConsumer = new KafkaConsumer<>(consumerConfig);
        kafkaConsumer.subscribe(Collections.singletonList("sk_test"));

        // 2. 从Kafka的主题中获取对象
//        ConsumerRecords<String, String> records = kafkaConsumer.poll(100);
//        for (ConsumerRecord record : records) {
//            System.out.println(record);
//        }

        while(true) {
            final ConsumerRecords<String, String> records = kafkaConsumer.poll(100);
            for (ConsumerRecord record : records) {
                System.out.println(record);
            }
        }

        // 3. 关闭消费者对象
        //kafkaConsumer.close();
    }
}

2 Borker的基本模块

2.1 SocketServer

SocketServer主要包括:
(1)Acceptor:主要用于监听socket连接
(2)Processor:主要用于转发Socket的请求和响应
(3)RequestChannel:主要用于缓存Socket的请求和响应

2.1.1 Acceptor的初始化过程:

(1)开启socket服务
(2)注册Accept事件
(3)监听此ServerChannel上的ACCEPT事件,当其发生时,将以轮询的方式把对应的SocketChannel转交给Processor处理线程

2.1.2 Processor的初始化过程:

(1)当有新的SocketChannel对象进来的时候,注册其上的OP_READ事件以便接收客户端的请求
(2)从RequestChannel中的响应队列获取对应客户端请求的响应,然后产生OP_WRITE事件。
(3)监听selector上的事件。
如果是读事件,说明有新的request到来,需要转移给RequestChannel的请求队列;
如果是写事件,说明之前的request已经处理完毕,需要从RequestChannel的响应队列中获取响应并发送回客户端;
如果是关闭事件,说明客户端已经关闭了该Socket连接,此时服务端也应该释放响应的资源。

2.1.3 RequestChannel

RequestChannel内部包含1个Request阻塞队列和numProcessors(默认为3个)个Response阻塞队列。

Processor线程通过监听OP_READ事件将Request转移到RequestChannel内部的Request阻塞队列。KafKaRequestHandlerPool内部的KafkaRequestHandler线程从RequestChannel内部的Request阻塞队列中取出Request进行处理,然后将对应的Response放回至RequestChannel内部的Response阻塞队列,并触发Processor线程监听的OP_WRITE事件,最后由Processor线程将Response发送至客户端。

2.2 KafkaRequestHandlerPool

本质就是一个线程池。

KafkaRequestHandlerPool在内部启动了若干KafkaRequestHandler处理线程,并将RequestChannel对象和KafkaApis对象传递给了KafkaRequestHandler处理线程,应为KafkaRequestHandler需要从前者的requestQueue中取出Request,并且要利用后者完成具体的业务逻辑。

KafkaRequestHandler的主要步骤如下:
(1)调用requestChannel.receiveReuqest从RequestChannel的Request阻塞队列中获取请求,如果获取不到,则一直在while循环中不断尝试,直至获取到新的请求为止。
(2)判断请求的类型:
如果是RequestChannel.AllDone类型的话,则退出线程;
否则调用apis完成请求的处理,并由apis负责将对应的响应放入reqeustChannel的Response阻塞队列

因此,SocketServer的Processor线程和KafkaRequestHandlerPool的KafkaRequestHandler线程利用SocketServer 的RequestChannel实现了一个简单的生产者消费者模型。

2.3 KafkaApis

KafkaApis负责具体的业务逻辑。

KafkaApis主要依赖以下四个组建完成具体的业务逻辑:
(1)LogManager:日志的读取和写入
(2)ReplicaManager:Topic的分区副本的同步功能
(3)OffsetManager:便宜量的管理功能
(4)KafkaScheduler:定时任务的调度和管理功能

2.3.1 LogManager

2.3.1.1 Kafka的日志组成

LogManager利用logs来管理Broker Server内部的日志。
private val logs = new Pool[TopicAndPartition,log]()
通过TopicAndPartition来索引不同Topic的不同Patition数据。

Log利用segments来管理Partition数据,里面包含多个日志段,即LogSegment。

2.3.1.2 Kafka的消息读取

(1)根据startOffset定位位于哪个LogSegment。segments的数据结构为ConcurrentSkipListMap(是跳表数据机构)
(2)读数据
<1> 通过startOffset找到位于log中的具体的物理位置,以字节为单位
<1.1> 通过二分法找到小于等于startOffset的最近索引记录位置
<1.2> 打开log文件,返回真实的物理偏移量
<2> 组装offset元数据信息
<3> 如果设置了maxOffset,则根据其具体值计算实际需要读取的字节数
<4> 通过FileMessageSet提供的指定物理便宜量和长度的read方法读取相应的数据

2.3.1.3 LogManager的启动

(1)初始化logs
Broker Server的每个日志目录下都有一个recovery-point-offset-checkpoint文件。这个文件记录了该目录下所有日志文件的状态,即TopicAndPartition和Offset的对应关系。通过这个文件来初始化logs,也就是PoolTopicAndPartition,Log对象。

(2)开启后台定时任务和维护线程
<1> cleanupLogs:负责删除过时的和冗余的数据
删除数据的最小单位是LogSegment。Kafka通过配置时间和大小来实现消息的循环覆盖功能。
<2> flushDirtyLogs:定时刷新脏数据,刷新数据的最小单位是LogSegment(LogSegment里面包含数据文件和索引文件)
<3>checkpointRecoveryPointOffsets:定时刷新logs包含的元数据至recovery-point-offset-checkpoint文件,即TopicAndPartition和偏移量。

2.3.2 ReplicaManager

AR(Assign Repicas):已经分配给Patition的副本
ISR(In-Sync Replicas):处于同步状态的副本

ReplicaFetcherThread(数据副本拉取线程)是位于Broker Server上的线程。单个ReplicaFetcherThread只负责某个Broker Server上的部分TopicAndPartition的Replica的同步,单个ReplicaFetcherThread不会负责跨多个Broker Server上的TopicAndPartition的Replica同步。

HighWatermark(高水位线):本质上代表的是ISR中所有replicas的last commited message的最小起始便宜量,即在这偏移之前的数据都被ISR中的replicas接收,但是在这偏移之后的数据被ISR中的部分replicas所接收。

becomeLeaderOrFollower处理流程

当Broker Server被分配Replica的时候,该Replica有可能成为Leader状态的Replica或者Follower的状态的Replica,也有可能发生两者之间的切换,此时就会进入becomeLeaderOrFollower处理流程。

(1)判断request的时效性,如果request的内部时钟小于当前的时钟,则这条request就已经过时了。
(2)如果当前的leader时钟小于请求的leader时钟,则说明当前的状态是有效的
(3) 筛选出Broker Server上即将成为Leader 的Replica
(4) 筛选出该Broker Server上即将成为Follower 的Replica
(5) 进入成为Leader的流程;
进入成为Follwer的流程;
(6) 开启highwatermark-checkpoint线程,该线程负责将HighWatermark刷新
(7) 关闭空闲的Fetch线程。

makeLeaders:成为Leader的流程
(1) 如果是leader的话,删除针对该Replica的Fetch请求
(2) 尝试生成AR(assign replicas)的结构化信息,不存在则生成,存在则获取
(3) 删除已经不存在的Replica
(4) 初始化Leader状态的Replica的LogOffsetMetadata;
初始化Follower状态的Replica的LogOffsetMetadata;
(5) 初始化Leader状态的Replica的和Watermark

makeFollowers:

5 Kafka优化

5.1 资源配置

5.1.1 操作系统

Kafka网络客户端底层使用Java NIO的Selector方式。 Selector在Linux的实现是epoll,在Windows上的实现机制是select。因此Kafka部署在Linux上会有更高的性能。

数据在磁盘和网络上进行传输时,Linux可以通过零拷贝机制提升性能,而Windows会在一定程度上使用零拷贝机制。

综上,建议Kafka部署在Linux系统上。

5.1.2 硬盘选择

Kafka的IO位顺序读写的IO。此种IO下,磁盘和固态盘没有很大的性能差异。

Kafka自身已经具有冗余机制,并且通过分区的设计实现了负载均衡的功能。因此磁盘无需做RAID阵列。

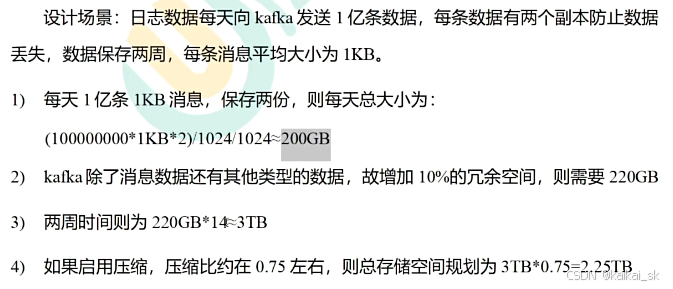

5.1.2.1 磁盘空间需求估算

在这里插入图片描述

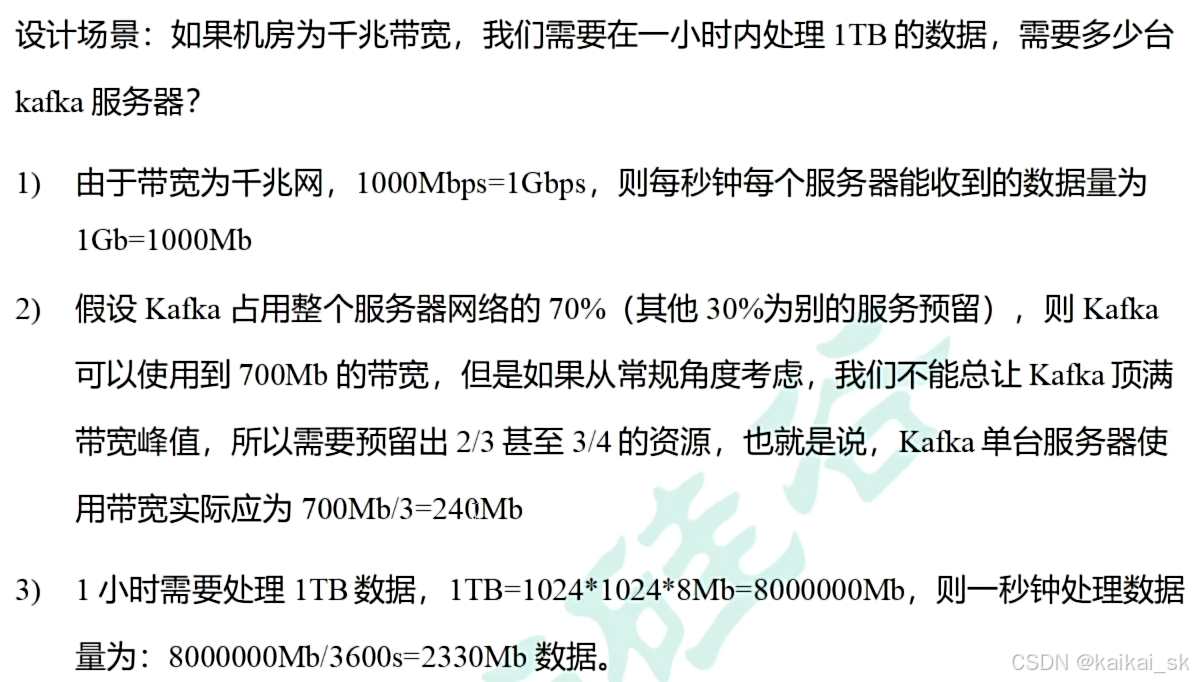

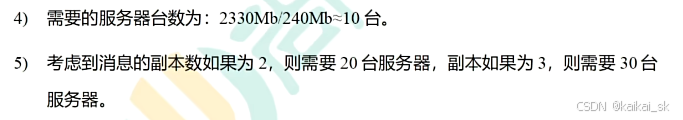

5.1.3 网络带宽

在这里插入图片描述
在这里插入图片描述

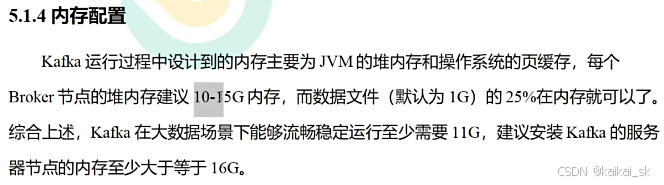

5.1.4 内存配置

在这里插入图片描述

5.1.5 CPU选择

在这里插入图片描述

5.2 集群容错

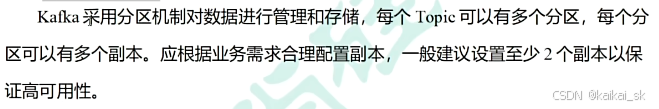

5.2.1 副本分配策略

在这里插入图片描述

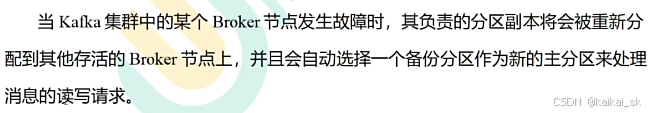

5.2.2 故障转移方案

在这里插入图片描述

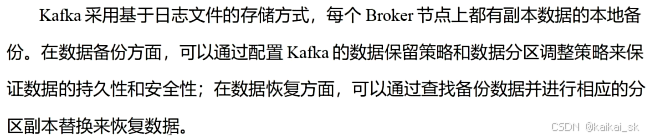

5.2.3 数据备份与恢复

在这里插入图片描述

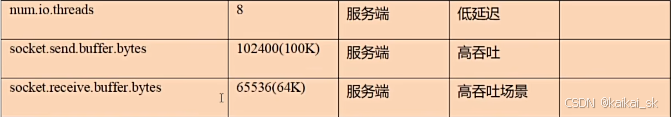

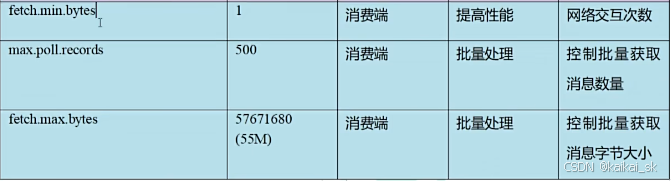

5.3 参数配置优化

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

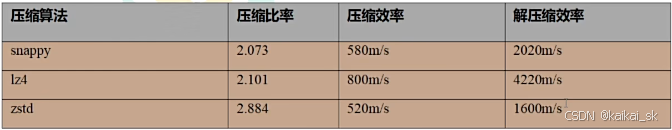

5.4 数据压缩和批量发送

在这里插入图片描述
在这里插入图片描述

6 Kafka常见问题

6.1 Kafka有哪些组件
