1. 需求

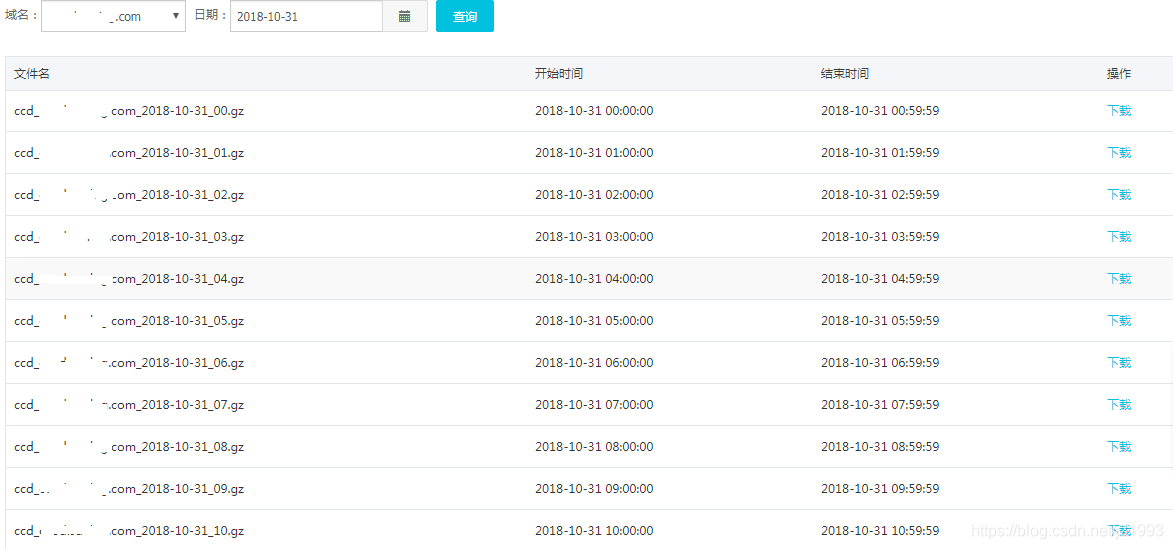

用户上报日志到多台日志收集服务器，日志落在不同的服务器上，flume扫描日志存储到hdfs,现在要根据日期按照域名、hour汇总数据压缩提供下载查看功能。形如：

ggggggg

https://www.cnblogs.com/mstk/p/6980212.html flume入hdfs (尚未尝试过，看起来很牛逼)

2.调研：

1> flink实时分析日志流存储hdfs,oss等系统。

平台暂时没有flink直接操作hdfs 案例。

存储oss系统首先需要生成一个临时文件，flink不支持。

2> flume存储hdfs，通过hive离线分析。
在1w个域名情况下，hive分区较多支持不了。且域名事先不能够确定。

3> kafka流入hdfs直接存储数据到相应目录功能。

Kafka流入hdfs的操作暂时是固定的不能根据流数据生成域名等信息。

4>spark sql离线分析到hive

会遇到hive建表分区的问题。

5>hbase存储使用

Hbase不支持对外访问。

6>使用mapreduce分析数据

-----

3.应用：

MapReduce离线分析。

package com.**.**.mr.job;

import java.util.Date;
import java.io.IOException;
import java.text.SimpleDateFormat;
import com.alibaba.fastjson.JSON;
import lombok.extern.slf4j.Slf4j;
import org.apache.hadoop.io.Text;
import com.suning.pcdnas.mr.model.GatherInfo;
import org.apache.hadoop.mapreduce.Mapper;
import org.apache.hadoop.mapreduce.Reducer;
import org.apache.hadoop.mapreduce.lib.output.MultipleOutputs;

/**
 * Created by 76033532
 * 2018/11/1.
 */
@Slf4j
public class MultiOutMR {

    /**
     * 4个泛型中，前两个是指定mapper输入数据的类型，KEYIN是输入的key的类型，VALUEIN是输入的value的类型
     */
    public static class MultiOutMapper extends Mapper<Object, Text, Text, Text> {

        /**
         * 日期格式工具
         */
        private  SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd_HH");
        /**
         * 输出key
         */
        private Text outKey = new Text();

        @Override
        protected void map(Object key, Text value, Context context) throws IOException, InterruptedException {
            String peerLog = value.toString().trim();
            GatherInfo gatherInfo = JSON.parseObject(peerLog, GatherInfo.class);
            outKey.set(gatherInfo.getDomainName() + "," + sdf.format(new Date(gatherInfo.getSubmitTime())));
            context.write(outKey, value);
        }
    }


    /**
     * 经过mapper处理后的数据会被reducer拉取过来，所以reducer的KEYIN、VALUEIN和mapper的KEYOUT、VALUEOUT一致
     */
    public static class MultiOutReducer extends Reducer<Text, Text, Text, Text> {

        private MultipleOutputs outputs;

        @Override
        protected void setup(Context context) throws IOException, InterruptedException {
            outputs = new MultipleOutputs(context);
        }

        @Override
        protected void reduce(Text key, Iterable<Text> values, Context context) throws IOException, InterruptedException {
            String keyVal = key.toString().trim();
            String[] arrs = keyVal.split(",");
            String domainName = "all";
            if(arrs.length == 2){
                domainName = arrs[0];
            }
            for (Text value : values) {
                /**
                 * 指定写出不同文件的数据
                 */
                outputs.write("MOSText", key, value, domainName + "/" + keyVal.replaceAll(",","_"));
            }
        }

        @Override
        protected void cleanup(Context context) throws IOException, InterruptedException {
            outputs.close();
            super.cleanup(context);
        }
    }
}

package com.**.**.mr.job;

import com.**.**.mr.text.MyTextOutputFormat;
import lombok.extern.slf4j.Slf4j;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.conf.Configured;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.io.NullWritable;
import org.apache.hadoop.io.compress.GzipCodec;
import org.apache.hadoop.mapreduce.lib.input.TextInputFormat;
import org.apache.hadoop.mapreduce.lib.output.LazyOutputFormat;
import org.apache.hadoop.mapreduce.lib.output.MultipleOutputs;
import org.apache.hadoop.mapreduce.lib.output.TextOutputFormat;
import org.apache.hadoop.util.GenericOptionsParser;
import org.apache.hadoop.util.Tool;
import org.apache.hadoop.util.ToolRunner;
import org.apache.hadoop.mapreduce.Job;
import org.apache.hadoop.io.Text;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;

/**
 * Created by 76033532
 * 2018/11/1.
 */
@Slf4j
public class Driver extends Configured implements Tool {

    @Override
    public int run(String[] strings) throws Exception {
        Configuration conf = getConf();
        Job job = Job.getInstance(conf, Driver.class.getName());
        job.setJarByClass(Driver.class);
        job.setMapperClass(MultiOutMR.MultiOutMapper.class);
        job.setMapOutputKeyClass(Text.class);
        job.setMapOutputValueClass(Text.class);
        job.setReducerClass(MultiOutMR.MultiOutReducer.class);

        MultipleOutputs.addNamedOutput(job,"MOSText",MyTextOutputFormat.class,NullWritable.class,Text.class);

        job.setInputFormatClass(TextInputFormat.class);
        /**
         * 取消part-r-00000新式文件输出
         */
        LazyOutputFormat.setOutputFormatClass(job,MyTextOutputFormat.class);

        FileInputFormat.addInputPath(job, new Path(strings[0]));

        Path outputPath = new Path(strings[1]);
//        FileSystem fs = FileSystem.get(job.getConfiguration());
//        if(fs.exists(outputPath)) fs.delete(outputPath,true);
        FileOutputFormat.setOutputPath(job, outputPath);


        /**
         * job使用压缩
         * 设置压缩格式
         */
        FileOutputFormat.setCompressOutput(job, true);
        FileOutputFormat.setOutputCompressorClass(job, GzipCodec.class);

        return job.waitForCompletion(true) ? 0 : 1;
    }

    public static void main(String[] args)throws Exception{
        args = "/user/pcdnas/peer/20181103/,/user/pcdnas/peer/output/20181103/".split(",");
        Configuration conf = new Configuration();
        String[] otherArgs = new GenericOptionsParser(conf, args).getRemainingArgs();
        if(otherArgs.length != 2){
            System.exit(1);
        }
        log.error("", args);
        System.exit(ToolRunner.run(conf, new Driver(), otherArgs));
    }
}

package com.**.**.mr.text;

import org.apache.hadoop.fs.Path;
import org.apache.hadoop.mapreduce.TaskAttemptContext;
import org.apache.hadoop.mapreduce.lib.output.FileOutputCommitter;
import org.apache.hadoop.mapreduce.lib.output.TextOutputFormat;
import java.io.IOException;

/**
 * Created by 76033532
 * 2018/11/4.
 */
public class MyTextOutputFormat extends TextOutputFormat {
    @Override
    public Path getDefaultWorkFile(TaskAttemptContext context, String extension) throws IOException {
        FileOutputCommitter committer = (FileOutputCommitter) getOutputCommitter(context);
        return new Path(committer.getWorkPath(), getOutputName(context) + extension);
    }
}

4.maven配置

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.**.pcdnas</groupId>
    <artifactId>pcdnas-mr</artifactId>
<version>0.0.1</version>



    <properties>
        <hadoop.version>2.6.1</hadoop.version>
        <maven.compiler.source>1.7</maven.compiler.source>
        <maven.compiler.target>1.7</maven.compiler.target>
    </properties>

    <dependencies>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-common</artifactId>
            <version>${hadoop.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-hdfs</artifactId>
            <version>${hadoop.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-client</artifactId>
            <version>${hadoop.version}</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
        </dependency>
    </dependencies>


    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-assembly-plugin</artifactId>
                <version>2.4.1</version>
                <configuration>
                    <descriptorRefs>
                        <descriptorRef>jar-with-dependencies</descriptorRef>
                    </descriptorRefs>
                    <archive>
                        <manifest>
                            <mainClass>com.**.**.mr.job.Driver</mainClass>
                        </manifest>
                    </archive>
                </configuration>
                <executions>
                    <execution>
                        <id>make-assembly</id>
                        <phase>package</phase>
                        <goals>
                            <goal>single</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>${maven.compiler.source}</source>
                    <target>${maven.compiler.target}</target>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

gggggggg
