OpenCV-直方图比较

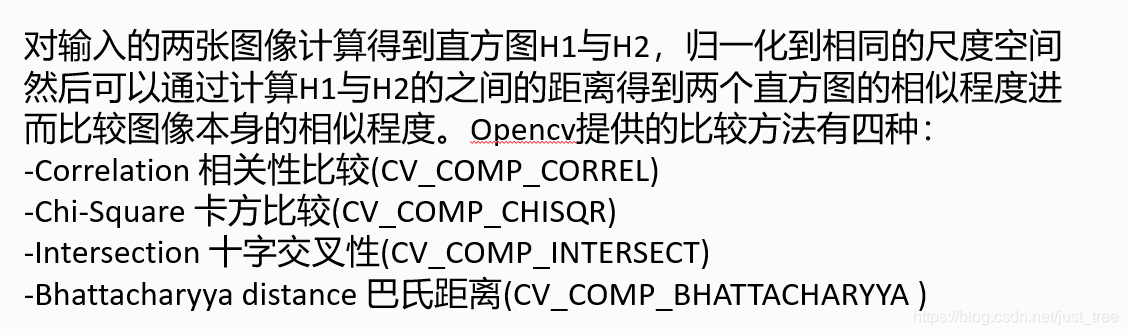

概念

方法

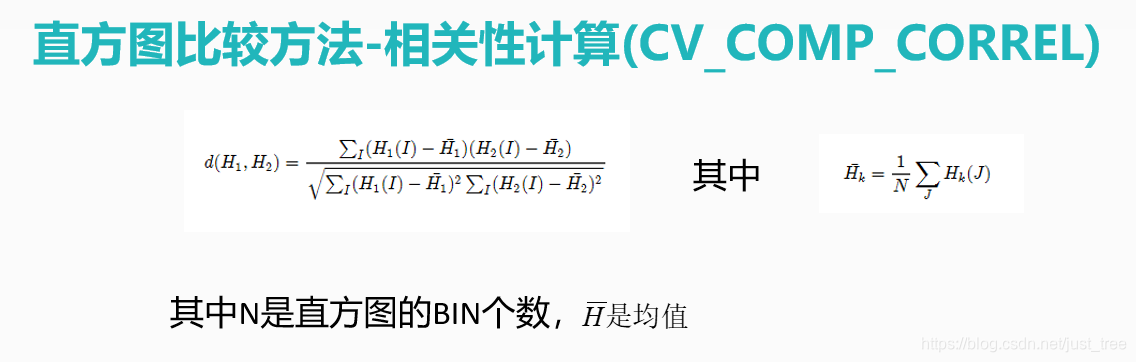

1.越接近1约相似

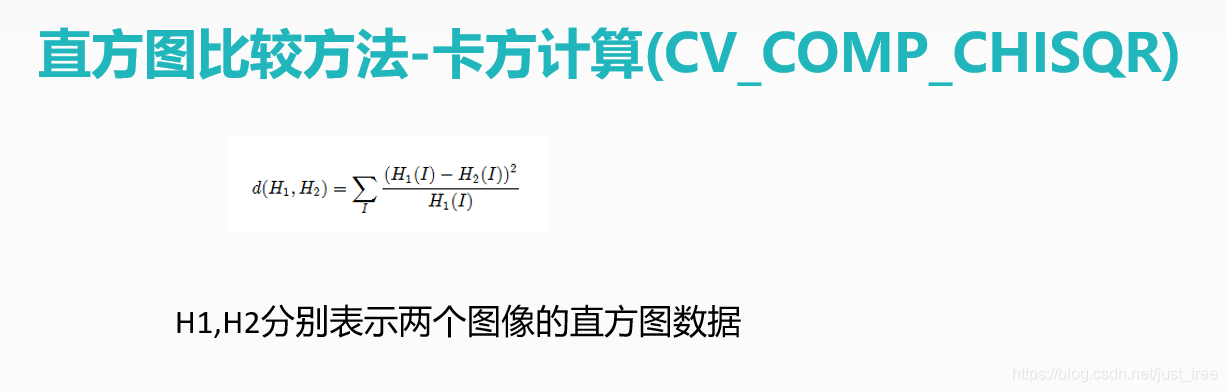

2.越小越相似

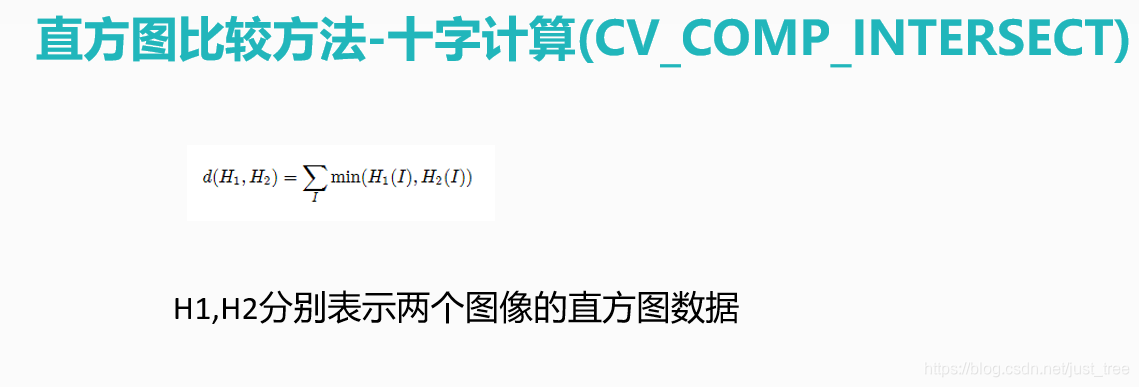

3.

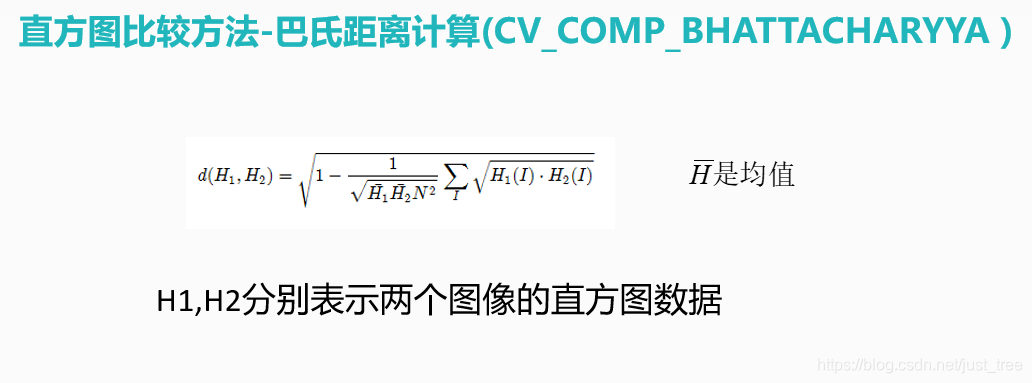

4.

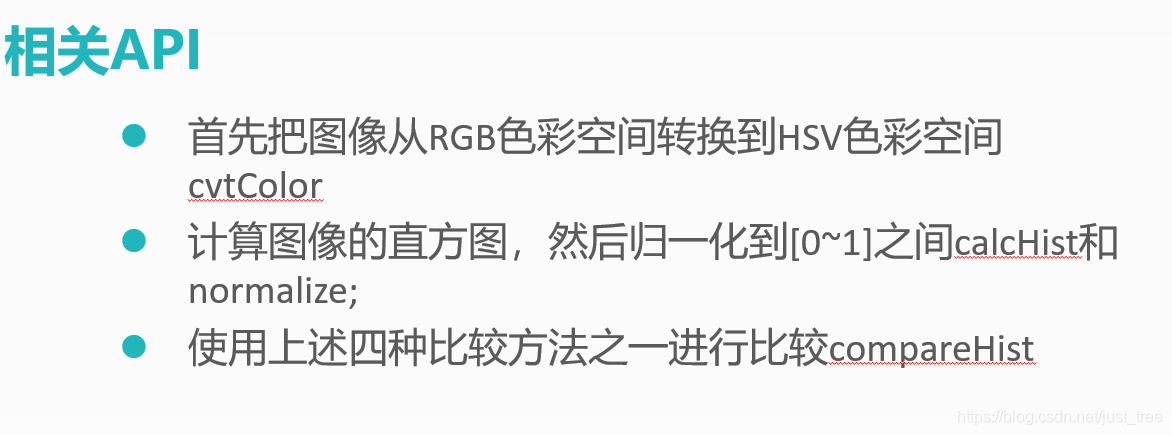

过程：

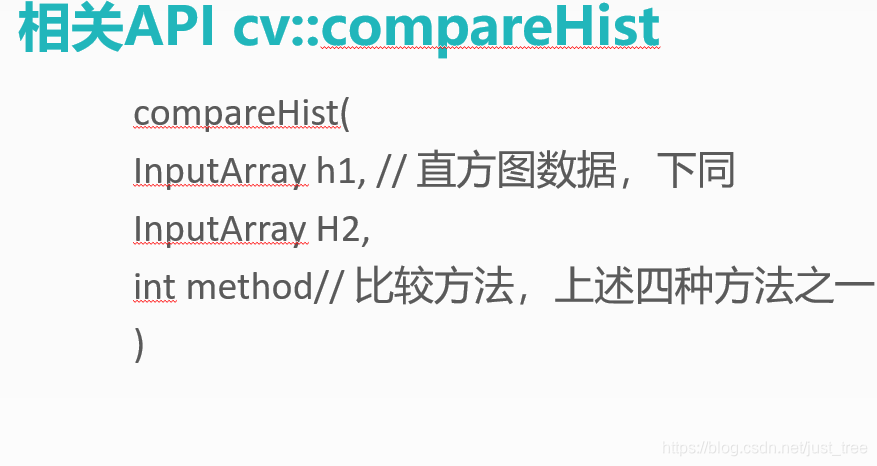

API

#include <opencv2/opencv.hpp>
#include <iostream>
#include <math.h>
#include <opencv2/highgui/highgui.hpp>

using namespace std;
using namespace cv;

string convertToString(double d);
int main(int argc, char** argv) {
	Mat base, test1, test2;
	Mat hsvbase, hsvtest1, hsvtest2;
	base = imread("E://VS-pro//images//1.jpg");
	if (!base.data) {
		printf("could not load image...\n");
		return -1;
	}
	test1 = imread("E://VS-pro//images//2.jpg");
	test2 = imread("E://VS-pro//images//3.jpg");

	//转换为HSV图像
	cvtColor(base, hsvbase, COLOR_BGR2HSV);
	cvtColor(test1, hsvtest1, COLOR_BGR2HSV);
	cvtColor(test2, hsvtest2, COLOR_BGR2HSV);

	int h_bins = 50; int s_bins = 60;
	int histSize[] = { h_bins, s_bins };

	// HSV - H    hue varies from 0 to 179, saturation from 0 to 255
	float h_ranges[] = { 0, 180 };//H的范围
	float s_ranges[] = { 0, 256 };//S的范围
	const float* ranges[] = { h_ranges, s_ranges };
	// Use the o-th and 1-st channels
	int channels[] = { 0, 1 };
	MatND hist_base;
	MatND hist_test1;
	MatND hist_test2;

	//计算归一化直方图
	calcHist(&hsvbase, 1, channels, Mat(), hist_base, 2, histSize, ranges, true, false);
	normalize(hist_base, hist_base, 0, 1, NORM_MINMAX, -1, Mat());

	calcHist(&hsvtest1, 1, channels, Mat(), hist_test1, 2, histSize, ranges, true, false);
	normalize(hist_test1, hist_test1, 0, 1, NORM_MINMAX, -1, Mat());

	calcHist(&hsvtest2, 1, channels, Mat(), hist_test2, 2, histSize, ranges, true, false);
	normalize(hist_test2, hist_test2, 0, 1, NORM_MINMAX, -1, Mat());

	//进行直方图结果比较
	double basebase = compareHist(hist_base, hist_base, HISTCMP_CORREL);
	double basetest1 = compareHist(hist_base, hist_test1, HISTCMP_CORREL);
	double basetest2 = compareHist(hist_base, hist_test2, HISTCMP_CORREL);
	double tes1test2 = compareHist(hist_test1, hist_test2, HISTCMP_CORREL);
	printf("test1 compare with test2 correlation value :%f", tes1test2);

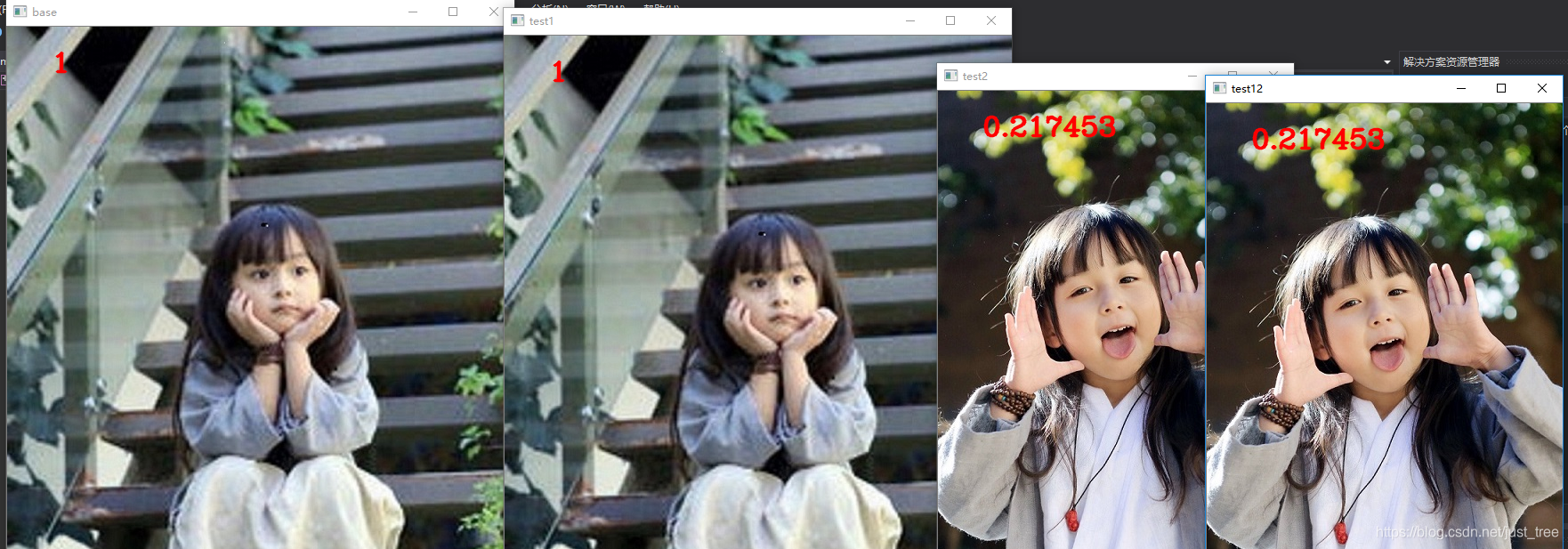

	//将数值打印在图片上面
	Mat test12;
	test2.copyTo(test12);
	putText(base, convertToString(basebase), Point(50, 50), FONT_HERSHEY_COMPLEX, 1, Scalar(0, 0, 255), 2, LINE_AA);
	putText(test1, convertToString(basetest1), Point(50, 50), FONT_HERSHEY_COMPLEX, 1, Scalar(0, 0, 255), 2, LINE_AA);
	putText(test2, convertToString(basetest2), Point(50, 50), FONT_HERSHEY_COMPLEX, 1, Scalar(0, 0, 255), 2, LINE_AA);
	putText(test12, convertToString(tes1test2), Point(50, 50), FONT_HERSHEY_COMPLEX, 1, Scalar(0, 0, 255), 2, LINE_AA);


	imshow("base", base);
	imshow("test1", test1);
	imshow("test2", test2);
	imshow("test12", test12);

	waitKey(0);
	return 0;
}

string convertToString(double d) {
	ostringstream os;
	if (os << d)
		return os.str();
	return "invalid conversion";
}
