OpenCV-直方图反向投影

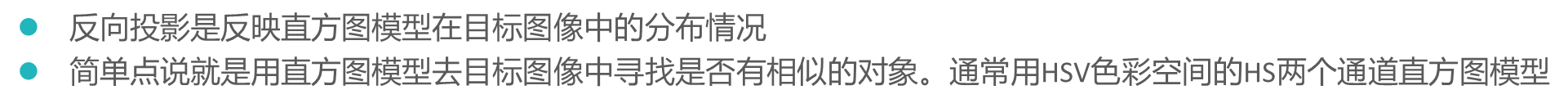

理解：在同一区间上的数据可能是需要识别出来的物品，例如，照片中： 一只手放在桌子上，辣么 肉色区域识别截取出来，结果为“手”。

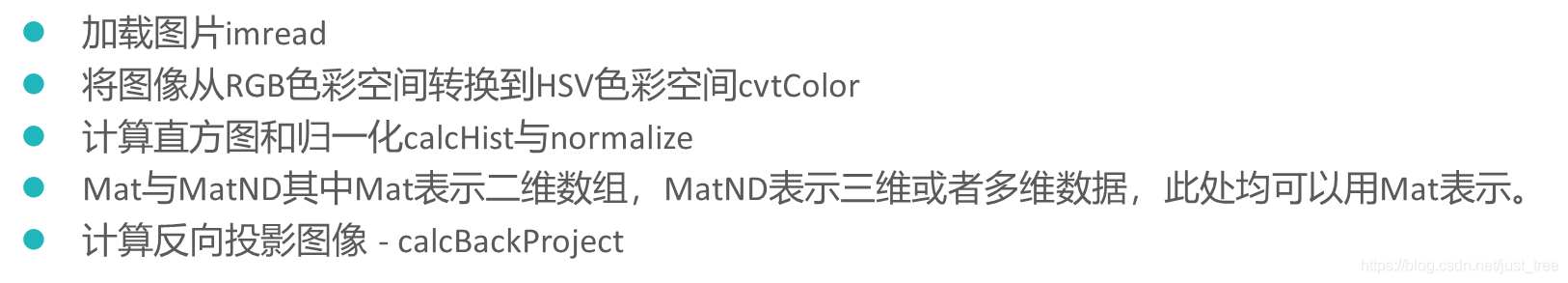

反向投影步骤：

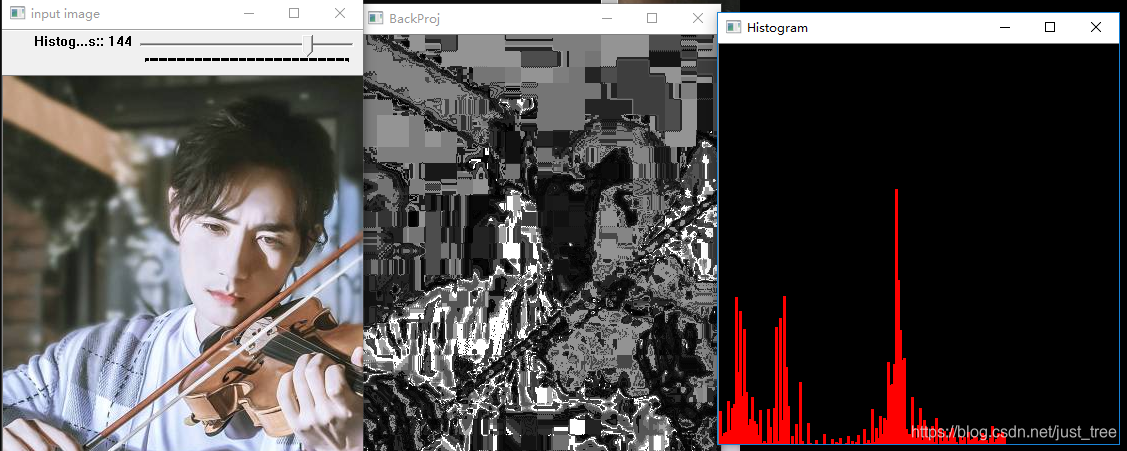

具体实施

#include <opencv2/opencv.hpp>
#include <iostream>
#include <math.h>

using namespace std;
using namespace cv;

Mat src; Mat hsv; Mat hue;
int bins = 12;
void Hist_And_Backprojection(int, void*);

//直方图方向投影

int main(int argc, char** argv) {

	src = imread("E://VS-pro//images//zhu.jpg");
	if (src.empty()) {
		printf("could not load image...\n");
		return -1;
	}
	const char*  window_image = "input image";
	namedWindow(window_image);
	namedWindow("BackProj");
	namedWindow("Histogram");

	cvtColor(src, hsv, COLOR_BGR2HSV);
	hue.create(hsv.size(), hsv.depth());
	int nchannels[] = { 0, 0 };
	mixChannels(&hsv, 1, &hue, 1, nchannels, 1);

	createTrackbar("Histogram Bins:", window_image, &bins, 180, Hist_And_Backprojection);
	Hist_And_Backprojection(0, 0);

	imshow(window_image, src);
	waitKey(0);
	return 0;
}

void Hist_And_Backprojection(int, void*) {
	float range[] = { 0, 180 };
	const float *histRanges = { range };
	Mat h_hist;
	calcHist(&hue, 1, 0, Mat(), h_hist, 1, &bins, &histRanges, true, false);
	normalize(h_hist, h_hist, 0, 255, NORM_MINMAX, -1, Mat());

	Mat backPrjImage;
	calcBackProject(&hue, 1, 0, h_hist, backPrjImage, &histRanges, 1, true);
	imshow("BackProj", backPrjImage);

	int hist_h = 400;
	int hist_w = 400;
	Mat histImage(hist_w, hist_h, CV_8UC3, Scalar(0, 0, 0));
	int bin_w = (hist_w / bins);
	for (int i = 1; i < bins; i++) {
		rectangle(histImage,
			Point((i - 1)*bin_w, (hist_h - cvRound(h_hist.at<float>(i - 1) * (400 / 255)))),
			//Point(i*bin_w, (hist_h - cvRound(h_hist.at<float>(i) * (400 / 255)))),
			Point(i*bin_w, hist_h),
			Scalar(0, 0, 255), -1);
	}
	imshow("Histogram", histImage);

	return;
}
