Sandboxie shellcode lowlevel加载pdb进行调试

调试之前使用windbg打开notepad观察

00007ffd`23ae0670 cc              int     3
0:000> u ntdll!LdrInitializeThunk
ntdll!LdrInitializeThunk:
00007ffd`23a84b10 4053            push    rbx
00007ffd`23a84b12 4883ec20        sub     rsp,20h
00007ffd`23a84b16 488bd9          mov     rbx,rcx
00007ffd`23a84b19 e81a000000      call    ntdll!LdrInitializeThunk+0x28 (00007ffd`23a84b38)
00007ffd`23a84b1e b201            mov     dl,1
00007ffd`23a84b20 488bcb          mov     rcx,rbx
00007ffd`23a84b23 e8488a0200      call    ntdll!NtContinue (00007ffd`23aad570)
00007ffd`23a84b28 8bc8            mov     ecx,eax


为了调试目标进程，可以有多种方法：

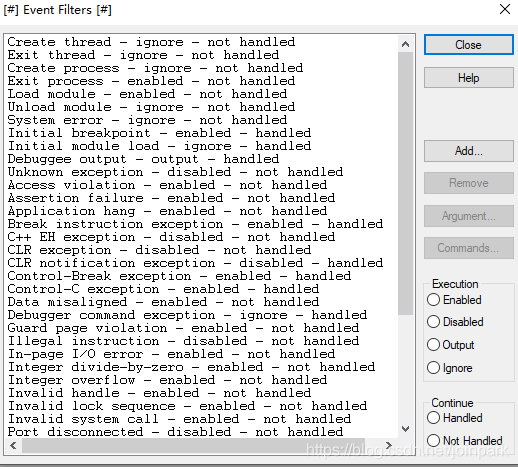

1.将windbug放入沙箱，然后再通过windbg启动notepad，为了观察注入的初始化过程，启动后将Loadmodule勾选上

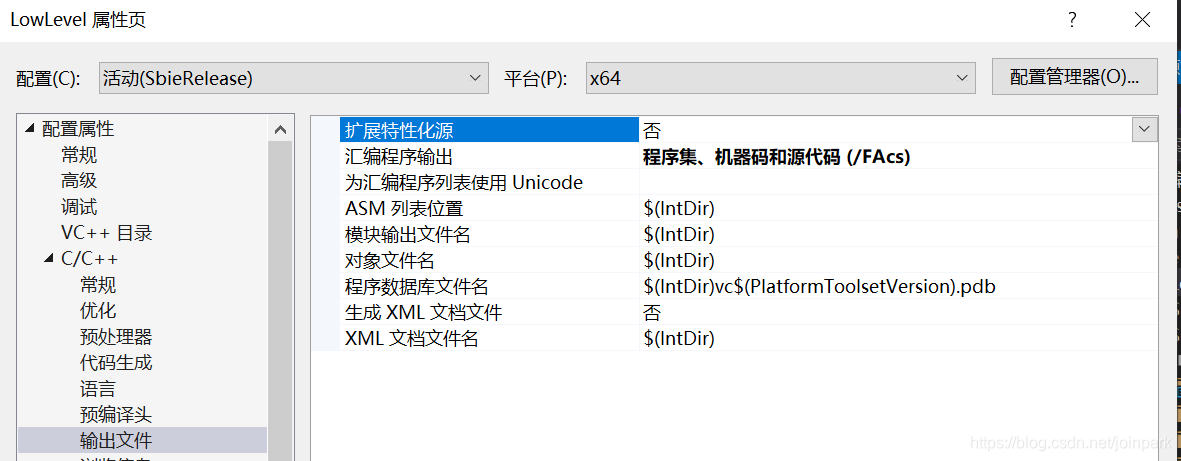

为了方便调试lowlevel，编译的时候打开这一项：

这样在编译目录下可以看到代码和二进制的对应关系文件init.cod和inject.cod

2.使用glfags设置目标进程notepad.exe的调试程序为windbg，将txt放入沙箱，启动，观察

0:000>  u ntdll!LdrInitializeThunk
ntdll!LdrInitializeThunk:
00007ffd`23a84b10 b8c00bbc00      mov     eax,0BC0BC0h
00007ffd`23a84b15 ffe0            jmp     rax
00007ffd`23a84b17 8bd9            mov     ebx,ecx
00007ffd`23a84b19 e81a000000      call    ntdll!LdrInitializeThunk+0x28 (00007ffd`23a84b38)
00007ffd`23a84b1e b201            mov     dl,1
00007ffd`23a84b20 488bcb          mov     rcx,rbx
00007ffd`23a84b23 e8488a0200      call    ntdll!NtContinue (00007ffd`23aad570)
00007ffd`23a84b28 8bc8            mov     ecx,eax
其中

0BC0BC0是跳转的地址。

u 0BC0BC0

0:000> u 0BC0BC0
00000000`00bc0bc0 4883ec28        sub     rsp,28h
00000000`00bc0bc4 48894c2420      mov     qword ptr [rsp+20h],rcx
00000000`00bc0bc9 4889542428      mov     qword ptr [rsp+28h],rdx
00000000`00bc0bce 4c89442430      mov     qword ptr [rsp+30h],r8
00000000`00bc0bd3 4c894c2438      mov     qword ptr [rsp+38h],r9
00000000`00bc0bd8 e800000000      call    00000000`00bc0bdd  这个地方是EntrypointC
00000000`00bc0bdd 59              pop     rcx
00000000`00bc0bde 488bd9          mov     rbx,rcx

按照该位置加载LowLevel地址,dll长度0x2000，如下加载符号表

.reload lowlevel=00BC0BC0,2000

加载完毕，查找lowlevel所有的符号：

00000000`00bc0bde 488bd9          mov     rbx,rcx
0:000> x lowlevel!*
00000000`00bc4bc8 lowlevel!`__local_stdio_scanf_options'::`2'::_OptionsStorage = 0
00000000`00bc4bc0 lowlevel!`__local_stdio_printf_options'::`2'::_OptionsStorage = 0
00000000`00bc2a0f lowlevel!SbieLowData = 0x00000161`c2c74900
00000000`00bc2250 lowlevel!InitInject (void *, void *)
00000000`00bc1d00 lowlevel!InitSyscalls (void *)
00000000`00bc2640 lowlevel!InitInjectWow64 (void *)
00000000`00bc1c10 lowlevel!SbieApi_QueryProcessInfo (unsigned long)
00000000`00bc1fe0 lowlevel!EntrypointC (void *, void *, void *)
00000000`00bc1cb0 lowlevel!findChromeTarget (unsigned char *)
00000000`00bc2130 lowlevel!FindDllExport2 (void *, unsigned char *)
00000000`00bc20c0 lowlevel!FindDllExport (void *, unsigned char *)
00000000`00bc27e5 lowlevel!myService (void)
00000000`00bc1fa0 lowlevel!InitConsole (void)
00000000`00bc1bc0 lowlevel!SbieApi_Ioctl (void *)
00000000`00bc203c lowlevel!InitConsole =  (inline caller) lowlevel!EntrypointC+5c
00000000`00bc1dc3 lowlevel!findChromeTarget =  (inline caller) lowlevel!InitSyscalls+c3
00000000`00bc1e06 lowlevel!findChromeTarget =  (inline caller) lowlevel!InitSyscalls+106
00000000`00bc1c1f lowlevel!SbieApi_Ioctl =  (inline caller) lowlevel!SbieApi_QueryProcessInfo+f
00000000`00bc231e lowlevel!FindDllExport =  (inline caller) lowlevel!InitInject+ce
00000000`00bc2287 lowlevel!FindDllExport =  (inline caller) lowlevel!InitInject+37
00000000`00bc240b lowlevel!InitInjectWow64 =  (inline caller) lowlevel!InitInject+1bb


00000000`00bc0bdd 这个是EntrypointC的地址，但是根据加载的符号位置却是00000000`00bc1fe0，说明符号表加载的位置靠后了。

所以需要向前移动00bc1fe0-00bc0bdd=1403

0BC0BC0-1403=BB F7BD

.reload /u lowlevel

.reload lowlevel=BBF7BD,2000

0:000> u 0BC0BC0
*** WARNING: Unable to verify timestamp for lowlevel
lowlevel!EntrypointC+0x3f [E:\works\opensource\Sandboxie\Sandboxie\core\low\init.c @ 555]:
00000000`00bc0bc0 4883ec28        sub     rsp,28h
00000000`00bc0bc4 48894c2420      mov     qword ptr [rsp+20h],rcx
00000000`00bc0bc9 4889542428      mov     qword ptr [rsp+28h],rdx
00000000`00bc0bce 4c89442430      mov     qword ptr [rsp+30h],r8
00000000`00bc0bd3 4c894c2438      mov     qword ptr [rsp+38h],r9
00000000`00bc0bd8 e800000000      call    lowlevel!EntrypointC(00000000`00bc0bdd)
00000000`00bc0bdd 59              pop     rcx
00000000`00bc0bde 488bd9          mov     rbx,rcx


--------------------------------------------------

以下为win7  64环境的情况？记不清了

首先查看LdrInitializeThunk的指令，查看之前的文章（），看到如下的信息:

001> u ntdll!LdrInitializeThunk

ntdll!LdrInitializeThunk:
00000000`7775c320 e90b47a088      jmp    00000000`00160a30

这个是跳转到entry.asm
001>u  00000000`00160a30

00000000`00160a30 4883ec28        sub     rsp,28h
00000000`00160a34 48894c2420      mov     qword ptr [rsp+20h],rcx
00000000`00160a39 4889542428      mov     qword ptr [rsp+28h],rdx
00000000`00160a3e 4c89442430      mov     qword ptr [rsp+30h],r8
00000000`00160a43 4c894c2438      mov     qword ptr [rsp+38h],r9
00000000`00160a48 e800000000      call     00000000`00160a4d
00000000`00160a4d 59              pop     rcx
00000000`00160a4e 488bd9          mov     rbx,rcx
00000000`00160a51 4881c172020000  add     rcx,272h
00000000`00160a58 488bd3          mov     rdx,rbx
00000000`00160a5b 4881c2f3000000  add     rdx,0F3h
00000000`00160a62 4c8bc3          mov     r8,rbx
00000000`00160a65 4981c048000000  add     r8,48h
00000000`00160a6c 4c8bcb          mov     r9,rbx
00000000`00160a6f 4981c185010000  add     r9,185h
00000000`00160a76 e865f9ffff      call    00000000`001603e0    ;预期：lowlevel!EntrypointC

按照该位置加载LowLevel地址,dll长度0x2000，如下加载符号表

.reload lowlevel=000160a30,2000

加载完毕，查找lowlevel所有的符号：

x   lowlevel!*，得到如下的符号表，注意下面的符号是按照地址做过排序的，实际情况不会是这样的。

00000000`00161a30	lowlevel!SbieApi_Ioctl
00000000`00161a80	lowlevel!SbieApi_QueryProcessInfo
00000000`00161a99	lowlevel!SbieApi_Ioctl
00000000`00161b20	lowlevel!WaitForDebugger
00000000`00161b70	lowlevel!findChromeTarget
00000000`00161bc0	lowlevel!InitSyscalls
00000000`00161c78	lowlevel!findChromeTarget
00000000`00161cc2	lowlevel!findChromeTarget
00000000`00161dd0	lowlevel!InitConsole
00000000`00161e10	lowlevel!EntrypointC
00000000`00161e4f	lowlevel!WaitForDebugger
00000000`00161eaa	lowlevel!InitConsole
00000000`00161f40	lowlevel!FindDllExport
00000000`00161fb0	lowlevel!FindDllExport2
00000000`001620d0	lowlevel!InitInject
00000000`00162110	lowlevel!FindDllExport
00000000`0016219a	lowlevel!FindDllExport
00000000`00162390	lowlevel!InitInjectWow64
00000000`001624c5	lowlevel!myService
00000000`001626ef	lowlevel!SbieLowData
00000000`00164a30	lowlevel!`__local_stdio_printf_options'::`2'::_OptionsStorage
00000000`00164a38	lowlevel!`__local_stdio_scanf_options'::`2'::_OptionsStorage

可以看到符号表对应的EntryPointC的地址00000000`00161e10

而实际地址是00000000`001603e0

也就是按照000160a30加载后，EntryPointC的地址偏移了。

EntryPointC = 00000000`00161e10 = 000160a30+x

得到x = 13E0

为了让EntryPointC = 00000000`001603e0，需要再如下的地址加载lowlevel

00000000`001603e0-x=00000000`001603e0-13E0=15F000

取消之前的符号表：

001>.reload /u lowlevel

001>.reload lowlevel=0015F000,2000

调整后的代码

ntdll!LdrInitializeThunk:
00000000`7775c320 e90b47a088      jmp     lowlevel!InitInjectWow64+0xd0 (00000000`00160a30)
00000000`7775c325 20488b          and     byte ptr [rax-75h],cl
00000000`7775c328 d9e8            fld1
00000000`7775c32a 2200            and     al,byte ptr [rax]
00000000`7775c32c 0000            add     byte ptr [rax],al
00000000`7775c32e b201            mov     dl,1
00000000`7775c330 488bcb          mov     rcx,rbx
00000000`7775c333 e808540200      call    ntdll!NtContinue (00000000`77781740)
0:001> u 00160a30
lowlevel!InitInjectWow64+0xd0 [E:\works\Sandboxie_Open_Source_Code_5.40_2\core\low\entry.asm @ 65]:
00000000`00160a30 4883ec28        sub     rsp,28h
00000000`00160a34 48894c2420      mov     qword ptr [rsp+20h],rcx
00000000`00160a39 4889542428      mov     qword ptr [rsp+28h],rdx
00000000`00160a3e 4c89442430      mov     qword ptr [rsp+30h],r8
00000000`00160a43 4c894c2438      mov     qword ptr [rsp+38h],r9
00000000`00160a48 e800000000      call    lowlevel!InitInjectWow64+0xed (00000000`00160a4d)
00000000`00160a4d 59              pop     rcx
00000000`00160a4e 488bd9          mov     rbx,rcx
0:001> u
lowlevel!InitInjectWow64+0xf1 [E:\works\Sandboxie_Open_Source_Code_5.40_2\core\low\entry.asm @ 79]:
00000000`00160a51 4881c172020000  add     rcx,272h
00000000`00160a58 488bd3          mov     rdx,rbx
00000000`00160a5b 4881c2f3000000  add     rdx,0F3h
00000000`00160a62 4c8bc3          mov     r8,rbx
00000000`00160a65 4981c048000000  add     r8,48h
00000000`00160a6c 4c8bcb          mov     r9,rbx
00000000`00160a6f 4981c185010000  add     r9,185h
00000000`00160a76 e865f9ffff      call    lowlevel!EntrypointC (00000000`001603e0)
0:001> u
lowlevel!InitInjectWow64+0x11b [E:\works\Sandboxie_Open_Source_Code_5.40_2\core\low\entry.asm @ 89]:
00000000`00160a7b 488b4c2420      mov     rcx,qword ptr [rsp+20h]
00000000`00160a80 488b542428      mov     rdx,qword ptr [rsp+28h]
00000000`00160a85 4c8b442430      mov     r8,qword ptr [rsp+30h]
00000000`00160a8a 4c8b4c2438      mov     r9,qword ptr [rsp+38h]
00000000`00160a8f 4883c428        add     rsp,28h
00000000`00160a93 ffe0            jmp     rax

实际上只要lowlevel没修改，知道EntryPointC的jmp地址Addr就够了

Addr - 13E0 得到 lowlevel的加载地址
