一、实验拓扑
二、实验要求
1.R5为ISP，只能进行IP地址配置，其所有地址均配为公有I地址；
2.R1和R5间使用PPP的PAP认证，R5为主认证方；
R2与R5之间使用ppp的CHAP认证，R5为主认证方；
R3与R5之间使用HDLC封装；
3.R1、R2、R3构建一个MGRE环境，R1为中心站点，R1、R4间为点到点的GRE；
4.R1整个私有网络基本RIP全网可达；
5.所有Pc设置私有IP为源IP，可以访问R5环回。
三、实验思路
1.按图示内容进行IP地址配置
2.公网通
3.认证
4.构建MGRE环境，GRE
5.RIP全网可达
6.NAT配置

四、实验步骤

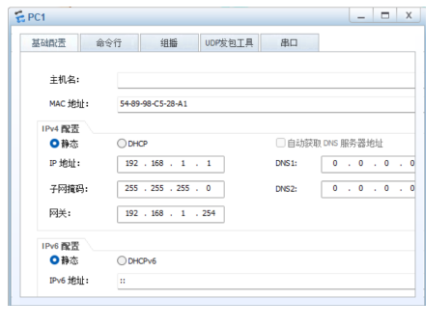

1.PC端手动配置地址(R1为例)

PC2: 192.168.4.2 255.255.255.0 192.168.4.254
PC3: 192.168.2.3 255.255.255.0 192.168.2.254
PC4: 192.168.3.4 255.255.255.0 192.168.3.254
路由器IP地址配置
[R1]interface g0/0/0
[R1-GigabitEthernet0/0/0]ip address 192.168.1.254 24
[R1]interface Serial 4/0/0
[R1-Serial4/0/0]ip address 15.1.1.1 24
[R1]display ip interface brief

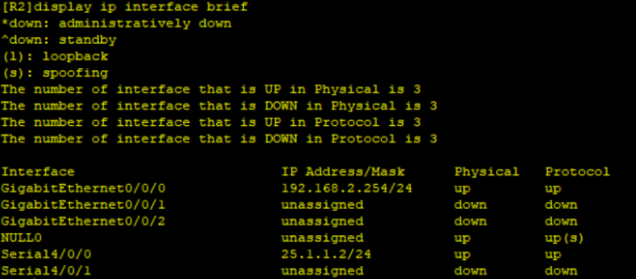

[R2]interface g0/0/0
[R2-GigabitEthernet0/0/0]ip address 192.168.2.254 24
[R2]interface Serial 4/0/0
[R2-Serial4/0/0]ip address 25.1.1.2 24

[R3-GigabitEthernet0/0/0]ip address 192.168.3.254 24
[R3-Serial4/0/0]ip address 35.1.1.3 24

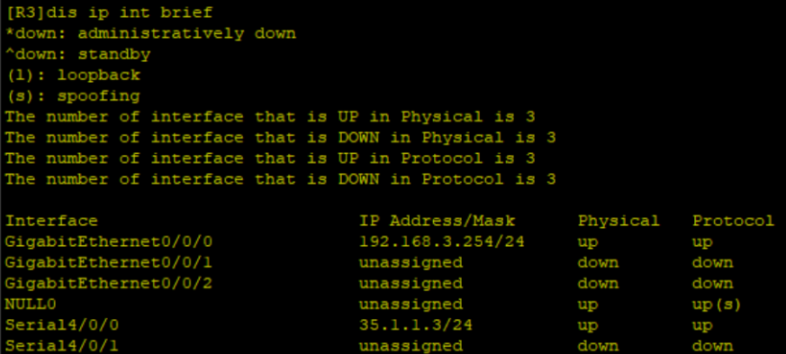

[R3]dis ip int b

[R4-GigabitEthernet0/0/0]ip address 45.1.1.4 24
[R4-GigabitEthernet0/0/1]ip address 192.168.4.254 24

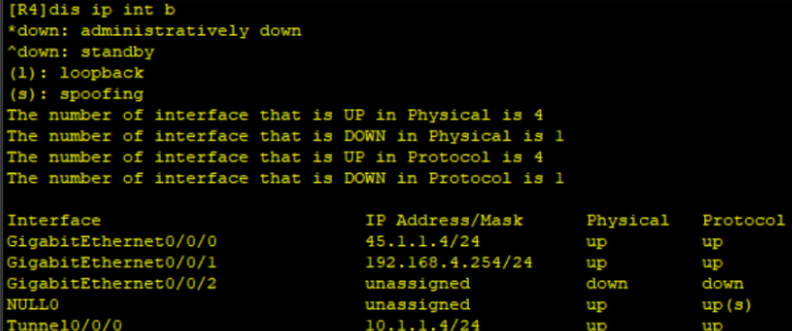

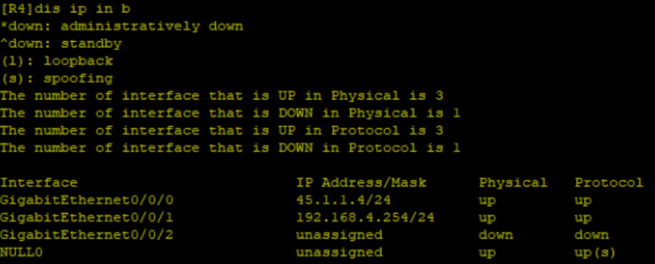

[R4]dis ip int b

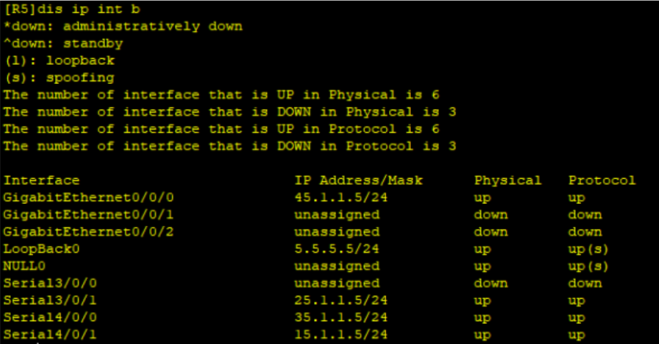

[R5]int g0/0/0
[R5-GigabitEthernet0/0/0]ip address 45.1.1.5 24
[R5]interface Serial 3/0/1
[R5-Serial3/0/1]ip address 25.1.1.5 24
[R5]interface Serial 4/0/0
[R5-Serial4/0/0]ip address 35.1.1.5 24
[R5]interface Serial 4/0/1
[R5-Serial4/0/1]ip address 15.1.1.5 24
[R5]int LoopBack 0
[R5-LoopBack0]ip address 5.5.5.5 24

3. 静态路由配置
[R1]ip route-static 0.0.0.0 0 15.1.1.5
[R2]ip route-static 0.0.0.0 0 25.1.1.5
[R3]ip route-static 0.0.0.0 0 35.1.1.5
[R4]ip route-static 0.0.0.0 0 45.1.1.5

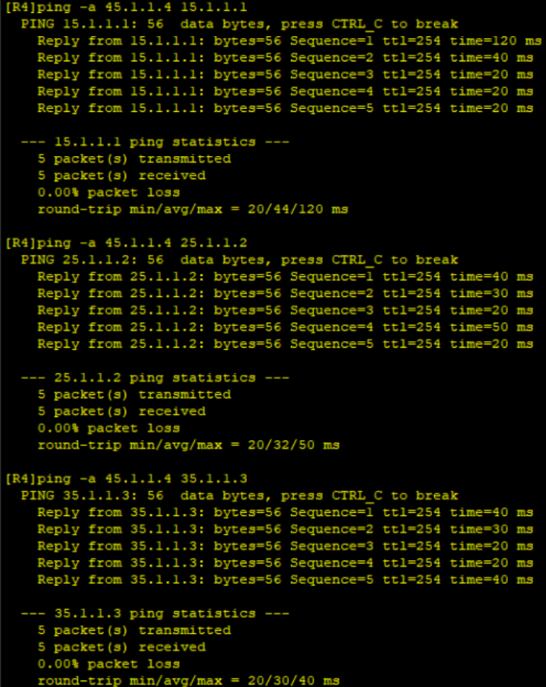

验证全网通

4. 认证
ppp 的 pap 认证

[R5]aaa
[R5-aaa]local-user wangdaye password cipher wdy12345 privilege level 15
[R5-aaa]local-user wangdaye service-type ppp
[R5]int Serial 4/0/1
[R5-Serial4/0/1]ppp authentication-mode pap
[R1]int Serial 4/0/0
[R1-Serial4/0/0]ppp pap local-user wangdaye password cipher wdy12345
[R1]int Serial 4/0/0
[R1-Serial4/0/0]shutdown
[R1-Serial4/0/0]undo shutdown
ppp的chap认证
[R5]int Serial 3/0/1
[R5-Serial3/0/1]ppp authentication-mode chap
[R2]int Serial 4/0/0
[R2-Serial4/0/0]ppp chap user wangdaye
[R2-Serial4/0/0]ppp chap password wdy12345
[R2-Serial4/0/0]ppp chap password cipher wdy12345
[R2-Serial4/0/0]shutdown
[R2-Serial4/0/0]undo shutdown
HDLC的封装
[R5]int Serial 4/0/0
[R5-Serial4/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]
:y
[R3]int Serial 4/0/0
[R3-Serial4/0/0]link-protocol hdlc
Warning: The encapsulation protocol of the link will be changed. Continue? [Y/N]
:y

GRE 配置
[R1]interface Tunnel 0/0/0
[R1-Tunnel0/0/0]ip address 10.1.1.1 24
[R1-Tunnel0/0/0]tunnel-protocol gre
[R1-Tunnel0/0/0]source 15.1.1.1
[R1-Tunnel0/0/0]destination 45.1.1.4
[R4]int Tunnel 0/0/0
[R4-Tunnel0/0/0]ip address 10.1.1.4 24
[R4-Tunnel0/0/0]tunnel-protocol gre
[R4-Tunnel0/0/0]source 45.1.1.4
[R4-Tunnel0/0/0]destination 15.1.1.1

MGRE 配置
[R1]int Tunnel 0/0/1
[R1-Tunnel0/0/1]ip address 10.1.2.1 24
[R1-Tunnel0/0/1]tunnel-protocol gre p2mp
[R1-Tunnel0/0/1]source 15.1.1.1
[R1-Tunnel0/0/1]nhrp network-id 100

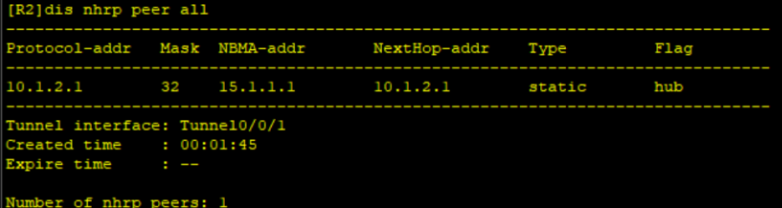

[R2]int Tunnel 0/0/1
[R2-Tunnel0/0/1]ip address 10.1.2.2 24
[R2-Tunnel0/0/1]tunnel-protocol gre p2mp
[R2-Tunnel0/0/1]source Serial 4/0/0
[R2-Tunnel0/0/1]nhrp network-id 100
[R2-Tunnel0/0/1]nhrp entry 10.1.2.1 15.1.1.1 register
[R3]int Tunnel 0/0/1
[R3-Tunnel0/0/1]ip address 10.1.2.3 24
[R3-Tunnel0/0/1]tunnel-protocol gre p2mp
[R3-Tunnel0/0/1]source Serial 4/0/0

[R3-Tunnel0/0/1]nhrp network-id 100
[R3-Tunnel0/0/1]nhrp entry 10.1.2.1 15.1.1.1 register

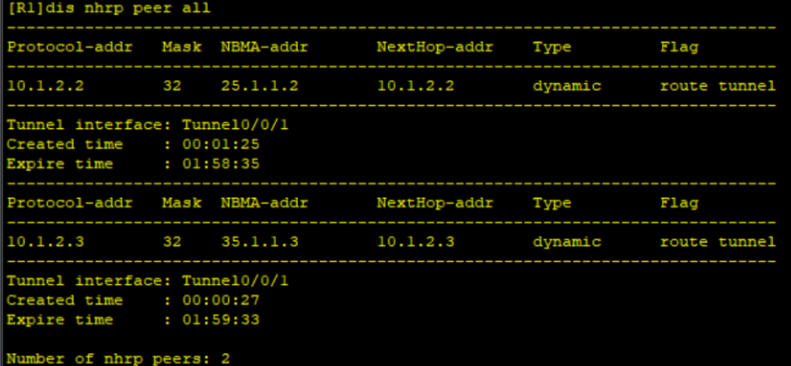

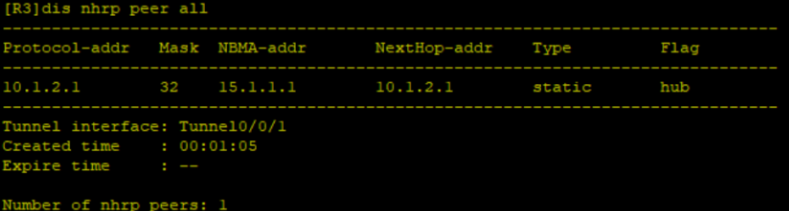

[R1]dis nhrp peer all

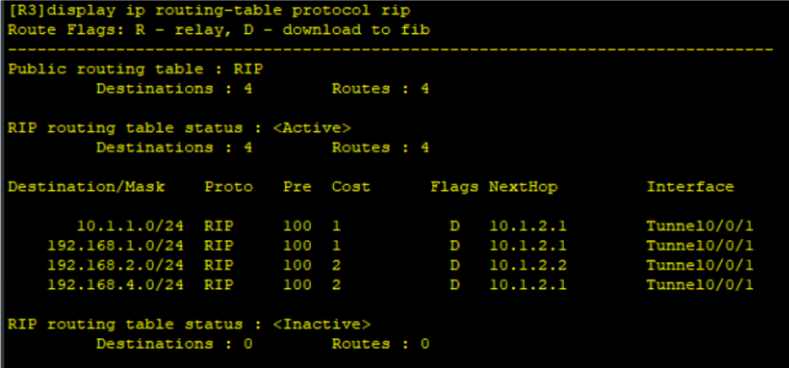

6. RIP 配置
[R1]rip 1
[R1-rip-1]version 2
[R1-rip-1]undo summary
[R1-rip-1]network 192.168.1.0
[R1-rip-1]network 10.0.0.0
[R2]rip 1
[R2-rip-1]version 2
[R2-rip-1]undo summary
[R2-rip-1]network 192.168.2.0
[R2-rip-1]network 10.0.0.0

[R3]rip 1
[R3-rip-1]version 2
[R3-rip-1]undo summary
[R3-rip-1]network 192.168.3.0
[R3-rip-1]network 10.0.0.0

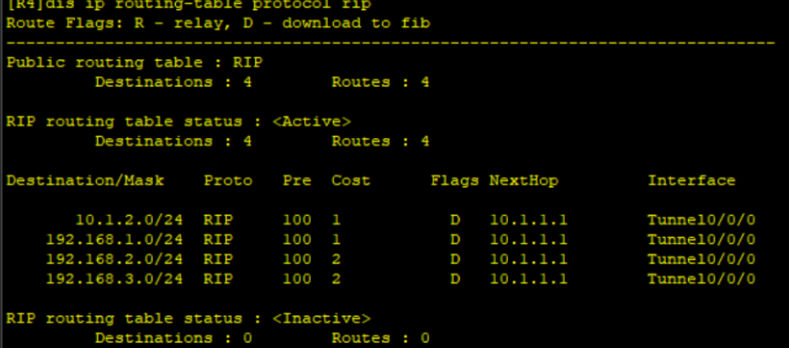

[R4]rip 1
[R4-rip-1]version 2
[R4-rip-1]undo summary
[R4-rip-1]network 192.168.4.0
[R4-rip-1]network 10.0.0.0

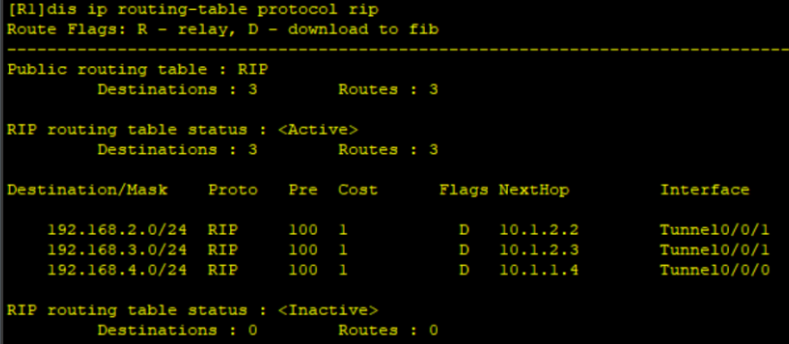

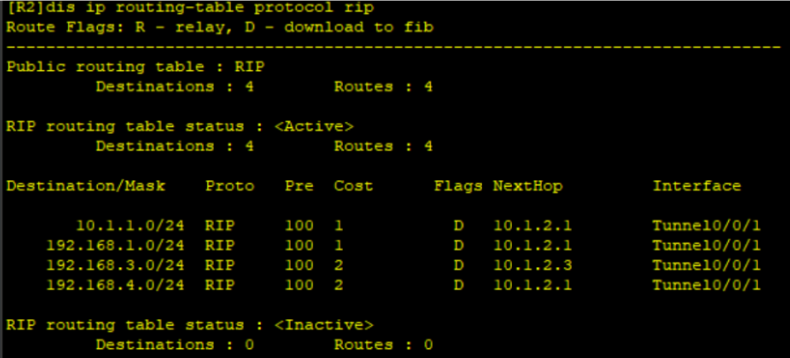

[R1]int Tunnel 0/0/1
[R1-Tunnel0/0/1]nhrp entry multicast dynamic
[R1-Tunnel0/0/1]undo rip split-horizon
[R2]int Tunnel 0/0/1
[R2-Tunnel0/0/1]undo rip split-horizon
[R3]int Tunnel 0/0/1
[R3-Tunnel0/0/1]undo rip split-horizon

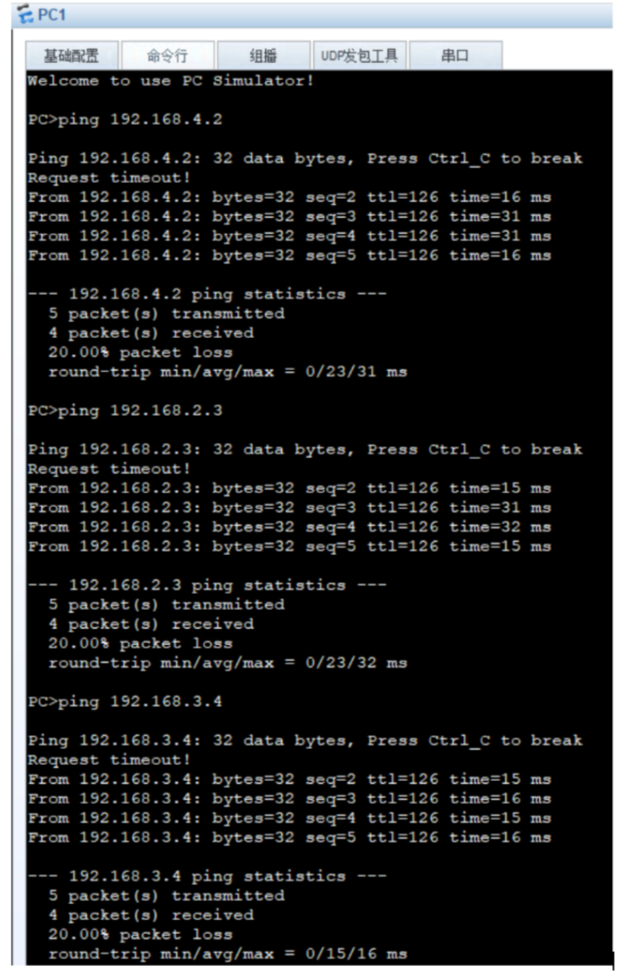

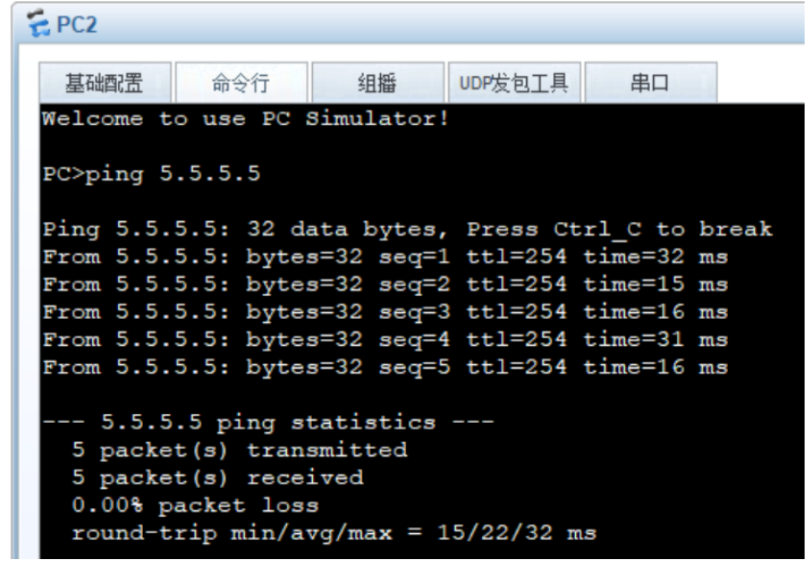

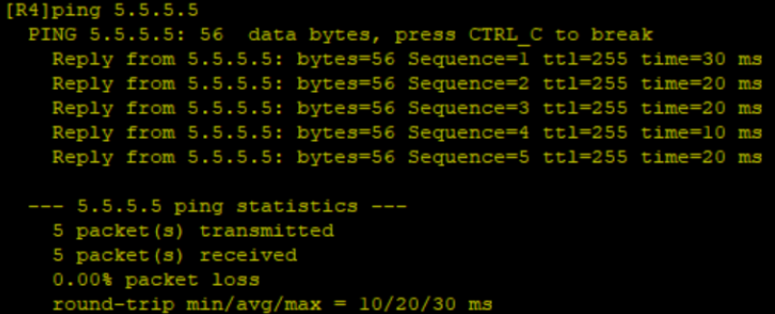

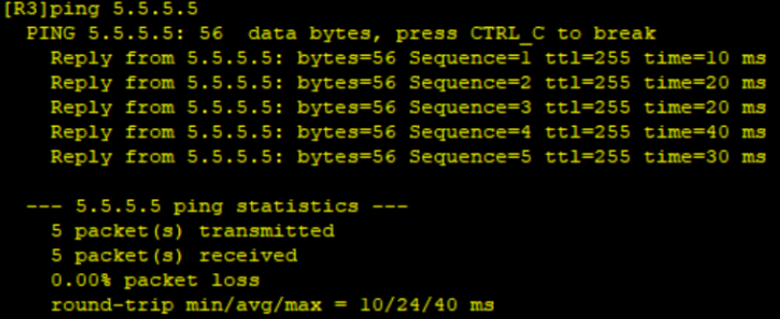

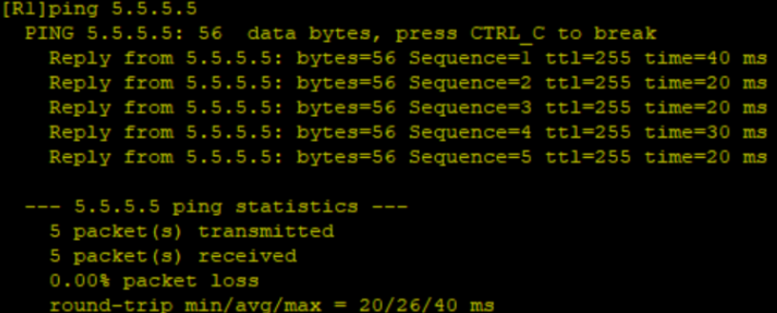

7.验证

[R1]acl 2000
[R1-acl-basic-2000]rule permit source 192.168.1.0 0.0.0.255
[R1]int Serial 4/0/0
[R1-Serial4/0/0]nat outbound 2000
[R2]acl 2000
[R2-acl-basic-2000]rule permit source 192.168.2.0 0.0.0.255
[R2]int Serial 4/0/0
[R2-Serial4/0/0]nat outbound 2000
[R3]acl 2000
[R3-acl-basic-2000]rule permit source 192.168.3.0 0.0.0.255
[R3]int Serial 4/0/0
[R3-Serial4/0/0]nat outbound 2000
[R4]acl 2000
[R4-acl-basic-2000]rule permit source 192.168.4.0 0.0.0.255
[R4]int g0/0/0
[R4-GigabitEthernet0/0/0]nat outbound 2000
