OpenCVSharp 4.5 图像分割（各向异性、梯度结构张量）

本文链接：https://blog.youkuaiyun.com/jimtien/article/details/118487164

该博客演示了如何使用OpenCVSharp4.5库来实现OpenCV官方教程中的图像各向异性分割。通过计算梯度结构张量（GST），确定图像的共协性和方向，然后应用阈值处理，实现图像的局部特征增强。代码中包含了从读取灰度图像到计算GST组件、特征值、一致性以及方向角度的完整流程，并最终输出处理后的图像。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

用OpenCVSharp 4.5 跑一遍OpenCV官方教程

原OpenCV官方教程链接：OpenCV: Anisotropic image segmentation by a gradient structure tensor

using OpenCvSharp;
using System;


namespace ConsoleApp1
{
    class tutorial32 : ITutorial
    {
        public void Run()
        {
            //w = 52, C_Thr = 0.43, LowThr = 35, HighThr = 57.
            int W = 52;             // window size is WxW
            double C_Thr = 0.43;    // threshold for coherency
            int LowThr = 10;        // threshold1 for orientation, it ranges from 0 to 180
            int HighThr = 80;       // threshold2 for orientation, it ranges from 0 to 180
            Mat imgIn = Cv2.ImRead("I:\\csharp\\images\\gst_input.jpg", ImreadModes.Grayscale);
            if (imgIn.Empty()) //check whether the image is loaded or not
            {
                Console.Write("ERROR : Image cannot be loaded..!!\n");
                return;
            }
            Mat imgCoherency = new Mat();
            Mat imgOrientation = new Mat();
            calcGST(imgIn, imgCoherency, out imgOrientation, W);

            Mat imgCoherencyBin = imgCoherency.GreaterThan(C_Thr);
           // Console.WriteLine(Cv2.Format(imgCoherencyBin));

            Mat imgOrientationBin = new Mat();
            Cv2.InRange(imgOrientation, new Scalar(LowThr), new Scalar(HighThr), imgOrientationBin);
            Mat imgBin = imgCoherencyBin.BitwiseAnd(imgOrientationBin);

            Cv2.Normalize(imgCoherency, imgCoherency, 0, 255, NormTypes.MinMax);
            Cv2.Normalize(imgOrientation, imgOrientation, 0, 255, NormTypes.MinMax);

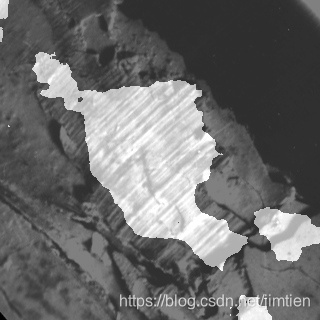

            Cv2.ImWrite("result.jpg", 0.5 * (imgIn + imgBin));
            Cv2.ImWrite("Coherency.jpg", imgCoherency);
            Cv2.ImWrite("Orientation.jpg", imgOrientation);
        }
        private void calcGST(Mat inputImg, Mat imgCoherencyOut, out Mat imgOrientationOut, int w)
        {
            Mat img = new Mat();
            inputImg.ConvertTo(img, MatType.CV_32F);
            // GST components calculation (start)
            // J =  (J11 J12; J12 J22) - GST
            Mat imgDiffX = new Mat(), imgDiffY = new Mat(), imgDiffXY = new Mat();
            Cv2.Sobel(img, imgDiffX, MatType.CV_32F, 1, 0, 3);
            Cv2.Sobel(img, imgDiffY, MatType.CV_32F, 0, 1, 3);
            Cv2.Multiply(imgDiffX, imgDiffY, imgDiffXY);
            Mat imgDiffXX = new Mat(), imgDiffYY = new Mat();
            Cv2.Multiply(imgDiffX, imgDiffX, imgDiffXX);
            Cv2.Multiply(imgDiffY, imgDiffY, imgDiffYY);
            Mat J11 = new Mat(), J22 = new Mat(), J12 = new Mat();      // J11, J22 and J12 are GST components
            Cv2.BoxFilter(imgDiffXX, J11, MatType.CV_32F, new Size(w, w));
            Cv2.BoxFilter(imgDiffYY, J22, MatType.CV_32F, new Size(w, w));
            Cv2.BoxFilter(imgDiffXY, J12, MatType.CV_32F, new Size(w, w));
            // GST components calculation (stop)
            // eigenvalue calculation (start)
            // lambda1 = 0.5*(J11 + J22 + sqrt((J11-J22)^2 + 4*J12^2))
            // lambda2 = 0.5*(J11 + J22 - sqrt((J11-J22)^2 + 4*J12^2))
            Mat tmp1, tmp2;
            tmp1 = J11 + J22;
            tmp2 = J11 - J22;
            Mat tmp3 = new Mat(), tmp4 = new Mat();
            Cv2.Multiply(tmp2, tmp2, tmp2);
            Cv2.Multiply(J12, J12, tmp3);
            Cv2.Sqrt(tmp2 + 4.0 * tmp3, tmp4);
            Mat lambda1, lambda2;
            lambda1 = tmp1 + tmp4;
            lambda1 = 0.5 * lambda1;      // biggest eigenvalue
            lambda2 = tmp1 - tmp4;
            lambda2 = 0.5 * lambda2;      // smallest eigenvalue
                                          // eigenvalue calculation (stop)
                                          // Coherency calculation (start)
                                          // Coherency = (lambda1 - lambda2)/(lambda1 + lambda2)) - measure of anisotropism
                                          // Coherency is anisotropy degree (consistency of local orientation)
            Cv2.Divide(lambda1 - lambda2, lambda1 + lambda2, imgCoherencyOut);
            // Coherency calculation (stop)
            // orientation angle calculation (start)
            // tan(2*Alpha) = 2*J12/(J22 - J11)
            // Alpha = 0.5 atan2(2*J12/(J22 - J11))
            Mat imgPhase = new Mat();
            Cv2.Phase(J22 - J11, 2.0 * J12, imgPhase, true);
            imgOrientationOut = 0.5 * imgPhase;
            // orientation angle calculation (stop)
        }

    }
}
