问题现象：

openstack port状态down，binding_vif_type显示binding_failed

[root@controller ~]# openstack port list --router router
+--------------------------------------+------+-------------------+------------------------------------------------------------------------------+--------+
| ID                                   | Name | MAC Address       | Fixed IP Addresses                                                           | Status |
+--------------------------------------+------+-------------------+------------------------------------------------------------------------------+--------+
| 3a144298-c39f-4722-8c95-e66ddac308a6 |      | fa:16:3e:9d:29:b7 | ip_address='172.16.1.1', subnet_id='e98365bf-b2bb-496d-a7dc-52124fe7f9a6'    | DOWN   |
| 6021e634-c8f7-4e65-8016-5d72ae66cb85 |      | fa:16:3e:6e:6e:fa | ip_address='203.0.113.207', subnet_id='416aa83f-c155-4467-b489-21e6cd9741e2' | DOWN   |
+--------------------------------------+------+-------------------+------------------------------------------------------------------------------+--------+



[root@controller ~]# openstack port show 3a144298-c39f-4722-8c95-e66ddac308a6
+-------------------------+---------------------------------------------------------------------------------------------------------------------------------------------------------+
| Field                   | Value                                                                                                                                                   |
+-------------------------+---------------------------------------------------------------------------------------------------------------------------------------------------------+
| admin_state_up          | UP                                                                                                                                                      |
| allowed_address_pairs   |                                                                                                                                                         |
| binding_host_id         | controller                                                                                                                                              |
| binding_profile         |                                                                                                                                                         |
| binding_vif_details     |                                                                                                                                                         |
| binding_vif_type        | binding_failed                                                                                                                                          |
| binding_vnic_type       | normal

原因：

配置linuxbridge agent的时候没有替换网卡信息

分析过程

打开DEBUG级别日志发现缺少linux bridge agent

打开 openstackDEBUG级别日志_yue_luu的博客-优快云博客

2022-08-14 10:50:39.975 50636 DEBUG neutron.plugins.ml2.drivers.mech_agent [req-9c3ec1e1-53a5-495f-8b79-448d50c3275e - - - - -] Port 3a144298-c39f-4722-8c95-e66ddac308a6 on network 45c89664-9173-4117-b095-e9e8468c36b8 not bound, no agent of type Linux bridge agent registered on host controller bind_port /usr/lib/python2.7/site-packages/neutron/plugins/ml2/drivers/mech_agent.py:104

openstack network agent list查不到linux bridge agent

[root@controller ~]# openstack network  agent list
+--------------------------------------+----------------+------------+-------------------+-------+-------+------------------------+
| ID                                   | Agent Type     | Host       | Availability Zone | Alive | State | Binary                 |
+--------------------------------------+----------------+------------+-------------------+-------+-------+------------------------+
| b307c36c-5a7e-4701-ba9b-0e0c3a4f299a | Metadata agent | controller | None              | :-)   | UP    | neutron-metadata-agent |
| b83e6cc6-07c3-40a1-bb24-9713288a62b3 | L3 agent       | controller | nova              | :-)   | UP    | neutron-l3-agent       |
| d86d84e6-eb03-4fe1-b29e-68ca61070515 | DHCP agent     | controller | nova              | :-)   | UP    | neutron-dhcp-agent     |
+--------------------------------------+----------------+------------+-------------------+-------+-------+------------------------+

systemctl status却显示正常

[root@controller ~]# systemctl status neutron-linuxbridge-agent.service
● neutron-linuxbridge-agent.service - OpenStack Neutron Linux Bridge Agent
   Loaded: loaded (/usr/lib/systemd/system/neutron-linuxbridge-agent.service; enabled; vendor preset: disabled)
   Active: active (running) since Sun 2022-08-14 11:18:11 EDT; 2s ago
  Process: 77266 ExecStartPre=/usr/bin/neutron-enable-bridge-firewall.sh (code=exited, status=0/SUCCESS)
 Main PID: 77271 (neutron-linuxbr)
    Tasks: 1
   Memory: 61.9M
   CGroup: /system.slice/neutron-linuxbridge-agent.service
           └─77271 /usr/bin/python2 /usr/bin/neutron-linuxbridge-agent --config-file /usr/share/neutron/neutron-dist.conf --config-file /etc/neutron/neutron.conf --config-file /etc/neutron/plugins/ml2/linuxbridge_agent.ini --config-dir /e...

linuxbridge agent日志显示启动失败

2022-08-14 11:19:02.361 77840 ERROR neutron.plugins.ml2.drivers.linuxbridge.agent.linuxbridge_neutron_agent [-] Interface PROVIDER_INTERFACE_NAME for physical network provider does not exist. Agent terminated!

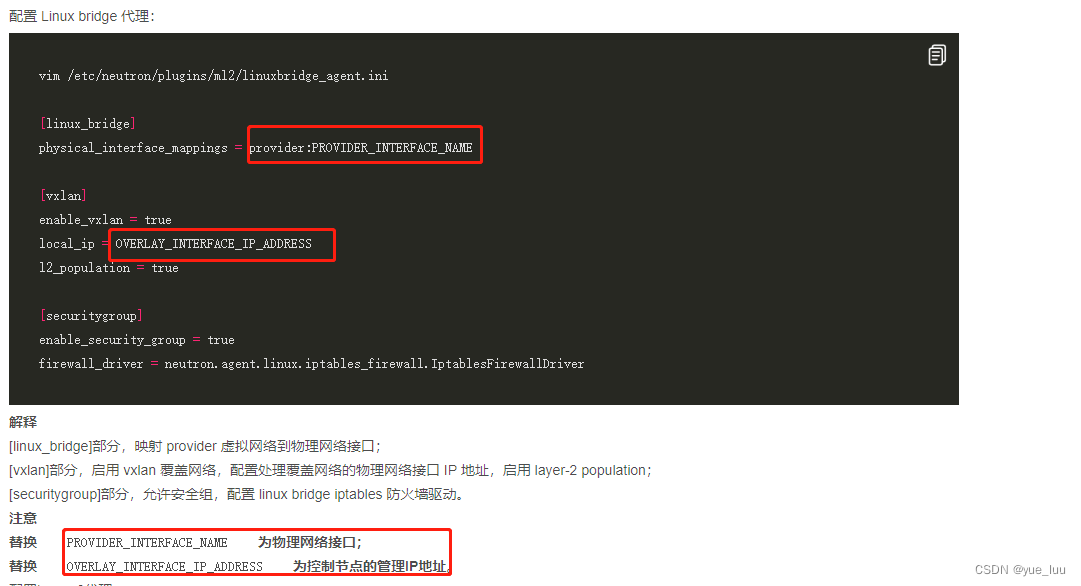

原来是/etc/neutron/plugins/ml2/linuxbridge_agent.ini 配置的时候没有替换物理网卡信息

还有其他配置文件没有修改的也一起改一下

修改完就正常啦

[root@controller ~]# openstack network  agent list
+--------------------------------------+--------------------+------------+-------------------+-------+-------+---------------------------+
| ID                                   | Agent Type         | Host       | Availability Zone | Alive | State | Binary                    |
+--------------------------------------+--------------------+------------+-------------------+-------+-------+---------------------------+
| 206b0223-b2d4-4ae6-82d6-a87c32b589f1 | Linux bridge agent | controller | None              | :-)   | UP    | neutron-linuxbridge-agent |
| b307c36c-5a7e-4701-ba9b-0e0c3a4f299a | Metadata agent     | controller | None              | :-)   | UP    | neutron-metadata-agent    |
| b83e6cc6-07c3-40a1-bb24-9713288a62b3 | L3 agent           | controller | nova              | :-)   | UP    | neutron-l3-agent          |
| d86d84e6-eb03-4fe1-b29e-68ca61070515 | DHCP agent         | controller | nova              | :-)   | UP    | neutron-dhcp-agent        |
+--------------------------------------+--------------------+------------+-------------------+-------+-------+---------------------------+
[root@controller ~]# openstack port list --router router
+--------------------------------------+------+-------------------+------------------------------------------------------------------------------+--------+
| ID                                   | Name | MAC Address       | Fixed IP Addresses                                                           | Status |
+--------------------------------------+------+-------------------+------------------------------------------------------------------------------+--------+
| 3a144298-c39f-4722-8c95-e66ddac308a6 |      | fa:16:3e:9d:29:b7 | ip_address='172.16.1.1', subnet_id='e98365bf-b2bb-496d-a7dc-52124fe7f9a6'    | ACTIVE |
| 6021e634-c8f7-4e65-8016-5d72ae66cb85 |      | fa:16:3e:6e:6e:fa | ip_address='203.0.113.207', subnet_id='416aa83f-c155-4467-b489-21e6cd9741e2' | ACTIVE |
+--------------------------------------+------+-------------------+------------------------------------------------------------------------------+--------+
