NRRG tool upgrade to 3GPP R17(2022-12)

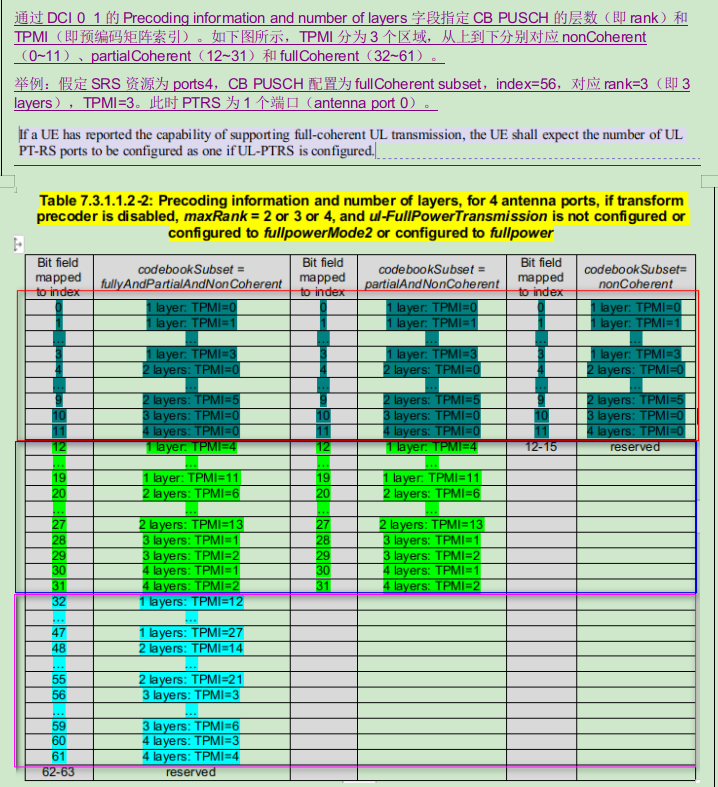

Scenario #2: CB PUSCH with maxNrofPorts set to “n1” (fullyCoherent/partialCoherent/nonCoherent subset)

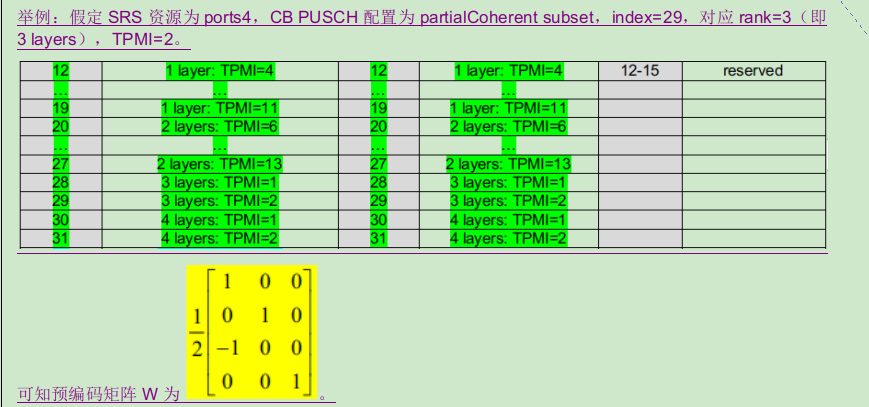

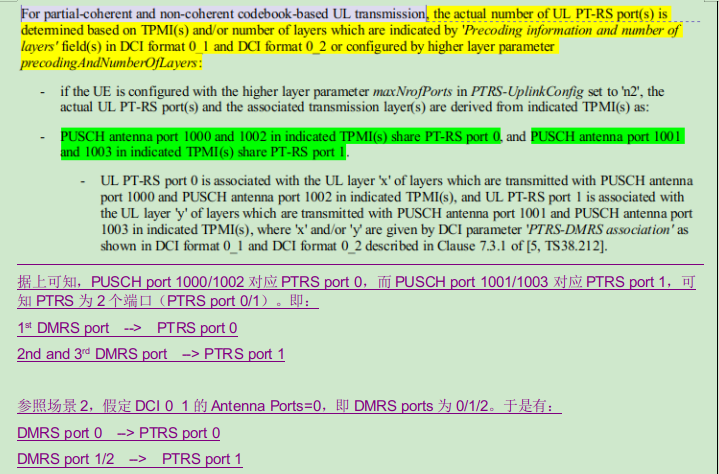

Scenario #3: CB PUSCH with maxNrofPorts set to “n2” (partialCoherent/nonCoherent subset)




Note: For nonCB PUSCH transmission, the precoding matrix W is identity matrix.
