Spring缓存注解浅析及实践

作者:京东物流 江兆晶

一 背景

缓存是我们日常开发常被使用的技术栈,一般用来降低数据库读取压力,提升系统查询性能。使用缓存的数据一般为不常变化且使用率很高的数据,比如:配置信息、商品信息、用户信息等。我们一般的做法:第一次从数据库中读取数据,然后放到缓存中并设置缓存超期时间,缓存超期之后再从数据库从新读取,如果涉及到更新和删除数据也要同步缓存,这样才能解决缓存数据一致性问题,但我们常规的做法一般是使用缓存的put、get等命令把写入和读取缓存的代码写在方法体内部,这样缓存相关的操作代码就会耦合在业务代码里。

能不能加个缓存注解就能把缓存的的问题给解决了呢?常规的做法是自己定义一个缓存注解,使用AOP的机制来实现缓存读写和同步,但实际上我们做这一步是多余的,因为Spring本身就提供了强大的缓存注解功能,我们何必再重复造轮子呢。下面将简单介绍下Spring的几个关键缓存注解及如何使用它们来实现缓存读写、更新和删除。

二 Spring几个关键缓存注解介绍

下面简单介绍几个Spring提供的核心缓存注解:@EnableCaching,@Cacheable,@CachePut,@CacheEvict ,如下:

注解名称简介
@EnableCaching该注解用来开启缓存功能,配置类中需要加上这个注解,Spring才知道你需要缓存功能,另外其他和缓存相关的注解才会生效,Spring缓存注解也是通过AOP实现的,通过AOP来拦截需要使用缓存的方法,实现缓存功能。
@Cacheable该注解用来赋予缓存功能,它可以标记在一个方法上,也可以标记在一个类上。当标记在一个方法上时表示该方法是支持缓存的,当标记在一个类上时则表示该类所有的方法都是支持缓存的。对于一个支持缓存的方法,Spring会在其被调用后将其返回值缓存起来,以保证下次利用同样的参数访问该方法可以直接从缓存中获取结果,而不需要再次执行该方法。@Cacheable可以指定三个属性:valuekeyconditionvalue: value和cacheNames属性作用一样,必须指定其中一个,表示当前方法的返回值是会被缓存在哪个Cache上的,对应Cache的名称。 key: 缓存以key->value的形式存储,key属性指定缓存内容对应的key,key属性支持SpEL表达式;当我们没有指定该属性时,Spring将使用默认策略生成key。 condition: 用来控制缓存的使用条件,condition属性默认为true,其值是通过SpEL表达式来指定的,当为true时表示先尝试从缓存中获取;若缓存中不存在则执行方法并将方法返回值存入缓存;当为false时不走缓存直接执行方法,并且返回结果也不会存入缓存。
@CachePut该注解用来将结果放入缓存,该注解的用法跟@Cacheable类似,区别如下: @CachePut:这个注释可以确保方法被执行,同时方法的返回值也被记录到缓存中@Cacheable:当重复使用相同参数调用方法的时候,方法本身不会被调用执行,即方法本身被略过了,取而代之的是方法的结果直接从缓存中找到并返回了。 所以,@CachePut一般被用于缓存的更新同步,确保缓存数据一致性。
@CacheEvict该注解用来清除缓存,如果标注在方法上则目标方法被调用时会清除指定的缓存,@CacheEvict一般用于数据删除时同时删除缓存,确保缓存数据一致性。

三 工程实践

3.1 引入依赖

要在springboot中使用缓存,重点要引入依赖:spring-boot-starter-data-redis

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
 <modelVersion>4.0.0</modelVersion>

 <groupId>org.example</groupId>
 <artifactId>spring-cache</artifactId>
 <version>1.0-SNAPSHOT</version>
 <packaging>jar</packaging>

 <name>spring-cache</name>
 <url>http://maven.apache.org</url>

 <properties>
 <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
 <spring.boot.version>2.3.8.RELEASE</spring.boot.version>
 <slf4j-api.version>1.7.29</slf4j-api.version>
 <log4j-api.version>2.3</log4j-api.version>
 </properties>

 <dependencies>
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-data-redis</artifactId>
 <version>${spring.boot.version}</version>
 </dependency>
 <dependency>
 <groupId>org.springframework.boot</groupId>
 <artifactId>spring-boot-starter-test</artifactId>
 <version>${spring.boot.version}</version>
 <scope>test</scope>
 </dependency>
 <dependency>
 <groupId>org.slf4j</groupId>
 <artifactId>slf4j-api</artifactId>
 <version>${slf4j-api.version}</version>
 <scope>provided</scope>
 </dependency>
 <dependency>
 <groupId>org.apache.logging.log4j</groupId>
 <artifactId>log4j-api</artifactId>
 <version>${log4j-api.version}</version>
 <scope>provided</scope>
 </dependency>
 </dependencies>
</project>

3.2 核心代码

首先,要创建缓存配置类,配置类中需要定义一个bean:缓存管理器,类型为CacheManager;另外两个配置:cacheEnable为true开启缓存,false为关闭缓存,cacheTtl为统一的缓存超时时间。

package com.java.demo.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.cache.CacheManager;
import org.springframework.cache.annotation.EnableCaching;
import org.springframework.cache.support.NoOpCacheManager;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.cache.RedisCacheConfiguration;
import org.springframework.data.redis.cache.RedisCacheManager;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.data.redis.core.StringRedisTemplate;

import java.time.Duration;

/**
 * redis缓存配置类
 *
 * @author jiangzhaojing
 * @date 2024-11-29 15:01:12
 */
@Configuration
@EnableCaching
public class RedisCacheConfig {

@Value("${cache.enable:false}")
private Boolean cacheEnable;
 @Value("${cache.ttl:120}")
private Long cacheTtl;

 @Autowired
 private StringRedisTemplate redisTemplate;

 /**
 * 缓存管理bean注入
 *
 * @param redisConnectionFactory
 * @return
 */
 @Bean
 public CacheManager cacheManager(RedisConnectionFactory redisConnectionFactory) {
if (cacheEnable) {
            RedisCacheConfiguration config = instanceConfig();
 return RedisCacheManager.builder(redisConnectionFactory)
                    .cacheDefaults(config)
                    .transactionAware()
                    .build();
 }
return new NoOpCacheManager();
 }

/**
 * 实例配置
 *
 * @return
 */
 private RedisCacheConfiguration instanceConfig() {
return RedisCacheConfiguration.defaultCacheConfig()
                .entryTtl(Duration.ofSeconds(cacheTtl))
                .disableCachingNullValues();
 }


}

其次,创建测试需要实体类,需要注意是,该实体类必须实现Serializable,否则会出现序列化异常。

package com.java.demo.model;

import java.io.Serializable;

/**
 * 用户实体类
 *
 * @author jiangzhaojing
 * @date 2024-11-29 15:01:12
 * 用户相关属性
 */
public class User implements Serializable {
private String userId;
 private String userName;

 public User() {
    }

public User(String userId, String userName) {
this.userId = userId;
 this.userName = userName;
 }

@Override
 public String toString() {
return String.format("[userId:%s,userName:%s]", userId, userName);
 }

public String getUserId() {
return userId;
 }

public void setUserId(String userId) {
this.userId = userId;
 }

public String getUserName() {
return userName;
 }

public void setUserName(String userName) {
this.userName = userName;
 }
}

然后,创建接口服务及实现类,并在实现类方法上增加缓存注解,如下:

package com.java.demo.service;

import com.java.demo.model.User;

/**
 * 用户相关服务
 *
 * @author jiangzhaojing
 * @date 2024-11-29 15:01:12
 */
public interface UserService {

/**
 * 根据用户ID获取用户
 *
 * @param userId
 * @return
 */
 User getUserById(String userId);

 /**
 * 更新用户
 *
 * @param user
 * @return
 */
 User updateUser(User user);

 /**
 * 删除用户
 *
 * @param userId
 */
 void deleteUser(String userId);
}
package com.java.demo.service.impl;

import com.java.demo.model.User;
import com.java.demo.service.UserService;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.cache.annotation.CacheEvict;
import org.springframework.cache.annotation.CachePut;
import org.springframework.cache.annotation.Cacheable;
import org.springframework.stereotype.Component;

/**
 * 用户相关服务实现
 *
 * @author jiangzhaojing
 * @date 2024-11-29 15:01:12
 */
@Component
public class UserServiceImpl implements UserService {
private final static Logger logger = LoggerFactory.getLogger(UserServiceImpl.class);

 /**
 * 根据用户ID获取用户
 *
 * @param userId
 * @return
 */
 @Override
 @Cacheable(cacheNames = "users", key = "#userId")
public User getUserById(String userId) {
logger.info("调用了方法[getUserById],入参:{}", userId);
 //正常下面应该从数据库中读取
 return new User("123", "li lei");
 }

/**
 * 更新用户
 *
 * @param user
 * @return
 */
 @Override
 @CachePut(cacheNames = "users", key = "#user.userId")
public User updateUser(User user) {
logger.info("调用了方法[updateUser],入参:{}", user);
 return user;
 }

/**
 * 更新用户
 *
 * @param userId
 * @return
 */
 @Override
 @CacheEvict(cacheNames = "users", key = "#userId")
public void deleteUser(String userId) {
logger.info("调用了方法[deleteUser],入参:{}", userId);
 }


}

然后,写一个应用的启动类

package com.java.demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.context.annotation.ComponentScan;

@SpringBootApplication
@ComponentScan("com.java.demo")
public class Application {
public static void main(String[] args) {
        SpringApplication.run(Application.class);
 }

}

最后,配置文件配置缓存相关配置项,其中spring.redis.host,spring.redis.password,spring.redis.port三项根据实际配置填写

spring.redis.host=//redis地址
spring.redis.database=0
spring.redis.port=//redis端口
spring.redis.password=//redis密码

spring.redis.timeout=5000
spring.redis.jedis.pool.max-idle=8
spring.redis.jedis.pool.min-idle=1
spring.redis.jedis.pool.max-active=8
spring.redis.jedis.pool.max-wait=3000

cache.enable=true
cache.ttl=300

3.3 测试用例

package com.java.demo;


import com.java.demo.model.User;
import com.java.demo.service.UserService;
import org.junit.Test;
import org.junit.runner.RunWith;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.test.context.SpringBootTest;
import org.springframework.test.context.junit4.SpringRunner;

/**
 * 用户相关服务
 *
 * @author jiangzhaojing
 * @date 2024-11-29 15:01:12
 */
@RunWith(SpringRunner.class)
@SpringBootTest
public class CacheTest {
private final static Logger logger = LoggerFactory.getLogger(CacheTest.class);

 @Autowired
 private UserService userService;

 @Test
 public void testCache() {
//第一次读取缓存为空
 logger.info("1.user:{}", userService.getUserById("123"));

 //第二次直接从缓存读取
 logger.info("2.user:{}", userService.getUserById("123"));

 //更新缓存
 userService.updateUser(new User("123", "zhang hua"));

 //第三次直接从缓存读取
 logger.info("3.user:{}", userService.getUserById("123"));

 //删除缓存
 userService.deleteUser("123");

 logger.info("test finish!");
 }


}

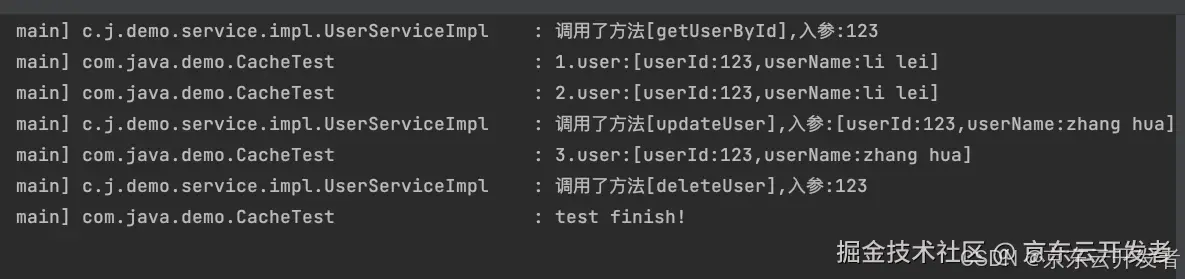

第一次读取,缓存还没有则直接进入方法体并写入缓存,如下图:

在这里插入图片描述

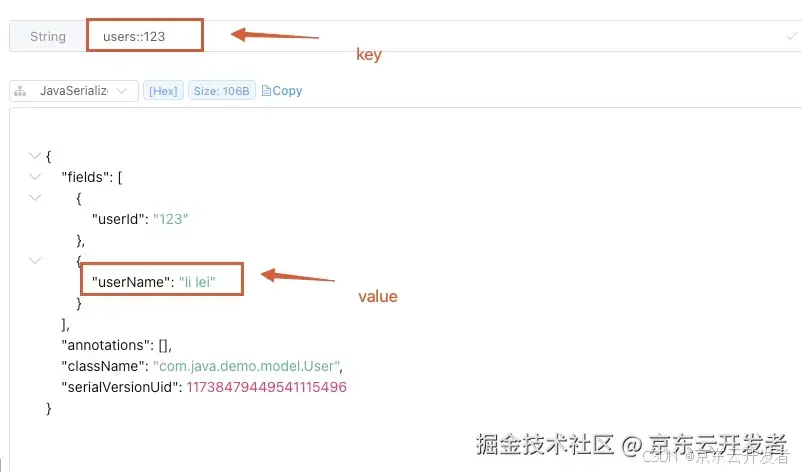

第二次读取,因缓存存在则跳过方法直接从缓存中读取,从第三行日志可以看出来,如下:

在这里插入图片描述

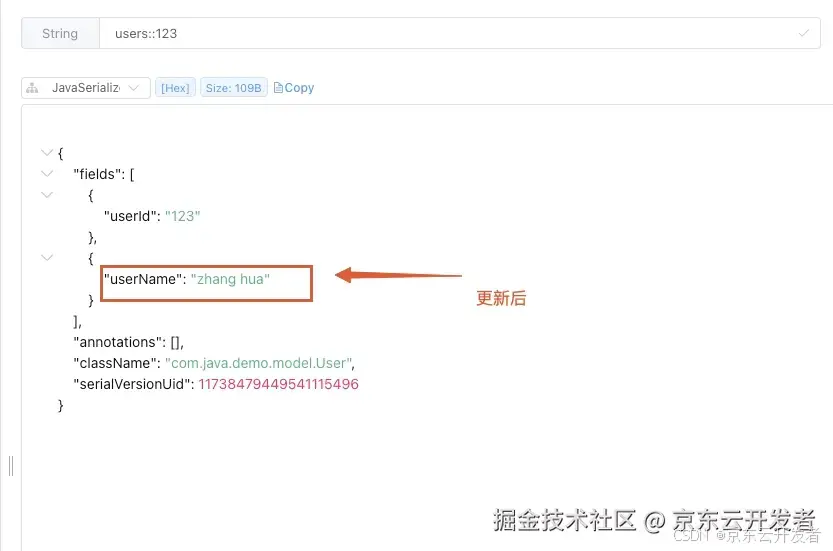

更新数据时,使用@CachePut更新缓存,同步缓存数据:
在这里插入图片描述

删除数据时,及时使用 @CacheEvict清理缓存,确保缓存数据与数据库数据一致。

四 总结

从上面的解析和实践中可以看到使用Spring提供的@EnableCaching注解可以方便进行缓存的处理,避免缓存处理逻辑与业务代码耦合,让代码更优雅,从一定程度上提升了开发效率。但细心的同学会发现一个问题:@EnableCaching注解并未提供缓存超期的属性,所以我们无法通过@EnableCaching设置缓存超时时间,只能通过CacheManager设置一个统一的缓存超期时间。通过@EnableCaching源码我们也能发现并无缓存超期属性,如下:

package org.springframework.cache.annotation;

import java.lang.annotation.Documented;
import java.lang.annotation.ElementType;
import java.lang.annotation.Inherited;
import java.lang.annotation.Retention;
import java.lang.annotation.RetentionPolicy;
import java.lang.annotation.Target;
import org.springframework.core.annotation.AliasFor;

@Target({ElementType.TYPE, ElementType.METHOD})
@Retention(RetentionPolicy.RUNTIME)
@Inherited
@Documented
public @interface Cacheable {
@AliasFor("cacheNames")
    String[] value() default {};

 @AliasFor("value")
    String[] cacheNames() default {};

 String key() default "";

 String keyGenerator() default "";

 String cacheManager() default "";

 String cacheResolver() default "";

 String condition() default "";

 String unless() default "";

 boolean sync() default false;
}

至于Spring不提供这个属性原因,可能是基于框架的扩展性和通用性方面的考虑,不过Spring的强大之处就在于它是可以扩展的,预留了很多扩展点等待我们去实现,本文因篇幅有限不在本篇讨论如何扩展实现缓存超时时间的问题,留在后面的文章继续探讨。以上的分析讨论及代码难免有错误之处,敬请同学们指正!

五 源码

Spring缓存注解工程实践相关源码: https://3.cn/10h-Vk1KT
