基于Sentinel自研组件的系统限流、降级、负载保护最佳实践探索

一、Sentinel简介

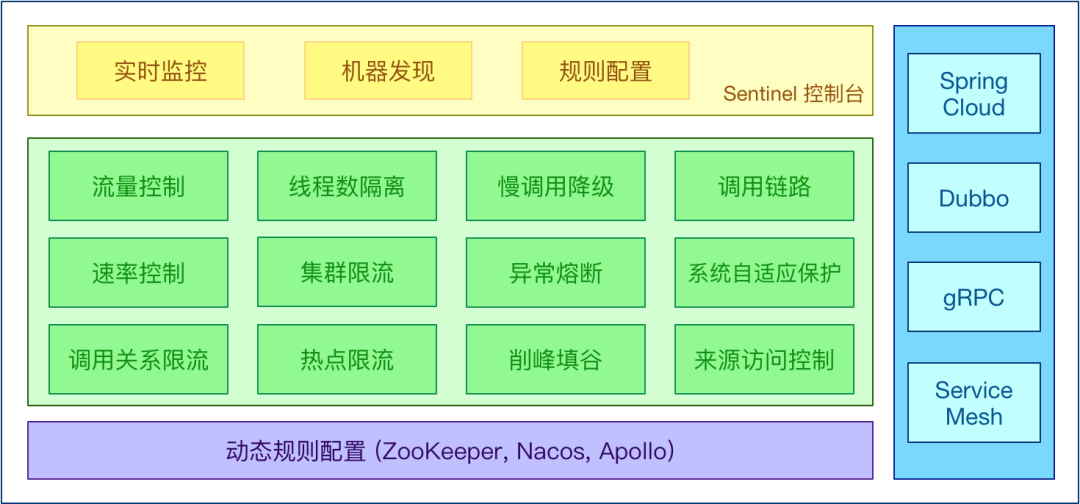

Sentinel 以流量为切入点,从流量控制、熔断降级、系统负载保护等多个维度保护服务的稳定性。

Sentinel 具有以下特征:

•丰富的应用场景:Sentinel 承接了阿里巴巴近 10 年的双十一大促流量的核心场景,例如秒杀(即突发流量控制在系统容量可以承受的范围)、消息削峰填谷、集群流量控制、实时熔断下游不可用应用等。

•完备的实时监控:Sentinel 同时提供实时的监控功能。您可以在控制台中看到接入应用的单台机器秒级数据,甚至 500 台以下规模的集群的汇总运行情况。

•广泛的开源生态:Sentinel 提供开箱即用的与其它开源框架/库的整合模块,例如与 Spring Cloud、Apache Dubbo、gRPC、Quarkus 的整合。您只需要引入相应的依赖并进行简单的配置即可快速地接入 Sentinel。同时 Sentinel 提供 Java/Go/C++ 等多语言的原生实现。

•完善的 SPI 扩展机制:Sentinel 提供简单易用、完善的 SPI 扩展接口。您可以通过实现扩展接口来快速地定制逻辑。例如定制规则管理、适配动态数据源等。

•



有关Sentinel的详细介绍以及和Hystrix的区别可以自行网上检索,推荐一篇文章:阿里限流神器Sentinel夺命连环 17 问?

本次主要使用了Sentinel的降级、限流、系统负载保护功能

二、Sentinel关键技术源码解析

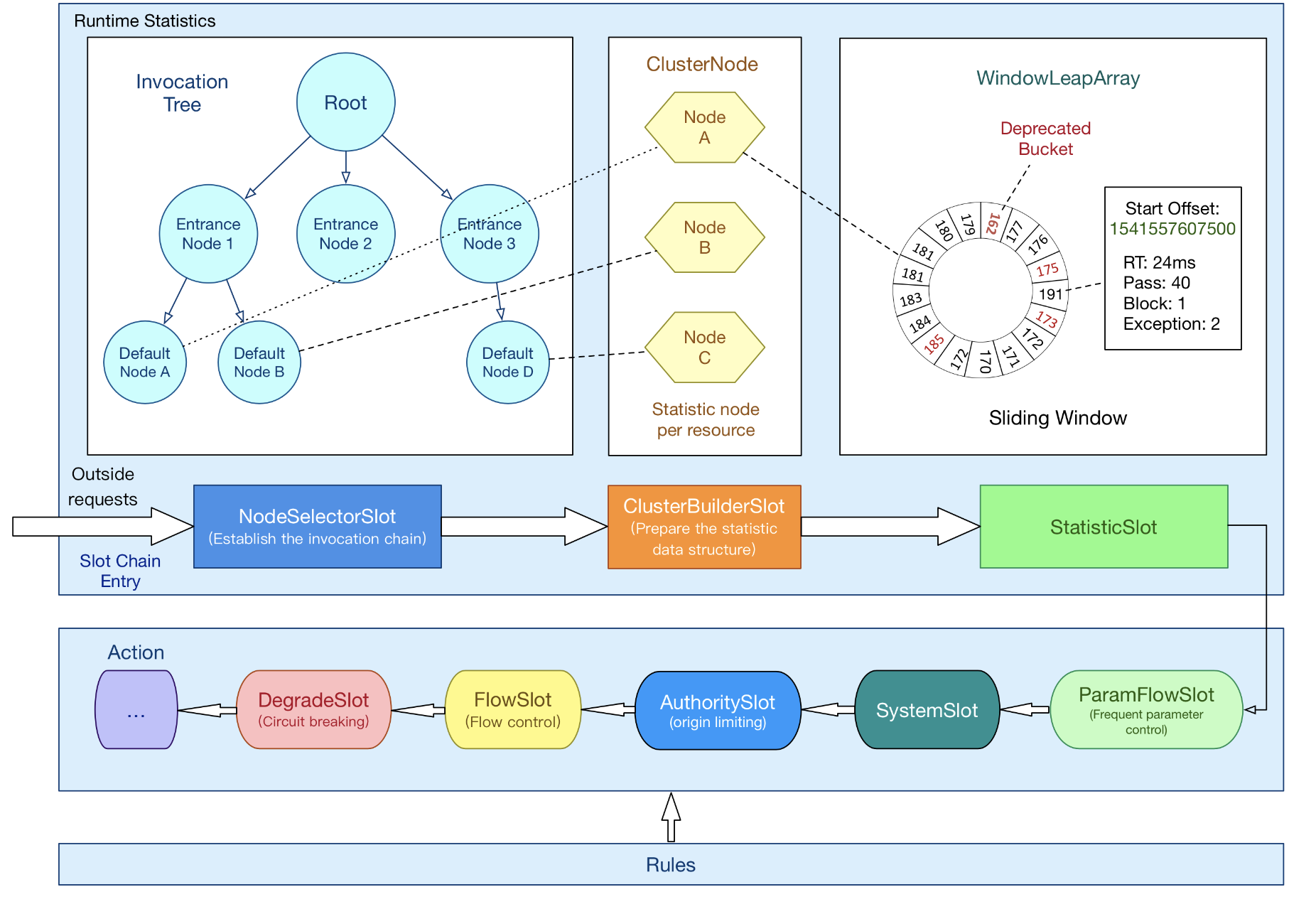

无论是限流、降级、负载等控制手段,大致流程如下:

•StatisticSlot 则用于记录、统计不同维度的 runtime 指标监控信息

•责任链依次触发后续 slot 的 entry 方法,如 SystemSlot、FlowSlot、DegradeSlot 等的规则校验;

•当后续的 slot 通过,没有抛出 BlockException 异常,说明该资源被成功调用,则增加执行线程数和通过的请求数等信息。

关于数据统计,主要会牵扯到 ArrayMetric、BucketLeapArray、MetricBucket、WindowWrap 等类。

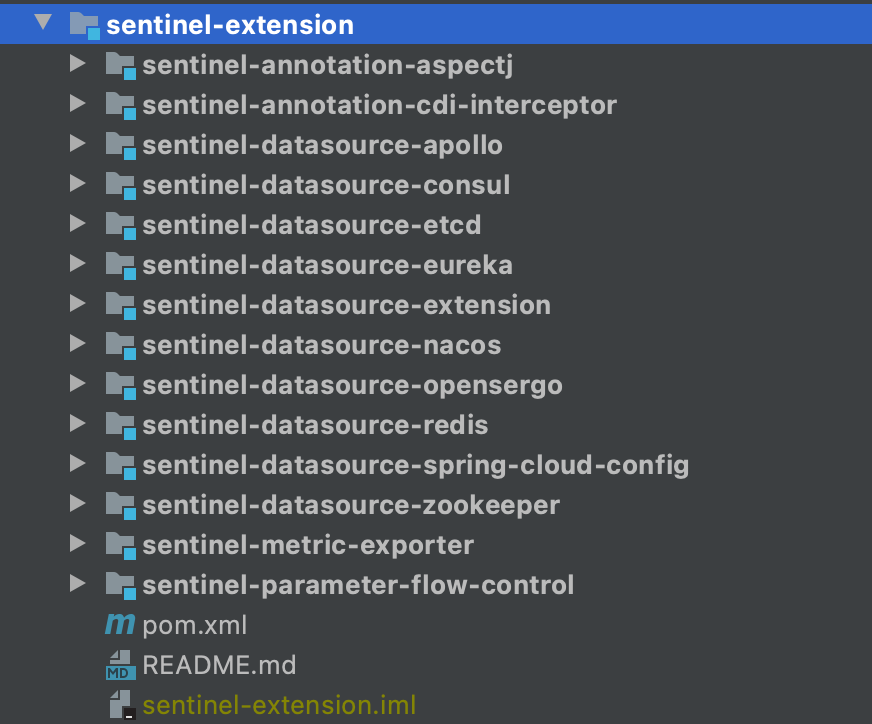

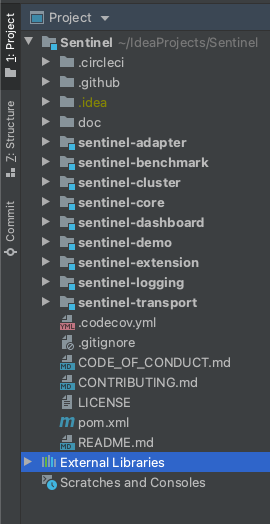

项目结构





以下主要分析core包里的内容

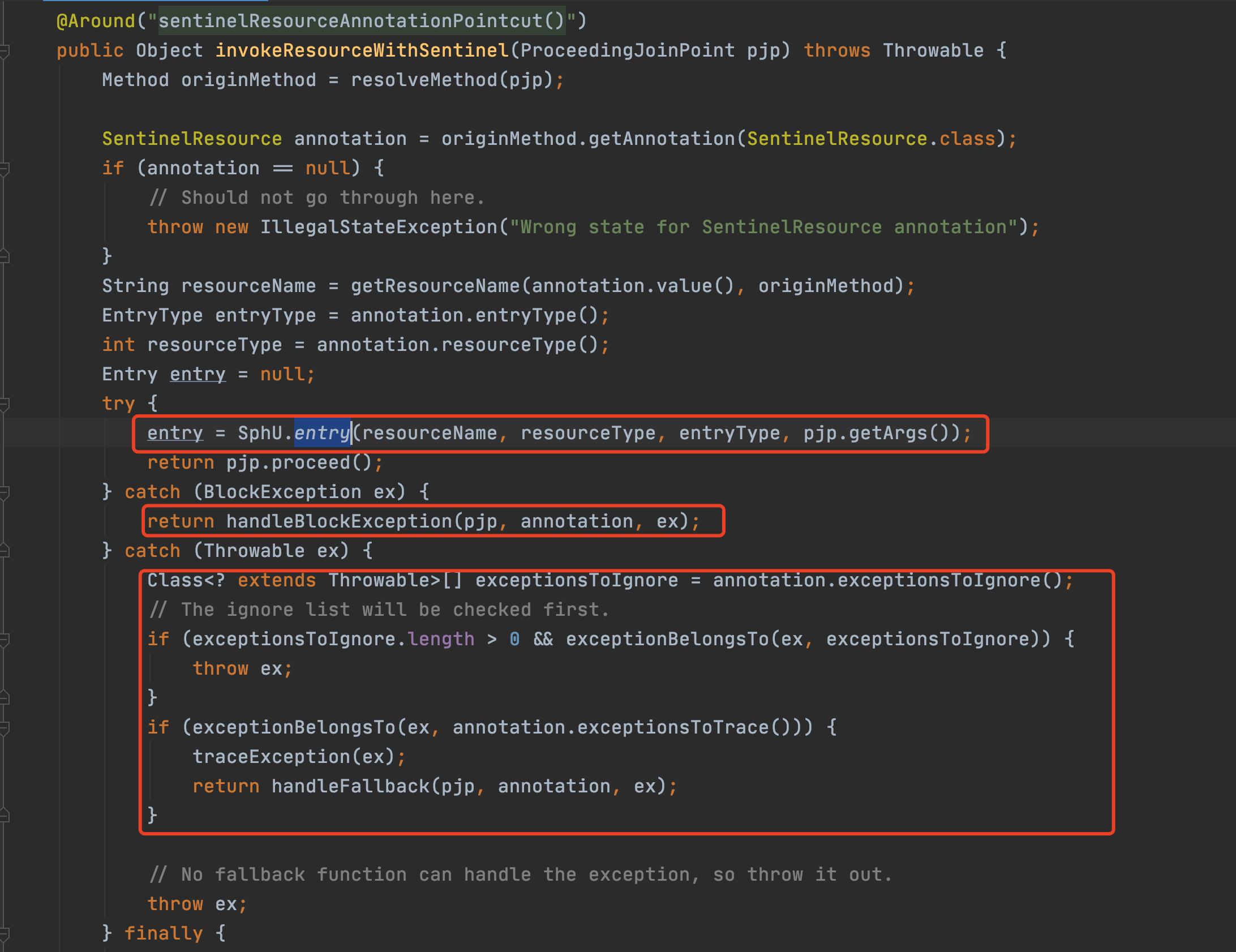

2.1注解入口









2.1.1 Entry、Context、Node

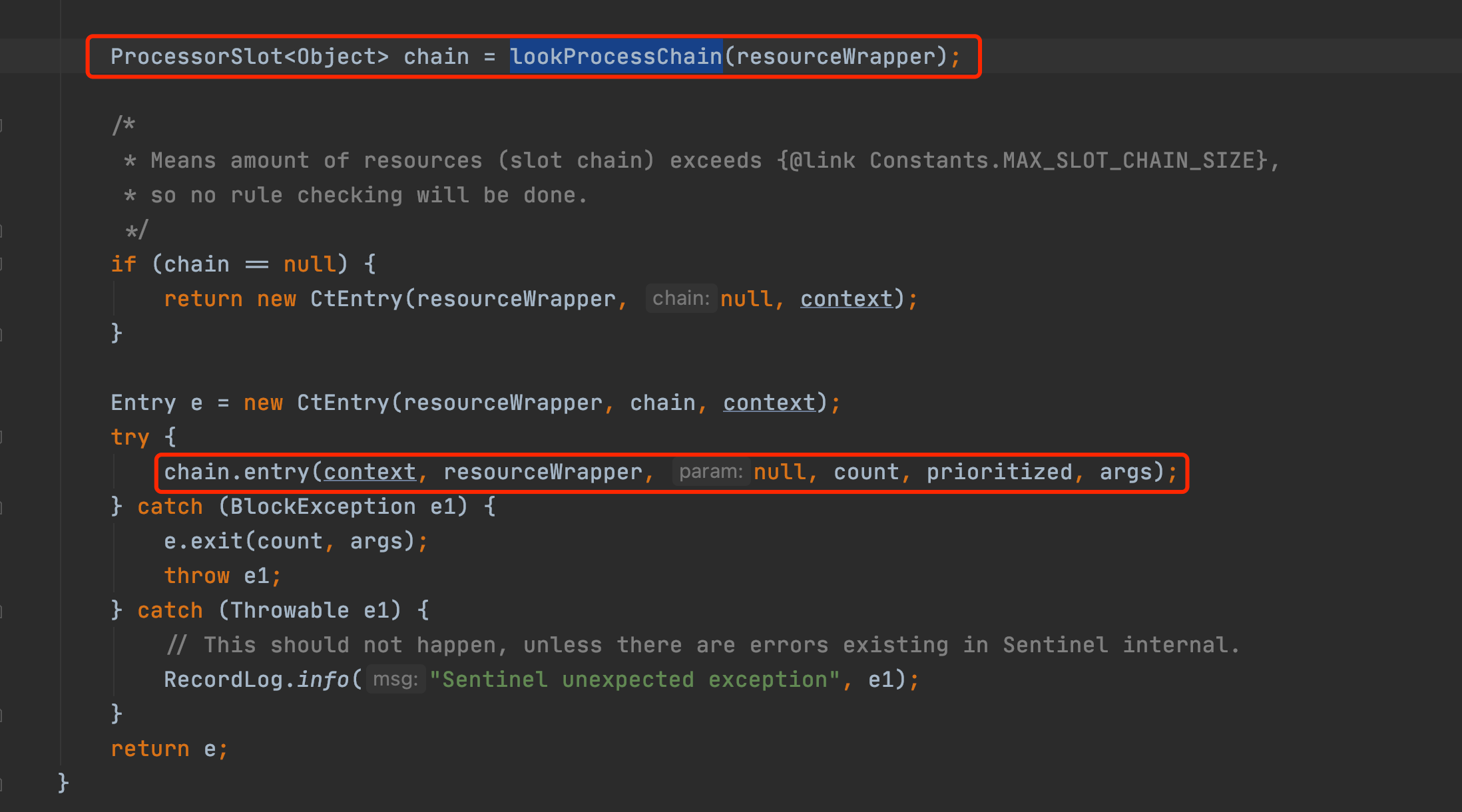

SphU门面类的方法出参都是Entry,Entry可以理解为每次进入资源的一个凭证,如果调用SphO.entry()或者SphU.entry()能获取Entry对象,代表获取了凭证,没有被限流,否则抛出一个BlockException。

Entry中持有本次对资源调用的相关信息:

•createTime:创建该Entry的时间戳。

•curNode:Entry当前是在哪个节点。

•orginNode:Entry的调用源节点。

•resourceWrapper:Entry关联的资源信息。

•

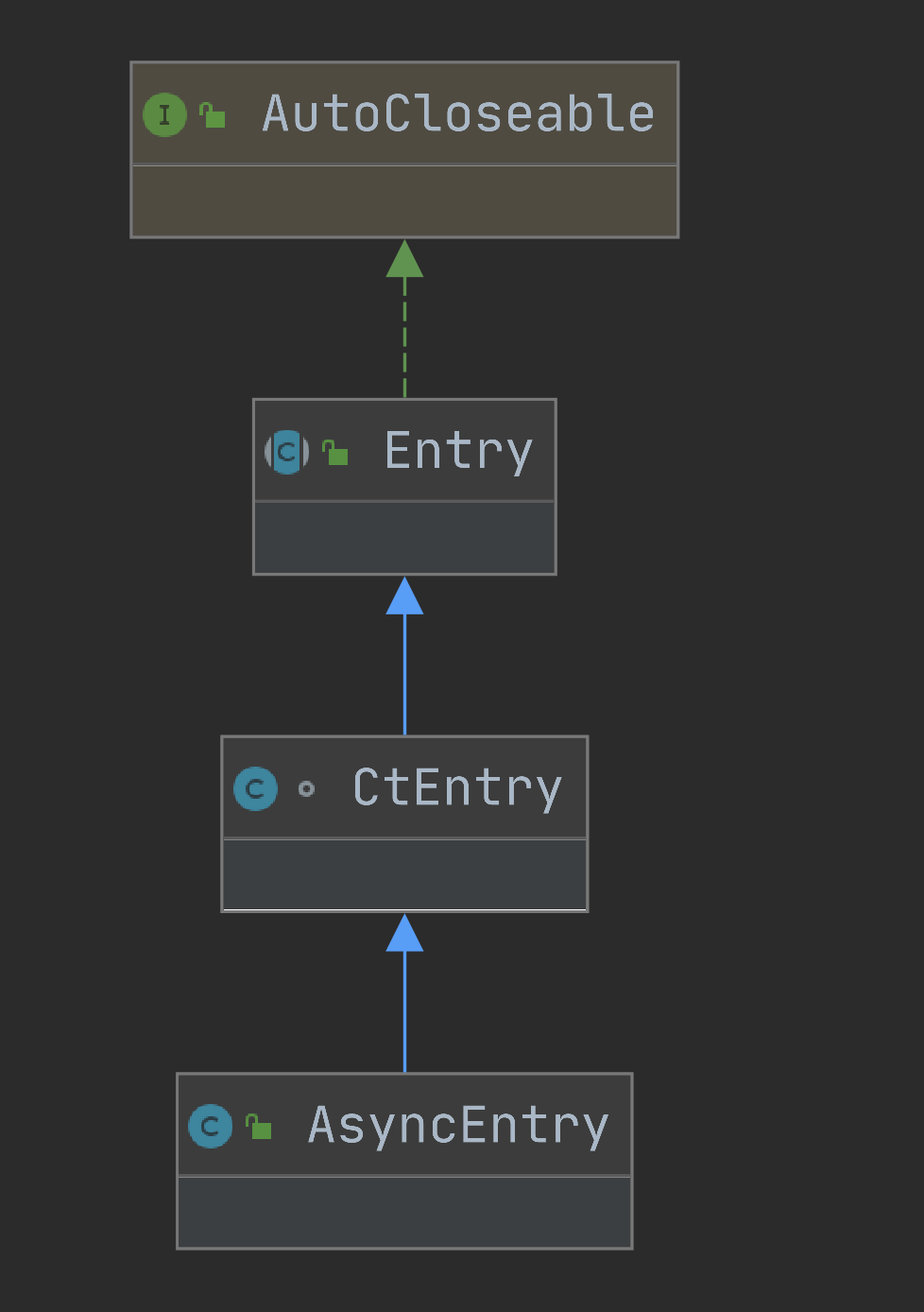

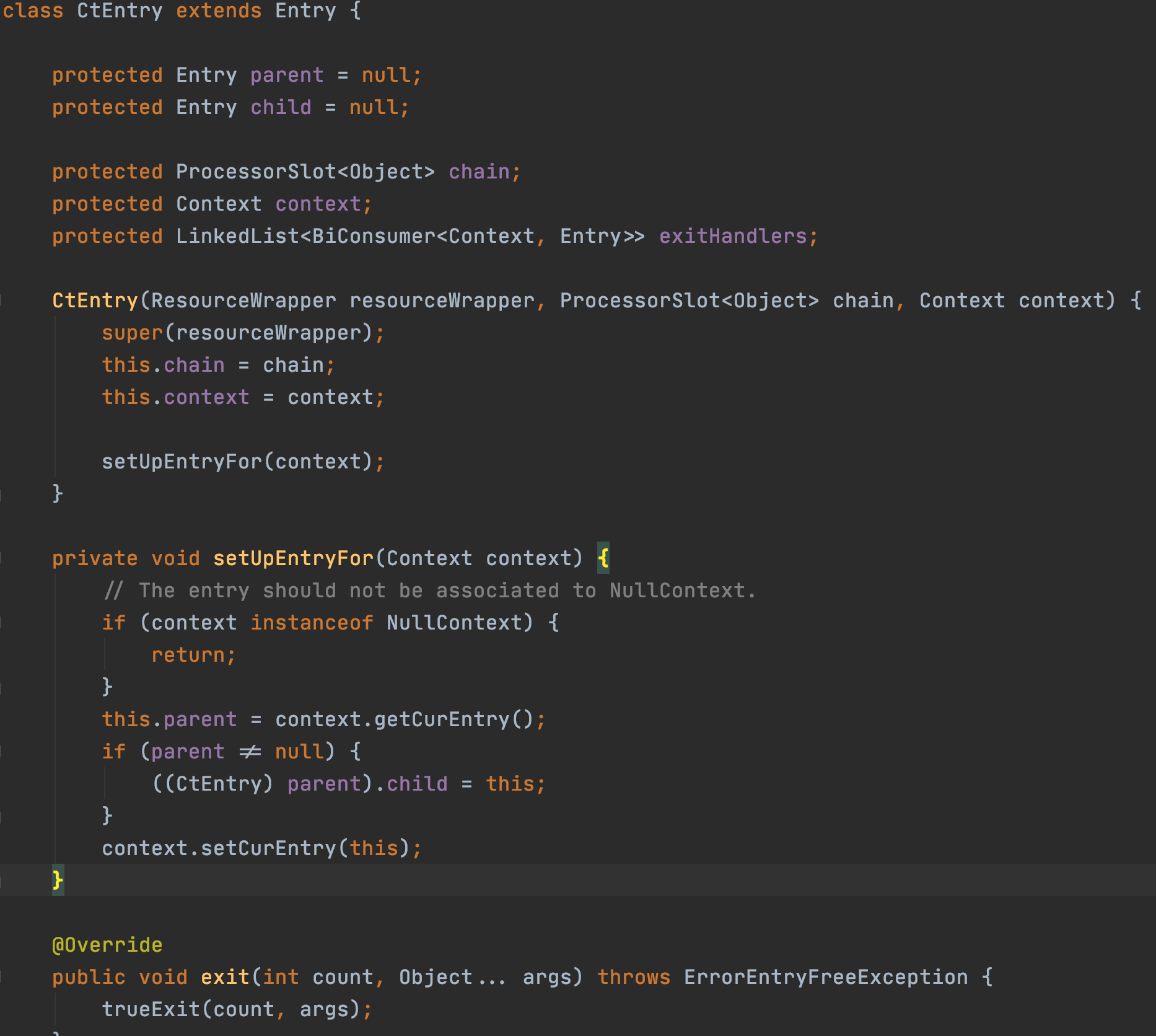

Entry是一个抽象类,CtEntry是Entry的实现,CtEntry持有Context和调用链的信息

Context的源码注释如下,

This class holds metadata of current invocation

Node的源码注释

Holds real-time statistics for resources

Node中保存了对资源的实时数据的统计,Sentinel中的限流或者降级等功能就是通过Node中的数据进行判断的。Node是一个接口,里面定义了各种操作request、exception、rt、qps、thread的方法。





在细看Node实现时,不难发现LongAddr的使用,关于LongAddr和DoubleAddr都是java8 java.util.concurrent.atomic里的内容,感兴趣的小伙伴可以再深入研究一下,这两个是高并发下计数功能 非常优秀的数据结构,实际应用场景里需要计数时可以考虑使用。
关于Node的介绍后续还会深入,此处大致先提一下这个概念。

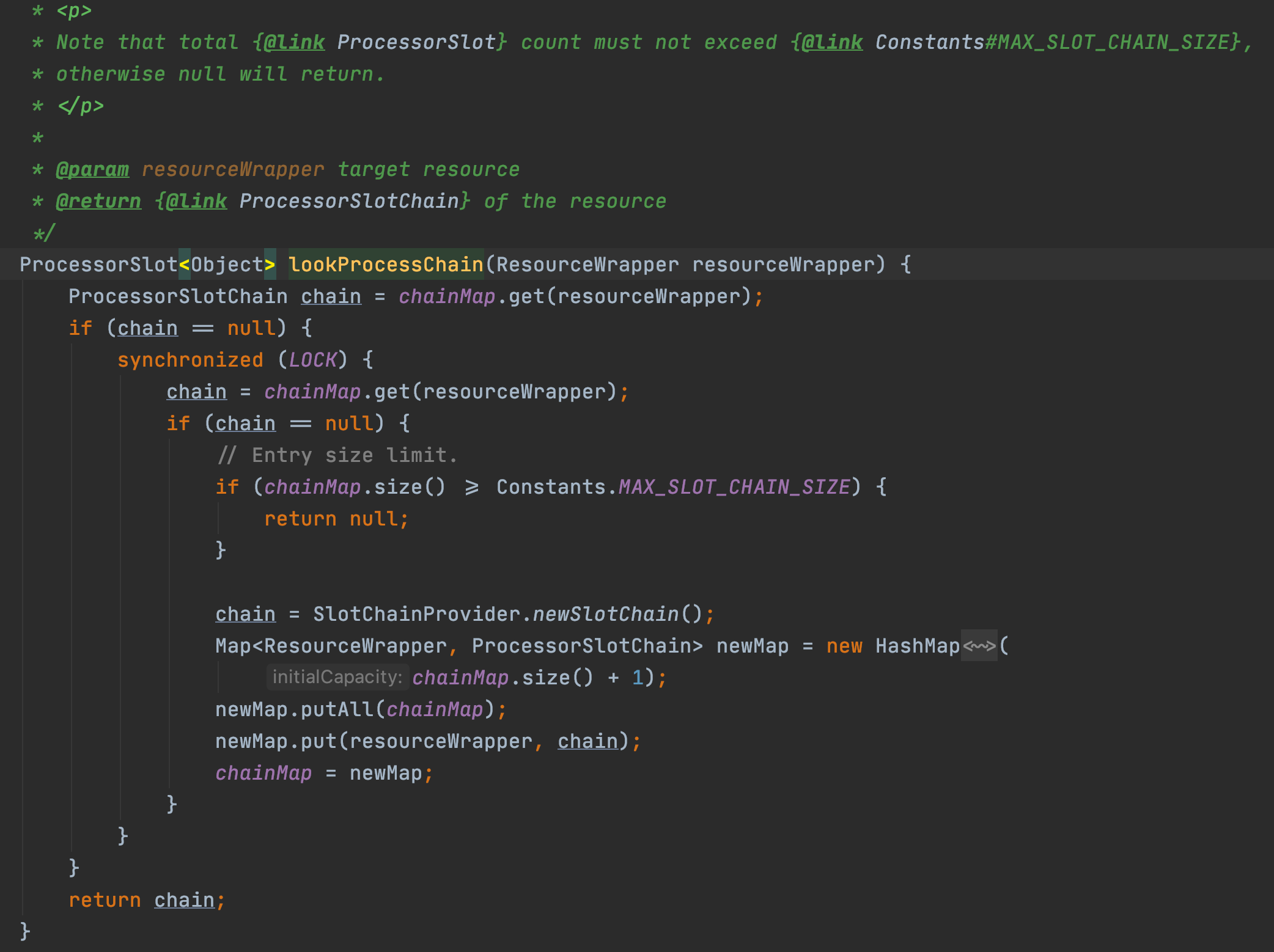

2.2 初始化





2.2.1 Context初始化

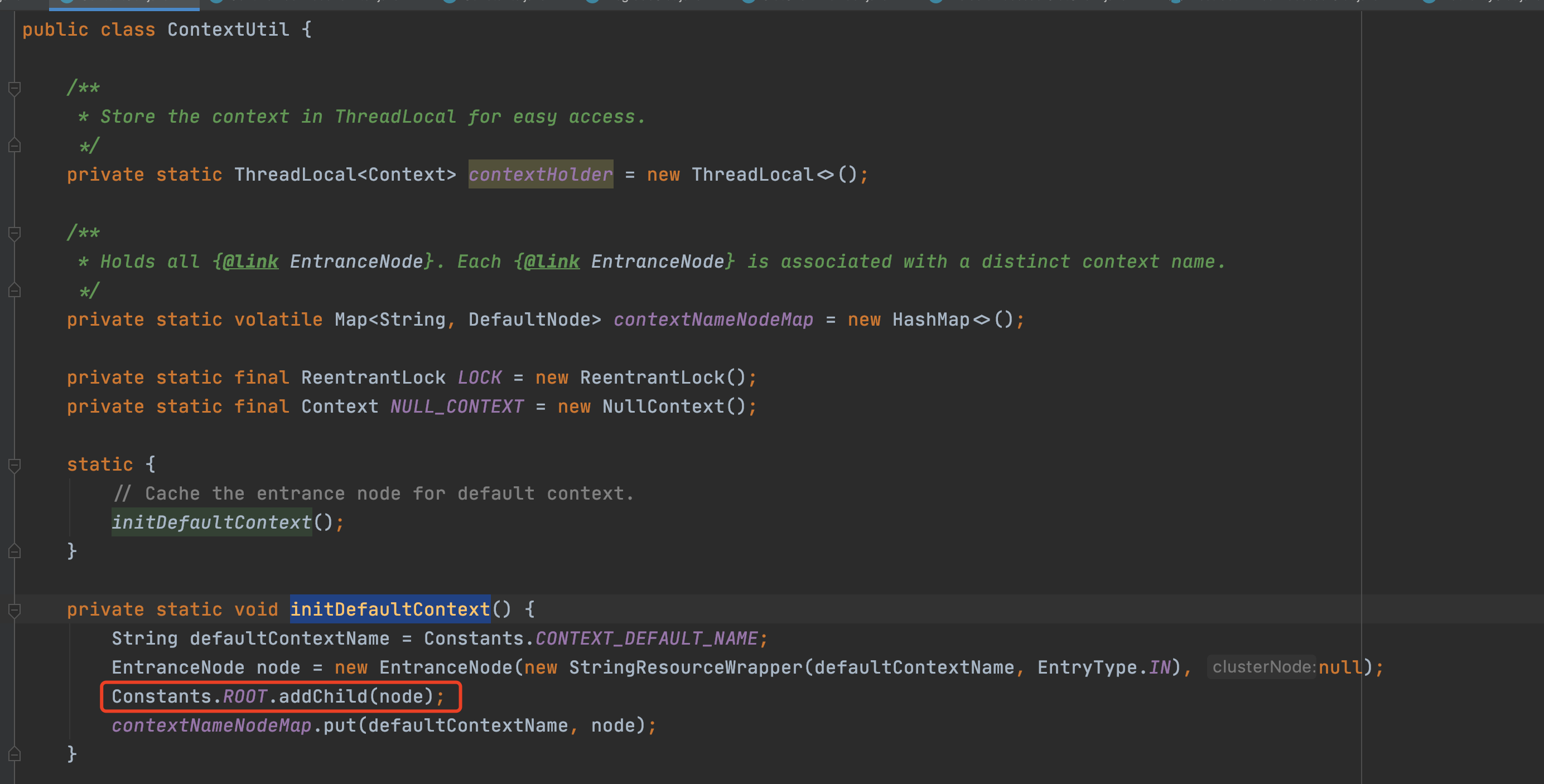

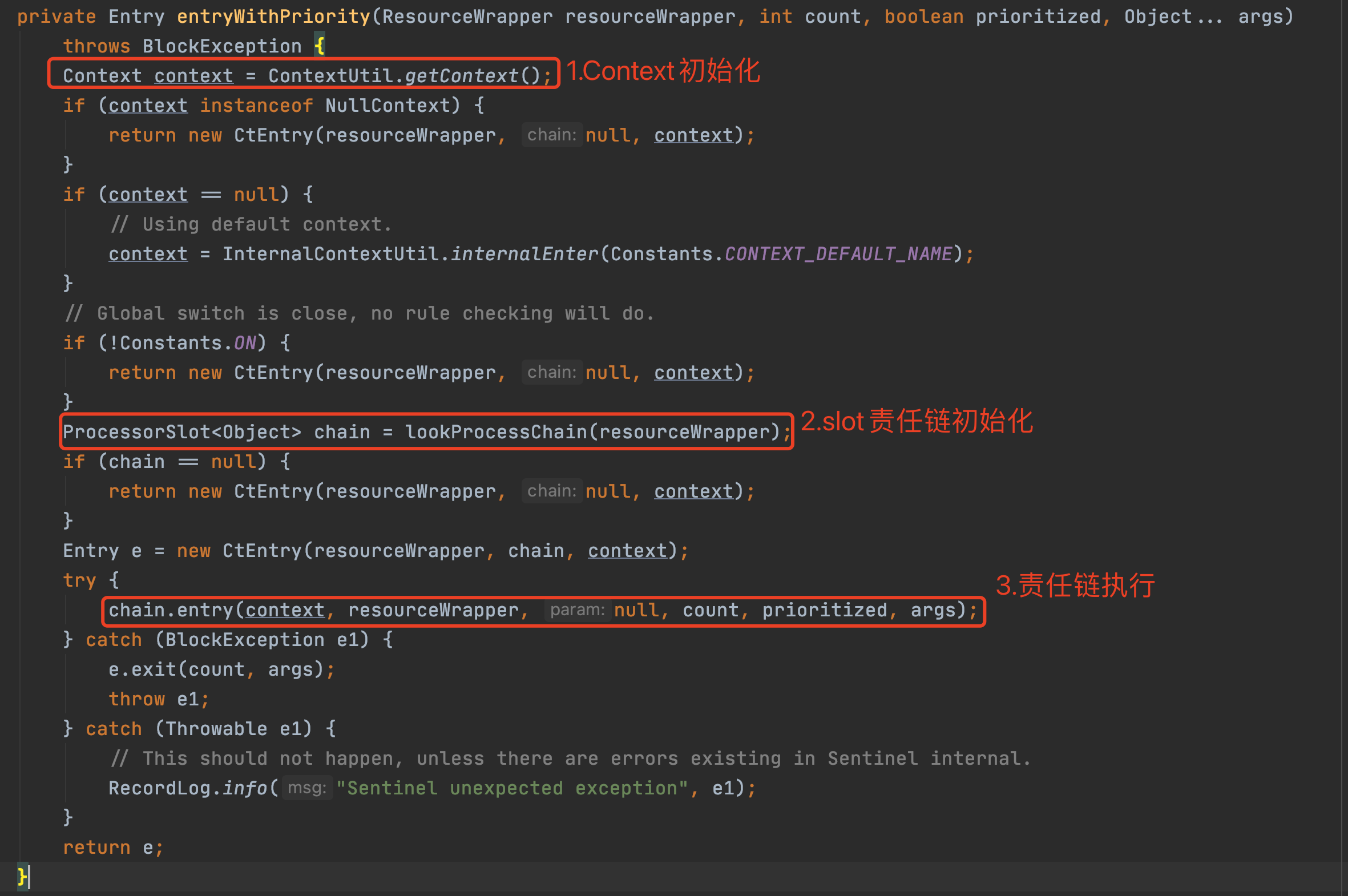

在初始化slot责任链部分前,还执行了context的初始化,里面涉及几个重要概念,需要解释一下:

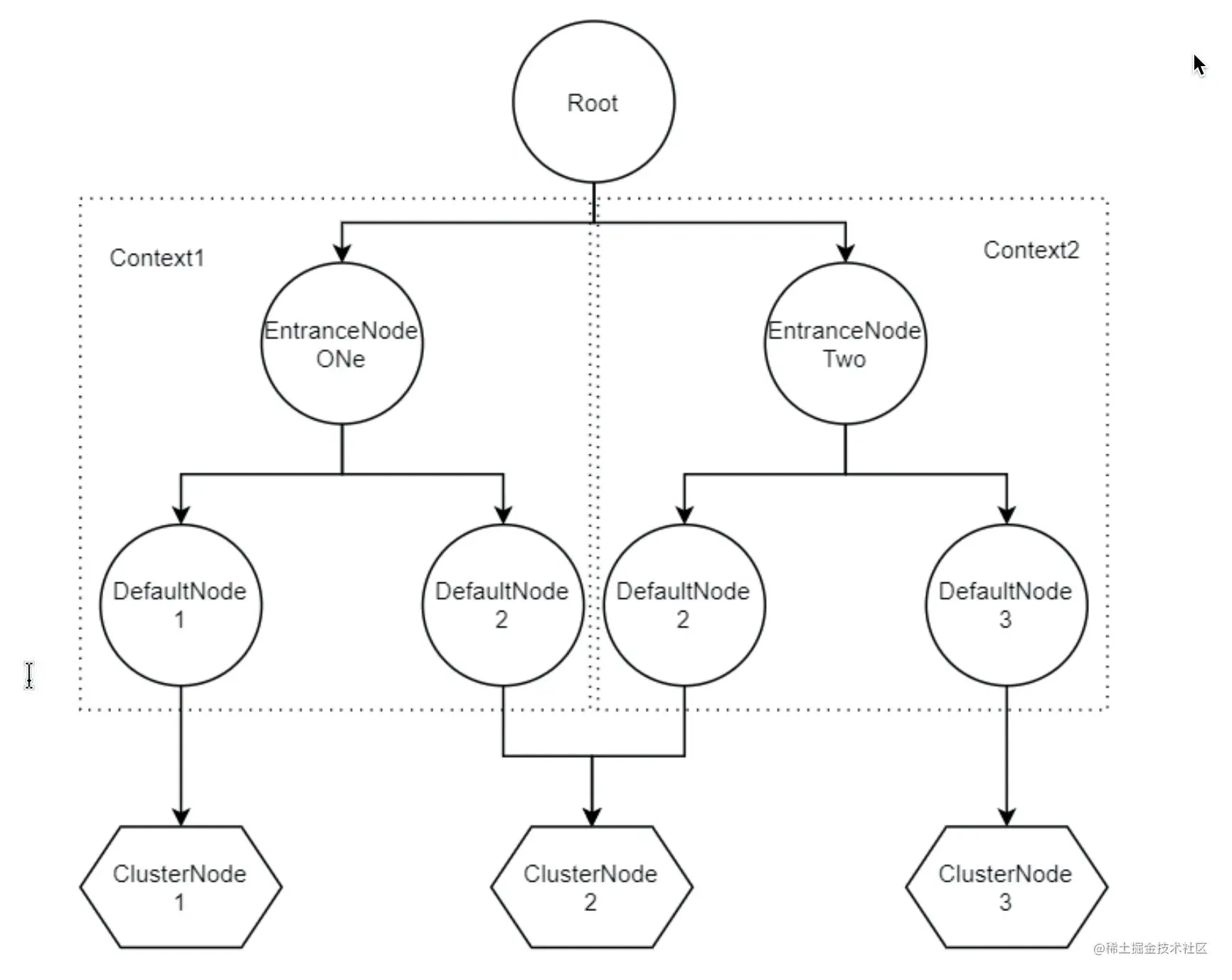

可以发现在Context初始化的过程中,会把EntranceNode加入到Root子节点中(实际Root本身是一个特殊的EntranceNode),并把EntranceNode放到contextNameNodeMap中。

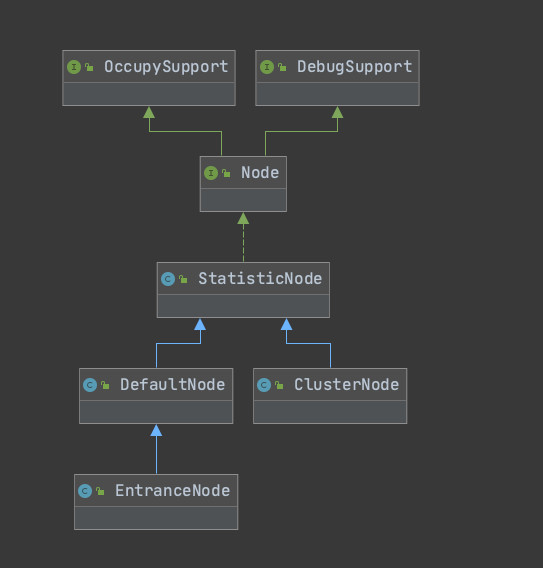

之前简单提到过Node,是用来统计数据用的,不同Node功能如下:

•Node:用于完成数据统计的接口

•StatisticNode:统计节点,是Node接口的实现类,用于完成数据统计

•EntranceNode:入口节点,一个Context会有一个入口节点,用于统计当前Context的总体流量数据

•DefaultNode:默认节点,用于统计一个资源在当前Context中的流量数据

•ClusterNode:集群节点,用于统计一个资源在所有Context中的总体流量数据

•

•



protected static Context trueEnter(String name, String origin) {
        Context context = contextHolder.get();
        if (context == null) {
            Map<String, DefaultNode> localCacheNameMap = contextNameNodeMap;
            DefaultNode node = localCacheNameMap.get(name);
            if (node == null) {
                if (localCacheNameMap.size() > Constants.MAX_CONTEXT_NAME_SIZE) {
                    setNullContext();
                    return NULL_CONTEXT;
                } else {
                    LOCK.lock();
                    try {
                        node = contextNameNodeMap.get(name);
                        if (node == null) {
                            if (contextNameNodeMap.size() > Constants.MAX_CONTEXT_NAME_SIZE) {
                                setNullContext();
                                return NULL_CONTEXT;
                            } else {
                                node = new EntranceNode(new StringResourceWrapper(name, EntryType.IN), null);
                                // Add entrance node.
                                Constants.ROOT.addChild(node);

                                Map<String, DefaultNode> newMap = new HashMap<>(contextNameNodeMap.size() + 1);
                                newMap.putAll(contextNameNodeMap);
                                newMap.put(name, node);
                                contextNameNodeMap = newMap;
                            }
                        }
                    } finally {
                        LOCK.unlock();
                    }
                }
            }
            context = new Context(node, name);
            context.setOrigin(origin);
            contextHolder.set(context);
        }

        return context;
    }

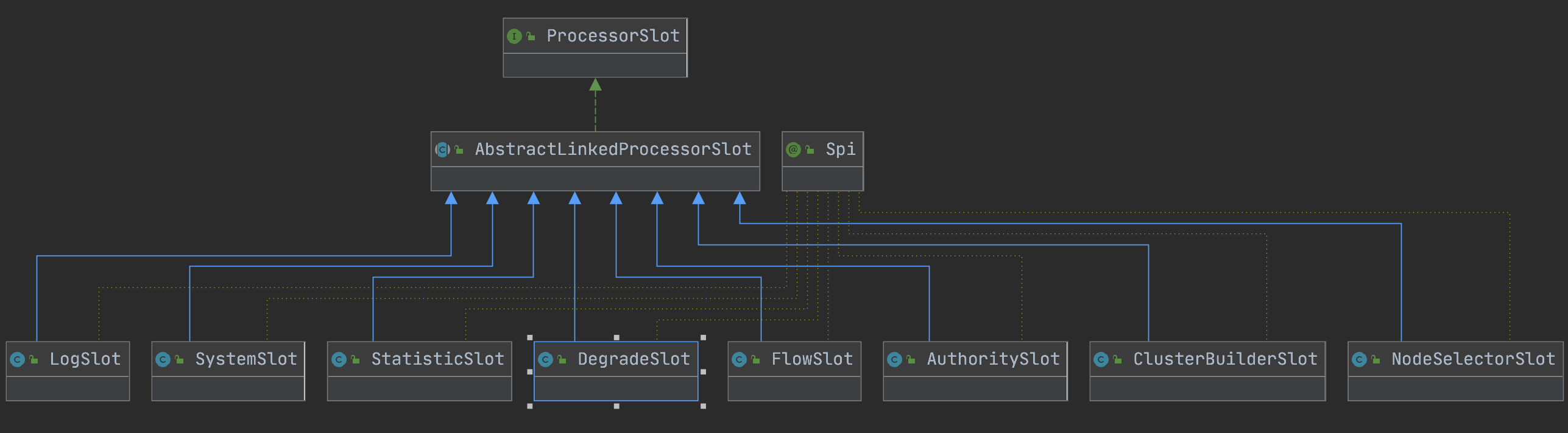

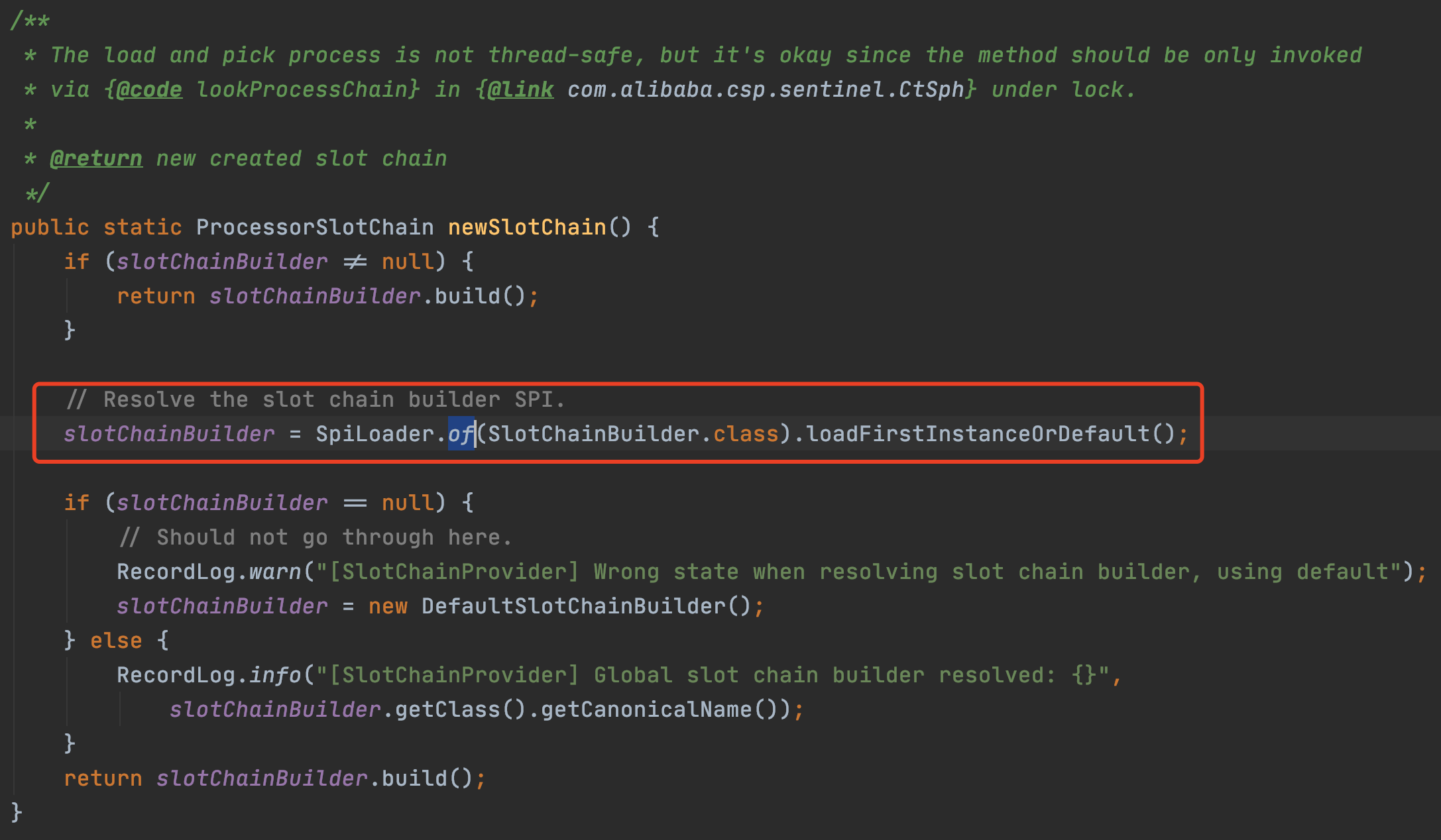

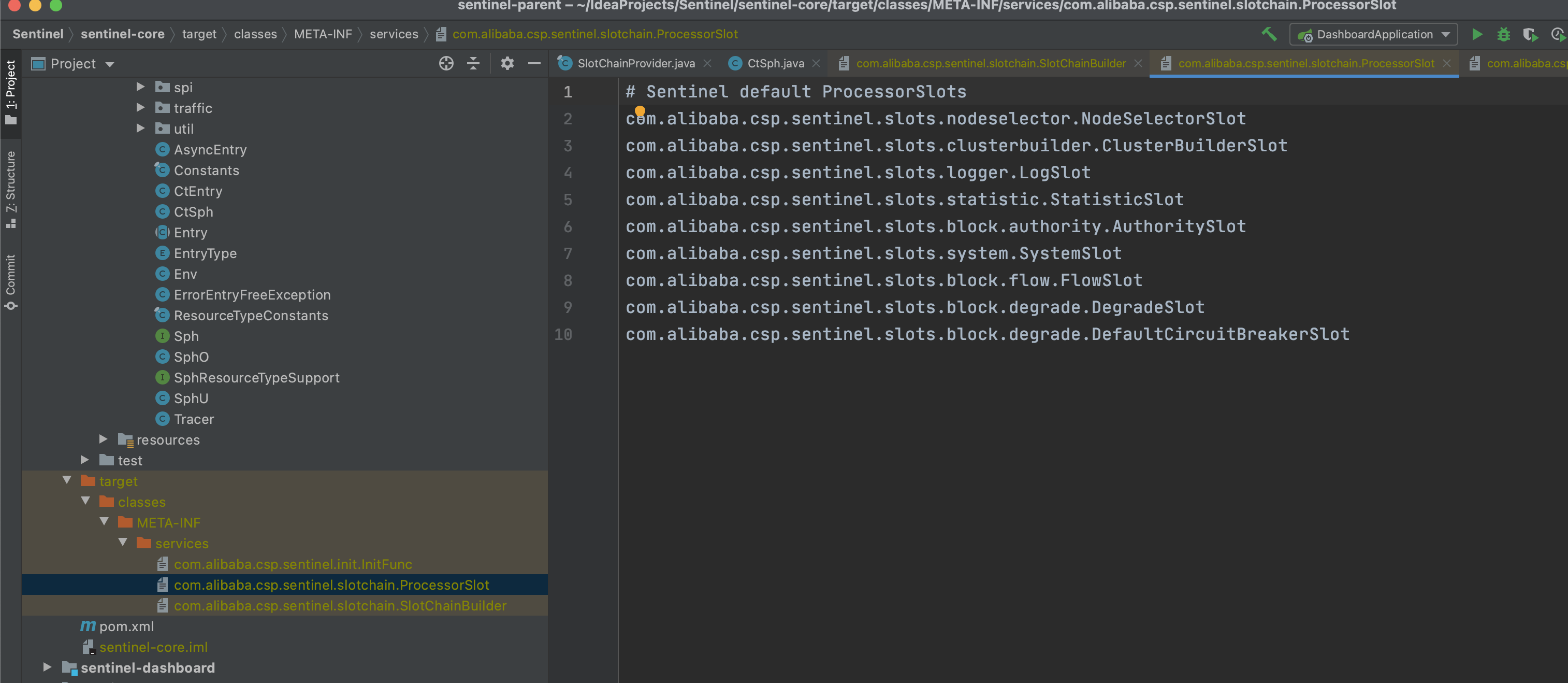

2.2.2 通过SpiLoader默认初始化8个slot













每个slot的主要职责如下:

•NodeSelectorSlot 负责收集资源的路径,并将这些资源的调用路径,以树状结构存储起来,用于根据调用路径来限流降级;

•ClusterBuilderSlot 则用于存储资源的统计信息以及调用者信息,例如该资源的 RT, QPS, thread count 等等,这些信息将用作为多维度限流,降级的依据;

•StatisticSlot 则用于记录、统计不同纬度的 runtime 指标监控信息;

•FlowSlot 则用于根据预设的限流规则以及前面 slot 统计的状态,来进行流量控制;

•AuthoritySlot 则根据配置的黑白名单和调用来源信息,来做黑白名单控制;

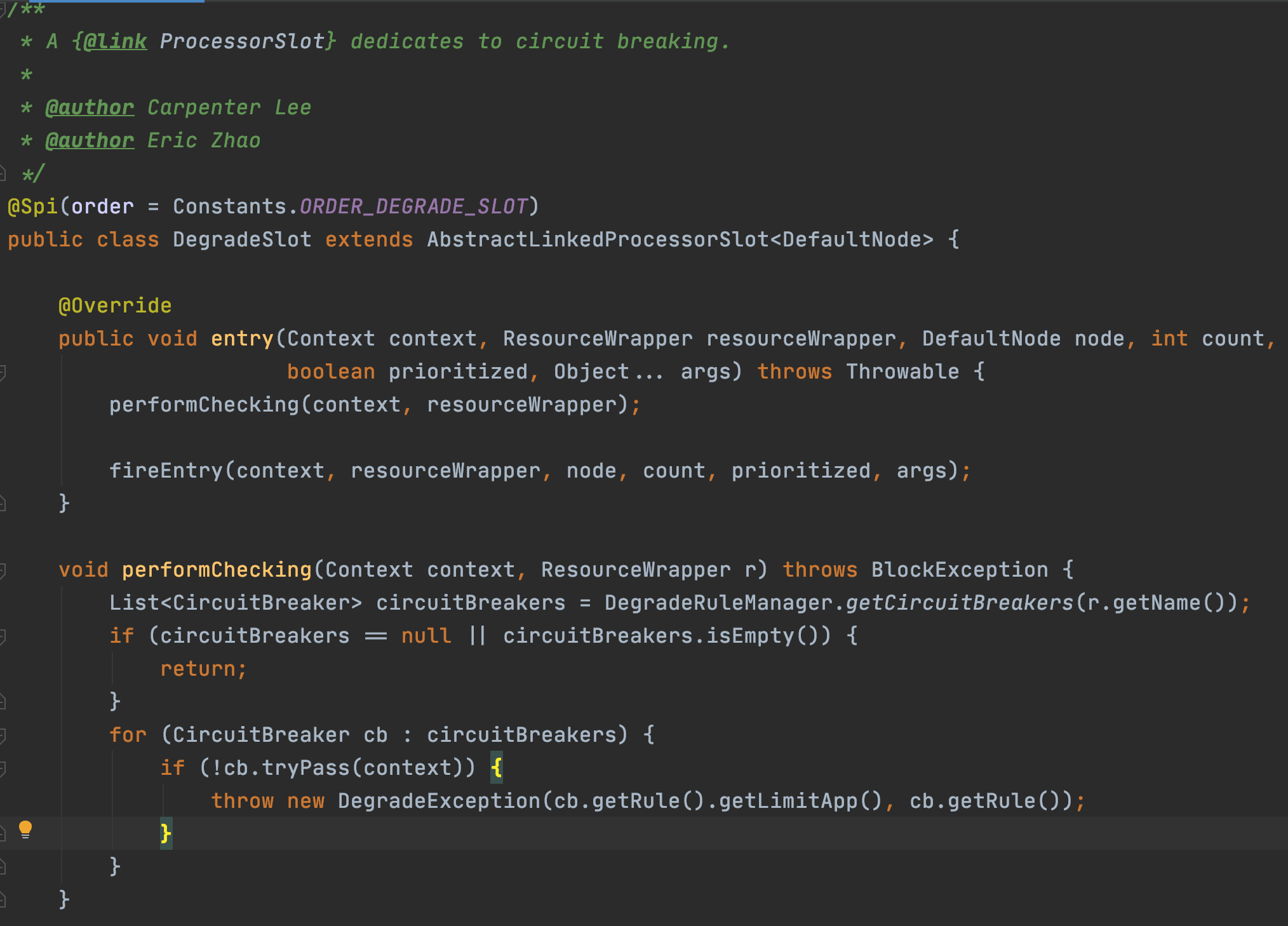

•DegradeSlot 则通过统计信息以及预设的规则,来做熔断降级;

•SystemSlot 则通过系统的状态,例如 集群QPS、线程数、RT、负载 等,来控制总的入口流量;

2.3 StatisticSlot

2.3.1 Node

深入看一下Node,因为统计信息都在里面,后面不论是限流、熔断、负载保护等都是结合规则+统计信息判断是否要执行





从Node的源码注释看,它会持有资源维度的实时统计数据,以下是接口里的方法定义,可以看到totalRequest、totalPass、totalSuccess、blockRequest、totalException、passQps等很多request、qps、thread的相关方法:

/**
 * Holds real-time statistics for resources.
 *
 * @author qinan.qn
 * @author leyou
 * @author Eric Zhao
 */
public interface Node extends OccupySupport, DebugSupport {
    long totalRequest();
    long totalPass();
    long totalSuccess();
    long blockRequest();
    long totalException();
    double passQps();
    double blockQps();
    double totalQps();
    double successQps();
    ……
}

2.3.2 StatisticNode

我们先从最基础的StatisticNode开始看,源码给出的定位是:

The statistic node keep three kinds of real-time statistics metrics:
metrics in second level ({@code rollingCounterInSecond})
metrics in minute level ({@code rollingCounterInMinute})
thread count

StatisticNode只有四个属性,除了之前提到过的LongAddr类型的curThreadNum外,还有两个属性是Metric对象,通过入参已经属性命名可以看出,一个用于秒级,一个用于分钟级统计。接下来我们就要看看Metric

// StatisticNode持有两个Metric,一个秒级一个分钟级,由入参可知,秒级统计划分了两个时间窗口,窗口程度是500ms
private transient volatile Metric rollingCounterInSecond = new ArrayMetric(SampleCountProperty.SAMPLE_COUNT,
    IntervalProperty.INTERVAL);

// 分钟级统计划分了60个时间窗口,窗口长度是1000ms
private transient Metric rollingCounterInMinute = new ArrayMetric(60, 60 * 1000, false);

/**
 * The counter for thread count.
 */
private LongAdder curThreadNum = new LongAdder();

/**
 * The last timestamp when metrics were fetched.
 */
private long lastFetchTime = -1;

ArrayMetric只有一个属性LeapArray<MetricBucket>,其余都是用于统计的方法,LeapArray是sentinel中统计最基本的数据结构,这里有必要详细看一下,总体就是根据timeMillis去获取一个bucket,分为:没有创建、有直接返回、被废弃后的reset三种场景。

//以分钟级的统计属性为例,看一下时间窗口初始化过程
private transient Metric rollingCounterInMinute = new ArrayMetric(60, 60 * 1000, false);


public LeapArray(int sampleCount, int intervalInMs) {
        AssertUtil.isTrue(sampleCount > 0, "bucket count is invalid: " + sampleCount);
        AssertUtil.isTrue(intervalInMs > 0, "total time interval of the sliding window should be positive");
        AssertUtil.isTrue(intervalInMs % sampleCount == 0, "time span needs to be evenly divided");
        // windowLengthInMs = 60*1000 / 60 = 1000 滑动窗口时间长度,可见sentinel默认将单位时间分为了60个滑动窗口进行数据统计
        this.windowLengthInMs = intervalInMs / sampleCount;
        // 60*1000
        this.intervalInMs = intervalInMs;
        // 60
        this.intervalInSecond = intervalInMs / 1000.0;
        // 60
        this.sampleCount = sampleCount;
        // 数组长度60
        this.array = new AtomicReferenceArray<>(sampleCount);
    }

/**
     * Get bucket item at provided timestamp.
     *
     * @param timeMillis a valid timestamp in milliseconds
     * @return current bucket item at provided timestamp if the time is valid; null if time is invalid
     */
    public WindowWrap<T> currentWindow(long timeMillis) {
        if (timeMillis < 0) {
            return null;
        }
        // 根据当前时间戳算一个数组索引
        int idx = calculateTimeIdx(timeMillis);
        // Calculate current bucket start time.
        // timeMillis % 1000
        long windowStart = calculateWindowStart(timeMillis);

        /*
         * Get bucket item at given time from the array.
         *
         * (1) Bucket is absent, then just create a new bucket and CAS update to circular array.
         * (2) Bucket is up-to-date, then just return the bucket.
         * (3) Bucket is deprecated, then reset current bucket.
         */
        while (true) {
            WindowWrap<T> old = array.get(idx);
            if (old == null) {
                /*
                 *     B0       B1      B2    NULL      B4
                 * ||_______|_______|_______|_______|_______||___
                 * 200     400     600     800     1000    1200  timestamp
                 *                             ^
                 *                          time=888
                 *            bucket is empty, so create new and update
                 *
                 * If the old bucket is absent, then we create a new bucket at {@code windowStart},
                 * then try to update circular array via a CAS operation. Only one thread can
                 * succeed to update, while other threads yield its time slice.
                 */
                // newEmptyBucket 方法重写,秒级和分钟级统计对象实现不同
                WindowWrap<T> window = new WindowWrap<T>(windowLengthInMs, windowStart, newEmptyBucket(timeMillis));
                if (array.compareAndSet(idx, null, window)) {
                    // Successfully updated, return the created bucket.
                    return window;
                } else {
                    // Contention failed, the thread will yield its time slice to wait for bucket available.
                    Thread.yield();
                }
            } else if (windowStart == old.windowStart()) {
                /*
                 *     B0       B1      B2     B3      B4
                 * ||_______|_______|_______|_______|_______||___
                 * 200     400     600     800     1000    1200  timestamp
                 *                             ^
                 *                          time=888
                 *            startTime of Bucket 3: 800, so it's up-to-date
                 *
                 * If current {@code windowStart} is equal to the start timestamp of old bucket,
                 * that means the time is within the bucket, so directly return the bucket.
                 */
                return old;
            } else if (windowStart > old.windowStart()) {
                /*
                 *   (old)
                 *             B0       B1      B2    NULL      B4
                 * |_______||_______|_______|_______|_______|_______||___
                 * ...    1200     1400    1600    1800    2000    2200  timestamp
                 *                              ^
                 *                           time=1676
                 *          startTime of Bucket 2: 400, deprecated, should be reset
                 *
                 * If the start timestamp of old bucket is behind provided time, that means
                 * the bucket is deprecated. We have to reset the bucket to current {@code windowStart}.
                 * Note that the reset and clean-up operations are hard to be atomic,
                 * so we need a update lock to guarantee the correctness of bucket update.
                 *
                 * The update lock is conditional (tiny scope) and will take effect only when
                 * bucket is deprecated, so in most cases it won't lead to performance loss.
                 */
                if (updateLock.tryLock()) {
                    try {
                        // Successfully get the update lock, now we reset the bucket.
                        return resetWindowTo(old, windowStart);
                    } finally {
                        updateLock.unlock();
                    }
                } else {
                    // Contention failed, the thread will yield its time slice to wait for bucket available.
                    Thread.yield();
                }
            } else if (windowStart < old.windowStart()) {
                // Should not go through here, as the provided time is already behind.
                return new WindowWrap<T>(windowLengthInMs, windowStart, newEmptyBucket(timeMillis));
            }
        }
    }
// 持有一个时间窗口对象的数据,会根据当前时间戳除以时间窗口长度然后散列到数组中
private int calculateTimeIdx(/*@Valid*/ long timeMillis) {
        long timeId = timeMillis / windowLengthInMs;
        // Calculate current index so we can map the timestamp to the leap array.
        return (int)(timeId % array.length());
    }

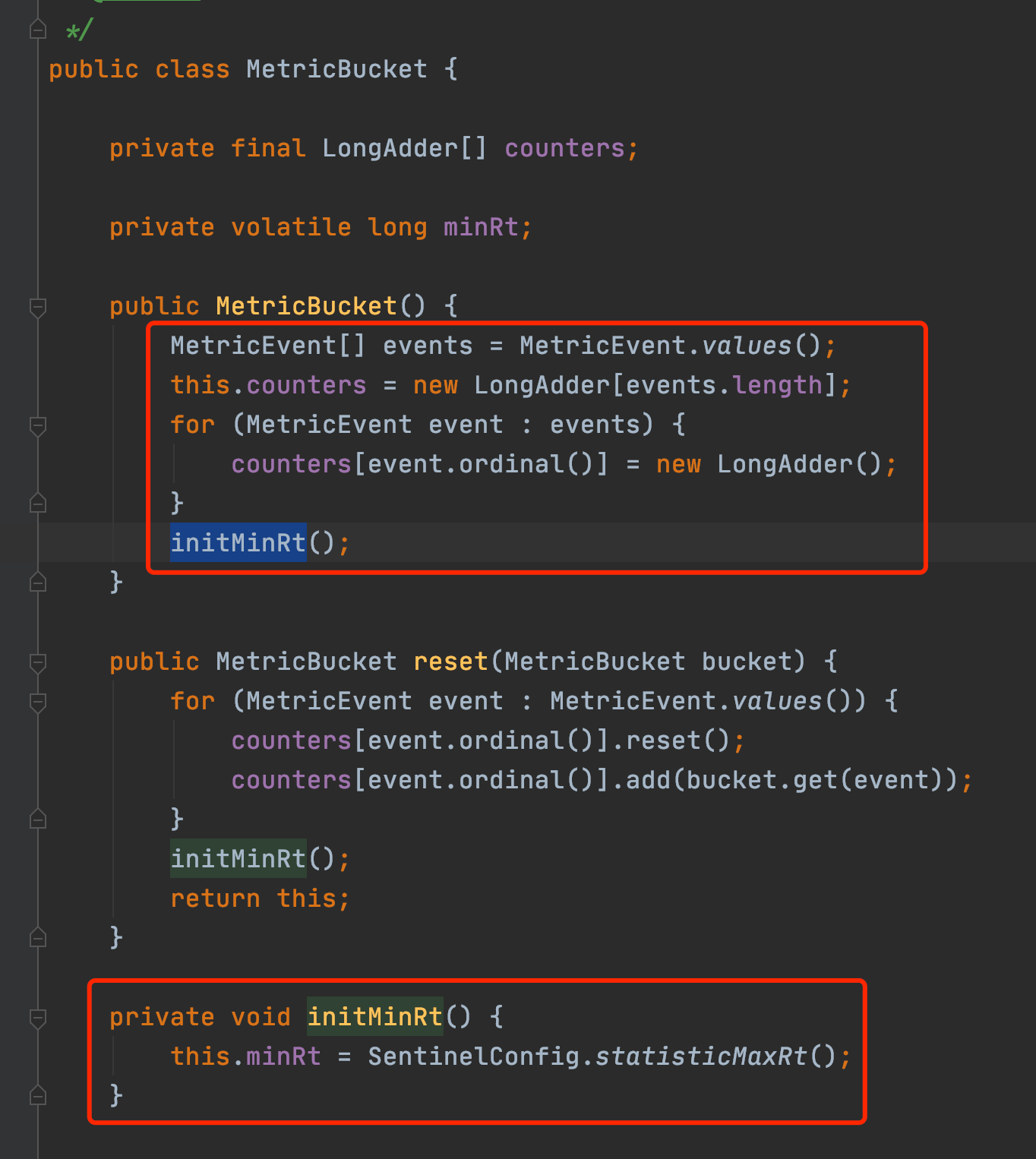

WindowWrap持有了windowLengthInMs, windowStart和LeapArray(分钟统计实现是BucketLeapArray,秒级统计实现是OccupiableBucketLeapArray),对于分钟级别的统计,MetricBucket维护了一个longAddr数组和一个配置的minRT

/**
 * The fundamental data structure for metric statistics in a time span.
 *
 * @author jialiang.linjl
 * @author Eric Zhao
 * @see LeapArray
 */
public class BucketLeapArray extends LeapArray<MetricBucket> {

    public BucketLeapArray(int sampleCount, int intervalInMs) {
        super(sampleCount, intervalInMs);
    }

    @Override
    public MetricBucket newEmptyBucket(long time) {
        return new MetricBucket();
    }

    @Override
    protected WindowWrap<MetricBucket> resetWindowTo(WindowWrap<MetricBucket> w, long startTime) {
        // Update the start time and reset value.
        w.resetTo(startTime);
        w.value().reset();
        return w;
    }
}

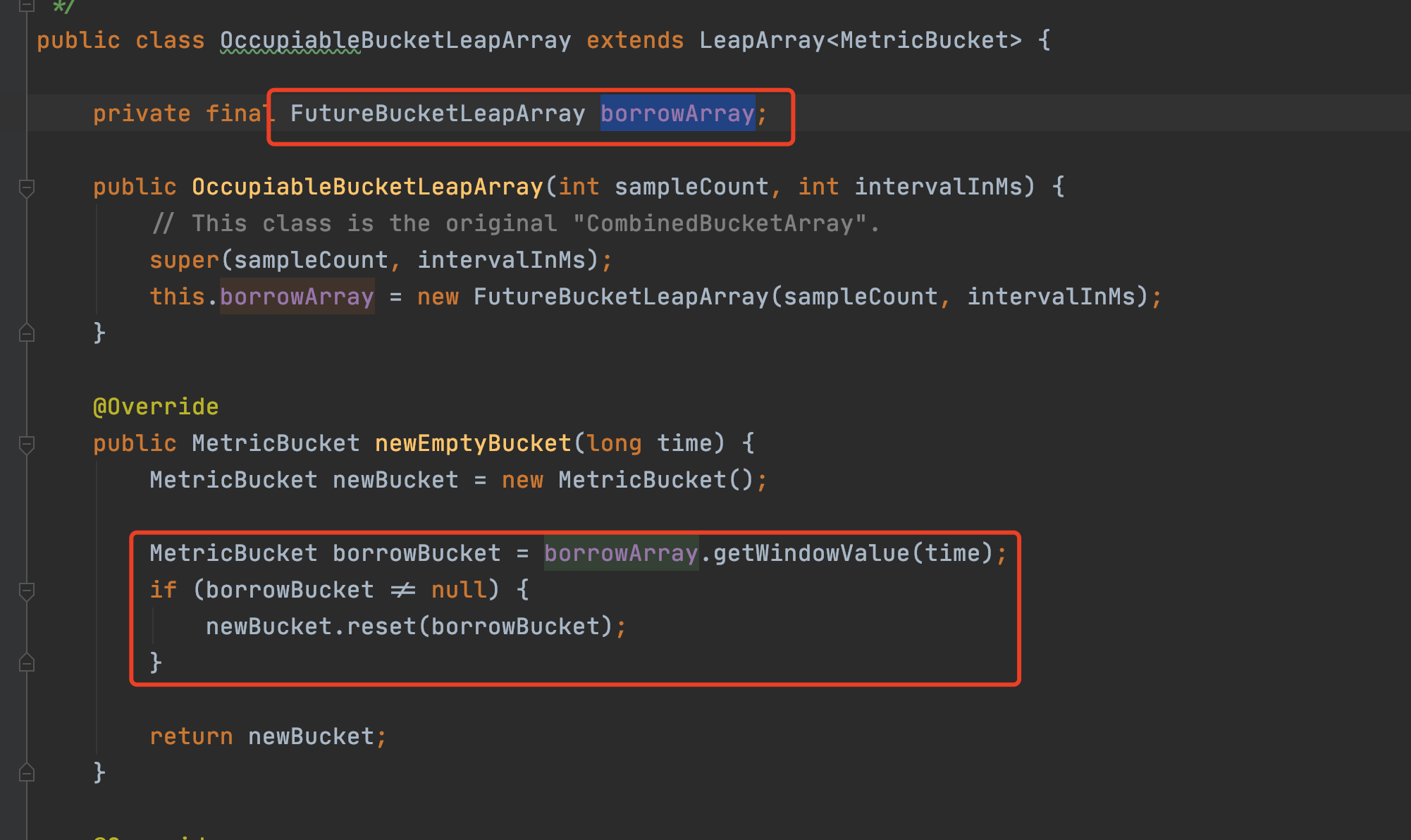

对于秒级统计,QPS=20场景下,如何准确统计的问题,此处用到了另外一个LeapArry实现FutureBucketLeapArray,至于秒级统计如何保证没有统计误差,读者可以再研究一下FutureBucketLeapArray的上下文就好。





2.4 FlowSlot

2.4.1 常见限流算法

介绍sentinel限流实现前,先介绍一下常见限流算法,基本分为三种:计数器、漏斗、令牌桶。

计数器算法

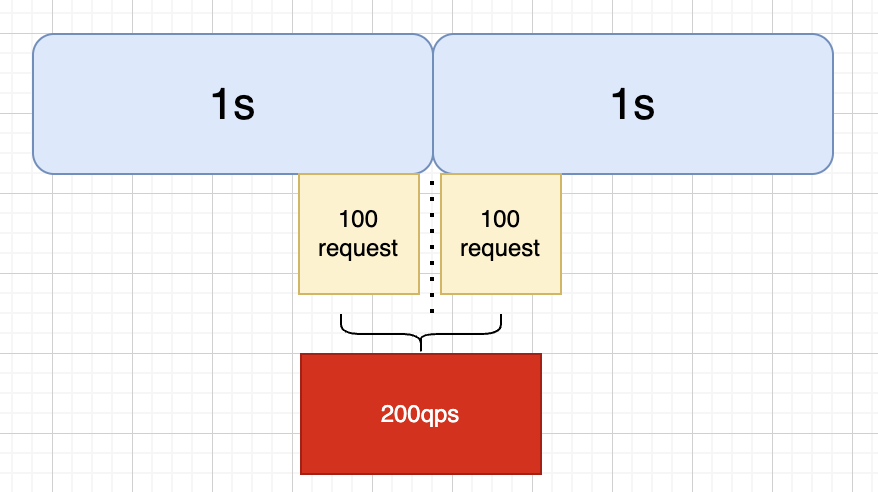

顾名思义,计数器算法就是统计某个时间段内的请求,每单位时间加1,然后与配置的限流值(最大QPS)进行比较,如果超出则触发限流。但是这种算法不能做到“平滑限流”,以1s为单位时间,100QPS为限流值为例,如下图,会出现某时段超出限流值的情况

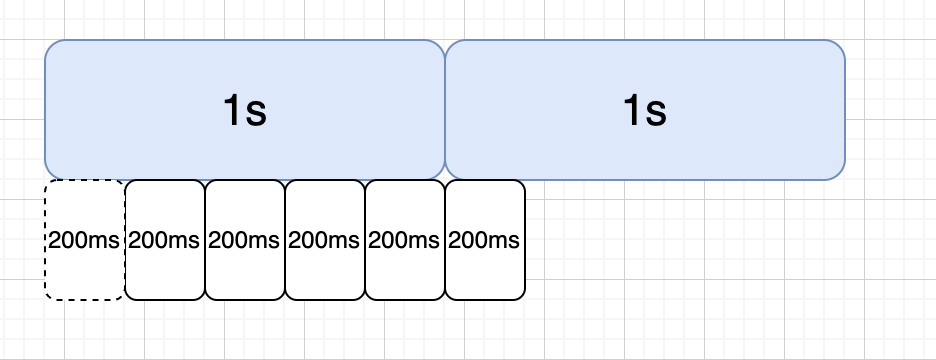

因此在单纯计数器算法上,又出现了滑动窗口计数器算法,我们将统计时间细分,比如将1s统计时长分为5个时间窗口,通过滚动统计所有时间窗口的QPS作为系统实际的QPS的方式,就能解决上述临界统计问题,后续我们看sentinel源码时也能看到类似操作。

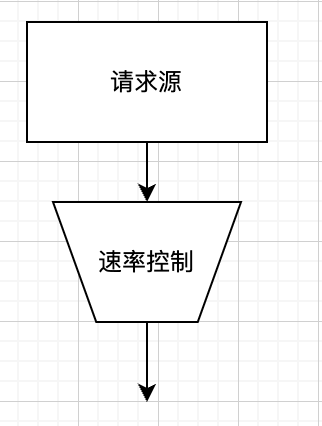

漏斗算法





不论流量有多大都会先到漏桶中,然后以均匀的速度流出。如何在代码中实现这个匀速呢?比如我们想让匀速为100q/s,那么我们可以得到每流出一个流量需要消耗10ms,类似一个队列,每隔10ms从队列头部取出流量进行放行,而我们的队列也就是漏桶,当流量大于队列的长度的时候,我们就可以拒绝超出的部分。

漏斗算法同样的也有一定的缺点:无法应对突发流量。比如一瞬间来了100个请求,在漏桶算法中只能一个一个的过去,当最后一个请求流出的时候时间已经过了一秒了,所以漏斗算法比较适合请求到达比较均匀,需要严格控制请求速率的场景。

令牌桶算法

令牌桶算法和漏斗算法比较类似,区别是令牌桶存放的是令牌数量不是请求数量,令牌桶可以根据自身需求多样性得管理令牌的生产和消耗,可以解决突发流量的问题。



2.4.2 单机限流模式

接下来我们看一下Sentinel中的限流实现,相比上述基本限流算法,Sentinel限流的第一个特性就是引入“资源”的概念,可以细粒度多样性的支持特定资源、关联资源、指定链路的限流。

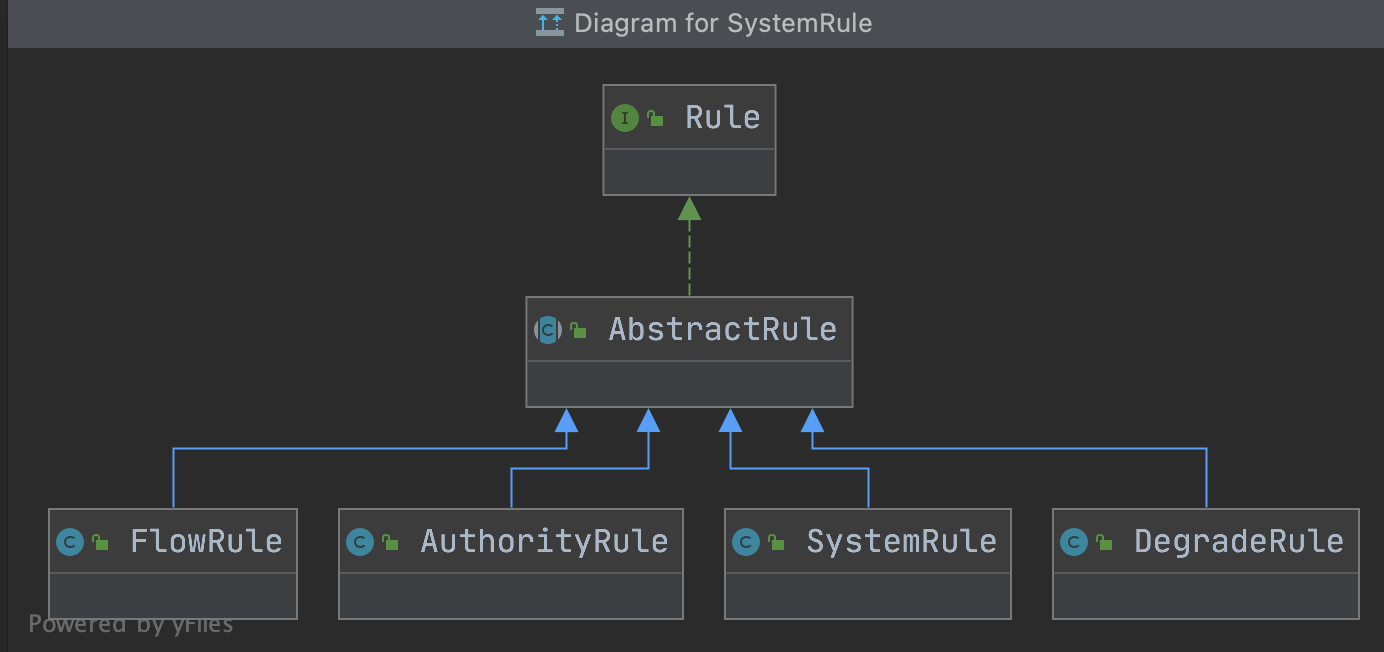

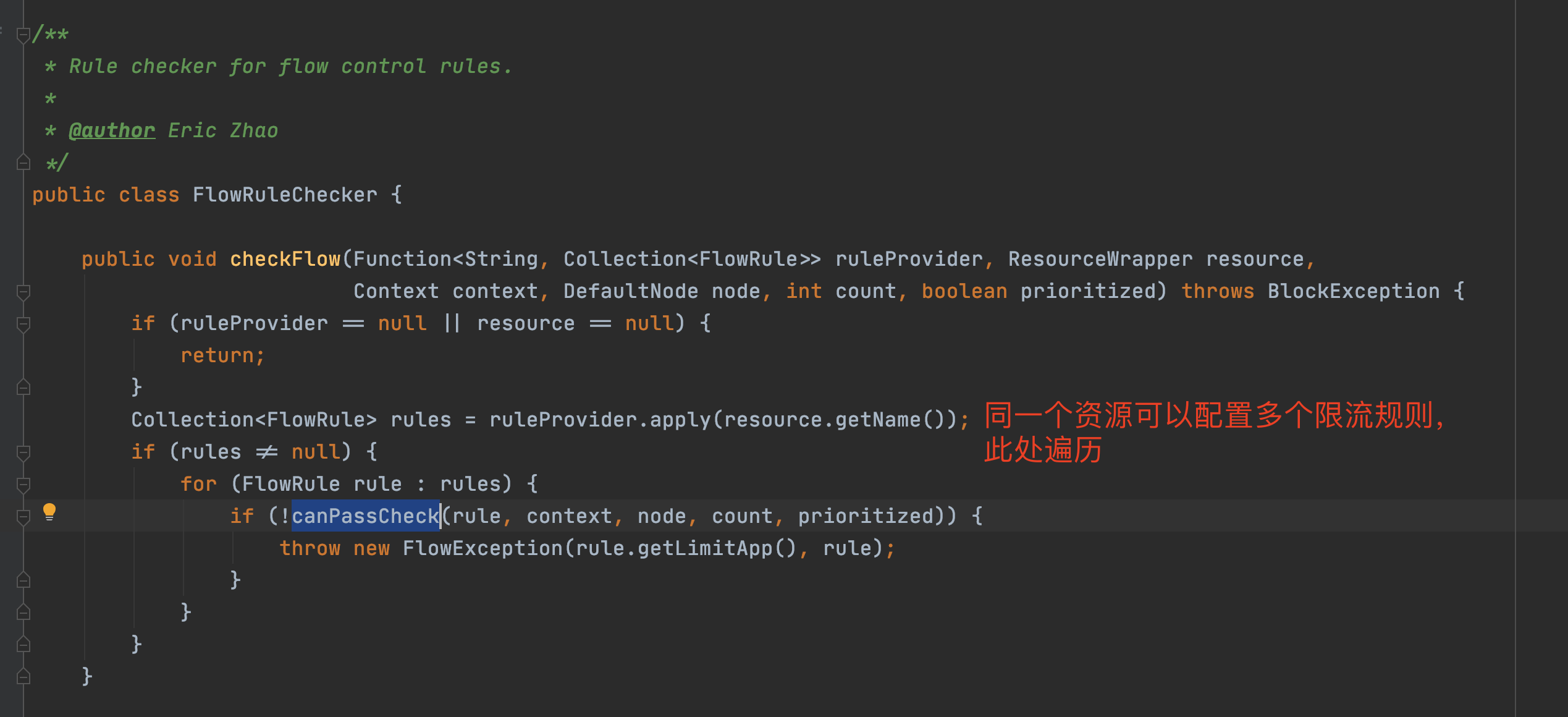

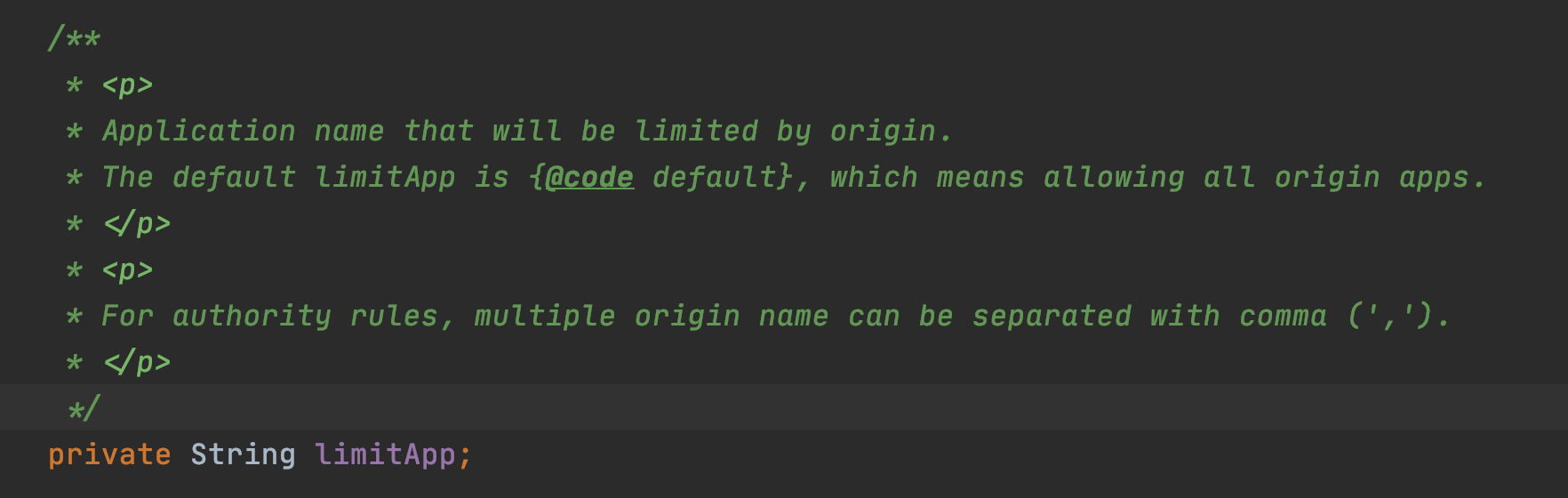

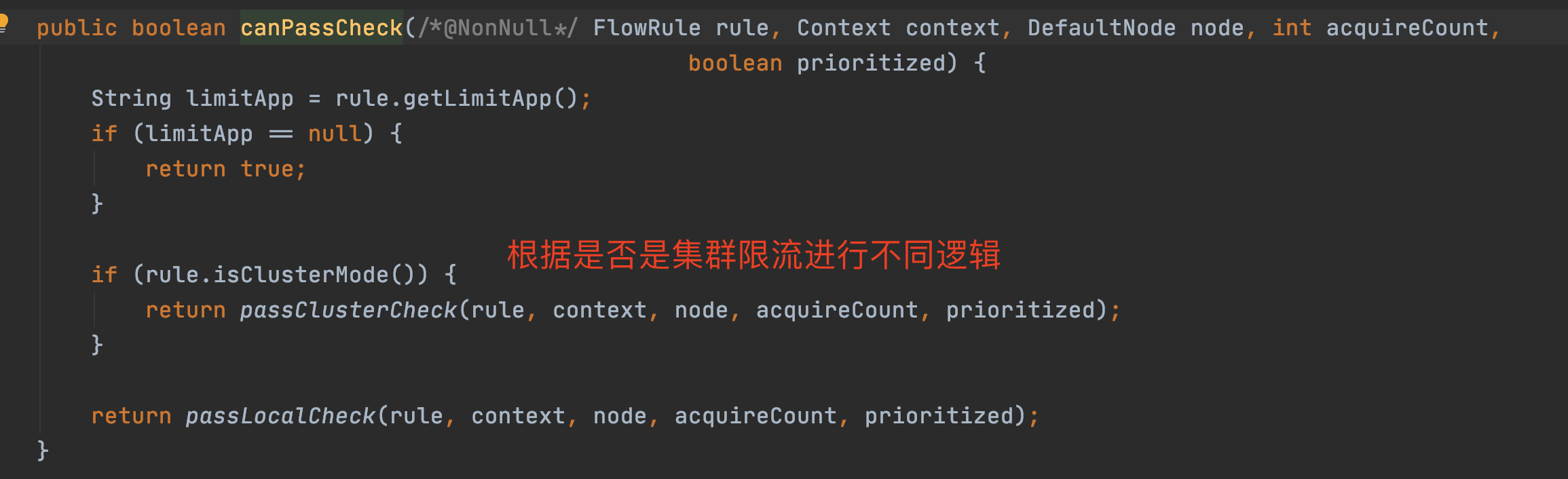

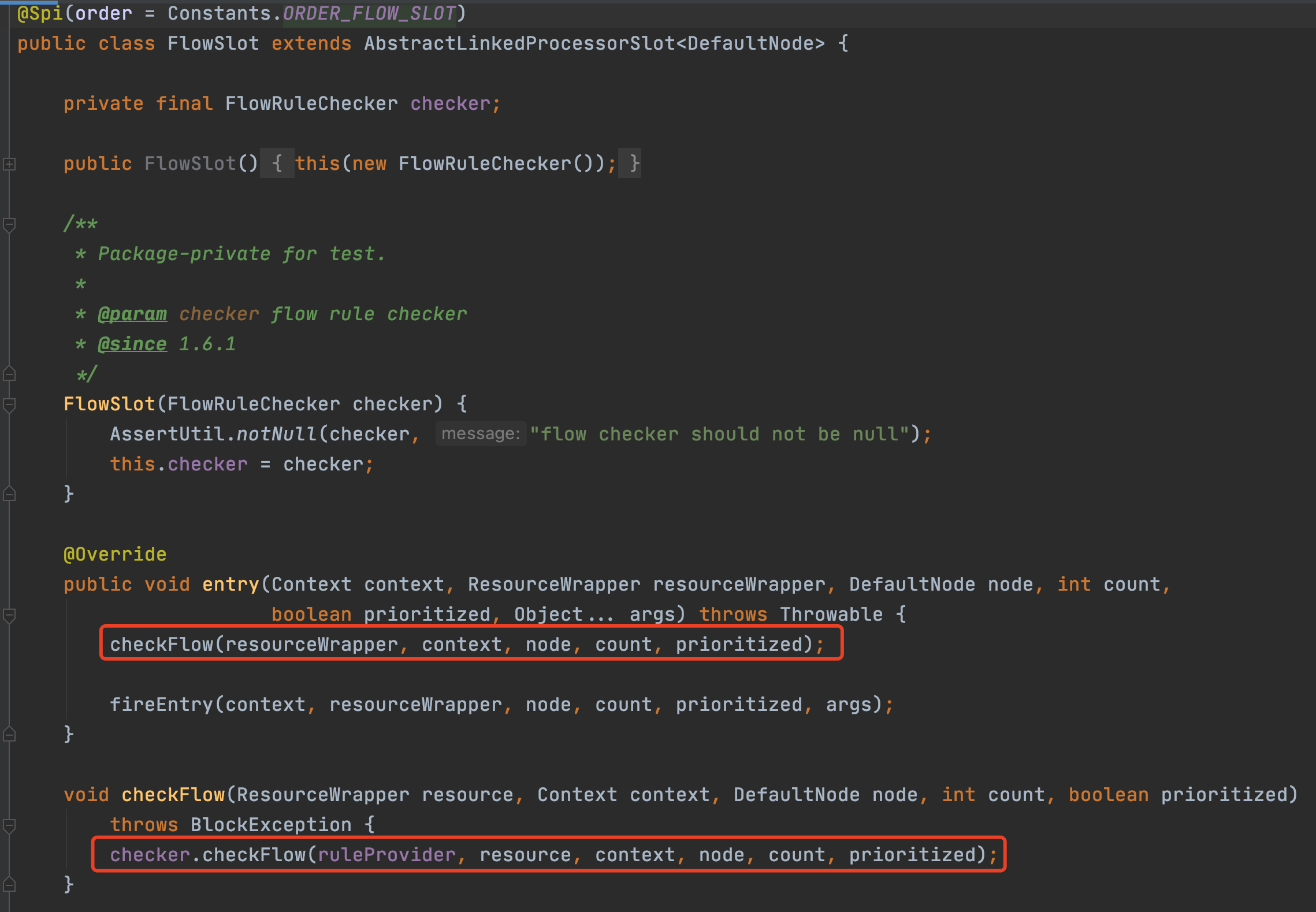

FlowSlot的主要逻辑都在FlowRuleChecker里,介绍之前,我们先看一下Sentinel关于规则的模型描述,下图分别是限流、访问控制规则、系统保护规则(Linux负载)、降级规则







    /**
     * 流量控制两种模式
     *   0: thread count(当调用该api的线程数达到阈值的时候,进行限流)
     *   1: QPS(当调用该api的QPS达到阈值的时候,进行限流)
     */
    private int grade = RuleConstant.FLOW_GRADE_QPS;

    /**
     * 流量控制阈值,值含义与grade有关
     */
    private double count;

    /**
     * 调用关系限流策略(可以支持关联资源或指定链路的多样性限流需求)
     *  直接(api 达到限流条件时,直接限流)
     *  关联(当关联的资源达到限流阈值时,就限流自己)
     *  链路(只记录指定链路上的流量)
     * {@link RuleConstant#STRATEGY_DIRECT} for direct flow control (by origin);
     * {@link RuleConstant#STRATEGY_RELATE} for relevant flow control (with relevant resource);
     * {@link RuleConstant#STRATEGY_CHAIN} for chain flow control (by entrance resource).
     */
    private int strategy = RuleConstant.STRATEGY_DIRECT;

    /**
     * Reference resource in flow control with relevant resource or context.
     */
    private String refResource;

    /**
     * 流控效果:
     * 0. default(reject directly),直接拒绝,抛异常FlowException
     * 1. warm up, 慢启动模式(根据coldFactor(冷加载因子,默认3)的值,从阈值/coldFactor,经过预热时长,才达到设置的QPS阈值)
     * 2. rate limiter  排队等待
     * 3. warm up + rate limiter
     */
    private int controlBehavior = RuleConstant.CONTROL_BEHAVIOR_DEFAULT;

    private int warmUpPeriodSec = 10;

    /**
     * Max queueing time in rate limiter behavior.
     */
    private int maxQueueingTimeMs = 500;

    /**
    *  是否集群限流,默认为否
    */
    private boolean clusterMode;
    /**
     * Flow rule config for cluster mode.
     */
    private ClusterFlowConfig clusterConfig;

    /**

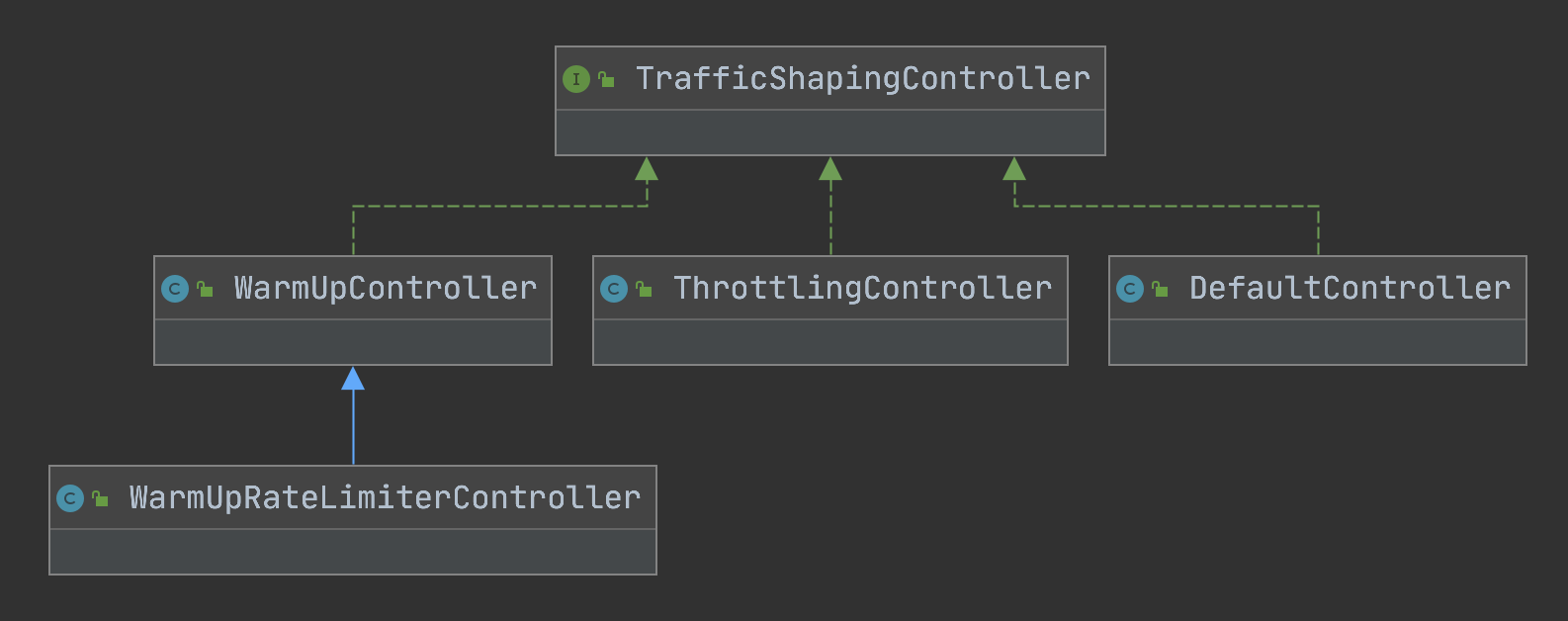

     * The traffic shaping (throttling) controller.
     */
    private TrafficShapingController controller;

接着我们继续分析FlowRuleChecker







canPassCheck第一步会好看limitApp,这个是结合访问授权限制规则使用的,默认是所有。





private static boolean passLocalCheck(FlowRule rule, Context context, DefaultNode node, int acquireCount,
                                          boolean prioritized) {
        // 根据策略选择Node来进行统计(可以是本身Node、关联的Node、指定的链路)
        Node selectedNode = selectNodeByRequesterAndStrategy(rule, context, node);
        if (selectedNode == null) {
            return true;
        }

        return rule.getRater().canPass(selectedNode, acquireCount, prioritized);
    }


static Node selectNodeByRequesterAndStrategy(/*@NonNull*/ FlowRule rule, Context context, DefaultNode node) {
        // limitApp是访问控制使用的,默认是default,不限制来源
        String limitApp = rule.getLimitApp();
        // 拿到限流策略
        int strategy = rule.getStrategy();
        String origin = context.getOrigin();
        // 基于调用来源做鉴权
        if (limitApp.equals(origin) && filterOrigin(origin)) {
            if (strategy == RuleConstant.STRATEGY_DIRECT) {
                // Matches limit origin, return origin statistic node.
                return context.getOriginNode();
            }
            //
            return selectReferenceNode(rule, context, node);
        } else if (RuleConstant.LIMIT_APP_DEFAULT.equals(limitApp)) {
            if (strategy == RuleConstant.STRATEGY_DIRECT) {
                // Return the cluster node.
                return node.getClusterNode();
            }

            return selectReferenceNode(rule, context, node);
        } else if (RuleConstant.LIMIT_APP_OTHER.equals(limitApp)
            && FlowRuleManager.isOtherOrigin(origin, rule.getResource())) {
            if (strategy == RuleConstant.STRATEGY_DIRECT) {
                return context.getOriginNode();
            }

            return selectReferenceNode(rule, context, node);
        }

        return null;
    }

static Node selectReferenceNode(FlowRule rule, Context context, DefaultNode node) {
        String refResource = rule.getRefResource();
        int strategy = rule.getStrategy();

        if (StringUtil.isEmpty(refResource)) {
            return null;
        }

        if (strategy == RuleConstant.STRATEGY_RELATE) {
            return ClusterBuilderSlot.getClusterNode(refResource);
        }

        if (strategy == RuleConstant.STRATEGY_CHAIN) {
            if (!refResource.equals(context.getName())) {
                return null;
            }
            return node;
        }
        // No node.
        return null;
    }

// 此代码是load限流规则时根据规则初始化流量整形控制器的逻辑,rule.getRater()返回TrafficShapingController
private static TrafficShapingController generateRater(/*@Valid*/ FlowRule rule) {
        if (rule.getGrade() == RuleConstant.FLOW_GRADE_QPS) {
            switch (rule.getControlBehavior()) {
                // 预热模式返回WarmUpController
                case RuleConstant.CONTROL_BEHAVIOR_WARM_UP:
                    return new WarmUpController(rule.getCount(), rule.getWarmUpPeriodSec(),
                            ColdFactorProperty.coldFactor);
                // 排队模式返回ThrottlingController
                case RuleConstant.CONTROL_BEHAVIOR_RATE_LIMITER:
                    return new ThrottlingController(rule.getMaxQueueingTimeMs(), rule.getCount());
                // 预热+排队模式返回WarmUpRateLimiterController
                case RuleConstant.CONTROL_BEHAVIOR_WARM_UP_RATE_LIMITER:
                    return new WarmUpRateLimiterController(rule.getCount(), rule.getWarmUpPeriodSec(),
                            rule.getMaxQueueingTimeMs(), ColdFactorProperty.coldFactor);
                case RuleConstant.CONTROL_BEHAVIOR_DEFAULT:
                default:
                    // Default mode or unknown mode: default traffic shaping controller (fast-reject).
            }
        }
        // 默认是DefaultController
        return new DefaultController(rule.getCount(), rule.getGrade());
    }

Sentinel单机限流算法





上面我们看到根据限流规则controlBehavior属性(流控效果),会初始化以下实现:

•DefaultController:是一个非常典型的滑动窗口计数器算法实现,将当前统计的qps和请求进来的qps进行求和,小于限流值则通过,大于则计算一个等待时间,稍后再试

•ThrottlingController:是漏斗算法的实现,实现思路已经在源码片段中加了备注

•WarmUpController:实现参考了Guava的带预热的RateLimiter,区别是Guava侧重于请求间隔,类似前面提到的令牌桶,而Sentinel更关注于请求数,和令牌桶算法有点类似

•WarmUpRateLimiterController:低水位使用预热算法,高水位使用滑动窗口计数器算法排队。

DefaultController
    @Override
    public boolean canPass(Node node, int acquireCount, boolean prioritized) {
        int curCount = avgUsedTokens(node);
        if (curCount + acquireCount > count) {
            if (prioritized && grade == RuleConstant.FLOW_GRADE_QPS) {
                long currentTime;
                long waitInMs;
                currentTime = TimeUtil.currentTimeMillis();
                waitInMs = node.tryOccupyNext(currentTime, acquireCount, count);
                if (waitInMs < OccupyTimeoutProperty.getOccupyTimeout()) {
                    node.addWaitingRequest(currentTime + waitInMs, acquireCount);
                    node.addOccupiedPass(acquireCount);
                    sleep(waitInMs);

                    // PriorityWaitException indicates that the request will pass after waiting for {@link @waitInMs}.
                    throw new PriorityWaitException(waitInMs);
                }
            }
            return false;
        }
        return true;
    }

ThrottlingController
 public ThrottlingController(int queueingTimeoutMs, double maxCountPerStat) {
        this(queueingTimeoutMs, maxCountPerStat, 1000);
    }

    public ThrottlingController(int queueingTimeoutMs, double maxCountPerStat, int statDurationMs) {
        AssertUtil.assertTrue(statDurationMs > 0, "statDurationMs should be positive");
        AssertUtil.assertTrue(maxCountPerStat >= 0, "maxCountPerStat should be >= 0");
        AssertUtil.assertTrue(queueingTimeoutMs >= 0, "queueingTimeoutMs should be >= 0");
        this.maxQueueingTimeMs = queueingTimeoutMs;
        this.count = maxCountPerStat;
        this.statDurationMs = statDurationMs;
        // Use nanoSeconds when durationMs%count != 0 or count/durationMs> 1 (to be accurate)
        // 可见配置限流值count大于1000时useNanoSeconds会是true否则是false
        if (maxCountPerStat > 0) {
            this.useNanoSeconds = statDurationMs % Math.round(maxCountPerStat) != 0 || maxCountPerStat / statDurationMs > 1;
        } else {
            this.useNanoSeconds = false;
        }
    }

    @Override
    public boolean canPass(Node node, int acquireCount) {
        return canPass(node, acquireCount, false);
    }

    private boolean checkPassUsingNanoSeconds(int acquireCount, double maxCountPerStat) {
        final long maxQueueingTimeNs = maxQueueingTimeMs * MS_TO_NS_OFFSET;
        long currentTime = System.nanoTime();
        // Calculate the interval between every two requests.
        final long costTimeNs = Math.round(1.0d * MS_TO_NS_OFFSET * statDurationMs * acquireCount / maxCountPerStat);

        // Expected pass time of this request.
        long expectedTime = costTimeNs + latestPassedTime.get();

        if (expectedTime <= currentTime) {
            // Contention may exist here, but it's okay.
            latestPassedTime.set(currentTime);
            return true;
        } else {
            final long curNanos = System.nanoTime();
            // Calculate the time to wait.
            long waitTime = costTimeNs + latestPassedTime.get() - curNanos;
            if (waitTime > maxQueueingTimeNs) {
                return false;
            }

            long oldTime = latestPassedTime.addAndGet(costTimeNs);
            waitTime = oldTime - curNanos;
            if (waitTime > maxQueueingTimeNs) {
                latestPassedTime.addAndGet(-costTimeNs);
                return false;
            }
            // in race condition waitTime may <= 0
            if (waitTime > 0) {
                sleepNanos(waitTime);
            }
            return true;
        }
    }

    // 漏斗算法具体实现
    private boolean checkPassUsingCachedMs(int acquireCount, double maxCountPerStat) {
        long currentTime = TimeUtil.currentTimeMillis();
        // 计算两次请求的间隔(分为秒级和纳秒级)
        long costTime = Math.round(1.0d * statDurationMs * acquireCount / maxCountPerStat);

        // 请求的期望的时间
        long expectedTime = costTime + latestPassedTime.get();

        if (expectedTime <= currentTime) {
            // latestPassedTime是AtomicLong类型,支持volatile语义
            latestPassedTime.set(currentTime);
            return true;
        } else {
            // 计算等待时间
            long waitTime = costTime + latestPassedTime.get() - TimeUtil.currentTimeMillis();
            // 如果大于最大排队时间,则触发限流
            if (waitTime > maxQueueingTimeMs) {
                return false;
            }

            long oldTime = latestPassedTime.addAndGet(costTime);
            waitTime = oldTime - TimeUtil.currentTimeMillis();
            if (waitTime > maxQueueingTimeMs) {
                latestPassedTime.addAndGet(-costTime);
                return false;
            }
            // in race condition waitTime may <= 0
            if (waitTime > 0) {
                sleepMs(waitTime);
            }
            return true;
        }
    }

    @Override
    public boolean canPass(Node node, int acquireCount, boolean prioritized) {
        // Pass when acquire count is less or equal than 0.
        if (acquireCount <= 0) {
            return true;
        }
        // Reject when count is less or equal than 0.
        // Otherwise, the costTime will be max of long and waitTime will overflow in some cases.
        if (count <= 0) {
            return false;
        }
        if (useNanoSeconds) {
            return checkPassUsingNanoSeconds(acquireCount, this.count);
        } else {
            return checkPassUsingCachedMs(acquireCount, this.count);
        }
    }

    private void sleepMs(long ms) {
        try {
            Thread.sleep(ms);
        } catch (InterruptedException e) {
        }
    }

    private void sleepNanos(long ns) {
        LockSupport.parkNanos(ns);
    }


long costTime = Math.round(1.0d * statDurationMs * acquireCount / maxCountPerStat);

由上述计算两次请求间隔的公式我们可以发现,当maxCountPerStat(规则配置的限流值QPS)超过1000后,就无法准确计算出匀速排队模式下的请求间隔时长,因此对应前面介绍的,当规则配置限流值超过1000QPS后,会采用checkPassUsingNanoSeconds,小于1000QPS会采用checkPassUsingCachedMs,对比一下checkPassUsingNanoSeconds和checkPassUsingCachedMs,可以发现主体思路没变,只是统计维度从毫秒换算成了纳秒,因此只看checkPassUsingCachedMs实现就可以



WarmUpController

@Override
    public boolean canPass(Node node, int acquireCount, boolean prioritized) {
        long passQps = (long) node.passQps();

        long previousQps = (long) node.previousPassQps();
        syncToken(previousQps);

        // 开始计算它的斜率
        // 如果进入了警戒线,开始调整他的qps
        long restToken = storedTokens.get();
        if (restToken >= warningToken) {
            long aboveToken = restToken - warningToken;
            // 消耗的速度要比warning快,但是要比慢
            // current interval = restToken*slope+1/count
            double warningQps = Math.nextUp(1.0 / (aboveToken * slope + 1.0 / count));
            if (passQps + acquireCount <= warningQps) {
                return true;
            }
        } else {
            if (passQps + acquireCount <= count) {
                return true;
            }
        }

        return false;
    }

protected void syncToken(long passQps) {
        long currentTime = TimeUtil.currentTimeMillis();
        currentTime = currentTime - currentTime % 1000;
        long oldLastFillTime = lastFilledTime.get();
        if (currentTime <= oldLastFillTime) {
            return;
        }

        long oldValue = storedTokens.get();
        long newValue = coolDownTokens(currentTime, passQps);

        if (storedTokens.compareAndSet(oldValue, newValue)) {
            long currentValue = storedTokens.addAndGet(0 - passQps);
            if (currentValue < 0) {
                storedTokens.set(0L);
            }
            lastFilledTime.set(currentTime);
        }

    }

private long coolDownTokens(long currentTime, long passQps) {
        long oldValue = storedTokens.get();
        long newValue = oldValue;

        // 添加令牌的判断前提条件:
        // 当令牌的消耗程度远远低于警戒线的时候
        if (oldValue < warningToken) {
            newValue = (long)(oldValue + (currentTime - lastFilledTime.get()) * count / 1000);
        } else if (oldValue > warningToken) {
            if (passQps < (int)count / coldFactor) {
                newValue = (long)(oldValue + (currentTime - lastFilledTime.get()) * count / 1000);
            }
        }
        return Math.min(newValue, maxToken);
    }

2.4.3 集群限流

passClusterCheck方法(因为clusterService找不到会降级到非集群限流)

private static boolean passClusterCheck(FlowRule rule, Context context, DefaultNode node, int acquireCount,
                                            boolean prioritized) {
        try {
            // 获取当前节点是Token Client还是Token Server
            TokenService clusterService = pickClusterService();
            if (clusterService == null) {
                return fallbackToLocalOrPass(rule, context, node, acquireCount, prioritized);
            }
            long flowId = rule.getClusterConfig().getFlowId();
            // 根据获取的flowId通过TokenService进行申请token。从上面可知,它可能是TokenClient调用的,也可能是ToeknServer调用的。分别对应的类是DefaultClusterTokenClient和DefaultTokenService
            TokenResult result = clusterService.requestToken(flowId, acquireCount, prioritized);
            return applyTokenResult(result, rule, context, node, acquireCount, prioritized);
            // If client is absent, then fallback to local mode.
        } catch (Throwable ex) {
            RecordLog.warn("[FlowRuleChecker] Request cluster token unexpected failed", ex);
        }
        // Fallback to local flow control when token client or server for this rule is not available.
        // If fallback is not enabled, then directly pass.
        return fallbackToLocalOrPass(rule, context, node, acquireCount, prioritized);
    }

//获取当前节点是Token Client还是Token Server。
//1) 如果当前节点的角色是Client,返回的TokenService为DefaultClusterTokenClient;
//2)如果当前节点的角色是Server,则默认返回的TokenService为DefaultTokenService。
private static TokenService pickClusterService() {
        if (ClusterStateManager.isClient()) {
            return TokenClientProvider.getClient();
        }
        if (ClusterStateManager.isServer()) {
            return EmbeddedClusterTokenServerProvider.getServer();
        }
        return null;
    }

集群限流模式

Sentinel 集群限流服务端有两种启动方式:

•嵌入模式(Embedded)适合应用级别的限流,部署简单,但对应用性能有影响

•独立模式(Alone)适合全局限流,需要独立部署

考虑到文章篇幅,集群限流有机会再展开详细介绍。

集群限流模式降级
private static boolean passClusterCheck(FlowRule rule, Context context, DefaultNode node, int acquireCount,
                                            boolean prioritized) {
        try {
            TokenService clusterService = pickClusterService();
            if (clusterService == null) {
                return fallbackToLocalOrPass(rule, context, node, acquireCount, prioritized);
            }
            long flowId = rule.getClusterConfig().getFlowId();
            TokenResult result = clusterService.requestToken(flowId, acquireCount, prioritized);
            return applyTokenResult(result, rule, context, node, acquireCount, prioritized);
            // If client is absent, then fallback to local mode.
        } catch (Throwable ex) {
            RecordLog.warn("[FlowRuleChecker] Request cluster token unexpected failed", ex);
        }
        // Fallback to local flow control when token client or server for this rule is not available.
        // If fallback is not enabled, then directly pass.
        // 可以看到如果集群限流有异常,会降级到单机限流模式,如果配置不允许降级,那么直接会跳过此次校验
        return fallbackToLocalOrPass(rule, context, node, acquireCount, prioritized);
    }



2.5 DegradeSlot





CircuitBreaker

大神对断路器的解释:Circuit Breaker

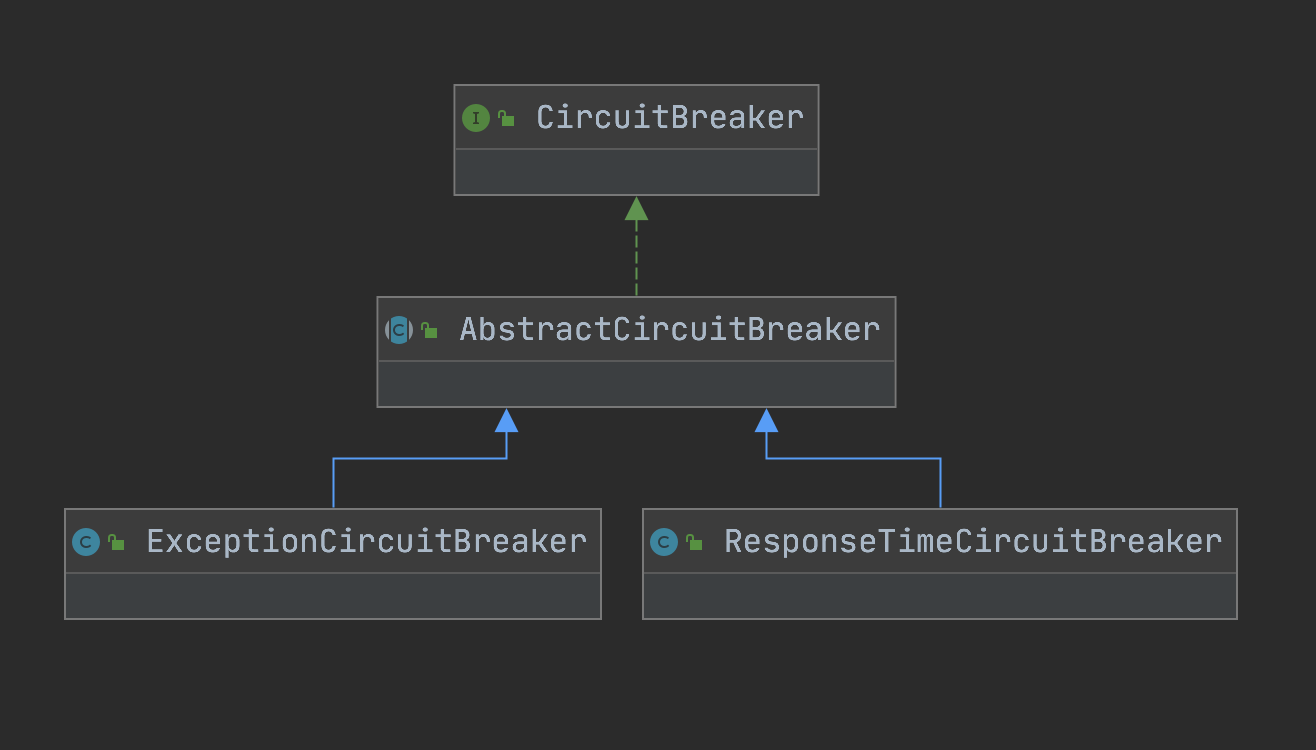

首先就看到了根据资源名称获取断路器列表,Sentinel的断路器有两个实现:RT模式使用ResponseTimeCircuitBreaker、异常模式使用ExceptionCircuitBreaker





public interface CircuitBreaker {

    /**
     * Get the associated circuit breaking rule.
     *
     * @return associated circuit breaking rule
     */
    DegradeRule getRule();

    /**
     * Acquires permission of an invocation only if it is available at the time of invoking.
     *
     * @param context context of current invocation
     * @return {@code true} if permission was acquired and {@code false} otherwise
     */
    boolean tryPass(Context context);

    /**
     * Get current state of the circuit breaker.
     *
     * @return current state of the circuit breaker
     */
    State currentState();

    /**
     * <p>Record a completed request with the context and handle state transformation of the circuit breaker.</p>
     * <p>Called when a <strong>passed</strong> invocation finished.</p>
     *
     * @param context context of current invocation
     */
    void onRequestComplete(Context context);

    /**
     * Circuit breaker state.
     */
    enum State {
        /**
         * In {@code OPEN} state, all requests will be rejected until the next recovery time point.
         */
        OPEN,
        /**
         * In {@code HALF_OPEN} state, the circuit breaker will allow a "probe" invocation.
         * If the invocation is abnormal according to the strategy (e.g. it's slow), the circuit breaker
         * will re-transform to the {@code OPEN} state and wait for the next recovery time point;
         * otherwise the resource will be regarded as "recovered" and the circuit breaker
         * will cease cutting off requests and transform to {@code CLOSED} state.
         */
        HALF_OPEN,
        /**
         * In {@code CLOSED} state, all requests are permitted. When current metric value exceeds the threshold,
         * the circuit breaker will transform to {@code OPEN} state.
         */
        CLOSED
    }
}


以ExceptionCircuitBreaker为例看一下具体实现

public class ExceptionCircuitBreaker extends AbstractCircuitBreaker {

    // 异常模式有两种,异常率和异常数
    private final int strategy;
    // 最小请求数
    private final int minRequestAmount;
    // 阈值
    private final double threshold;

    // LeapArray是sentinel统计数据非常重要的一个结构,主要封装了时间窗口相关的操作
    private final LeapArray<SimpleErrorCounter> stat;

    public ExceptionCircuitBreaker(DegradeRule rule) {
        this(rule, new SimpleErrorCounterLeapArray(1, rule.getStatIntervalMs()));
    }

    ExceptionCircuitBreaker(DegradeRule rule, LeapArray<SimpleErrorCounter> stat) {
        super(rule);
        this.strategy = rule.getGrade();
        boolean modeOk = strategy == DEGRADE_GRADE_EXCEPTION_RATIO || strategy == DEGRADE_GRADE_EXCEPTION_COUNT;
        AssertUtil.isTrue(modeOk, "rule strategy should be error-ratio or error-count");
        AssertUtil.notNull(stat, "stat cannot be null");
        this.minRequestAmount = rule.getMinRequestAmount();
        this.threshold = rule.getCount();
        this.stat = stat;
    }

    @Override
    protected void resetStat() {
        // Reset current bucket (bucket count = 1).
        stat.currentWindow().value().reset();
    }


    @Override
    public void onRequestComplete(Context context) {
        Entry entry = context.getCurEntry();
        if (entry == null) {
            return;
        }
        Throwable error = entry.getError();
        SimpleErrorCounter counter = stat.currentWindow().value();
        if (error != null) {
            counter.getErrorCount().add(1);
        }
        counter.getTotalCount().add(1);

        handleStateChangeWhenThresholdExceeded(error);
    }

    private void handleStateChangeWhenThresholdExceeded(Throwable error) {
        if (currentState.get() == State.OPEN) {
            return;
        }

        if (currentState.get() == State.HALF_OPEN) {
            // In detecting request
            if (error == null) {
                fromHalfOpenToClose();
            } else {
                fromHalfOpenToOpen(1.0d);
            }
            return;
        }

        List<SimpleErrorCounter> counters = stat.values();
        long errCount = 0;
        long totalCount = 0;
        for (SimpleErrorCounter counter : counters) {

 += counter.errorCount.sum();
            totalCount += counter.totalCount.sum();
        }
        if (totalCount < minRequestAmount) {
            return;
        }
        double curCount = errCount;
        if (strategy == DEGRADE_GRADE_EXCEPTION_RATIO) {
            // Use errorRatio
            curCount = errCount * 1.0d / totalCount;
        }
        if (curCount > threshold) {
            transformToOpen(curCount);
        }
    }

    static class SimpleErrorCounter {
        private LongAdder errorCount;
        private LongAdder totalCount;

        public SimpleErrorCounter() {
            this.errorCount = new LongAdder();
            this.totalCount = new LongAdder();
        }

        public LongAdder getErrorCount() {
            return errorCount;
        }

        public LongAdder getTotalCount() {
            return totalCount;
        }

        public SimpleErrorCounter reset() {
            errorCount.reset();
            totalCount.reset();
            return this;
        }

        @Override
        public String toString() {
            return "SimpleErrorCounter{" +
                "errorCount=" + errorCount +
                ", totalCount=" + totalCount +
                '}';
        }
    }

    static class SimpleErrorCounterLeapArray extends LeapArray<SimpleErrorCounter> {

        public SimpleErrorCounterLeapArray(int sampleCount, int intervalInMs) {
            super(sampleCount, intervalInMs);
        }

        @Override
        public SimpleErrorCounter newEmptyBucket(long timeMillis) {
            return new SimpleErrorCounter();
        }

        @Override
        protected WindowWrap<SimpleErrorCounter> resetWindowTo(WindowWrap<SimpleErrorCounter> w, long startTime) {
            // Update the start time and reset value.
            w.resetTo(startTime);
            w.value().reset();
            return w;
        }
    }
}


2.6 SystemSlot

校验逻辑主要集中在com.alibaba.csp.sentinel.slots.system.SystemRuleManager#checkSystem,以下是片段,可以看到,作为负载保护规则校验,实现了集群的QPS、线程、RT(响应时间)、系统负载的控制,除系统负载以外,其余统计都是依赖StatisticSlot实现,系统负载是通过SystemRuleManager定时调度SystemStatusListener,通过OperatingSystemMXBean去获取

/**
     * Apply {@link SystemRule} to the resource. Only inbound traffic will be checked.
     *
     * @param resourceWrapper the resource.
     * @throws BlockException when any system rule's threshold is exceeded.
     */
    public static void checkSystem(ResourceWrapper resourceWrapper, int count) throws BlockException {
        if (resourceWrapper == null) {
            return;
        }
        // Ensure the checking switch is on.
        if (!checkSystemStatus.get()) {
            return;
        }

        // for inbound traffic only
        if (resourceWrapper.getEntryType() != EntryType.IN) {
            return;
        }

        // total qps 此处是拿到某个资源在集群中的QPS总和,相关概念可以会看初始化关于Node的介绍
        double currentQps = Constants.ENTRY_NODE.passQps();
        if (currentQps + count > qps) {
            throw new SystemBlockException(resourceWrapper.getName(), "qps");
        }

        // total thread
        int currentThread = Constants.ENTRY_NODE.curThreadNum();
        if (currentThread > maxThread) {
            throw new SystemBlockException(resourceWrapper.getName(), "thread");
        }

        double rt = Constants.ENTRY_NODE.avgRt();
        if (rt > maxRt) {
            throw new SystemBlockException(resourceWrapper.getName(), "rt");
        }

        // load. BBR algorithm.
        if (highestSystemLoadIsSet && getCurrentSystemAvgLoad() > highestSystemLoad) {
            if (!checkBbr(currentThread)) {
                throw new SystemBlockException(resourceWrapper.getName(), "load");
            }
        }

        // cpu usage
        if (highestCpuUsageIsSet && getCurrentCpuUsage() > highestCpuUsage) {
            throw new SystemBlockException(resourceWrapper.getName(), "cpu");
        }
    }

    private static boolean checkBbr(int currentThread) {
        if (currentThread > 1 &&
            currentThread > Constants.ENTRY_NODE.maxSuccessQps() * Constants.ENTRY_NODE.minRt() / 1000) {
            return false;
        }
        return true;
    }

    public static double getCurrentSystemAvgLoad() {
        return statusListener.getSystemAverageLoad();
    }

    public static double getCurrentCpuUsage() {
        return statusListener.getCpuUsage();
    }

public class SystemStatusListener implements Runnable {

    volatile double currentLoad = -1;
    volatile double currentCpuUsage = -1;

    volatile String reason = StringUtil.EMPTY;

    volatile long processCpuTime = 0;
    volatile long processUpTime = 0;

    public double getSystemAverageLoad() {
        return currentLoad;
    }

    public double getCpuUsage() {
        return currentCpuUsage;
    }

    @Override
    public void run() {
        try {
            OperatingSystemMXBean osBean = ManagementFactory.getPlatformMXBean(OperatingSystemMXBean.class);
            currentLoad = osBean.getSystemLoadAverage();

            /*
             * Java Doc copied from {@link OperatingSystemMXBean#getSystemCpuLoad()}:</br>
             * Returns the "recent cpu usage" for the whole system. This value is a double in the [0.0,1.0] interval.
             * A value of 0.0 means that all CPUs were idle during the recent period of time observed, while a value
             * of 1.0 means that all CPUs were actively running 100% of the time during the recent period being
             * observed. All values between 0.0 and 1.0 are possible depending of the activities going on in the
             * system. If the system recent cpu usage is not available, the method returns a negative value.
             */
            double systemCpuUsage = osBean.getSystemCpuLoad();

            // calculate process cpu usage to support application running in container environment
            RuntimeMXBean runtimeBean = ManagementFactory.getPlatformMXBean(RuntimeMXBean.class);
            long newProcessCpuTime = osBean.getProcessCpuTime();
            long newProcessUpTime = runtimeBean.getUptime();
            int cpuCores = osBean.getAvailableProcessors();
            long processCpuTimeDiffInMs = TimeUnit.NANOSECONDS
                    .toMillis(newProcessCpuTime - processCpuTime);
            long processUpTimeDiffInMs = newProcessUpTime - processUpTime;
            double processCpuUsage = (double) processCpuTimeDiffInMs / processUpTimeDiffInMs / cpuCores;
            processCpuTime = newProcessCpuTime;
            processUpTime = newProcessUpTime;

            currentCpuUsage = Math.max(processCpuUsage, systemCpuUsage);

            if (currentLoad > SystemRuleManager.getSystemLoadThreshold()) {
                writeSystemStatusLog();
            }
        } catch (Throwable e) {
            RecordLog.warn("[SystemStatusListener] Failed to get system metrics from JMX", e);
        }
    }

    private void writeSystemStatusLog() {
        StringBuilder sb = new StringBuilder();
        sb.append("Load exceeds the threshold: ");
        sb.append("load:").append(String.format("%.4f", currentLoad)).append("; ");
        sb.append("cpuUsage:").append(String.format("%.4f", currentCpuUsage)).append("; ");
        sb.append("qps:").append(String.format("%.4f", Constants.ENTRY_NODE.passQps())).append("; ");
        sb.append("rt:").append(String.format("%.4f", Constants.ENTRY_NODE.avgRt())).append("; ");
        sb.append("thread:").append(Constants.ENTRY_NODE.curThreadNum()).append("; ");
        sb.append("success:").append(String.format("%.4f", Constants.ENTRY_NODE.successQps())).append("; ");
        sb.append("minRt:").append(String.format("%.2f", Constants.ENTRY_NODE.minRt())).append("; ");
        sb.append("maxSuccess:").append(String.format("%.2f", Constants.ENTRY_NODE.maxSuccessQps())).append("; ");
        RecordLog.info(sb.toString());
    }
}



三、京东版最佳实践

3.1 使用方式

Sentinel使用方式本身非常简单,就是一个注解,但是要考虑规则加载和规则持久化的方式,现有的方式有:

•使用Sentinel-dashboard功能:使用面板接入需要维护一个配置规则的管理端,考虑到偏后端的系统需要额外维护一个面板成本较大,如果是像RPC框架这种本身有管理端的接入可以考虑次方案。

•中间件(如:zookepper、nacos、eureka、redis等):Sentinel源码extension包里提供了类似的实现,如下图







结合京东实际,我实现了一个规则热部署的Sentinel组件,实现方式类似zookeeper的方式,将规则记录到ducc的一个key上,在spring容器启动时做第一次规则加载和监听器注册,组件也做一了一些规则读取,校验、实例化不同规则对象的工作

插件使用方式:注解+配置

第一步 引入组件

<dependency>
    <groupId>com.jd.ldop.tools</groupId>
    <artifactId>sentinel-tools</artifactId>
    <version>1.0.0-SNAPSHOT</version>
</dependency>

第二步 初始化sentinelProcess

支持ducc、本地文件读取、直接写入三种方式规则写入方式

目前支持限流规则、熔断降级规则两种模式,系统负载保护模式待开发和验证

<!-- 基于sentinel的降级、限流、熔断组件 -->
    <bean id="sentinelProcess" class="com.jd.ldop.sentinel.SentinelProcess">
        <property name="ruleResourceWrappers">
            <list>
                <ref bean="degradeRule"/>
            </list>
        </property>
    </bean>

    <!-- 降级或限流规则配置 -->
    <bean id="degradeRule" class="com.jd.ldop.sentinel.dto.RuleResourceWrapper">
        <constructor-arg index="0" value="ducc.degradeRule"/>
        <constructor-arg index="1" value="0"/>
        <constructor-arg index="2" value="0"/>
    </bean>

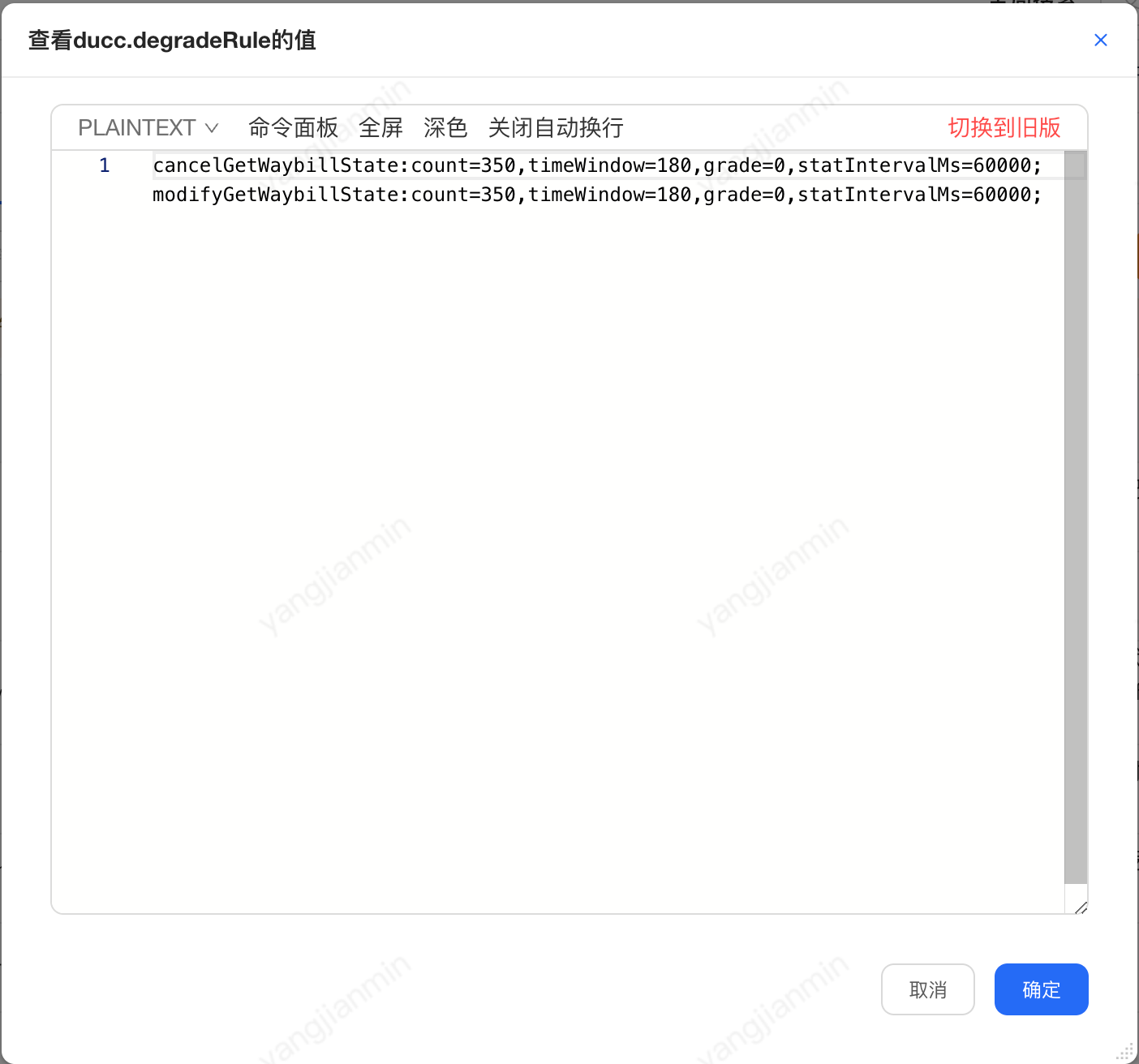

ducc上配置如下:





第三步 定义资源和关联类型

通过@SentinelResource可以直接在任意位置定义资源名以及对应的熔断降级或者限流方式、回调方法等,同时也可以指定关联类型,支持直接、关联、指定链路三种

    @Override
    @SentinelResource(value = "modifyGetWaybillState", fallback = "executeDegrade")
    public ExecutionResult<List<Integer>> execute(@NotNull Model imodel) {
        // 业务逻辑处理
    }

    public ExecutionResult<List<Integer>> executeDegrade(@NotNull Model imodel) {
        // 降级业务逻辑处理
    }

3.2 应用场景

组件支持任意的业务降级、限流、负载保护

四、Sentinel压测数据

4.1 压测目标

调用量:1.2W/m

应用机器内存稳定在50%以内

机器规格: 8C16G50G磁盘*2



Sentinel降级规则:

count=350-------慢调用临界阈值350ms

timeWindow=180------熔断时间窗口180s

grade=0-----降级模式 慢调用

statIntervalMs=60000------统计时长1min

4.2 压测结果

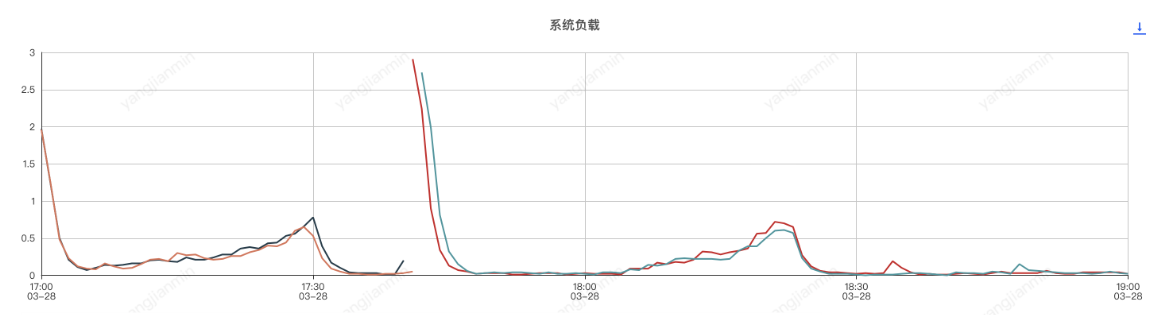

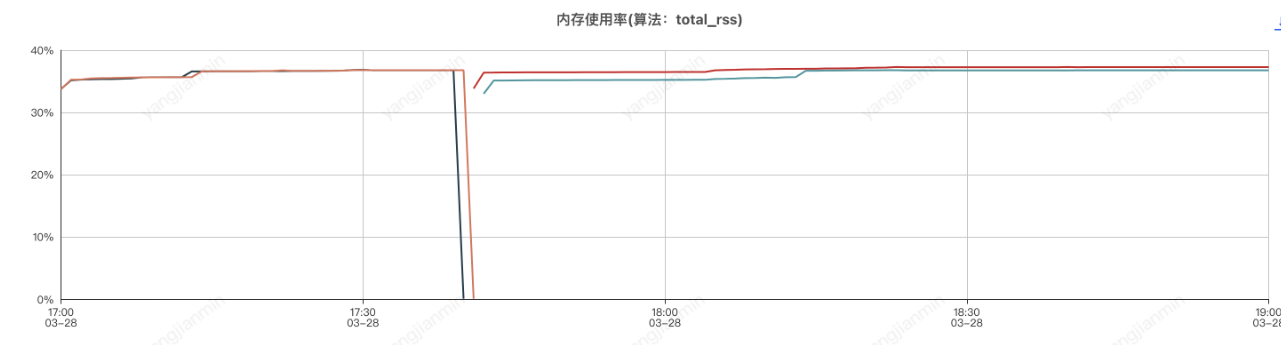

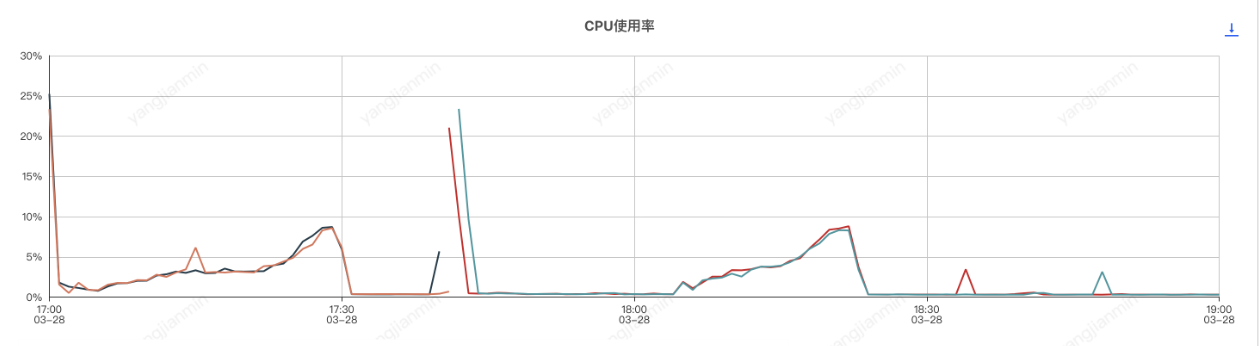

应用机器监控:

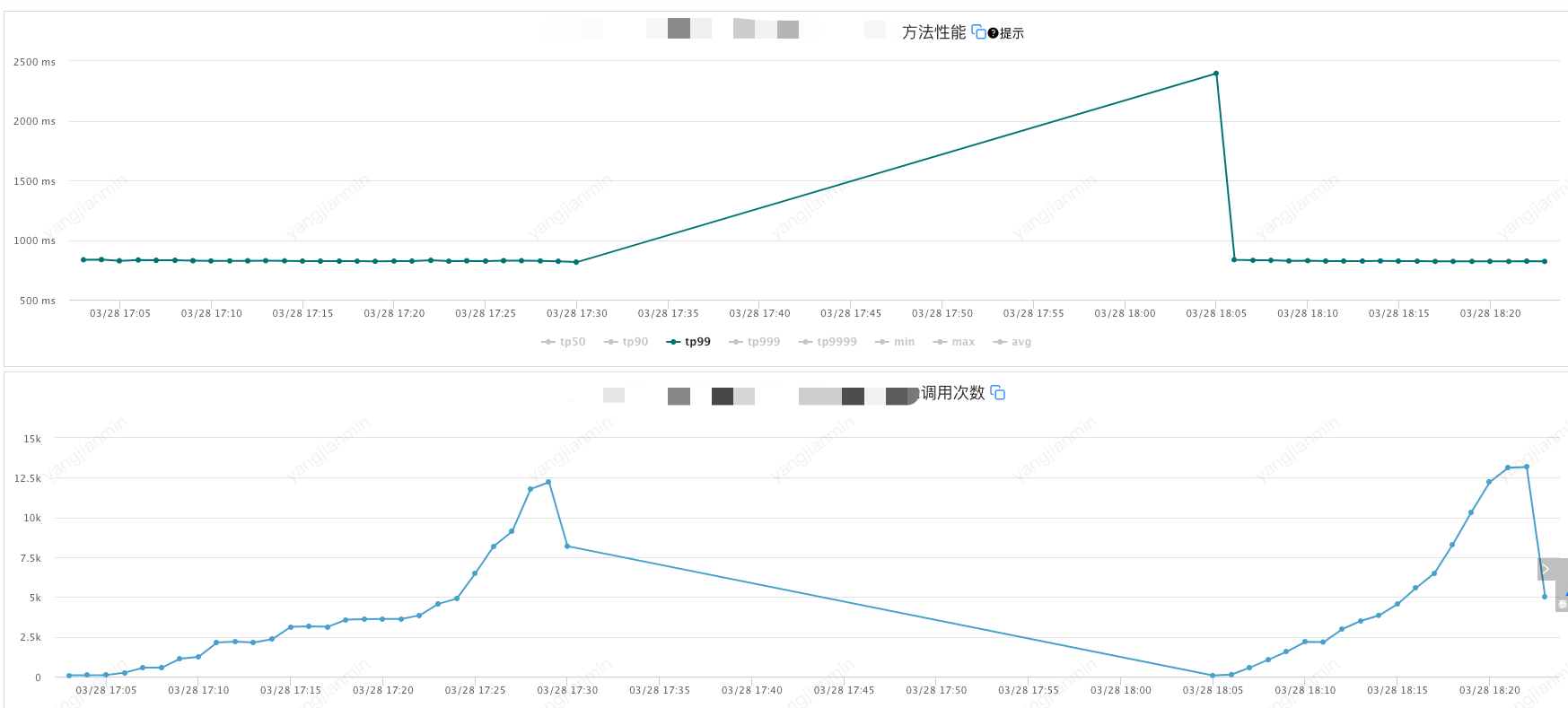

压测分为了两个阶段,分别是组件开启和组件关闭两次,前半部分是组件开启的情况,后半部分是组件关闭的情况













应用进程内存分析,和sentinel有关的前三对象是

com.alibaba.csp.sentinel.node.metric.MetricNode





















com.alibaba.csp.sentinel.CtEntry









com.alibaba.csp.sentinel.context.Context













4.3 压测结论

使Sentinel组件实现系统服务自动降级或限流,由于sentinel会按照滑动窗口周期性统计数据,因此会占用一定的机器内存,使用时应设置合理的规则,如:合理的统计时长、避免过多的Sentinel资源创建等。

总体来说,使用sentinel组件对应用cpu和内存影响不大。

相关推荐

京东云推出全新JoyCode智能编码工具,让AI Coding从代码生成走向成果交付

全新JoyCode结合项目背景与任务目标,通过Agent Loop持续规划、执行、验证与迭代,并支持多智能体并行协作、模型灵活配置及工具与流程复用,贯通从需求分析到开发验证的任务链路,推动AI Coding从代码生成走向可运行软件与可用工具的成果交付。模型使用的关键,不只是选择更强的能力,而是让投入与任务需要相匹配。作为面向严肃开发场景的企业级编码产品,京东云JoyCode所拓展的,不只是代码生成的能力,更是将专业经验与日常灵感付诸实现的路径,让技术承接实现过程中的繁复,让人更专注于问题、判断与创造。

京东科技开发者 46

GPT-6凌晨上线智能UI:智能UI时代的技术架构重构与应对之道

从命令行到图形界面,计算机行业用了三十年证明了同一件事:人类需要视觉的、空间的、可重复的交互表面,纯文字从来只是过渡形态。智能界面的出现,意味着AI行业第一次大规模承认了这个规律——对话是创造的接口,界面是使用的归宿。生成的界面如何稳定下来?个人的数据与身份如何安全地沉淀?Agent的行动能力如何可信地放大?谁能把这三个问题答好,谁就站在了Personal Agent图形界面时刻的浪潮之巅。

京东科技开发者 226

AI 会写代码之后,交付为什么还没变快?

AI 写代码,只是这场变革的起点,而不是终点。真正决定一个组织能否吃到 AI 红利的,不是"能不能用 AI 写出代码",而是敢不敢用 AI 重新设计交付流程、重新划分角色分工、重新组织团队结构。研发视角能把工具和个人推到极致,却会在组织的边界前止步;只有站上组织视角,把AI × 工具一路推进到AI × 组织,那些被 AI 照出来的摩擦,才会真正被抹平。国际技术部 Multi AI Native 想做的,正是这件事——让 Agent 成为你可靠的数字战友,让每一次迭代交付都快一个量级;

京东科技开发者 315

OxygenData-Vibe搭建:用 AI Coding重新定义数据看板搭建

长期以来,数据看板开发主要有两种方式:一种是使用标准化 BI 工具,交付快、成本低,但图表样式、交互体验和功能扩展都受限于 BI 本身的能力;另一种是自研定制开发,能够充分满足复杂和个性化需求,但需要投入大量研发资源,交付周期也更长。比如一个通过 BI 只需要 1 天就能搭建出来的看板,如果采用自研方式,可能需要投入 30 PD 的研发人力。既然 BI 交付这么快,为什么不把所有看板需求都交给 BI?原因在于,业务某些场景需要的不只是把数据展示出来。

京东科技开发者 377

当我谈数据库高可用时我谈些什么

大家都经常听到说数据库的双1,那双1指的是什么呢?参数=1(最安全)≠1(更快但可能丢)每次提交都把 redo 刷盘0/2:攒着刷,崩溃丢最近 1 秒每次提交都把 binlog 刷盘0/N:攒着刷,崩溃丢最近若干条"双 1"(都设为 1)= 单机不丢已提交事务的前提。生产核心库必须双 1;代价是每次提交两次 fsync。小结:单机层用 WAL 提速、用 2PC 保证 redo/binlog 一致、用崩溃恢复裁决半成品事务、用双 1 兜底持久性。

京东科技开发者 322

ScoAI:面向供应链的运筹原生决策智能

ScoAI 关注的并非 AI 能否进入供应链,而是 AI 参与供应链决策之后,哪些内容适合通过数据学习,哪些关系必须显式计算,以及哪些结果需要依据执行记录进行验证。其基本分工是:供应链业务定义问题、资源与行动后果,运筹学表达目标、约束和协同关系,AI 提供可复用的估计与判断。真正用于改进后续决策的,不仅是模型生成的初始结果,还包括实际采取的行动及其产生的业务反馈。

京东科技开发者 407

拆解海博 AI-Native 落地保障:海博团队 AI 知识库能力建设

绕了一大圈,回头看,我们其实一直在解开头那三个结:AI 读不懂系统、影响面靠人脑记、测试预期没处查。做到这里,本质上是把"AI 用不好"这个问题,从"是不是该换个更强的模型"重新定义成了"怎么把上下文经营好"。顺着这个思路,我们攒下了这么几样东西:•。

京东科技开发者 563

从零构建一个生产级记忆型 AI Agent —— AgentScope 项目全景技术与学习指南

domain 层端口接口(domain)职责适配器实现(infra)对话流水账读写经验记忆检索/落库请求级幂等四态会话元数据 CRUD会话级 Skill 选择态Skill 元数据HITL 权限网关(domain 内含逻辑,见第四篇)StreamSink技术中立的流式下沉(client 层桥接)以幂等端口为例,头部注释明确写道:实现 domain 端口,持有实体不出 infra 边界,对外只暴露嵌套视图GateResult。

京东科技开发者 615

数据涅槃:Agentic 重塑搜推数据生产体系

当前大模型已经能够理解需求、生成代码和解释错误,但数据生产的难点并不只是“写出一段 SQL”。一个需求还要经过数据源确认、口径澄清、加工编排、资源规划、任务提交、调度运行、结果交付和故障处置。任何一步缺少都可能让“看起来正确”的任务变成生产事故。

京东科技开发者 384

81.8 秒的视频,我们改了 15 个版本:一次纯 Codex 驱动的 AI-native 视频实践

81.8 秒、15 个版本,这些数字真正想说明什么?视频制作正在从一组专业软件里的复杂操作,变成一场围绕目标、参考和反馈展开的持续对话。AI 已经可以接住从脚本到交付的大量工作。你可以把精力留给更重要的部分:理解观众、选择故事、判断好坏。过去停在 PPT 和脑海里的想法,现在有机会被快速做成一支能看、能改、也愿意转发的视频。如果明天就要介绍你手头的项目,你最想先把哪一步交给 AI?

京东科技开发者 470

Codex 驱动的移动端AI全栈开发:从 Relay 原型图到可交付链路

AI 编程工具降低了跨端开发门槛,但“让 AI 写页面”并不等于“完成移动端交付”。PC 运营端页面通常以功能闭环为中心,设计约束较弱,研发可以基于组件库快速搭建;移动端 C 端页面直接面对用户,Relay 原型图和 UI 设计稿不仅是视觉参考,更是交互、信息层级、状态反馈和业务信任感的综合契约。

京东科技开发者 596

Claude Code vs Codex 记忆体系深度对比

Claude Code —— 分层自动记忆系统四层分层架构(CLAUDE.md / Auto Memory / Session Memory / AutoDream)构成自优化闭环,系统主动捕获、分类、去冗并跨会话接力经验。走的是自动化优先路线——让机器替人记忆、替人整理,以少量可控性的不确定换取强大的经验积累能力。Codex —— 声明式契约系统两层扁平架构(AGENTS.md 静态声明层 + 会话上下文层),记忆完全由人显式订立、显式修改,系统只读契约、绝不擅自变更。走的是可控性优先。

京东科技开发者 631

上游给空、下游拿到 -1,我把故障一直追到了 commons-beanutils 的构造函数

这篇手记是一份事后复盘,写在我们已经把修复推上线、把测试用例跑绿、把约束文档沉淀进团队库之后。非研发同事,可以直接从第八章开始看,前七章都是讲排障和代码分析。故障本身不复杂,修复也不复杂,但这次排查真正让我想写下来的,不是技术本身——而是从问题提报到解决全程AI的作用:问题定位:业务方反馈了一个异常单号说「下发失败」,一线运维同事直接在日志系统捞到相关的系统日志,用IDE打开下游代码库,把异常信息给到JoyCode——AI 直接指向了问题是serialType值非法,系统只接受0和1,而当前上游给的是-1。

京东科技开发者 720

SKill测评:谁才是真正的Skill之王?

巧合的是,阿里近期开源了一款名为 Skill-Up 的测评工具——它专门面向 Agent Skill 开发者,支持在 Claude Code、Codex、Qoder CLI 等真实 Agent Engine 环境中验证 Skill 的功能正确性,并可将失败用例转化为精准的修复指引,同时支持本地与 CI 环境的持续回归。2026年,Skill 的热度不减,已成为 AI 辅助编程领域的标配。在日常研发中,无论是沉淀个人经验,还是将团队的优秀范本标准化,将知识“蒸馏”为 Skill 已是大家的常规操作。

京东科技开发者 641

让AI真正参与工作!JoyDesk已上线京东云

JoyDesk提供覆盖AI资产管理、权限控制、安全策略、审批审计、运营监控等企业级治理能力,支持按组织、角色和项目进行精细化权限管理,并支持私有化部署,确保企业数据边界清晰、AI行为全程可追溯、安全策略灵活可配置,满足金融、政企等行业对数据安全和合规治理的要求,让AI真正成为企业可信赖的生产力。JoyDesk支持MCP协议、标准API、技能等多种开放接入方式,可快速连接企业现有业务系统,将业务能力封装为AI可调用的技能和专家,让AI能够理解业务流程、调用业务系统、完成业务任务,而无需改变企业原有IT架构。

京东科技开发者 674

【全栈实践】第一个 AI Agent 项目:从零搭建 AI 音频创作助手【最终版】

这个项目展示了AI Agent 在垂直内容创作领域端到端自动化:从内容理解到播客输出,全流程 AI 驱动多模态融合:文字、图片、音频、视频统一处理专业级音频质量:音色设计 + 智能混音,输出广播级品质低门槛使用:可视化配置 + 自然语言交互,无需技术背景。

京东科技开发者 564

【全栈实践】第一个 AI Agent 项目:从零搭建 AI 音频创作助手(高级篇)

这是一个 AI 驱动的播客创作助手,专注于从文字/视频/音频内容识别到播客制作的全流程。你可以用自然语言与它对话,也可以上传视频和音频,它会理解意图、调用相应的语音合成工具,把他们变成真实的播客音频。

京东科技开发者 728

【全栈实践】第一个 AI Agent 项目:从零搭建 AI 音频创作助手(进阶篇)

这是一个AI 驱动的音频内容创作助手。你可以用自然语言与它对话,它会理解意图、调用相应的语音合成工具,把文字变成真实的播客音频,并保存在本地。关于项目的详细介绍见第一篇文章:第一个 AI Agent 项目:从零搭建 AI 音频创作助手(入门篇)这篇文章更多介绍进阶篇添加的功能。

京东科技开发者 552

【全栈实践】第一个 AI Agent 项目:从零搭建 AI 音频创作助手(入门篇)

这个项目让我第一次把前端、后端、AI Agent 三块内容独立串联起来。技术选型上每一块都是当下主流的方案,实际跑通整条链路之后对"全栈"有了更具体的感受。框架版本要锁定:LangChain 这类快速迭代的框架,版本差异带来的问题远比你想象的多先跑通链路,再追求完美:新手阶段能把用户输入 → AI 处理 → 结果展示这条链跑通,比深入某个技术点更有价值多看官方文档:相比博客和教程,官方文档更新及时,特别是 LangGraph 这种新框架后续计划继续迭代,欢迎交流!

京东科技开发者 610

ICLR 2026 | 面向序列决策的贝叶斯集成方法

在这篇工作中,我们关注的是。

京东科技开发者 296

ICML 2026|NaviAgent:面向 Oxygen 智能体的可扩展工具编排

大型语言模型(LLM)越来越多地作为函数调用代理,调用外部工具来处理超出其静态知识范围的任务。然而,它们通常一次只调用一个工具,缺乏对任务结构的全局视图。由于工具之间往往相互依赖,这会导致错误累积和可扩展性差,尤其是在扩展到数百或数千个工具时。为了解决这些局限性,我们提出了NaviAgent,一种显式的双层架构,它通过基于图的工具关系建模将任务规划与工具执行解耦。在规划层,基于 LLM 的代理决定是直接响应、澄清意图,还是检索并执行一个独立于工具间复杂性的工具链。

京东科技开发者 389

实测 9 款 AI 架构图工具:从 Mermaid 美化到 GPT-Image2,一份选型清单

支持 5 类图(架构图、工作流图、时序图、数据流图、生命周期/状态机图),主题 4 种(Classic、Signal Flow、Blueprint、Editorial)+ 3 种色彩模式(Dark / Light / System Auto),输出格式含 HTML、PNG、SVG、WebM、Share Card PNG、JSON IR。它把提示词图库、图像生成案例、参考图编辑流程和命令行工具整合在一起,让 AI Agent 能直接调用 GPT Image 2 模型完成文生图、图生图、参考图编辑等任务。

京东科技开发者 908

别再守着 Claude Code 了——学会指挥它自主干活

回到开头那句:别再一句一句地喂它、然后守着屏幕。真正的用法是——把一件事想清楚、划好边界、给它一个能自我验证的目标,然后交出去。你会发现,省下来的时间不是一点半点。把重复的判断和执行还给机器,把真正需要你的判断留给自己。

京东科技开发者 587

CVPR 2026|Oxygen XR 团队在原生鱼眼高斯泼溅技术上带来新突破

京东零售技术团队联合清华大学提出DirectFisheye-GS框架,创新性地将鱼眼相机模型原生嵌入3D高斯泼溅管线,通过跨视角联合优化策略直接处理鱼眼图像,避免了传统去畸变预处理导致的信息损失。该方案在多个公开数据集上达到SOTA性能,有效解决了单视角优化引起的几何畸变和视角不一致问题,同时保持与现有3DGS工具链的兼容性。技术已应用于电商3D重建和4D体积视频等场景,显著提升了沉浸式体验。相关论文被CVPR 2026接收,为宽视场场景重建提供了高效解决方案。

京东科技开发者 355

拆解海博 AI-Native 落地保障:Harness、双 Loop、知识库与技能自主迭代实践

海博研发RoadMap 的落地,彻底终结了 AI 编程“对话式玄学”的旧模式,真正落地了AI Native 研发工程化。它证明 AI 规模化赋能研发的核心,不在于堆砌大模型能力,而在于用工程思维重构 AI 的工作范式:用结构化流程替代随机对话,用固化规则约束模型行为,用持续沉淀实现能力复利,用分层架构支撑规模化落地。

京东科技开发者 638

让 AI 快速「读懂」你的代码仓:Joy-Code-Graph 云端图谱服务的三次进化

代码知识图谱不是要取代 AI 的智能,而是要补齐它对代码全局关系的认知盲区。当 AI 能一眼看清「谁调用了谁、改动会波及哪里」,它写出的代码才真正靠谱;当这份认知安全地留在自己手里、随时被 Joygen 调用、并且永久沉淀在代码仓里——AI 编程的体验,才算真正上了一个台阶。这,就是我们做 Joy-Code-Graph 云端服务的初衷。能力共享,数据自主;一次建图,长期受用。

京东科技开发者 752

【Coding生态】从代码托管到 AI 能力底座:与Coding一起共建 AI 研发生态

前两种框架能够很好地支撑对话式能力和预设流程式能力。它们适合基于提示词或预设工作流完成研发问答、知识查询、流程编排等任务。但在更复杂的研发场景中,仅仅“回答问题”还不够。当用户业务逻辑复杂时,一旦场景进入真实落地阶段,例如下载代码、修改文件、执行命令、安装依赖、运行测试、读取完整代码文件,或者与自有系统联动、将结果渲染到 Coding 页面、推送到京 ME,AI 应用需要的不只是知识能力,还需要真实的代码库操作能力和独立可执行环境。

京东科技开发者 768

GPT-5.6、ChatGPT Work 与 Codex 更新食用指南

三档模型当前都提供 1,050,000 tokens 上下文、922,000 tokens 最大输入和 128,000 tokens 最大输出,接受文本与图像输入、输出文本,并支持 web search、file search、Computer Use、MCP、Tool Search、Skills、Apply Patch 等工具。Work 可以读取你提供的文件,通过插件连接 Slack、Google Drive、SharePoint、邮箱、日历、CRM 或项目系统,调用获批工具,并在执行中展示进度。

京东科技开发者 873

把业务流程沉淀成高质量 Skill 的实践路径

使用Record & Replay创建的Skill,尽管创建流程简单,但它的本质实际是让 AI 去操作页面,这不但有可能影响我们对电脑的操作,还有可能无法稳定复现。创建Skill时,可以使用 Codex 的 Record & Replay 插件,把一次手工操作录下来,再让 AI 生成可复用流程。刚开始切换时,很容易遇到接口报错,可以让Codex排查原因进行优化,直到可以稳定执行;补充相应业务背景,说明这件事为什么要做,谁会用,输入从哪来,输出给谁看。电脑休眠、关机、软件没开时,本地任务可能无法执行。

京东科技开发者 836

政企前台AI-Agent的架构实践:打造可复用的 AI 服务平台-【灯塔计划】

不止是爆火的龙虾,还是各种Skills,MCP、Agent,脱离的具体的场景谈方案,最后只会是一场空。这一套可复用的 AI 服务平台,截止目前,通过前后端对接规范文档,多项能力已快速接入到各个场域的不同端平台,大幅降低研发成本, 并且各业务线新场景的接入从原来的 “开发驱动” 转为 “配置驱动”,接入周期从天维度缩短至小时级。

京东科技开发者 864
上一篇: java浅拷贝BeanUtils.copyProperties引发的RPC异常
下一篇: 如何用Rust编写一个ChatGPT桌面应用(保姆级教程)
京东云开发者
京东云开发者 企业官方账号 企业官方账号
博客等级 码龄8年 1万+粉丝 2141原创
评论
成就一亿技术人!
拼手气红包6.0元
还能输入1000个字符

 条评论被折叠 查看
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付:10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
