【java_wxid项目】【第七章】【Spring Cloud Security Oauth2集成】

R 学习手册 R学习手册 阅读详情

主项目链接:https://gitee.com/java_wxid/java_wxid
项目架构及博文总结:

项目模块:
前期规划,实现部分

java_wxid
├── demo                                                            // 演示模块
│     └── 模块名称:apache-mybatis-demo模块                            //Apache Mybatis集成(已实现并有博文总结)
│     └── 模块名称:apache-shardingsphere-demo模块                     //Apache ShardingSphere集成(已实现并有博文总结)
│     └── 模块名称:design-demo模块                                    //设计模式实战落地(已实现并有博文总结)
│     └── 模块名称:elasticsearch-demo模块                             //ElasticSearch集成(已实现并有博文总结)
│     └── 模块名称:mongodb-demo模块                                   //MongoDB集成(已实现并有博文总结)
│     └── 模块名称:redis-demo模块                                     //Redis集成(已实现并有博文总结)
│     └── 模块名称:spring-boot-demo模块                               //Spring Boot快速构建应用(已实现并有博文总结)
│     └── 模块名称:spring-cloud-alibaba-nacos-demo模块                //Spring Cloud Alibaba Nacos集成(已实现并有博文总结)
│     └── 模块名称:spring-cloud-alibaba-seata-demo模块                //Spring Cloud Alibaba Seata集成(已实现并有博文总结)
│     └── 模块名称:spring-cloud-alibaba-sentinel-demo模块             //Spring Cloud Alibaba Sentinel集成(已实现并有博文总结)
│     └── 模块名称:spring-cloud-gateway-demo模块                      //Spring Cloud Gateway集成(已实现并有博文总结)
│     └── 模块名称:spring-cloud-hystrix-demo模块                      //Spring Cloud Hystrix集成(已实现并有博文总结)
│     └── 模块名称:spring-cloud-open-feign-demo模块                   //Spring Cloud Open Feign集成(已实现并有博文总结)
│     └── 模块名称:spring-cloud-ribbon-demo模块                       //Spring Cloud Ribbon集成(已实现并有博文总结)
│     └── 模块名称:spring-cloud-security-oauth2-demo模块              //Spring Cloud Security Oauth2集成(已实现并有博文总结)
│     └── 模块名称:spring-cloud-security-oauth2-sso-client-demo模块   //Spring Cloud Security Oauth2集成(已实现并有博文总结)
│     └── 模块名称:spring-cloud-skywalking-demo模块                   //Spring Cloud Skywalking集成(已实现并有博文总结)
│     └── 模块名称:spring-cloud-stream-demo模块                       //Spring Cloud Stream集成(已实现并有博文总结)
│     └── 模块名称:swagger-demo模块                                   //springfox-swagger2集成(已实现并有博文总结)
│     └── 模块名称:xxl-job模块                                        //xxl-job集成(已实现并有博文总结)
│     └── 模块名称:apache-spark-demo模块                              //Apache Spark集成
│     └── 模块名称:etl-hdfs-hive-hbase-demo模块                       //ETL、HDFS、Hive、Hbase集成
│     └── 模块名称:ddd-mode-demo模块                                  //DDD领域设计
│     └── 模块名称:netty-demo模块                                     //Netty集成
│     └── 模块名称:vue-demo模块                                       //前端vue集成
├── document                                                        // 文档
│     └── JavaKnowledgeDocument                                     //java知识点
│           └── java基础知识点.md
│           └── mq知识点.md
│           └── mysql知识点.md
│           └── redis知识点.md
│           └── springcould知识点.md
│           └── spring知识点.md
│     └── FounderDocument                                           //创始人
│           └── 创始人.md

系列文章:快速集成各种微服务相关的技术,帮助大家可以快速集成到自己的项目中,节约开发时间。
提示:系列文章还未全部完成,后续的文章,会慢慢补充进去的。

创建spring-cloud-security-oauth2-demo项目

项目代码:https://gitee.com/java_wxid/java_wxid/tree/master/demo/spring-cloud-security-oauth2-demo

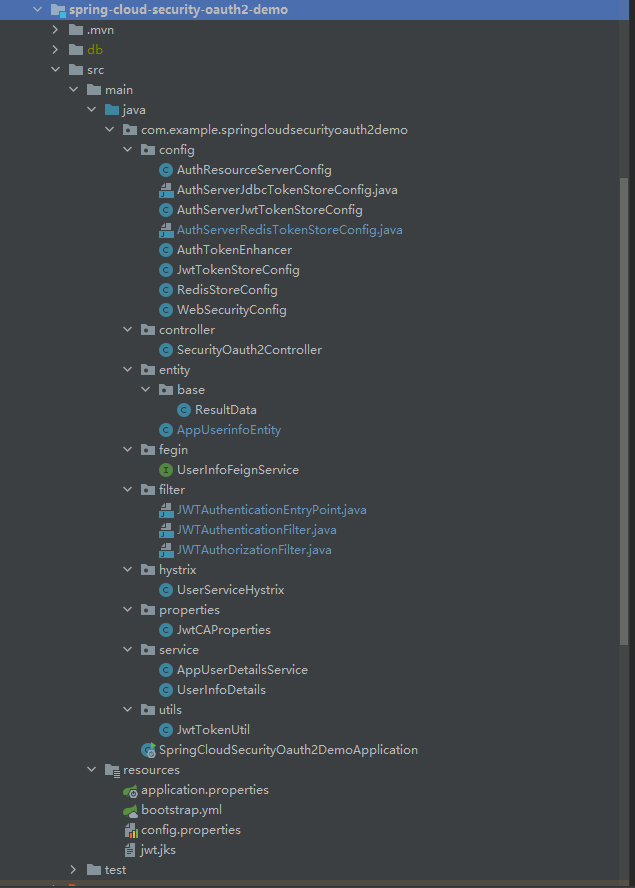

项目结构如下(示例):
在这里插入图片描述

修改pom.xml

代码如下(示例):

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>


    <groupId>com.example</groupId>
    <artifactId>spring-cloud-security-oauth2-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-cloud-security-oauth2-demo</name>
    <description>Demo project for Spring Boot</description>
    <!--    属性配置-->
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <!--引入 Spring Boot、Spring Cloud、Spring Cloud Alibaba 三者 BOM 文件,进行依赖版本的管理,防止不兼容。
        在 https://dwz.cn/mcLIfNKt 文章中,Spring Cloud Alibaba 开发团队推荐了三者的依赖关系-->
        <spring.boot.version>2.3.12.RELEASE</spring.boot.version>
        <spring.cloud.version>Hoxton.SR12</spring.cloud.version>
        <spring.cloud.alibaba.version>2.2.7.RELEASE</spring.cloud.alibaba.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!--代表web模块,在这个模块中含了许多JAR包,有spring相关的jar,内置tomcat服务器,jackson等,
        这些web项目中常用的的功能都会自动引入-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- Alibaba Nacos 配置 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <!--        在SpringBoot 2.4.x的版本之后,对于bootstrap.properties/bootstrap.yaml配置文件
        (我们合起来成为Bootstrap配置文件)的支持,其实这个jar包里什么都没有,就只有一个标识类Marker,
        用来标识要开启Bootstrap配置文件的支持,由于父类用了2.5.6版本需要导入如下的依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bootstrap</artifactId>
            <version>3.1.0</version>
        </dependency>

        <!-- spring security oauth2-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>
        <!-- JWT依赖-->
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>0.9.1</version>
        </dependency>
<!--        lombok插件-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>RELEASE</version>
            <scope>compile</scope>
        </dependency>
<!--        commons-lang3工具包-->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.10</version>
        </dependency>
        <!--openfeign客户端依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-openfeign-core</artifactId>
            <version>2.2.6.RELEASE</version>
        </dependency>
        <!--引入HttpClient依赖-->
        <dependency>
            <groupId>io.github.openfeign</groupId>
            <artifactId>feign-httpclient</artifactId>
        </dependency>
        <!-- 引入Feign Slf4j -->
        <dependency>
            <groupId>com.netflix.feign</groupId>
            <artifactId>feign-slf4j</artifactId>
            <version>8.14.4</version>
        </dependency>

<!--        jdbc-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <!-- redis -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
        </dependency>
<!--        fastjson-->
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.62</version>
        </dependency>
    </dependencies>


    <!--
        引入 Spring Boot、Spring Cloud、Spring Cloud Alibaba 三者 BOM 文件,进行依赖版本的管理,防止不兼容。
        在 https://dwz.cn/mcLIfNKt 文章中,Spring Cloud Alibaba 开发团队推荐了三者的依赖关系
     -->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-parent</artifactId>
                <version>${spring.boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring.cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring.cloud.alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>


    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>2.4</version>
                <configuration>
                    <source>${java.version}</source>
                    <target>${java.version}</target>
                    <encoding>${project.build.sourceEncoding}</encoding>
                </configuration>
            </plugin>
        </plugins>

        <resources>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>true</filtering>
                <excludes>
                    <exclude>**/*.jks</exclude>
                </excludes>
            </resource>
            <resource>
                <directory>src/main/resources</directory>
                <filtering>false</filtering>
                <includes>
                    <include>**/*.jks</include>
                </includes>
            </resource>
        </resources>
    </build>
</project>

创建bootstrap.yml文件

代码如下(示例):

#bootstrap.yml优先级比application.yml优先级高
spring:
  #prefix−{spring.profile.active}.${file-extension}
  #nacos会根据当前环境去拼接配置名称查找相应配置文件,
  #示例:{spring.application.name}-{spring.profiles.active}-{spring.cloud.nacos.config.file-extension}
  #获取到值:nacos-autoconfig-service-dev.yml
  profiles:
    #开发环境dev,测试环境test,生产环境prod
    active: dev
  application:
    #配置应用的名称,用于获取配置
    name: security-oauth2
  main:
    allow-bean-definition-overriding: true
  cloud:
    nacos:
      discovery:
        # 服务注册地址
        server-addr: ip:8848
      config:
        #nacos配置中心地址
        server-addr: ip:8848
        #配置中心的命名空间id
        namespace: 9e50b6d9-6c3d-4e7a-b701-10f085e4b98d
        #配置分组,默认没有也可以
        group: DEFAULT_GROUP
        #配置文件后缀,用于拼接配置配置文件名称,目前只支持yaml和properties
        file-extension: yaml
        #配置自动刷新
        refresh-enabled: true
        #配置文件的前缀,默认是application.name的值,如果配了prefix,就取prefix的值
        #prefix: nacos-autoconfig-service-${spring.profile.active}
        # 配置编码
        encode: UTF-8
        username: nacos
        password: nacos
  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://ip:3306/oauth2?useUnicode=true&characterEncoding=UTF-8&serverTimezone=GMT%2b8
    username: root
    password: ca0a997ee4770063
    hikari:
      minimum-idle: 5
      idle-timeout: 600000
      maximum-pool-size: 10
      auto-commit: true
      pool-name: MyHikariCP
      max-lifetime: 3000000  #连接最大存活时间,默认值30分钟.设置应该比mysql设置的超时时间短
      connection-timeout: 30000
      connection-test-query: SELECT 1 #连接测试查询
  redis:
    host: ip
    database: 0
    client-name: root
    password: ca0a997ee4770063
auth:
  jwt:
    keyPairName: jwt.jks
    keyPairAlias: jwt
    keyPairSecret: 123456
    keyPairStoreSecret: 123456

修改application.properties文件

server.port=8807

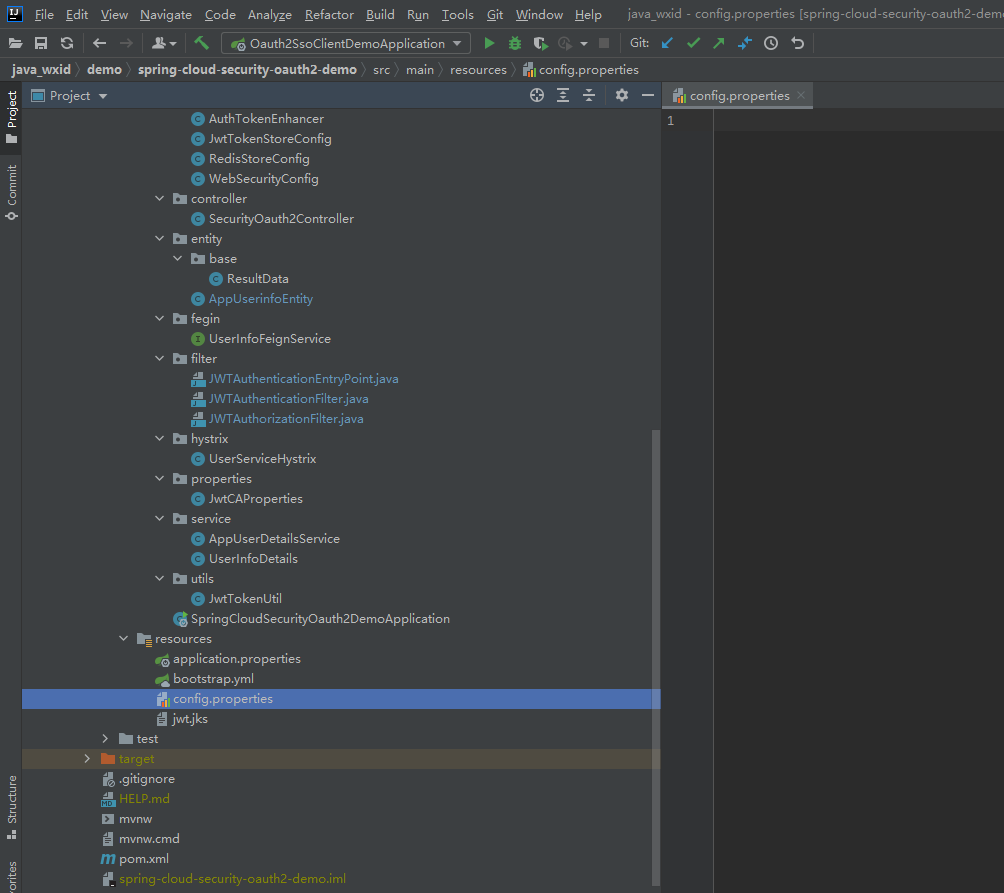

创建一个空的config.properties文件

在这里插入图片描述

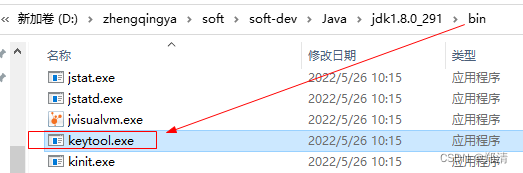

创建jwt.jks文件

在这里插入图片描述

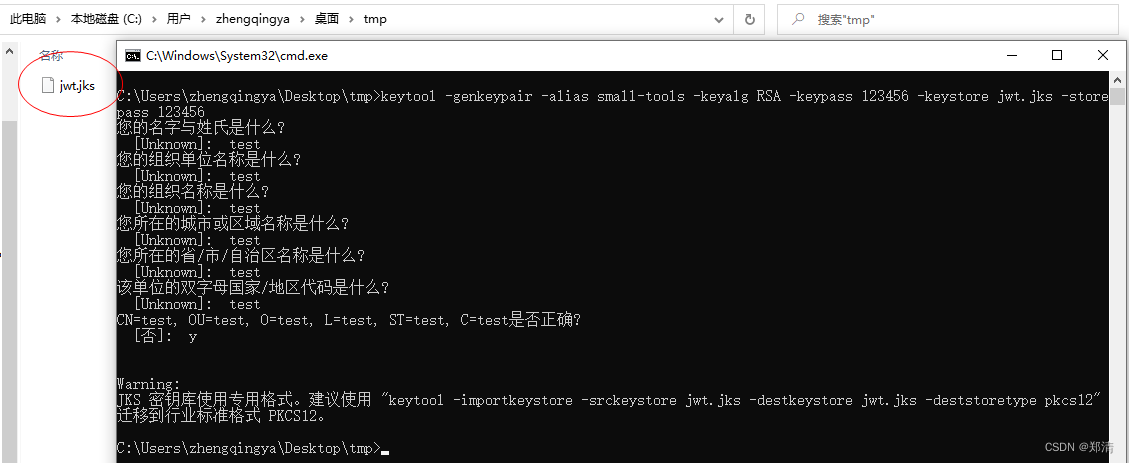

# Keytool 是一个java提供的证书管理工具
#    -alias:密钥的别名
#    -keyalg:使用的hash算法
#    -keypass:密钥的访问密码
#    -keystore:密钥库文件名,jwt.jks -> 生成的证书
#    -storepass:密钥库的访问密码
keytool -genkeypair -alias jwt -keyalg RSA -keypass 123456 -keystore jwt.jks -storepass 123456

# 查询证书
keytool -list -keystore jwt.jks

把生成的文件复制到项目的resource目录下面
在这里插入图片描述在这里插入图片描述

修改SpringCloudSecurityOauth2DemoApplication

代码如下(示例):

package com.example.springcloudsecurityoauth2demo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@EnableDiscoveryClient
@SpringBootApplication
public class SpringCloudSecurityOauth2DemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringCloudSecurityOauth2DemoApplication.class, args);
    }

}

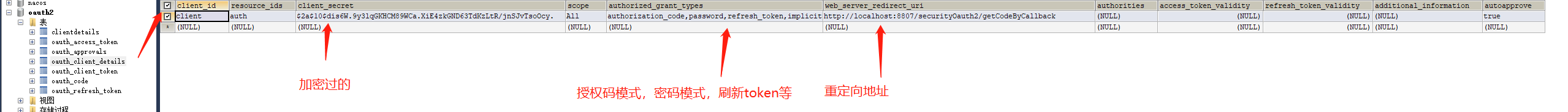

创建数据库表结构

代码如下(示例):

#官方的sql: https://github.com/spring-projects/spring-security-oauth/blob/master/spring-security-oauth2/src/test/resources/schema.sql

CREATE TABLE `clientdetails` (
  `appId` varchar(128) NOT NULL,
  `resourceIds` varchar(255) DEFAULT NULL,
  `appSecret` varchar(255) DEFAULT NULL,
  `scope` varchar(255) DEFAULT NULL,
  `grantTypes` varchar(255) DEFAULT NULL,
  `redirectUrl` varchar(255) DEFAULT NULL,
  `authorities` varchar(255) DEFAULT NULL,
  `access_token_validity` int(11) DEFAULT NULL,
  `refresh_token_validity` int(11) DEFAULT NULL,
  `additionalInformation` varchar(4096) DEFAULT NULL,
  `autoApproveScopes` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`appId`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `oauth_access_token` (
  `token_id` varchar(255) DEFAULT NULL,
  `token` blob,
  `authentication_id` varchar(128) NOT NULL,
  `user_name` varchar(255) DEFAULT NULL,
  `client_id` varchar(255) DEFAULT NULL,
  `authentication` blob,
  `refresh_token` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`authentication_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `oauth_approvals` (
  `userId` varchar(255) DEFAULT NULL,
  `clientId` varchar(255) DEFAULT NULL,
  `scope` varchar(255) DEFAULT NULL,
  `status` varchar(10) DEFAULT NULL,
  `expiresAt` timestamp NULL DEFAULT NULL,
  `lastModifiedAt` timestamp NULL DEFAULT NULL
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `oauth_client_details` (
  `client_id` varchar(128) NOT NULL,
  `resource_ids` varchar(255) DEFAULT NULL,
  `client_secret` varchar(255) DEFAULT NULL,
  `scope` varchar(255) DEFAULT NULL,
  `authorized_grant_types` varchar(255) DEFAULT NULL,
  `web_server_redirect_uri` varchar(255) DEFAULT NULL,
  `authorities` varchar(255) DEFAULT NULL,
  `access_token_validity` int(11) DEFAULT NULL,
  `refresh_token_validity` int(11) DEFAULT NULL,
  `additional_information` varchar(4096) DEFAULT NULL,
  `autoapprove` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`client_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `oauth_client_token` (
  `token_id` varchar(255) DEFAULT NULL,
  `token` blob,
  `authentication_id` varchar(128) NOT NULL,
  `user_name` varchar(255) DEFAULT NULL,
  `client_id` varchar(255) DEFAULT NULL,
  PRIMARY KEY (`authentication_id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `oauth_code` (
  `code` varchar(255) DEFAULT NULL,
  `authentication` blob
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

CREATE TABLE `oauth_refresh_token` (
  `token_id` varchar(255) DEFAULT NULL,
  `token` blob,
  `authentication` blob
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

插入语句

insert into `oauth_client_details` (`client_id`, `resource_ids`, `client_secret`, `scope`, `authorized_grant_types`, `web_server_redirect_uri`, `authorities`, `access_token_validity`, `refresh_token_validity`, `additional_information`, `autoapprove`) values('client','auth','$2a$10$dis6W.9y3lqGKHCM89WCa.XiE4zkGND63TdKzLtR/jnSJvTsoOcy.','All','authorization_code,password,refresh_token,implicit','http://localhost:8807/securityOauth2/getCodeByCallback',NULL,NULL,NULL,NULL,'true');

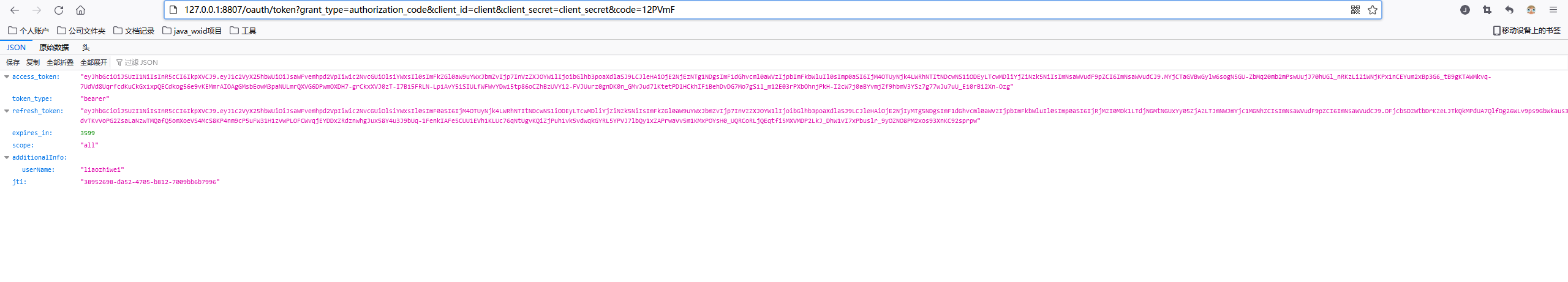

如下图(示例):
在这里插入图片描述

创建AuthResourceServerConfig

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.config;

import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableResourceServer;
import org.springframework.security.oauth2.config.annotation.web.configuration.ResourceServerConfigurerAdapter;

/**
 * @Author: liaozhiwei
 * @Description: 资源服务配置
 * @Date: Created in 18:19 2022/8/23
 */
@Configuration
@EnableResourceServer
public class AuthResourceServerConfig  extends ResourceServerConfigurerAdapter {

    @Override
    public void configure(HttpSecurity http) throws Exception {
      //利用RequestMatcher对象来进行路径匹配了,调用了antMatchers方法来定义什么样的请求可以放过,什么样的请求需要验证
        http.authorizeRequests()
                .anyRequest().authenticated()
                .and().requestMatchers().antMatchers("/user/**");
    }
}

创建AuthServerJdbcTokenStoreConfig.java

这个是基于DB模式配置授权服务器存储第三方客户端的信息,由于DB/Jwt/Redis三种方式选择其中一个进行存储,目前测试过可行,所以注释了

代码如下(示例):

//package com.example.springcloudsecurityoauth2demo.config;
//
//import com.example.springcloudsecurityoauth2demo.service.AppUserDetailsService;
//import org.springframework.beans.factory.annotation.Autowired;
//import org.springframework.context.annotation.Bean;
//import org.springframework.context.annotation.Configuration;
//import org.springframework.http.HttpMethod;
//import org.springframework.security.authentication.AuthenticationManager;
//import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
//import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
//import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
//import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
//import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
//import org.springframework.security.oauth2.provider.ClientDetailsService;
//import org.springframework.security.oauth2.provider.client.JdbcClientDetailsService;
//import org.springframework.security.oauth2.provider.token.TokenEnhancer;
//import org.springframework.security.oauth2.provider.token.TokenEnhancerChain;
//import org.springframework.security.oauth2.provider.token.store.JdbcTokenStore;
//import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
//import javax.sql.DataSource;
//import java.util.ArrayList;
//import java.util.List;
//
///**
// * @Author: liaozhiwei
// * @Description: 第一种方式:基于DB模式配置授权服务器存储第三方客户端的信息
// * @Date: Created in 18:17 2022/8/23
// */
//@Configuration
//@EnableAuthorizationServer
//public class AuthServerJdbcTokenStoreConfig extends AuthorizationServerConfigurerAdapter {
//
//      //第一种方式:使用密码模式需要配置(使用jdbc的方式)
//    @Autowired
//    private DataSource dataSource;
//    @Bean
//    public JdbcTokenStore jdbcTokenStore(){
//        return new JdbcTokenStore(dataSource);
//    }
//    @Bean
//    public ClientDetailsService clientDetailsService(){
//        return new JdbcClientDetailsService(dataSource);
//    }
//
//    @Autowired
//    private JwtAccessTokenConverter jwtAccessTokenConverter;
//
//    @Autowired
//    private AppUserDetailsService userDetailService;
//
//    @Autowired
//    private AuthenticationManager authenticationManagerBean;
//
//    @Autowired
//    private AuthTokenEnhancer authTokenEnhancer;
//
//    /**
//     * @Description 第三方信息的存储
//     **/
//    @Override
//    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
//        /**
//         * 第一步
//         *授权码模式(安全级别最高)
//         *http://localhost:8807/oauth/authorize?response_type=code&client_id=client&redirect_uri=http://www.baidu.com&scope=all
//         *或者
//         *http://localhost:8807/oauth/authorize?response_type=code&client_id=client
//         *password模式
//         *http://localhost:8807/oauth/token?username=liaozhiwei&password=123456&grant_type=password&client_id=client&client_secret=client_secret&scope=all
//         *刷新令牌
//         *http://localhost:8080/oauth/token?grant_type=refresh_token&client_id=client&client_secret=client_secret&refresh_token=eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX25hbWUiOiJsaWFvemhpd2VpIiwic2NvcGUiOlsiYWxsIl0sImF0aSI6IjJiYjg5NDY5LWIyNmYtNGQwNC05YTZjLTJjYmZkYjIzMDgyNyIsImV4cCI6MTY2MjE3ODkzMiwiYXV0aG9yaXRpZXMiOlsiYWRtaW4iXSwianRpIjoiNzBmOTc0NWItNGZmOS00ZTY5LThiOWMtNzY5ZGNkODc5NTcwIiwiY2xpZW50X2lkIjoiY2xpZW50In0.Uy6s5uIT2h_vv6DezssqzA1d7iNpqyfNReiAygmYrapPuc1Beyetoxbf3_zduD8BhZkKva7Qna_L9lFQKZuzzSx25RLgG07YzDZnuUPkCVYisxZ4bhmOuJYndKzrZmZBqmK2P9MQwLhasEgcpZoR5RJurV15fZOO5IvOI6xvgM0XkqalnEwYWf5e5JYLEEBqQqTpkEoP6wH3SSBsRFuH10l6qKqUXFd_nO37hO1p-d2uX-qMBTGPZ57xiaz97x5FLGxh2dbskmxyTnf-jAiTHlRdrfvIHDh312uW4iyENZpg8HEg3OjUHYc-7OY4U9UrHQx0YQbJ01SuKLCFEIx-aA
//         */
//        /**
//         * 第二步
//         * 获取access_token
//         * http://localhost:8807/oauth/token?grant_type=authorization_code&client_id=client&client_secret=client_secret&code=07Sn4f
//         */
//        // 第三方信息的存储   基于jdbc
//        clients.withClientDetails(clientDetailsService());
//    }
//
//    @Override
//    public void configure(AuthorizationServerEndpointsConfigurer endpoints) {
//        //配置JWT的内容增强器
//        TokenEnhancerChain enhancerChain = new TokenEnhancerChain();
//        List<TokenEnhancer> delegates = new ArrayList<>();
//        delegates.add(authTokenEnhancer);
//        delegates.add(jwtAccessTokenConverter);
//        enhancerChain.setTokenEnhancers(delegates);
//
//        //第一种:使用密码模式需要配置(使用jdbc的方式)
//        endpoints.authenticationManager(authenticationManagerBean)
//                .reuseRefreshTokens(false)  //refresh_token是否重复使用
//                .userDetailsService(userDetailService) //刷新令牌授权包含对用户信息的检查
//                .tokenStore(new JdbcTokenStore(dataSource))  //指定token存储策略是jwt,存储到mysql
//                .accessTokenConverter(jwtAccessTokenConverter)
//                .tokenEnhancer(enhancerChain) //配置tokenEnhancer
//                .allowedTokenEndpointRequestMethods(HttpMethod.GET,HttpMethod.POST,HttpMethod.DELETE,HttpMethod.PUT); //支持GET,POST请求,DELETE请求,PUT请求
//    }
//
//    /**
//     * 授权服务器安全配置
//     * @param security
//     * @throws Exception
//     */
//    @Override
//    public void configure(AuthorizationServerSecurityConfigurer security) {
//        //第三方客户端校验token需要带入 clientId 和clientSecret来校验
//        security.checkTokenAccess("isAuthenticated()")
//                .tokenKeyAccess("isAuthenticated()");//来获取我们的tokenKey需要带入clientId,clientSecret
//        //允许表单认证
//        security.allowFormAuthenticationForClients();
//    }
//}
//

创建AuthServerJwtTokenStoreConfig

这个是基于jwt.jks文件授权服务器存储第三方客户端的信息,由于DB/Jwt/Redis三种方式选择其中一个进行存储,目前测试过可行

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.config;

import com.example.springcloudsecurityoauth2demo.service.AppUserDetailsService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
import org.springframework.security.oauth2.provider.token.TokenEnhancer;
import org.springframework.security.oauth2.provider.token.TokenEnhancerChain;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
import java.util.ArrayList;
import java.util.List;

/**
 * @Author: liaozhiwei
 * @Description: 第二种方式:基于jwt.jks文件授权服务器存储第三方客户端的信息
 * @Date: Created in 18:17 2022/8/23
 */
@Configuration
@EnableAuthorizationServer
public class AuthServerJwtTokenStoreConfig extends AuthorizationServerConfigurerAdapter {


     //第二种方式:使用密码模式需要配置(使用jwt文件的方式)
    @Autowired
    @Qualifier("jwtTokenStore")
    private TokenStore jwtTokenStore;


    @Autowired
    private JwtAccessTokenConverter jwtAccessTokenConverter;

    @Autowired
    private AppUserDetailsService userDetailService;

    @Autowired
    private AuthenticationManager authenticationManagerBean;

    @Autowired
    private AuthTokenEnhancer authTokenEnhancer;

    @Autowired
    private PasswordEncoder passwordEncoder;

    /**
     * @Description 第三方信息的存储
     **/
    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
        /**
         * 第一种方式:授权码模式(安全级别最高)获取access_token
         * 第一步
         * http://127.0.0.1:8807/oauth/authorize?response_type=code&client_id=client&redirect_uri=http://www.baidu.com&scope=all
         *或者
         * http://127.0.0.1:8807/oauth/authorize?response_type=code&client_id=client
         * 第二步
         * 获取access_token
         * http://127.0.0.1:8807/oauth/token?grant_type=authorization_code&client_id=client&client_secret=client_secret&code=JQFXW7

         * 第二种方式:password模式获取access_token
         * http://127.0.0.1:8807/oauth/token?username=liaozhiwei&password=123456&grant_type=password&client_id=client&client_secret=client_secret&scope=all
         * 刷新令牌获取access_token
         *http://127.0.0.1:8807/oauth/token?grant_type=refresh_token&client_id=client&client_secret=client_secret&refresh_token=         */

        /**
         * 其他服务发起请求使用access_token进行授权
         * http://127.0.0.1:8808/securityOauth2/getUserByTokenStore?access_token=
         * http://127.0.0.1:8808/securityOauth2/getUserByAuthentication?access_token=
         * http://127.0.0.1:8808/securityOauth2/getUserByRequest?access_token=
         * */

        clients.inMemory()
                //配置client_id
                .withClient("client")
                //配置client-secret
                .secret(passwordEncoder.encode("client_secret"))
                //配置访问token的有效期
                .accessTokenValiditySeconds(3600)
                //配置刷新token的有效期
                .refreshTokenValiditySeconds(864000)
                //配置redirect_uri,用于授权成功后跳转,可以配置多个,例如:.redirectUris("http://localhost:8081/login","http://localhost:8082/login")
                .redirectUris("http://127.0.0.1:8807/securityOauth2/redirectUris")
                //自动授权配置
                .autoApprove(true)
                //配置申请的权限范围
                .scopes("all")
                /**
                 * 配置grant_type,表示授权类型
                 * authorization_code: 授权码
                 * password: 密码
                 * client_credentials: 客户端
                 * refresh_token: 更新令牌
                 */
                .authorizedGrantTypes("authorization_code","password","refresh_token");
    }

    @Override
    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
        //配置JWT的内容增强器
        TokenEnhancerChain enhancerChain = new TokenEnhancerChain();
        List<TokenEnhancer> delegates = new ArrayList<>();
        delegates.add(authTokenEnhancer);
        delegates.add(jwtAccessTokenConverter);
        enhancerChain.setTokenEnhancers(delegates);

        //第二种:使用密码模式需要配置(使用jwt文件的方式)
        endpoints.authenticationManager(authenticationManagerBean) //使用密码模式需要配置
                .reuseRefreshTokens(false)  //refresh_token是否重复使用
                .userDetailsService(userDetailService) //刷新令牌授权包含对用户信息的检查
                .tokenStore(jwtTokenStore)  //配置存储令牌策略(使用jwt文件存储的方式)
                .accessTokenConverter(jwtAccessTokenConverter)
                .tokenEnhancer(enhancerChain) //配置tokenEnhancer
                .allowedTokenEndpointRequestMethods(HttpMethod.GET,HttpMethod.POST,HttpMethod.DELETE,HttpMethod.PUT); //支持GET,POST请求,DELETE请求,PUT请求

    }

    /**
     * 授权服务器安全配置
     * @param security
     * @throws Exception
     */
    @Override
    public void configure(AuthorizationServerSecurityConfigurer security) throws Exception {
        // 允许客户表单认证,不加的话/oauth/token无法访问
        security.allowFormAuthenticationForClients()
                // 对于CheckEndpoint控制器[框架自带的校验]的/oauth/token端点允许所有客户端发送器请求而不会被Spring-security拦截
                // 开启/oauth/token_key验证端口无权限访问
                .tokenKeyAccess("permitAll()")
                // 要访问/oauth/check_token必须设置为permitAll(),但这样所有人都可以访问了,设为isAuthenticated()又导致访问不了,这个问题暂时没找到解决方案
                // 开启/oauth/check_token验证端口认证权限访问
                .checkTokenAccess("permitAll()")
//                //第三方客户端校验token需要带入 clientId 和clientSecret来校验
                .checkTokenAccess("isAuthenticated()")
                .tokenKeyAccess("isAuthenticated()");//来获取我们的tokenKey需要带入clientId,clientSecret
        //允许客户表单认证,不加的话/oauth/token无法访问
        security.allowFormAuthenticationForClients();
    }


}


创建AuthServerRedisTokenStoreConfig.java

这个是基于Redis模式配置授权服务器存储第三方客户端的信息,由于DB/Jwt/Redis三种方式选择其中一个进行存储,目前测试过可行,所以注释掉了。
代码如下(示例):

//package com.example.springcloudsecurityoauth2demo.config;
//
//import org.springframework.beans.factory.annotation.Qualifier;
//import org.springframework.security.crypto.password.PasswordEncoder;
//import org.springframework.security.oauth2.provider.token.TokenStore;
//import com.example.springcloudsecurityoauth2demo.service.AppUserDetailsService;
//import org.springframework.beans.factory.annotation.Autowired;
//import org.springframework.context.annotation.Configuration;
//import org.springframework.http.HttpMethod;
//import org.springframework.security.authentication.AuthenticationManager;
//import org.springframework.security.oauth2.config.annotation.configurers.ClientDetailsServiceConfigurer;
//import org.springframework.security.oauth2.config.annotation.web.configuration.AuthorizationServerConfigurerAdapter;
//import org.springframework.security.oauth2.config.annotation.web.configuration.EnableAuthorizationServer;
//import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerEndpointsConfigurer;
//import org.springframework.security.oauth2.config.annotation.web.configurers.AuthorizationServerSecurityConfigurer;
//import org.springframework.security.oauth2.provider.token.TokenEnhancer;
//import org.springframework.security.oauth2.provider.token.TokenEnhancerChain;
//import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
//import java.util.ArrayList;
//import java.util.List;
//
///**
// * @Author: liaozhiwei
// * @Description: 第三种方式:基于Redis模式配置授权服务器存储第三方客户端的信息
// * @Date: Created in 18:17 2022/8/23
// */
//@Configuration
//@EnableAuthorizationServer
//public class AuthServerRedisTokenStoreConfig extends AuthorizationServerConfigurerAdapter {
//
//    //使用密码模式需要配置(使用redis的方式)
//    @Autowired
//    @Qualifier("redisTokenStore")
//    private TokenStore redisTokenStore;
//
//    @Autowired
//    private JwtAccessTokenConverter jwtAccessTokenConverter;
//
//    @Autowired
//    private AppUserDetailsService userDetailService;
//
//    @Autowired
//    private AuthenticationManager authenticationManagerBean;
//
//    @Autowired
//    private AuthTokenEnhancer authTokenEnhancer;
//
//    @Autowired
//    private PasswordEncoder passwordEncoder;
//
//    /**
//     * @Description 第三方信息的存储
//     **/
//    @Override
//    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
//        /**
//         *授权码模式
//         *http://localhost:8807/oauth/authorize?response_type=code&client_id=client&redirect_uri=http://www.baidu.com&scope=all
//         *或者
//         *http://localhost:8807/oauth/authorize?response_type=code&client_id=client
//         *password模式
//         *http://localhost:8807/oauth/token?username=liaozhiwei&password=123456&grant_type=password&client_id=client&client_secret=client-secret&scope=all
//         *刷新令牌
//         *http://localhost:8080/oauth/token?grant_type=refresh_token&client_id=client&client_secret=client-secret&refresh_token=eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX25hbWUiOiJsaWFvemhpd2VpIiwic2NvcGUiOlsiYWxsIl0sImF0aSI6IjJiYjg5NDY5LWIyNmYtNGQwNC05YTZjLTJjYmZkYjIzMDgyNyIsImV4cCI6MTY2MjE3ODkzMiwiYXV0aG9yaXRpZXMiOlsiYWRtaW4iXSwianRpIjoiNzBmOTc0NWItNGZmOS00ZTY5LThiOWMtNzY5ZGNkODc5NTcwIiwiY2xpZW50X2lkIjoiY2xpZW50In0.Uy6s5uIT2h_vv6DezssqzA1d7iNpqyfNReiAygmYrapPuc1Beyetoxbf3_zduD8BhZkKva7Qna_L9lFQKZuzzSx25RLgG07YzDZnuUPkCVYisxZ4bhmOuJYndKzrZmZBqmK2P9MQwLhasEgcpZoR5RJurV15fZOO5IvOI6xvgM0XkqalnEwYWf5e5JYLEEBqQqTpkEoP6wH3SSBsRFuH10l6qKqUXFd_nO37hO1p-d2uX-qMBTGPZ57xiaz97x5FLGxh2dbskmxyTnf-jAiTHlRdrfvIHDh312uW4iyENZpg8HEg3OjUHYc-7OY4U9UrHQx0YQbJ01SuKLCFEIx-aA
//         */
//
//        clients.inMemory()
//                //配置client_id
//                .withClient("client")
//                //配置client-secret
//                .secret(passwordEncoder.encode("client-secret"))
//                //配置访问token的有效期
//                .accessTokenValiditySeconds(3600)
//                //配置刷新token的有效期
//                .refreshTokenValiditySeconds(864000)
//                //配置redirect_uri,用于授权成功后跳转,可以配置多个,例如:.redirectUris("http://localhost:8081/login","http://localhost:8082/login")
//                .redirectUris("http://www.baidu.com")
//                //配置申请的权限范围
//                .scopes("all")
//                //自动授权配置
//                .autoApprove(true)
//                /**
//                 * 配置grant_type,表示授权类型
//                 * authorization_code: 授权码
//                 * password: 密码
//                 * client_credentials: 客户端
//                 * refresh_token: 更新令牌
//                 * implicit:简化模式
//                 */
//                .authorizedGrantTypes("authorization_code","password","refresh_token");
//    }
//
//    @Override
//    public void configure(AuthorizationServerEndpointsConfigurer endpoints) throws Exception {
//        //配置JWT的内容增强器
//        TokenEnhancerChain enhancerChain = new TokenEnhancerChain();
//        List<TokenEnhancer> delegates = new ArrayList<>();
//        delegates.add(authTokenEnhancer);
//        delegates.add(jwtAccessTokenConverter);
//        enhancerChain.setTokenEnhancers(delegates);
//
//        //使用密码模式需要配置(使用redis的方式)
//        endpoints.authenticationManager(authenticationManagerBean) //使用密码模式需要配置
//                .reuseRefreshTokens(false)  //refresh_token是否重复使用
//                .userDetailsService(userDetailService) //刷新令牌授权包含对用户信息的检查
//                .tokenStore(redisTokenStore)  //指定token存储到redis
//                .accessTokenConverter(jwtAccessTokenConverter)
//                .allowedTokenEndpointRequestMethods(HttpMethod.GET,HttpMethod.POST,HttpMethod.DELETE,HttpMethod.PUT); //支持GET,POST请求,DELETE请求,PUT请求
//    }
//
//    /**
//     * 授权服务器安全配置
//     * @param security
//     * @throws Exception
//     */
//    @Override
//    public void configure(AuthorizationServerSecurityConfigurer security) throws Exception {
//        //第三方客户端校验token需要带入 clientId 和clientSecret来校验
//        security.checkTokenAccess("isAuthenticated()")
//                .tokenKeyAccess("isAuthenticated()");//来获取我们的tokenKey需要带入clientId,clientSecret
//        //允许表单认证
//        security.allowFormAuthenticationForClients();
//    }
//
//
//}
//

创建AuthTokenEnhancer

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.config;

import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.oauth2.common.DefaultOAuth2AccessToken;
import org.springframework.security.oauth2.common.OAuth2AccessToken;
import org.springframework.security.oauth2.provider.OAuth2Authentication;
import org.springframework.security.oauth2.provider.token.TokenEnhancer;
import java.util.HashMap;
import java.util.Map;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 18:20 2022/8/23
 */
public class AuthTokenEnhancer  implements TokenEnhancer {

    @Override
    public OAuth2AccessToken enhance(OAuth2AccessToken accessToken, OAuth2Authentication authentication) {
        UserDetails userinfoDetails = (UserDetails) authentication.getPrincipal();
        final Map<String, Object> additionalInfo = new HashMap<>();
        final Map<String, Object> retMap = new HashMap<>();
        //todo 这里暴露userId到Jwt的令牌中,后期可以根据自己的业务需要 进行添加字段
        additionalInfo.put("userName",userinfoDetails.getUsername());
        retMap.put("additionalInfo",additionalInfo);
        ((DefaultOAuth2AccessToken) accessToken).setAdditionalInformation(retMap);
        return accessToken;
    }
}


创建JwtTokenStoreConfig

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.config;

import com.example.springcloudsecurityoauth2demo.properties.JwtCAProperties;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.io.ClassPathResource;
import org.springframework.security.oauth2.provider.token.store.JwtAccessTokenConverter;
import org.springframework.security.rsa.crypto.KeyStoreKeyFactory;
import java.security.KeyPair;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.JwtTokenStore;

/**
 * @Author: liaozhiwei
 * @Description: jwt.jks文件形式存储
 * @Date: Created in 19:09 2022/8/23
 */

@Configuration
@EnableConfigurationProperties(value = JwtCAProperties.class)
public class JwtTokenStoreConfig {

      //第二种方式:使用jwt文件的方式
    @Bean
    public TokenStore jwtTokenStore(){
        return new JwtTokenStore(jwtAccessTokenConverter());
    }

    @Bean
    public AuthTokenEnhancer authTokenEnhancer() {
        return new AuthTokenEnhancer();
    }

    @Autowired
    private JwtCAProperties jwtCAProperties;

    @Bean
    public KeyPair keyPair() {
        KeyStoreKeyFactory keyStoreKeyFactory = new KeyStoreKeyFactory(
                new ClassPathResource(jwtCAProperties.getKeyPairName()),
                jwtCAProperties.getKeyPairSecret().toCharArray());
        return keyStoreKeyFactory.getKeyPair(jwtCAProperties.getKeyPairAlias(),
                jwtCAProperties.getKeyPairStoreSecret().toCharArray());
    }

    @Bean
    public JwtAccessTokenConverter jwtAccessTokenConverter(){
        JwtAccessTokenConverter accessTokenConverter = new JwtAccessTokenConverter();
        //配置JWT使用的秘钥 非对称加密
        accessTokenConverter.setKeyPair(keyPair());
        return accessTokenConverter;
    }


}

创建RedisStoreConfig

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.config;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.data.redis.connection.RedisConnectionFactory;
import org.springframework.context.annotation.Bean;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.security.oauth2.provider.token.store.redis.RedisTokenStore;

/**
 * @Author: liaozhiwei
 * @Description: 第三种方式:redis存储
 * @Date: Created in 19:09 2022/8/23
 */
@Configuration
public class RedisStoreConfig {

    @Autowired
    private RedisConnectionFactory redisConnectionFactory;

     //第三种:使用密码模式需要配置(使用redis的方式)
//    @Bean
//    public TokenStore redisTokenStore(){
//        // access_token
//        return new RedisTokenStore(redisConnectionFactory);
//    }
}

创建WebSecurityConfig

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.config;

//import com.example.springcloudsecurityoauth2demo.filter.JWTAuthenticationEntryPoint;
//import com.example.springcloudsecurityoauth2demo.filter.JWTAuthenticationFilter;
//import com.example.springcloudsecurityoauth2demo.filter.JWTAuthorizationFilter;
import com.example.springcloudsecurityoauth2demo.service.AppUserDetailsService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.annotation.authentication.builders.AuthenticationManagerBuilder;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.crypto.bcrypt.BCryptPasswordEncoder;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.CorsConfigurationSource;
import org.springframework.web.cors.UrlBasedCorsConfigurationSource;

/**
 * @Author: liaozhiwei
 * @Description: 配置SpringSecurity,“将Spring Security与Spring Gateway一起使用时出现无法访问javax.servlet.Filter”错误”,
 *  * 把Spring Gateway和Spring Security放在一起,因为我想保护我的网关。但是在实现了以下扩展WebSecurityConfigurerAdapter的类之后,
 *  * 项目抛出java:无法访问javax.servlet.Filter
 *  * 从Spring Cloud Gateway文档中:Spring Cloud Gateway需要Spring Boot和Spring Webflux提供的Netty运行时。
 *  * 它不能在传统的Servlet容器中工作,也不能在构建为WAR时工作。扩展WebSecurityConfigurerAdapter是为了基于servlet的应用程序
 * @Date: Created in 18:11 2022/8/23
 */
@EnableWebSecurity
@Configuration
public class WebSecurityConfig extends WebSecurityConfigurerAdapter {

    @Autowired
    private AppUserDetailsService userDetailService;

    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.userDetailsService(userDetailService);
    }

    @Bean
    @Override
    public AuthenticationManager authenticationManagerBean() throws Exception {
        // oauth2 密码模式需要拿到这个bean
        return super.authenticationManagerBean();
    }

    /**
     * @Description 密码模式
     * @MethodReturnType org.springframework.security.crypto.password.PasswordEncoder
     * @Author zhiwei Liao
     * @Date 2021/8/17 15:46
     **/
    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }


    @Override
    protected void configure(HttpSecurity http) throws Exception {
        //第一种方式

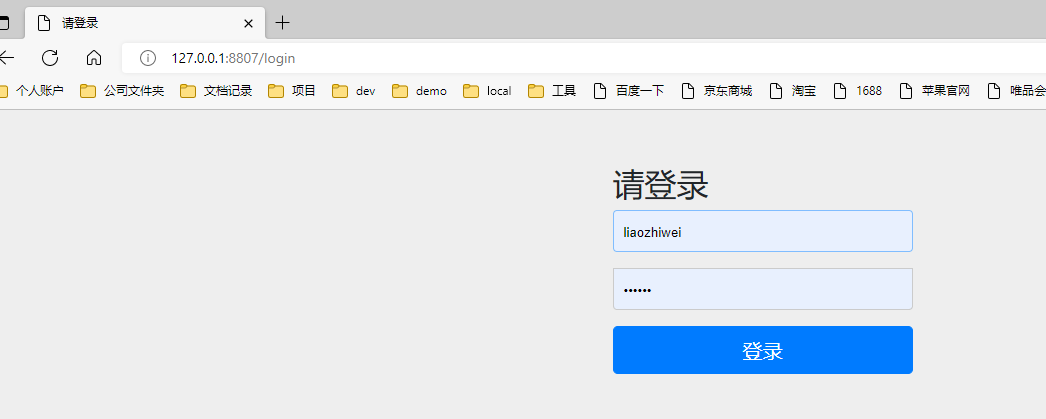

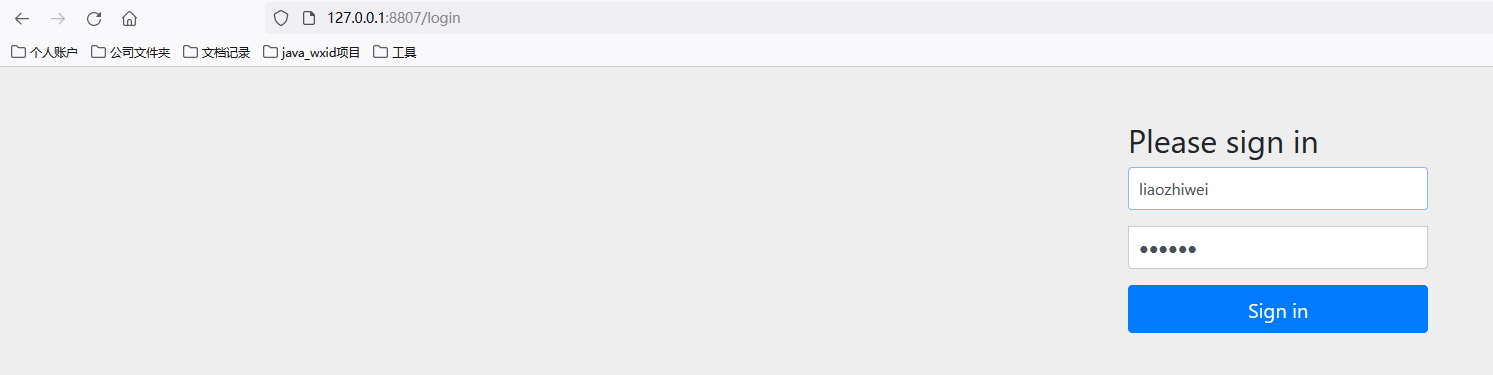

        http.formLogin().permitAll()
                .and().authorizeRequests()
                .antMatchers("/oauth/**").permitAll()//不拦截
                .anyRequest()
                .authenticated()
                .and().logout().permitAll()//退出放行
                .and().csrf().disable();//关闭CSRF保护
        //第二种方式
/*        http.cors()
                .and().authorizeRequests()
                .antMatchers("/user/**").hasRole("admin")
                .anyRequest().permitAll()
                // 添加JWT登录拦截器
                .and().addFilter(new JWTAuthenticationFilter(authenticationManager()))
                // 添加JWT鉴权拦截器
                .addFilter(new JWTAuthorizationFilter(authenticationManager()))
                // 设置Session的创建策略为:Spring Security不创建HttpSession
                .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
                // 匿名用户访问无权限资源时的异常处理
                .and().exceptionHandling().authenticationEntryPoint(new JWTAuthenticationEntryPoint())
                .and().csrf().disable();//关闭CSRF保护*/
    }

    @Bean
    CorsConfigurationSource corsConfigurationSource(){
        final UrlBasedCorsConfigurationSource source = new UrlBasedCorsConfigurationSource();
        // 注册跨域配置
        source.registerCorsConfiguration("/**", new CorsConfiguration().applyPermitDefaultValues());
        return source;
    }
}


创建SecurityOauth2Controller

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.controller;

import io.jsonwebtoken.Jwts;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.security.core.Authentication;
import org.springframework.security.oauth2.provider.OAuth2Authentication;
import org.springframework.security.oauth2.provider.token.TokenStore;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import javax.servlet.http.HttpServletRequest;
import java.nio.charset.StandardCharsets;

/**
 * @Author: liaozhiwei
 * @Description: 获取当前登录用户信息
 * @Date: Created in 09:24 2022/8/24
 */
@RestController
@RequestMapping("/securityOauth2")
public class SecurityOauth2Controller {


    /**
     * 根据重定向的返回地址获取授权码
     * @return
     */
    @RequestMapping("/getCodeByCallback")
    public Object getCodeByCallback() {
        return "这是一个回调方法(授权码模式:A网站提供一个链接,用户点击后就会跳转到B网站,用户跳转后,B网站会要求用户登录,然后询问是否同意给予A网站授权,用户表示同意,这时B网站就会跳回redirect_uri参数指定的网址,也就是当前这个接口,跳转时,会传回一个授权码";
    }

    /**
     * 回调方法
     * @return
     */

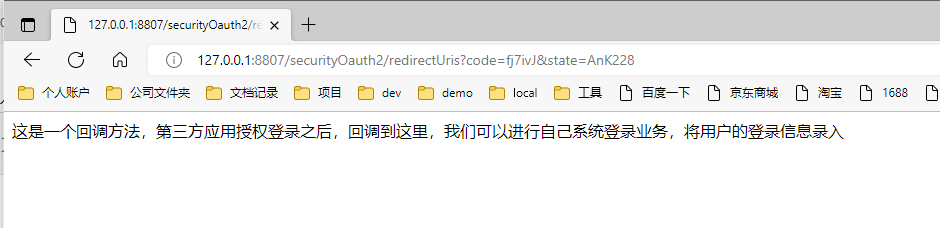

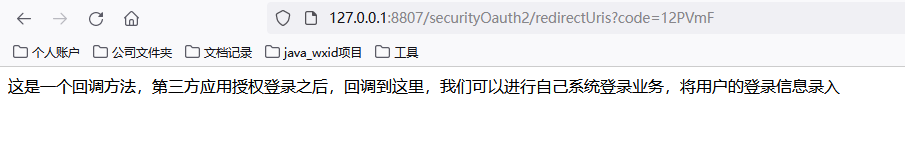

    @RequestMapping("/redirectUris")
    public Object redirectUris(HttpServletRequest request) {
        return "这是一个回调方法,第三方应用授权登录之后,回调到这里,我们可以进行自己系统登录业务,将用户的登录信息录入";
    }

    @Autowired
    private TokenStore tokenService;


    /**
     * 获取当前登录用户信息
     * @param token
     * @return
     */

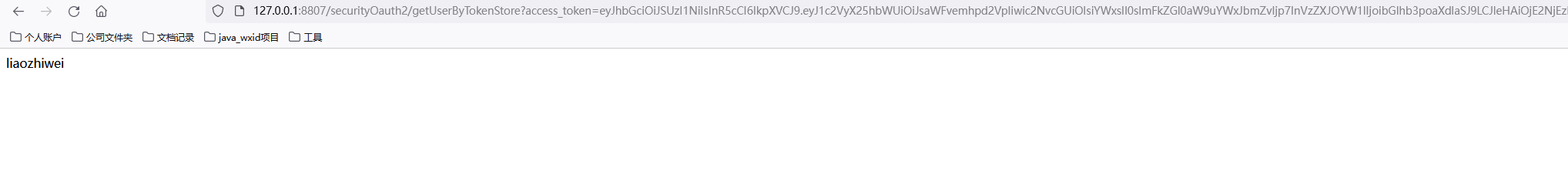

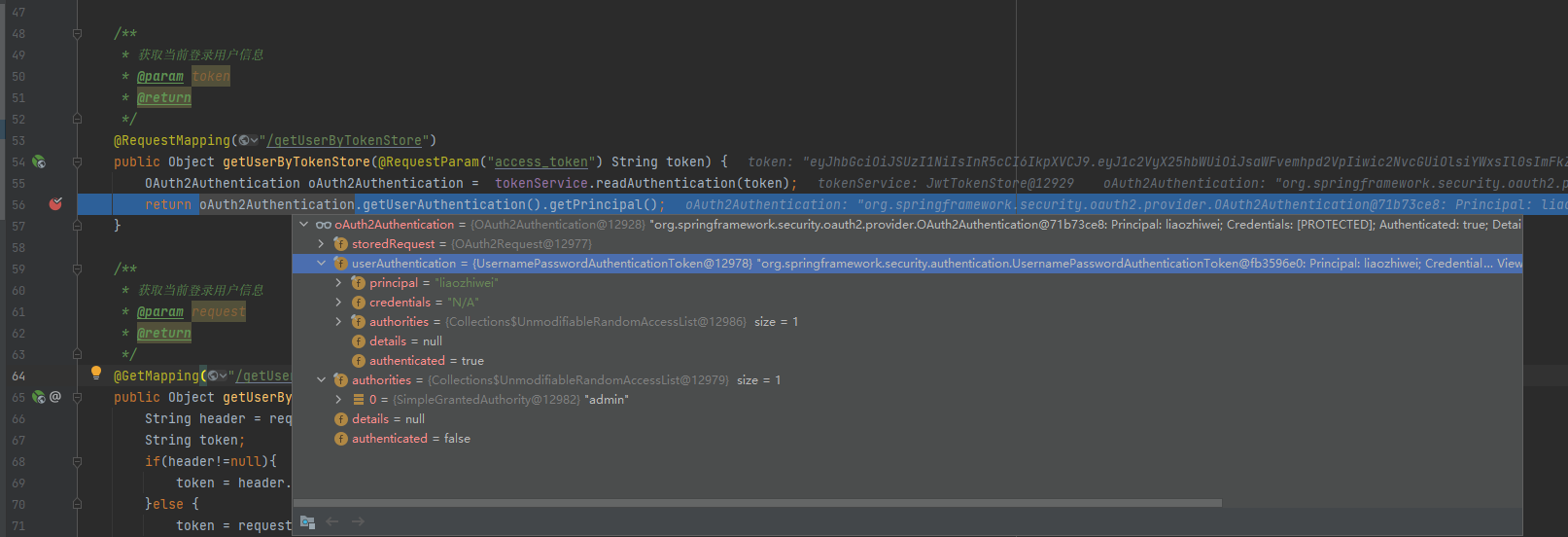

    @RequestMapping("/getUserByTokenStore")
    public Object getUserByTokenStore(@RequestParam("access_token") String token) {
        OAuth2Authentication oAuth2Authentication =  tokenService.readAuthentication(token);
        return oAuth2Authentication.getUserAuthentication().getPrincipal();
    }

    /**
     * 获取当前登录用户信息
     * @param request
     * @return
     */
    @GetMapping("/getUserByRequest")
    public Object getUserByRequest(HttpServletRequest request) {
        String header = request.getHeader("Authorization");
        String token;
        if(header!=null){
            token = header.substring(header.indexOf("bearer") + 7);
        }else {
            token = request.getParameter("access_token");
        }
        return Jwts.parser()
                .setSigningKey("123123".getBytes(StandardCharsets.UTF_8))
                .parseClaimsJws(token)
                .getBody();

    }

}

创建AppUserinfoEntity

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.entity;

import lombok.Getter;
import lombok.Setter;

/**
 * @Author: liaozhiwei
 * @Description: 用户的实体类
 * @Date: Created in 18:24 2022/8/23
 */
@Setter
@Getter
public class AppUserinfoEntity {

    private String userId;

    private String userName;

    private String userStatus;

    private String credential;
}

创建ResultData

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.entity.base;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 18:34 2022/8/23
 */

import lombok.Data;
import lombok.NoArgsConstructor;
import java.io.Serializable;

@Data
@NoArgsConstructor
public class ResultData<T> implements Serializable {
    /**
     * 状态码
     */
    public boolean status = true;

    /**
     * 状态码
     */
    private Integer code = 200;

    /**
     * 接口返回信息
     */
    private String msg;

    /**
     * 数据对象
     */
    private T data;

    /**
     * 初始化一个新创建的 ResultData 对象
     *
     * @param status 状态码
     * @param msg    返回内容
     */
    public ResultData(Boolean status, String msg) {
        this.status = status;
        this.msg = msg;
    }

    /**
     * 初始化一个新创建的 ResultData 对象
     *
     * @param status 状态码
     * @param msg    返回内容
     * @param data   数据对象
     */
    public ResultData(Boolean status, String msg, T data, Integer code) {
        this.status = status;
        this.msg = msg;
        this.data = data;
        this.code = code;
    }

    public ResultData(T data) {
        this.data = data;
    }


    /**
     * 返回成功消息
     *
     * @param msg  返回内容
     * @param data 数据对象
     * @return 成功消息
     */
    public static <T> ResultData<T> success(String msg, T data) {
        return new ResultData<T>(true, msg, data, 200);
    }

    /**
     * 返回成功消息
     *
     * @param msg 返回内容
     * @return 成功消息
     */
    public static <T> ResultData<T> success(String msg) {
        return ResultData.success(msg, null);
    }

    /**
     * 返回成功消息
     *
     * @return 成功消息
     */
    public static <T> ResultData<T> success() {
        return ResultData.success(null);
    }

    /**
     * 返回成功数据
     *
     * @return 成功消息
     */
    public static <T> ResultData<T> success(T data) {
        return ResultData.success(null, data);
    }

    /**
     * 返回错误消息
     *
     * @return
     */
    public static <T> ResultData<T> error() {
        return ResultData.error(null);
    }


    /**
     * 返回错误消息
     *
     * @param msg 返回内容
     * @return 警告消息
     */
    public static <T> ResultData<T> error(String msg) {
        return ResultData.error(msg, null);
    }

    /**
     * 返回错误消息
     *
     * @param code 状态码
     * @param msg  返回内容
     * @return 警告消息
     */
    public static <T> ResultData<T> error(Integer code, String msg) {
        return new ResultData<T>(false, msg, null, code);
    }


    /**
     * 返回错误消息
     *
     * @param msg  返回内容
     * @param data 数据对象
     * @return 警告消息
     */
    public static <T> ResultData<T> error(String msg, T data) {
        return new ResultData<T>(false, msg, data, 500);
    }
}


创建UserInfoFeignService

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.fegin;

import com.example.springcloudsecurityoauth2demo.entity.AppUserinfoEntity;
import com.example.springcloudsecurityoauth2demo.entity.base.ResultData;
import com.example.springcloudsecurityoauth2demo.hystrix.UserServiceHystrix;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.stereotype.Component;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestParam;

/**
 * @Author: liaozhiwei
 * @Description: TODO 远程调用用户模块的接口获取用户信息,这里就不写用户模块了
 * @Date: Created in 18:33 2022/8/23
 */
@Component
@FeignClient(name = "user", fallback = UserServiceHystrix.class, path = "/user")
public interface UserInfoFeignService {

    @GetMapping("/getUserinfoById")
    ResultData<AppUserinfoEntity> getUserinfoById(@RequestParam("userId") String userId);

    @GetMapping("/getUserByUserName")
    ResultData<AppUserinfoEntity> getUserByUserName(@RequestParam("username") String username);

}

创建JWTAuthenticationEntryPoint.java

代码如下(示例):

//package com.example.springcloudsecurityoauth2demo.filter;
//
//import com.alibaba.fastjson.JSON;
//import org.springframework.security.core.AuthenticationException;
//import org.springframework.security.web.AuthenticationEntryPoint;
//import javax.servlet.ServletException;
//import javax.servlet.http.HttpServletRequest;
//import javax.servlet.http.HttpServletResponse;
//import java.io.IOException;
//
//
///**
// * @Author: liaozhiwei
// * @Description: 匿名用户访问资源时无权限的处理
// * @Date: Created in 11:13 2022/8/24
// */
//
//public class JWTAuthenticationEntryPoint implements AuthenticationEntryPoint {
//
//  @Override
//  public void commence(HttpServletRequest request, HttpServletResponse response,
//                       AuthenticationException authException) throws IOException, ServletException {
//    response.setCharacterEncoding("utf-8");
//    response.setContentType("text/javascript;charset=utf-8");
//    response.getWriter().print(JSON.toJSONString("未登录,没有访问权限"));
//  }
//}

创建JWTAuthenticationFilter.java

代码如下(示例):

//package com.example.springcloudsecurityoauth2demo.filter;
//
//import com.alibaba.fastjson.JSON;
//import com.example.springcloudsecurityoauth2demo.utils.JwtTokenUtil;
//import org.springframework.security.authentication.*;
//import org.springframework.security.core.Authentication;
//import org.springframework.security.core.AuthenticationException;
//import org.springframework.security.core.GrantedAuthority;
//import org.springframework.security.core.userdetails.User;
//import org.springframework.security.web.authentication.UsernamePasswordAuthenticationFilter;
//import javax.servlet.FilterChain;
//import javax.servlet.ServletException;
//import javax.servlet.http.HttpServletRequest;
//import javax.servlet.http.HttpServletResponse;
//import java.io.IOException;
//import java.util.Collection;
//
///**
// * @Author: liaozhiwei
// * @Description: TODO
// * @Date: Created in 16:13 2022/8/24
// */
//
//public class JWTAuthenticationFilter extends UsernamePasswordAuthenticationFilter {
//
//    private AuthenticationManager authenticationManager;
//
//    public JWTAuthenticationFilter(AuthenticationManager authenticationManager) {
//        this.authenticationManager = authenticationManager;
//    }
//
//    @Override
//    public Authentication attemptAuthentication(HttpServletRequest request, HttpServletResponse response) throws AuthenticationException {
//        UsernamePasswordAuthenticationToken token = new UsernamePasswordAuthenticationToken(
//                request.getParameter("username"), request.getParameter("password"));
//        return authenticationManager.authenticate(token);
//    }
//
//    @Override
//    protected void successfulAuthentication(HttpServletRequest request, HttpServletResponse response, FilterChain chain, Authentication authResult) throws IOException, ServletException {
//        User user = (User) authResult.getPrincipal();
//        // 从User中获取权限信息
//        Collection<? extends GrantedAuthority> authorities = user.getAuthorities();
//        // 创建Token
//        String token = JwtTokenUtil.createToken(user.getUsername(), authorities.toString());
//        response.setCharacterEncoding("UTF-8");
//        response.setContentType("application/json; charset=utf-8");
//        // 在请求头里返回创建成功的token
//        // 设置请求头为带有"Bearer "前缀的token字符串
//        response.setHeader("token", JwtTokenUtil.TOKEN_PREFIX + token);
//        response.setContentType("text/json;charset=utf-8");
//        response.getWriter().write(JSON.toJSONString("登录成功"));
//    }
//
//    @Override
//    protected void unsuccessfulAuthentication(HttpServletRequest request, HttpServletResponse response, AuthenticationException failed) throws IOException, ServletException {
//        String returnData="";
//        if (failed instanceof AccountExpiredException) {
//            returnData="账号过期";
//        }else if (failed instanceof BadCredentialsException) {
//            returnData="密码错误";
//        }else if (failed instanceof CredentialsExpiredException) {
//            returnData="密码过期";
//        }else if (failed instanceof DisabledException) {
//            returnData="账号不可用";
//        }else if (failed instanceof LockedException) {
//            returnData="账号锁定";
//        }else if (failed instanceof InternalAuthenticationServiceException) {
//            returnData="用户不存在";
//        }else{
//            returnData="未知异常";
//        }
//
//        response.setContentType("text/json;charset=utf-8");
//        response.getWriter().write(JSON.toJSONString(returnData));
//    }
//}

创建JWTAuthorizationFilter.java

代码如下(示例):

//package com.example.springcloudsecurityoauth2demo.filter;
//
//import com.example.springcloudsecurityoauth2demo.utils.JwtTokenUtil;
//import org.apache.commons.lang3.StringUtils;
//import org.springframework.security.authentication.AuthenticationManager;
//import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
//import org.springframework.security.core.authority.SimpleGrantedAuthority;
//import org.springframework.security.core.context.SecurityContextHolder;
//import org.springframework.security.web.authentication.www.BasicAuthenticationFilter;
//import javax.servlet.FilterChain;
//import javax.servlet.ServletException;
//import javax.servlet.http.HttpServletRequest;
//import javax.servlet.http.HttpServletResponse;
//import java.io.IOException;
//import java.util.ArrayList;
//import java.util.Collection;
//
///**
// * @Author: liaozhiwei
// * @Description: TODO
// * @Date: Created in 16:13 2022/8/24
// */
//
//public class JWTAuthorizationFilter extends BasicAuthenticationFilter {
//
//
//    public JWTAuthorizationFilter(AuthenticationManager authenticationManager) {
//        super(authenticationManager);
//    }
//
//    @Override
//    protected void doFilterInternal(HttpServletRequest request, HttpServletResponse response, FilterChain filterChain) throws ServletException, IOException {
//        String tokenHeader = request.getHeader(JwtTokenUtil.TOKEN_HEADER);
//        // 若请求头中没有Authorization信息 或是Authorization不以Bearer开头 则直接放行
//        if (tokenHeader == null || !tokenHeader.startsWith(JwtTokenUtil.TOKEN_PREFIX)){
//            filterChain.doFilter(request, response);
//            return;
//        }
//        // 若请求头中有token 则调用下面的方法进行解析 并设置认证信息
//        SecurityContextHolder.getContext().setAuthentication(getAuthentication(tokenHeader));
//        super.doFilterInternal(request, response, filterChain);
//    }
//
//    /*
//     * 从token中获取用户信息并新建一个token
//     * @param tokenHeader 字符串形式的Token请求头
//     * @return 带用户名和密码以及权限的Authentication
//     */
//    private UsernamePasswordAuthenticationToken getAuthentication(String tokenHeader) {
//        // 去掉前缀 获取Token字符串
//        String token = tokenHeader.replace(JwtTokenUtil.TOKEN_PREFIX, "");
//        // 从Token中解密获取用户名
//        String username = JwtTokenUtil.getUsername(token);
//        // 从Token中解密获取用户角色
//        String role = JwtTokenUtil.getUserRole(token);
//        // 将[ROLE_XXX,ROLE_YYY]格式的角色字符串转换为数组
//        String[] roles = StringUtils.strip(role, "[]").split(", ");
//        Collection<SimpleGrantedAuthority> authorities=new ArrayList<>();
//        for (String s:roles)
//        {
//            authorities.add(new SimpleGrantedAuthority(s));
//        }
//        if (username != null)
//        {
//            return new UsernamePasswordAuthenticationToken(username, null,authorities);
//        }
//        return null;
//    }
//}

创建UserServiceHystrix

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.hystrix;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 18:37 2022/8/23
 */
import com.example.springcloudsecurityoauth2demo.entity.AppUserinfoEntity;
import com.example.springcloudsecurityoauth2demo.entity.base.ResultData;
import com.example.springcloudsecurityoauth2demo.fegin.UserInfoFeignService;
import org.springframework.stereotype.Component;

/**
 * @author zhiwei Liao
 * @version 1.0
 * @Description
 * @Date 2021/8/17 15:25
 */

@Component
public class UserServiceHystrix implements UserInfoFeignService {


    @Override
    public ResultData<AppUserinfoEntity> getUserinfoById(String userId) {
        return null;
    }

    @Override
    public ResultData<AppUserinfoEntity> getUserByUserName(String username) {
        return null;
    }
}


创建JwtCAProperties

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.properties;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
/**
 * @Author: liaozhiwei
 * @Description: 读取配置文件中的属性配置
 * @Date: Created in 19:10 2022/8/23
 */

@Data
@ConfigurationProperties(prefix = "auth.jwt")
public class JwtCAProperties {

    /**
     * 证书名称
     */
    private String keyPairName;


    /**
     * 证书别名
     */
    private String keyPairAlias;

    /**
     * 证书私钥
     */
    private String keyPairSecret;

    /**
     * 证书存储密钥
     */
    private String keyPairStoreSecret;

}


创建AppUserDetailsService

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.service;

import com.example.springcloudsecurityoauth2demo.entity.AppUserinfoEntity;
import com.example.springcloudsecurityoauth2demo.entity.base.ResultData;
import com.example.springcloudsecurityoauth2demo.fegin.UserInfoFeignService;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Lazy;
import org.springframework.security.core.authority.AuthorityUtils;
import org.springframework.security.core.userdetails.User;
import org.springframework.security.core.userdetails.UserDetails;
import org.springframework.security.core.userdetails.UserDetailsService;
import org.springframework.security.core.userdetails.UsernameNotFoundException;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.stereotype.Service;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 18:13 2022/8/23
 */
@Service
@Slf4j
public class AppUserDetailsService implements UserDetailsService {

    @Autowired
    @Lazy
    private PasswordEncoder passwordEncoder;

    @Override
    public UserDetails loadUserByUsername(String username) throws UsernameNotFoundException {
        //第一种方式:写死直接返回
        String password = passwordEncoder.encode("123456");
        System.out.println(password);
        return new User("liaozhiwei",password, AuthorityUtils.commaSeparatedStringToAuthorityList("admin"));//AuthorityUtils.commaSeparatedStringToAuthorityList("admin")用来为用户分配权限
/*        // 第二种方式:  查数据库获取用户信息   rpc调用
        // 加载用户信息
        if (StringUtils.isEmpty(username)) {
            log.warn("用户登陆用户名为空:{}", username);
            throw new UsernameNotFoundException("用户名不能为空");
        }
        AppUserinfoEntity userUserinfo = getByUserName(username);
        if (null == userUserinfo) {
            log.warn("根据用户名没有查询到对应的用户信息:{}", username);
        }
        log.info("根据用户名:{}获取用户登陆信息:{}", username, userUserinfo);

        // 用户信息的封装 implements UserDetails
        UserInfoDetails memberDetails = new UserInfoDetails(userUserinfo);
        return memberDetails;*/
    }

    @Autowired
    private UserInfoFeignService userInfoFeignService;

    public AppUserinfoEntity getByUserName(String username) {
        // fegin获取用户信息
        ResultData<AppUserinfoEntity> resultData = userInfoFeignService.getUserByUserName(username);
        return resultData.getData();
    }
}



创建UserInfoDetails

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.service;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 19:04 2022/8/23
 */
import com.example.springcloudsecurityoauth2demo.entity.AppUserinfoEntity;
import org.springframework.security.core.GrantedAuthority;
import org.springframework.security.core.authority.SimpleGrantedAuthority;
import org.springframework.security.core.userdetails.UserDetails;
import java.util.Arrays;
import java.util.Collection;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 19:13 2022/8/23
 */
public class UserInfoDetails implements UserDetails {

    private AppUserinfoEntity userUserinfo;

    public UserInfoDetails(AppUserinfoEntity userUserinfo) {
        this.userUserinfo = userUserinfo;
    }

    @Override
    public Collection<? extends GrantedAuthority> getAuthorities() {
        //返回当前用户的权限  BRAC   user  role  authority
        return Arrays.asList(new SimpleGrantedAuthority("TEST"));
    }

    // 获取用户密码(凭证)
    @Override
    public String getPassword() {
        return userUserinfo.getCredential();
    }

    // 获取用户名
    @Override
    public String getUsername() {
        return userUserinfo.getUserName();
    }

    // 判断帐号是否已经过期
    @Override
    public boolean isAccountNonExpired() {
        return true;
    }

    // 判断帐号是否已被锁定
    @Override
    public boolean isAccountNonLocked() {
        return true;
    }

    // 判断用户凭证是否已经过期
    @Override
    public boolean isCredentialsNonExpired() {
        return true;
    }

    // 判断用户帐号是否已启用
    @Override
    public boolean isEnabled() {
        return !userUserinfo.getUserStatus().equals("FREEZE");
    }

    public AppUserinfoEntity getUserUserinfo() {
        return userUserinfo;
    }

}

创建JwtTokenUtil

代码如下(示例):

package com.example.springcloudsecurityoauth2demo.utils;

import io.jsonwebtoken.Claims;
import io.jsonwebtoken.Jwts;
import io.jsonwebtoken.SignatureAlgorithm;
import java.util.Date;
import java.util.HashMap;
import java.util.Map;
/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 19:13 2022/8/24
 */
public class JwtTokenUtil {
    // Token请求头
    public static final String TOKEN_HEADER = "Authorization";
    // Token前缀
    public static final String TOKEN_PREFIX = "Bearer ";
    // 签名主题
    public static final String SUBJECT = "app";
    // 过期时间
    public static final long EXPIRITION =  24 * 60 * 60 ;
    // 应用密钥
    public static final String APPSECRET_KEY = "123123";
    // 角色权限声明
    private static final String ROLE_CLAIMS = "role";

    /**
     * 生成Token
     */
    public static String createToken(String username,String role) {
      Map<String,Object> map = new HashMap<>();
      map.put(ROLE_CLAIMS, role);

      String token = Jwts
          .builder()
          .setSubject(username)
          .setClaims(map)
          .claim("username",username)
          .setIssuedAt(new Date())
          .setExpiration(new Date(System.currentTimeMillis() + EXPIRITION))
          .signWith(SignatureAlgorithm.HS256, APPSECRET_KEY).compact();
      return token;
    }

    /**
     * 校验Token
     */
    public static Claims checkJWT(String token) {
      try {
        final Claims claims = Jwts.parser().setSigningKey(APPSECRET_KEY).parseClaimsJws(token).getBody();
        return claims;
      } catch (Exception e) {
        e.printStackTrace();
        return null;
      }
    }

    /**
     * 从Token中获取username
     */
    public static String getUsername(String token){
      Claims claims = Jwts.parser().setSigningKey(APPSECRET_KEY).parseClaimsJws(token).getBody();
      return claims.get("username").toString();
    }

    /**
     * 从Token中获取用户角色
     */
    public static String getUserRole(String token){
      Claims claims = Jwts.parser().setSigningKey(APPSECRET_KEY).parseClaimsJws(token).getBody();
      return claims.get("role").toString();
    }

    /**
     * 校验Token是否过期
     */
    public static boolean isExpiration(String token){
      Claims claims = Jwts.parser().setSigningKey(APPSECRET_KEY).parseClaimsJws(token).getBody();
      return claims.getExpiration().before(new Date());
    }
}

验证Spring Cloud Security Oauth2是否工作

首先要获取access_token,然后根据access_token认证授权

授权码模式

获取授权码

浏览器请求:http://127.0.0.1:8807/oauth/authorize?response_type=code&client_id=client
重定向为:http://127.0.0.1:8807/login
输入
用户名:liaozhiwei
密码:123456
如下图(示例):
在这里插入图片描述

授权登录之后会进行回调获取授权码

如下图(示例):
在这里插入图片描述

填入授权码code获取获取access_token

发起请求:http://127.0.0.1:8807/oauth/token?grant_type=authorization_code&client_id=client&client_secret=client_secret&code=12PVmF
如下图(示例):
在这里插入图片描述

password模式

http://127.0.0.1:8807/oauth/token?username=liaozhiwei&password=123456&grant_type=password&client_id=client&client_secret=client_secret&scope=all
如下图(示例):
在这里插入图片描述

刷新令牌获取access_token

http://127.0.0.1:8807/oauth/token?grant_type=refresh_token&client_id=client&client_secret=client_secret&refresh_token=
如下图(示例):
在这里插入图片描述
请求(示例):

http://127.0.0.1:8807/oauth/token?grant_type=refresh_token&client_id=client&client_secret=client_secret&refresh_token=eyJhbGciOiJSUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VyX25hbWUiOiJsaWFvemhpd2VpIiwic2NvcGUiOlsiYWxsIl0sImF0aSI6ImZlNzJhYTE2LTM2M2EtNDFlNS05YWM2LTY0MDhkYjIzZWMyMCIsImFkZGl0aW9uYWxJbmZvIjp7InVzZXJOYW1lIjoibGlhb3poaXdlaSJ9LCJleHAiOjE2NjIyMTkzNjcsImF1dGhvcml0aWVzIjpbImFkbWluIl0sImp0aSI6IjFkNjRiMGI5LTkwNTQtNGMzYi05OWY1LTJjYzVjZGIxMTk2NSIsImNsaWVudF9pZCI6ImNsaWVudCJ9.cp6KF2XQJlNBRQTJXSvPpKh0t7jIAcJ9KegA60QIEK7dUYnMMf9b9I5Zu8AlmcQAq0tGGNTTLm1Wo42fYOWCElotRYDx-465kemhcuf-nHdGQ-qXDYMuhOKO5hlG1eajMD1ceoPK71dAxvEMRWAC5hk3_PmxlPIyaO-mDQJB3PhaDjEVNGhRncp7u5-UkPL3gZg1D9r-Yk1gDB9R1Qe7UDv0oBa_u07Vm1Q8i8tXnm6__6Xi2E16HBP0c872jc6voG2LCtcA5LMoPTHQlg3xAPodTuF7ncy188vXPAUzHf2Cp8ITH2lpJ68Jl0XQq8kz9vfv3r1_vK9_mbVAiys1UQ

发起请求使用access_token进行授权获取登录用户信息

http://127.0.0.1:8807/securityOauth2/getUserByTokenStore?access_token=
如下图(示例):
在这里插入图片描述在这里插入图片描述到这里其实已经可以验证我们通过授权码和密码模式获取access_token,然后通过access_token获取登录用户的消息了,当然还有更多的验证在代码里面已经实现了,这里我只对获取登录用户进行演示校验过程

创建spring-cloud-security-oauth2-sso-client-demo项目(实现单点登录)

项目代码:https://gitee.com/java_wxid/java_wxid/tree/master/demo/spring-cloud-security-oauth2-sso-client-demo
项目结构如下图(示例):
在这里插入图片描述

修改pom.xml文件

如下(示例):

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.example</groupId>
    <artifactId>spring-cloud-security-oauth2-sso-client-demo</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>spring-cloud-security-oauth2-sso-client-demo</name>
    <description>Demo project for Spring Boot</description>

    <!--    属性配置-->
    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <java.version>1.8</java.version>
        <!--引入 Spring Boot、Spring Cloud、Spring Cloud Alibaba 三者 BOM 文件,进行依赖版本的管理,防止不兼容。
        在 https://dwz.cn/mcLIfNKt 文章中,Spring Cloud Alibaba 开发团队推荐了三者的依赖关系-->
        <spring.boot.version>2.3.12.RELEASE</spring.boot.version>
        <spring.cloud.version>Hoxton.SR12</spring.cloud.version>
        <spring.cloud.alibaba.version>2.2.7.RELEASE</spring.cloud.alibaba.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <!--        代表web模块,在这个模块中含了许多JAR包,有spring相关的jar,内置tomcat服务器,jackson等,这些web项目中常用的的功能都会自动引入-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!-- Alibaba Nacos 配置 -->
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
        </dependency>
        <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alibaba-nacos-config</artifactId>
        </dependency>
        <!--        在SpringBoot 2.4.x的版本之后,对于bootstrap.properties/bootstrap.yaml配置文件(我们合起来成为Bootstrap配置文件)的支持,其实这个jar包里什么都没有,就只有一个标识类Marker,用来标识要开启Bootstrap配置文件的支持,由于父类用了2.5.6版本需要导入如下的依赖-->
        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-bootstrap</artifactId>
            <version>3.1.0</version>
        </dependency>


        <dependency>
            <groupId>org.springframework.cloud</groupId>
            <artifactId>spring-cloud-starter-oauth2</artifactId>
        </dependency>

        <!--JWT依赖-->
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>0.9.1</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

    </dependencies>

    <!--
    引入 Spring Boot、Spring Cloud、Spring Cloud Alibaba 三者 BOM 文件,进行依赖版本的管理,防止不兼容。
    在 https://dwz.cn/mcLIfNKt 文章中,Spring Cloud Alibaba 开发团队推荐了三者的依赖关系
 -->
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-starter-parent</artifactId>
                <version>${spring.boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>org.springframework.cloud</groupId>
                <artifactId>spring-cloud-dependencies</artifactId>
                <version>${spring.cloud.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
            <dependency>
                <groupId>com.alibaba.cloud</groupId>
                <artifactId>spring-cloud-alibaba-dependencies</artifactId>
                <version>${spring.cloud.alibaba.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>

</project>

创建bootstrap.yml文件

代码如下(示例):

#bootstrap.yml优先级比application.yml优先级高
spring:
  #prefix−{spring.profile.active}.${file-extension}
  #nacos会根据当前环境去拼接配置名称查找相应配置文件,
  #示例:{spring.application.name}-{spring.profiles.active}-{spring.cloud.nacos.config.file-extension}
  #获取到值:nacos-autoconfig-service-dev.yml
  profiles:
    #开发环境dev,测试环境test,生产环境prod
    active: dev
  application:
    #配置应用的名称,用于获取配置
    name: security-oauth2-sso-client
  main:
    allow-bean-definition-overriding: true
  cloud:
    nacos:
      discovery:
        # 服务注册地址
        server-addr: ip:8848
      config:
        #nacos配置中心地址
        server-addr: ip:8848
        #配置中心的命名空间id
        namespace: 9e50b6d9-6c3d-4e7a-b701-10f085e4b98d
        #配置分组,默认没有也可以
        group: DEFAULT_GROUP
        #配置文件后缀,用于拼接配置配置文件名称,目前只支持yaml和properties
        file-extension: yaml
        #配置自动刷新
        refresh-enabled: true
        #配置文件的前缀,默认是application.name的值,如果配了prefix,就取prefix的值
        #prefix: nacos-autoconfig-service-${spring.profile.active}
        # 配置编码
        encode: UTF-8
        username: nacos
        password: nacos

修改application.properties文件

代码如下(示例):

server.port=8808
server.servlet.session.cookie.name=OAUTH2-CLIENT-SESSIONID${server.port}
oauth2-server-url: http://127.0.0.1:8807
security.oauth2.client.client-id=client
security.oauth2.client.use-current-uri=false
security.oauth2.client.client-secret=client_secret
security.oauth2.client.user-authorization-uri=${oauth2-serverurl}/oauth/authorize
security.oauth2.client.access-token-uri=${oauth2-server-url}/oauth/token
security.oauth2.resource.jwt.key-uri=${oauth2-server-url}/oauth/token_key

修改SpringCloudSecurityOauth2SsoClientDemoApplication

代码如下(示例):

package com.luban.oauth2ssoclientdemo;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.autoconfigure.security.oauth2.client.EnableOAuth2Sso;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;

@SpringBootApplication
/*@EnableOAuth2Sso单点登录的原理简单来说就是:标注有@EnableOAuth2Sso的OAuth2 Client应用在通过某种
OAuth2授权流程获取访问令牌后(一般是授权码流程),通过访问令牌访问userDetails用户明细这个受保护资源服务,
获取用户信息后,将用户信息转换为Spring Security上下文中的认证后凭证Authentication,从而完成标注有
@EnableOAuth2Sso的OAuth2 Client应用自身的登录认证的过程。整个过程是基于OAuth2的SSO单点登录*/
@EnableOAuth2Sso
@EnableDiscoveryClient
public class SpringCloudSecurityOauth2SsoClientDemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(SpringCloudSecurityOauth2SsoClientDemoApplication.class, args);
    }

}

创建UserController

代码如下(示例):

package com.luban.oauth2ssoclientdemo.controller;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

/**
 * @Author: liaozhiwei
 * @Description: TODO
 * @Date: Created in 09:24 2022/8/24
 */
@RestController
@RequestMapping("/user")
public class UserController {

    @RequestMapping("/testCallback")
    public Object testCallback() {
        return "";
    }
}

校验请求是否有到授权服务器进行授权

浏览器发起请求:http://localhost:8808/user/getUserByAuthentication
重定向到登录页面:
输入
用户名:liaozhiwei
密码:123456
如下图(示例):
在这里插入图片描述

授权登录之会进行回调,返回授权码

如下图(示例):
在这里插入图片描述

拿到授权码获取access_token

http://127.0.0.1:8807/oauth/token?grant_type=authorization_code&client_id=client&client_secret=client_secret&code=fj7ivJ
如下图(示例):
在这里插入图片描述
到这里为止,可以发现单点登录也基本校验成功了

爬虫开源工具GoPUP的介绍与使用 老师今天中午找我做一个任务: 爬虫+将爬到的数据可视化。 老师指定我用 GoPUP 来获取数据,用 ECharts 来可视化成图表。 一、 介绍 GoPUP是GitHub中的一个开源工具,GoPUP项目所采集的数据皆来自公开的数据源,不涉及任何个人隐私数据和非公开数据。同时开发者指出本项目提供的数据接口及相关数据仅用于学术研究。 项目地址为:https://github.com/justinzm/gopup。 此项目的核心思想:将各种数据接口做整合 二、使用方法(建议先浏览一遍文档.. 阅读详情

相关推荐

Synopsys的CoreConsultant使用简析

CoreConsultant使用简析

weixin_58165606的博客 1万+

String转Bitmap

举例 例:String imgString=“R0lGODlhSAAbAPcAAAAAAIAAAACAAICAAAAAgIAAgACAgICAgMDAwP8AAAD\/AP\/\/AAAA\/\/8A\/wD\/\/\/\/\/\/wAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAA

海的那边的专栏 2万+

PLUS模型土地利用变化模拟使用简介

因子包括自然因子如社会因子,通过计算整理得到新图层,并以tif文件输出到驱动因子的文件夹里,驱动因子文件夹里存放的是tif文件格式。线性回归使用提供的所有的LULC资源数据,可以选择往后预测的年数,选择好数据之后,可以得出预测的每一年的每一用地类型面积数据。在此过程之后,可以继续使用此CARS输入的数据继续模拟,也可返回二(3)中CARS模块,重新输入不同的年份预测。在此过程之后,可以继续使用此CARS输入的数据继续模拟,也可返回二(3)中CARS模块,重新输入不同的年份预测。

qq_42831270的博客 5813

移动端页面上下滑动,大小、透明度的变化视觉差异效果切换页面

移动端页面上下滑动,大小、透明度的变化视觉差异效果切换页面 上滑动进入下一页 , 当前页从 scale=1 放大至 比1的大倍数 ,并且透明度降低至0 ,下一页从 scale=0.1 放大至 scale=1 , 透明度无变化 下滑动进入前一页 , 当前页从 scale=1 缩小至 scale=0.1 ,透明度无变化     ,下一页从 比1的大倍数 缩小至 scale=1 , 透明度从0至1的

羽筠的博客 1万+

DEA各种模型原理及stata代码实现

DEA各种模型原理及stata代码实现DEA各种模型原理及stata代码实现一、CCR和BCC1.原理2.效率测算stata代码3.Malmquist指数3.1M指数3.2Global-Malmquist指数4.指数计算代码与案例二、SBM模型1.原理2.stata代码实现三、方向性距离函数(DDF)1.原理2.stata代码实现3.非径向DDF模型(NDDF)3.GML指数4.指数测算四、总结 DEA各种模型原理及stata代码实现 一、CCR和BCC 1.原理 CCR模型产出导向下的效率通过求解以下规划

wonder1322的博客 4万+

【unity】Google 登录和Google支付接入unity

google 支付 google 登录

云渊寒烬 8497

libGDX引擎学习初识

OpenGL ES 是目前移动开发中比较常用的技术。

晒干滴鱿鱼 9万+

DNS入侵检测 datacon2020

DNS入侵检测 datacon2020。

weixin_51491521的博客 524

【java_wxid项目】【第八章】【Apache ShardingSphere集成】

Apache ShardingSphere集成

我是Java程序员廖志伟,感谢朋友们的支持! 1698

AXI VIP配置全指南:从报错到成功仿真的完整流程(Vivado 2023版)

本文详细解析了在Vivado 2023环境中配置AXI Verification IP(VIP)进行协议仿真的完整流程。针对常见的include和import报错问题,提供了具体的解决方案和代码示例,指导用户从IP核创建、参数化配置,到构建可工作的仿真测试平台,最终实现成功仿真。

gpt4scribbler的博客 236

基于OpenMV与双舵机云台的激光追踪系统实战解析

本文详细解析了基于OpenMV摄像头与双舵机云台的激光追踪系统设计与实现。从硬件选型、图像识别算法到PID控制逻辑,全面介绍了如何构建一个高效稳定的激光追踪系统,并分享了电子设计竞赛中的实战经验与调试技巧。该系统在智能玩具、安防监控及教学演示等领域具有广泛应用前景。

prometheus9mon的博客 263

最新 python 3 实现百度翻译 sign 逆向

涉及到 sign , 废话不多说,复制即可使用。 新建一个js 文件 内容如下 文件名是:baidusign.js : var i = "320305.131321201" function n(r, o) { for (var t = 0; t < o.length - 2; t += 3) { var a = o.charAt(t + 2); a = a >= "a" ? a.charCodeAt(0) - 87 : Number(a), a.

Hakcer's Junk 5538

用App Inventor做个蓝牙温湿度计,手机自动连Arduino,5分钟搞定硬件数据上屏

本文详细介绍了如何使用App Inventor和Arduino快速搭建一个蓝牙温湿度监测系统,实现手机自动连接并显示实时数据。通过图形化编程和硬件组装指南,零代码基础的用户也能在5分钟内完成硬件数据上屏,适用于智能家居、教学演示等多种场景。

weixin_30813225的博客 172

Metasploit - auxiliary/gather/zoomeye_search

How to use ZoomEye API ?If you are a python developer, please view ZoomEye-SDK. If not, ZoomEye API Documentation is good for you.$ sudo easy_install zoomeye-SDKor$ sudo pip install git+https://github.

Nixawk 59万+

jdk-8u144-linux-x64.tar.gz.

该资源为搭建Linux系统Java环境用,资源的后缀为tar.gz格式的压缩包

数学建模模型总结

这是本人在两年内准备参加数学建模竞赛搜集到的模型资料,已经经过了本人的筛选和整理,希望能够对准备参加数学建模竞赛的学弟学妹们提供一些帮助!

网站下方版权信息的正规写法

文章目录格式其中需注意一个特别“教科书”版的例子(来自菜鸟教程最下方版权信息)其他写法 格式 Copyright+“ ”+©+“ ”+年份+“ ”+名称+“ ”+网站首页网址+“ ”+All Rights Reserved.+“ ”+备案号 其中需注意 年份可以是单独的也可以是一段时间。 如:“2021”表示是在2021年首次发布的。 “2018-2021”表示首次在2018年发布且版权一直延续到2021年,若2022年仍然有效,则在2022年应更改为“2018-2022” 网站首页网址可以不写 备

虹棠包的博客 5万+

lwip-2.0.3

lwip是瑞典计算机科学院(SICS)的Adam Dunkels 开发的一个小型开源的TCP/IP协议栈。实现的重点是在保持TCP协议主要功能的基础上减少对RAM 的占用。

爬虫基本原理

1 爬虫介绍。

摘 月 9万+

Statistics and Machine Learning Toolbox

Statistics and Machine Learning Toolbox(带书签),MATLAB统计学习工具

juniper的配置-适合对juniper感兴趣的人探讨

set version 15.1X53-D56set system host-name EXxxxxset system auto-snapshotset system time-zone Asia/wulumuqiset system root-authentication encrypted-password "$5$921ALfMm$enIlTZQ5pzjwkKg1KiF/ZTrFnYjiZ...

weixin_34198881的博客 1645

Python爬虫_03_urllib_xpath_JsonPath_BeautifulSoup应用及案例

一.Urllib 1.什么是互联网爬虫? 如果我们把互联网比作一张大的蜘蛛网,那一台计算机上的数据便是蜘蛛网上的一个猎物,而爬虫程序就是一只小蜘蛛,沿着蜘蛛网抓取自己想要的数据 解释1:通过一个程序,根据Url(http://www.taobao.com)进行爬取网页,获取有用信息 解释2:使用程序模拟浏览器,去向服务器发送请求,获取响应信息 2.爬虫核心? 1.爬取网页:爬取整个网页 包含了网页中所有得内容 2.解析数据:将网页中你得到的数据 进行解析 3.难点:爬虫和反爬虫之间的博弈 3.爬虫

小先生编程 1万+

移动端H5页面,上下滑动翻页

移动端H5页面,上下滑动翻页 向上滑动进入下一页 , 当前页(加CSS样式outTop)向上移动移出窗口 ,下一页(加CSS样式inTop)向上移动进入窗口 向下滑动进入前一页 , 当前页(加CSS样式outDown)向下移动移出窗口 ,下一页(加CSS样式inDown)向下移动进入窗口 同时设置1秒以后(setTimeout(function(){......},1000);)才可(根据canT...

羽筠的博客 5万+

实战案例:抽屉自动点赞与爬取汽车之家新闻

05.实战案例:抽屉自动点赞与爬取汽车之家新闻 文章目录05.实战案例:抽屉自动点赞与爬取汽车之家新闻一、抽屉自动点赞二、爬取汽车之家 一、抽屉自动点赞 import requests # data = { # 'linkId': '31009758', # # } data = { 'content': '其实一般', 'linkId': '31008563', 'parentId': '0', 'pictureUrl': '' } header = {

淘小欣的博客 1010

web应用程序的身份验证_Web应用程序的身份验证机制

web应用程序的身份验证 身份验证是大多数网站的基本要求。 但是,有许多机制可以实现身份验证,并且它们并不是很可互换的。 根据业务需求,开发人员需要为其应用程序选择最合适的身份验证方法。 除非人们很好地了解机制之间的差异,否则这可能不是一件容易的事。 在这篇简短的文章中,我想回顾一下实现身份验证的4种流行机制。 还要进行比较和考虑,以选择最合适的方法。 背景 在标准Java Web应用...

danpu0978的博客 2131

微信支付---二维码的生成(保姆级介绍)

1、生成二维码返回页端 ​ 加入依赖 <!-- google二维码生成包 --> <dependency> <groupId>com.google.zxing</groupId> ...

奇点 4552

一个简单的网页数据爬虫--东财发帖

爬虫效果:自动根据输入的代码和关键字搜索页面相关信息,后期可以进行数据过滤 处理。

weixin_39077305的博客 1212

浅析spring-security-oauth2-authorization-server

oauth2-authorization-server已做了很多封装处理, 在使用过程中, 我们主要关注这几个部分第一, 各种Converter或者我们自定义Converter, 如果自定义Converter通常需要自定义认证对象, 自定义Converter和认证对象都可以参考框架提供的, 如我们分析的ClientSecretBasicAuthenticationConverter和对应的认证对象OAuth2ClientAuthenticationToken第二, 各种Provider。

小东子的博客 5309

Spring Cloud & Oauth2与Seata冲突

UnsupportedOperationException: Cannot build client services (maybe use inMemory() or jdbc()).

说淑人的所思所想 2020

spring-security-oauth2-authorization-server(一)SpringBoot3.1.3整合

因为SpringBoot3.x是目前最新的版本,整合spring-security-oauth2-authorization-server的资料很少,所以产生了这篇文章,主要为想尝试SpringBoot高版本,想整合最新的spring-security-oauth2-authorization-server的初学者,旨在为大家提供一个简单上手的参考,如果哪里写得不对或可以优化的还请大家踊跃评论指正。

weixin_42229668的博客 1万+
上一篇: 【java_wxid项目】【第六章】【Spring Cloud Gateway集成】
下一篇: 【java_wxid项目】【第七章】【Spring Cloud Alibaba Seata集成】
Java程序员廖志伟
Java程序员廖志伟 优质创作者: Java技术领域 优质创作者: Java技术领域 领域专家: 后端开发技术领域 领域专家: 后端开发技术领域
博客等级 码龄8年 2万+粉丝 1902原创
评论 3
成就一亿技术人!
拼手气红包6.0元
还能输入1000个字符

 条评论被折叠 查看
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付:10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包

打赏作者

Java程序员廖志伟

赏我包辣条呗

¥1 ¥2 ¥4 ¥6 ¥10 ¥20
扫码支付:¥1
获取中
扫码支付

您的余额不足,请更换扫码支付或充值

打赏作者

实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
