percona-zabbix-templates

yum -y install php php-mysql
rpm -ivh https://www.percona.com/downloads/percona-monitoring-plugins/percona-monitoring-plugins-1.1.8/binary/redhat/7/x86_64/percona-zabbix-templates-1.1.8-1.noarch.rpm
#/var/lib/zabbix/percona


cp /var/lib/zabbix/percona/templates/userparameter_percona_mysql.conf /etc/zabbix/zabbix_agentd.d/


#被监控数据库
grant all privileges on *.* to 'zabbix'@'%' identified by "zabbix";

#配置数据库
vim /var/lib/zabbix/percona/scripts/ss_get_mysql_stats.php
$mysql_user = 'zabbix';
$mysql_pass = 'zabbix';
$mysql_port = 3306;
$mysql_socket = NUll;



vim /var/lib/zabbix/percona/scripts/get_mysql_stats_wrapper.sh
RES=`HOME=~zabbix /u01/app/mysql/db/bin/mysql -uzabbix -pZabbix@123 -S /data/mysql/mysql.sock -e 'SHOW SLAVE STATUS\G'

chmod +x /var/lib/zabbix/percona/scripts/get_mysql_stats_wrapper.sh

#测试连通
/usr/bin/php -q /var/lib/zabbix/percona/scripts/ss_get_mysql_stats.php --host localhost --items gg
/var/lib/zabbix/percona/scripts/get_mysql_stats_wrapper.sh gg
/var/lib/zabbix/percona/scripts/get_mysql_stats_wrapper.sh running-slave

chown -R zabbix.zabbix /tmp/localhost-mysql_cacti_stats.txt
chmod 755 /tmp/localhost-mysql_cacti_stats.txt

#IP配置为server 的IP
/etc/zabbix/zabbix_agentd.conf
Server=192.168.10.253
ServerActive=192.168.10.253


#server 测试 返回数字连通正常
zabbix_get -s 192.168.1.53 -p10050 -k "MySQL.Threads-connected"

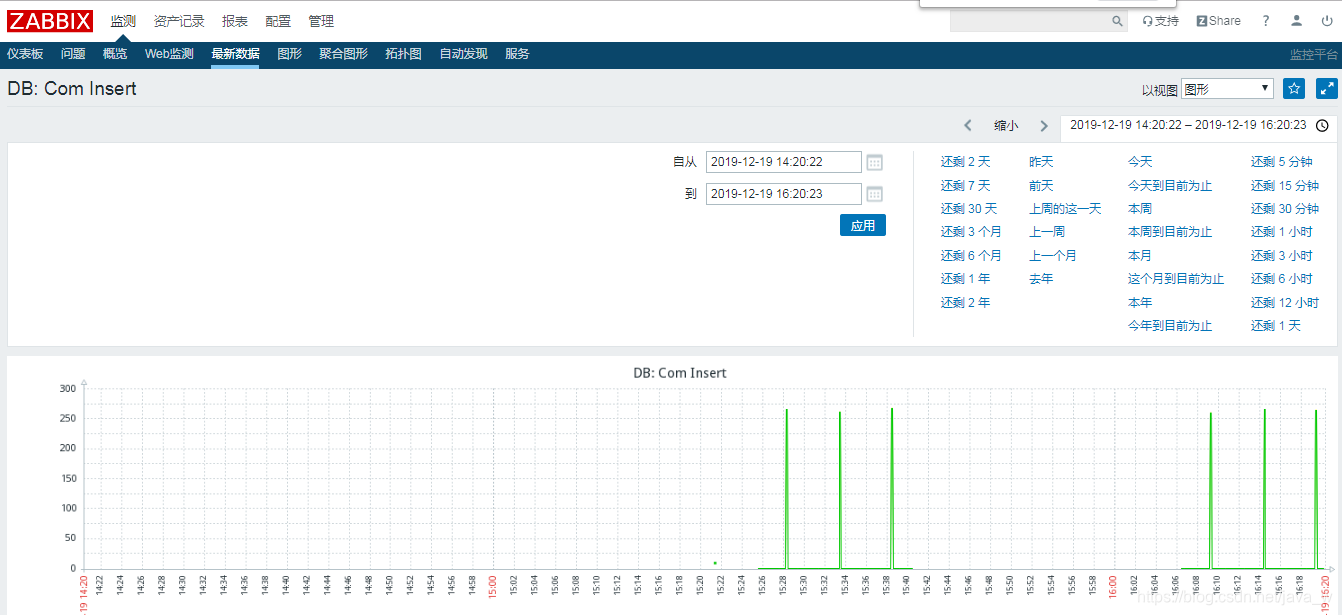

• zabbix 导入模板

 配置  -->  模板 --> 导入，选择zbx_mysql-master.xml 文件，导入成功后给主机选择当前模板

https://pan.baidu.com/s/1Y99AgpoOVpGzElMBsFlJmg
