Java集合——LinkedList

LinkedList介绍

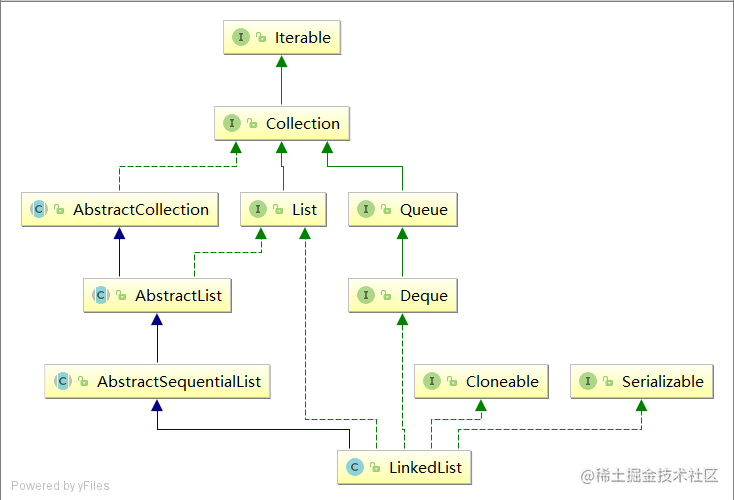

老规矩我们先看下LinkedList的继承关系图:

①.从图中我可以看出LinkedList实现了Deque接口，可以将LinkedList当做队列使用;实现了cloneable表示能被克隆，实现了Serializable接口表示支持序列化.②.LinkedList基于双向链表，实现了所有List操作并允许所有元素包括null值，它可以被当作双端队列.③.LinkedList顺序访问非常高效，而随机访问效率很低.④.LinkedList线程不安全，可以用Collections.synchronizedList使其线程安全.源码分析

LinkedList字段

 /** * 序列号 */private static final long serialVersionUID = 876323262645176354L; /** * LinkedList长度，不可序列化 */transient int size = 0;/** * 首结点 */transient Node first;/** * 尾结点 */transient Node last;

结点类:

 `/** * 结点类 */private static class Node {// 当前结点所包含的值E item;// 后继结点Node next;// 前驱结点Node prev;//结点构造方法Node(Node prev, E element, Node next) {this.item = element;this.next = next;this.prev = prev;}}
>`\>

构造方法

 /** * 无参构造 */public LinkedList() {} /** * 参数Collection的构造方法 */public LinkedList(Collection c) {// 调用无参构造函数this();// 添加集合中所有的元素addAll(c);}

CRUD

Create

LinkedList新增(public)有如下几个方法:public boolean add(E e);public boolean offer(E e);public void addLast(E e);public boolean offerLast(E e);```

/** * 末尾插入元素 /public boolean add(E e) {linkLast(e);return true;}public boolean offer(E e) {// 尾插元素return add(e);}/* * 尾插元素 /public void addLast(E e) {linkLast(e);}/* * 尾插元素 / public boolean offerLast(E e) {addLast(e);return true;}/* * 尾插元素 */void linkLast(E e) {//获取当前尾结点final Node l = last;//定义新结点，其前驱结点为尾结点，值为e，后继结点为nullfinal Node newNode = new Node<>(l, e, null);//将刚定义的新节点设为尾结点last = newNode;//若原尾结点为null，即原链表为null，则链表首结点也为newNodeif (l == null)first = newNode;//若不是原尾结点的后继设为newNodeelsel.next = newNode;长度+1size++;改变次数+1modCount++;}

public void add(int index, E element);public boolean addAll(Collection<? extends E> c);public boolean addAll(int index, Collection<? extends E> c);```
 /** * 指定位置插入元素 */public void add(int index, E element) {// 判断索引是否越界checkPositionIndex(index);// 若指定位置在尾部，则尾插元素;若不在调通用方法指定位置插入if (index == size)linkLast(element);elselinkBefore(element, node(index));}/** * 尾插集合所有元素 */public boolean addAll(Collection c) {return addAll(size, c);}/** * 指定位置插入集合所有元素 */public boolean addAll(int index, Collection c) {//判断索引是否越界checkPositionIndex(index);//将集合转为数组Object[] a = c.toArray();//获取数组长度int numNew = a.length;//若数组长度为0，即没有要插入的元素返回falseif (numNew == 0)return false;//succ为原index位置上结点，pred为succ前驱结点Node pred, succ;//若是尾部，succ为null，pred为尾结点if (index == size) {succ = null;pred = last;//若不是succ为index位置结点，pred为其前驱结点} else {succ = node(index);pred = succ.prev;}//for循环遍历集合for (Object o : a) {@SuppressWarnings("unchecked") E e = (E) o; //定义一个新结点，其前驱结点为pred，结点值为e，后继结点为nullNode newNode = new Node<>(pred, e, null); //若前驱结点为null，则将newNode设为首结点if (pred == null)first = newNode;else//若存在前驱结点，将其后继赋为newNodepred.next = newNode;类似于迭代器的next，将newNode指向下一个需插入结点位置的前驱pred = newNode;}//若是尾插，则最后添加元素为尾结点if (succ == null) {last = pred;} else { //若不是，最后添加的结点后继指向原index位置上的succpred.next = succ;//succ的前驱指向最后添加的结点succ.prev = pred;}//长度+numNewsize += numNew;modCount++;return true;}private void checkPositionIndex(int index) {//若index不在[0，size]区间内则抛越界异常if (!isPositionIndex(index))throw new IndexOutOfBoundsException(outOfBoundsMsg(index));}private boolean isPositionIndex(int index) {return index >= 0 && index <= size;}/** * 获取指定位置结点 */Node node(int index) {// 若指定索引小于LinkedList长度一半，则从首结点开始遍历;若不是从尾结点开始遍历if (index < (size >> 1)) {Node x = first;for (int i = 0; i < index; i++)x = x.next;return x;} else {Node x = last;for (int i = size - 1; i > index; i--)x = x.prev;return x;}}/** * 中间插入 */void linkBefore(E e, Node succ) {// 获取原索引上元素前驱结点pred final Node pred = succ.prev;// 定义新结点，其前驱结点为pred，结点值为e，后继为succfinal Node newNode = new Node<>(pred, e, succ);// 将succ的前驱结点设为newNodesucc.prev = newNode;// pred为空，即succ为原首结点，那么将新定义的newNode设为新首结点if (pred == null)first = newNode;else//否则pred后继结点设为newNodepred.next = newNode;//长度+1size++;//修改次数+1modCount++;}

public boolean offerFirst(E e);public void addFirst(E e);public void push(E e);```

/** * 头插指定元素 /public void addFirst(E e) {linkFirst(e);}public void push(E e) {addFirst(e);}/* * 头插指定元素 /public boolean offerFirst(E e) {addFirst(e);return true;}/* * 头插 */private void linkFirst(E e) {//获取当前首结点final Node f = first;//定义新结点，前驱为null，结点值为e，后驱为ffinal Node newNode = new Node<>(null, e, f);//将newNode设为首结点first = newNode;//若首结点为null，尾结点设为newNode，若不是原首结点前驱设为newNodeif (f == null)last = newNode;elsef.prev = newNode;长度+1size++;modCount++;}

### Retrieve

LinkedList查询(public)有如下几个方法:public boolean contains(Object o);public int size();public E element();public E get(int index);public E getFirst();public E getLast();public int indexOf(Object o);public int lastIndexOf(Object o);public int size();public E peek();public E peekFirst();public E peekLast();```
 /** * 查询是否包含此元素 */public boolean contains(Object o) {return indexOf(o) != -1;}/** * 循环从头遍历找出指定元素索引，-1表示不存在该元素 */public int indexOf(Object o) {int index = 0;if (o == null) {for (Node x = first; x != null; x = x.next) {if (x.item == null)return index;index++;}} else {for (Node x = first; x != null; x = x.next) {if (o.equals(x.item))return index;index++;}}return -1;}/** * 查询LinkedList长度 */public int size() {return size;}/** * 获取首结点值，若链表为空会抛异常 */public E element() {return getFirst();}/** * 获取首结点值，若链表为空会抛异常 */public E getFirst() {final Node f = first;if (f == null)throw new NoSuchElementException();return f.item;}/** * 获取首结点值，若无首结点返回null */public E peek() {final Node f = first;return (f == null) ? null : f.item;}/** * 获取首结点值，若无首结点返回null */public E peekFirst() {final Node f = first;return (f == null) ? null : f.item; } /** * 获取指定索引元素 */public E get(int index) {//校验是否越界checkElementIndex(index);return node(index).item;}/** * 获取尾结点，，若链表为空会抛异常 */public E getLast() {final Node l = last;if (l == null)throw new NoSuchElementException();return l.item;}/** * 获取尾结点值，若链表为空返回null */ public E peekLast() {final Node l = last;return (l == null) ? null : l.item;}/** * 循环从尾遍历找出指定元素索引，-1表示不存在该元素 */public int lastIndexOf(Object o) {int index = size;if (o == null) {for (Node x = last; x != null; x = x.prev) {index--;if (x.item == null)return index;}} else {for (Node x = last; x != null; x = x.prev) {index--;if (o.equals(x.item))return index;}}return -1;}

Update

public E set(int index, E element);```

/** * 修改指定位置结点值，返回被替换结点值 */public E set(int index, E element) {//校验index是否越界checkElementIndex(index);//获取当前index位置上结点Node x = node(index);//获取此结点值E oldVal = x.item;//修改结点值x.item = element;//返回被替换结点值return oldVal;}

### Delete

public E remove();public E remove(int index);public boolean remove(Object o);public E removeFirst();public boolean removeFirstOccurrence(Object o);public E removeLast();public boolean removeLastOccurrence(Object o);public void clear();public E poll();public E pollFirst();public E pop();```
 /** * 获取并删除首结点值，若链表为空则抛出异常 */public E remove() {return removeFirst();} public E pop() {return removeFirst();}public E removeFirst() {final Node f = first;if (f == null)throw new NoSuchElementException();return unlinkFirst(f);}/** * 获取并删除首结点，若链表为空返回null */public E poll() {final Node f = first;return (f == null) ? null : unlinkFirst(f);}public E pollFirst() {final Node f = first;return (f == null) ? null : unlinkFirst(f);}private E unlinkFirst(Node f) {//获取首结点值final E element = f.item;//获取首结点后继final Node next = f.next;//删除首结点f.item = null;f.next = null; // help GC//原后继结点设为首结点first = next;//若后继结点为null，尾结点设为null;若不是后继结点的前驱结点设为nullif (next == null)last = null;elsenext.prev = null;//长度-1size--;modCount++;return element;}/** * 删除指定位置结点 */public E remove(int index) {//校验index是否越界checkElementIndex(index);return unlink(node(index));}/** * 删除指定结点 */E unlink(Node x) {// 获取指定结点值final E element = x.item;// 获取指定结点后继final Node next = x.next;// 获取指点结点前驱final Node prev = x.prev;// 若前驱为null，则后继结点设为首结点if (prev == null) {first = next;} else {//若不是，指定结点后继结点设为指定结点前驱结点后继，指定结点的前驱设为nullprev.next = next;x.prev = null;}//若后继结点为空，则前驱结点设为尾结点if (next == null) {last = prev;} else {//若不是，指定结点前驱结点设为指定结点后继结点前驱，指定结点的后继设为nullnext.prev = prev;x.next = null;}//指定结点值设为nullx.item = null;//长度-1size--;modCount++;//返回被删除的结点值return element;}/** * for循环从头遍历，删除第一次出现的指定元素 */public boolean remove(Object o) {if (o == null) {for (Node x = first; x != null; x = x.next) {if (x.item == null) {unlink(x);return true;}}} else {for (Node x = first; x != null; x = x.next) {if (o.equals(x.item)) {unlink(x);return true;}}}return false;}/** * 删除从头开始第一出现的指定结点 */public boolean removeFirstOccurrence(Object o) {return remove(o);}/** * 删除尾结点，若链表为空抛异常 */public E removeLast() {final Node l = last;if (l == null)throw new NoSuchElementException();return unlinkLast(l);}/** * 删除尾结点，若链表为空返回null */public E pollLast() {final Node l = last;return (l == null) ? null : unlinkLast(l);}/** * 删除尾结点 */private E unlinkLast(Node l) {// 获取尾结点值final E element = l.item;// 获取尾结点前驱final Node prev = l.prev;// 删除尾结点l.item = null;l.prev = null; // help GC// 将原尾结点前驱设为尾结点last = prev;// 若原尾结点的前驱结点为空，则首结点设为nullif (prev == null)first = null;else//若不为null，原原尾结点的前驱结点的后继结点设为nullprev.next = null;//长度-1size--;modCount++;return element;}/** * 删除最后出现的结点 */public boolean removeLastOccurrence(Object o) {if (o == null) {for (Node x = last; x != null; x = x.prev) {if (x.item == null) {unlink(x);return true;}}} else {for (Node x = last; x != null; x = x.prev) {if (o.equals(x.item)) {unlink(x);return true;}}}return false;}/** * 清空LinkedList */public void clear() {//循环遍历LinkedList，删除所有结点for (Node x = first; x != null; ) {Node next = x.next;x.item = null;x.next = null;x.prev = null;x = next;}//首尾结点置空first = last = null;//长度设为0size = 0;modCount++;}

转换数组

 public Object[] toArray() {// 声明一个LinkedList长度的数组Object[] result = new Object[size];int i = 0;//for遍历一一添加for (Node x = first; x != null; x = x.next)result[i++] = x.item;return result;}

手撕简单实现

 public class LinkedList {private int size;private Node first;private Node last;public LinkedList() {}public void add(Object obj) {final Node lastNode = last;Node newNode = new Node(lastNode, obj, null);if (lastNode == null) {first = newNode;} else {lastNode.next = newNode;}last = newNode;size++;}public void add(int index, Object obj) {final Node node = getNode(index);final Node preNode = node.pre;if (index == size) {add(obj);return;}Node newNode = new Node(preNode, obj, node);node.pre = newNode;if (preNode == null) {first = newNode;} else {preNode.next = newNode;}size++;}public Object get(int index) {return getNode(index).item;}private Node getNode(int index) {if (index < 0 || index >= size) {throw new IndexOutOfBoundsException("越界");}if (index < size << 1) {Node node = first;for (int i = 0; i < index; i++) {node = node.next;}return node;} else {Node node = last;for (int i = size - 1; i > index; i--) {node = node.pre;}return node;}}public void set(int index, Object obj) {Node node = getNode(index);node.item = obj;}public void remove(int index) {final Node node = getNode(index);final Node preNode = node.pre;final Node nextNode = node.next;if (preNode == null) {first = nextNode;} else {preNode.next = nextNode;node.pre = null;}if(nextNode == null){last = preNode; } else {nextNode.pre = preNode;node.next = null;}node.item = null;size--;}private static class Node {private Object item;private Node pre;private Node next;public Node(Node pre, Object item, Node next) {this.item = item;this.pre = pre;this.next = next;}}

}

结语

之前也介绍了ArrayList，总结下他们的区别:①.ArrayList相当于动态数组，LinkedList相当于双向链表可以被当作堆栈、队列、双端队列②.ArrayList支持随机访问，而LinkedList需要一步步移动找到索引位置③.ArrayList新增可能需要扩容预留内存，LinkedList不需要④.ArrayList插入删除操作(非尾部)需要数组拷贝，LinkedList只需要修改结点的前驱后继
