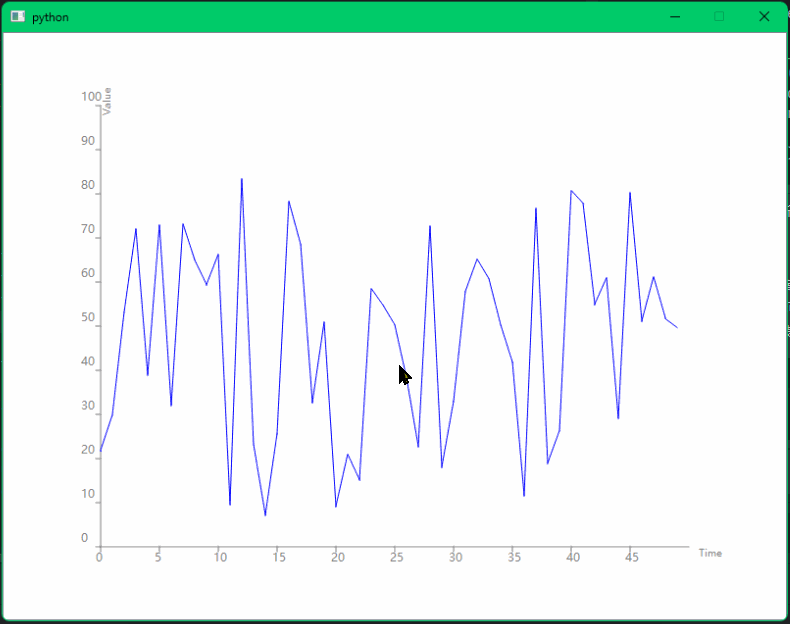

Pyside6能够滚动的折线图

Pyside6能够滚动的折线图

import sys
import random
from PySide6.QtWidgets import QApplication, QGraphicsView, QGraphicsScene, QGraphicsItem
from PySide6.QtCore import Qt, QPointF, QRectF
from PySide6.QtGui import QPainter, QPen, QColor, QFont

class ScrollableLineGraph(QGraphicsItem):
    def __init__(self, data):
        super().__init__()
        self.data = data
        self.current_start = 0
        self.bounding_rect = QRectF(0, 0, 600, 450)

    def boundingRect(self):
        return self.bounding_rect

    def paint(self, painter, option, widget):
        painter.setRenderHint(QPainter.Antialiasing)
        axis_pen = QPen(QColor(128, 128, 128))
        line_pen = QPen(QColor(0, 0, 255))
        text_font = QFont()
        text_font.setPixelSize(10)

        # 绘制X轴
        painter.setPen(axis_pen)
        painter.drawLine(0, 450, 600, 450)

        # X轴刻度和数值
        for i in range(0, 50, 5):
            x = (i - self.current_start) * 12
            if 0 <= x < 600:
                painter.drawLine(x, 450, x, 455)
                painter.drawText(x - 5, 465, str(i + self.current_start))

        # 绘制Y轴
        painter.drawLine(0, 0, 0, 450)

        # Y轴刻度和数值
        for i in range(0, 11):
            y = 450 - 45 * i
            painter.drawLine(-5, y, 0, y)
            painter.drawText(-20, y - 5, str(i * 10))

        # 添加X轴和Y轴的文本标签
        painter.setFont(text_font)
        painter.drawText(610, 460, "Time")
        painter.rotate(-90)
        painter.drawText(-10, 10, "Value")
        painter.rotate(90)

        # 绘制折线图
        painter.setPen(line_pen)
        last_point = QPointF(0, 450 - self.data[self.current_start])
        for i in range(self.current_start, min(self.current_start + 50, len(self.data))):
            x = (i - self.current_start) * 12
            y = 450 - self.data[i]
            painter.drawLine(last_point, QPointF(x, y))
            last_point = QPointF(x, y)

    def scroll_right(self):
        self.current_start = min(len(self.data) - 50, self.current_start + 1)
        self.update()

    def scroll_left(self):
        self.current_start = max(0, self.current_start - 1)
        self.update()

class LineGraphView(QGraphicsView):
    def __init__(self, data):
        super().__init__()
        self.scene = QGraphicsScene(self)
        self.setScene(self.scene)
        self.data_graph = ScrollableLineGraph(data)
        self.scene.addItem(self.data_graph)
        self.setRenderHint(QPainter.Antialiasing)
        self.setFixedSize(800, 600)
        self.setSceneRect(0, 0, 600, 450)
        self.setHorizontalScrollBarPolicy(Qt.ScrollBarAsNeeded)

    def wheelEvent(self, event):
        if event.angleDelta().y() > 0:
            self.data_graph.scroll_left()
        else:
            self.data_graph.scroll_right()
        super().wheelEvent(event)

if __name__ == "__main__":
    app = QApplication(sys.argv)
    data = [random.randint(0, 400) for _ in range(300)]
    graph_view = LineGraphView(data)
    graph_view.show()
    sys.exit(app.exec())
