Python学习笔记（九）

huhinghao123

已于 2022-04-12 15:57:16 修改

阅读量2k

点赞数 1

文章标签： python

于 2022-04-12 15:40:32 首次发布

本文链接：https://blog.youkuaiyun.com/huhinghao123/article/details/124125073

版权

本文介绍了一种在不依赖云端服务的情况下，利用Python和PaddlePaddle库进行人像抠图的方法。作者详细列举了在安装和运行过程中可能遇到的问题，包括Python版本限制、配置文件错误和模块版本选择，并提供了Unity集成的示例代码，展示了如何在Unity中调用Python脚本进行图像处理。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

最近接个小活，甲方想做一个互动程序，需要把人像抠出来。我查了一圈资料，有阿里腾讯百度的云平台都提供这样的接口，不过都需要联网才能使用，没法满足我的实际需求。虽然有离线部署的选项，但是应该不是我这样的个人能申请到的。

然后，我发现paddle上面有个这样的功能。

注：文章参考自(2条消息) Python实现自动人像抠图（小白也能学会）_赏月亮晒月光的博客-优快云博客_python 人像抠图https://blog.youkuaiyun.com/sinat_24354307/article/details/105802524

Python部分

import paddle
import paddlehub as hub
from PIL import Image, ImageSequence
import numpy as np
import os

input_path =    'humanseg_input\\'
out_path   =    'output\\'


paddle.enable_static()

module = hub.Module(name="deeplabv3p_xception65_humanseg")

while True :
    print("input")
    files = input()
    strs = files.split('|')
    img_path =  [input_path + img for img in strs]
    input_dict = {"image": img_path,'output_dir':out_path}
    results = module.segmentation(data=input_dict)

这里面安装的时候需要注意几个点

1、python3.10是跑不了的，有几个依赖再安装时会报错

2、我用3.9的python跑，发现import paddlehub时会报一个json解析的错误，经过排查，发现是在解析一个config.json文件时，文件里的内容是空的，经百度，解决如下：找到用户文件夹/.paddlehub/conf/config.json，把如下内容写入文件。
{
    "server_url": [
        "http://paddlepaddle.org.cn/paddlehub"
    ],
    "resource_storage_server_url": "https://bj.bcebos.com/paddlehub-data/",
    "debug": false,
    "log_level": "DEBUG"
}
3.模块deeplabv3p_xception65_humanseg如果用最新的，返回的数据结构会不一样，需指定版本。用到关键组件和版本如下：
pip install  PaddlePaddle
pip install paddlehub==1.6.0
hub install deeplabv3p_xception65_humanseg==1.0.0

Unity 部分

using System;
using System.Collections;
using System.Collections.Generic;
using System.Diagnostics;
using System.IO;
using System.Text;
using System.Threading;
using UnityEngine;

public class LocalImageHandler : MonoBehaviour
{
    //python文件所在的目录
    private string pythonCmdDir = @"C:\Users\HuMingHao\Desktop\HumanSeg抠图\";
    private string humanseg_input = "humanseg_input";
    private string humanseg_output = "humanseg_output";

    //系统cmd控制台路径
    private string CmdPath = @"C:\Windows\System32\cmd.exe";

    private string startCmd = "python humanseg.py";


    private void RunCmd()
    {
        process = new Process();
        process.StartInfo.StandardOutputEncoding = Encoding.GetEncoding("gb2312");
        process.StartInfo.FileName = CmdPath;
        process.StartInfo.UseShellExecute = false;
        process.StartInfo.RedirectStandardInput = true;
        process.StartInfo.RedirectStandardOutput = true;
        process.StartInfo.RedirectStandardError = true;
        process.StartInfo.CreateNoWindow = true;
        process.StartInfo.WorkingDirectory = pythonCmdDir;
        process.Start();//启动程序

        //向cmd窗口写入命令
        process.StandardInput.WriteLine(startCmd);

        while (true)
        {
            //获取cmd窗口的输出信息
            string output = process.StandardOutput.ReadLine();

            if (output == "input")
                READY = true;
            Thread.Sleep(500);
        }

    }
    private void OnDestroy()
    {
        if (cmdThread != null)
        {
            cmdThread.Abort();
        }
        if (process != null && process.HasExited == false)
        {
            process.Close();
        }
    }

    Process process;
    Thread cmdThread;

    public static LocalImageHandler instance;

    public bool READY = false;
    private void Awake()
    {
        instance = this;

        READY = false;
        cmdThread = new Thread(new ThreadStart(RunCmd));
        cmdThread.Start();


    }

    public void BeginHumanSeg(Texture2D tex,Action<Texture2D> callback)
    {
        if (READY == true)
        {
            READY = false;

            StartCoroutine(HumanSegCor(tex,callback));
        }
    }
    IEnumerator HumanSegCor(Texture2D tex,Action<Texture2D> callback)
    {
        string tempFileName = DateTime.Now.Ticks + ".png";
        byte[] imgdata = tex.EncodeToPNG();
        File.WriteAllBytes(pythonCmdDir + humanseg_input + "\\" + tempFileName, imgdata);

        process.StandardInput.WriteLine(tempFileName);

        while (!READY)
        {
            yield return new WaitForEndOfFrame();
        }

        byte[] outdata = File.ReadAllBytes(pythonCmdDir + humanseg_output + "\\" + tempFileName);
        Texture2D handledTex = new Texture2D(128, 128);
        handledTex.LoadImage(outdata);

        callback(handledTex);
    }
}

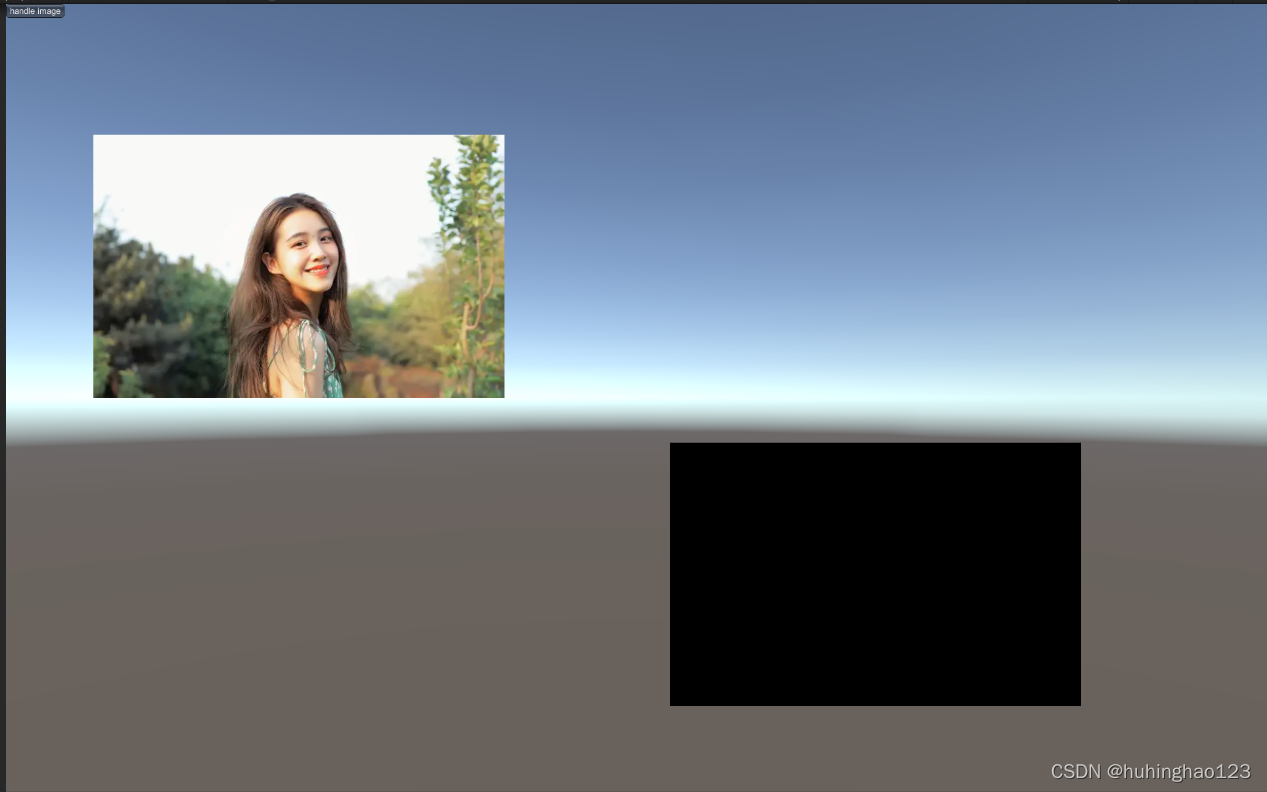

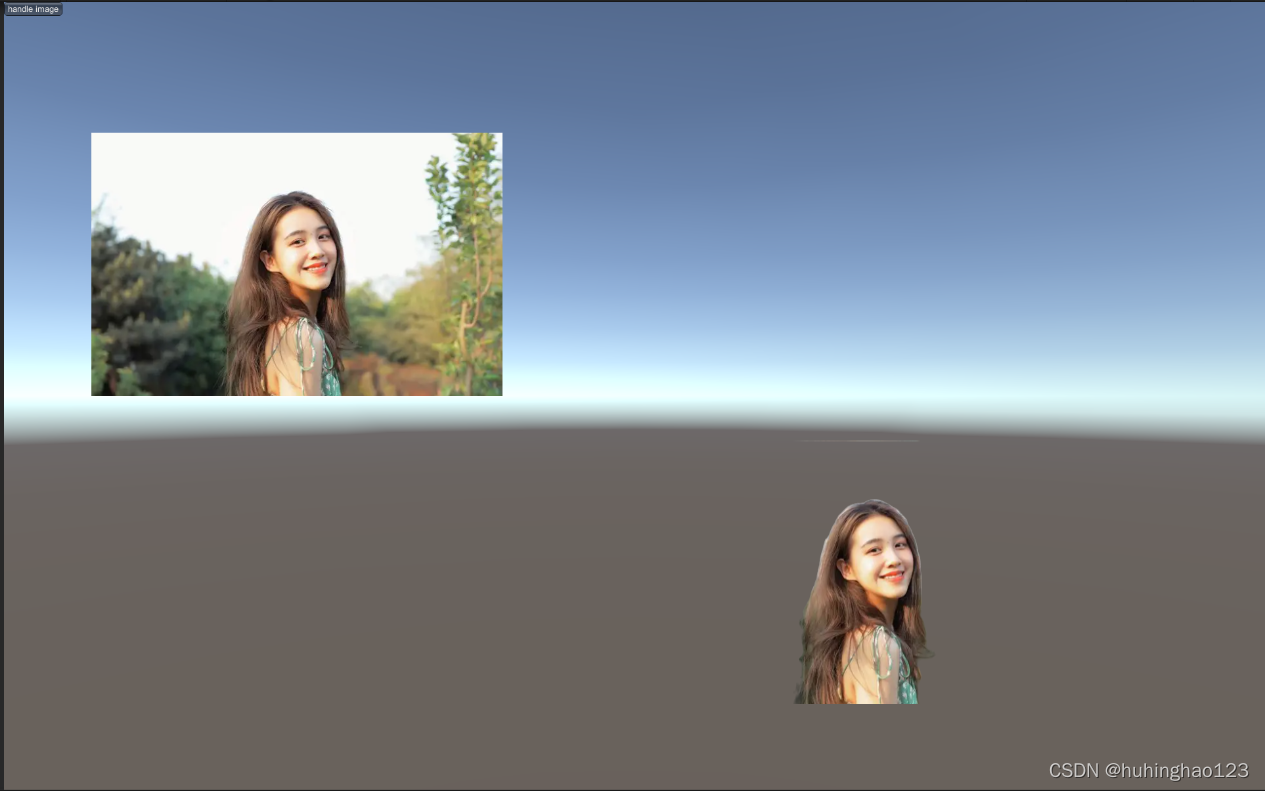

测试代码

using System.Collections;
using System.Collections.Generic;
using UnityEngine;
using UnityEngine.UI;

public class test : MonoBehaviour {
    public Texture2D source;
    public RawImage imgTarget;

    private void OnGUI()
    {
        if (GUILayout.Button("handle image"))
        {
            LocalImageHandler.instance.BeginHumanSeg(source, (tex) =>
            {
                imgTarget.texture = tex;
            });
        }
    }
}
