本文详细介绍CDH5.12.1版本在Centos7.2环境下的集群搭建过程，包括基础环境配置、JDK安装、MySQL数据库配置、时区与时钟同步设置、大页面关闭及内存优化等关键技术点。

摘要生成于 C知道 ，由 DeepSeek-R1 满血版支持， 前往体验 >

  • 官网解读
    CDH5.12.1官网文档链接
    spark2与kafka之类的安装文档

    • Linux
      本次搭建采用Centos7.2，而官网提示RHEL / CentOS / OEL 7.0 is not supported.，centos7.0是不支持5.12.1版本的安装
    • JDK
      Only 64 bit JDKs from Oracle are supported. Oracle JDK 7 is supported across all versions of Cloudera Manager 5 and CDH 5. Oracle JDK 8 is supported in C5.3.x and higher. JDK要使用Oracle版本的
    • database
      Use UTF8 encoding for all custom databases.
      Cloudera Manager installation fails if GTID-based replication is enabled in MySQL. 如果用GTID会安转失败的
      MySQL 5.6 and 5.7
    • 磁盘空间
      5 GB on the partition hosting /var.
      500 MB on the partition hosting /usr.

  • 部署安装

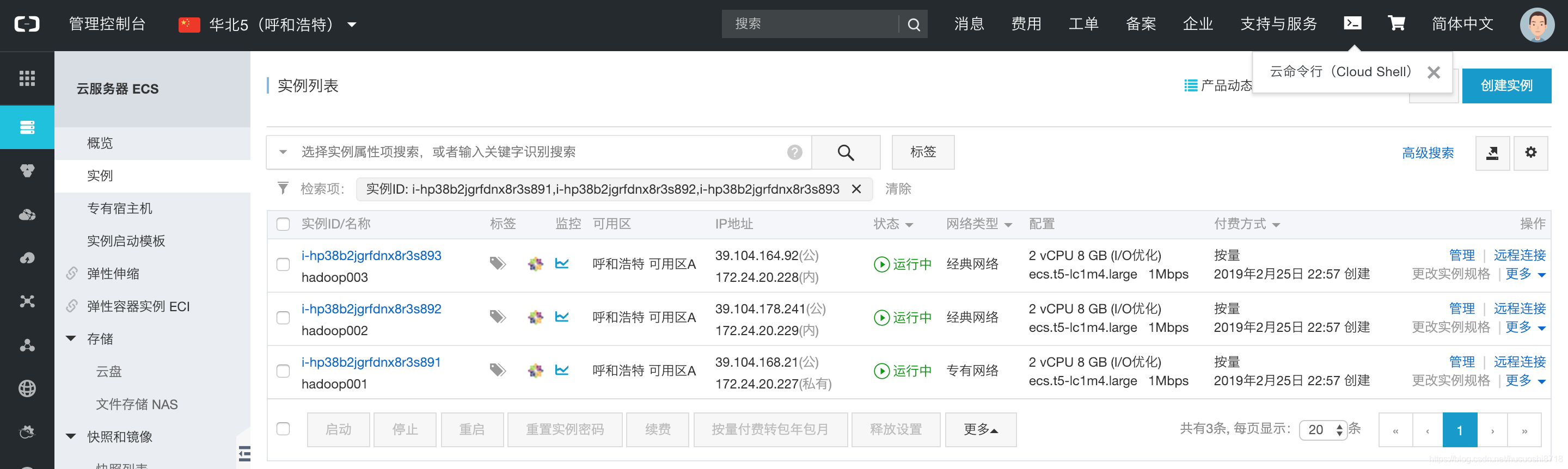

    • 购买阿里云
      在这里插入图片描述

    • 集群基础配置
      提醒:集群的每个机器都要操作一次

      1 关闭防火墙
      执行命令 service iptables stop
      验证: service iptables status

      2 关闭防火墙的自动运行
      执行命令 chkconfig iptables off
      验证: chkconfig --list | grep iptables

      vi /etc/selinux/config
      SELINUX=disabled

      清空防火墙策略:

      iptables -L 查看一下规则 是否还在
      iptables -F 清空

      3 设置主机名-- linux运维
      执行命令 (1)hostname hadoopcm-01
      (2)vi /etc/sysconfig/network
      NETWORKING=yes
      NETWORKING_IPV6=yes
      HOSTNAME=hadoopcm-01

      4 ip与hostname绑定(关键,每个机器)
      执行命令 (1)vi /etc/hosts

        		127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
  		::1         localhost localhost.localdomain localhost6 localhost6.localdomain6

  		172.16.101.54   hadoopcm-01.xxx.com hadoopcm-01
  		172.16.101.55   hadoopnn-01.xxx.com hadoopnn-01
  		172.16.101.56   hadoopnn-02.xxx.com hadoopnn-02
  		172.16.101.58   hadoopdn-01.xxx.com hadoopdn-01
  		172.16.101.59   hadoopdn-02.xxx.com hadoopdn-02
  		172.16.101.60   hadoopdn-03.xxx.com hadoopdn-03

      如果公司机器有dn解析需要添加上面的第二列
      验证: ping hadoopcm-01

      集群每台机器同步 scp /etc/hosts root@hadoopnn-01:/etc/hosts

      hadoop001
      hadoop002

      5 安装oracle jdk,不要安装
      (1)下载，指定目录解压
      [root@hadoopcm-01 tmp]# tar -xzvf jdk-7u79-linux-x64.gz -C /usr/java/
      [root@hadoop001 java]# chown -R root:root jdk1.8.0_144

      (2)vi /etc/profile 增加内容如下:

      export JAVA_HOME=/usr/java/jdk1.8.0_45
export PATH=.:$JAVA_HOME/bin:$PATH

      (3)source /etc/profile
      验证: java -version

      which java

      6 创建hadoop用户,密码admin (三个文件/etc/passwd, /etc/shadow, /etc/group) (此步可以省略,可以直接用root安装,最后CDH集群环境的各个进程是以各自的用户管理的)
      要求: root或者sudo无密码 user

        6.1 没LDAP,root-->happy
  6.2 刚开始给你机器，root，这时候拿root用户安装，过了一个月机器加上公司LDAP-->安装开心,要一个sudo user
  6.3 始终不会加LDAP认证，都有root用户，但是想要用另外一个用户安装管理，必须sudo
  6.4 给你的机器，就是有LDAP-->不要怕 ，搞个sudo user

  [root@hadoopcm-01 ~]# adduser hadoop
  [root@hadoopcm-01 ~]# passwd hadoop
  Changing password for user hadoop.
  New password:
  BAD PASSWORD: it is too short
  BAD PASSWORD: is too simple
  Retype new password:
  passwd: all authentication tokens updated successfully.


  [root@hadoopcm-01 etc]# vi /etc/sudoers

  ## Allow root to run any commands anywhere
  root    ALL=(ALL)       ALL

  hadoop  ALL=(root)	NOPASSWD:ALL

  hadoop  ALL=(ALL)      ALL

  jpwu	ALL=(root)	NOPASSWD:ALL
  jpwu    ALL=(ALL)       NOPASSWD:ALL

  ###验证sudo权限
  [root@hadoopcm-01 etc]# sudo su hadoop
  [hadoop@hadoopcm-01 ~]$ sudo ls -l /root
  total 4
  -rw------- 1 root root 8 Apr  2 09:45 dead.letter

      7 检查python:
      cdh4.x系列 系统默认python2.6.6 --> 升级2.7.5–>hdfs ha，过不去. (2个月)
      cdh5.x系列 python2.6.6 or python2.7
      #建议是python2.6.6版本
      python --version

      centos6.x python2.6.x
      centos7.x python2.7.x

      但是 假如以后你们集群是2.7.x 跑Python服务需要3.5.1

      8 时区+时钟同步
      https://www.cloudera.com/documentation/enterprise/5-10-x/topics/install_cdh_enable_ntp.html

        [root@hadoopcm-01 cdh5.7.0]# grep ZONE /etc/sysconfig/clock
  ZONE="Asia/Shanghai"

  运维: 时区一致 + 时间同步

  ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
      yum install -y ntpdate

  配置集群时间同步服务：通过ntp服务配置

      172.16.101.54-90
      172.16.101.0
      172.16.101.1~255

      ntp主节点配置：
      cp /etc/ntp.conf /etc/ntp.conf.bak
      cp /etc/sysconfig/ntpd /etc/sysconfig/ntpd.bak
      echo “restrict 172.16.101.0 mask 255.255.255.0 nomodify notrap” >> /etc/ntp.conf
      echo “SYNC_HWCLOCK=yes” >> /etc/sysconfig/ntpd

      service ntpd restart

      ntp客户端节点配置：
      然后在所有节点都设置定时任务 crontab –e 添加如下内容：
      */30 * * * * /usr/sbin/ntpdate 172.16.101.54

      [root@hadoop002 ~]# /usr/sbin/ntpdate 192.168.1.131
      16 Sep 11:44:06 ntpdate[5027]: no server suitable for synchronization found
      防火墙没有关闭 清空

      9 关闭大页面
      echo never > /sys/kernel/mm/transparent_hugepage/defrag
      echo never > /sys/kernel/mm/transparent_hugepage/enabled

      echo ‘echo never > /sys/kernel/mm/transparent_hugepage/defrag’>> /etc/rc.local
      echo ‘echo never > /sys/kernel/mm/transparent_hugepage/enabled’>> /etc/rc.local

      10 swap 物理磁盘空间 作为内存
      echo ‘vm.swappiness = 10’ >> /etc/sysctl.conf
      sysctl -p 生效

      swap=0-100
      0不代表禁用 而是惰性最高
      100表示 使用积极性最高

      集群计算对实时性 要求高的 swap=0 允许job挂 迅速的加内存或调大参数 重启job
      集群计算对实时性 要求不高的 swap=10/30 不允许job挂 慢慢的运行

      4G内存 8Gswap
      0: 3.5G–》3.9G 0
      30: 3G 2G

    • mysql安装
      1.解压及创建目录
      [root@hadoop39 local]# tar xzvf mysql-5.7.11-linux-glibc2.5-x86_64.tar.gz
      [root@hadoop39 local]# mv mysql-5.7.11-linux-glibc2.5-x86_64 mysql

      [root@hadoop39 local]# mkdir mysql/arch mysql/data mysql/tmp

      2.创建my.cnf(见文件)
      [root@hadoop39 local]# vi /etc/my.cnf

      [client]
port            = 3306
socket          = /usr/local/mysql/data/mysql.sock
default-character-set=utf8mb4

[mysqld]
port            = 3306
socket          = /usr/local/mysql/data/mysql.sock


skip-slave-start


skip-external-locking
key_buffer_size = 256M
sort_buffer_size = 2M
read_buffer_size = 2M
read_rnd_buffer_size = 4M
query_cache_size= 32M
max_allowed_packet = 16M
myisam_sort_buffer_size=128M
tmp_table_size=32M

table_open_cache = 512
thread_cache_size = 8
wait_timeout = 86400
interactive_timeout = 86400
max_connections = 600

# Try number of CPU's*2 for thread_concurrency
#thread_concurrency = 32

#isolation level and default engine
default-storage-engine = INNODB
transaction-isolation = READ-COMMITTED

server-id  = 1739
basedir     = /usr/local/mysql
datadir     = /usr/local/mysql/data
pid-file     = /usr/local/mysql/data/hostname.pid

#open performance schema
log-warnings
sysdate-is-now

binlog_format = ROW
log_bin_trust_function_creators=1
log-error  = /usr/local/mysql/data/hostname.err
log-bin = /usr/local/mysql/arch/mysql-bin
expire_logs_days = 7

innodb_write_io_threads=16

relay-log  = /usr/local/mysql/relay_log/relay-log
relay-log-index = /usr/local/mysql/relay_log/relay-log.index
relay_log_info_file= /usr/local/mysql/relay_log/relay-log.info

#need to sync tables
replicate-wild-do-table=omsprd.%
replicate_wild_do_table=wmsb01.%
replicate_wild_do_table=wmsb02.%
replicate_wild_do_table=wmsb03.%
replicate_wild_do_table=wmsb04.%
replicate_wild_do_table=wmsb05.%
replicate_wild_do_table=wmsb06.%
replicate_wild_do_table=wmsb07.%
replicate_wild_do_table=wmsb08.%
replicate_wild_do_table=wmsb08.%
replicate_wild_do_table=wmsb09.%
replicate_wild_do_table=wmsb10.%
replicate_wild_do_table=wmsb11.%
replicate_wild_do_table=wmsb27.%
replicate_wild_do_table=wmsb31.%
replicate_wild_do_table=wmsb32.%
replicate_wild_do_table=wmsb33.%
replicate_wild_do_table=wmsb34.%
replicate_wild_do_table=wmsb35.%


log_slave_updates=1
gtid_mode=OFF
enforce_gtid_consistency=OFF


# slave
slave-parallel-type=LOGICAL_CLOCK
slave-parallel-workers=4
master_info_repository=TABLE
relay_log_info_repository=TABLE
relay_log_recovery=ON




#other logs
#general_log =1
#general_log_file  = /usr/local/mysql/data/general_log.err
#slow_query_log=1
#slow_query_log_file=/usr/local/mysql/data/slow_log.err

#for replication slave
sync_binlog = 500


#for innodb options
innodb_data_home_dir = /usr/local/mysql/data/
innodb_data_file_path = ibdata1:1G;ibdata2:1G:autoextend

innodb_log_group_home_dir = /usr/local/mysql/arch
innodb_log_files_in_group = 4
innodb_log_file_size = 1G
innodb_log_buffer_size = 200M

innodb_buffer_pool_size = 8G
#innodb_additional_mem_pool_size = 50M #deprecated in 5.6
tmpdir = /usr/local/mysql/tmp

innodb_lock_wait_timeout = 1000
#innodb_thread_concurrency = 0
innodb_flush_log_at_trx_commit = 2

innodb_locks_unsafe_for_binlog=1

#innodb io features: add for mysql5.5.8
performance_schema
innodb_read_io_threads=4
innodb-write-io-threads=4
innodb-io-capacity=200
#purge threads change default(0) to 1 for purge
innodb_purge_threads=1
innodb_use_native_aio=on

#case-sensitive file names and separate tablespace
innodb_file_per_table = 1
lower_case_table_names=1

[mysqldump]
quick
max_allowed_packet = 128M

[mysql]
no-auto-rehash
default-character-set=utf8mb4

[mysqlhotcopy]
interactive-timeout

[myisamchk]
key_buffer_size = 256M
sort_buffer_size = 256M
read_buffer = 2M
write_buffer = 2M

      3.创建用户组及用户
      [root@hadoop39 local]# groupadd -g 101 dba
      [root@hadoop39 local]# useradd -u 514 -g dba -G root -d /usr/local/mysql mysqladmin
      [root@hadoop39 local]# id mysqladmin
      uid=514(mysqladmin) gid=101(dba) groups=101(dba),0(root)

      ##一般不需要设置mysqladmin的密码，直接从root或者LDAP用户sudo切换
      #[root@hadoop39 local]# passwd mysqladmin
      Changing password for user mysqladmin.
      New UNIX password:
      BAD PASSWORD: it is too simplistic/systematic
      Retype new UNIX password:
      passwd: all authentication tokens updated successfully.

      ##if user mysqladmin is existing,please execute the following command of usermod.
      #[root@hadoop39 local]# usermod -u 514 -g dba -G root -d /usr/local/mysql mysqladmin

      4.copy 环境变量配置文件至mysqladmin用户的home目录中,为了以下步骤配置个人环境变量
      [root@hadoop39 local]# cp /etc/skel/.* /usr/local/mysql ###important

      5.配置环境变量
      [root@hadoop39 local]# vi mysql/.bash_profile
      # .bash_profile
      # Get the aliases and functions

      if [ -f ~/.bashrc ]; then
      . ~/.bashrc
      fi

      #User specific environment and startup programs

      export MYSQL_BASE=/usr/local/mysql
			export PATH=${MYSQL_BASE}/bin:$PATH

      unset USERNAME

      #stty erase ^H
      set umask to 022
      umask 022
      PS1=uname -n":"‘ U S E R ′ " : " ′ USER'":"' USER′":"′PWD’":>"; export PS1

      ##end

      6.赋权限和用户组，切换用户mysqladmin，安装
      [root@hadoop39 local]# chown mysqladmin:dba /etc/my.cnf
      [root@hadoop39 local]# chmod 640 /etc/my.cnf

      [root@hadoop39 local]# chown -R mysqladmin:dba /usr/local/mysql
      [root@hadoop39 local]# chmod -R 755 /usr/local/mysql

      7.配置服务及开机自启动
      [root@hadoop39 local]# cd /usr/local/mysql
      #将服务文件拷贝到init.d下，并重命名为mysql
      [root@hadoop39 mysql]# cp support-files/mysql.server /etc/rc.d/init.d/mysql
      #赋予可执行权限
      [root@hadoop39 mysql]# chmod +x /etc/rc.d/init.d/mysql
      #删除服务
      [root@hadoop39 mysql]# chkconfig --del mysql
      #添加服务
      [root@hadoop39 mysql]# chkconfig --add mysql
      [root@hadoop39 mysql]# chkconfig --level 345 mysql on

      8.安装libaio及安装mysql的初始db
      [root@hadoop39 mysql]# yum -y install libaio
      [root@hadoop39 mysql]# sudo su - mysqladmin

      hadoop39.jiuye:mysqladmin:/usr/local/mysql:> bin/mysqld
      –defaults-file=/etc/my.cnf
      –user=mysqladmin
      –basedir=/usr/local/mysql/
      –datadir=/usr/local/mysql/data/
      –initialize

      在初始化时如果加上 –initial-insecure，则会创建空密码的 root@localhost 账号，否则会创建带密码的 root@localhost 账号，密码直接写在 log-error 日志文件中
      （在5.6版本中是放在 ~/.mysql_secret 文件里，更加隐蔽，不熟悉的话可能会无所适从）

      9.查看临时密码
      hadoop39.jiuye:mysqladmin:/usr/local/mysql/data:>cat hostname.err |grep password
      2017-07-22T02:15:29.439671Z 1 [Note] A temporary password is generated for root@localhost: kFCqrXeh2y(0
      hadoop39.jiuye:mysqladmin:/usr/local/mysql/data:>

      10.启动
      /usr/local/mysql/bin/mysqld_safe --defaults-file=/etc/my.cnf &

      11.登录及修改用户密码
      hadoop39.jiuye:mysqladmin:/usr/local/mysql/data:>mysql -uroot -p’kFCqrXeh2y(0’
      mysql: [Warning] Using a password on the command line interface can be insecure.
      Welcome to the MySQL monitor. Commands end with ; or \g.
      Your MySQL connection id is 2
      Server version: 5.7.11-log

      Copyright © 2000, 2016, Oracle and/or its affiliates. All rights reserved.

      Oracle is a registered trademark of Oracle Corporation and/or its
      affiliates. Other names may be trademarks of their respective
      owners.

      Type ‘help;’ or ‘\h’ for help. Type ‘\c’ to clear the current input statement.

      mysql> alter user root@localhost identified by ‘syncdb123!’;
      Query OK, 0 rows affected (0.05 sec)

      mysql> GRANT ALL PRIVILEGES ON . TO ‘root’@’%’ IDENTIFIED BY ‘syncdb123!’ ;
      Query OK, 0 rows affected, 1 warning (0.02 sec)

      mysql> flush privileges;
      Query OK, 0 rows affected (0.00 sec)

      mysql> exit;
      Bye

      12.重启
      hadoop39.jiuye:mysqladmin:/usr/local/mysql:> service mysql restart

      hadoop39.jiuye:mysqladmin:/usr/local/mysql/data:>mysql -uroot -psyncdb123!
      mysql: [Warning] Using a password on the command line interface can be insecure.
      Welcome to the MySQL monitor. Commands end with ; or \g.
      Your MySQL connection id is 2
      Server version: 5.7.11-log MySQL Community Server (GPL)

      Copyright © 2000, 2016, Oracle and/or its affiliates. All rights reserved.

      Oracle is a registered trademark of Oracle Corporation and/or its
      affiliates. Other names may be trademarks of their respective
      owners.

      Type ‘help;’ or ‘\h’ for help. Type ‘\c’ to clear the current input statement.

      mysql>

    • Configure http(rpm+parcels)
      1.安装 http 和启动 http 服务
      [root@hadoop-01 ~]# rpm -qa|grep httpd [root@hadoop-01 ~]# yum install -y httpd
      [root@hadoop-01 ~]# chkconfig --list|grep httpd httpd 0:off 1:off 2:off 3:off 4:off 5:off 6:off
      [root@hadoop-01 ~]# chkconfig httpd on [root@hadoop-01 ~]# chkconfig --list|grep httpd
      httpd 0:off 1:off 2:on 3:on 4:on 5:on 6:off [root@hadoop-01 ~]# service httpd start

      2.创建 parcels 文件
      [root@hadoop-01 rpminstall]# cd /var/www/html [root@hadoop-01 html]# mkdir parcels [root@hadoop-01 html]# cd parcels

      3.将 parcel 文件下载
      在 http://archive.cloudera.com/cdh5/parcels/5.7.0/, 将
      CDH-5.7.0-1.cdh5.7.0.p0.45-el6.parcel CDH-5.7.0-1.cdh5.7.0.p0.45-el6.parcel.sha1 manifest.json
      这三个文件下载到 window 桌面上(在网络比较通畅情况下,可以直接 wget),
      然后通过 rz 命令上传到 /var/www/html/parcels/目录中,
      然后将 CDH-5.7.0-1.cdh5.7.0.p0.45-el6.parcel.sha1 重命名(去掉名称结尾"1",不然 cdh 在装的时候,会一直认为 在下载,是未完成的)
      [root@hadoop-01 parcels]# wget http://archive.cloudera.com/cdh5/parcels/5.7.0/CDH-5.7.0- 1.cdh5.7.0.p0.45-el6.parcel
      [root@hadoop-01 parcels]# wget http://archive.cloudera.com/cdh5/parcels/5.7.0/CDH-5.7.0- 1.cdh5.7.0.p0.45-el6.parcel.sha1
      [root@hadoop-01 parcels]# wget http://archive.cloudera.com/cdh5/parcels/5.7.0/manifest.json
      [root@hadoop-01 parcels]# ll
      total 1230064
      -rw-r–r-- 1 root root 1445356350 Nov 16 21:14 CDH-5.7.0-1.cdh5.7.0.p0.45-el6.parcel
      -rw-r–r-- 1 root root 41 Sep 22 04:25 CDH-5.7.0-1.cdh5.7.0.p0.45-el6.parcel.sha1
      -rw-r–r-- 1 root root 56892 Sep 22 04:27 manifest.json
      [root@hadoop-01 parcels]# mv CDH-5.7.0-1.cdh5.7.0.p0.45-el6.parcel.sha1 CDH-5.7.0-1.cdh5.7.0.p0.45- el6.parcel.sha
      校验文件下载未损坏:
      [root@sht-sgmhadoopcm-01 parcels]# sha1sum CDH-5.7.0-1.cdh5.7.0.p0.45-el6.parcel b6d4bafacd1cfad6a9e1c8f951929c616ca02d8f CDH-5.7.0-1.cdh5.7.0.p0.45-el6.parcel [root@sht-sgmhadoopcm-01 parcels]#
      [root@sht-sgmhadoopcm-01 parcels]# cat CDH-5.7.0-1.cdh5.7.0.p0.45-el6.parcel.sha b6d4bafacd1cfad6a9e1c8f951929c616ca02d8f
      [root@sht-sgmhadoopcm-01 parcels]#

      4.在 http://archive.cloudera.com/cm5/repo-as-tarball/5.7.0/,下载 cm5.7.0-centos6.tar.gz 包
      [root@hadoop-01 ~]$ cd /opt/rpminstall
      [root@hadoop-01 rpminstall]$ wget http://archive.cloudera.com/cm5/repo-as-tarball/5.7.0/cm5.7.0- centos6.tar.gz
      [root@hadoop-01 rpminstall]$ ll
      total 1523552
      -rw-r–r-- 1 root root 815597424 Sep 22 02:00 cm5.7.0-centos6.tar.gz

      5.解压 cm5.7.0-centos6.tar.gz 包,必须要和官网的下载包的路径地址一致
      [root@hadoop-01 rpminstall]$ tar -zxf cm5.7.0-centos6.tar.gz -C /var/www/html/ [root@hadoop-01 rpminstall]$ cd /var/www/html/
      [root@hadoop-01 html]$ ll
      total 8
      drwxrwxr-x 3 1106 592 4096 Oct 27 10:09 cm drwxr-xr-x 2 root root 4096 Apr 2 15:55 parcels

      6.创建和官网一样的目录路径,然后 mv
      [root@hadoop-01 html]$ mkdir -p cm5/redhat/6/x86_64/ [root@hadoop-01 html]$ mv cm cm5/redhat/6/x86_64/ [root@hadoop-01 html]$

      7.配置本地的 yum 源,cdh 集群在安装时会就从本地 down 包,不会从官网了
      [root@hadoop-01 html]$ vim /etc/yum.repos.d/cloudera-manager.repo [cloudera-manager]
      name = Cloudera Manager, Version 5.7.0
      baseurl = http://172.16.101.54/cm5/redhat/6/x86_64/cm/5/
      gpgcheck = 0
      ###提醒: 每个机器都要配置 cloudera-manager.repo 文件

      8.浏览器查看下面两个网址是否出来,假如有，就配置成功 http://172.16.101.54/parcels/ 这里用阿里云 采用的是内网ip
      http://172.16.101.54/cm5/redhat/6/x86_64/cm/5/
      cm: deamons+server+agent 闭源
      parcel: 后缀为 parcel，是将 Apache hadoop zk hbase hue oozie 等等，打包一个文件，后缀取名为包 裹 英文 parcel

      9.在什么时候用这两个地址???(重点)
      参考 CDH5.7.0 Installation.docx 文档的第二.05 选择存储库的界面时:
      a.单击"更多选项",弹出界面中,在"远程 Parcel 存储库 URL"的右侧地址,
      b.删除 url,只保留一个,然后替换为 http://172.16.101.54/parcels/
      c.然后单击"save changes",稍微等一下,页面会自动刷新一下,
      d.然后在"选择 CDH 的版本",选择 cdh
      f.“其他 Parcels”,全部选择"无"
      g.选择"自定义存储库",将 http://172.16.101.54/cm5/redhat/6/x86_64/cm/5/ 粘贴上去

      10.官网参考链接 http://archive.cloudera.com/cdh5/parcels/5.8.2/
      http://archive.cloudera.com/cm5/repo-as-tarball/5.8.2/ http://archive.cloudera.com/cm5/redhat/6/x86_64/cm/5.8.2/

    • Using RPM Packages Installation and Start CM Server
      1.install server rpm in cm instance
      cd /var/www/html/cm5/redhat/6/x86_64/cm/5/RPMS/x86_64
      yum install -y cloudera-manager-daemons-5.7.0-1.cm570.p0.76.el6.x86_64.rpm yum install -y cloudera-manager-server-5.7.0-1.cm570.p0.76.el6.x86_64.rpm

      2.configure the jdbc driver of mysql-connector-java.jar
      cd /usr/share/java
      wget http://cdn.mysql.com//Downloads/Connector-J/mysql-connector-java-5.1.37.zip [invaild] unzip mysql-connector-java-5.1.37.zip
      cd mysql-connector-java-5.1.37
      cp mysql-connector-java-5.1.37-bin.jar …/mysql-connector-java.jar
      Must rename to “mysql-connector-java.jar”

      3.on the CM machine,install MySQL and configure cmf user and db
      create database cmf DEFAULT CHARACTER SET utf8;
      grant all on cmf.* TO ‘cmf’@‘localhost’ IDENTIFIED BY ‘cmf_password’;
      flush privileges;
      mysql> drop database cmf;
      mysql> CREATE DATABASE cmf /*!40100 DEFAULT CHARACTER SET utf8 */;

      4.modify cloudera-scm-server connect to MySQL
      [root@hadoopcm-01 cloudera-scm-server]# cd /etc/cloudera-scm-server/ [root@hadoopcm-01 cloudera-scm-server]# vi db.properties

      #Copyright (c) 2012 Cloudera, Inc. All rights reserved.
		#
# This file describes the database connection. #
# The database type
# Currently 'mysql', 'postgresql' and 'oracle' are valid databases. com.cloudera.cmf.db.type=mysql
# The database host
# If a non standard port is needed, use 'hostname:port' com.cloudera.cmf.db.host=localhost
# The database name com.cloudera.cmf.db.name=cmf
# The database user com.cloudera.cmf.db.user=cmf
# The database user's password com.cloudera.cmf.db.password=cmf_password

      注意:> CDH5.9.1/5.10 多加一行 db=init----->db=external 5.start cm server
      service cloudera-scm-server start
      6.real-time checking server log in cm instance
      cd /var/log/cloudera-scm-server/
      tail -f cloudera-scm-server.log
      2017-03-17 21:32:05,253 INFO WebServerImpl:org.mortbay.log: Started SelectChannelConnector@0.0.0.0:7180 2017-03-17 21:32:05,253 INFO WebServerImpl:com.cloudera.server.cmf.WebServerImpl: Started Jetty server.
      #mark: configure clouder manager metadata to saved in the cmf db.
      7.waiting 1 minute,open http://172.16.101.54:7180 #Log message:
      User:admin Password:admin
      至此安装完毕

评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
