本文介绍了一种自定义悬浮按钮(FAB)的实现方法，通过滑动ListView或RecyclerView来显示或隐藏FAB。详细解释了如何使用TranslateAnimation实现左右滑动动画效果，并提供了具体的代码示例。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

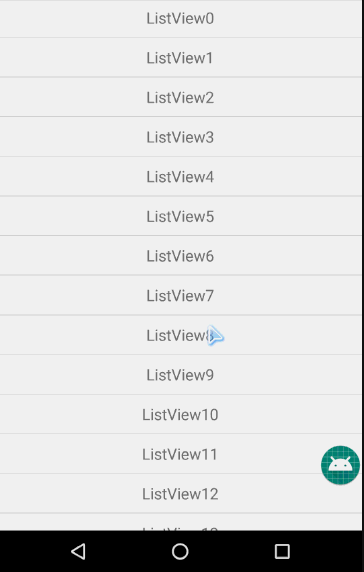

效果

在这里插入图片描述

自定义悬浮按钮

package cn.tsou.floatingactionbuttondemo.view;

import android.content.Context;
import android.util.AttributeSet;
import android.view.animation.Animation;
import android.view.animation.TranslateAnimation;
import android.widget.FrameLayout;

public class SlidingAroundFrameLayout extends FrameLayout {
    private boolean isLeftOut = false;
    private boolean isRightOut = false;

    public enum TypeEnum {
        LEFT,
        RIGHT,
    }

    public SlidingAroundFrameLayout(Context context) {
        super(context, null);
    }

    public SlidingAroundFrameLayout(Context context, AttributeSet attrs) {
        super(context, attrs, 0);
    }

    public SlidingAroundFrameLayout(Context context, AttributeSet attrs, int defStyleAttr) {
        super(context, attrs, defStyleAttr);
    }

    public void setTranslateAnimation(TypeEnum type) {
        TranslateAnimation ta;
        if (type == TypeEnum.LEFT) {
            if (isLeftOut){
                return;
            }
            isLeftOut = true;
            isRightOut = false;
            this.setClickable(true);
            ta = new TranslateAnimation(Animation.RELATIVE_TO_SELF, 1f, Animation.RELATIVE_TO_SELF, 0,
                    Animation.RELATIVE_TO_SELF, 0, Animation.RELATIVE_TO_SELF, 0);
            ta.setDuration(500);
            ta.setFillAfter(true);
            this.startAnimation(ta);
        } else if (type == TypeEnum.RIGHT) {
            if (isRightOut){
                return;
            }
            isLeftOut = false;
            isRightOut = true;
            ta = new TranslateAnimation(Animation.RELATIVE_TO_SELF, 0, Animation.RELATIVE_TO_SELF, 1f,
                    Animation.RELATIVE_TO_SELF, 0, Animation.RELATIVE_TO_SELF, 0);
            ta.setDuration(500);
            ta.setFillAfter(true);
            this.startAnimation(ta);
            this.setClickable(false);
        } else {
            this.setVisibility(VISIBLE);
        }
    }

}

ListView滑动显示和隐藏浮动按钮

 mListview.setOnTouchListener(onTouchListener);


    private boolean isTabShow = true;
    private float downY = 0;
    // 拖动listview时，如果点击到的地方是item里的一些view，可能出现ACTION_DOWN触发不了的问题。
    // 利用isActionDown，当为false时就触发了ACTION_MOVE，第一个action需要当成ACTION_DOWN处理
    boolean isActionDown = false;
    View.OnTouchListener onTouchListener = new View.OnTouchListener() {

        @Override
        public boolean onTouch(View v, MotionEvent event) {
            switch (event.getAction()) {
                case MotionEvent.ACTION_DOWN:
                    isActionDown = true;
                    downY = event.getY();
                    break;
                case MotionEvent.ACTION_MOVE:
                    if (!isActionDown) {
                        // 当为false时就触发了ACTION_MOVE，第一个action需要当成ACTION_DOWN处理
                        isActionDown = true;
                        downY = event.getY();
                    } else {
                        float currentY = event.getY();
                        if (currentY - downY < -20 && isTabShow) {
                            // 向下，隐藏
                            isTabShow = false;
                            mSlidingAround.setTranslateAnimation(SlidingAroundFrameLayout.TypeEnum.RIGHT);
                        } else if (currentY - downY > 20 && !isTabShow) {
                            // 向上，显示
                            isTabShow = true;
                            mSlidingAround.setTranslateAnimation(SlidingAroundFrameLayout.TypeEnum.LEFT);
                        }

                    }

                    break;
                case MotionEvent.ACTION_UP:
                    isActionDown = false;// isActionDown重置
                    break;
                default:
                    break;
            }
            return false;
        }
    };

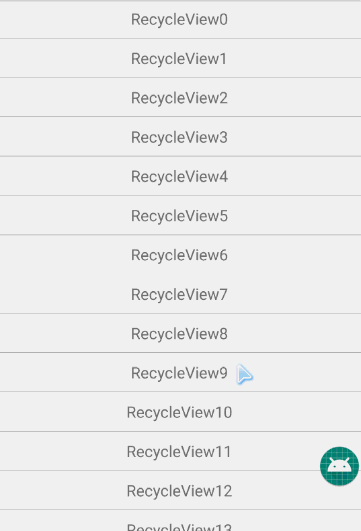

RecyclerView滑动显示和隐藏浮动按钮


    @Override
    public void onDetachedFromWindow() {
        super.onDetachedFromWindow();
        mRecyclerview.removeOnScrollListener(myOnScrollListener);
    }

    @Override
    public void onAttachedToWindow() {
        super.onAttachedToWindow();
        initData();
    }

 mRecyclerview.addOnScrollListener(myOnScrollListener);


    private RecyclerView.OnScrollListener myOnScrollListener = new RecyclerView.OnScrollListener() {

        @Override
        public void onScrolled(@NonNull RecyclerView recyclerView, int dx, int dy) {
            super.onScrolled(recyclerView, dx, dy);
            if (Math.abs(dy) < 10) {
                return;
            }
            if (dy > 0) {//向上滑

                mSlidingAround.setTranslateAnimation(SlidingAroundFrameLayout.TypeEnum.RIGHT);
            } else {//向下滑
                mSlidingAround.setTranslateAnimation(SlidingAroundFrameLayout.TypeEnum.LEFT);
            }
        }
    };
