canal环境安装及springboot同步实验

简介

canal是阿里针对mysql数据同步的一个工具，目前只支持mysql数据库。
官网地址：https://github.com/alibaba/canal

搭建教程

之前我的个人博客讲解过mysql主从的搭建教程，其实canal的原理类似，也是基于mysql的日志分析。如下是官网的原话：

canal 模拟 MySQL slave 的交互协议，伪装自己为 MySQL slave ，向 MySQL master 发送dump 协议
MySQL master 收到 dump 请求，开始推送 binary log 给 slave (即 canal )
canal 解析 binary log 对象(原始为 byte 流)

搭建的话，需要准备两个mysql数据库，平台无关，两个mysql开启logbin，下载cannal，下载地址：
https://github.com/alibaba/canal/releases/download/canal-1.1.5/canal.deployer-1.1.5.tar.gz

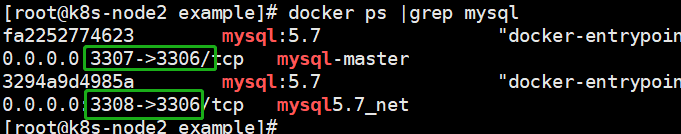

上传到虚拟机，我在虚拟机上使用docker安装了两个mysql,端口分别为3307和3308

解压：

tar -zxvf  canal.deployer-1.1.5.tar.gz

编辑conf/example目录下的instance.properties文件，主要修改如下配置：

canal.instance.master.address=192.168.37.129:3307
canal.instance.dbUsername=canal
canal.instance.dbPassword=canal

两个mysql创建相同库和相同表结构。

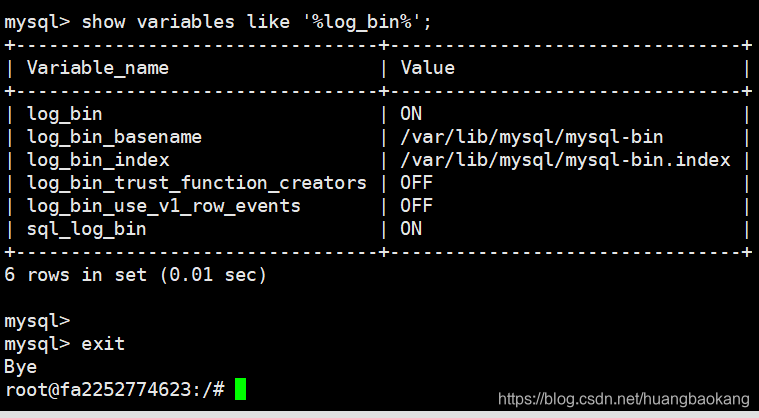

检查下binlog开启情况。

为on才是开启状态
不是on的需要编辑mysql的配置文件，并重启mysql服务

[mysqld]
log-bin=mysql-bin #添加这一行就ok
binlog-format=ROW #选择row模式
server_id=1 #配置mysql replaction需要定义，不能和canal的slaveId重复

注意：docker安装的mysql如果没有挂载逻辑卷，需要进入容器进行修改

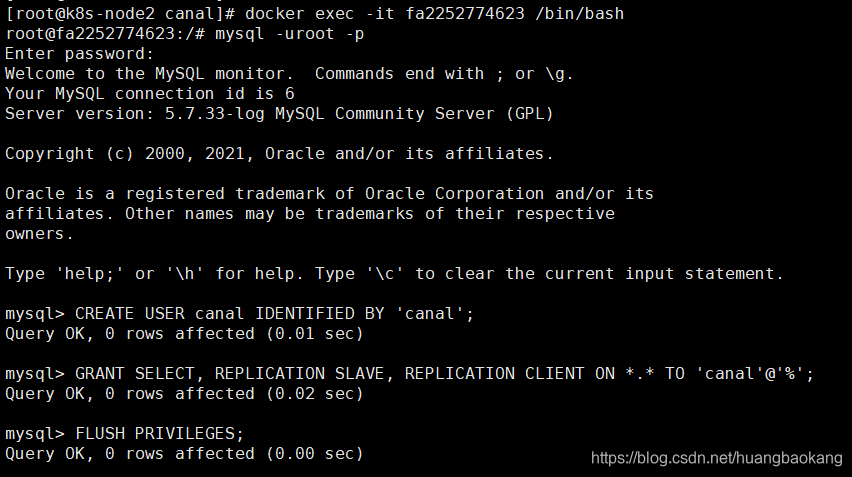

在3307上创建用户canal

CREATE USER canal IDENTIFIED BY 'canal';
GRANT SELECT, REPLICATION SLAVE, REPLICATION CLIENT ON *.* TO 'canal'@'%';
-- GRANT ALL PRIVILEGES ON *.* TO 'canal'@'%' ;
FLUSH PRIVILEGES;

一切就绪好后，启动canal服务，执行bin目录下的startup.sh即可

sh startup.sh

启动好canal服务，我们编写程序进行同步（项目经验上经常的操作），即我们开启一个服务
根据canal.instance.master.address=192.168.37.129:3307可知，3307为master,3308为slave，即我们模拟3307的mysql数据库表数据变动，将自动同步3308的数据。
application.properties文件

server.port=9988
spring.application.name=canal-client
spring.profiles.active=dev

spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
spring.datasource.url=jdbc:mysql://192.168.37.129:3308/zhanggong_tmp?serverTimezone=GMT%2B8
spring.datasource.username=root
spring.datasource.password=123456

pom依赖

<dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <!--mysql-->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

        <dependency>
            <groupId>commons-dbutils</groupId>
            <artifactId>commons-dbutils</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba.otter</groupId>
            <artifactId>canal.client</artifactId>
        </dependency>
    </dependencies>

启动类：

import com.atguigu.canal.client.CanalClient;
import org.springframework.boot.CommandLineRunner;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

import javax.annotation.Resource;

@SpringBootApplication
public class CanalApplication implements CommandLineRunner {
    @Resource
    private CanalClient canalClient;

    public static void main(String[] args) {
        SpringApplication.run(CanalApplication.class, args);
    }

    @Override
    public void run(String... strings) throws Exception {
        //项目启动，执行canal客户端监听
        canalClient.run();
    }
}

辅助类

import java.net.InetSocketAddress;
import java.sql.Connection;
import java.sql.SQLException;
import java.util.List;
import java.util.Queue;
import java.util.concurrent.ConcurrentLinkedQueue;

import javax.annotation.Resource;
import javax.sql.DataSource;

import org.apache.commons.dbutils.DbUtils;
import org.apache.commons.dbutils.QueryRunner;
import org.springframework.stereotype.Component;

import com.alibaba.otter.canal.client.CanalConnector;
import com.alibaba.otter.canal.client.CanalConnectors;
import com.alibaba.otter.canal.protocol.CanalEntry.Column;
import com.alibaba.otter.canal.protocol.CanalEntry.Entry;
import com.alibaba.otter.canal.protocol.CanalEntry.EntryType;
import com.alibaba.otter.canal.protocol.CanalEntry.EventType;
import com.alibaba.otter.canal.protocol.CanalEntry.RowChange;
import com.alibaba.otter.canal.protocol.CanalEntry.RowData;
import com.alibaba.otter.canal.protocol.Message;
import com.google.protobuf.InvalidProtocolBufferException;

@Component
public class CanalClient {

    //sql队列
    private Queue<String> SQL_QUEUE = new ConcurrentLinkedQueue<>();

    @Resource
    private DataSource dataSource;

    /**
     * canal入库方法
     */
    public void run() {

        CanalConnector connector = CanalConnectors.newSingleConnector(new InetSocketAddress("192.168.37.129",
                11111), "example", "", "");
        int batchSize = 1000;
        try {
            connector.connect();
            connector.subscribe(".*\\..*");
            connector.rollback();
            try {
                while (true) {
                    //尝试从master那边拉去数据batchSize条记录，有多少取多少
                    Message message = connector.getWithoutAck(batchSize);
                    long batchId = message.getId();
                    int size = message.getEntries().size();
                    if (batchId == -1 || size == 0) {
                        Thread.sleep(1000);
                    } else {
                        dataHandle(message.getEntries());
                    }
                    connector.ack(batchId);

                    //当队列里面堆积的sql大于一定数值的时候就模拟执行
                    if (SQL_QUEUE.size() >= 1) {
                        executeQueueSql();
                    }
                }
            } catch (InterruptedException e) {
                e.printStackTrace();
            } catch (InvalidProtocolBufferException e) {
                e.printStackTrace();
            }
        } finally {
            connector.disconnect();
        }
    }

    /**
     * 模拟执行队列里面的sql语句
     */
    public void executeQueueSql() {
        int size = SQL_QUEUE.size();
        for (int i = 0; i < size; i++) {
            String sql = SQL_QUEUE.poll();
            System.out.println("[sql]----> " + sql);

            this.execute(sql.toString());
        }
    }

    /**
     * 数据处理
     *
     * @param entrys
     */
    private void dataHandle(List<Entry> entrys) throws InvalidProtocolBufferException {
        for (Entry entry : entrys) {
            if (EntryType.ROWDATA == entry.getEntryType()) {
                RowChange rowChange = RowChange.parseFrom(entry.getStoreValue());
                EventType eventType = rowChange.getEventType();
                if (eventType == EventType.DELETE) {
                    saveDeleteSql(entry);
                } else if (eventType == EventType.UPDATE) {
                    saveUpdateSql(entry);
                } else if (eventType == EventType.INSERT) {
                    saveInsertSql(entry);
                }
            }
        }
    }

    /**
     * 保存更新语句
     *
     * @param entry
     */
    private void saveUpdateSql(Entry entry) {
        try {
            RowChange rowChange = RowChange.parseFrom(entry.getStoreValue());
            List<RowData> rowDatasList = rowChange.getRowDatasList();
            for (RowData rowData : rowDatasList) {
                List<Column> newColumnList = rowData.getAfterColumnsList();
                StringBuffer sql = new StringBuffer("update " + entry.getHeader().getTableName() + " set ");
                for (int i = 0; i < newColumnList.size(); i++) {
                    sql.append(" " + newColumnList.get(i).getName()
                            + " = '" + newColumnList.get(i).getValue() + "'");
                    if (i != newColumnList.size() - 1) {
                        sql.append(",");
                    }
                }
                sql.append(" where ");
                List<Column> oldColumnList = rowData.getBeforeColumnsList();
                for (Column column : oldColumnList) {
                    if (column.getIsKey()) {
                        //暂时只支持单一主键
                        sql.append(column.getName() + "=" + column.getValue());
                        break;
                    }
                }
                SQL_QUEUE.add(sql.toString());
            }
        } catch (InvalidProtocolBufferException e) {
            e.printStackTrace();
        }
    }

    /**
     * 保存删除语句
     *
     * @param entry
     */
    private void saveDeleteSql(Entry entry) {
        try {
            RowChange rowChange = RowChange.parseFrom(entry.getStoreValue());
            List<RowData> rowDatasList = rowChange.getRowDatasList();
            for (RowData rowData : rowDatasList) {
                List<Column> columnList = rowData.getBeforeColumnsList();
                StringBuffer sql = new StringBuffer("delete from " + entry.getHeader().getTableName() + " where ");
                for (Column column : columnList) {
                    if (column.getIsKey()) {
                        //暂时只支持单一主键
                        sql.append(column.getName() + "=" + column.getValue());
                        break;
                    }
                }
                SQL_QUEUE.add(sql.toString());
            }
        } catch (InvalidProtocolBufferException e) {
            e.printStackTrace();
        }
    }

    /**
     * 保存插入语句
     *
     * @param entry
     */
    private void saveInsertSql(Entry entry) {
        try {
            RowChange rowChange = RowChange.parseFrom(entry.getStoreValue());
            List<RowData> rowDatasList = rowChange.getRowDatasList();
            for (RowData rowData : rowDatasList) {
                List<Column> columnList = rowData.getAfterColumnsList();
                StringBuffer sql = new StringBuffer("insert into " + entry.getHeader().getTableName() + " (");
                for (int i = 0; i < columnList.size(); i++) {
                    sql.append(columnList.get(i).getName());
                    if (i != columnList.size() - 1) {
                        sql.append(",");
                    }
                }
                sql.append(") VALUES (");
                for (int i = 0; i < columnList.size(); i++) {
                    sql.append("'" + columnList.get(i).getValue() + "'");
                    if (i != columnList.size() - 1) {
                        sql.append(",");
                    }
                }
                sql.append(")");
                SQL_QUEUE.add(sql.toString());
            }
        } catch (InvalidProtocolBufferException e) {
            e.printStackTrace();
        }
    }

    /**
     * 入库
     * @param sql
     */
    public void execute(String sql) {
        Connection con = null;
        try {
            if(null == sql) return;
            con = dataSource.getConnection();
            QueryRunner qr = new QueryRunner();
            int row = qr.execute(con, sql);
            System.out.println("update: "+ row);
        } catch (SQLException e) {
            e.printStackTrace();
        } finally {
            DbUtils.closeQuietly(con);
        }
    }
}

验证效果

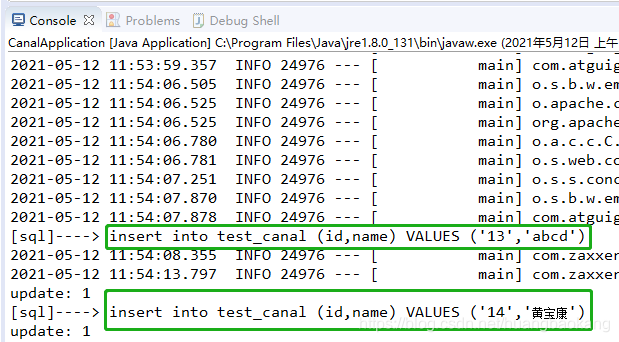

我们在zhanggong_tmp数据库的test_canal表记录增加数据，可以看到程序控制台输出

如上，说明使用canal数据同步成功。

遇到的问题

插入中文乱码，需要针对mysql设置utf8的编码。
因为配置的为UTF-8

my.cnf

[mysqld]
character-set-server=utf8
collation-server=utf8_general_ci

[client]
default-character-set=utf8

[mysql]
default-character-set=utf8
